iseries database files
iSeries Database Files
  • Physical Files *FILE PF-DTA
  • Logical Files *FILE LF
physical files

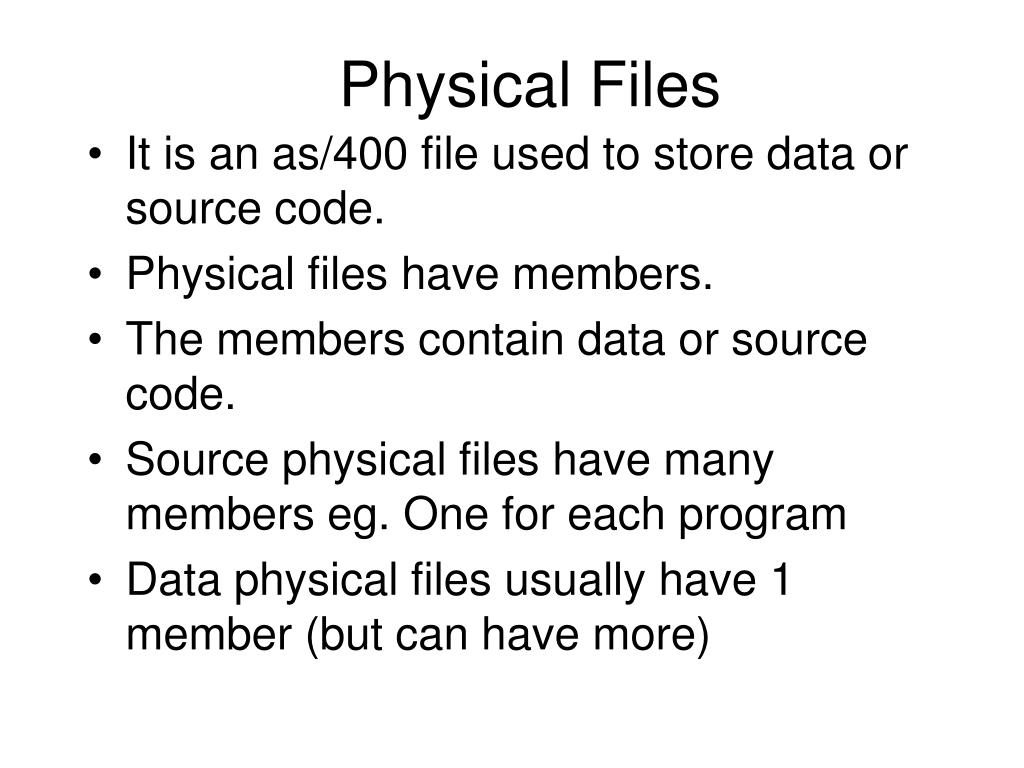

Physical Files
  • It is an as/400 file used to store data or source code.
  • Physical files have members.
  • The members contain data or source code.
  • Source physical files have many members eg. One for each program
  • Data physical files usually have 1 member (but can have more)
data files files records fields

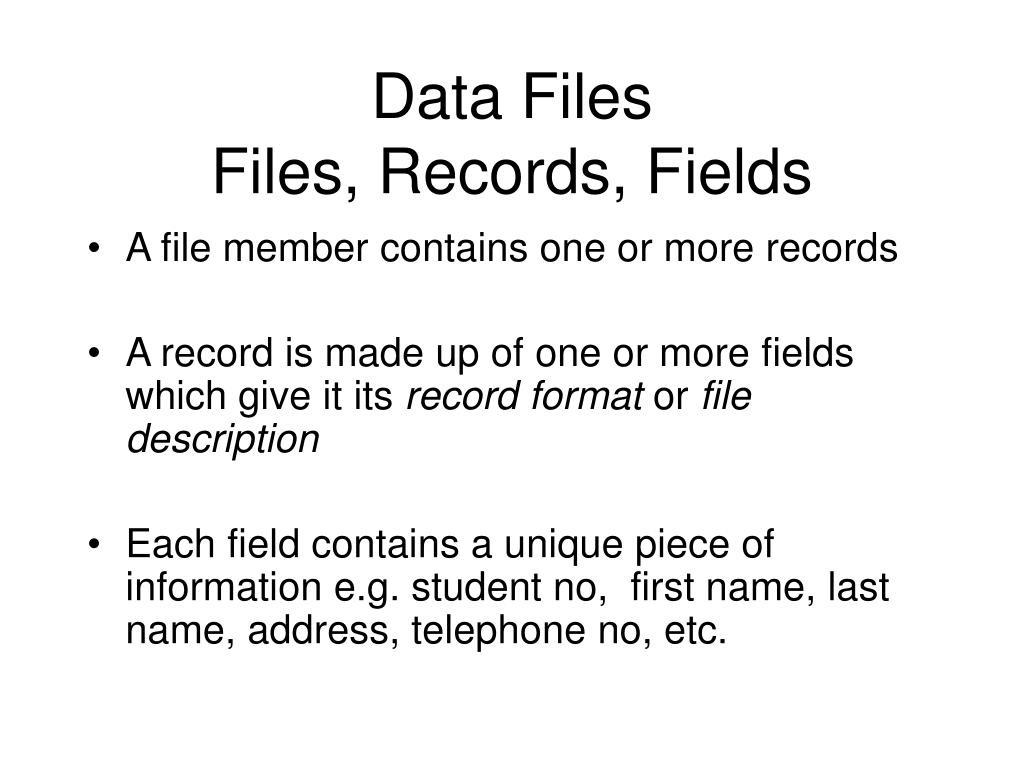

Data FilesFiles, Records, Fields
  • A file member contains one or more records
  • A record is made up of one or more fields which give it its record format or file description
  • Each field contains a unique piece of information e.g. student no, first name, last name, address, telephone no, etc.
examples of files records fields
Examples of Files, Records, Fields
  • A customer file is made up of customer records (1 per customer).
  • Each customer record has fields containing unique pieces of info about a particular customere.g. customer name, address, sales territory,billing info, shipping instructions,credit information
  • Student file - student records (1 per student)- student info: name, address...
more examples of files records fields
More Examples of Files, Records, Fields
  • Parts file - parts records - info about part:part number, description, warehouse location, supplier, quantity on hand,
  • Payroll file - payroll records - payroll info for employees: employee number, name, date of hire, hourly or salary, hourly rate or annual salary, income tax info….
creating physical data files
Creating Physical Data Files
  • Creating an AS/400 data file is very similar to creating a program:
    • Write the source code (the source code will describe what the file will look like). The source code is stored in a member in a source file.
    • Compile the source code (this creates a *file object).
tools for describing database files
Tools for Describing Database Files
  • Data Description Specifications (DDS)
    • AS/400 language to create source code for Files
  • Others:
    • SQL (Structured Query Language), (you will do this in DB2 course)
using dds
Using DDS
  • Source code is entered into a source physical file member in the form of DDS statements. This is done using the iSeries editor SEU
  • The DDS statements describe each field of the record in detail e.g. field name, data type (numeric, character, packed numeric, etc), standard column headings, etc.
  • The source file for DDS is QDDSSRC.
example of dds

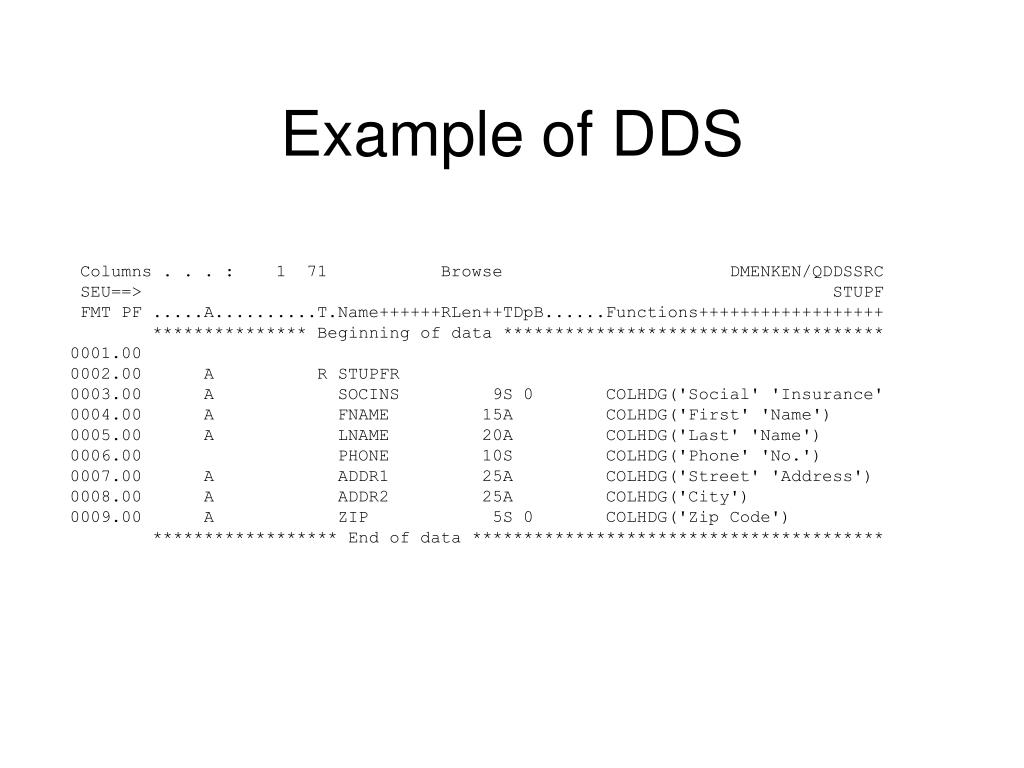

Example of DDS

Columns . . . : 1 71 Browse DMENKEN/QDDSSRC

SEU==> STUPF

FMT PF .....A..........T.Name++++++RLen++TDpB......Functions++++++++++++++++++

*************** Beginning of data *************************************

0001.00

0002.00 A R STUPFR

0003.00 A SOCINS 9S 0 COLHDG('Social' 'Insurance'

0004.00 A FNAME 15A COLHDG('First' 'Name')

0005.00 A LNAME 20A COLHDG('Last' 'Name')

0006.00 PHONE 10S COLHDG('Phone' 'No.')

0007.00 A ADDR1 25A COLHDG('Street' 'Address')

0008.00 A ADDR2 25A COLHDG('City')

0009.00 A ZIP 5S 0 COLHDG('Zip Code')

****************** End of data ****************************************

creating a database file
Creating a Database File
  • Create the source file (CRTSRCPF) which is named QDDSSRC (only done once)
  • Create a source member, type PF
  • Enter the source code using SEU
  • Save source code and compile to create the file
  • Put data into the file.
slide12
The source type:
    • tells SEU what type of source you are creating e.g. TXT, PF, LF, etc. Used for prompting and checking the syntax
    • will tell PDM which compiler to use when creating the object.
entering dds code
Entering DDS code
  • First statement is the Record Format statement. Put an R in the Name Type field and the record name in the Name field.
  • Then enter the field info (field name, length, data type, decimal positions, standard column heading) (nothing in Name Type field)
compiling the source code
Compiling the Source Code
  • CRTPF command or Option 14 in PDMtakes the source code and creates the object i.e. the physical filethe physical file is what holds the data
how do you know if the compile worked

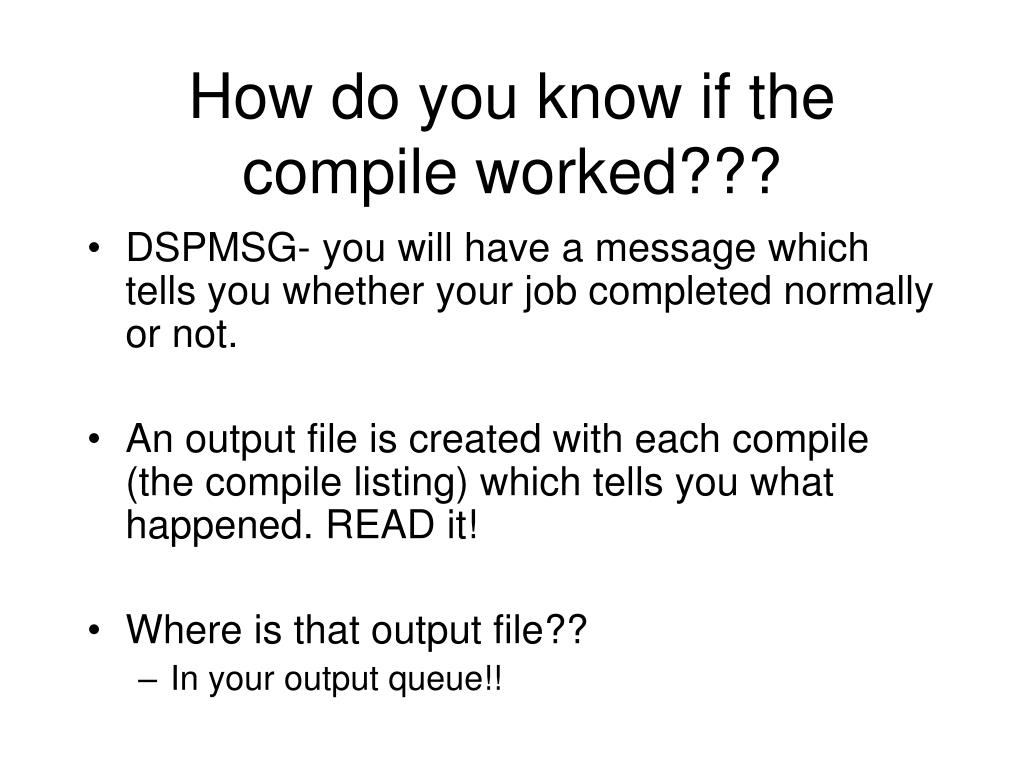

How do you know if the compile worked???
  • DSPMSG- you will have a message which tells you whether your job completed normally or not.
  • An output file is created with each compile (the compile listing) which tells you what happened. READ it!
  • Where is that output file??
    • In your output queue!!
question
Question!
  • If the compile ended abnormally, what do you do? How can you find out why?
unique feature of iseries files
Unique feature of iSeries Files
  • The record description is stored with the file object (externally described file)
  • It can then be used by iSeries utilities
  • The record description does not have to be coded in programs that use it.
  • Can be viewed using DSPFD, DSPFFD
entering data
Entering data
  • If the compile was successful, you will have a new object in your library, a physical file.
  • To enter data into that file, use DFU, Data File Utility
slide20

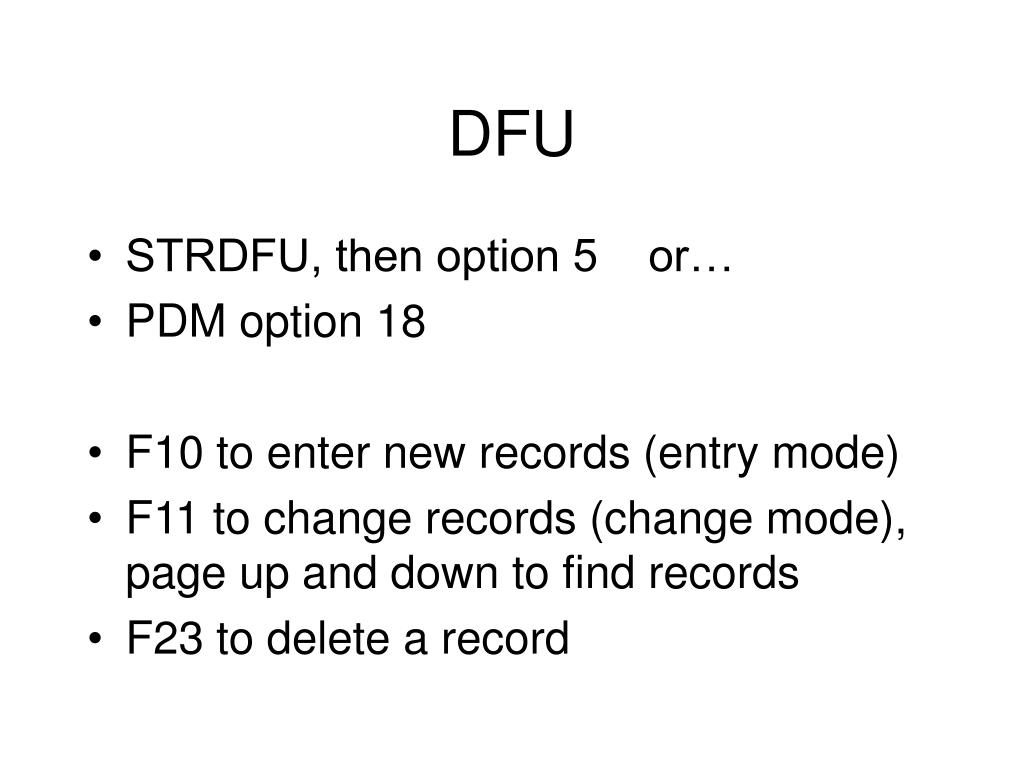

DFU
  • STRDFU, then option 5 or…
  • PDM option 18
  • F10 to enter new records (entry mode)
  • F11 to change records (change mode), page up and down to find records
  • F23 to delete a record
viewing records
Viewing records
  • RUNQRY QRYFILE(filename)
  • DSPPFM filename
