Presentation Transcript

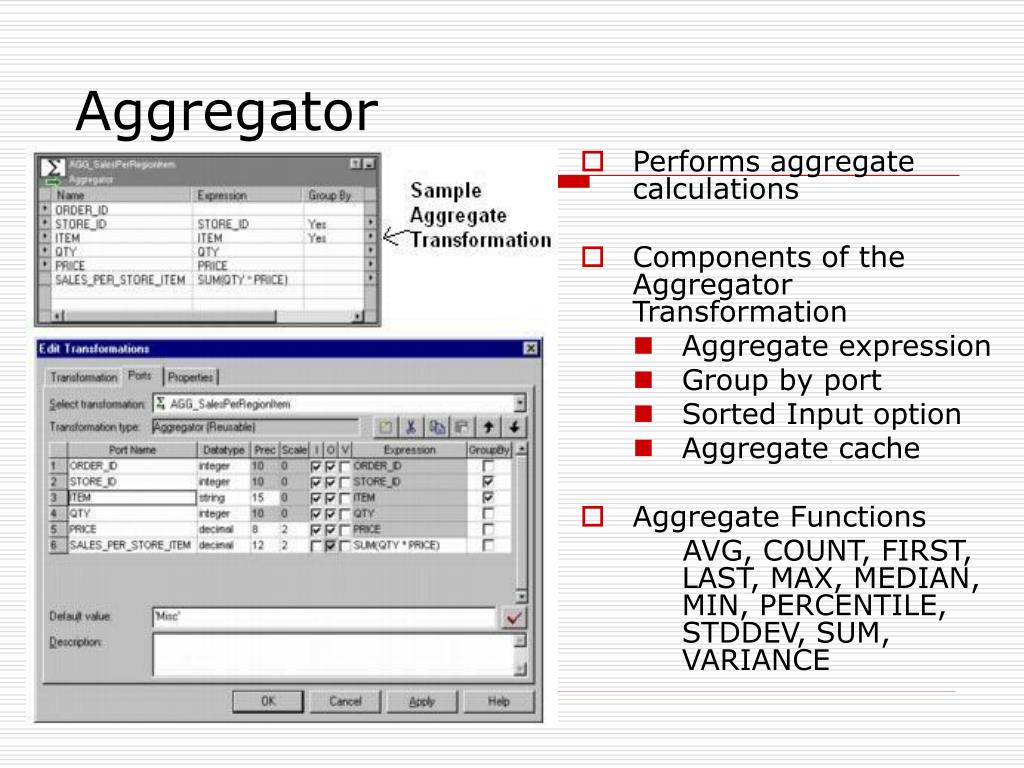

  1. Aggregator • Performs aggregate calculations • Components of the Aggregator Transformation • Aggregate expression • Group by port • Sorted Input option • Aggregate cache • Aggregate Functions AVG, COUNT, FIRST, LAST, MAX, MEDIAN, MIN, PERCENTILE, STDDEV, SUM, VARIANCE

  2. Filter • It provides the means for filtering rows in a mapping • All ports in a Filter transformation are input/output • Only rows that meet the condition pass through it • Cannot concatenate ports from more than one transformation into the Filter transformation • To maximize session performance, include the Filter transformation as close to the sources in the mapping as possible • Does not allow setting output default values

  3. Router • A Router transformation tests data for one or more conditions and gives the option to route rows of data that do not meet any of the conditions to a default output group • There are two types of output groups: • User-defined groups • Default group • Create one user-defined group for each condition that you want to specify

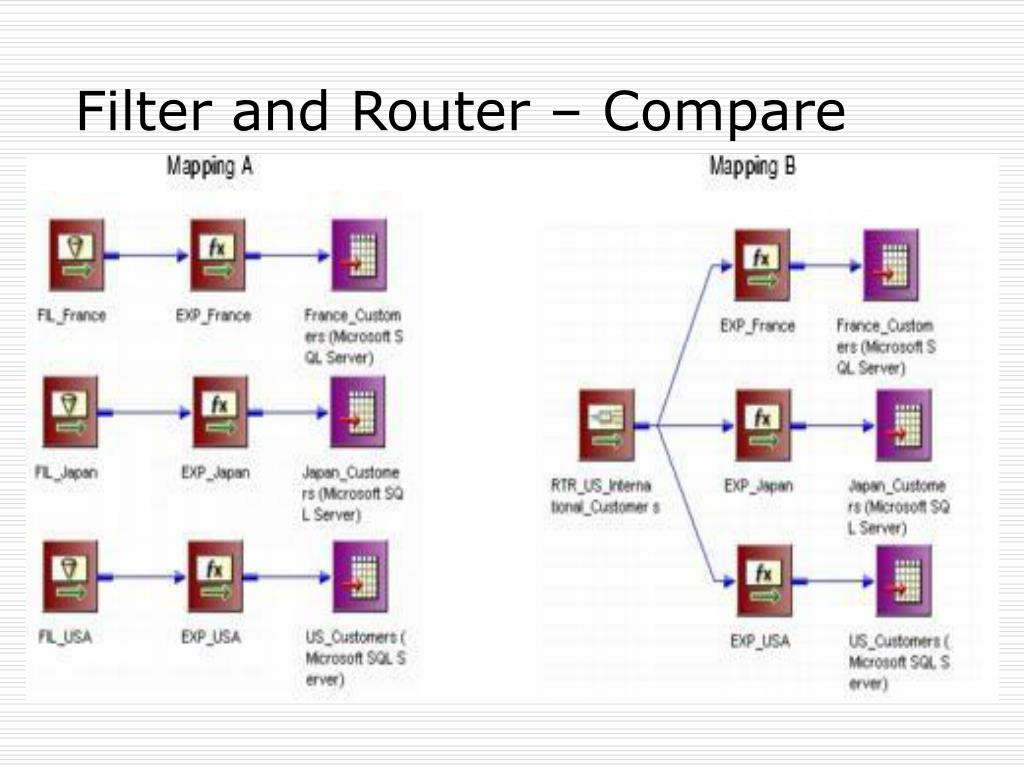

  4. Filter and Router – Compare

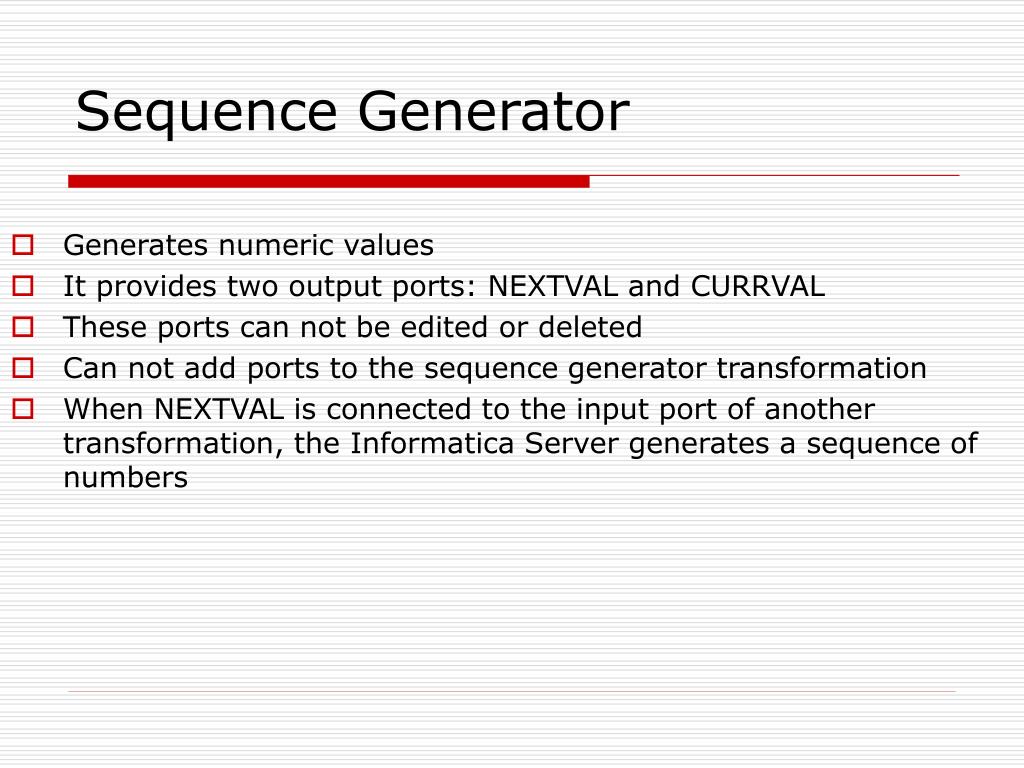

  5. Sequence Generator • Generates numeric values • It provides two output ports: NEXTVAL and CURRVAL • These ports can not be edited or deleted • Can not add ports to the sequence generator transformation • When NEXTVAL is connected to the input port of another transformation, the Informatica Server generates a sequence of numbers

  6. Stored Procedure Transformation • A Stored Procedure transformation is • an important tool for populating and maintaining databases • a precompiled collection of Transact-SQL statements and optional flow control statements, similar to an executable script • used to call a stored procedure • The stored procedure must exist in the database before creating a Stored Procedure transformation • One of the most useful features of stored procedures is the ability to send data to the stored procedure, and receive data from the stored procedure • There are three types of data that pass between the Informatica Server and the stored procedure: • Input/Output parameters - For many stored procedures, you provide a value and receive a value in return • Return values - Most databases provide a return value after running a stored procedure • Status codes - Status codes provide error handling for the Informatica Server during a session

  7. Sorter • A Sorter Transformation is used to sort Data. • Types of Sorting: • Ascending/Descending • Case Sensitive - Does Case sensitive ascending or descending sort. • Distinct - Gives distinctly sorted output rows. • A sorter can be used to sort data from a Relational Source or a Flat file. The Sort key has to be specified based on which the sort would be done.
