Textile Balance

<br>Textile Balance is a high-precision load cell sensor with a compact design. Designed with an LCD display with a 110 (99.5 D) g capacity. The all-four-sided glass<br>shield design offers protection to the weighing sample so it can weigh accurately as standard.

kibmer
Download Presentation

Textile Balance

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

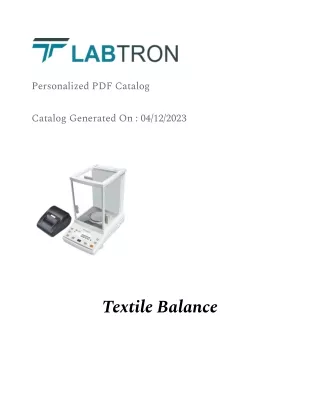

  1. Personalized PDF Catalog Catalog Generated On : 04/12/2023 Textile Balance

  2. https://www.labtron.info/ info@labtron.info | Description : Textile Balance is high precision load cell sensor with compact design. Designed with LCD display with 110 (99.5 D) g capacity. The all four sides glass shield design offers protection to the weighing sample to weigh accurately as standard. Features with multi weighing unit conversation g, oz, Tex, Nm, Ne, D, g/m2, oz square yard. It offers RS232C Interface easy operation and used in textile enterprises, scientific research institutions etc. Specifications :

  3. Capacity 110 (99.5 D) g Test Raw silk sample Cal. 100 g Weight Resolutio 0.001 (0.5 D) g n Sensor Load cell Min 0.004 g weighing

  4. LCD (white back light with Display black font) Pan size Diameter 90 mm Operation 5 to 25°C temp. Repeat ± 0.002 g ability Linear ± 0.003 g Interface RS-232C

  5. Dimensio 240 × 190 × 265 mm n Packing dimensio 475 × 315 × 485 mm n Unit Print out test report g, oz, mode Tex, Nm, Ne, D, g/m2, oz/yd2 Power 110 to 240 V Gross 8.5 kg weight

  6. Features : Suitable for testing all kinds raw silk Conversion of seven textile units g, oz, Tex, Nm, Ne, D, g/m2, oz square yard Work under ambient temperature range 5 to 25°C

  7. Offers 90 mm diameter pan for weighing It setups time, date, yarn blend code and sample length Designed with load cell sensor LCD display with white back light and black font Stores up to 100 groups of data

  8. Print statistics for each weighing value and maximum (Max), minimum (Min), average value (AV), and Uneven rate (CV) Equipped with external calibration, windshield and printer to print results Applications :

  9. Textile Balance is used in the department for textile enterprises, scientific research institutions, universities etc.

  10. www.labtron.info Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom

  11. Email: info@labtron.info | Website: https://www.labtron.info/ | Phone: +44 2080 043 608
