Automatic Dielectric Tester

Automatic Dielectric Tester is a fully automatic oil tester. The oil tester adopts industrial SCM to control which is applied to integrate circuit. <br>It features anti-jamming technology which largely improves the machine capacity.

kibmer
Download Presentation

Automatic Dielectric Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

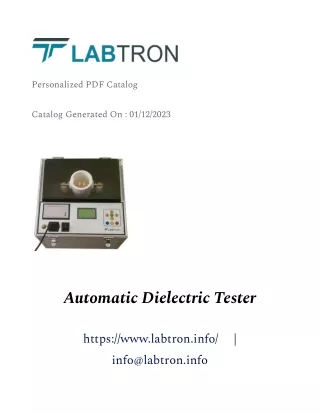

  1. Personalized PDF Catalog Catalog Generated On : 01/12/2023 Automatic Dielectric Tester https://www.labtron.info/ info@labtron.info |

  2. Description : Automatic Dielectric Tester is a fully automatic oil tester. The oil tester adopts industrial SCM to control which is applied to integrate circuit. It features anti-jamming technology which largely improves the machine capacity. Specifications : Capacity 2.0 kVA Speed of voltage 2 k V/ s increase Voltage inspection 0.01 accuracy

  3. Breakdown < 0.1 kV sensitivity Waveform ≤ 1 % distortion Breakdown ≤ 10 MS response time Polar distance 2.5 mm Temperature: 0 ℃ -40 ℃ Storage environment Humidity: Max. relative humidity 85%

  4. Temperature: - 20 ℃ - 60 ℃ Power supply Humidity: Max. relative humidity 75% AC 220 V ± 10 %, 50 Hz / Output voltage 60 Hz Dimension 60 kV 380mm × 380mm × Weight 380mm

  5. Features : Easy operation, high automation Auto boosting Menu management, data input simple and convenient Store 99 data of oil sampling tests for review and print The clock is still on a?er power off

  6. Strong anti-interference, high precision testing Small measurement, light weight, convenient for outdoor operation The so?ware can be upgraded through RS232 terminal The test data can be saved even the power is off Applications :

  7. Used to test the insulating oil’s dielectric strength www.labtron.info

  8. Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.info | Website: https://www.labtron.info/ | Phone: +44 2080 043 608
