GIS In NWS

Kari Sheets

NWS GIS/Geospatial Project Lead

OST

Ira Graffman

SEC GIS Focal Point

OST

overview of what s happening in nws
Overview of What’s Happening in NWS
  • Over 300 users of GIS in NWS
    • Representing all classes of GIS
      • Desktop, Server, and Mobile
    • Collaborate via email listserve
    • Regional representatives meet monthly via telecon
  • GIS formatted data (shapefiles) used as map backgrounds for AWIPS
  • Prototypes for server and mobile applications
  • National project to set-up governance & coordination of national projects (OSIP 06-003)
desktop gis

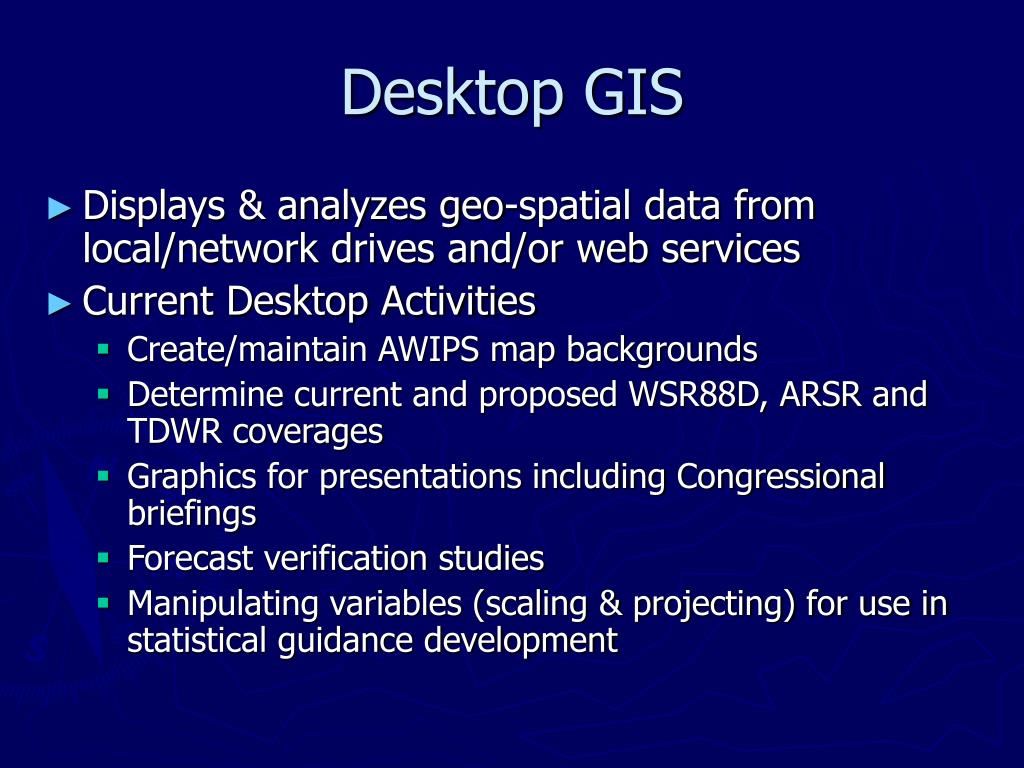

Desktop GIS
  • Displays & analyzes geo-spatial data from local/network drives and/or web services
  • Current Desktop Activities
    • Create/maintain AWIPS map backgrounds
    • Determine current and proposed WSR88D, ARSR and TDWR coverages
    • Graphics for presentations including Congressional briefings
    • Forecast verification studies
    • Manipulating variables (scaling & projecting) for use in statistical guidance development
server gis
Server GIS
  • Provides users with data which can be:
    • Displayed & or queried in a web portal
    • Downloaded and ingested into client’s GIS
    • Used for custom Decision Support applications
  • “Web Services” are the predominate request for weather data by customers & partners visiting NOAA booths at technical conferences
  • Current/Planned Server Activities
    • WMS Service as backend will be used to deliver RIDGE data in version II

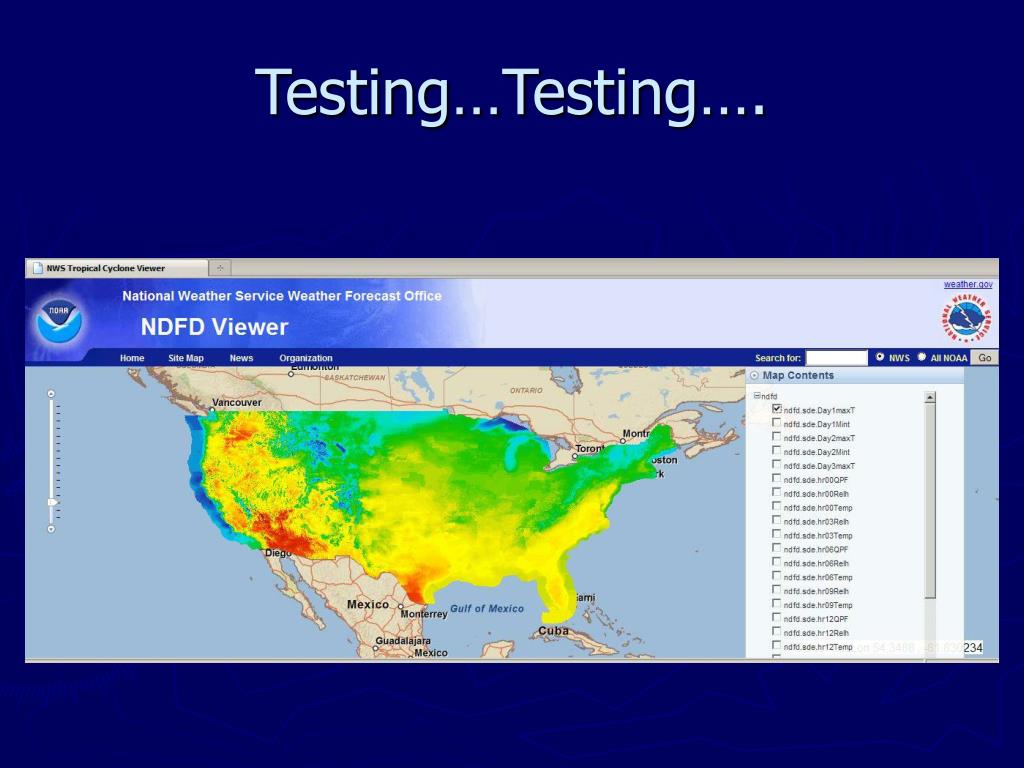

    • NDFD prototype
basic server data flow

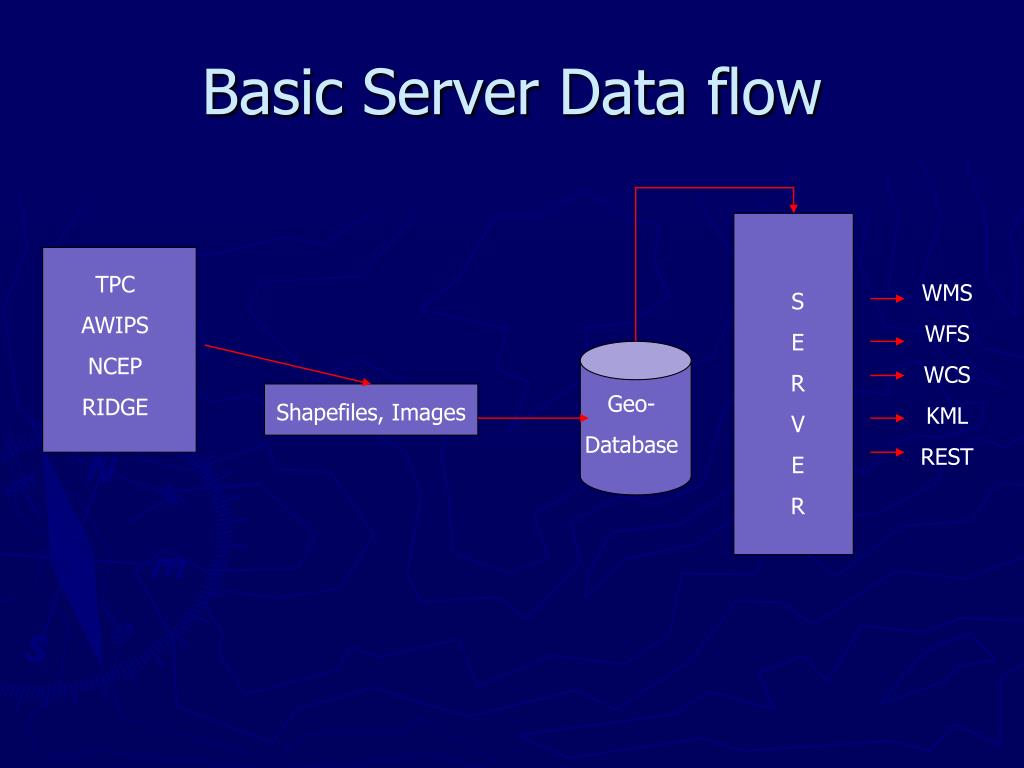

Basic Server Data flow

TPC

AWIPS

NCEP

RIDGE

WMS

WFS

WCS

KML

REST

S

E

R

V

E

R

Geo-

Database

Shapefiles, Images

current server activities

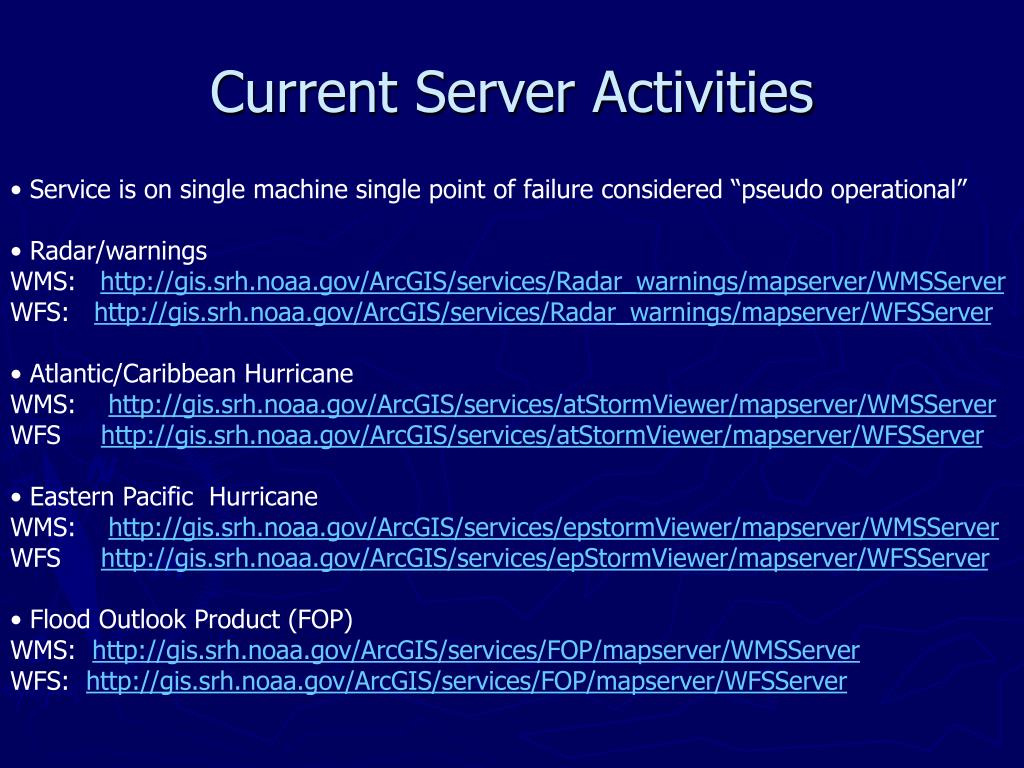

Current Server Activities
  • Service is on single machine single point of failure considered “pseudo operational”
  • Radar/warnings WMS:   http://gis.srh.noaa.gov/ArcGIS/services/Radar_warnings/mapserver/WMSServerWFS:   http://gis.srh.noaa.gov/ArcGIS/services/Radar_warnings/mapserver/WFSServer

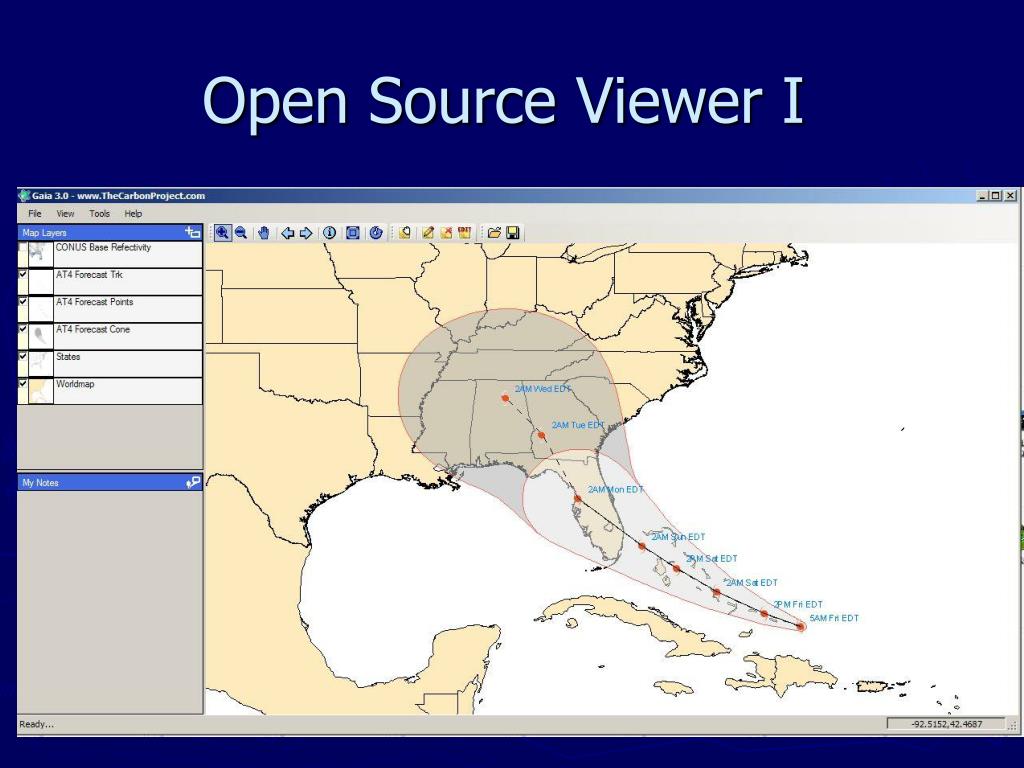

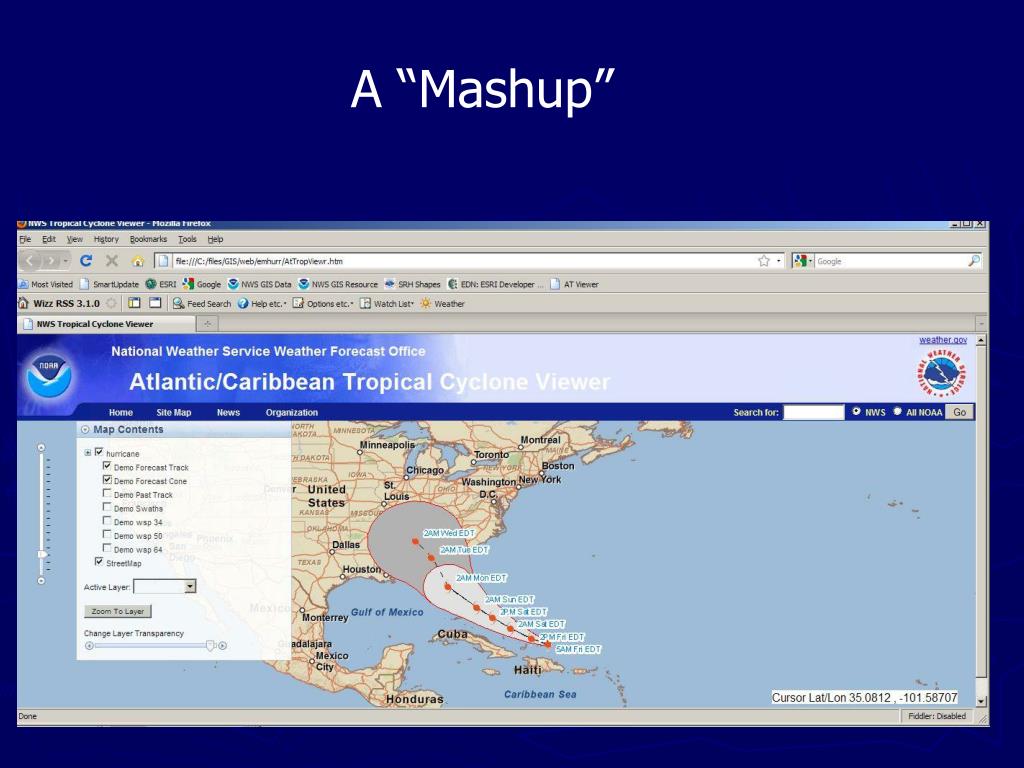

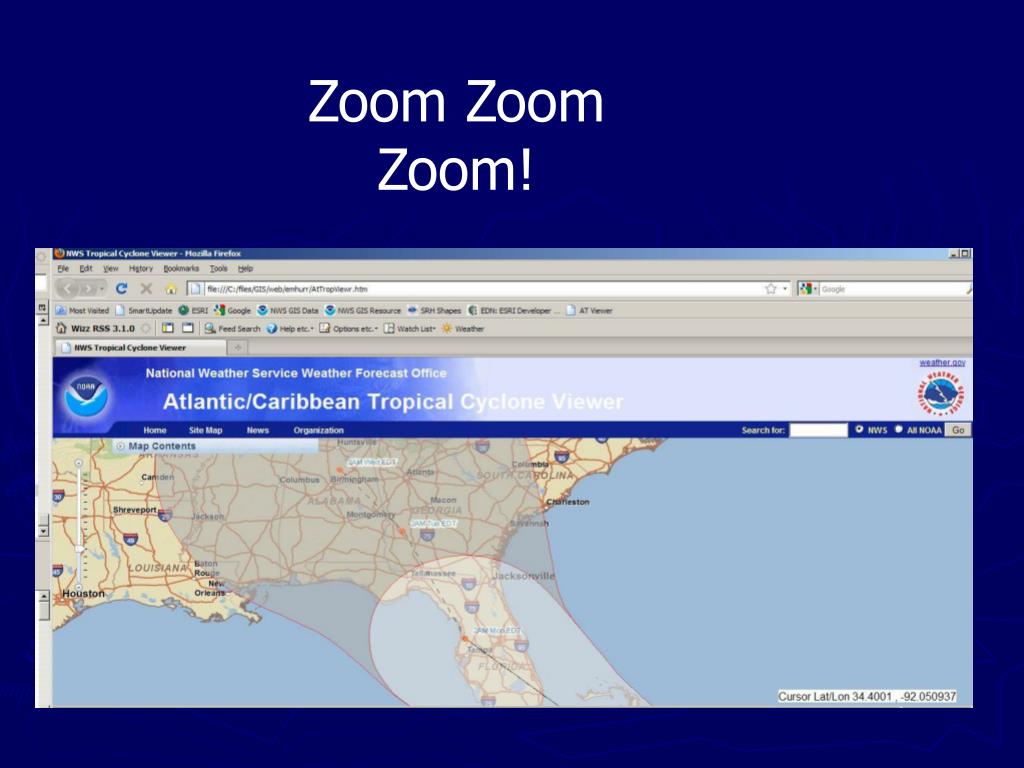

  • Atlantic/Caribbean Hurricane WMS:    http://gis.srh.noaa.gov/ArcGIS/services/atStormViewer/mapserver/WMSServerWFS     http://gis.srh.noaa.gov/ArcGIS/services/atStormViewer/mapserver/WFSServer
  • Eastern Pacific  Hurricane
  • WMS:    http://gis.srh.noaa.gov/ArcGIS/services/epstormViewer/mapserver/WMSServerWFS     http://gis.srh.noaa.gov/ArcGIS/services/epStormViewer/mapserver/WFSServer
  • Flood Outlook Product (FOP) WMS:  http://gis.srh.noaa.gov/ArcGIS/services/FOP/mapserver/WMSServerWFS:  http://gis.srh.noaa.gov/ArcGIS/services/FOP/mapserver/WFSServer
current data flow

Ad-Hoc

GIS Team

GIS Mailing List

Internet

Access

Data in OGC Compliant format

WFS

WCS

WMS

KML

Legend

Informal/undefined

connection/relationship

Formal/defined

connection/relationship

Source for technical help

Current Data Flow

CR Storm Damage Assessment

CR Situational Awareness

WR NDFD Shapefile downloads

Misc projects at WFO/RFC

Watch/Warning Polygons

NWS

Shapefiles

IRIS

Project(s)

Enterprise GIS in

NWS OSIP project

Climate Outlook

NDFD

Watches/warnings

Radar

Hurricane Tracks

Geospatial

Database

For GIS Web Apps

GIS Applications:

Web Service Software, Local GIS Desktop Apps, etc.

Customers

DHS,

USDA,

National

Guard (VA),

etc.

desired data flow

Offices using

AWIPS

work stations

Internet

Access

Legacy

Storage

Data in OGC Compliant format

WFS

WCS

WMS

KML

Legacy

Apps

Geo-database

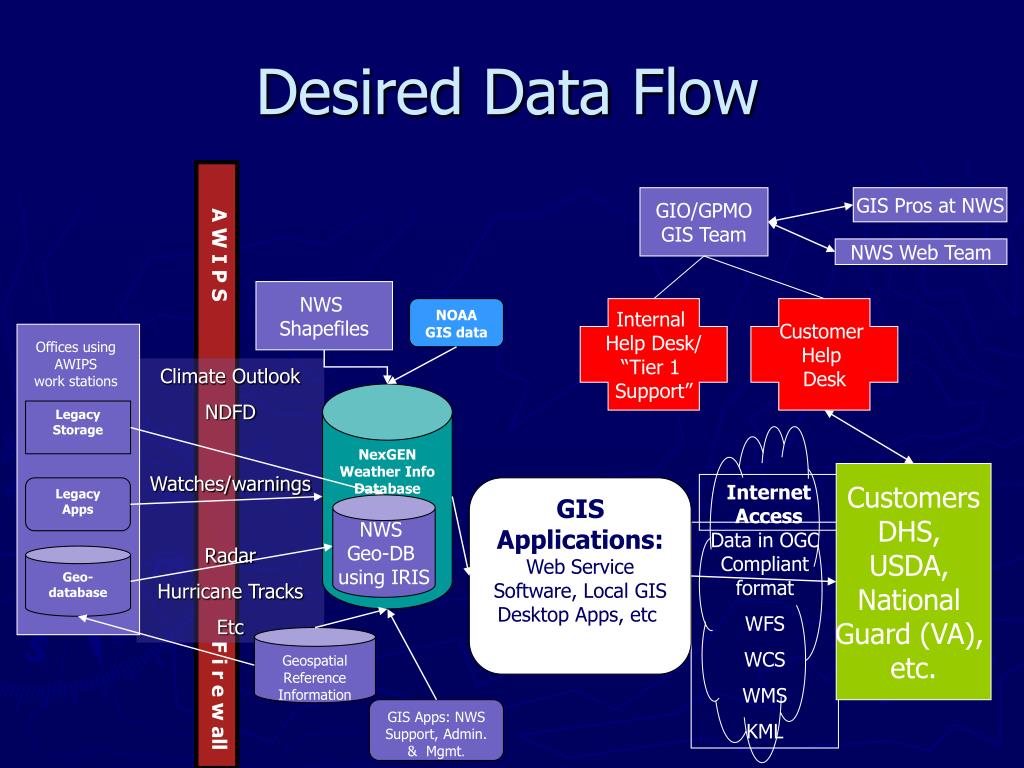

Desired Data Flow

GIO/GPMO

GIS Team

GIS Pros at NWS

NWS Web Team

NWS

Shapefiles

NOAA

GIS data

Internal

Help Desk/

“Tier 1

Support”

Customer

Help

Desk

Climate Outlook

NDFD

Watches/warnings

Radar

Hurricane Tracks

Etc

NexGEN

Weather Info

Database

A W I P S F i r e w all

Customers

DHS,

USDA,

National

Guard (VA),

etc.

GIS Applications:

Web Service Software, Local GIS Desktop Apps, etc.

NWS

Geo-DB

using IRIS

Geospatial Reference Information

GIS Apps: NWS Support, Admin. & Mgmt.

how do we get there

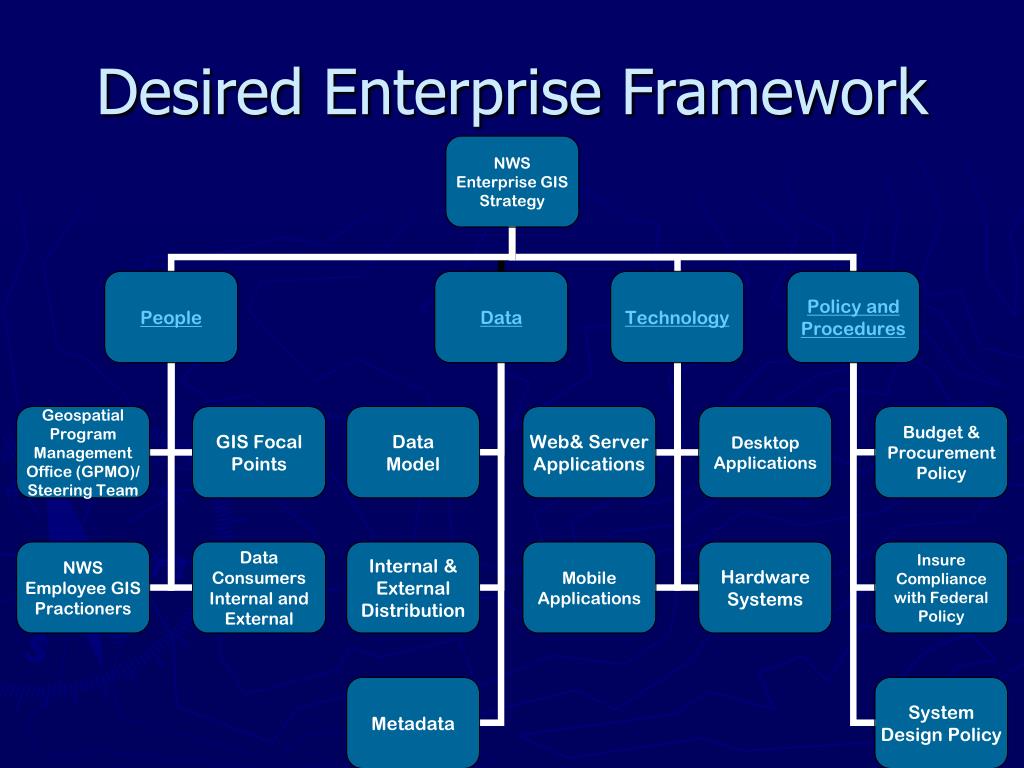

How do we get there?
  • Establish/Formalize National GIS Team
  • Budget & other process to establish program office
    • Failed to make IAT list for FY12
    • Data portion request was submitted as part of FY12 GAP
  • Set up & Implement change management process for GIS projects
  • Build server with guidelines adhering to NWS web/internet & weather enterprise directives
  • Document requirements for systems
  • Stand-up Help Desks
  • Work w/NexGen WIDB team to satisfy their GIS requirements
current server users
Current Server users
  • Department of Homeland Security
    • National Communications System
    • Office of Infrastructure Protection
    • Icav
    • FEMA
  • Environmental Protection Agency
    • Air Quality
  • New Mexico Department of Transportation
      • Big REST advocate
  • Dept Health and Human Services
      • (HRSA)
other data websites

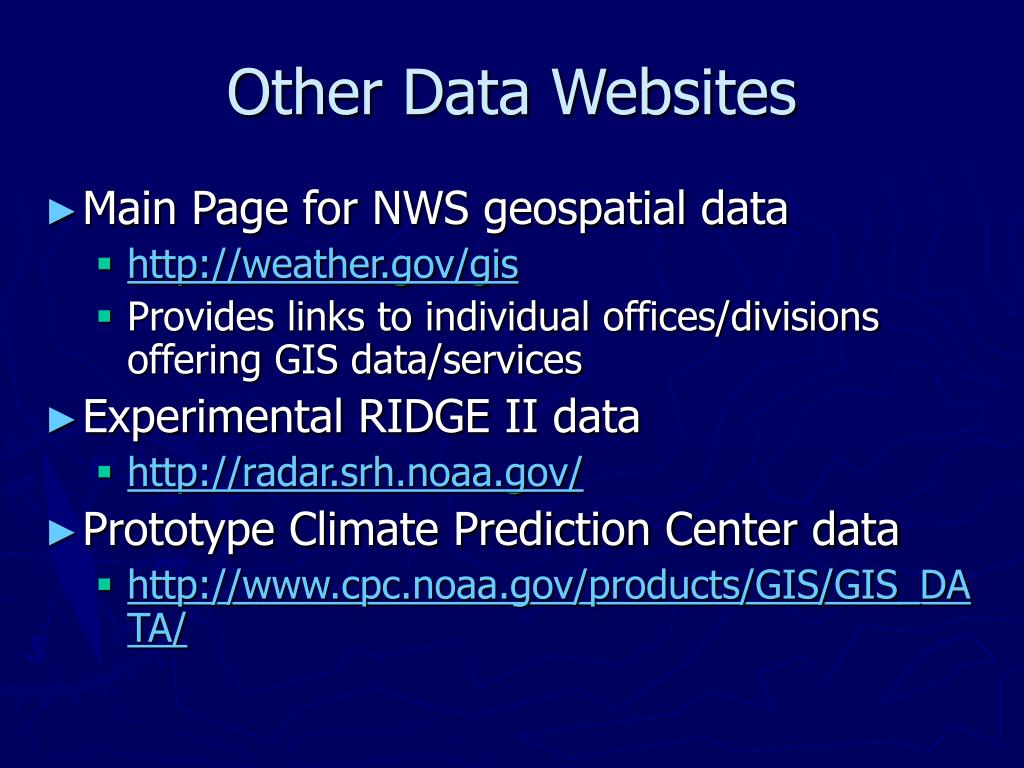

Other Data Websites
  • Main Page for NWS geospatial data
    • http://weather.gov/gis
    • Provides links to individual offices/divisions offering GIS data/services
  • Experimental RIDGE II data
    • http://radar.srh.noaa.gov/
  • Prototype Climate Prediction Center data
    • http://www.cpc.noaa.gov/products/GIS/GIS_DATA/
