  1. FO Small Distributors The interface between the public and the private network

  2. Overview • R&M OptoCon12 • R&M OptoCon24 • R&M FiberCon48 • R&M CT12

  3. The compact way to terminate fibers R&M OptoCon12 • Up to 12 FO terminations • Convenient splicing on working table thanks to the generously designed loose tubes storage • Absolutely compact construction • Lockable splicing and connector sections against unauthorized access

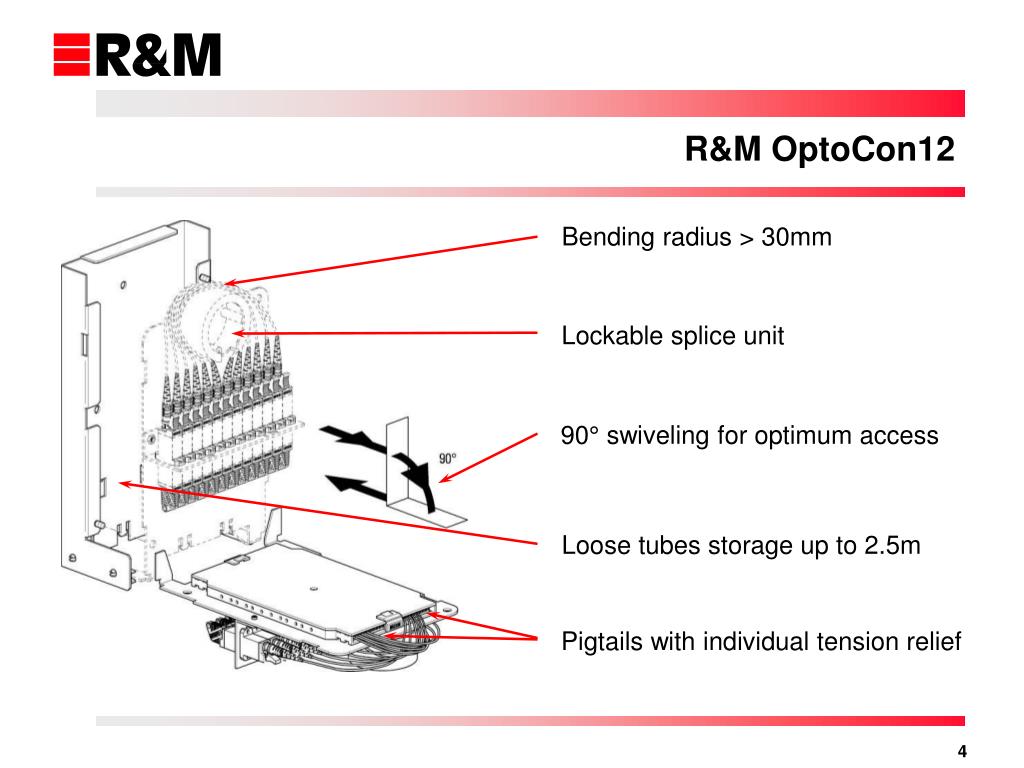

  4. Bending radius> 30mm Lockable splice unit 90° swiveling for optimum access Loose tubes storage up to 2.5m Pigtails with individual tension relief R&M OptoCon12

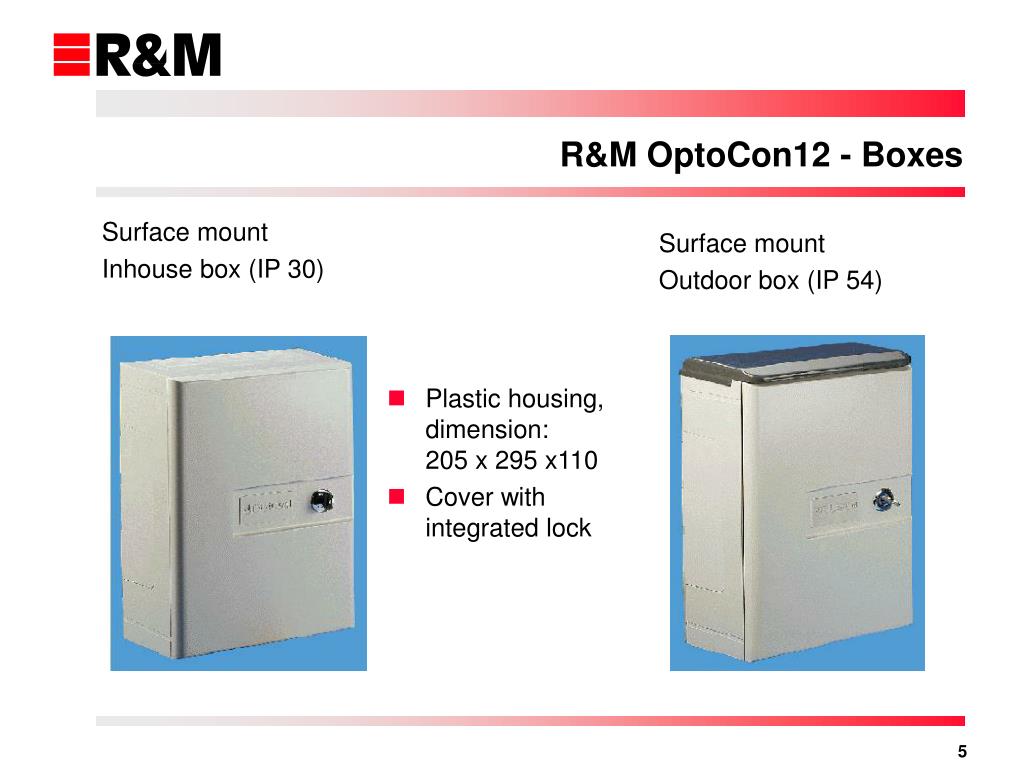

  5. Surface mount Inhouse box (IP 30) Surface mount Outdoor box (IP 54) R&M OptoCon12 - Boxes • Plastic housing, dimension: 205 x 295 x110 • Cover with integrated lock

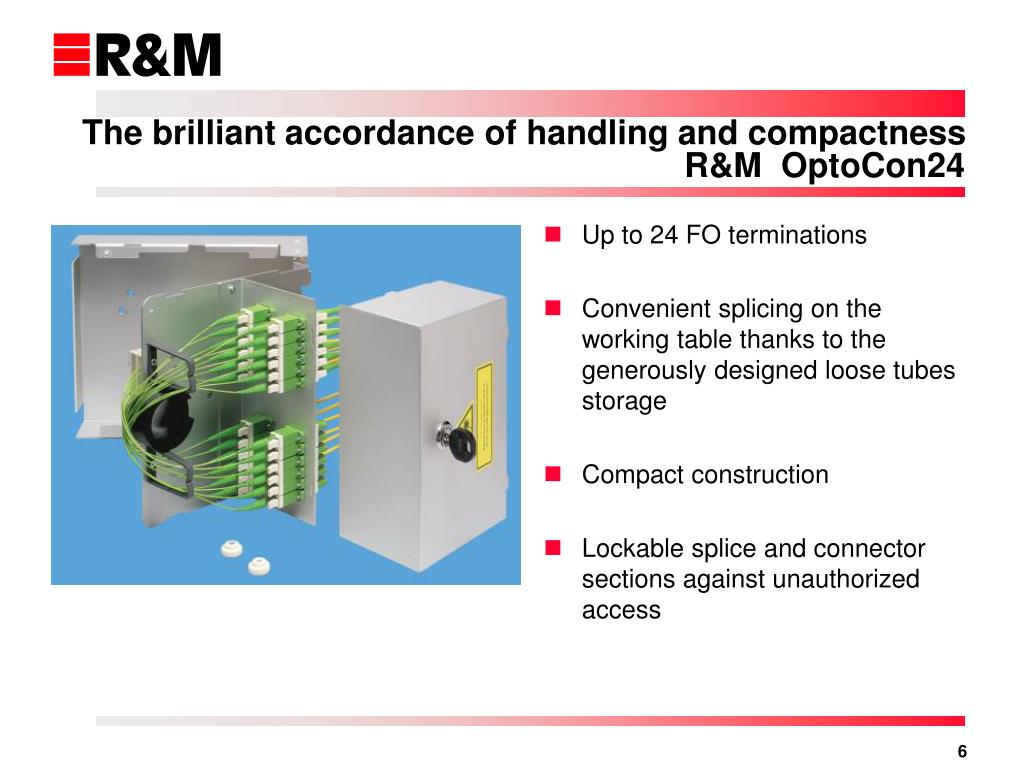

  6. The brilliant accordance of handling and compactness R&M OptoCon24 • Up to 24 FO terminations • Convenient splicing on the working table thanks to the generously designed loose tubes storage • Compact construction • Lockable splice and connector sections against unauthorized access

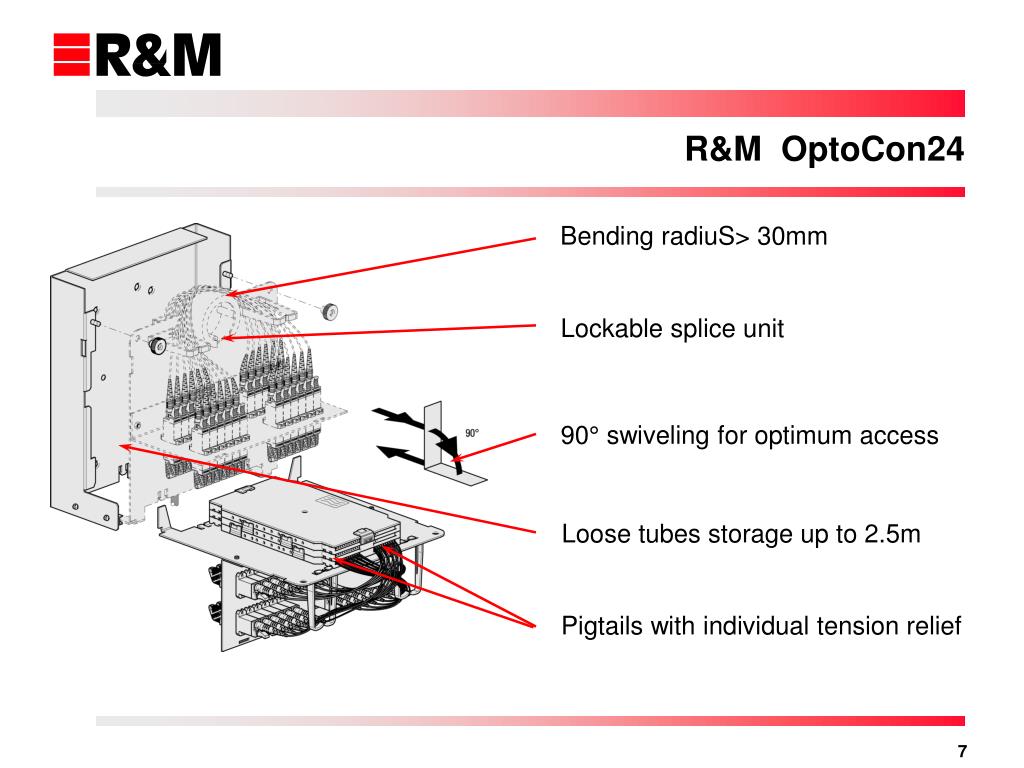

  7. Bending radiuS> 30mm Lockable splice unit 90° swiveling for optimum access Loose tubes storage up to 2.5m Pigtails with individual tension relief R&M OptoCon24

  8. R&M OptoCon24 Boxes • Comfortable working conditions thanks to practical two-part division • Cable entry through PG screw closures • Patch Cord entry through a brush • Screw thread for VS Compact Module provided (1x10 or 20 pairs) • Steel sheet housing with safety lock • Dimensions: 400 x 300 x 150 Surface mount Inhouse Box(IP43)

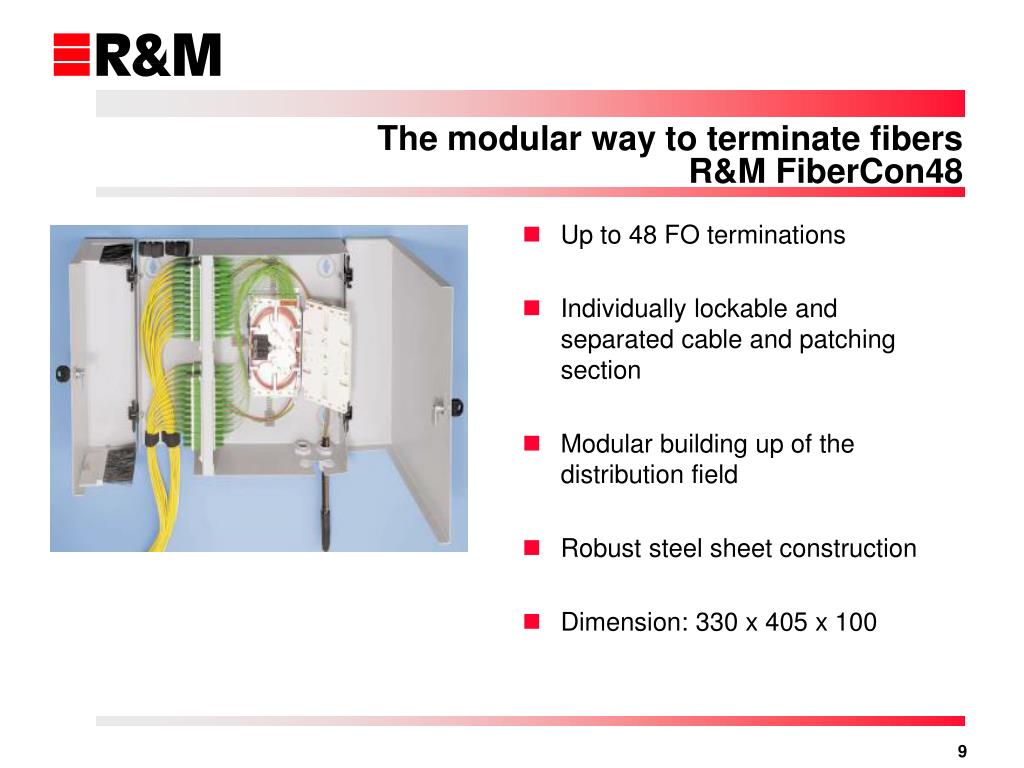

  9. The modular way to terminate fibersR&M FiberCon48 • Up to 48 FO terminations • Individually lockable and separated cable and patching section • Modular building up of the distribution field • Robust steel sheet construction • Dimension: 330 x 405 x 100

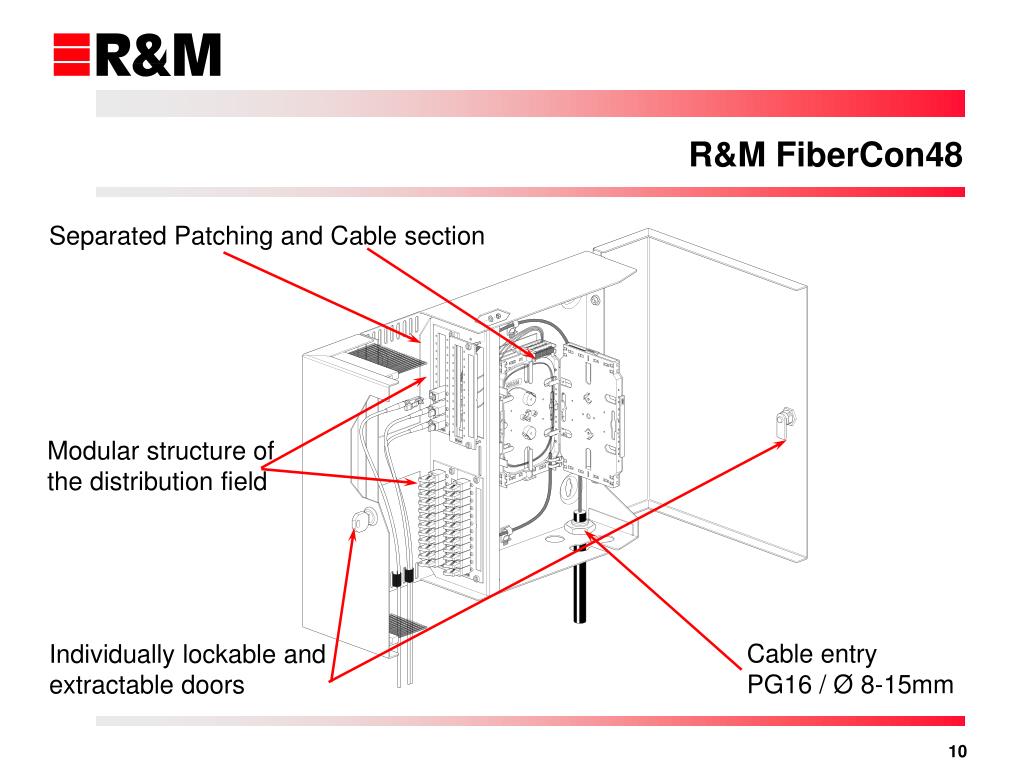

  10. Separated Patching and Cable section Modular structure of the distribution field Cable entry PG16 / Ø 8-15mm Individually lockable and extractable doors R&M FiberCon48

  11. The ‘’elderly‘’ genius - R&M CT12 • Optimum accessibility to the pigtail and loose tubes reserve • Convenient installing into R&M mounting channels • FO extensions in existing Copper Channels (MDF’s)

  12. Mounting channel type D CT12 completely mounted Up to 12 FO terminations Loose tubes storage up to 2.5m Bending radius >30mm R&M CT12 160 120
