Guide to programming with python

Guide to Programming with Python

Chapter Six

Functions: The Tic-Tac-Toe Game

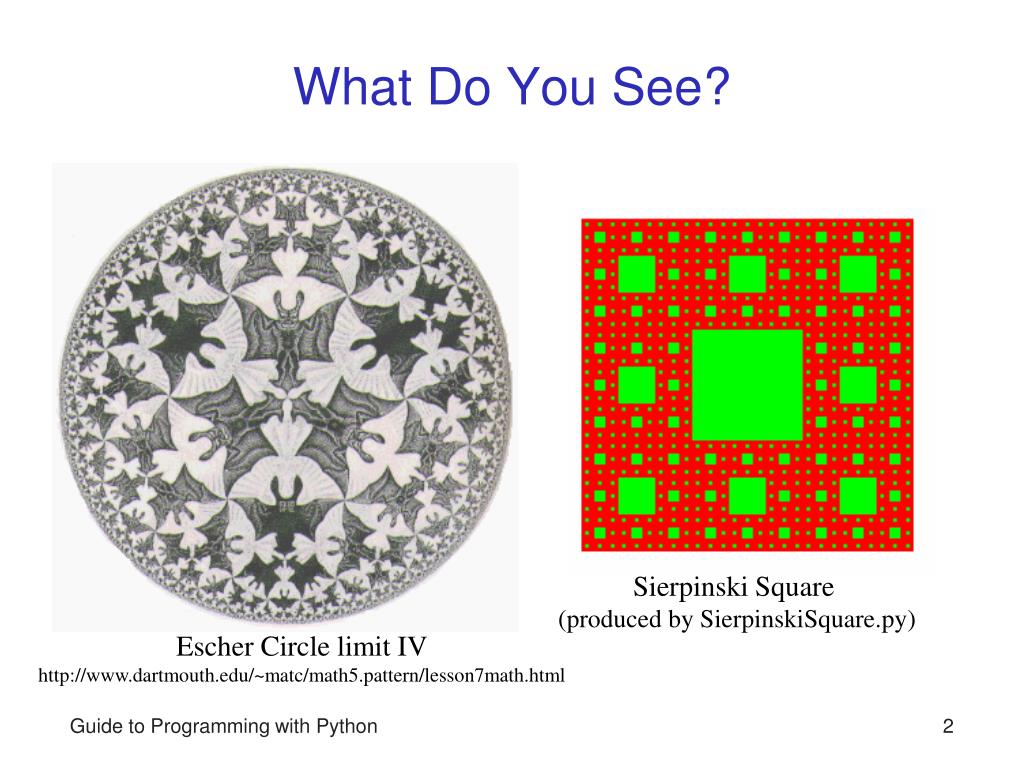

What do you see
What Do You See?

Sierpinski Square

(produced by SierpinskiSquare.py)

Escher Circle limit IV

http://www.dartmouth.edu/~matc/math5.pattern/lesson7math.html

Guide to Programming with Python


Objectives
Objectives

  • Understand why/when/how to use functions

  • Write your own functions

  • Accept values into your functions through parameters

  • Return information from your functions through return values

  • Work with global variables and constants

  • Create a computer opponent that plays a strategy game

Guide to Programming with Python


Reasons to use functions
Reasons to Use Functions

  • Divide and conquer: divide complicated tasks into simpler and more manageable tasks.

  • Avoid writing redundant program code (many programs require that a specific function is repeated many times)

  • Enhance the readability of codes (a code can be broken up into manageable chunks; easy to follow the flow of the program)

  • Testing and correcting errors is easy because errors are localized and corrected

  • A single function written in a program can also be used in other programs also (software reuse)

Guide to Programming with Python


Breakdown of the tic tac toe game
Breakdown of the Tic-Tac-Toe Game

display the game instructions

determine who goes first

create an empty tic-tac-toe board

display the board

while nobody’s won and it’s not a tie

if it’s the human’s turn

get the human’s move

update the board with the move

otherwise

calculate the computer’s move

update the board with the move

display the board

switch turns

congratulate the winner or declare a tie

#define a function to enhance readability

#define a function to avoid repeating the codes

Guide to Programming with Python


User defined functions

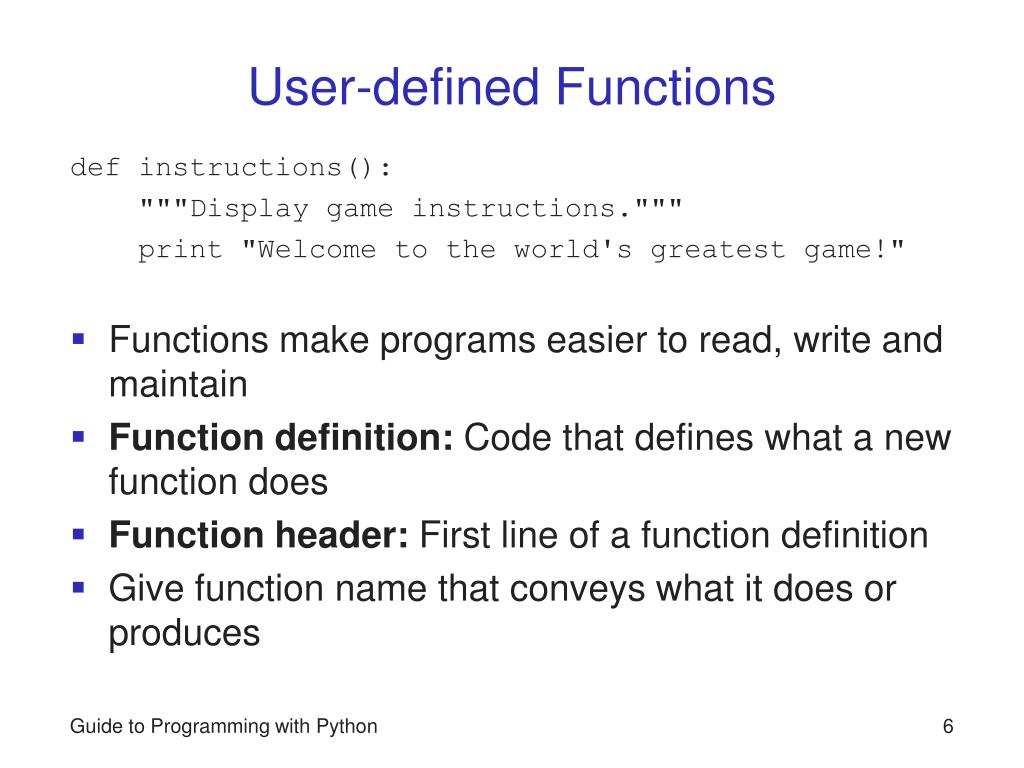

User-defined Functions

def instructions():

"""Display game instructions."""

print "Welcome to the world's greatest game!"

  • Functions make programs easier to read, write and maintain

  • Function definition: Code that defines what a new function does

  • Function header: First line of a function definition

  • Give function name that conveys what it does or produces

Guide to Programming with Python


Documenting a function

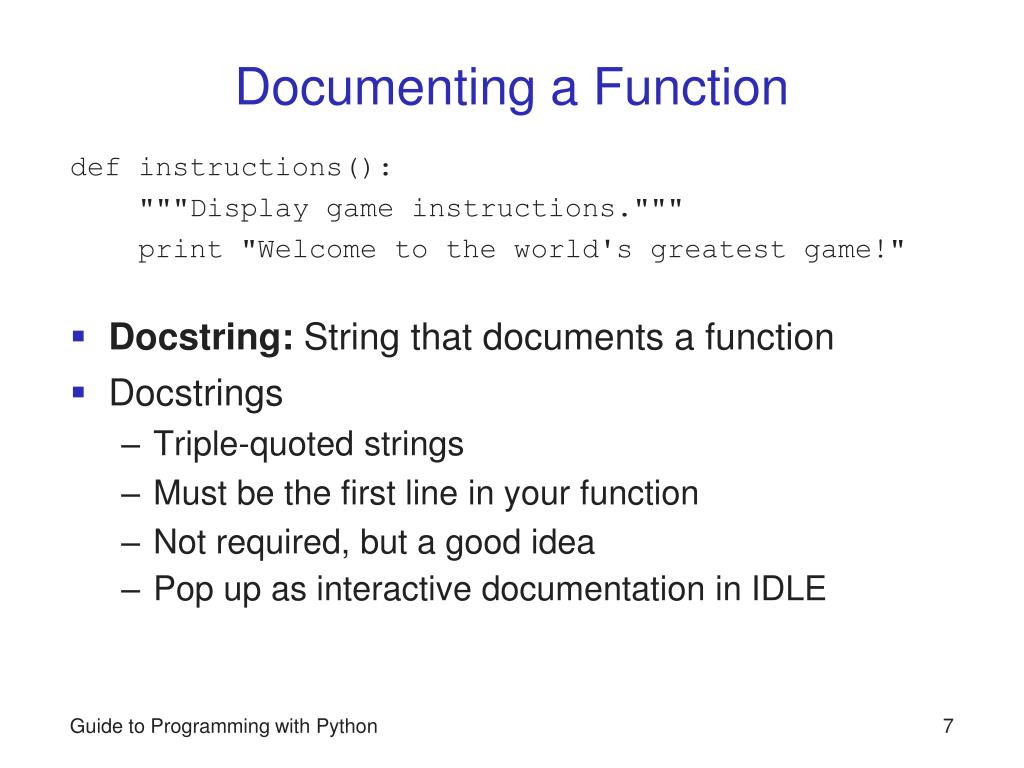

Documenting a Function

def instructions():

"""Display game instructions."""

print "Welcome to the world's greatest game!"

  • Docstring: String that documents a function

  • Docstrings

    • Triple-quoted strings

    • Must be the first line in your function

    • Not required, but a good idea

    • Pop up as interactive documentation in IDLE

Guide to Programming with Python

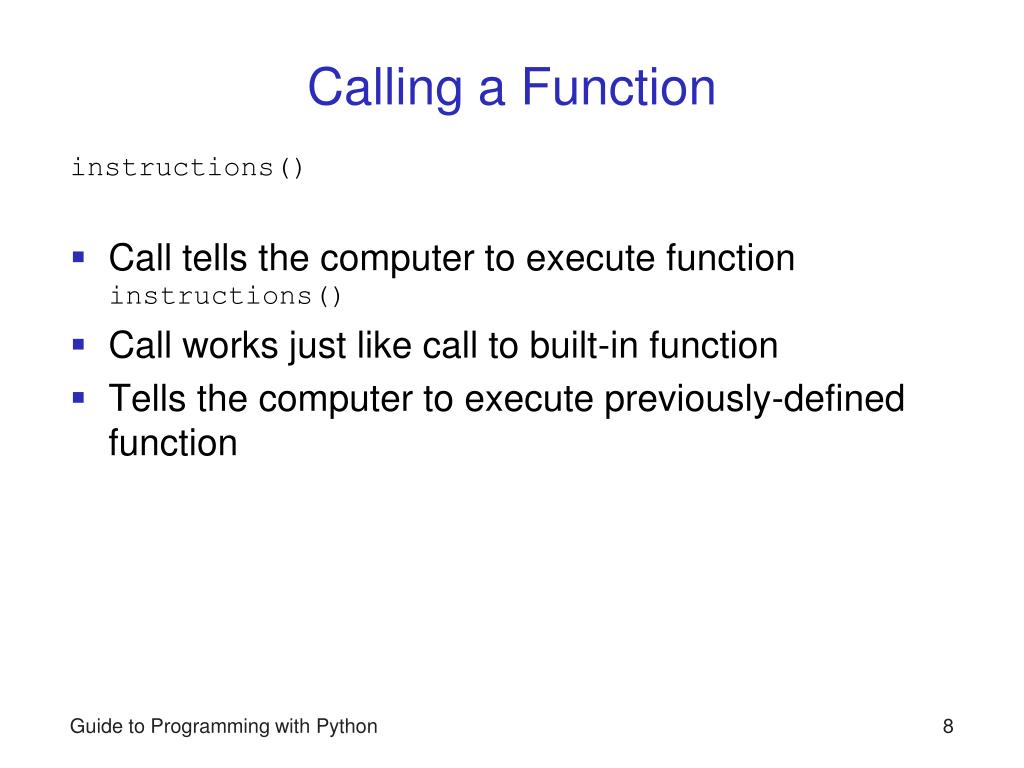

Calling a function
Calling a Function

instructions()

  • Call tells the computer to execute functioninstructions()

  • Call works just like call to built-in function

  • Tells the computer to execute previously-defined function

Guide to Programming with Python


Abstraction

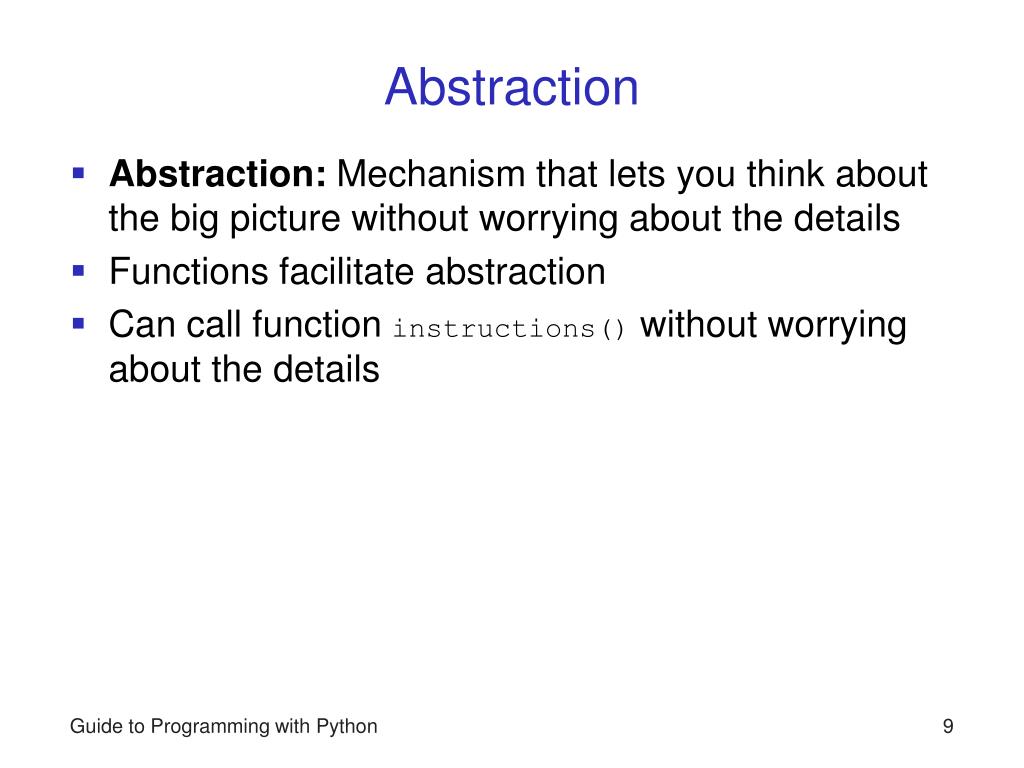

Abstraction

  • Abstraction: Mechanism that lets you think about the big picture without worrying about the details

  • Functions facilitate abstraction

  • Can call functioninstructions()without worrying about the details

Guide to Programming with Python


Encapsulation

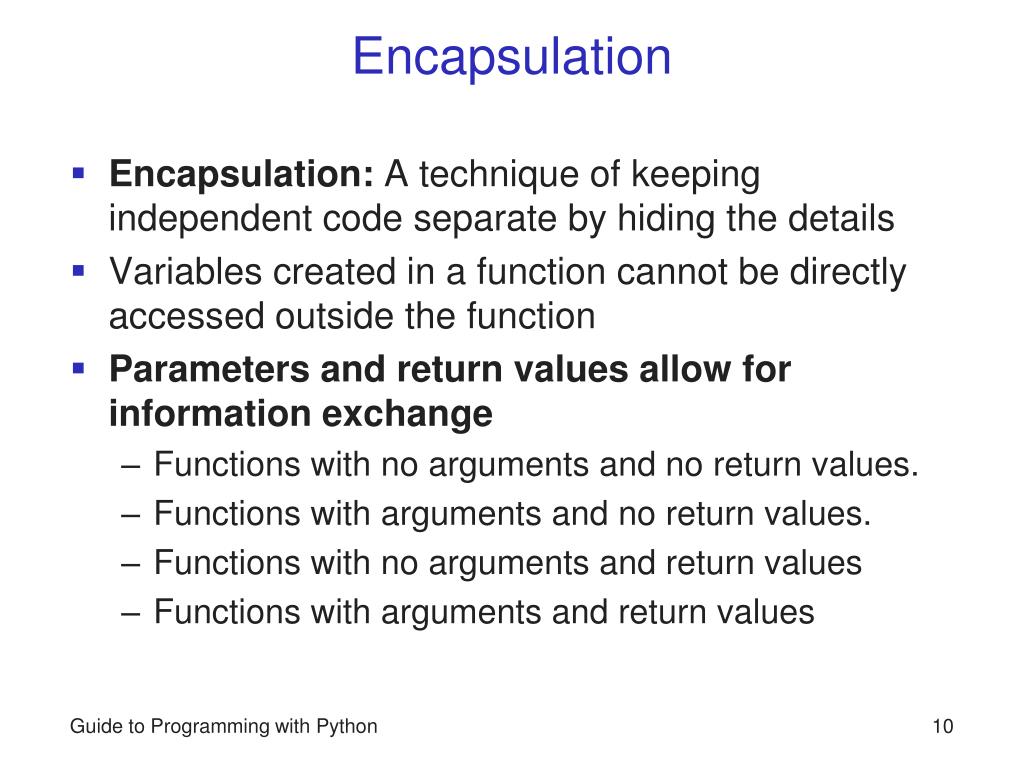

Encapsulation

  • Encapsulation: A technique of keeping independent code separate by hiding the details

  • Variables created in a function cannot be directly accessed outside the function

  • Parameters and return values allow for information exchange

    • Functions with no arguments and no return values.

    • Functions with arguments and no return values.

    • Functions with no arguments and return values

    • Functions with arguments and return values

Guide to Programming with Python

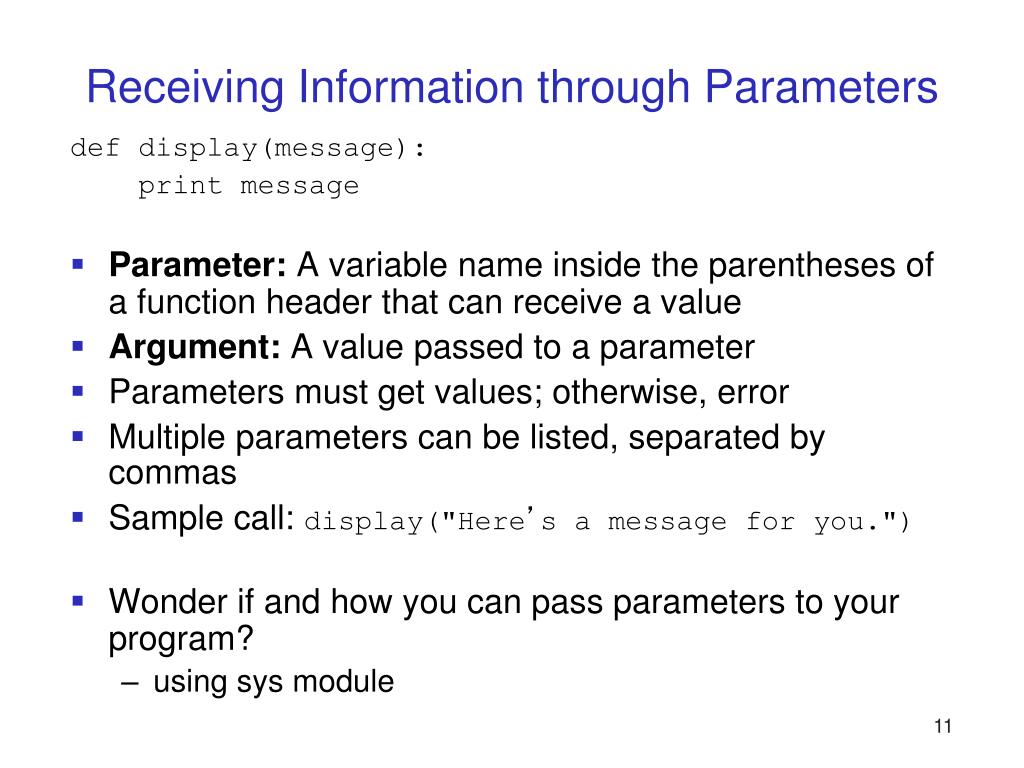

Receiving information through parameters
Receiving Information through Parameters

def display(message):

print message

  • Parameter: A variable name inside the parentheses of a function header that can receive a value

  • Argument: A value passed to a parameter

  • Parameters must get values; otherwise, error

  • Multiple parameters can be listed, separated by commas

  • Sample call: display("Here’s a message for you.")

  • Wonder if and how you can pass parameters to your program?

    • using sys module


Returning information through return values
Returning Information through Return Values

def give_me_five():

five = 5

return five

  • Return value: A value returned by a function

  • returnstatement returns values from a function

  • returnstatement ends function call

  • Can return more than one value from a function -- list all the values in return statement, separated by commas

  • Sample call:number = give_me_five()

Guide to Programming with Python

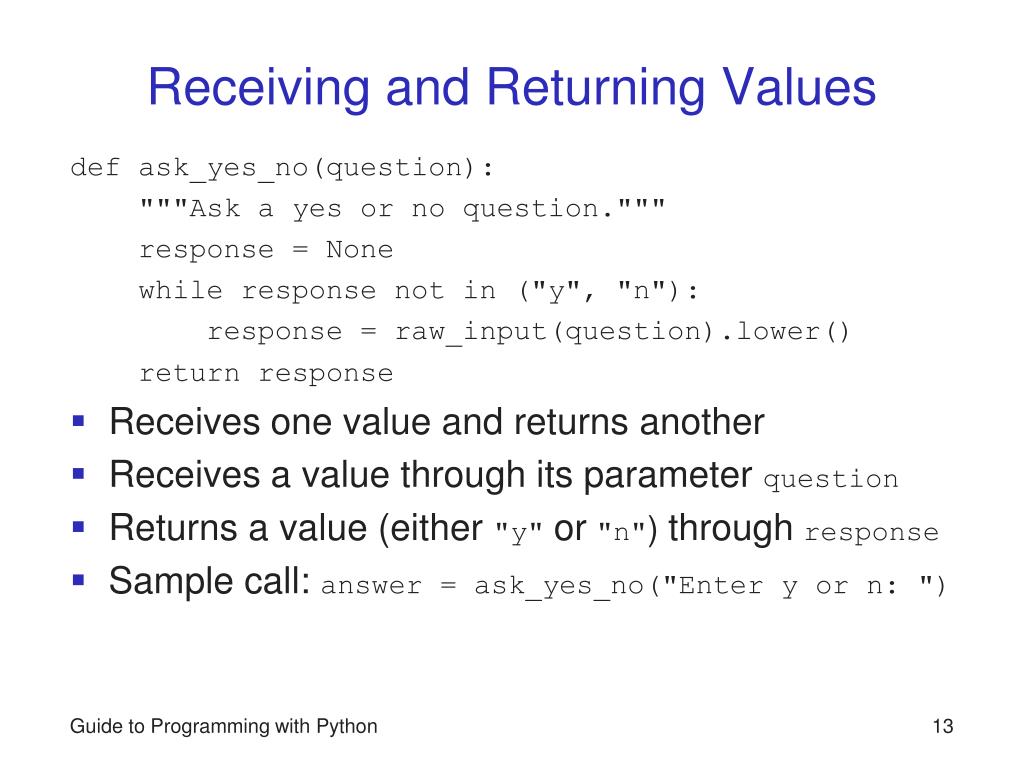

Receiving and returning values
Receiving and Returning Values

def ask_yes_no(question):

"""Ask a yes or no question."""

response = None

while response not in ("y", "n"):

response = raw_input(question).lower()

return response

  • Receives one value and returns another

  • Receives a value through its parameter question

  • Returns a value (either "y"or"n") throughresponse

  • Sample call: answer = ask_yes_no("Enter y or n: ")

Guide to Programming with Python


Positional parameters positional versus keyword arguments
Positional Parameters & Positional versus Keyword Arguments

def birthday(name, age):

print "Happy birthday,", name, "!", "You’re", age

birthday("Jackson", 1)

birthday(1, "Jackson”)

birthday(name = "Jackson", age = 1)

birthday(age = 1, name = "Jackson")

#using default parameter value

def birthday(name = "Jackson", age = 1):

print "Happy birthday,", name, "!", "You’re", age

birthday("Mike", 10)

birthday(age = 10, name = "Mike")

birthday(name = "Mike")

Positional arguments: Arguments passed to the parameters in order

Keyword argument: Argument passed to a specific parameter using the parameter name

The biggest benefit of using keyword arguments is clarity.

Guide to Programming with Python


Positional or keyword none or all
Positional or Keyword? (None or All)

  • Once you use a keyword argument, all the remaining arguments in the same function must be keyword arguments.

    birthday(name = "Mike", 10)

    #SyntaxError: non-keyword arg after keyword arg

  • Try not to mix functions with positional arguments, and functions with keyword arguments in your program (though you can do it)

    birthday("Mike", 1)

    birthday(name = "Jackson", age = 10)

  • Once you assign a default value to a parameter in the list, you have to assign default values to all the parameters listed after it.

    def birthday(name = "Mike", age)

    #SyntaxError: non-default argument follows default argument

    def birthday(name, age=1)

    #Syntax Fine; but confusing, try not to use it


Global versus local scopes
Global versus Local Scopes

  • Scopes: Different areas of a program that are separate from each other

  • Every function has its own scope

  • Functions can't directly access each other's variables

  • But can exchange information through parameters and return values

Guide to Programming with Python


Global versus local variables

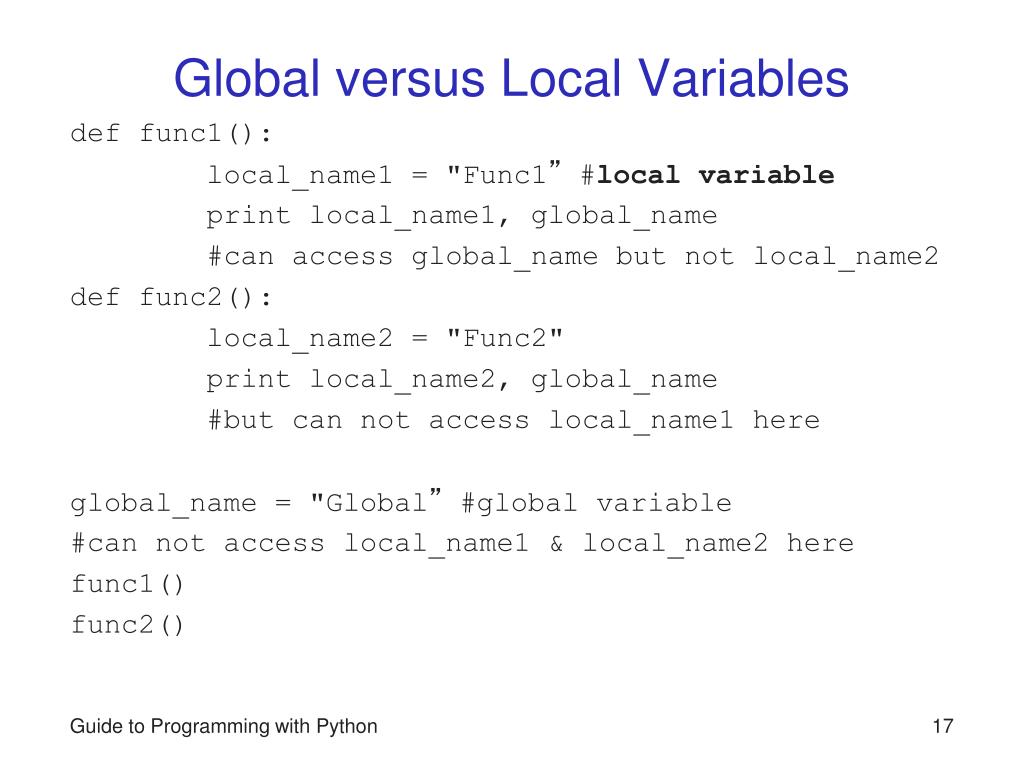

Global versus Local Variables

def func1():

local_name1 = "Func1” #local variable

print local_name1, global_name

#can access global_name but not local_name2

def func2():

local_name2 = "Func2"

print local_name2, global_name

#but can not access local_name1 here

global_name = "Global” #global variable

#can not access local_name1 & local_name2 here

func1()

func2()

Guide to Programming with Python


Shadowing changing a global variable from inside a function

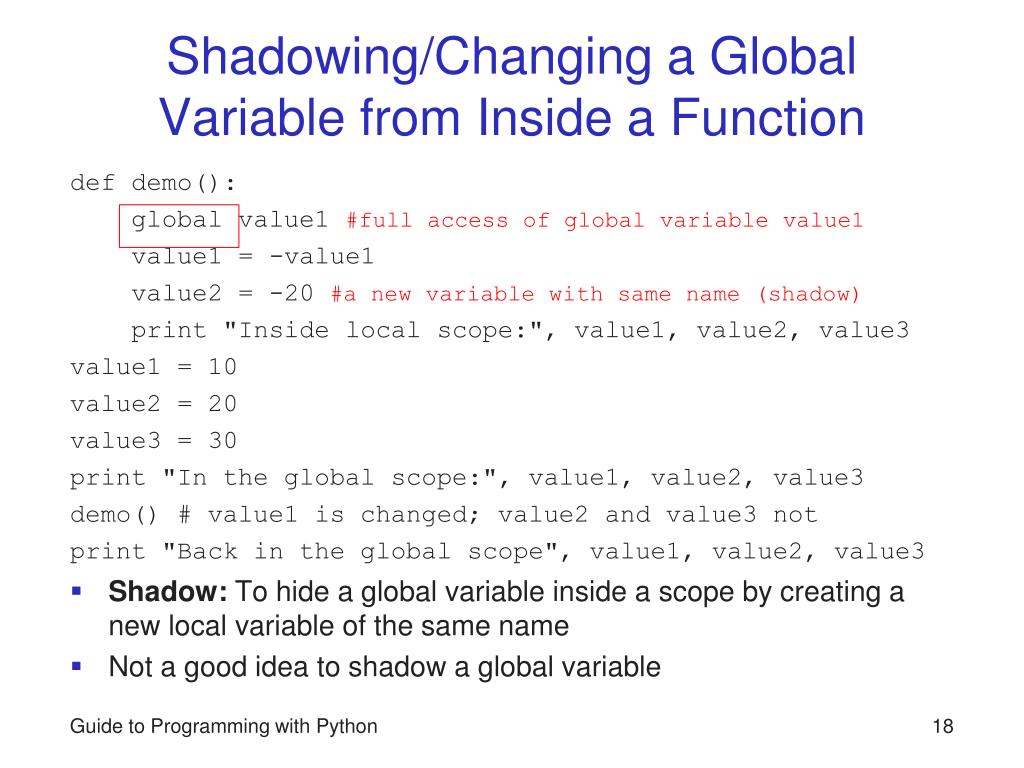

Shadowing/Changing a Global Variable from Inside a Function

def demo():

global value1 #full access of global variable value1

value1 = -value1

value2 = -20 #a new variable with same name (shadow)

print "Inside local scope:", value1, value2, value3

value1 = 10

value2 = 20

value3 = 30

print "In the global scope:", value1, value2, value3

demo() # value1 is changed; value2 and value3 not

print "Back in the global scope", value1, value2, value3

  • Shadow: To hide a global variable inside a scope by creating a new local variable of the same name

  • Not a good idea to shadow a global variable

Guide to Programming with Python


Understanding when to use global variables and constants

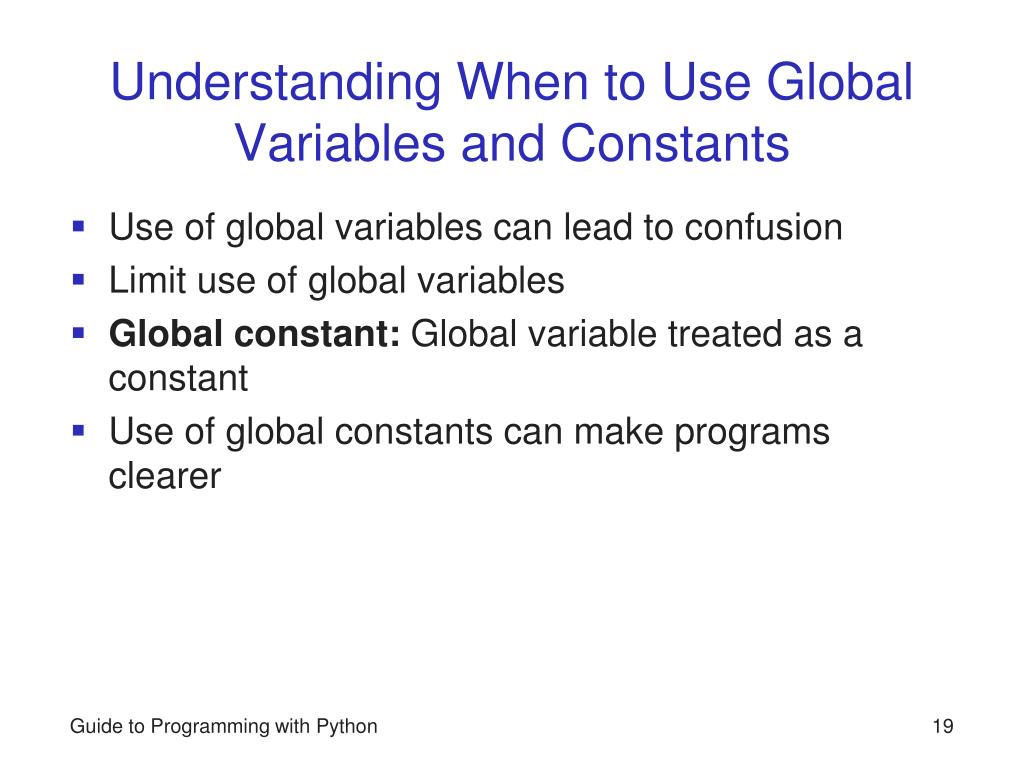

Understanding When to Use Global Variables and Constants

  • Use of global variables can lead to confusion

  • Limit use of global variables

  • Global constant: Global variable treated as a constant

  • Use of global constants can make programs clearer

Guide to Programming with Python

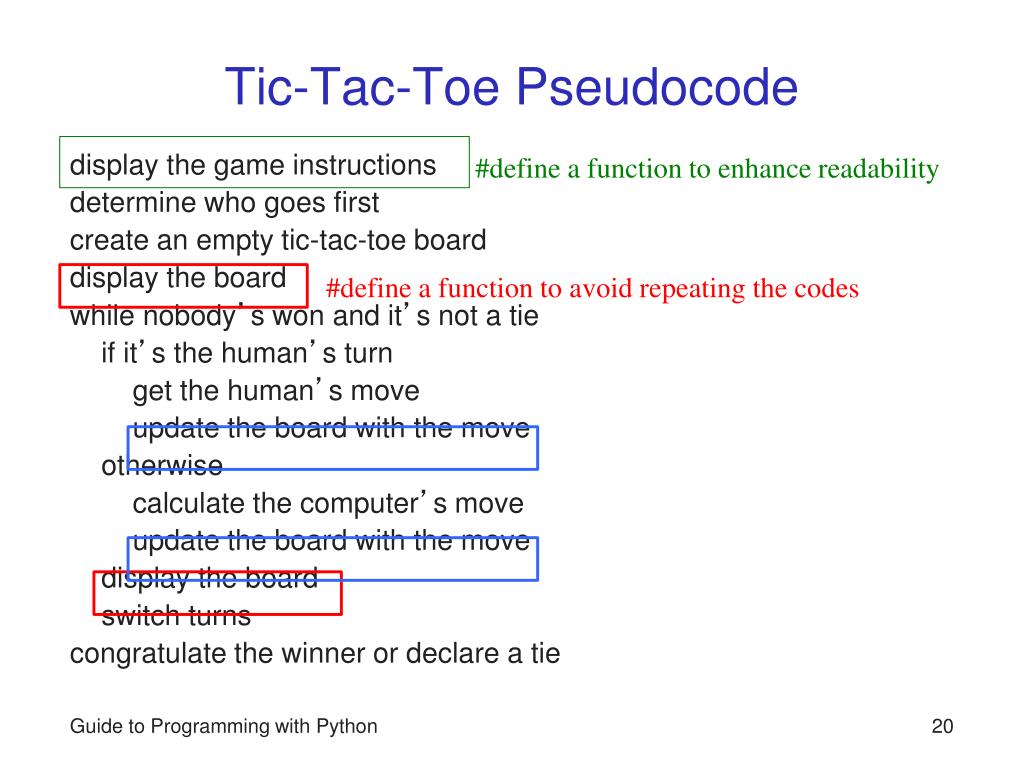

Tic tac toe pseudocode
Tic-Tac-Toe Pseudocode

display the game instructions

determine who goes first

create an empty tic-tac-toe board

display the board

while nobody’s won and it’s not a tie

if it’s the human’s turn

get the human’s move

update the board with the move

otherwise

calculate the computer’s move

update the board with the move

display the board

switch turns

congratulate the winner or declare a tie

#define a function to enhance readability

#define a function to avoid repeating the codes

Guide to Programming with Python

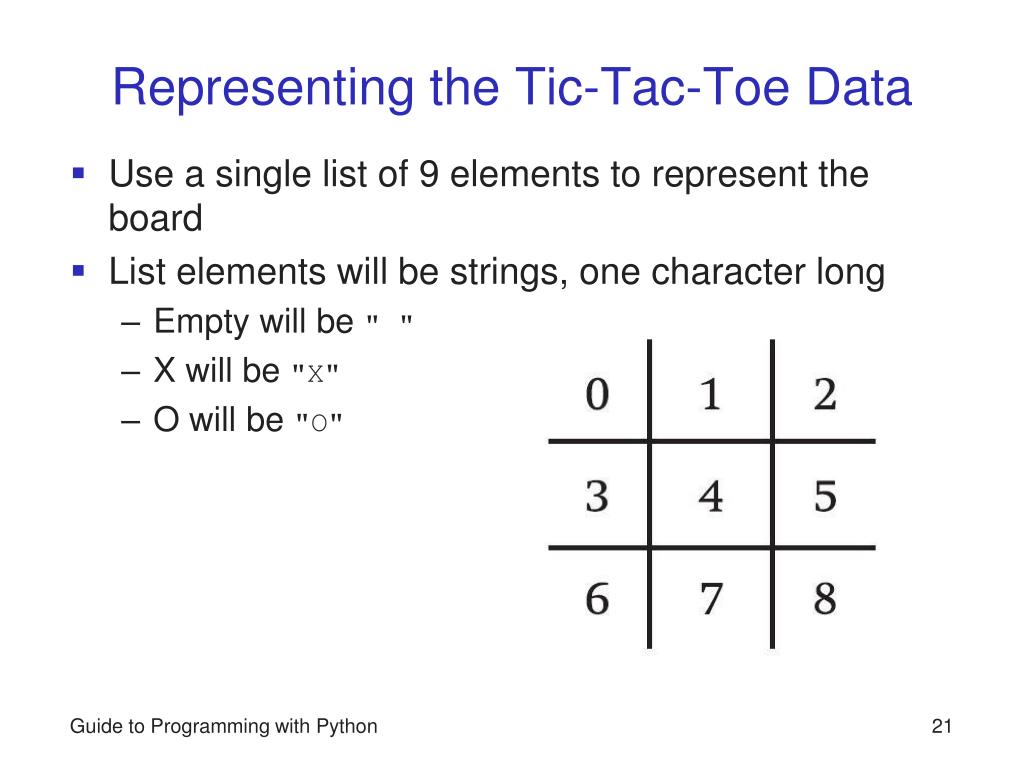

Representing the tic tac toe data
Representing the Tic-Tac-Toe Data

  • Use a single list of 9 elements to represent the board

  • List elements will be strings, one character long

    • Empty will be " "

    • X will be "X"

    • O will be "O"

Guide to Programming with Python


Tic tac toe functions
Tic-Tac-Toe Functions

Table 6.1: Tic-Tac-Toe Functions

Planned functions for the Tic-Tac-Toe game

Guide to Programming with Python


Recursion
Recursion

  • How would you describethis shape to someonewho couldn’t see it?

  • Sierpenski Gasket(a fractal)

  • We can make this shapewith a few simple rules.


Recursive definitions

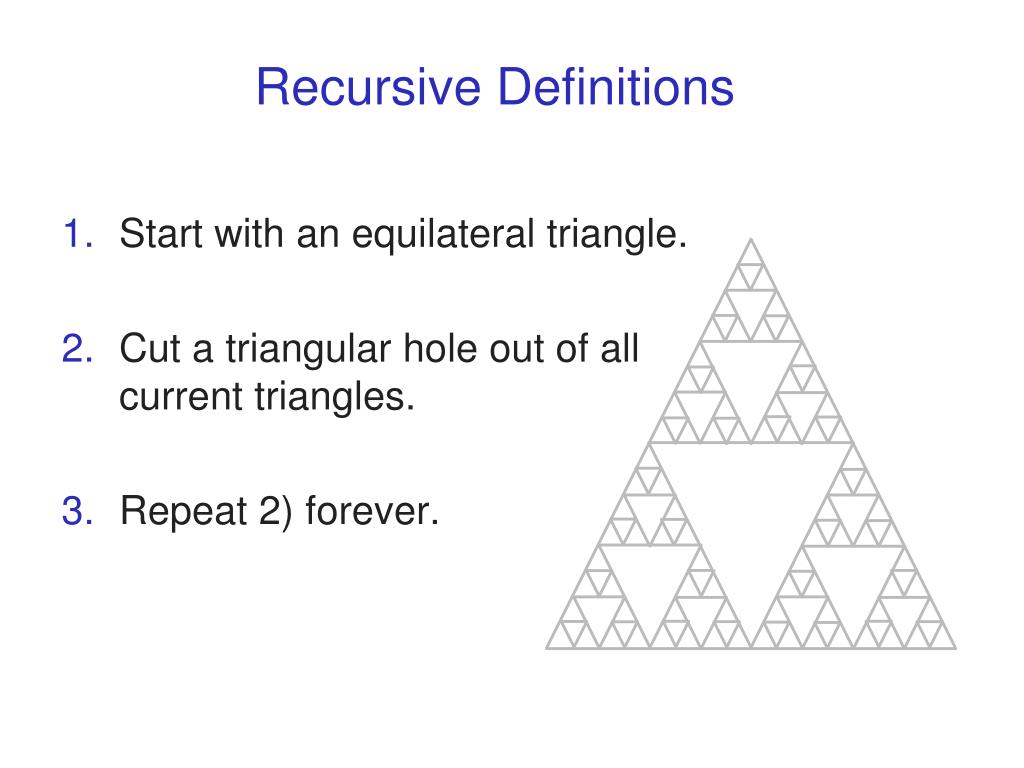

Recursive Definitions

  • Start with an equilateral triangle.

  • Cut a triangular hole out of all current triangles.

  • Repeat 2) forever.


Recursive definitions1

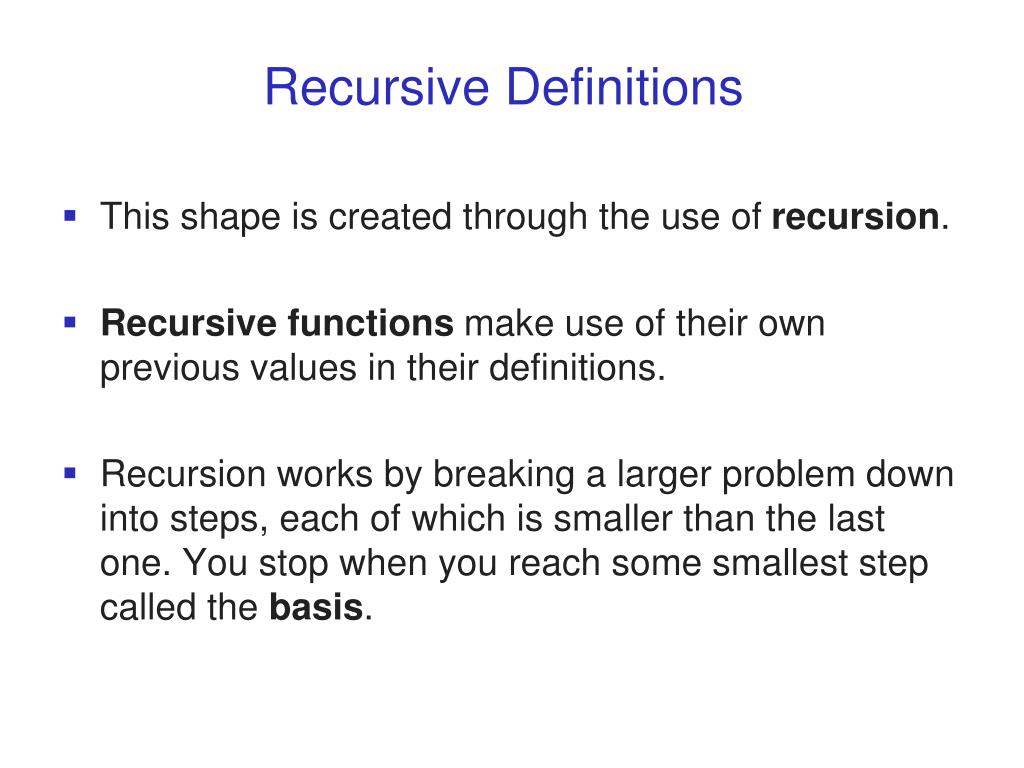

Recursive Definitions

  • This shape is created through the use of recursion.

  • Recursive functions make use of their own previous values in their definitions.

  • Recursion works by breaking a larger problem down into steps, each of which is smaller than the last one. You stop when you reach some smallest step called the basis.


Recursive definitions2

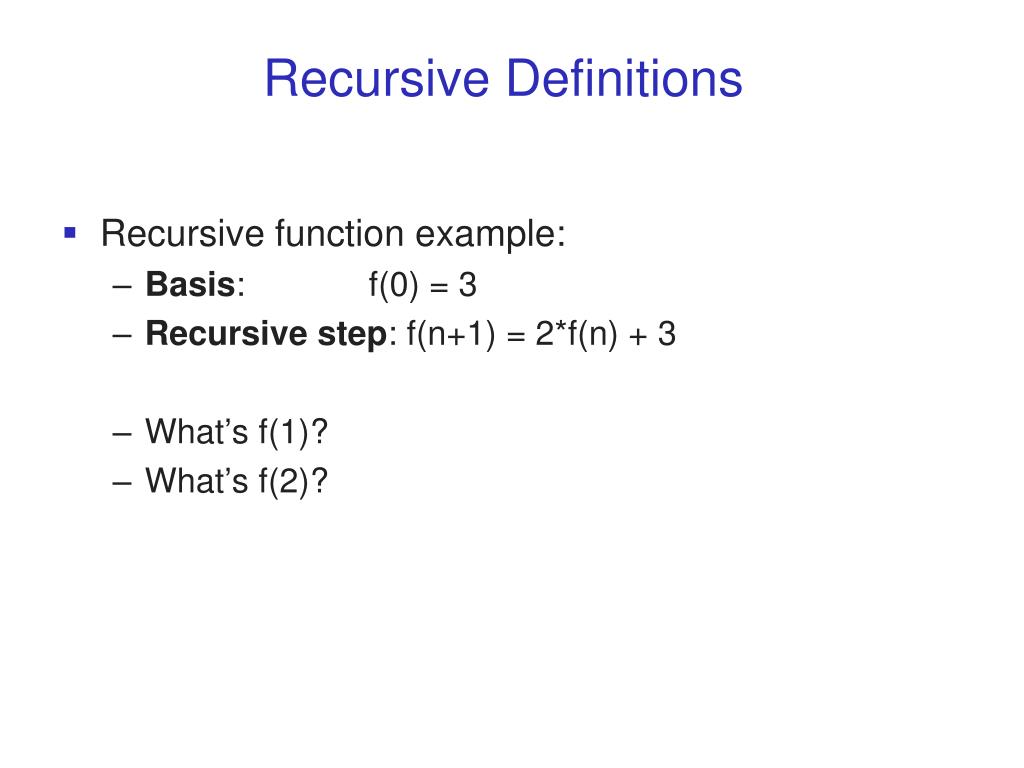

Recursive Definitions

  • Recursive function example:

    • Basis: f(0) = 3

    • Recursive step: f(n+1) = 2*f(n) + 3

    • What’s f(1)?

    • What’s f(2)?


Factorial function
Factorial Function

  • Factorial : x! = all the numbers from 1 to x multiplied together. 5! = 5 * 4 * 3 * 2 * 1

  • We can redefine f(n) = n! recursively. How?

    • Basis: f(1) = 1

    • Recursive step: f(n) = n * f(n-1).

  • Find your partner and write the factorial(num) function using recursion!We’ll do this one as a fill-in-the-blanks.


Factorial pseudocode

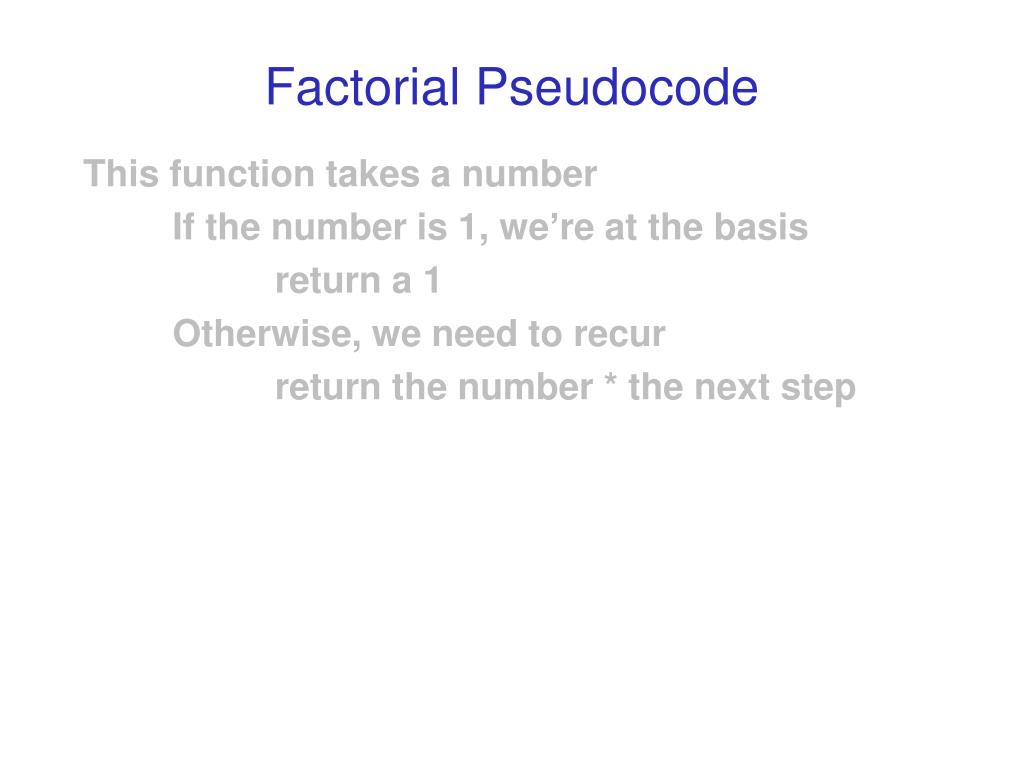

Factorial Pseudocode

This function takes a number

If the number is 1, we’re at the basis

return a 1

Otherwise, we need to recur

return the number * the next step


Factorial

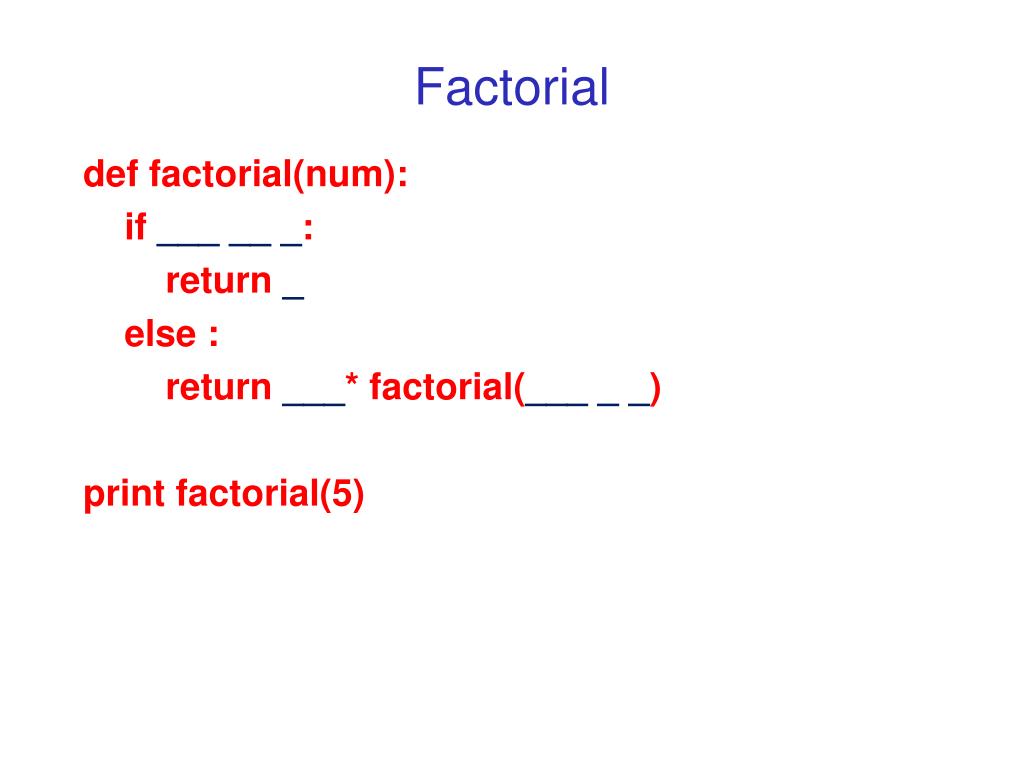

Factorial

def factorial(num):

if ___ __ _:

return _

else :

return ___* factorial(___ _ _)

print factorial(5)


Fibonacci numbers

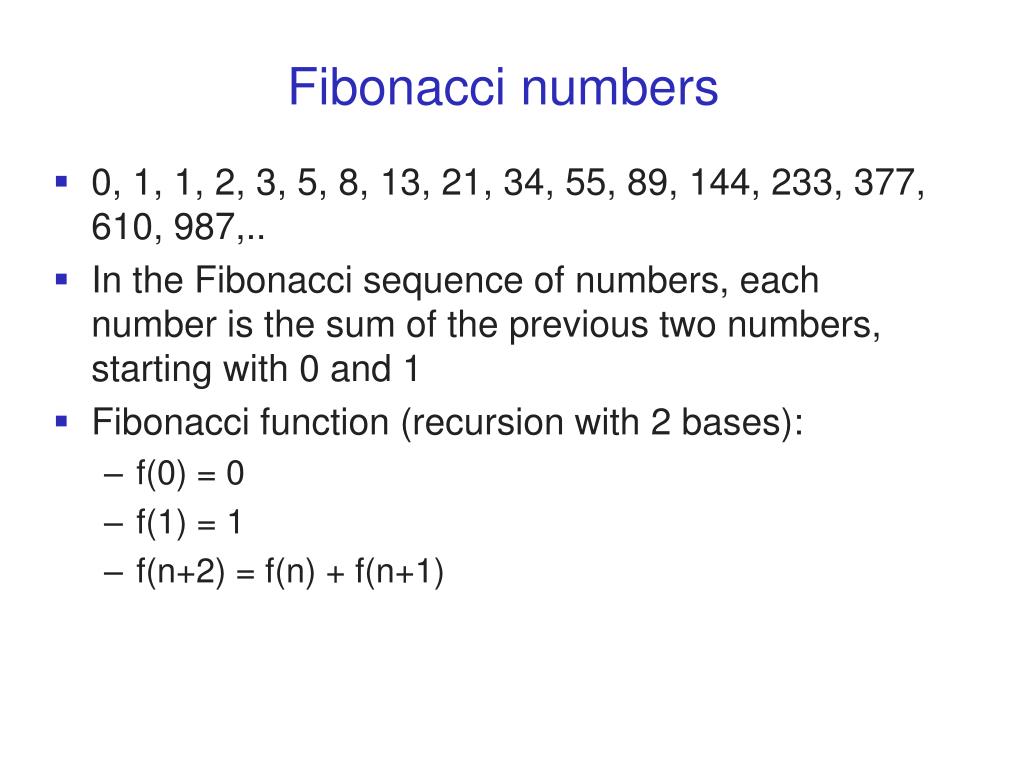

Fibonacci numbers

  • 0, 1, 1, 2, 3, 5, 8, 13, 21, 34, 55, 89, 144, 233, 377, 610, 987,..

  • In the Fibonacci sequence of numbers, each number is the sum of the previous two numbers, starting with 0 and 1

  • Fibonacci function (recursion with 2 bases):

    • f(0) = 0

    • f(1) = 1

    • f(n+2) = f(n) + f(n+1)


Fibonacci
Fibonacci

def fabonacci(num):

if num == 0:

return 0

elif num == 1:

return 1

else:

return fabonacci(num - 1) + fabonacci(num - 2)

print "fabonacci numbers: "

for i in range(20):

print fabonacci(i),

print


Summary
Summary

  • What you need to know about functions

    • Using keyword defto define a function

    • Function header: The line that defines the function

    • Docstring: a triple-quoted string that immediately follows a function header and that documents what the function does

    • Parameter: a variable/name in a function header that can receive a value

    • Argument: a value used in a function call that’s passed to a parameter

    • Keyword argument: an argument passed to a specific parameter of a function by using its parameter name

    • Default parameter value: the value in the function header

    • Return value: a value returned by a function

Guide to Programming with Python

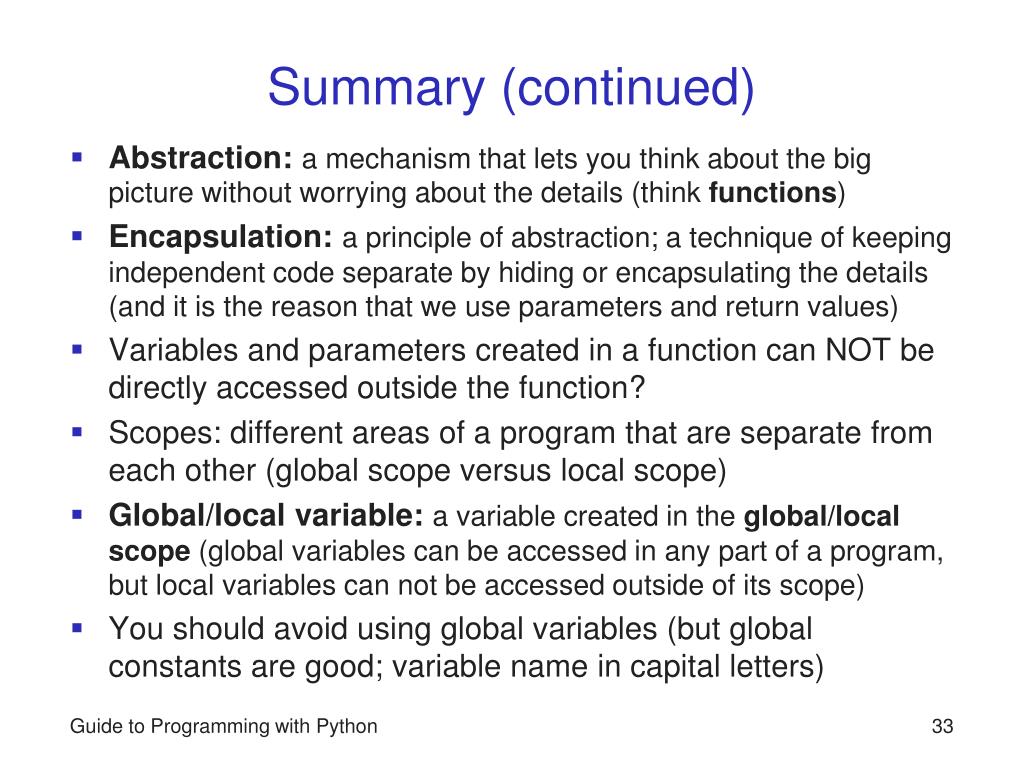

Summary continued
Summary (continued)

  • Abstraction: a mechanism that lets you think about the big picture without worrying about the details (think functions)

  • Encapsulation: a principle of abstraction; a technique of keeping independent code separate by hiding or encapsulating the details (and it is the reason that we use parameters and return values)

  • Variables and parameters created in a function can NOT be directly accessed outside the function?

  • Scopes: different areas of a program that are separate from each other (global scope versus local scope)

  • Global/local variable: a variable created in the global/local scope (global variables can be accessed in any part of a program, but local variables can not be accessed outside of its scope)

  • You should avoid using global variables (but global constants are good; variable name in capital letters)

Guide to Programming with Python


ad
