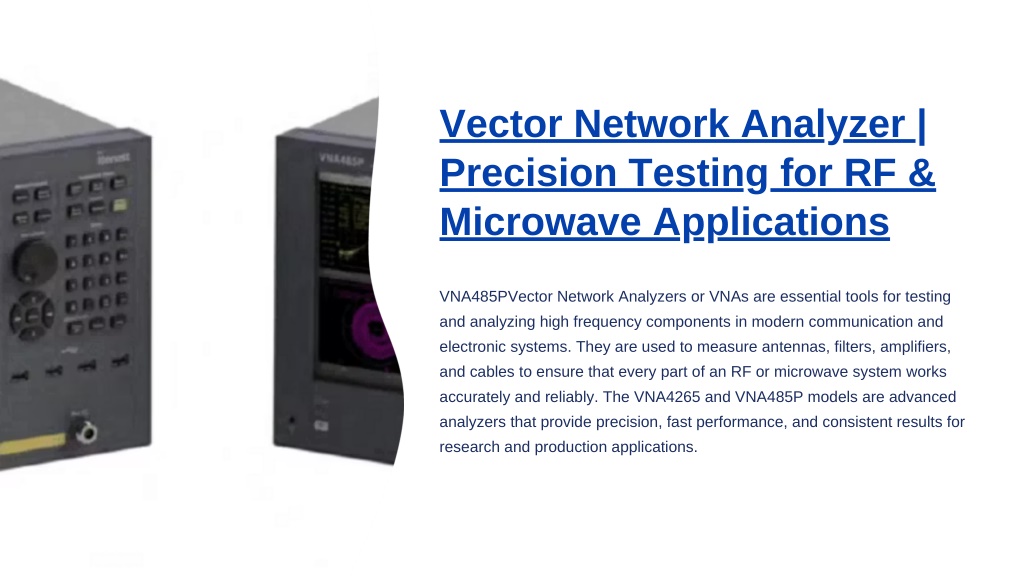

1. Vector Network Analyzer | Precision Testing for RF & Microwave Applications VNA485PVector Network Analyzers or VNAs are essential tools for testing and analyzing high frequency components in modern communication and electronic systems. They are used to measure antennas, filters, amplifiers, and cables to ensure that every part of an RF or microwave system works accurately and reliably. The VNA4265 and VNA485P models are advanced analyzers that provide precision, fast performance, and consistent results for research and production applications.

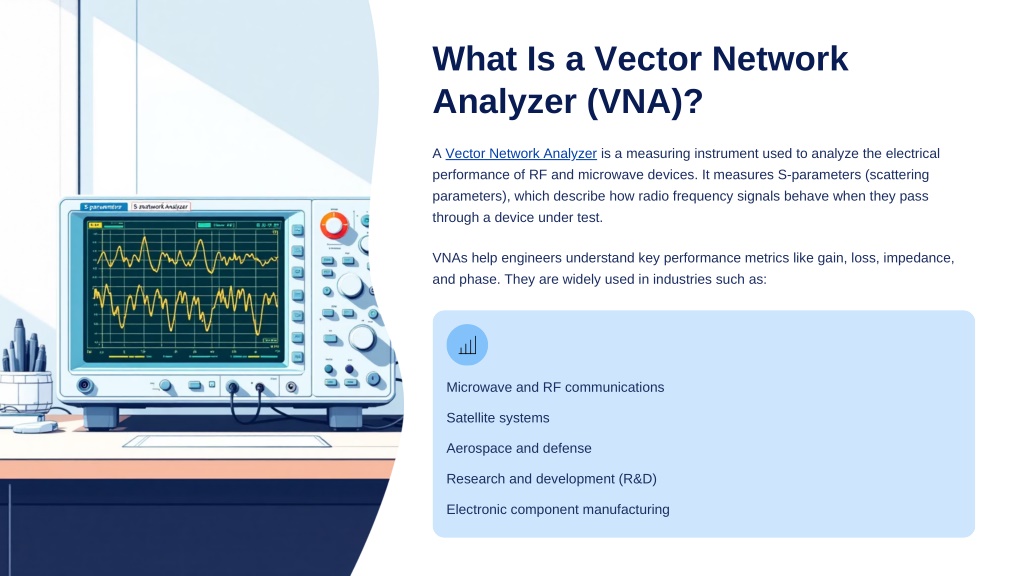

2. What Is a Vector Network Analyzer (VNA)? A Vector Network Analyzer is a measuring instrument used to analyze the electrical performance of RF and microwave devices. It measures S-parameters (scattering parameters), which describe how radio frequency signals behave when they pass through a device under test. VNAs help engineers understand key performance metrics like gain, loss, impedance, and phase. They are widely used in industries such as: Microwave and RF communications Satellite systems Aerospace and defense Research and development (R&D) Electronic component manufacturing

3. VNA4265 Vector Network Analyzer – Wideband and High Precision The VNA4265 Vector Network Analyzer is a high-performance instrument covering a wide frequency range from 100 kHz to 26.5 GHz, enabling it to handle C, X, Ku, and K-band product testing. This wide coverage makes it suitable for advanced microwave communication and satellite system development. Key Highlights of VNA4265 Frequency Range: 100 kHz – 26.5 GHz Dynamic Range: 135 dB (typical) Trace Noise: 2 mdB RMS (typical) @ IFBW = 70 kHz Output Power Range: –55 dBm – +10 dBm Touchscreen: 12.1-inch high-resolution display with physical buttons Ports: Available in 2-port and 4-port configurations

4. Features and Benefits The VNA4265 is ideal for professionals working in aerospace, satellite communications, and microwave product development, where precision and performance are critical. Flexible Configuration Options Choose between 14 GHz, 20 GHz, and 26.5 GHz models with either two or four ports, depending on the testing requirement. Excellent Dynamic Range With a dynamic range of up to 135 dB, the VNA4265 provides accurate results for both low-loss and high-loss devices. Time Domain Analysis (TDR) The built-in Time Domain Reflectometry (TDR) function helps analyze impedance discontinuities, cables, and connectors. User-Friendly Interface Its intuitive user interface is designed for easy operation, combining touchscreen convenience with physical function buttons. Comprehensive Calibration Options Supports SOLT, SOLR, TRL, and response calibrations to ensure precise and repeatable measurements.

5. VNA485P Vector Network Analyzer – High Stability and Speed Key Highlights of VNA485P Features and Benefits Complete Calibration Algorithms Includes all major calibration methods SOLT, SOLR, TRL, and response calibration for accurate and repeatable results. Frequency Range: 100 kHz – 8.5 GHz High Accuracy Across RF Components Dynamic Range: 135 dB (typical) The VNA485P delivers precise measurements for filters, antennas, amplifiers, isolators, circulators, and switches. Trace Noise: < 0.005 dB RMS (IFBW = 70 kHz) Advanced Test Functions Temperature Stability: < 0.01 dB/°C Supports TDR time-domain impedance testing, fixture simulation, and port matching impedance conversion, ensuring detailed insight into circuit behavior. Outstanding Dynamic Range and Stability Display: 10.4-inch responsive touch screen Control Protocols: Supports VISA and SCPI for remote automation Its 135 dB dynamic range ensures high measurement sensitivity, while ultra-low noise and excellent thermal stability guarantee consistent accuracy. Automation and Integration With VISA and SCPI compatibility, the VNA485P can be easily integrated into automated test setups and controlled by customer software systems. Fast Measurement Speed The VNA485P’s advanced design enables high-speed measurements, making it suitable for production testing environments. Easy Operation and Durability The 10.4-inch touchscreen and robust build ensure easy use, long-term reliability, and stable performance in industrial and laboratory environments.

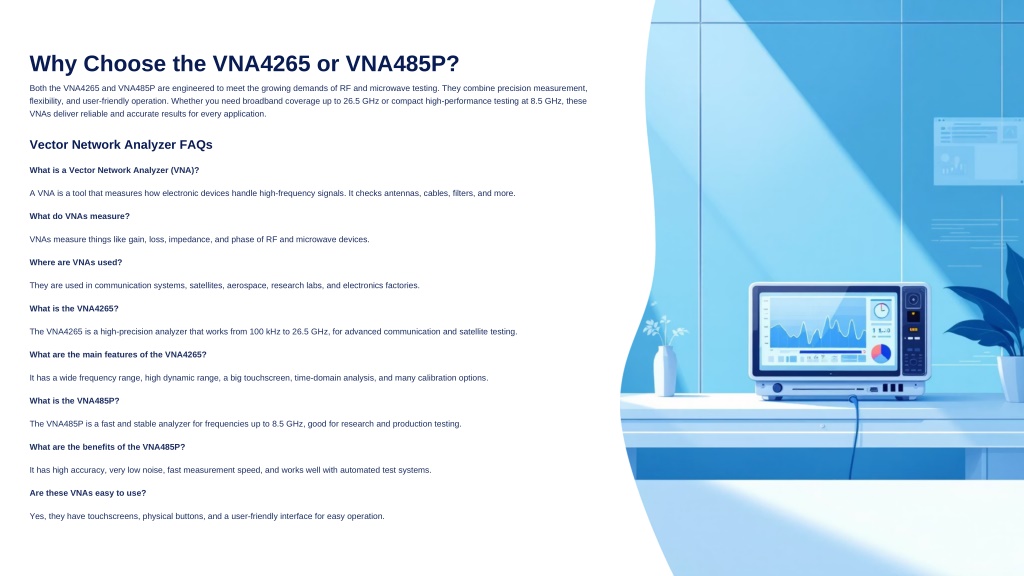

6. Why Choose the VNA4265 or VNA485P? Both the VNA4265 and VNA485P are engineered to meet the growing demands of RF and microwave testing. They combine precision measurement, flexibility, and user-friendly operation. Whether you need broadband coverage up to 26.5 GHz or compact high-performance testing at 8.5 GHz, these VNAs deliver reliable and accurate results for every application. Vector Network Analyzer FAQs What is a Vector Network Analyzer (VNA)? A VNA is a tool that measures how electronic devices handle high-frequency signals. It checks antennas, cables, filters, and more. What do VNAs measure? VNAs measure things like gain, loss, impedance, and phase of RF and microwave devices. Where are VNAs used? They are used in communication systems, satellites, aerospace, research labs, and electronics factories. What is the VNA4265? The VNA4265 is a high-precision analyzer that works from 100 kHz to 26.5 GHz, for advanced communication and satellite testing. What are the main features of the VNA4265? It has a wide frequency range, high dynamic range, a big touchscreen, time-domain analysis, and many calibration options. What is the VNA485P? The VNA485P is a fast and stable analyzer for frequencies up to 8.5 GHz, good for research and production testing. What are the benefits of the VNA485P? It has high accuracy, very low noise, fast measurement speed, and works well with automated test systems. Are these VNAs easy to use? Yes, they have touchscreens, physical buttons, and a user-friendly interface for easy operation.
