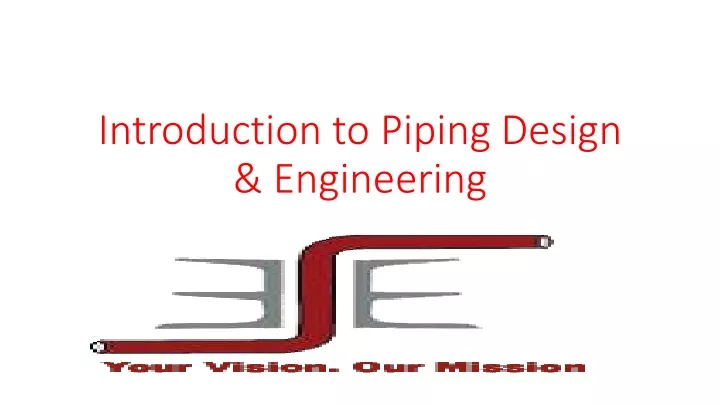

  1. Introduction to Piping Design & Engineering

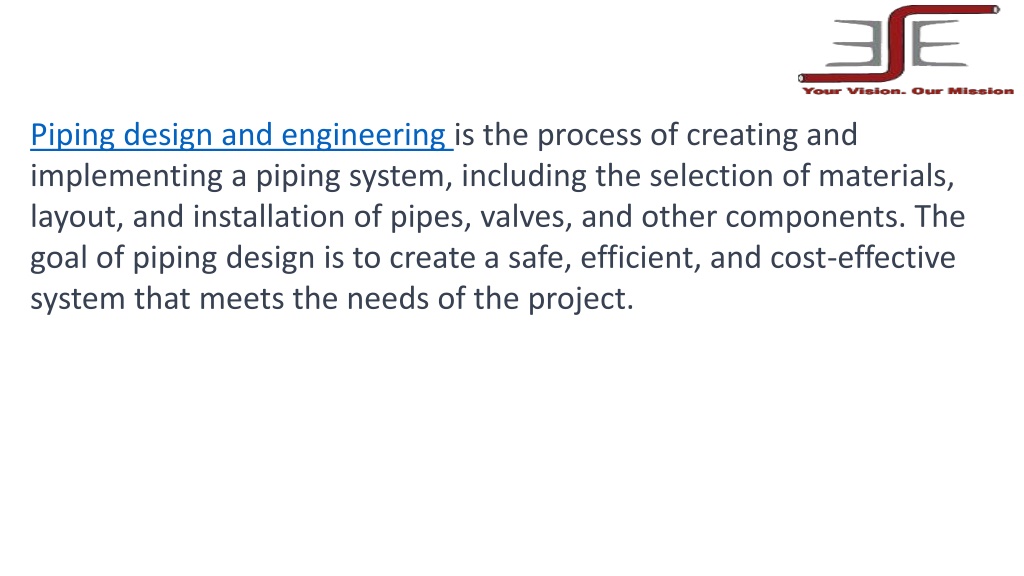

  2. Piping design and engineering is the process of creating and implementing a piping system, including the selection of materials, layout, and installation of pipes, valves, and other components. The goal of piping design is to create a safe, efficient, and cost-effective system that meets the needs of the project.

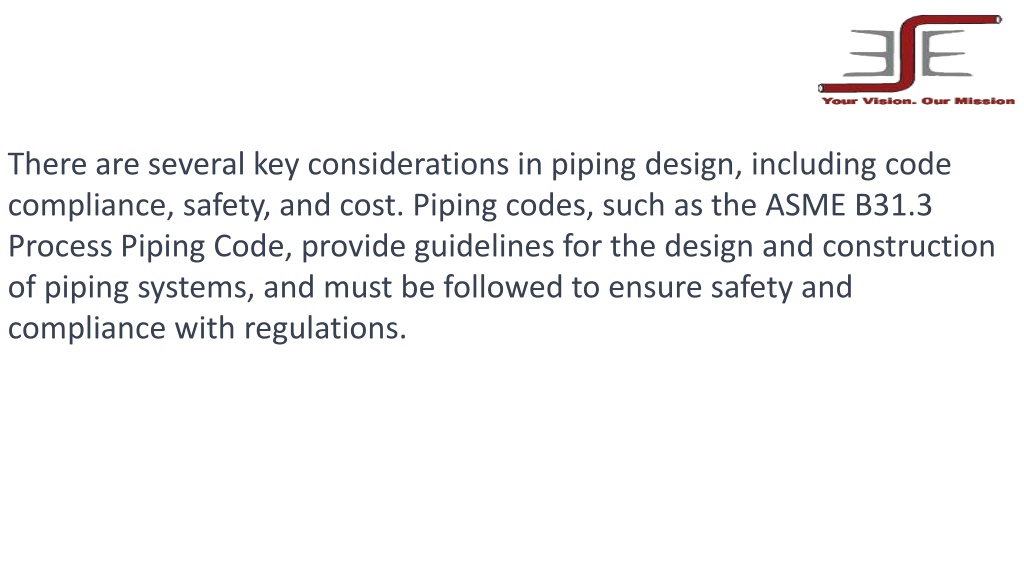

  3. There are several key considerations in piping design, including code compliance, safety, and cost. Piping codes, such as the ASME B31.3 Process Piping Code, provide guidelines for the design and construction of piping systems, and must be followed to ensure safety and compliance with regulations.

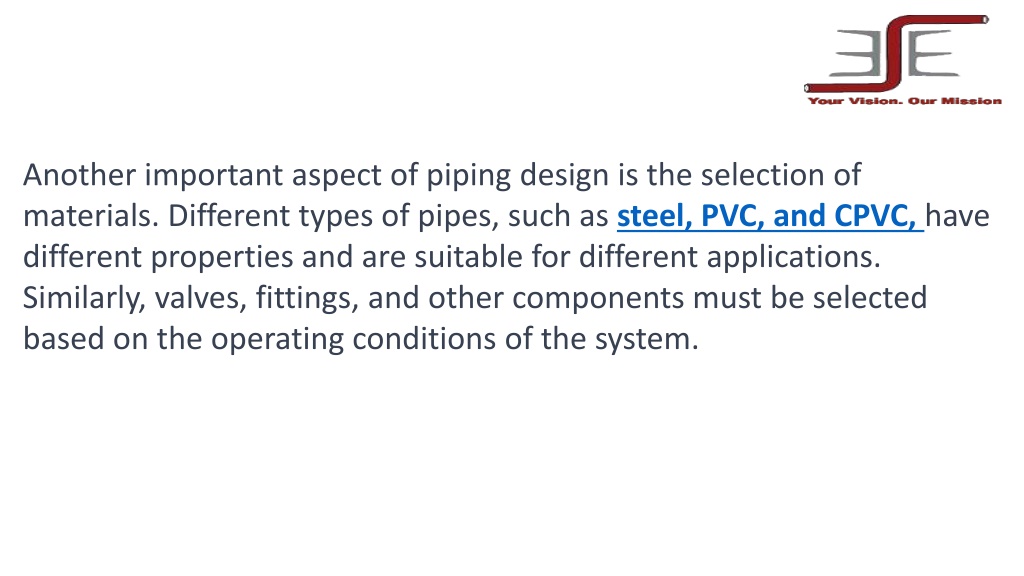

  4. Another important aspect of piping design is the selection of materials. Different types of pipes, such as steel, PVC, and CPVC, have different properties and are suitable for different applications. Similarly, valves, fittings, and other components must be selected based on the operating conditions of the system.

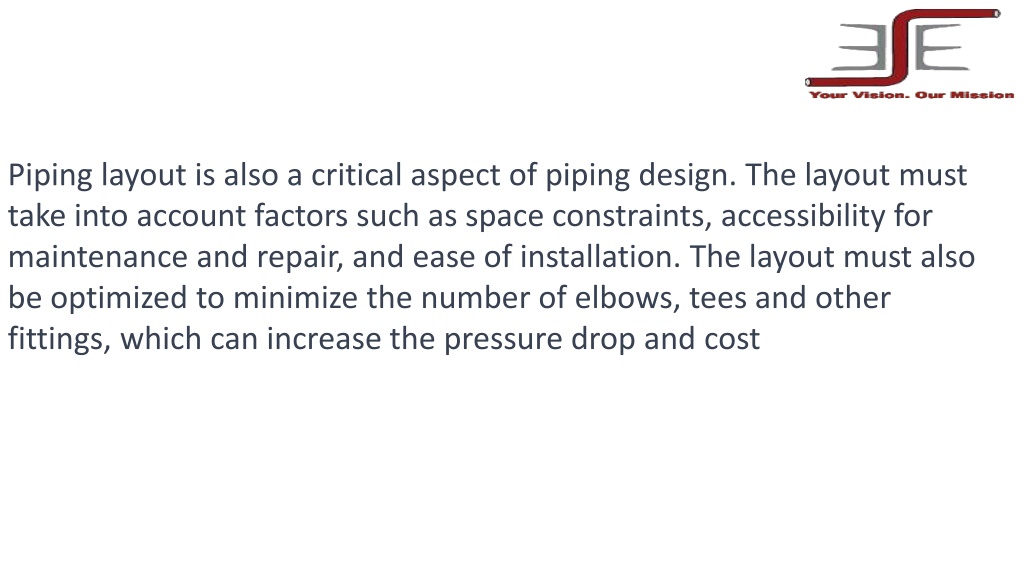

  5. Piping layout is also a critical aspect of piping design. The layout must take into account factors such as space constraints, accessibility for maintenance and repair, and ease of installation. The layout must also be optimized to minimize the number of elbows, tees and other fittings, which can increase the pressure drop and cost

  6. Piping design and engineering also includes the preparation of detailed drawings, including isometric, orthographic, and layout drawings. These drawings are used by contractors and construction teams to install the piping system, and are also used for maintenance and repair.

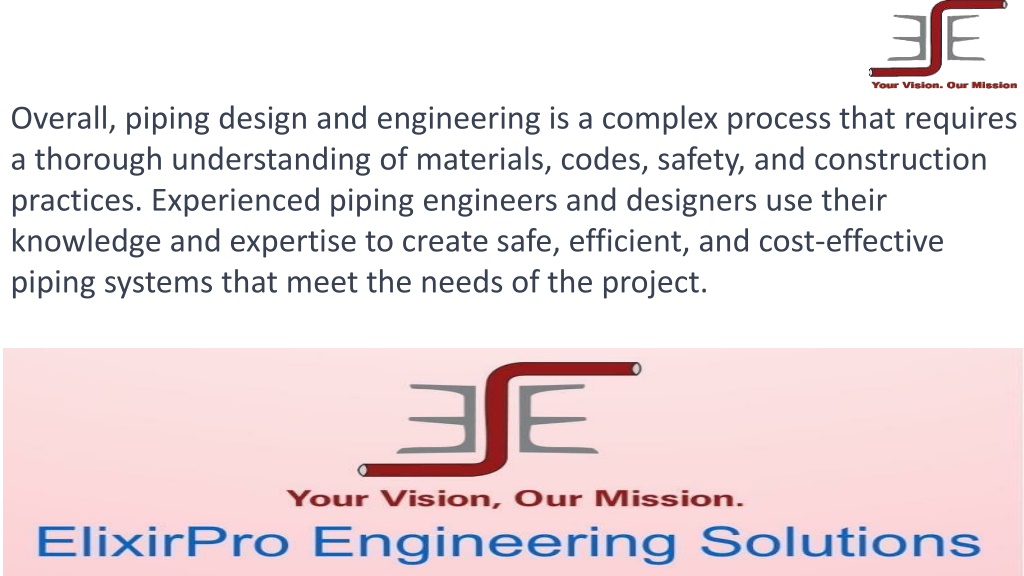

  7. Overall, piping design and engineering is a complex process that requires a thorough understanding of materials, codes, safety, and construction practices. Experienced piping engineers and designers use their knowledge and expertise to create safe, efficient, and cost-effective piping systems that meet the needs of the project.
