Achieving planning model convergence
Achieving Planning Model Convergence

Howard Slavin

Jonathan Brandon

Andres Rabinowicz

Srinivasan Sundaram

Caliper Corporation

May 2007


Feedback convergence motivation

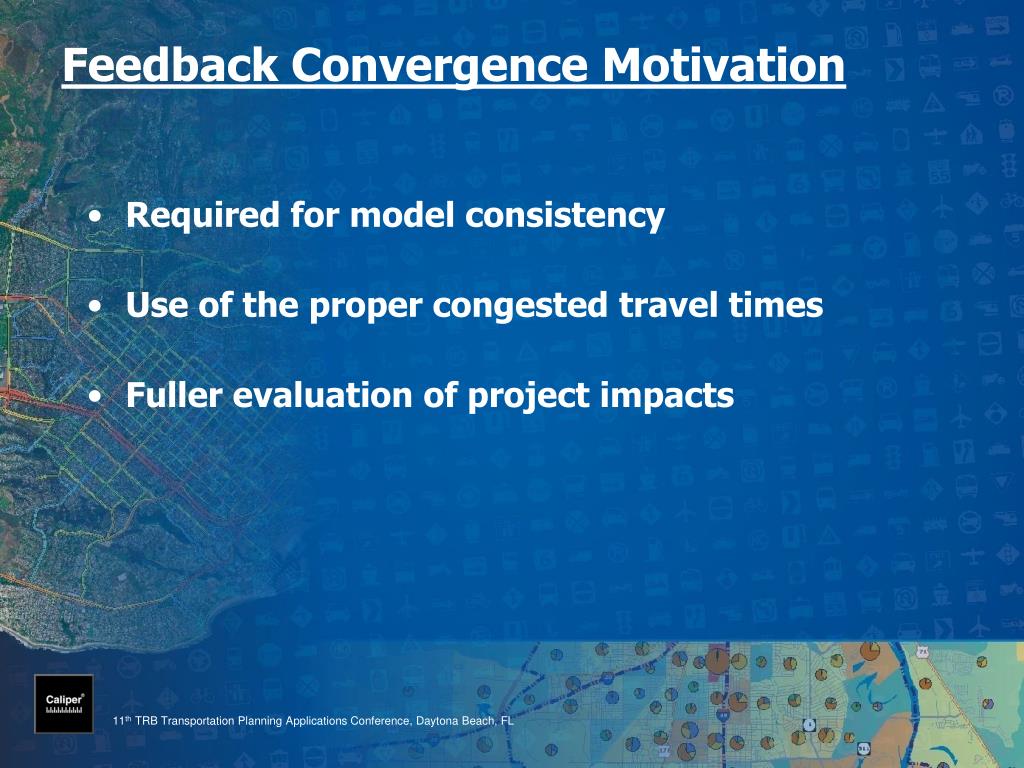

Feedback Convergence Motivation

  • Required for model consistency

  • Use of the proper congested travel times

  • Fuller evaluation of project impacts


Feedback convergence requirements
Feedback Convergence Requirements

  • Requires traffic assignment convergence

  • Distribution and Mode choice models must have suitable properties so that the overall model is convergent and a fixed point solution exists

  • Skim or trip table convergence needed

  • Absence of divergent elements

  • Must be computable in reasonable time


Feedback convergence questions

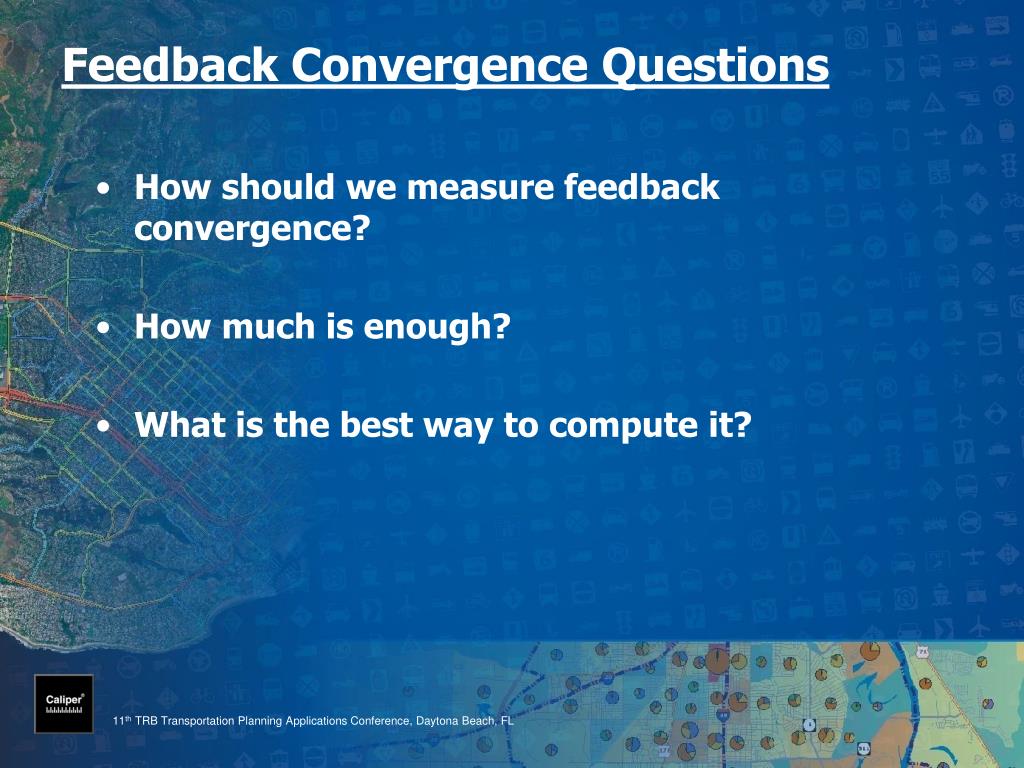

Feedback Convergence Questions

  • How should we measure feedback convergence?

  • How much is enough?

  • What is the best way to compute it?


Traffic assignment convergence

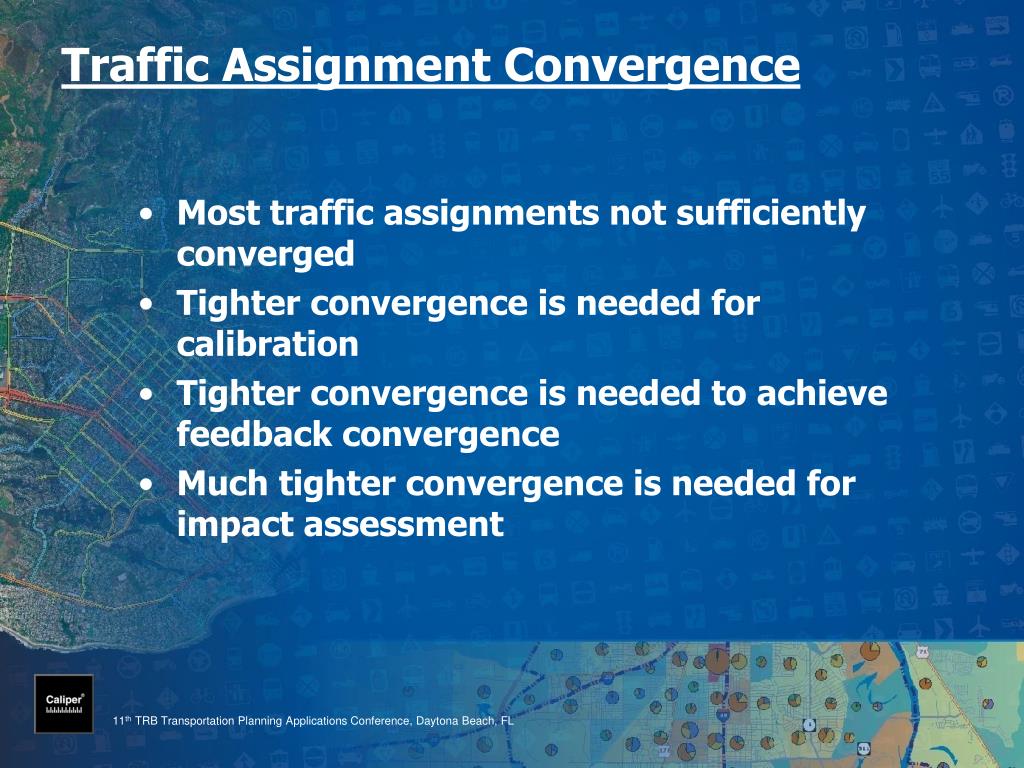

Traffic Assignment Convergence

  • Most traffic assignments not sufficiently converged

  • Tighter convergence is needed for calibration

  • Tighter convergence is needed to achieve feedback convergence

  • Much tighter convergence is needed for impact assessment


Gaps of the same name are not all rose s

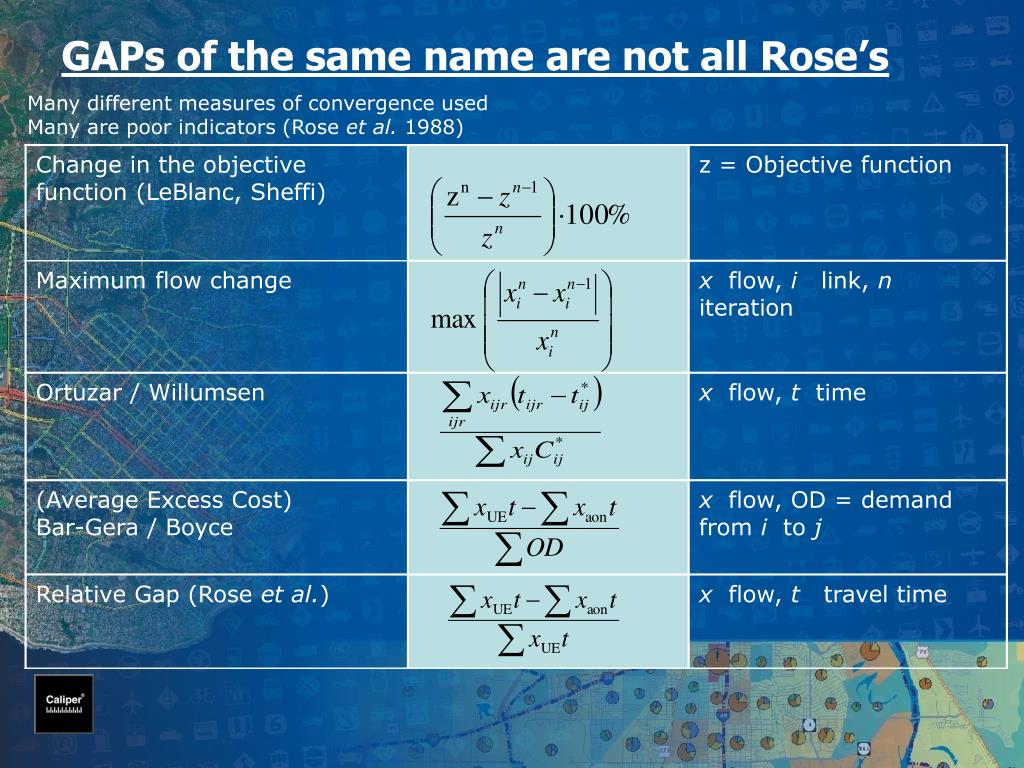

GAPs of the same name are not all Rose’s

Many different measures of convergence usedMany are poor indicators (Rose et al. 1988)


Rel diff in vht is a poor measure convergence pattern rel gap vs vht

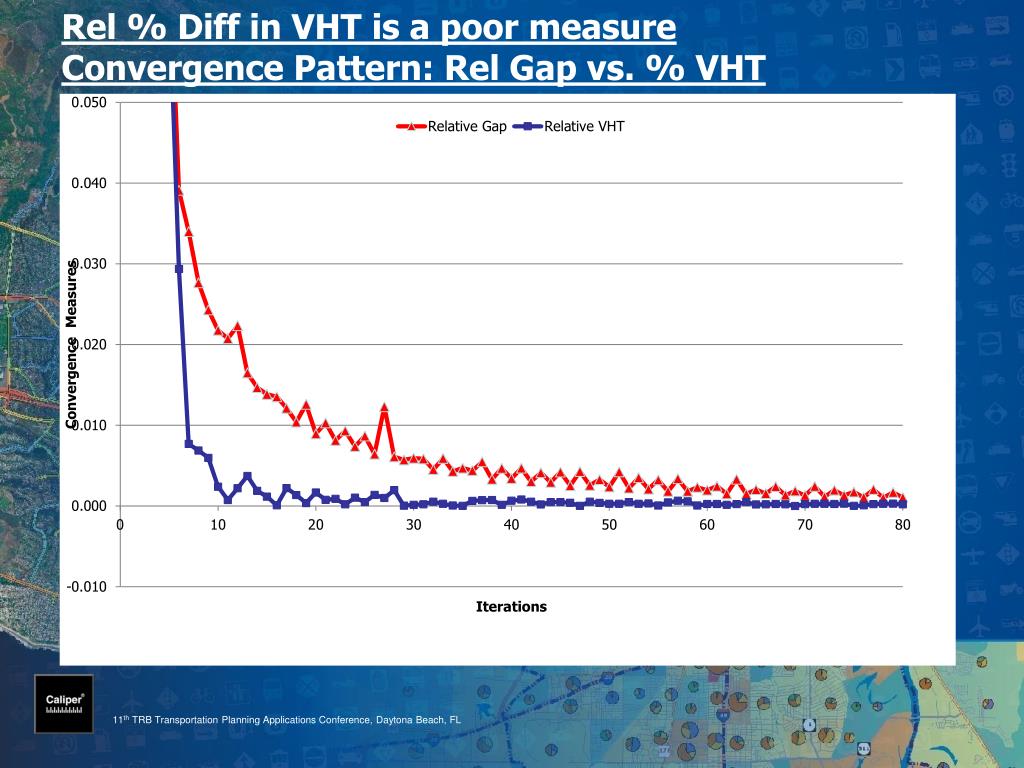

Rel % Diff in VHT is a poor measureConvergence Pattern: Rel Gap vs. % VHT


Two approaches now proven for faster traffic assignment convergence
Two approaches now proven for faster traffic assignment convergence

  • Multi-threaded Traditional Frank-Wolfe UE

  • Origin User Equilibrium OUE


Multi threaded frank wolfe

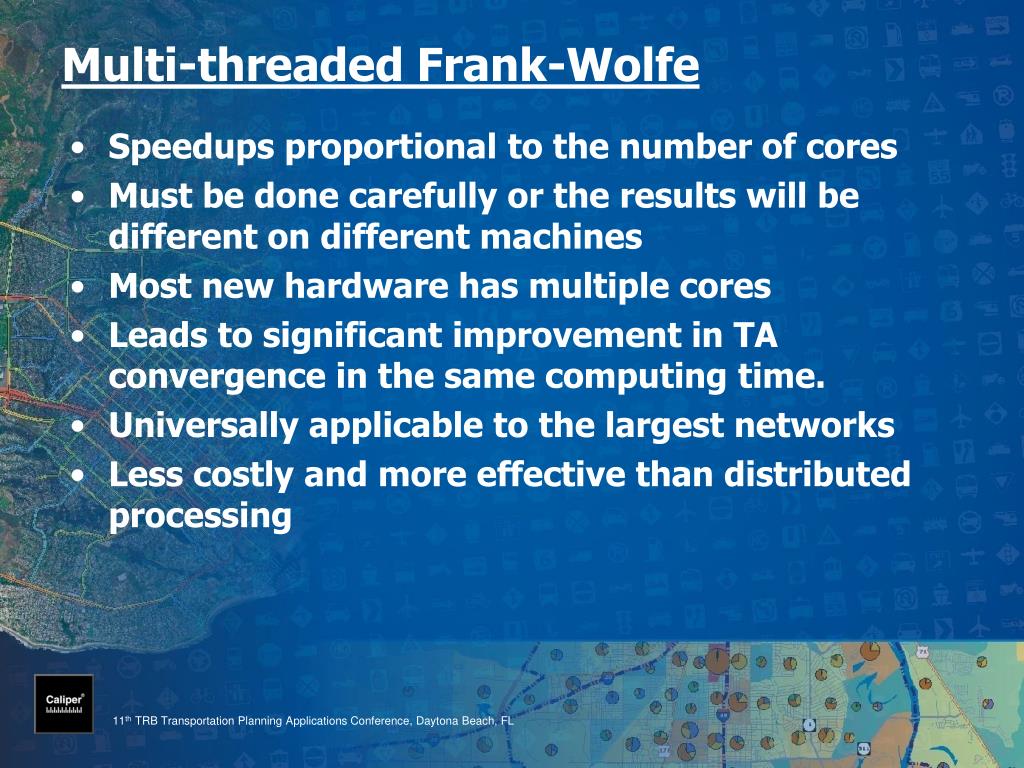

Multi-threaded Frank-Wolfe convergence

  • Speedups proportional to the number of cores

  • Must be done carefully or the results will be different on different machines

  • Most new hardware has multiple cores

  • Leads to significant improvement in TA convergence in the same computing time.

  • Universally applicable to the largest networks

  • Less costly and more effective than distributed processing


Origin ue assignment proposed by bar gera boyce dial

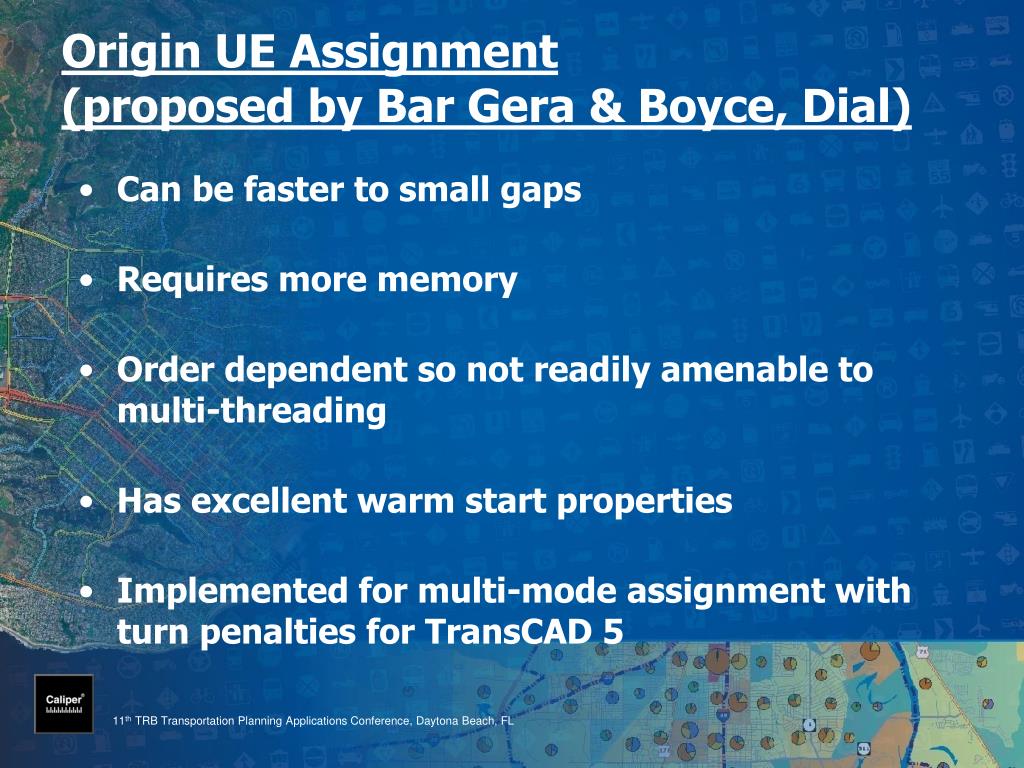

Origin UE Assignment convergence(proposed by Bar Gera & Boyce, Dial)

  • Can be faster to small gaps

  • Requires more memory

  • Order dependent so not readily amenable to multi-threading

  • Has excellent warm start properties

  • Implemented for multi-mode assignment with turn penalties for TransCAD 5


Test environment
Test Environment convergence

  • Well-calibrated regional model for Washington DC

  • 2500 zones, 6 purposes, 3 time periods, 5 assignment classes

  • Feedback through distribution, mode choice, & assignment

  • Calibrated to Relative Gap of .001, Skim matrix root mean square error < 1%

  • 80 – 170 Assignment iterations and 4 feedback loops

  • TransCAD 4.8/5.0 environment

  • Initial congested times from 5+ loop runs




Feedback tests

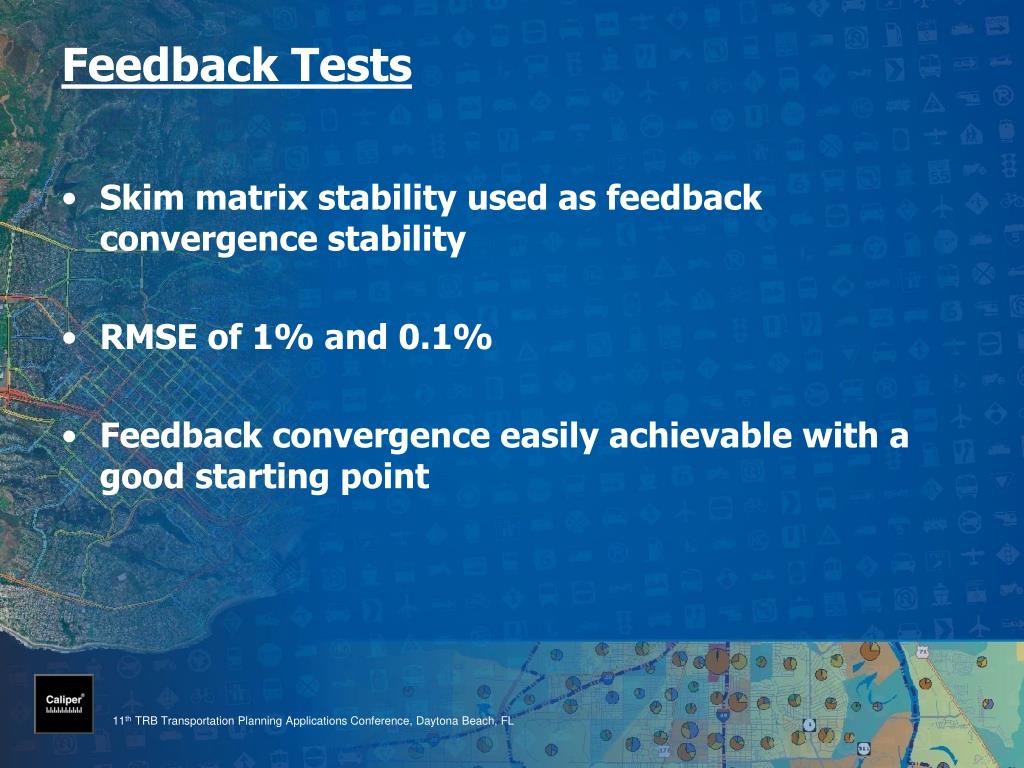

Feedback Tests & OUE

  • Skim matrix stability used as feedback convergence stability

  • RMSE of 1% and 0.1%

  • Feedback convergence easily achievable with a good starting point

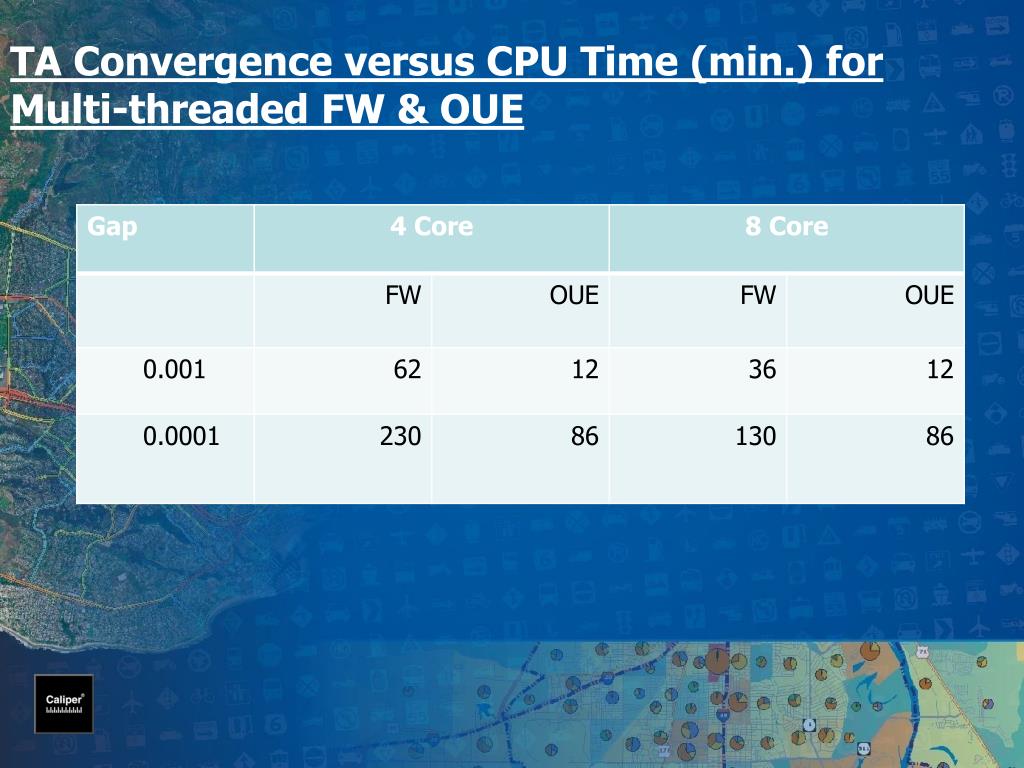

Time in min to reach traffic assignment convergence washington regional net 5 user classes
Time in min to reach Traffic Assignment Convergence – Washington Regional Net- 5 User Classes

(Starting from congested link times from 5 feedback loops)


Feedback Convergence-Washington D.C. Regional Washington Regional Net- 5 User Classes

Model-Minutes to Skim RMSE of 1 % (#Loops)


Feedback Convergence-Washington D.C. Regional Washington Regional Net- 5 User Classes

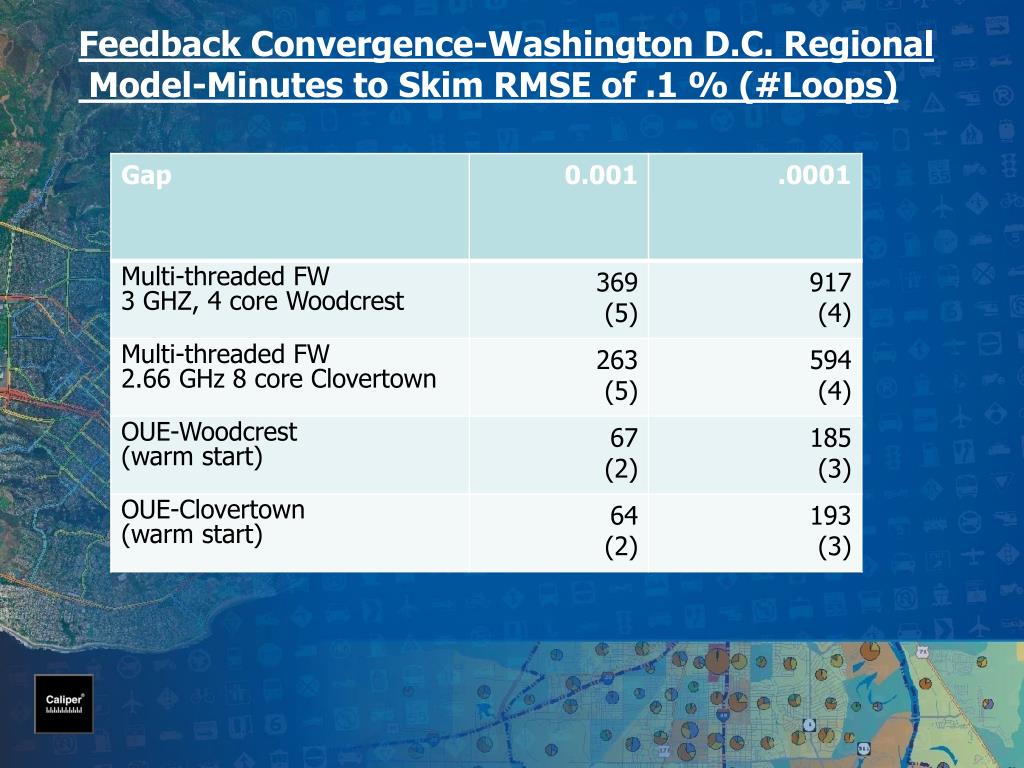

Model-Minutes to Skim RMSE of .1 % (#Loops)


Comparison of feedback calculation approaches
Comparison of Feedback Calculation Approaches Washington Regional Net- 5 User Classes

  • MSA AVERAGING OF FLOWS

  • TRIP TABLE AVERAGING

  • FLOW AND TRIP TABLE AVERAGING


Feedback approach comparison graph

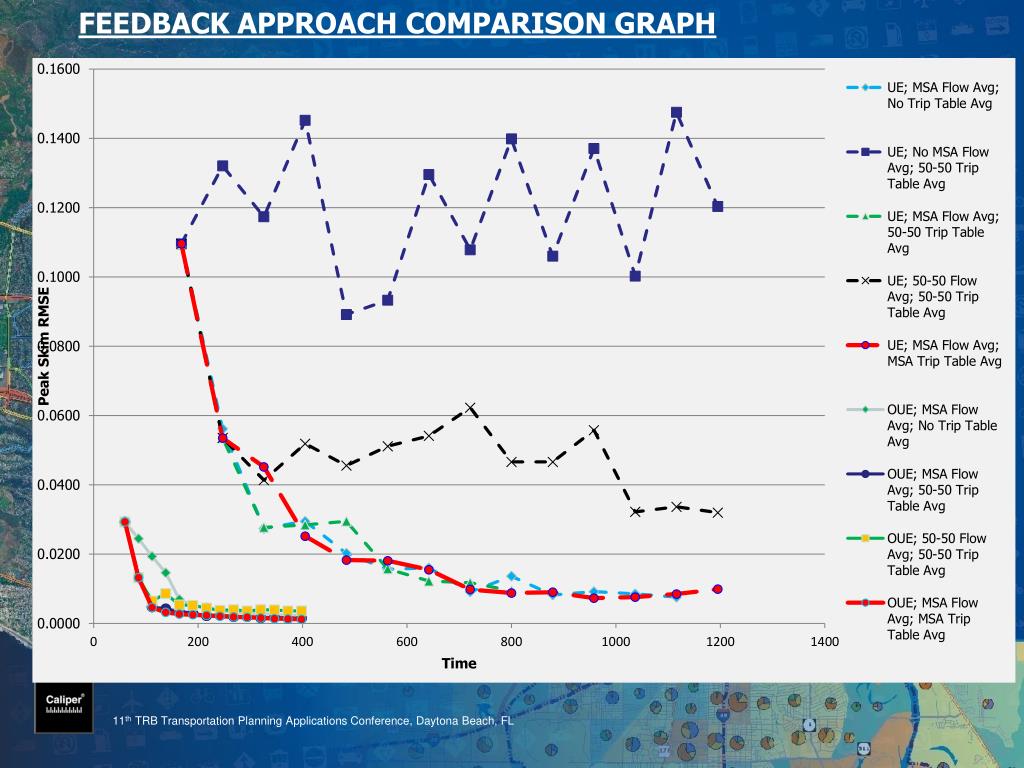

FEEDBACK APPROACH COMPARISON GRAPH Washington Regional Net- 5 User Classes


Feedback conclusions
Feedback Conclusions Washington Regional Net- 5 User Classes

  • Feedback convergence in sequential models easily achievable with multi-threaded UE or OUE

  • Beginning with congested travel times greatly reduces the computational cost.

  • Tighter traffic assignment convergence reduces the number of feedback loops required for FW

  • OUE with a warm start is fastest for assignment to low gaps and takes fewer loops for feedback

  • MSA Flow Averaging is effective

  • Trip Table Averaging may help MSA Flow Averaging

  • More research on measures, methods and solution characteristics is needed


Acknowledgements
Acknowledgements Washington Regional Net- 5 User Classes

We would like to thank Robert Dial, David Boyce and Hillel Bar-Gera for their research and many helpful discussions.


References
References Washington Regional Net- 5 User Classes

H. Bar-Gera 1999 Origin-based algorithms for transportation network modeling, Technical Report #103, NISS, Research Triangle Park, NC

H. Bar-Gera 2002 Origin-based algorithm for the traffic assignment problem, Transportation Science 36 (4), pp. 398-417

H. Bar-Gera and Amos Luzon 2007 Non-unique Solutions of User-Equilibrium Assignments and their Practical Implications, Paper presented at the 86th Annual Meeting of the Transportation Research Board

D. Boyce, B. Ralevic-Dekic, and H. Bar-Gera 2004 Convergence of Traffic Assignments: How much is enough, Journal of Transportation Engineering, ASCE, Jan./Feb. 2004

R. Dial 1999 Algorithm B: Accurate Traffic Equilibrium (and How to Bobtail Frank-Wolfe, Volpe National Transportation Systems Center, Cambridge, MA July 25, 1999

R. Dial 2006 A path-based user-equilibrium traffic assignment algorithm that obviates path storage and enumeration, Transportation Research B, December 2006

G. Rose, M. Daskin, F. Koppleman 1988. An Examination of Convergence Error in Equilibrium Traffic Assignment Models:, Transportation Research Vol 22B (4)

H. Slavin, J. Brandon, and Andres Rabinowicz 2006 An Empirical Comparison of Alternative User Equilibrium Traffic Assignment Methods, Proceedings of the European Transport Conference 2006, Strasbourg, France
