  1. ResQ Bone Marrow Concentration System

  2. Product Positioning ResQ BMC Automated cell capturing system for the concentration of bone marrow derived stem cells at the point-of-care

  3. ResQ BMC Intended Use Intended Use Statement The ResQ BMC is intended to be used in a clinical laboratory or interoperatively at the point-of-care for the preparation of a cell concentrate from bone marrow.

  4. ResQ Features & Benefits

  5. ResQ BMC Principal of Procedure • Double Tube System • Density based floating funnel • Cells are captured in a closed, sterile chamber • Cells are re-suspended using magnetic agitation

  6. System Components

  7. ResQ BMC Packaging Box of 10

  8. ResQPackaging Transfer Tubing Device Filter Syringe Sterile Wrap

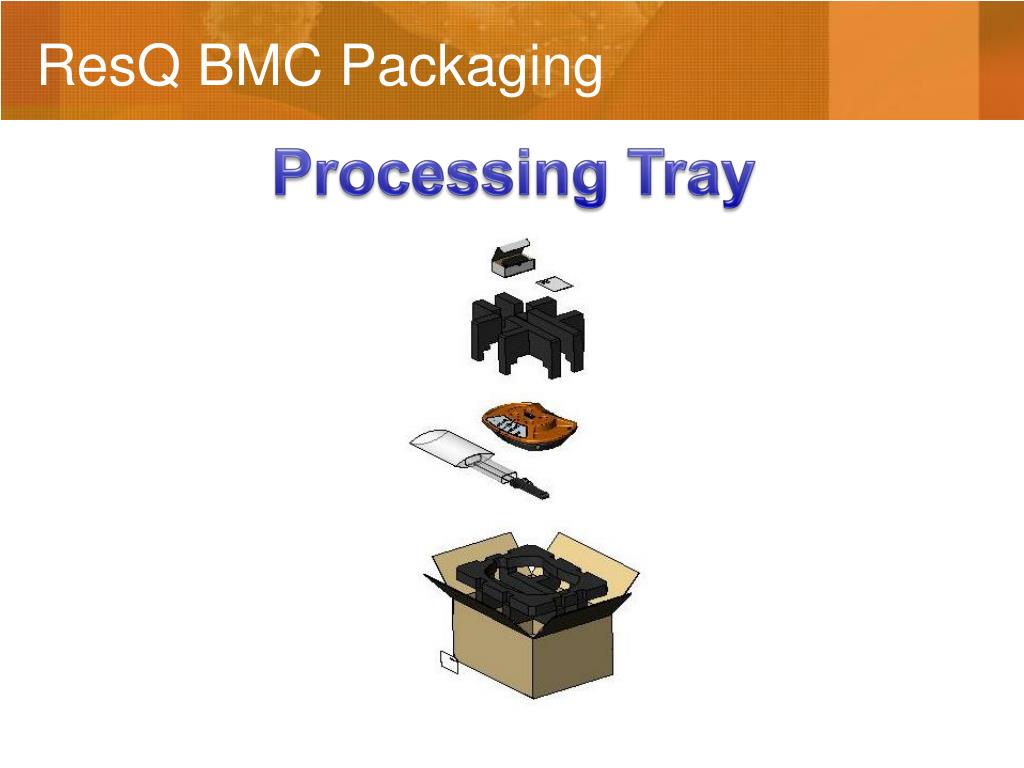

  9. ResQ BMC Packaging Processing Tray

  10. ResQ BMC Packaging Centrifuge • Packaging: • Centrifuge • Universal Power supply • One 10’ line cord • One 4 carrier horizontal rotor • Four 4 place carriers • Operator’s manual

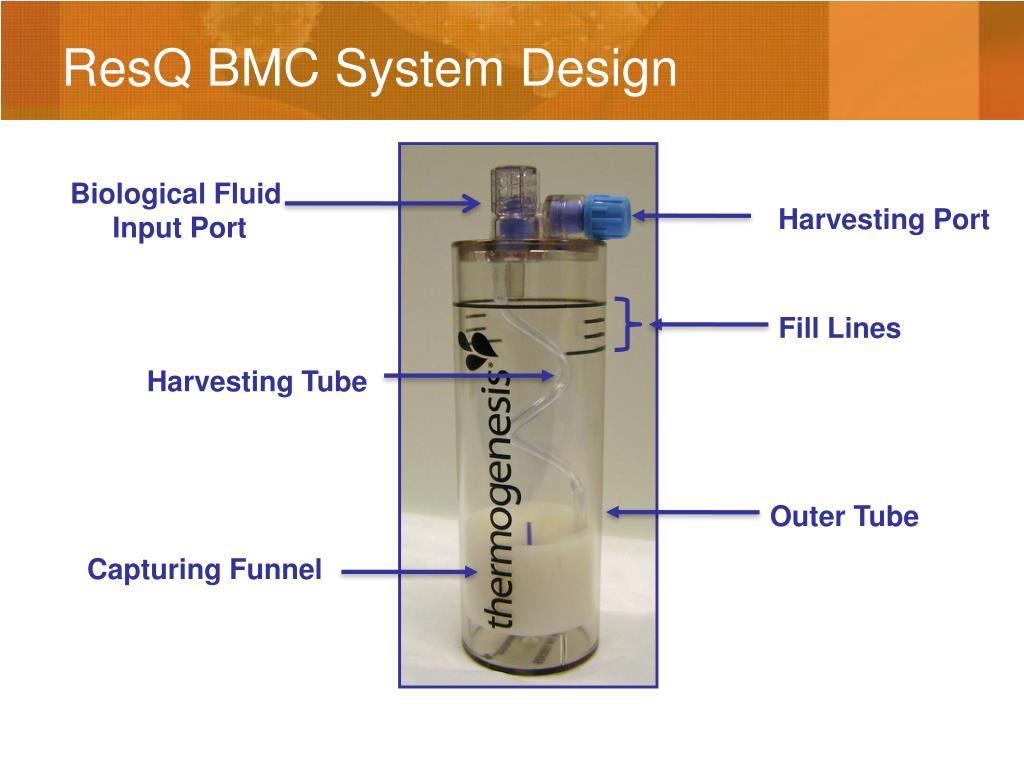

  11. ResQ BMC System Design Biological Fluid Input Port Harvesting Port Fill Lines Harvesting Tube Outer Tube Capturing Funnel

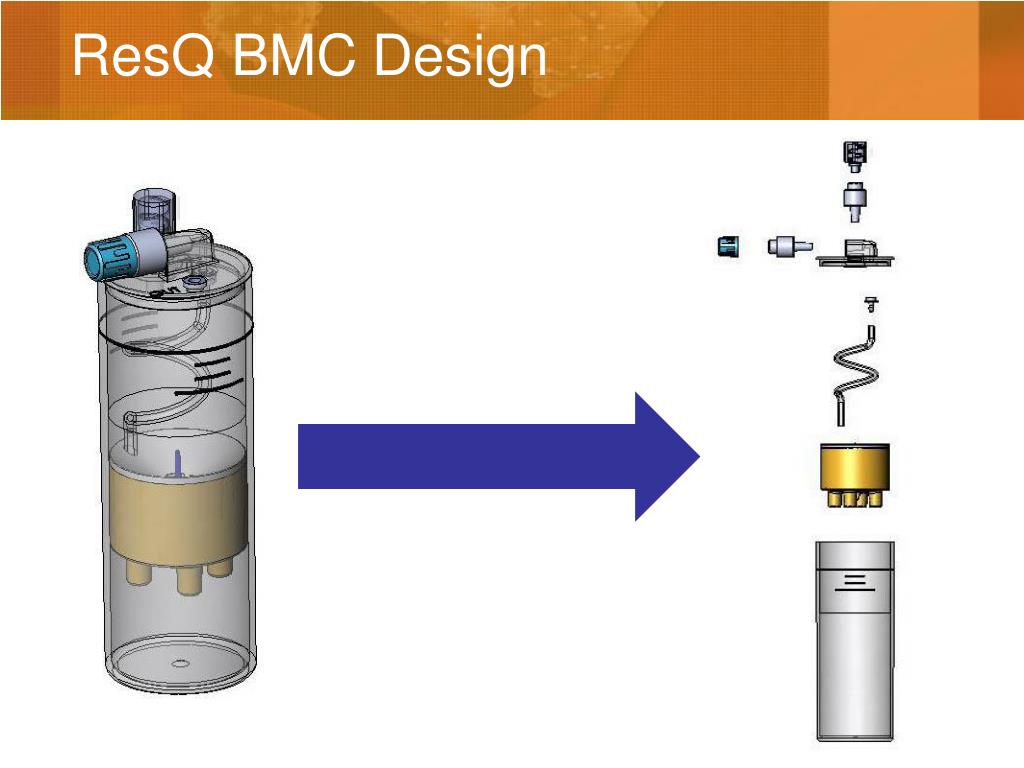

  12. ResQ BMCDesign

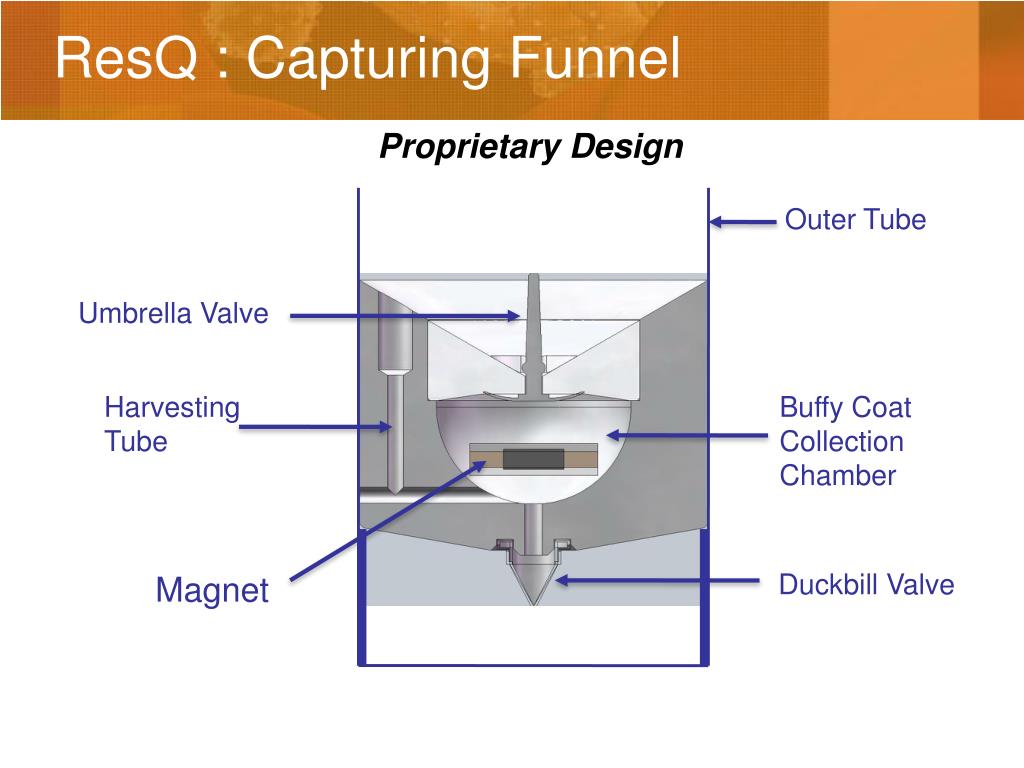

  13. ResQ : Capturing Funnel Proprietary Design Outer Tube Umbrella Valve Harvesting Tube Buffy Coat Collection Chamber Duckbill Valve Magnet

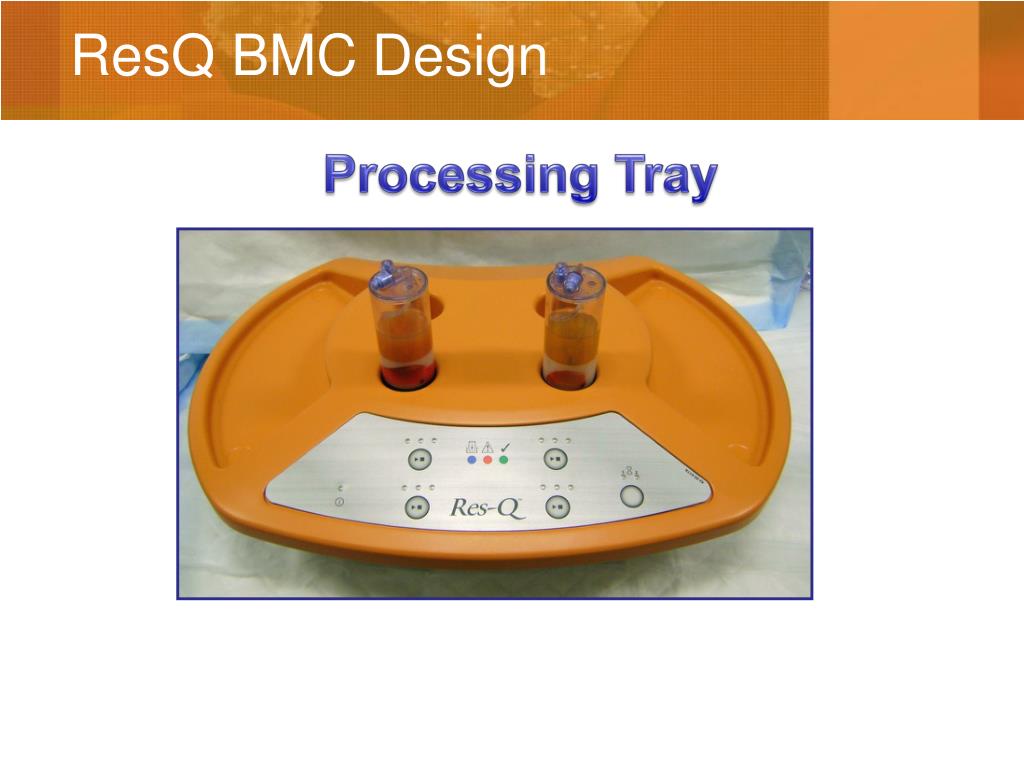

  14. ResQ BMCDesign Processing Tray

  15. ResQ BMCDesign Processing Tray Processing Wells Magnets Optical Sensors Workspace High Speed Motors

  16. H2O = ResQ BMCDesign Counterbalance Max Min Match BM to Water

  17. ResQ System Cart Coming This Fall! Processing Tray • 4 position processing tray • Status LED’s • 4 position centrifuge • Storage for 6 Art 21 devices in packaging • Common power source • Disassembles for easy transport Centrifuge Storage Locking wheels

  18. System Protocol

  19. Bone Marrow Collection ThermoGenesis Recommended Protocol • Rinse all syringes, aspiration needles and stylets with heparin solution (1000 μ/ml). • Ensure that the heparin solution has coated the entire marrow contacting surfaces. • Remove any remaining heparin from the syringe. • Aspirate the bone marrow into each 60 ml aspiration syringe. • Aspirate approximately 55cc’s of bone marrow, leaving space for mixing. • Transfer marrow to second syringe with 5mls of ACDA anticoagulant. • Gently rock the syringe from side to side 20 times to mix the anticoagulant.

  20. ResQ BMC Procedure Present Art 21 to Sterile Field Mix Marrow with Anticoagulant Harvest Marrow

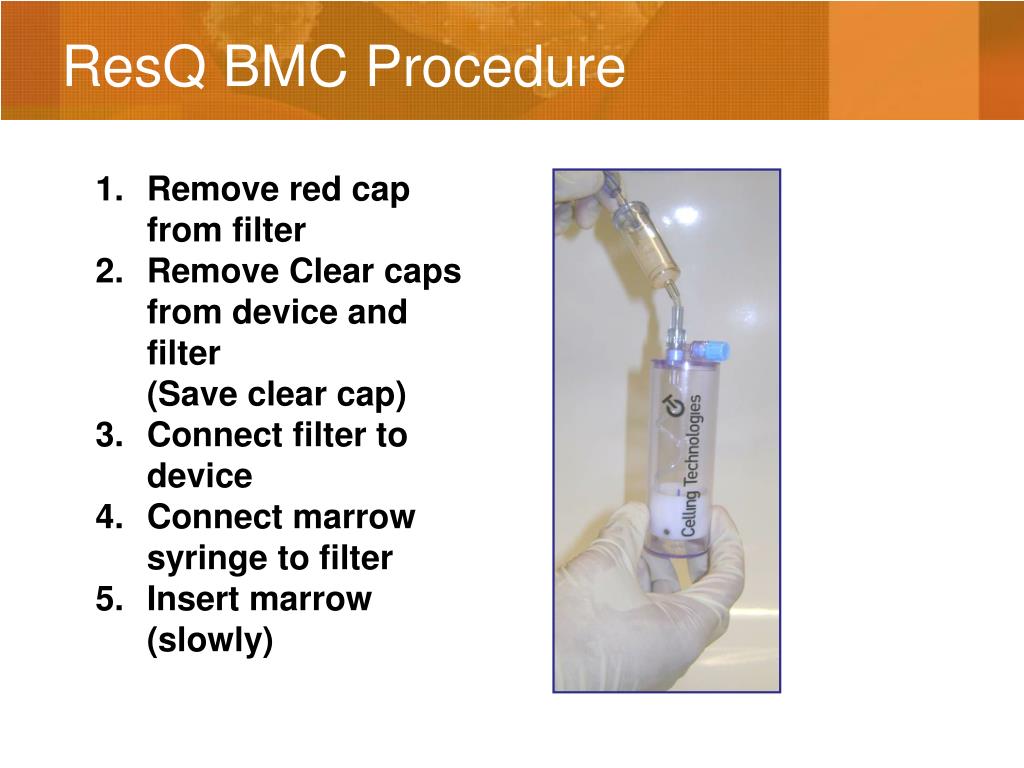

  21. ResQ BMC Procedure Remove red cap from filter Remove Clear caps from device and filter(Save clear cap) Connect filter to device Connect marrow syringe to filter Insert marrow (slowly)

  22. Procedure Reconnect clear cap Place in Centrifuge Transfer out of sterile field Don’t forget the counter- balance!

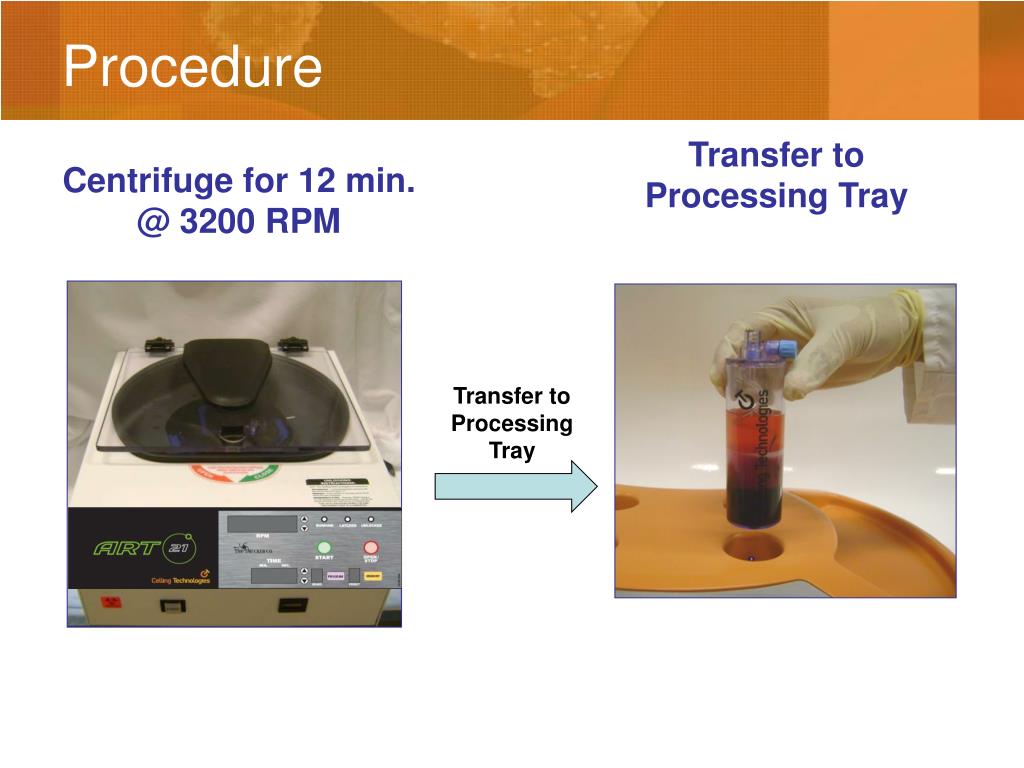

  23. Procedure Transfer to Processing Tray Centrifuge for 12 min. @ 3200 RPM Transfer to Processing Tray

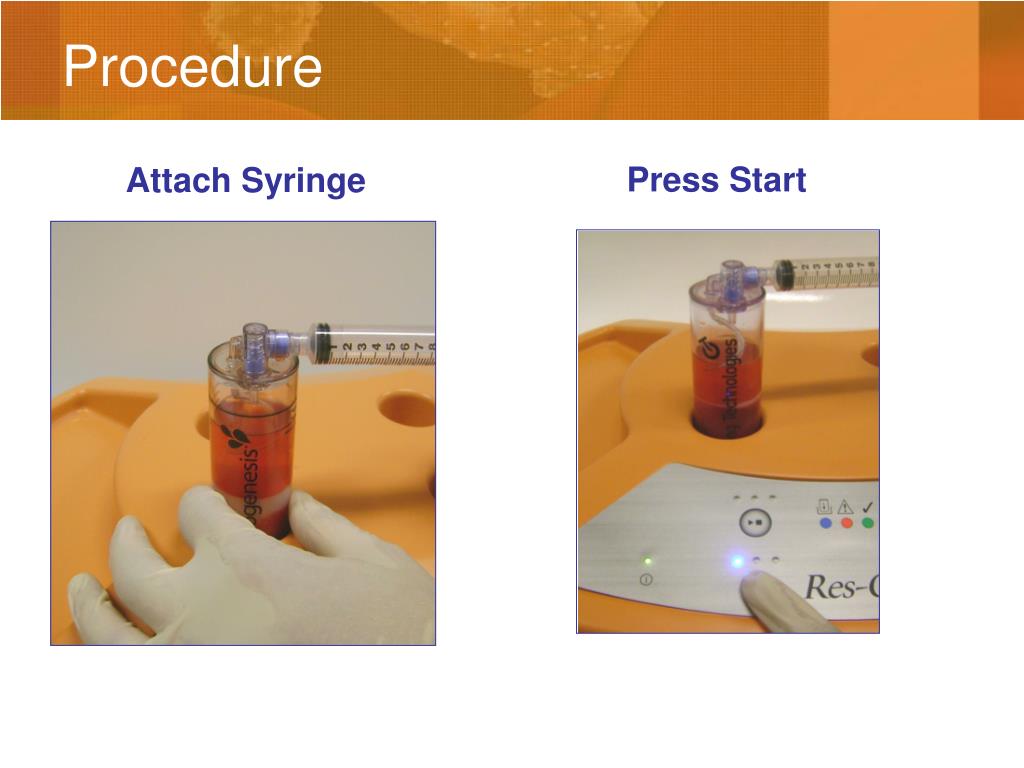

  24. Procedure Press Start Attach Syringe

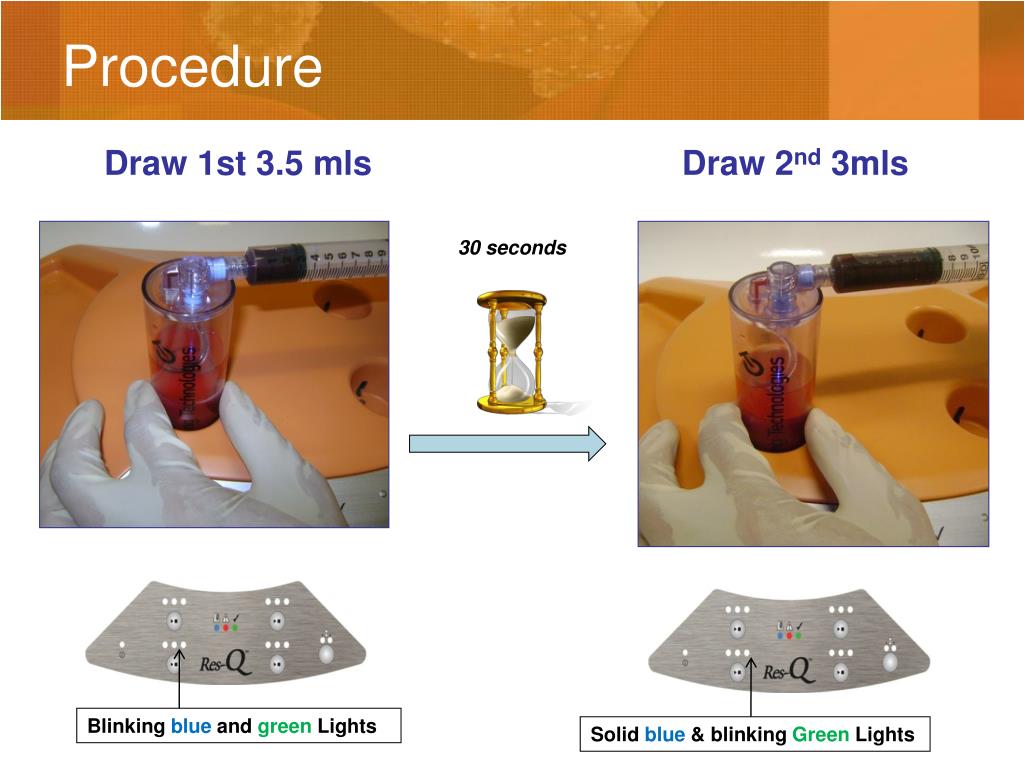

  25. Procedure Draw 1st 3.5 mls Draw 2nd 3mls 30 seconds Blinking blue and green Lights Solid blue & blinking Green Lights

  26. Processing Tray LED Logic 1st Draw 2nd Draw 30 Sec 30 Sec Time 0 Time 30 Time 60

  27. Procedure Attach Transfer Tubing and Transfer Cell Concentrate Remove Syringe Present to Sterile Field

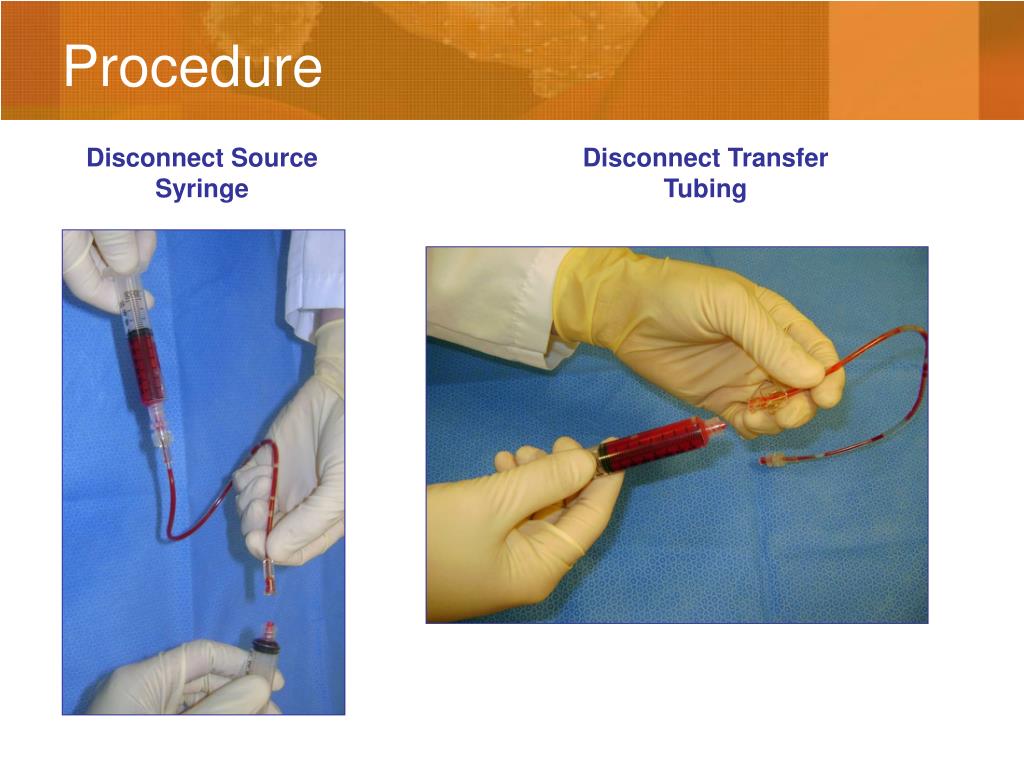

  28. Procedure Disconnect Source Syringe Disconnect Transfer Tubing

  29. Additional items for processing Anticoagulant (Heparin, ACD-A) Bone Marrow aspiration kit Syringes (1 x 60cc, 1 x 10cc) Counterbalance (supplied by TG) Water (for counterweight)

  30. System Maintenance

  31. Art 21 BMC Maintenance Processing Tray • Keep wells clear of particulate, fluid • Keep keypad clear of liquid • Wipe clean with dilute bleach after each use • Do not bring tray near items that can be impacted by a magnetic field

  32. Art 21 BMC Maintenance Centrifuge • Provide adequate ventilation • Keep carriers clean. Dilute bleach, isopropyl alcohol OK • Do not remove rotor without a technician • Replace carriers after 24 months of use • Emergency rotor chamber entry
