Presentation Transcript

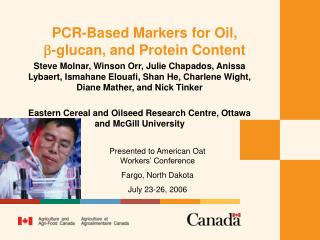

slide1

PCR-Based Markers for Oil, b-glucan, and Protein Content

Steve Molnar, Winson Orr, Julie Chapados, Anissa Lybaert, Ismahane Elouafi, Shan He, Charlene Wight, Diane Mather, and Nick Tinker

Eastern Cereal and Oilseed Research Centre, Ottawa and McGill University

Presented to American Oat Workers’ Conference

Fargo, North Dakota

July 23-26, 2006

why are we interested
Why Are We Interested?
  • Oil, b-glucan, and protein content are three major quality traits in oats.
  • One strategy for improving these traits is to use molecular marker assisted selection (MAS) breeding.
  • For MAS, PCR-based markers are currently the best choice balancing low cost with high reliability.
the challenge
The Challenge
  • Identify the genetic loci that are responsible for variation in these 3 traits.
  • Identify or develop PCR-based markers linked to these loci.
  • Preferably, identify or develop PCR-based markers within the gene itself, as these can not be unlinked by recombination and as these could be allele specific.
the challenge5
The Challenge
  • Identify the genetic loci that are responsible for variation in these traits
  • Identify or develop PCR-based markers linked to these loci
  • Preferably, identify or develop PCR-based markers within the gene itself, as these can not be unlinked by recombination and as these could be allele specific
pcr based markers proven as linked to oil b g or protein qtls in map pops or as candidate genes
PCR-Based Markers Proven as Linked to Oil, bG, or Protein QTLs in Map. Pops. or as Candidate Genes
slide7

PCR Based Markers Linked to Oil QTL

T T M M

R R R R R R R R R R T T M M

RAPD

SCAR

Ethidium bromide-stained gel (2% agarose) of PCR amplification products after electrophoresis. RAPD UBC121 and derived SCAR on Terra, Marion and their RILs.

Orr and Molnar, submitted

slide8

QTL Linked RAPD Markers and Derived SCARs

A B

TM15(KO22) TM11 TM5(KO24,34)

0.0

acc_cta222

Oil

58.3

cdo482x

ß-glucan

0.0

bcd327x

13.4

umn575

aco139y

4.9

14.0

bcd327

62.3

ubc185s

14.3

14.4

ubc167a

ubc198

62.6

ubc185

ubc121

18.9

15.0

ubc186, ubc167ts

64.6

n1

Oil, Protein, etc.

15.2

ubc186s

15.3

ubc121ms

15.5

ubc167ms

ubc198s

16.1

aco139x

C D

KO15 TM30 KO11_41+20

umn5112_2

19.3

cdo460b

6.2

0.0

acc_cat259

7.0

ACCase 1

Oil

isu1507xp

12.8

7.1

cdo665b

ubc364os

33.9

umn5214

7.8

43.0

cdo54

Oil

bcd115x

32.0

10.1

48.4

ubc364b

cdo1436c

Orr and Molnar, submitted

51.6

bcd115c

scar ubc364os tested on dal high oil x exeter low oil recombinant inbred lines
SCAR UBC364Os Tested On Dal (High Oil) x Exeter (Low Oil) Recombinant Inbred Lines

2-11 High Oil RILs; 12-19 Low Oil

Kanota

Ogle

LDD EE KK OO

pcr based markers proven as linked to oil b g or protein qtls in map pops or as candidate genes10
PCR-Based Markers Proven as Linked to Oil, bG, or Protein QTLs in Map. Pops. or as Candidate Genes
microsatellite ssr markers
Microsatellite (SSR) Markers
  • Microsatellite or SSR (Simple Sequence Repeat) markers target variation in small repeat units, typically 2 or 3 bp in size.
  • Graham Scoles’ lab and Les Domier’s lab isolated oat SSRs. Polymorphism is extremely low (5%). However, they and we have tested over 100 and mapped all polymorphic ones. Of those, most are +/-SCAR type markers, not typical co-dominant SSRs. This reflects variation in primer binding site, not in the number of repeat units. Two link to oil QTLs and 6 to b-glucan.
microsatellite ssr markers12
Microsatellite (SSR) Markers
  • Heidi Kaeppler’s lab has developed 2 SSRs linked to oil and protein QTLs respectively
  • Graham Scoles’ lab has identified 2 ISSR (Inter SSR) markers, linked to b-glucan QTLs.
  • Studying the Iowa high oil selection program, Jean-Luc Jannink has identified 2 SSRs (1 from Jim Holland and 1 from Graham Scoles) associated with high oil.
  • Recently, Nick Tinker’s lab has developed new SSRs of which 2 are linked to oil, 2 to b-glucan and 1 to protein.
challenge
Challenge
  • Identify the genetic loci that are responsible for variation in these traits
  • Identify or develop PCR-based markers linked to these loci
  • Preferably, identify or develop PCR-based markers within the gene itself, as these can not be unlinked by recombination and as these could be allele specific
pcr cloning of candidate genes
PCR Cloning of Candidate Genes
  • In this approach, we proposed candidate genes based on metabolic pathways. Available grass DNA sequences for each gene were compared and PCR primers designed. These were used to isolate the oat homolog, which can then be mapped and its map location compared to that of known QTL.
candidate gene primers
Candidate Gene Primers
  • Anissa Lybaert in our lab found that most PCR primers developed this way are monomorphic.
  • Catherine Howarth et al have had success with this strategy, in part by going one step further to identify sequence differences in those PCR products and to design SNP (Single Nucleotide Polymorphism) markers targeting them. They have developed new PCR-based markers for ACCase and KAS and other oil biosynthesis enzymes.
est primers
EST Primers
  • EST (Expressed Sequence Tag) libraries developed from tissues actively involved in oil, b-glucan or protein synthesis might be a rich source of genes.
  • PCR-primers for such ESTs is a potential strategy.
  • Ismahane Elouafi in my lab recently developed 73 primer pairs to oat ESTs. We targeted those oat ESTs with homology to rice genomic sequences with introns, in an effort to increase polymorphism. However, only 1 was polymorphic on KxO, even after restriction digestion.
  • By chance, that EST mapped near a b-glucan QTL.
  • However, low polymorphism may limit this approach.
pcr based markers proven as linked to oil b g or protein qtls in map pops or as candidate genes17
PCR-Based Markers Proven as Linked to Oil, bG, or Protein QTLs in Map. Pops. or as Candidate Genes
conclusions
Conclusions
  • This is a very conservative inventory of markers since it is limited to PCR-based markers mapped in the same population as the QTL or derived from candidate genes or ESTs. Excellent markers in homologous regions of other mapping populations or in homeologous regions of all populations have not been added to this inventory.
    • We need more common markers to better define homologous and homeologous relationships and ideally a consensus map
  • A good selection of PCR-based markers have been developed for oil, b-glucan, and protein content by numerous laboratories.
    • We need databases to manage these and make them readily available to the community.
conclusions19
Conclusions
  • These markers are of many different types, that have different features. This increases flexibility but is problematic for automation.
  • Further, the low frequencies of polymorphism in oats mean that multiple markers must be developed per locus to ensure that an informative marker is available in the breeder’s germplasm of choice.
    • We need a single type of marker that is robust, numerous and polymorphic.
conclusions20
Conclusions
  • It is unclear if sufficient markers exist because it is unclear how many loci are important and need to be tagged with markers.
    • To determine the number of unique loci we need to better define homologous and homeologous relationships.
    • Regarding the identification of important loci, it is noteworthy that QTLs identified for b-glucan explain only 20-25% of the parental variation. Values are better for protein (20-50%) and best for oil (35-70%).
major conclusions
Major Conclusions
  • It is clear that sufficient high quality markers exist to initiate MAS for these three traits, when appropriate.
  • It is also clear that the mapping of QTLs and candidate genes has increased our knowledge of the biology and genetics of these traits, which in turn affects the design of all oat improvement strategies, whether they use markers for MAS or not.
acknowledgements
Acknowledgements

We thank:

  • Quaker Oats (USA), a division of Pepsico, and QTG (Quaker/Tropicana/Gatorade) Canada for many years of generous financial support.
  • In particular, Fran Webster, Sam Weaver, Bruce Roskens and Grant Morrison, our coordinators from Quaker.
  • Members of the oat team at ECORC, AAFC, Ottawa for their dedication to oat improvement.
  • as well as Agriculture and Agri-Food Canada’s Matching Investment Initiative.
