superheat control system
Superheat Control System

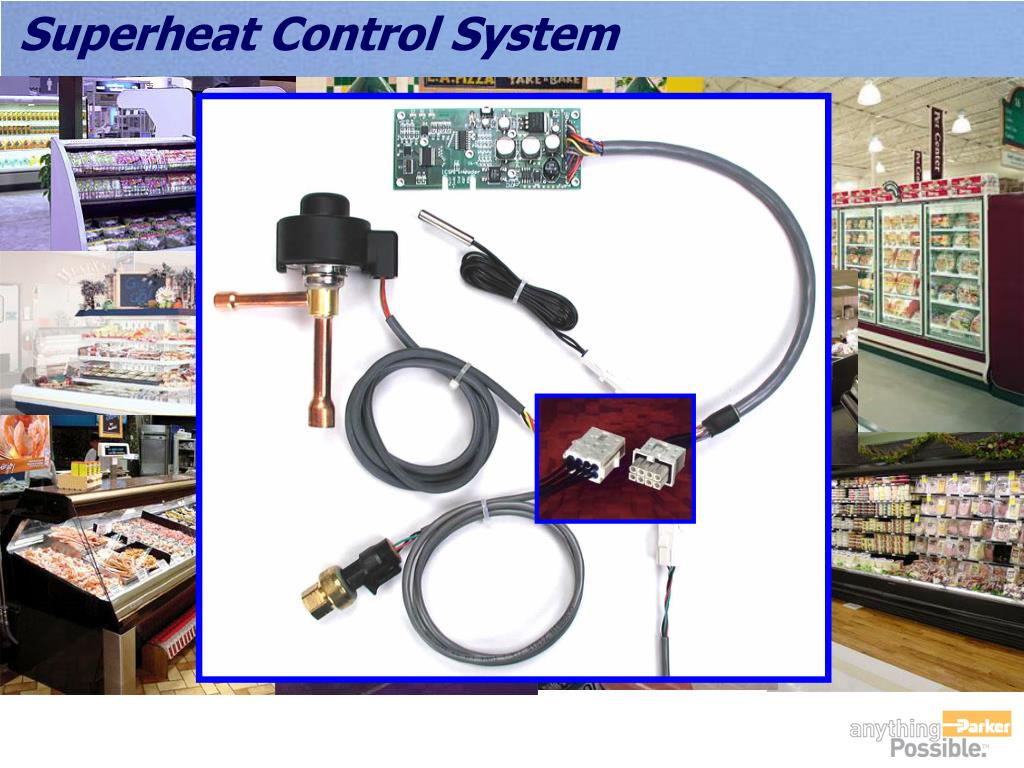

System Components

Production Intent System

superheat control system1
Superheat Control System
  • Technology Innovations
  • Enhanced superheat control algorithm
    • Labor saving “Set & Forget” commissioning
    • Improved evaporator performance
      • Efficiency and temperature pull down
      • Lower evaporator discharge temperatures
      • Tighter temperature control
      • Electronic “anti-hunt” “ballast bulb”
        • Patent disclosure
  • Compressor protection algorithm
superheat control system2
Superheat Control System
  • Technology Innovations
  • Remote wireless IR interface
  • Intelligent diagnostics
    • Electronic LED semaphore
      • With alarm buffering
    • Case performance “signature” and history capture
      • Sensor “failsafe” provision
  • Low mass, rapid response temperature sensor
  • Enhanced, low cost, electronic expansion valve
superheat control system3
Superheat Control System
  • Packaging Innovations
  • Low pressure thermoplastic overmold
    • Waterproofs electronics
    • FDA (NSF) and UL approved
    • Low temp, high impact qualified
    • Inherent cable stain relief
  • Electronics lay out accommodates mold flow process
  • Multiple pre-fabricated, low temp, water proof cables and cable quick connects
kitting
Kitting
  • Customer Inputs:
  • Controller Kit
    • Controller module
    • Power input cable assembly
  • Valve / Sensor Kits
    • Pressure & temperature sensors with cables, expansion valve & stator (1.5 ton), (3 ton), & (5 ton)
  • Individual components set up as service parts
