Comprehensive Trebuchet Project Report: History, Design, Physics, and Testing

This report encompasses a thorough analysis of the trebuchet as a historical and engineering marvel. It includes a concise history of the trebuchet, an exploration of the physics principles that govern its operation, and a detailed account of the design, assembly, and testing processes undertaken by the team. Featured are the necessary calculations for computing trebuchet force, a data table with test results, a breakdown of project costs, and proper writing methodologies. Additionally, the report includes an annotated bibliography of resources used.

kert
Download Presentation

Comprehensive Trebuchet Project Report: History, Design, Physics, and Testing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. TREBUCHETReport Grading

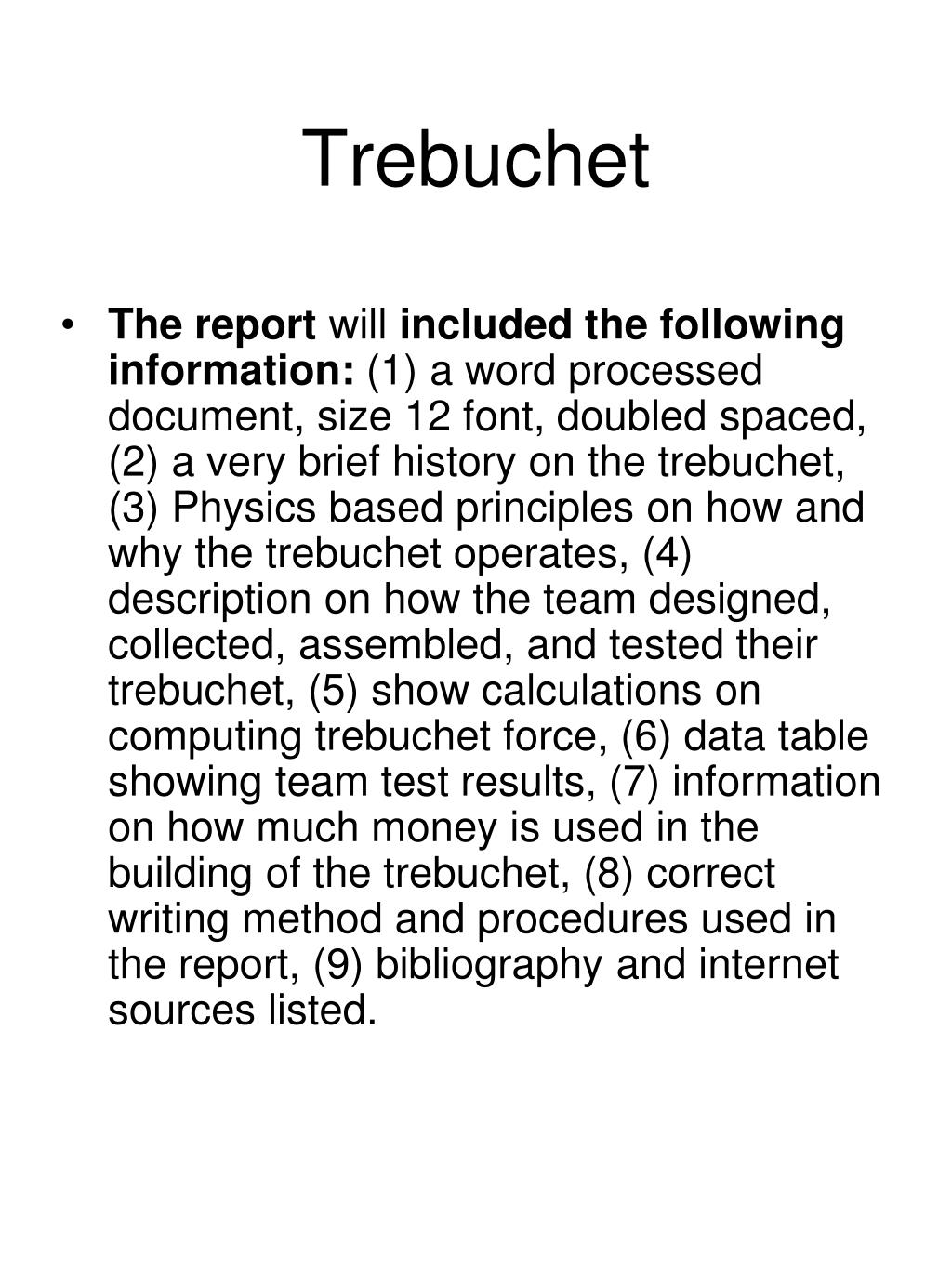

  2. Trebuchet • The report will included the following information: (1) a word processed document, size 12 font, doubled spaced, (2) a very brief history on the trebuchet, (3) Physics based principles on how and why the trebuchet operates, (4) description on how the team designed, collected, assembled, and tested their trebuchet, (5) show calculations on computing trebuchet force, (6) data table showing team test results, (7) information on how much money is used in the building of the trebuchet, (8) correct writing method and procedures used in the report, (9) bibliography and internet sources listed.

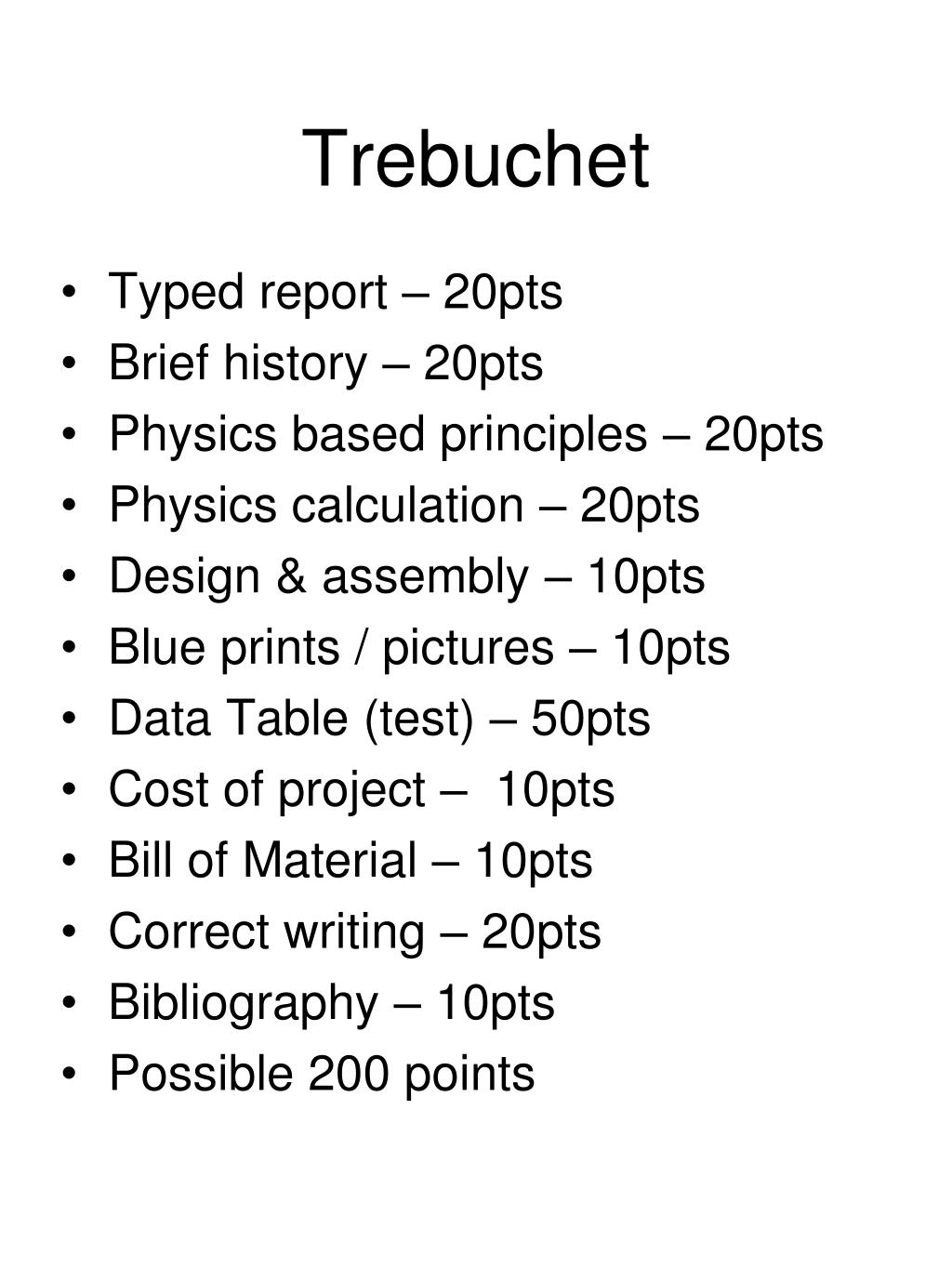

  3. Trebuchet • Typed report – 20pts • Brief history – 20pts • Physics based principles – 20pts • Physics calculation – 20pts • Design & assembly – 10pts • Blue prints / pictures – 10pts • Data Table (test) – 50pts • Cost of project – 10pts • Bill of Material – 10pts • Correct writing – 20pts • Bibliography – 10pts • Possible 200 points

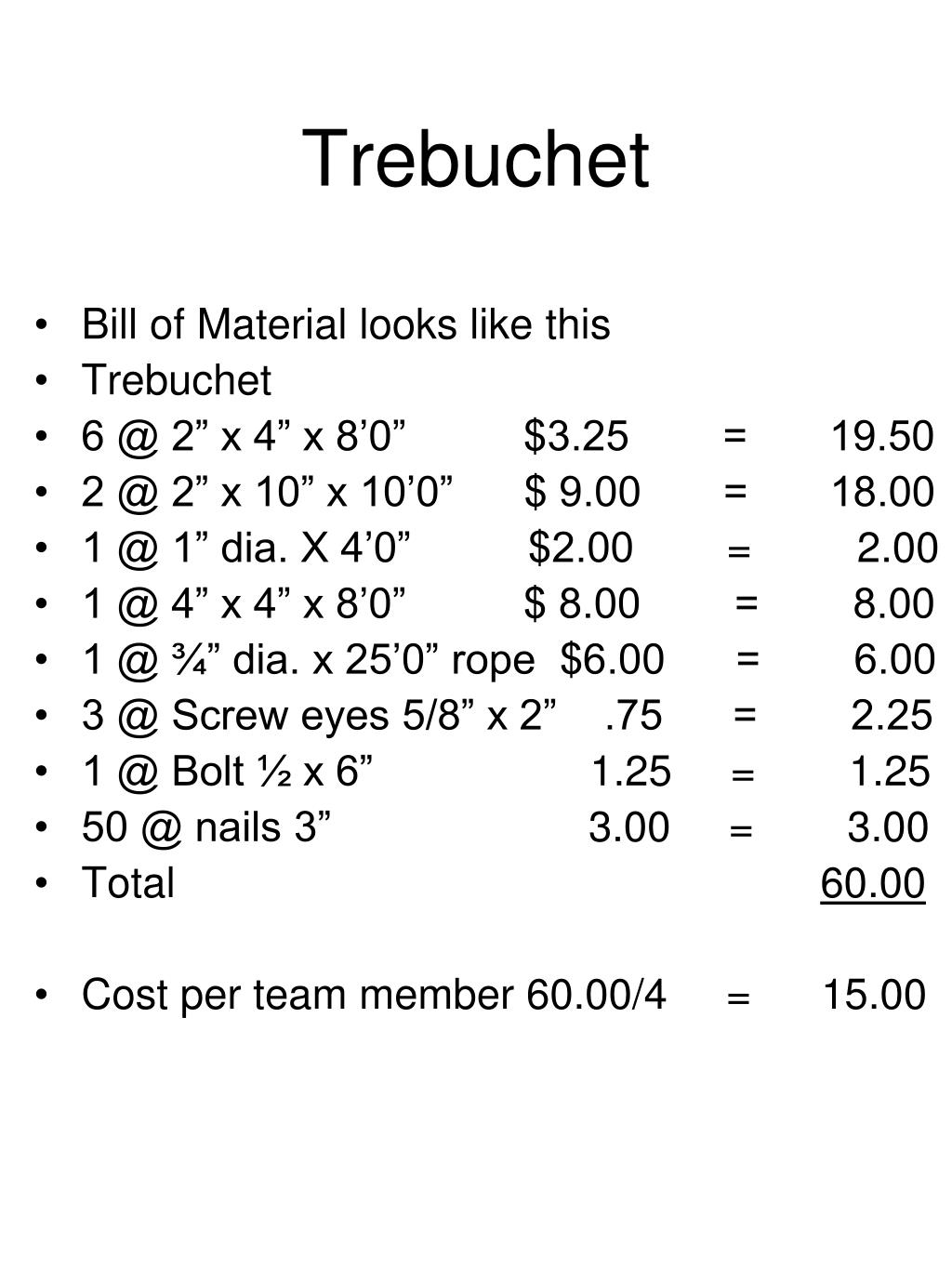

  4. Trebuchet • Bill of Material looks like this • Trebuchet • 6 @ 2” x 4” x 8’0” $3.25 = 19.50 • 2 @ 2” x 10” x 10’0” $ 9.00 = 18.00 • 1 @ 1” dia. X 4’0” $2.00 = 2.00 • 1 @ 4” x 4” x 8’0” $ 8.00 = 8.00 • 1 @ ¾” dia. x 25’0” rope $6.00 = 6.00 • 3 @ Screw eyes 5/8” x 2” .75 = 2.25 • 1 @ Bolt ½ x 6” 1.25 = 1.25 • 50 @ nails 3” 3.00 = 3.00 • Total 60.00 • Cost per team member 60.00/4 = 15.00

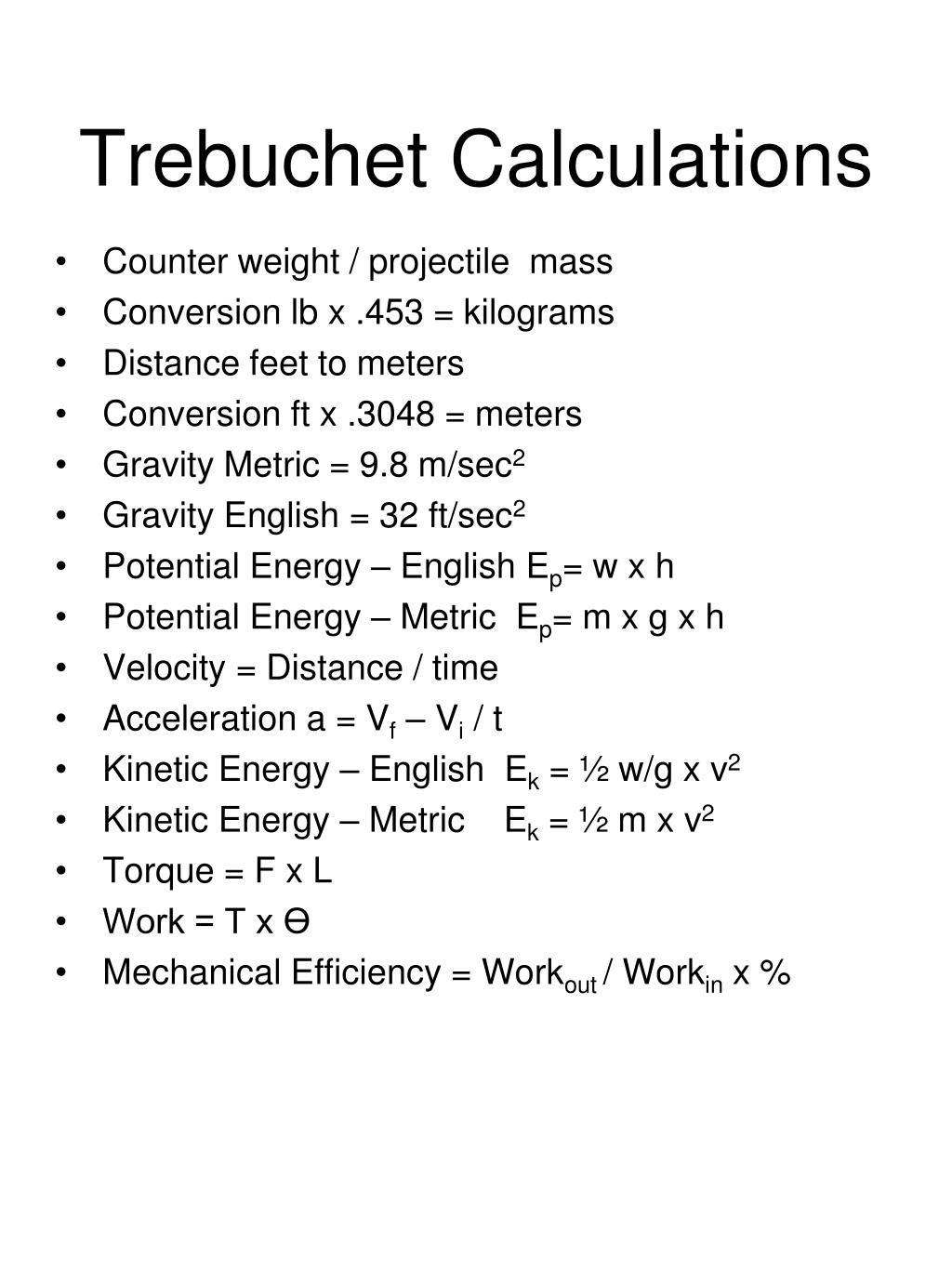

  5. Trebuchet Calculations • Counter weight / projectile mass • Conversion lb x .453 = kilograms • Distance feet to meters • Conversion ft x .3048 = meters • Gravity Metric = 9.8 m/sec2 • Gravity English = 32 ft/sec2 • Potential Energy – English Ep= w x h • Potential Energy – Metric Ep= m x g x h • Velocity = Distance / time • Acceleration a = Vf – Vi / t • Kinetic Energy – English Ek = ½ w/g x v2 • Kinetic Energy – Metric Ek = ½ m x v2 • Torque = F x L • Work = T x Ɵ • Mechanical Efficiency = Workout / Workin x %

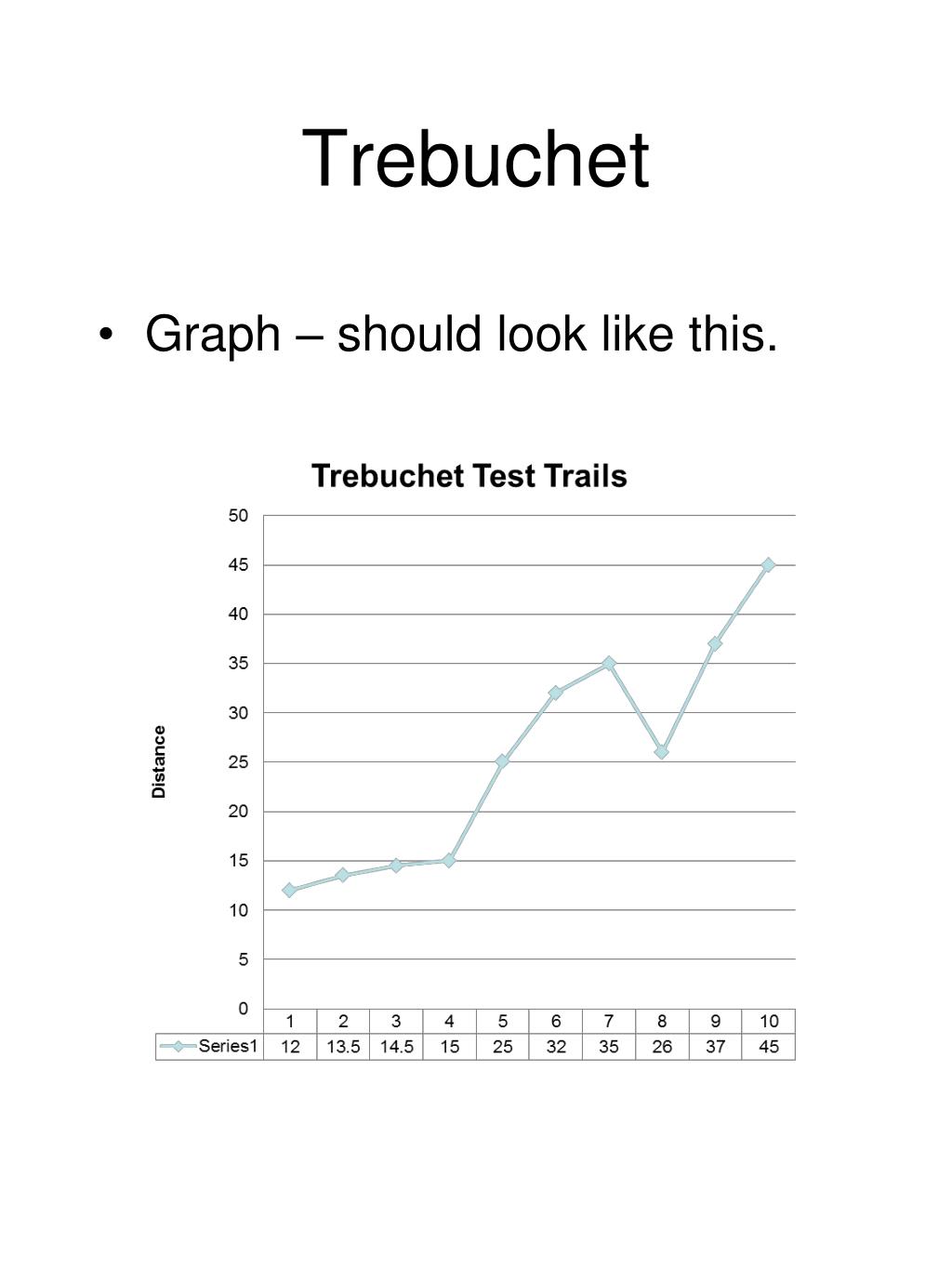

  6. Trebuchet • Graph – should look like this.

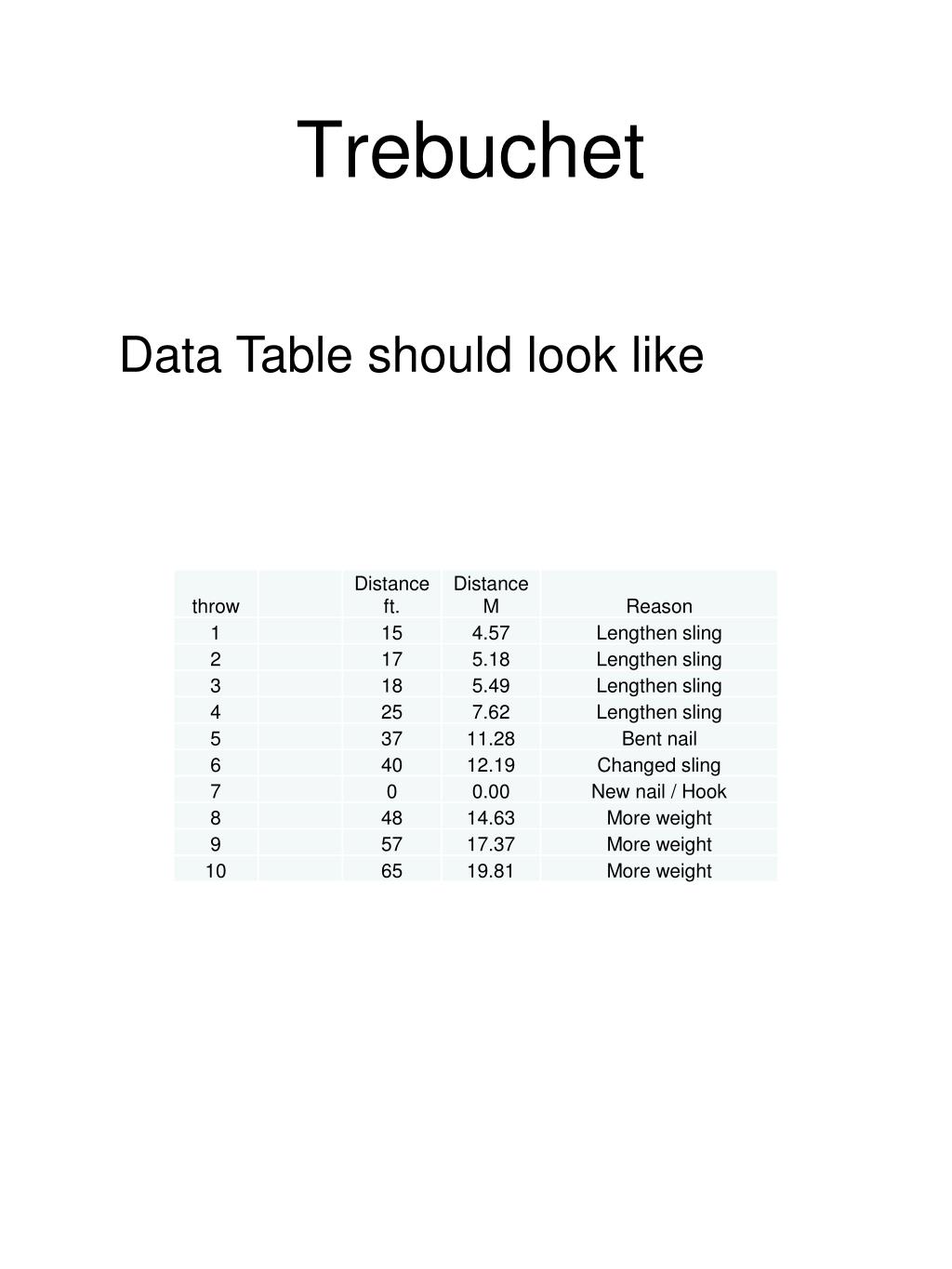

  7. Trebuchet Data Table should look like

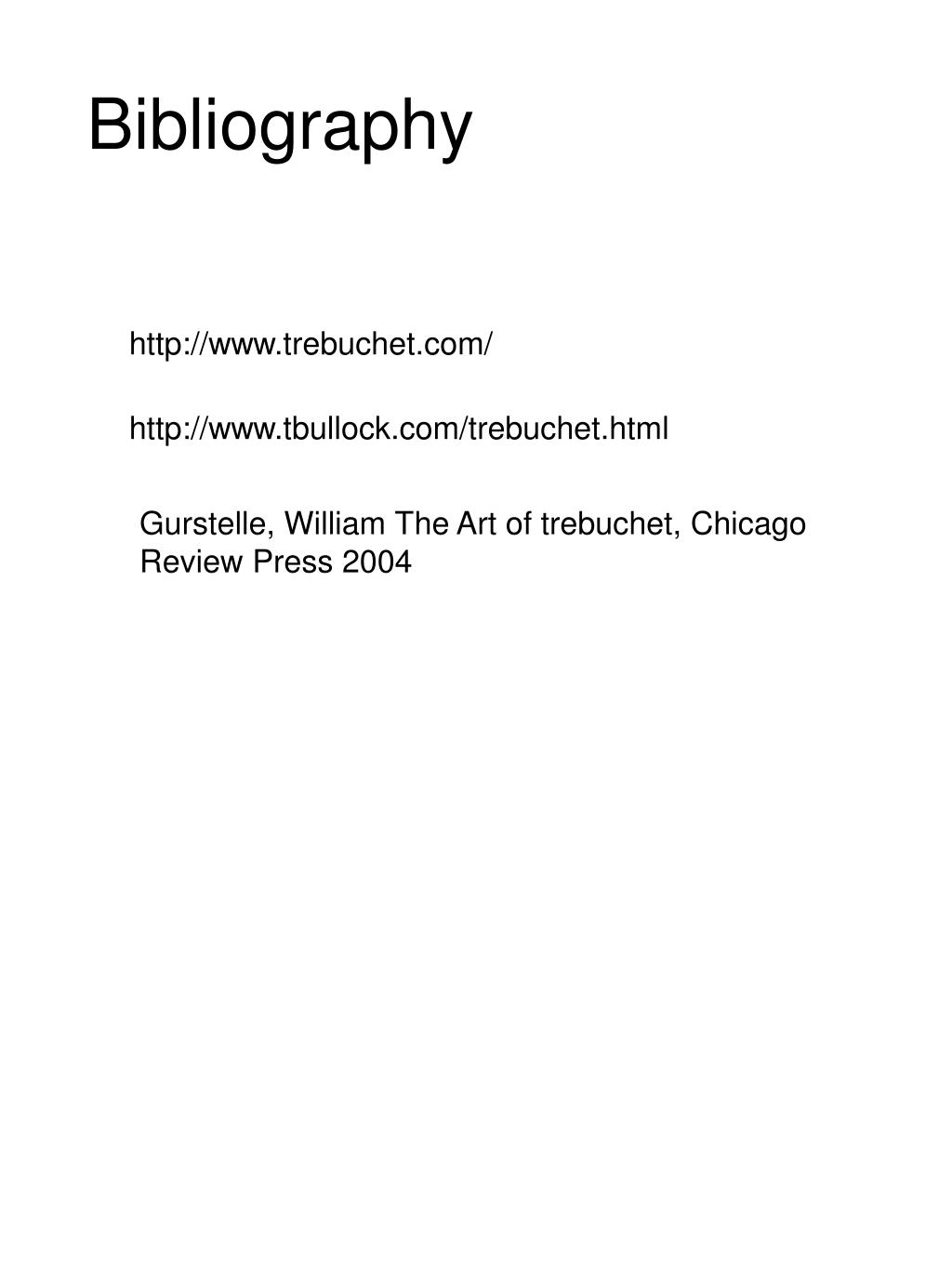

  8. Bibliography http://www.trebuchet.com/ http://www.tbullock.com/trebuchet.html Gurstelle, William The Art of trebuchet, Chicago Review Press 2004
