  1. Hot – Pluggable AMS Connectors • Specificservicerequirements • Design Concept • Development steps

  2. AMS • The ideaistoavoiddisconnectorsbydisconnectingstandardconnectors. • Someofthe AMS connectorsshallbeoperatedunder Hot lineworkingconditions (145kV) = „Hot pluggable“ • Other connectorstobeoperatedwithoutvoltage(275-400kV), (SubCondeveloped a widerangeoftheseconnectortypes but theyare not infocusoftodayspresentation

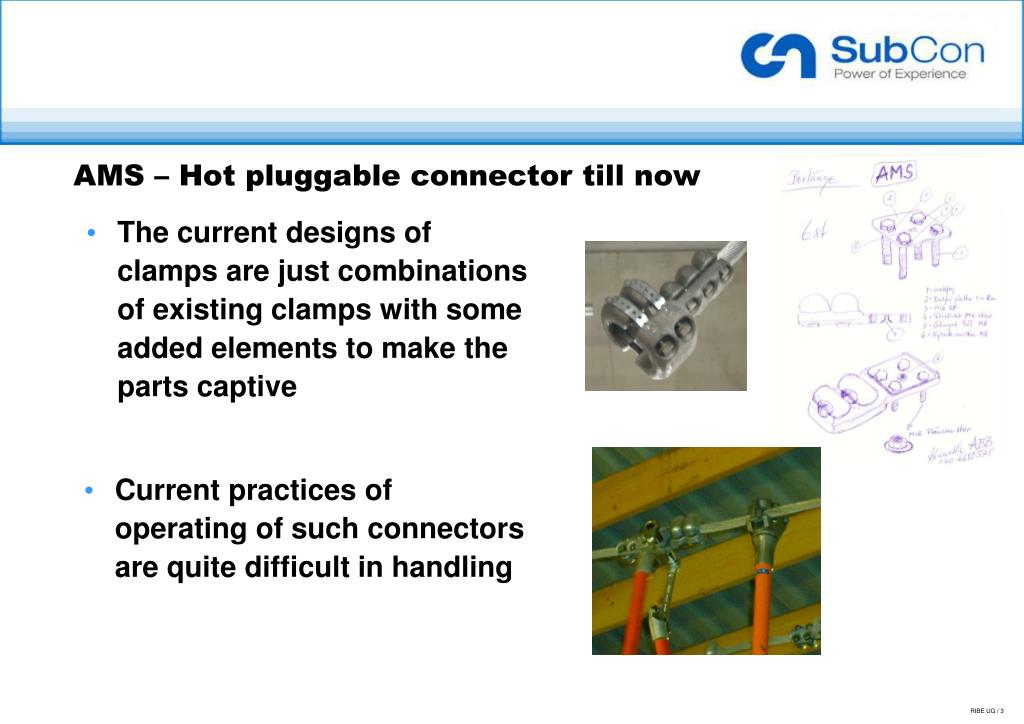

  3. AMS – Hot pluggableconnectortillnow • The currentdesignsofclampsare just combinationsofexistingclampswithsomeaddedelementstomakethepartscaptive • Currentpracticesofoperatingof such connectorsarequitedifficult in handling

  4. All thisdoes not takethereliabilityofthesecontactsintoconsideration ! • „normal“ connectorsare NOTdesignedtobedismatledoften • The arcduringoperationmightdamagethecontactsurfaces • Itis not possibletobrush/clean thecontactsurfacesof live partsofclamp • The necessaryhighbolttorquesettingshardlycanbeappliedbyisolatedrods.

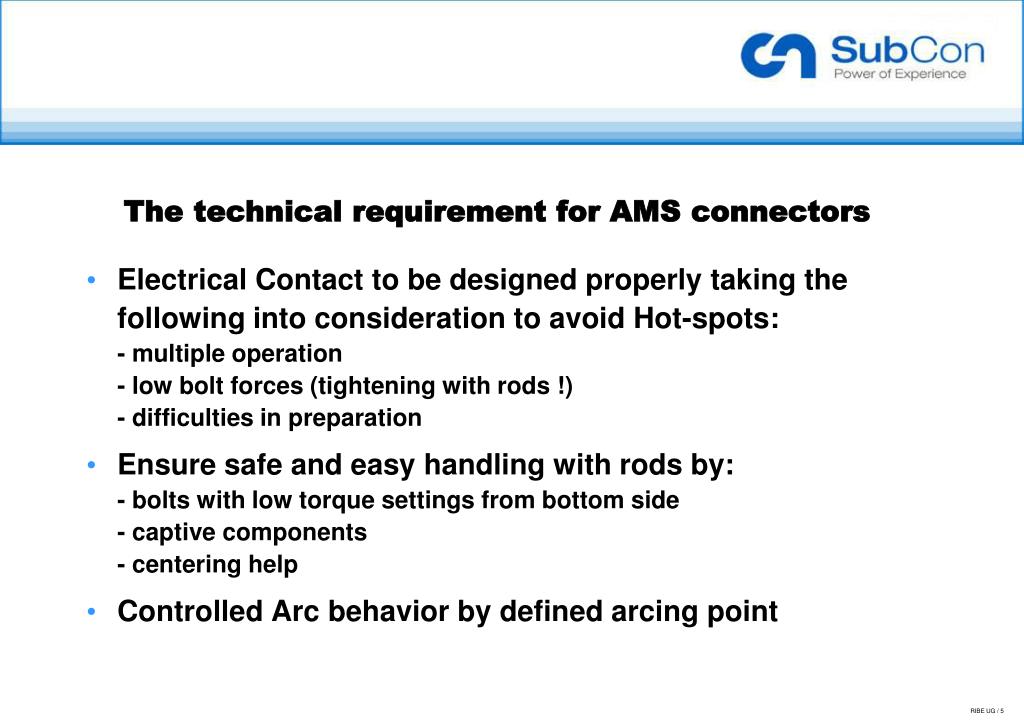

  5. The technicalrequirementfor AMS connectors • ElectricalContacttobedesignedproperlytakingthefollowingintoconsiderationtoavoid Hot-spots: - multiple operation- lowboltforces (tighteningwithrods !) - difficulties in preparation • Ensuresafeand easy handlingwithrodsby:- boltswithlowtorquesettingsfrombottomside- captivecomponents- centeringhelp • ControlledArcbehaviorbydefinedarcingpoint

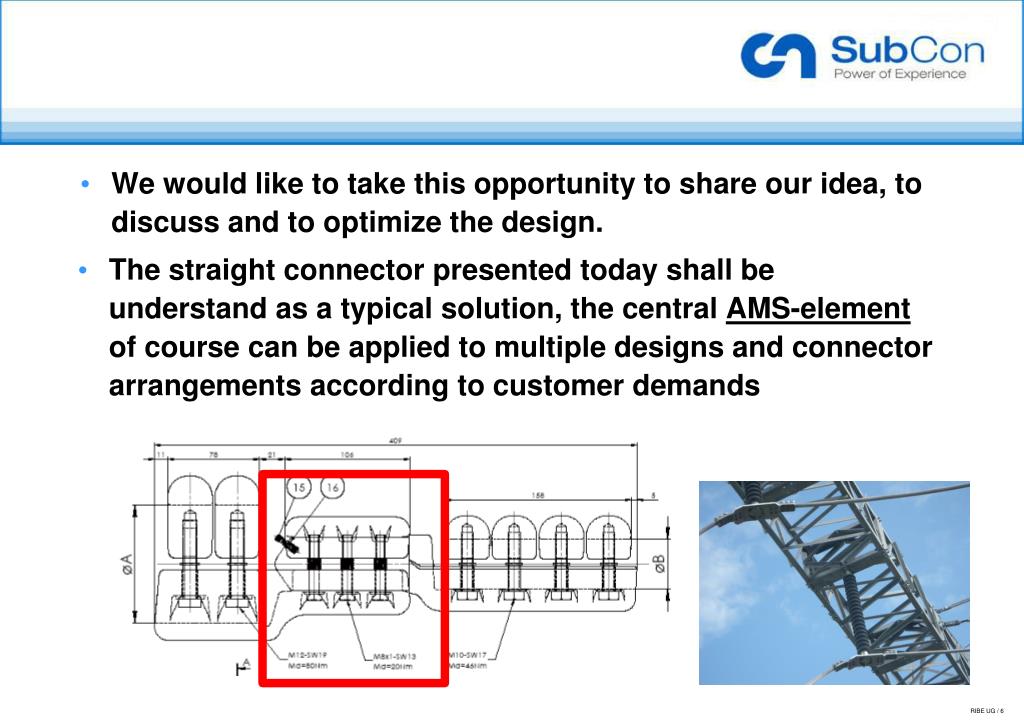

  6. Wewouldliketotakethisopportunitytoshareouridea, todiscussandtooptimizethe design. • The straightconnectorpresentedtodayshallbe understand as a typicalsolution, thecentralAMS-elementofcoursecanbeappliedto multiple designsandconnectorarrangementsaccordingtocustomerdemands

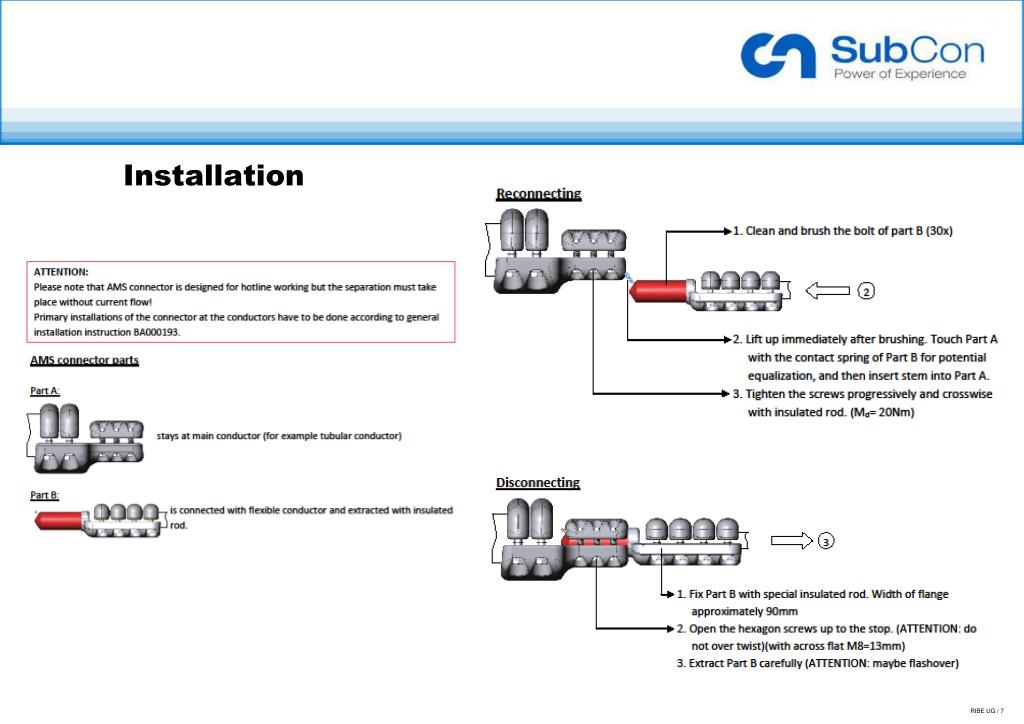

  7. Installation

  8. AMS – newfeatures Commutation spring Soft pin (tobebrushed) Lift-upcover Manipulation flats CenteringCone Serratedcontactsurface Low-Torquebolts 3D

  9. Thankyouforyourattention ! • WewoudliketothankourSwedishcustomers, partnersandfriendsfortheirsupport • Weare open forfurtherrecommendations,questionsandremarks, pleasecontact • Libor Bily • libor.bily@ribe-subcon.at • +43 5572 372 674 -14 • Raphael Madlener • raphael.madlener@ribe-subcon.at • +43 5572 372 674 -22
