BIM Me Up, Scottie!

1. BIM Me Up,Scottie! The Next Generation in Construction Technology

2. Teri Jones, LEED APVice PresidentSundt Construction

3. Agenda • What is BIM? • Current Practices • Benefits & Advantages • Challenges • The BIM Path • Case Studies • Summary

4. What Is BIM?

5. Definition • BIM is the move from analog to digital design and construction. A model-based technology linked with a database of project information - AIA • Construction is the only industry that does not/cannot test a design before production

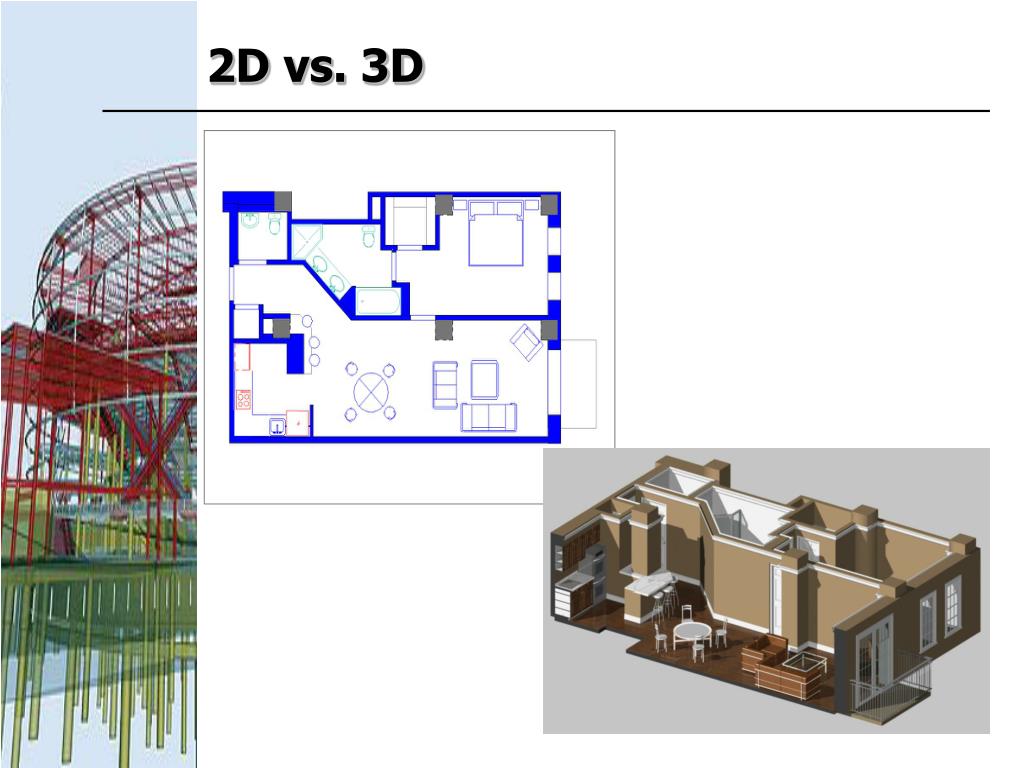

6. 2D vs. 3D

7. 2D • Traditional drawings

8. 3D • BIM

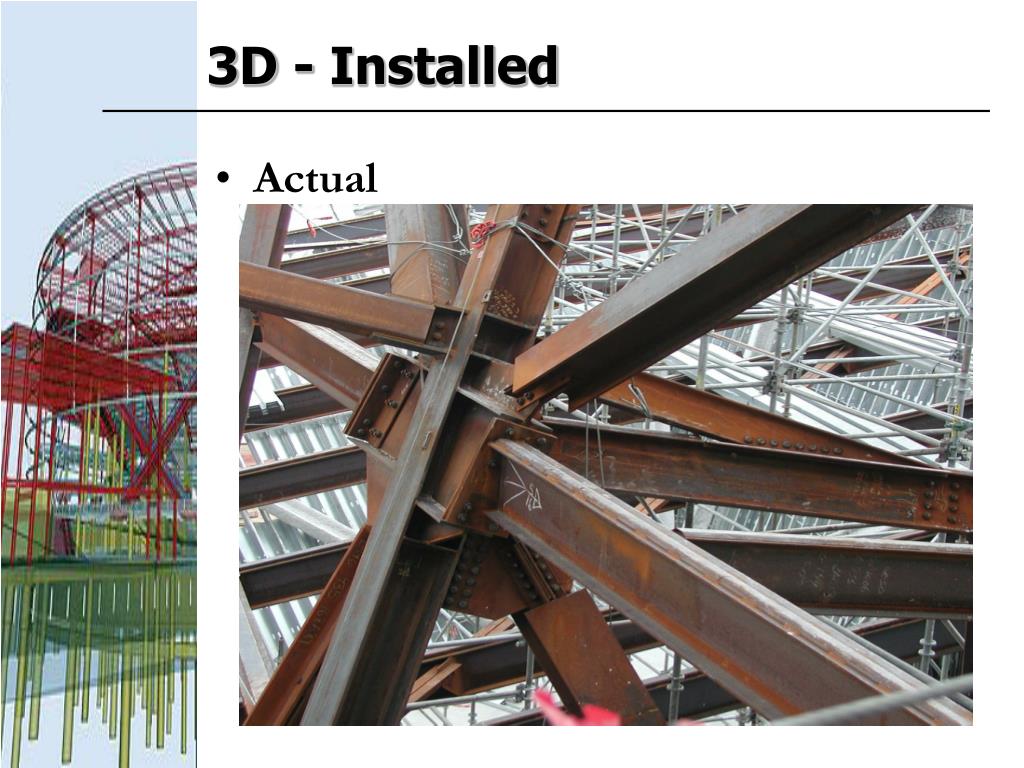

9. 3D - Installed • Actual

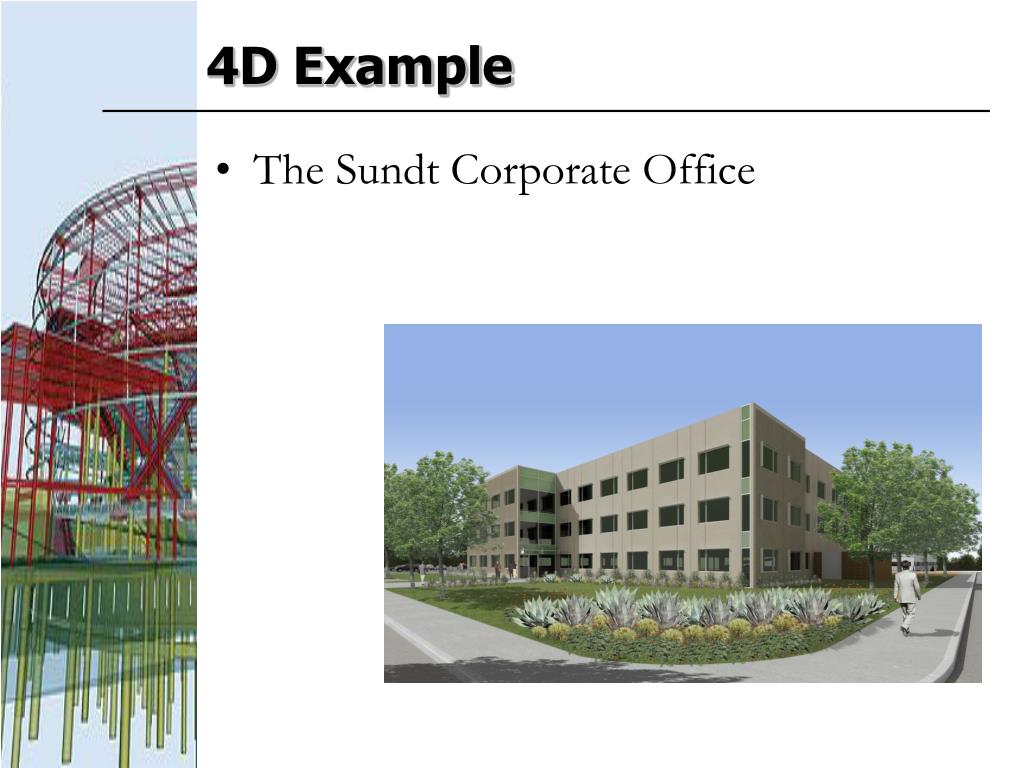

10. 4D Example • The Sundt Corporate Office

11. 4th Dimension - Time • Each element in model tied to CPM Schedule • Construction sequence can be simulated showing conflicts between trades • Play “What if?” game with model to find more efficient construction path - saving time and money • Once construction begins model used to track construction progress

12. 5D • Each component of the BIM tied to the Cost Estimate

13. Current Practices

14. Collaborated Model Arch Model (Revit) Struct Model (Revit) Civil Model (Bentley) Collaborated Model (Navisworks) Fire Model (CadPipe) Plumb Model (ABS) Elect Model (Graphisoft) Mech Model (CadDuct)

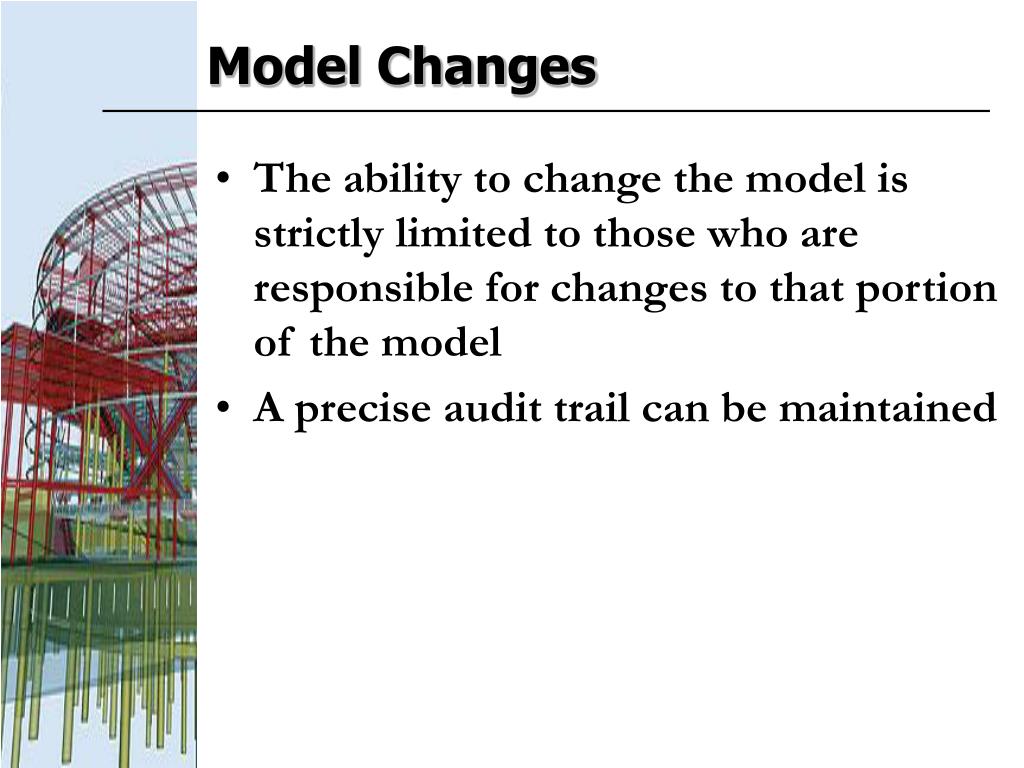

15. Model Changes • The ability to change the model is strictly limited to those who are responsible for changes to that portion of the model • A precise audit trail can be maintained

16. BenefitsandAdvantages

17. Benefits & Advantages • Clash Detection • Faster Construction Time • Streamline Delivery/Fabrication • Better Performing Facilities • Fewer Claims • Real Time Value Engineering • User Understanding – 3D Visualization

18. Challenges

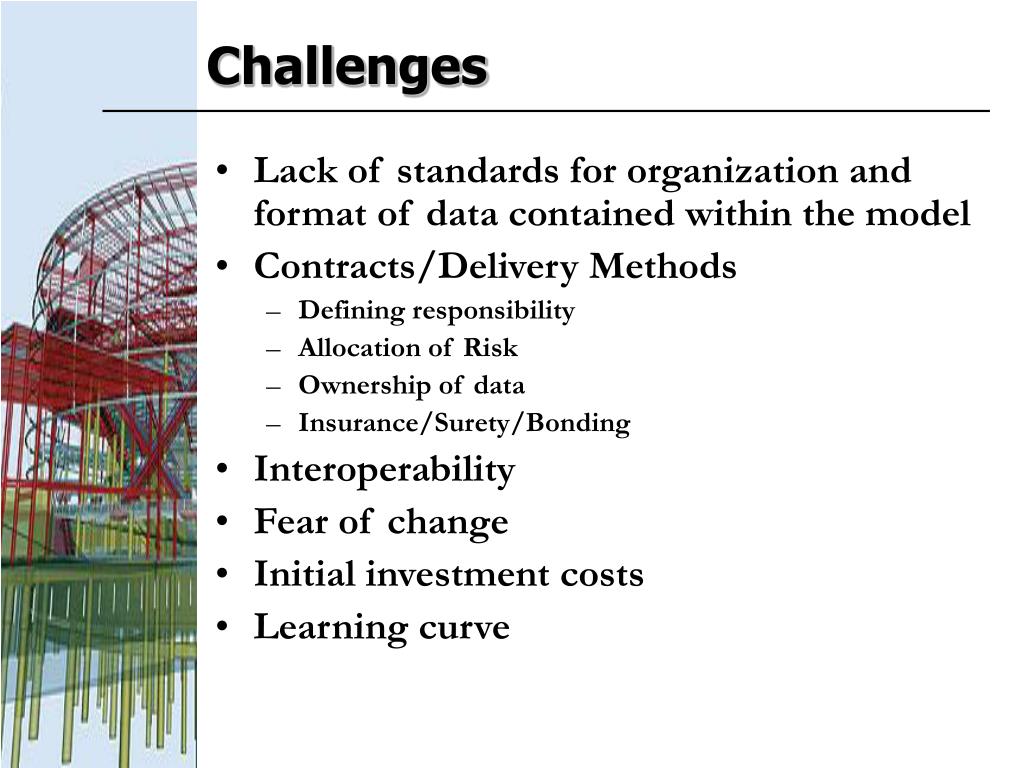

19. Challenges • Lack of standards for organization and format of data contained within the model • Contracts/Delivery Methods • Defining responsibility • Allocation of Risk • Ownership of data • Insurance/Surety/Bonding • Interoperability • Fear of change • Initial investment costs • Learning curve

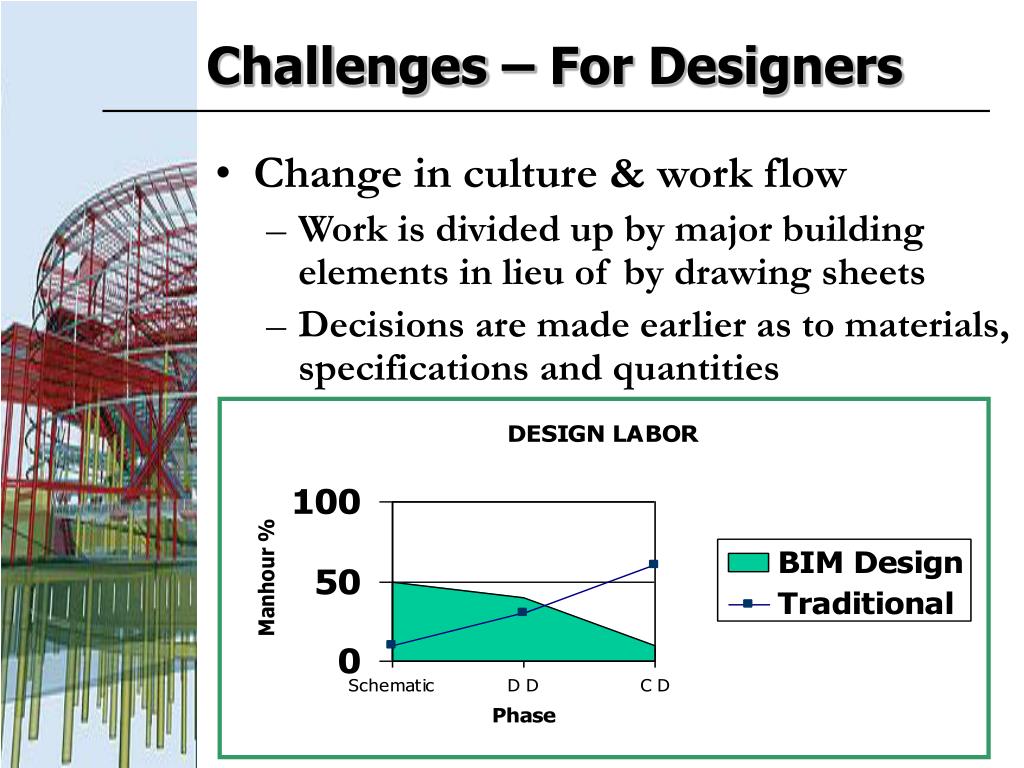

20. Challenges – For Designers • Change in culture & work flow • Work is divided up by major building elements in lieu of by drawing sheets • Decisions are made earlier as to materials, specifications and quantities

21. The BIMPath

22. First Steps • Get Senior Management involved to ensure leadership support • Dedicate someone to the effort – BIM Champion • Prepare a BIM plan – keep it simple and specific

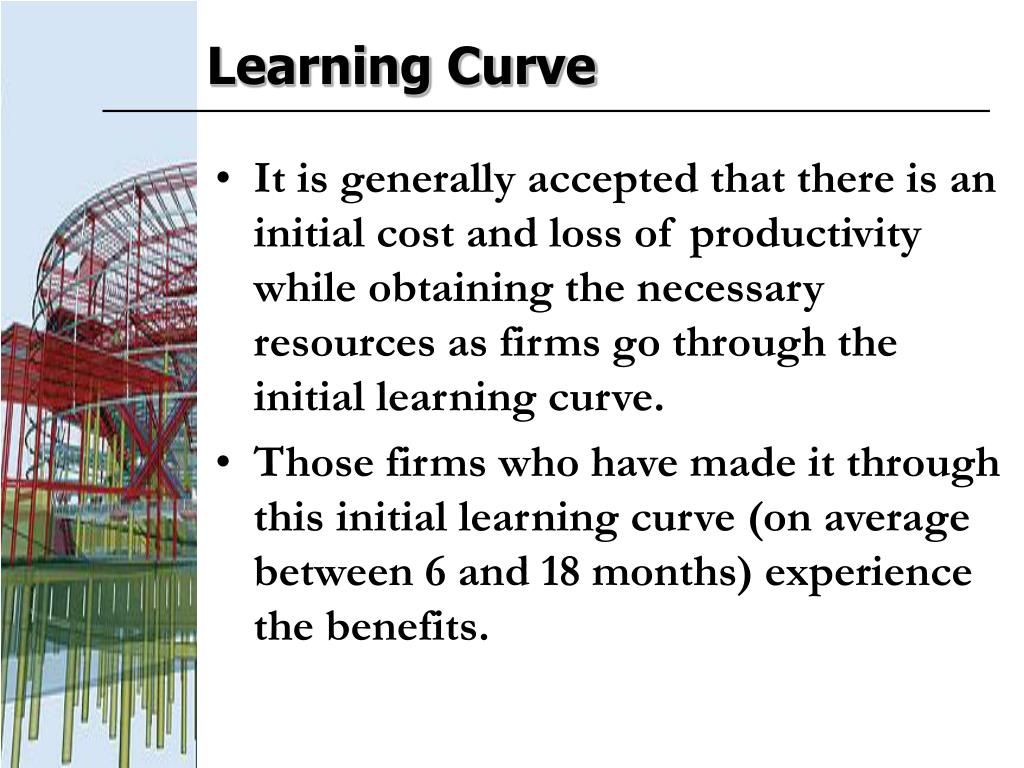

23. Learning Curve • It is generally accepted that there is an initial cost and loss of productivity while obtaining the necessary resources as firms go through the initial learning curve. • Those firms who have made it through this initial learning curve (on average between 6 and 18 months) experience the benefits.

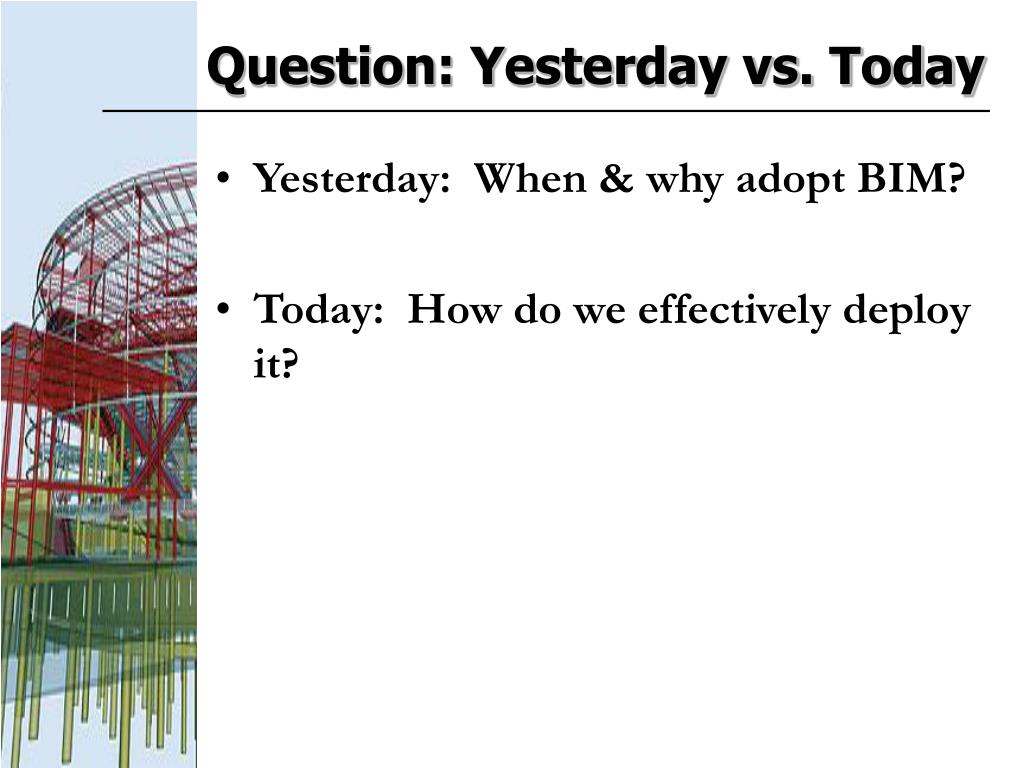

24. Question: Yesterday vs. Today • Yesterday: When & why adopt BIM? • Today: How do we effectively deploy it?

25. Software & Training Cost • Design Software $3,200.00 +/- per user • Navisworks $8,000.00 +/- per copy • Training

26. Case Studies

27. Case Studies • Sundt Office Building • Cronkite School of Journalism, ASU • Butler Treatment Plant

28. Sundt Corporate Office

29. Sundt Corporate Office 2-26-06 Structural vs Systems 84 Clashes 5-14-07 Structural vs Systems 4 Clashes

30. Butler Treatment Plant Sequenced Work

31. Butler Treatment Plant What isn’t seen is what hurts the most

32. Cronkite School of Journalism Main Corridor Above Ductwork Main Corridor Below Ductwork

33. Cronkite School of Journalism Level 1 Fire Protection Clashes • Orange – Ductwork • Red – Mechanical Piping

34. Cronkite School of Journalism Mechanical Room (Is this going to fit?)

35. Summary • Use of BIM is leading to a revolution in project delivery and facility maintenance. • The traditional tri-party approach to design and construction will, over time, be replaced by “Integrated Practice” and collaboration

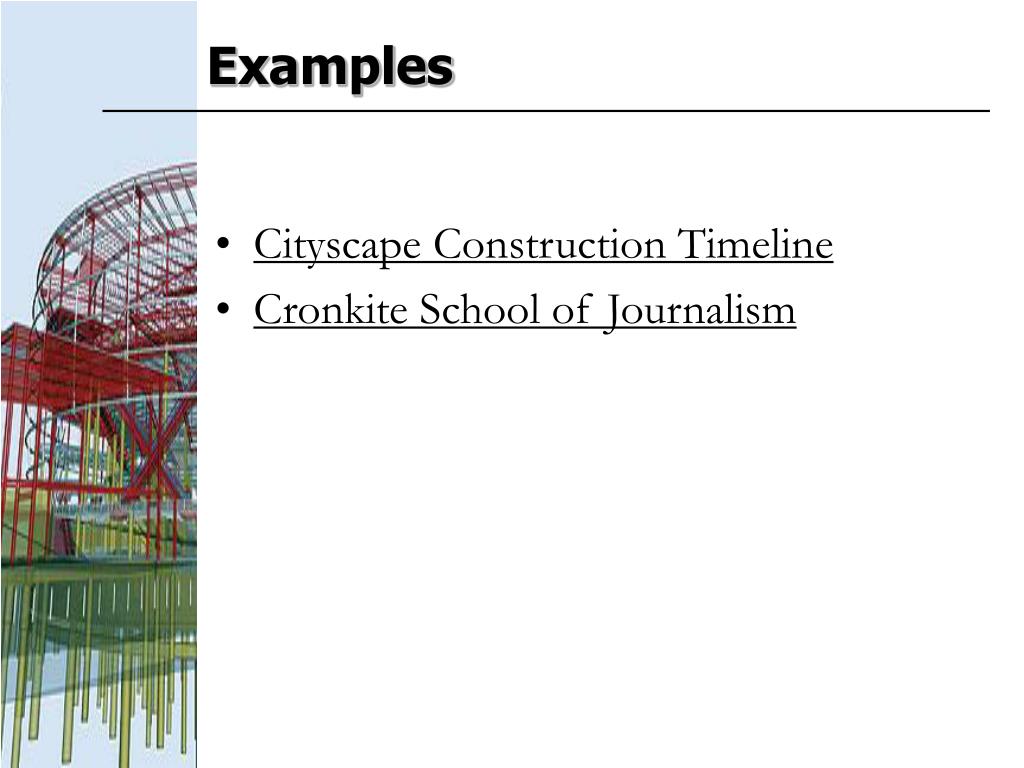

36. Examples • Cityscape Construction Timeline • Cronkite School of Journalism
