Phenomenon. There are few voltages (approximately 0.4V) on ANA_LDO line even though C5515 is RTC-only mode(i.e. the internal LDOs were disabled.) Please see the following waveform. I reproduced this phenomenon on C5515EVM and summarized the reproduced way to next slides. CH1: Wake-up

kerryn
Download Presentation

Phenomenon

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Phenomenon • There are few voltages (approximately 0.4V) on ANA_LDO line even though C5515 is RTC-only mode(i.e. the internal LDOs were disabled.) • Please see the following waveform. • I reproduced this phenomenon on C5515EVM and summarized the reproduced way to next slides. CH1: Wake-up CH2: XF pin CH3: ANA_LDO CH4: CVDD 0.4V

  2. Condition • Tools • C5515EVM • SD card • RTC only mode code (&boot image) • Oscilloscope

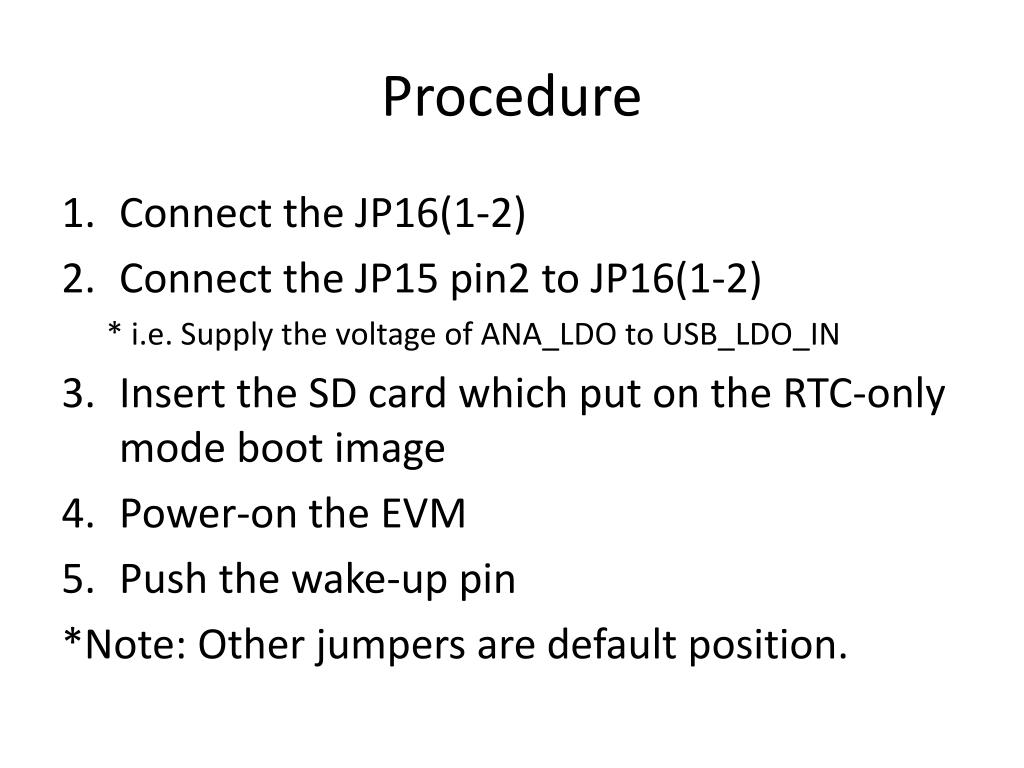

  3. Procedure • Connect the JP16(1-2) • Connect the JP15 pin2 to JP16(1-2) * i.e. Supply the voltage of ANA_LDO to USB_LDO_IN • Insert the SD card which put on the RTC-only mode boot image • Power-on the EVM • Push the wake-up pin *Note: Other jumpers are default position.

  4. For your information • I have gotten the waveform which we expected if not connect the ANA_LDO to USB_LDO. CH1: Wake-up CH2: XF pin CH3: ANA_LDO CH4: CVDD

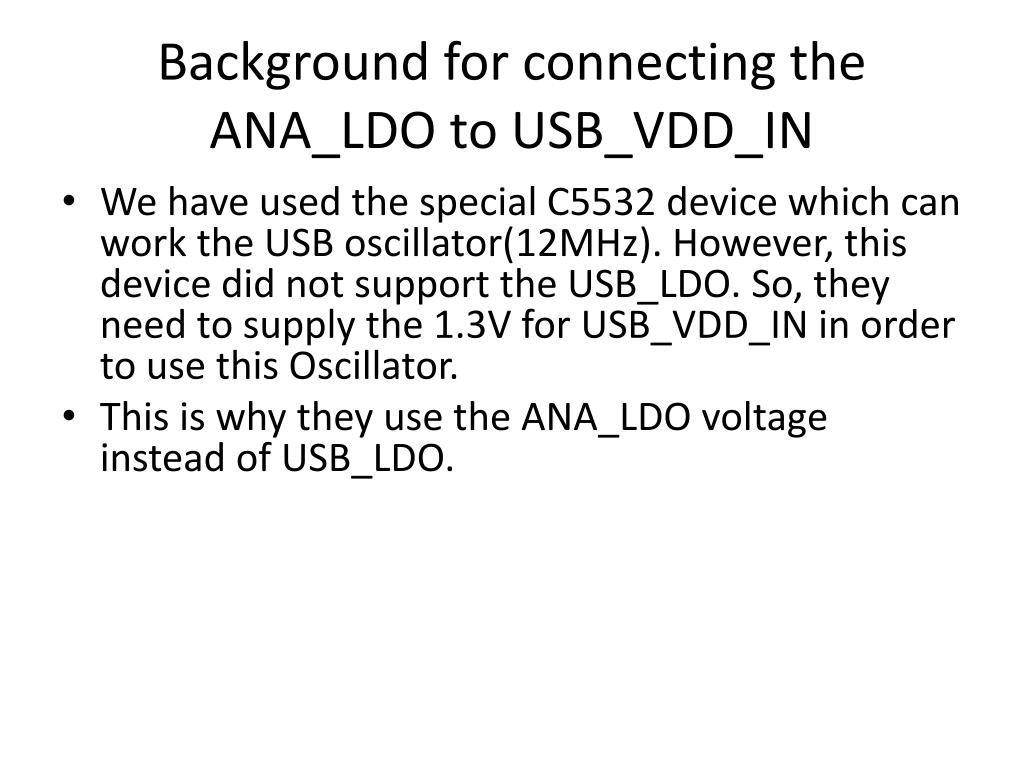

  5. Background for connecting the ANA_LDO to USB_VDD_IN • Wehave used the special C5532 devicewhich can work the USB oscillator(12MHz). However, this device did not support the USB_LDO. So, they need to supply the 1.3V for USB_VDD_IN in order to use this Oscillator. • This is why they use the ANA_LDO voltage instead of USB_LDO.
