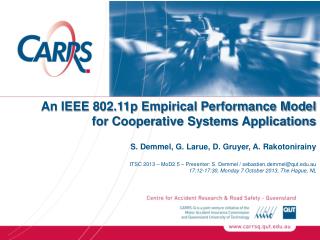

An IEEE 802.11p Empirical Performance Model for Cooperative Systems Applications

  • S. Demmel, G. Larue, D. Gruyer, A. Rakotonirainy

ITSC 2013 – MoD2.5 – Presenter: S. Demmel / sebastien.demmel@qut.edu.au

17:12-17:30, Monday 7 October 2013, The Hague, NL

outline
Outline
  • Introduction
    • Research goal & rationale
    • Model’s goals
  • Experimental summary
  • General principles
    • Frame loss model
    • Latency model
  • Finer points
    • Parameterisation & profile generation
    • Performance improvements
  • Limitations
  • Conclusion
introduction
Introduction
  • Research goal: provide a realistic, yet simple, network performance model for application-centric simulation environments (micro- or macroscopic).
  • Why?
    • Facilitate study of Cooperative-ITS applications
    • Reduce complexity/computational load when network topology is not overly complex
    • Solve lacking performance of some existing physical layer models
introduction1
Introduction
  • Model will:
    • Focus on a few critical performance metrics
    • Use empirical data to closely model actual on-road performance
    • Approximate the lower OSI layers and serve upper-layer applications specifically
  • Intended use in detailed microscopic simulations, for small group of vehicles
  • VEINS microscopic traffic simulation with complex network topology
  • SiVICsensors & applications simulation focused on smaller group of vehicles
experimental summary
Experimental summary
  • 1st setup: empirical performance evaluation of IEEE 802.11p devices
    • Devices sourced from CVIS project + open-source drivers
    • 2 devices (mobile & static)
    • 3 main metrics (range, frame loss, latency)
    • Satory test tracks (road-like environment) from 09/2011 to 02/2012, 450+ km driven
    • Results presented at IEEE IV Symposium 2012
  • Measured performance was lower than standard, the effects of several environmental factors were studied, good latencies
experimental summary1
Experimental summary
  • 2nd setup: same hardware as first setup, with:
    • 3 devices (2 static, one mobile)
    • 1 day measurements (12/2012)
    • Metrics related to specific points of interest for the model
  • Findings detailed later in this presentation
general principles
General principles
  • OSI approximation: no complex topology, point-to-point connections
  • Focus on closely matching experimental data and being able to generate new “plausible” data
  • 2 modelled performance metrics:
    • Frame loss
    • Latency
frame loss model
Frame loss model
  • Frame loss model is based on profiles
    • a profile is a frame loss probability curve generated for each single uninterrupted connection between 2 nodes
    • Temporally consistent
    • Parameterised on empirical data
  • Includes multi-path reflections from the ground, objects and vegetation, weather, and hardware in-homogeneities
frame loss model1
Frame loss model
  • Frame loss probability (t), a function of:
    • Distance
    • Relative speed
  • A, B, ..., F are parameters estimated on empirical data
  • The parameters values depend on speed
    • 4 classes (0-40, 40-60, 60-100, 100-160 km/h)
    • Each classes has its own set of cumulative distribution functions for each parameters
    • Correlations between some parameters are present
latency model
Latency model
  • Experimental evidences showed that latency does not depend on relative speed or distance
  • Latency is a function of the packet size
    • Accounts only for direct connectivity
    • Accounts for delays caused by increased network activity (up to 6 devices active together)
  • Model is most appropriate for Basic Safety Messages (BSM) like packets
latency model1
Latency model
  • Latency can be computed with continuous or digital distributions, depending on the simulation’s architecture
  • Example: 1000 drawings per packet size class, 5 ms increments
parameterisation
Parameterisation
  • FL profile has 6 parameters
  • Procedure:
    • Each parameters is first estimated with a Levenberg-Marquardt algorithm for non-linear least squares
    • Then we extract a continuous PDF via a smoothed non-parametric probability density estimate
    • PDF are transformed to Cumulative distributions
  • Inverse transform sampling can be used to drawn a value (per parameter) for each generation of a new profile
parameterisation1
Parameterisation
  • Parameters E and D show correlation
    • with: where α,β are estimated from experimental data
    • α,βare used to subdivide the [100-160] km/h class for improved fidelity to experimental data
  • Influence of air humidity(hence weather) was considered, but not enoughvariation in the dataset toconclude
profiles generation
Profiles generation
  • 100 profiles in the [60-100] km/h class
profiles generation1
Profiles generation

0-40 km/h

40-60 km/h

60-100 km/h

100-160 km/h

performance improvements
Performance improvements
  • Question: when is it appropriate to generate new profiles?
  • The “neighbours problem”
    • Two nearby nodes connected to a same 3rd node can have widely diverging performance
    • Within which distance can we generate only a single profile for several nodes?
  • What is the “shelf life” of a profile?
    • Will 2 nodes connecting to a same 3rd node a few minutes apart from the same direction be able to re-use the same profile?
performance improvements1
Performance improvements
  • The “neighbours problems”
  • Profile 1
  • (F-E)/D = 225 mmax range 349 m
  • Profile 2
  • (F-E)/D = 706 mmax range 789 m
performance improvements2
Performance improvements
  • If two nodes are, at max, 25 metres apart, can they use the same profile?
  • We use data from the 2nd setup
    • Metrics: (F-E)/D and (1-E)/D, the boundaries of the increasing FL slope / average (F-E)/D = 303 metres
    • 2nd dataset confirms earlier findings for motion direction symmetry and expectations about antennas effects
  • Yes
    • Accounting for the 25 metres intra-nodes distance, we find at worst a 10% (37 metres) error between each nodes for each lap
performance improvements3
Performance improvements
  • Profile’s “shelf life”
    • Can we re-use a same profile for 2 consecutives vehicles?
    • Would be especially useful with a significant traffic density
  • No, we probably should not
  • 9 laps over about 20 minutes, a third showed large lap-to-lap changes
performance improvements4
Performance improvements
  • Summary, through an example:
    • A roadside unit connecting to a flow of incoming vehicles arriving with random interdistances
    • Isolated vehicles have their own profile
    • Compact group of vehicles less than a minute apart can use the same profile
  • Profile 2
  • Profile 3
  • RSU
  • Profile 2
  • Profile 4
limitations
Limitations
  • Limited set of environmental conditions
    • Accurate for open freeway, or rural and suburban environments
    • Cannot be used for urban scenarios
    • Weather is present in the data, but cannot be used as a parameter (no weather-bases classes)
  • Limited number of nodes
    • No routing, groups management
    • Needs refinements for “grouped” FL profiles generation
  • Focused on packets up to 1 kB(no specific mechanism for larger multi-packets payloads)
conclusion
Conclusion
  • We created a resource-inexpensive empirically-based model for key IVC metrics
    • Provides realistic networking for application-centric simulation, e.g. for the evaluation of C-ITS applications such as CCW or road trains
  • The model still needs to be extended to include a wider range of environmental conditions (urban, different weathers,...), different hardware types and improve the management of profiles with larger number of nodes
conclusion1
Conclusion

Thank you for attending this presentation!
