Purpose of Horizontal Drain

Purpose of Horizontal Drain. Capture Seepage Water Keep Embankment Dry Provide Additional Protection Against Failure. How Does it Work ? . USACE JURISDICTION. LACDPW JURISDICTION. LEVEE ASPHALT. CHAIN LINK FENCE. RIVER. EMBANKMENT. RIVER BOTTOM. 72” DIAMETER R.C PIPE.

kerem
Download Presentation

Purpose of Horizontal Drain

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Purpose of Horizontal Drain • Capture Seepage Water • Keep Embankment Dry • Provide Additional Protection Against Failure

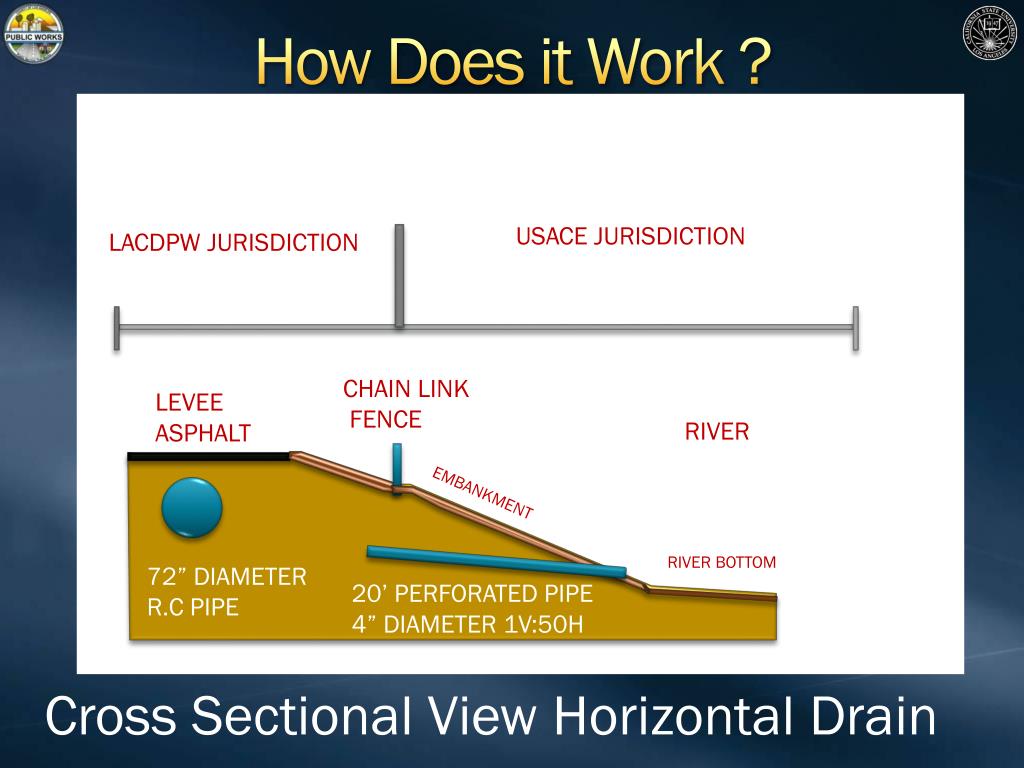

  2. How Does it Work ? USACE JURISDICTION LACDPW JURISDICTION LEVEE ASPHALT CHAIN LINK FENCE RIVER EMBANKMENT RIVER BOTTOM 72” DIAMETER R.C PIPE 20’ PERFORATED PIPE 4” DIAMETER 1V:50H Cross Sectional View Horizontal Drain

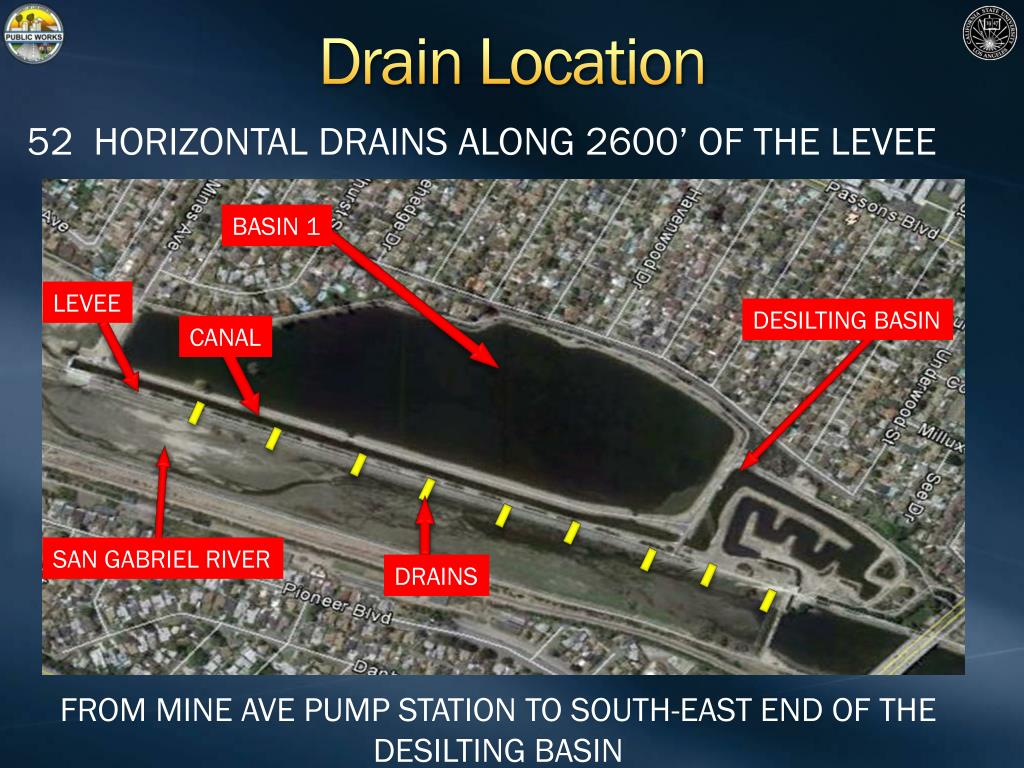

  3. Drain Location 52 HORIZONTAL DRAINS ALONG 2600’ OF THE LEVEE BASIN 1 LEVEE DESILTING BASIN CANAL SAN GABRIEL RIVER DRAINS FROM MINE AVE PUMP STATION TO SOUTH-EAST END OF THE DESILTING BASIN

  4. How is it Installed ? PERFORATED PVC PIPE HAMMERHEAD RAMMER FLAP GATE VALVE PRECAST CONCRETE BOX

  5. Benefits Trenchless Installation Cost of less than $145,000 Localized installation for problem areas Low Maintenance

  6. Horizontal Drain Cost Estimate Final Cost: $141,300
