  1. IBP200 Porting SPD Workflowto VS.NET (400 level) Todd Bleeker CSA Mindsharp

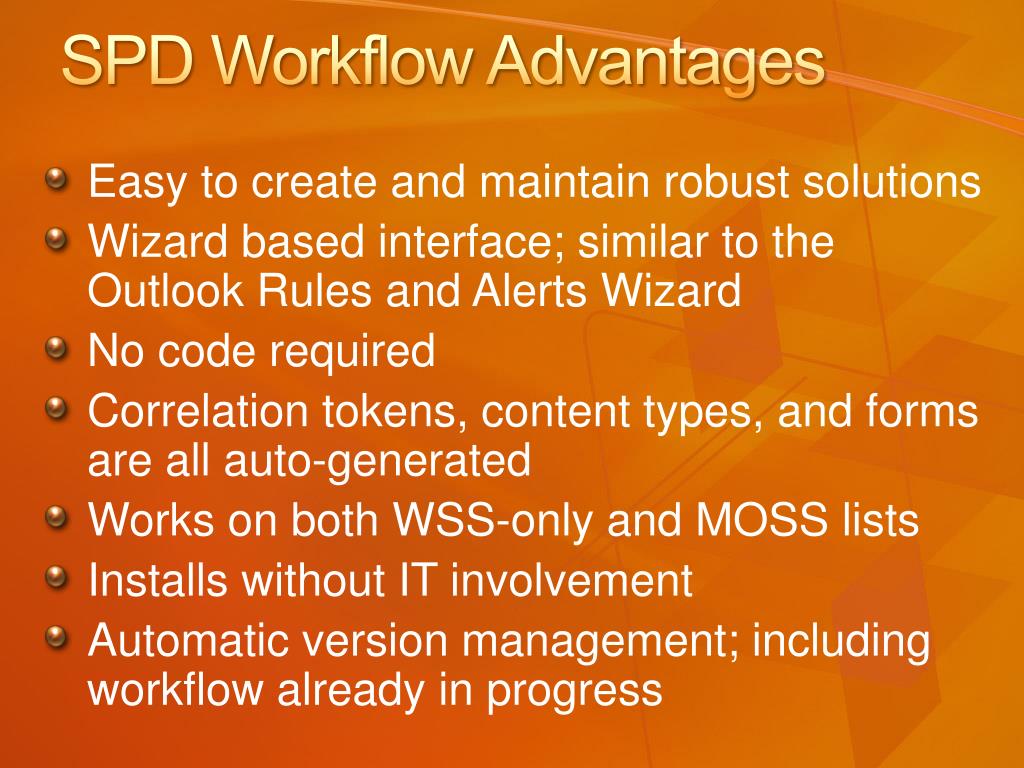

  2. SPD Workflow Advantages • Easy to create and maintain robust solutions • Wizard based interface; similar to the Outlook Rules and Alerts Wizard • No code required • Correlation tokens, content types, and forms are all auto-generated • Works on both WSS-only and MOSS lists • Installs without IT involvement • Automatic version management; including workflow already in progress

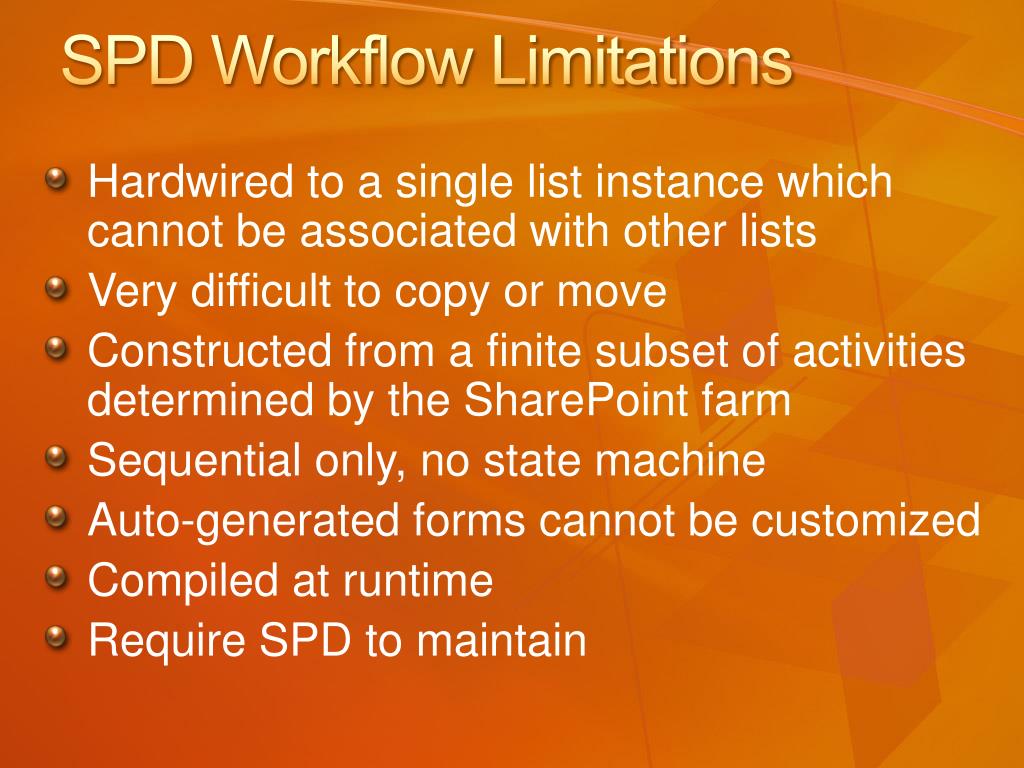

  3. SPD Workflow Limitations • Hardwired to a single list instance which cannot be associated with other lists • Very difficult to copy or move • Constructed from a finite subset of activities determined by the SharePoint farm • Sequential only, no state machine • Auto-generated forms cannot be customized • Compiled at runtime • Require SPD to maintain

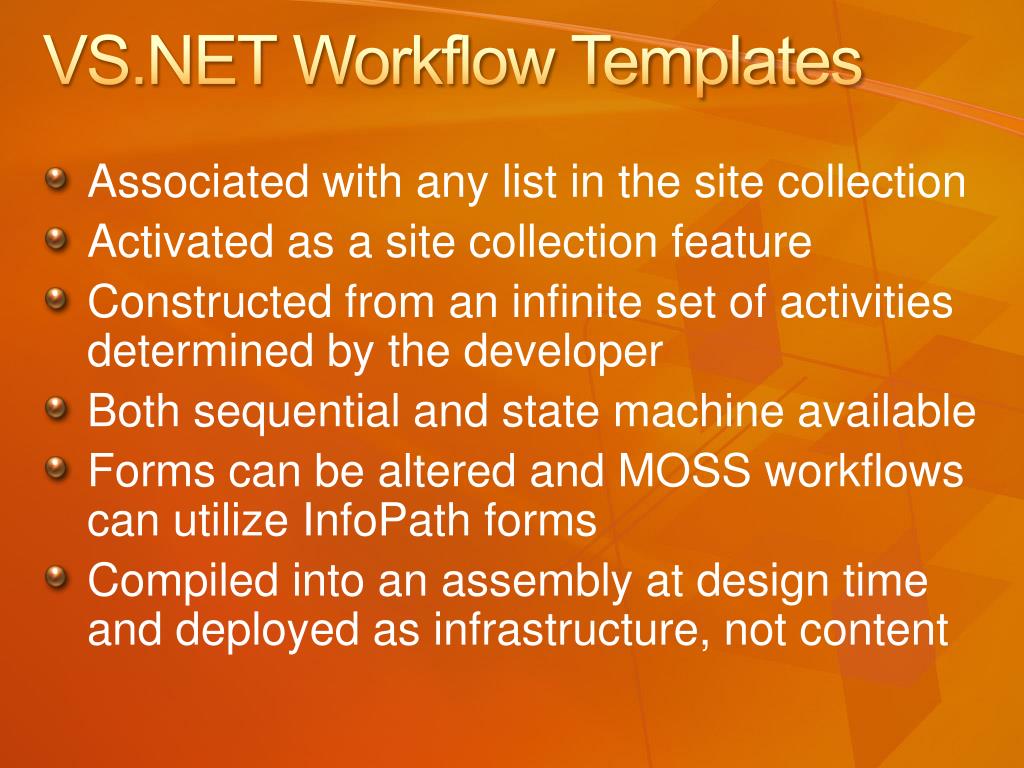

  4. VS.NET Workflow Templates • Associated with any list in the site collection • Activated as a site collection feature • Constructed from an infinite set of activities determined by the developer • Both sequential and state machine available • Forms can be altered and MOSS workflows can utilize InfoPath forms • Compiled into an assembly at design time and deployed as infrastructure, not content

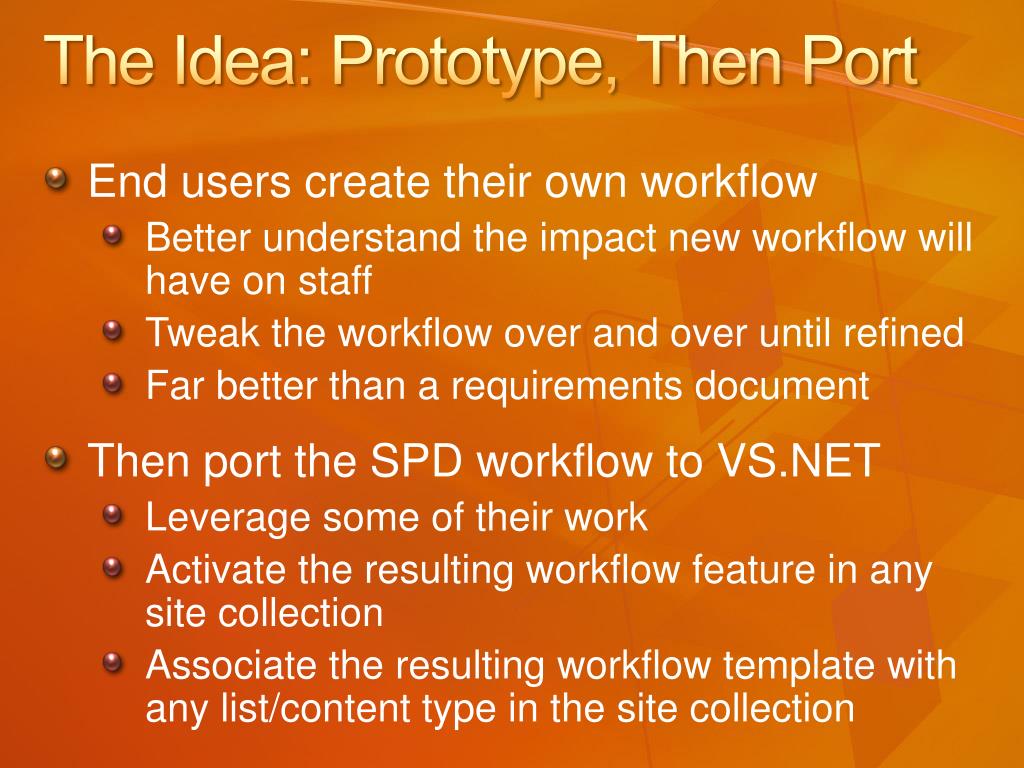

  5. The Idea: Prototype, Then Port • End users create their own workflow • Better understand the impact new workflow will have on staff • Tweak the workflow over and over until refined • Far better than a requirements document • Then port the SPD workflow to VS.NET • Leverage some of their work • Activate the resulting workflow feature in any site collection • Associate the resulting workflow template with any list/content type in the site collection

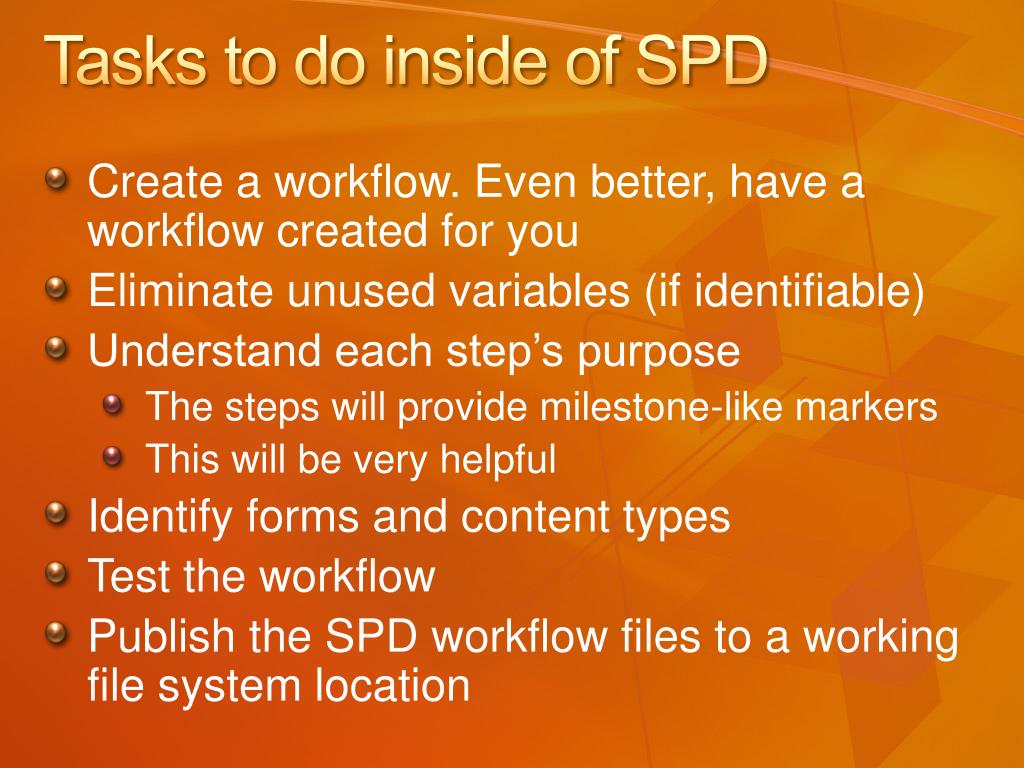

  6. Tasks to do inside of SPD • Create a workflow. Even better, have a workflow created for you • Eliminate unused variables (if identifiable) • Understand each step’s purpose • The steps will provide milestone-like markers • This will be very helpful • Identify forms and content types • Test the workflow • Publish the SPD workflow files to a working file system location

  7. Create, Demo, and Publish SPD Workflow Todd C. Bleeker CSA Mindsharp demo

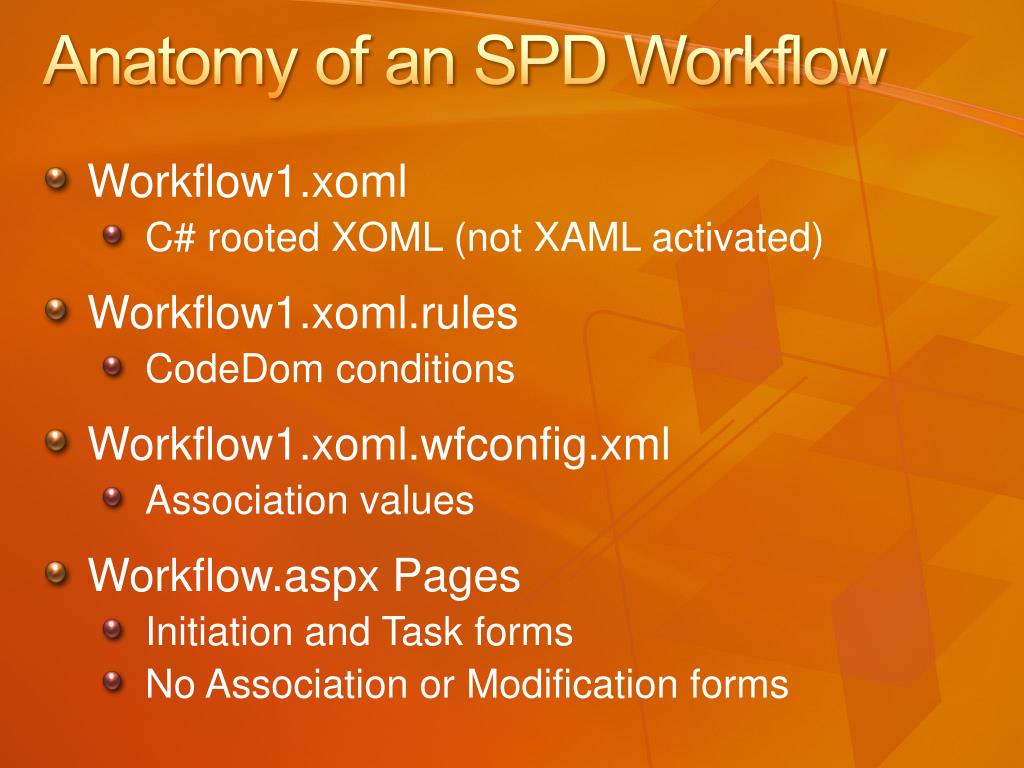

  8. Anatomy of an SPD Workflow • Workflow1.xoml • C# rooted XOML (not XAML activated) • Workflow1.xoml.rules • CodeDom conditions • Workflow1.xoml.wfconfig.xml • Association values • Workflow.aspx Pages • Initiation and Task forms • No Association or Modification forms

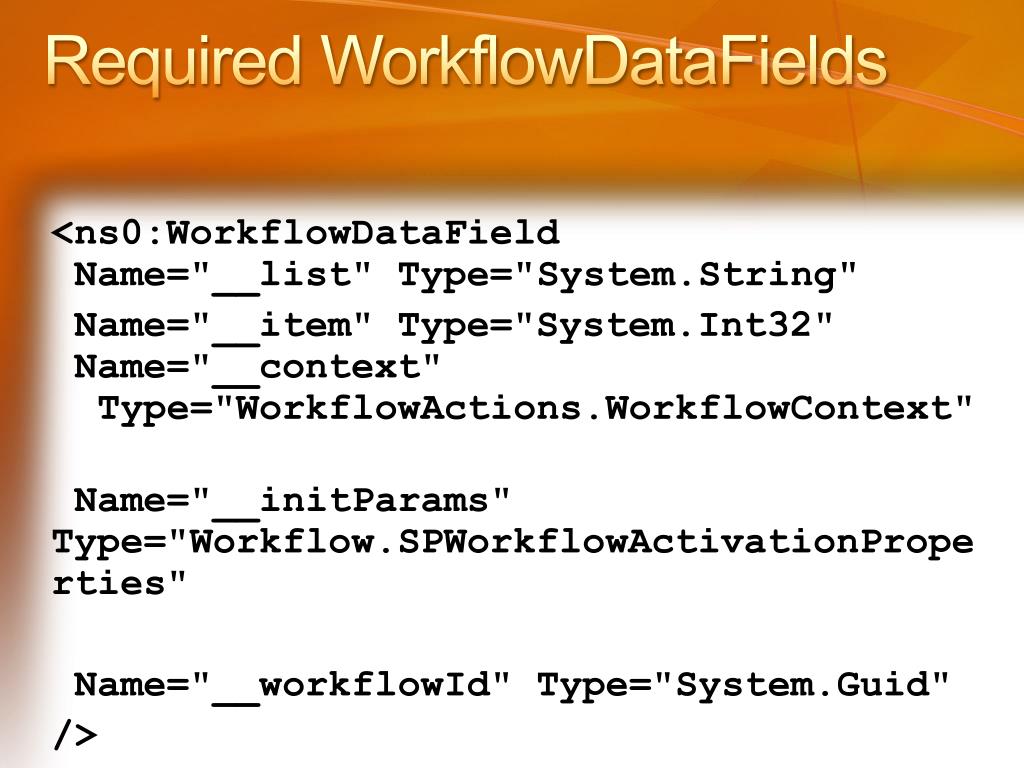

  9. Required WorkflowDataFields • <ns0:WorkflowDataField Name="__list" Type="System.String" • Name="__item" Type="System.Int32" Name="__context" Type="WorkflowActions.WorkflowContext" • Name="__initParams"Type="Workflow.SPWorkflowActivationProperties" • Name="__workflowId" Type="System.Guid" • />

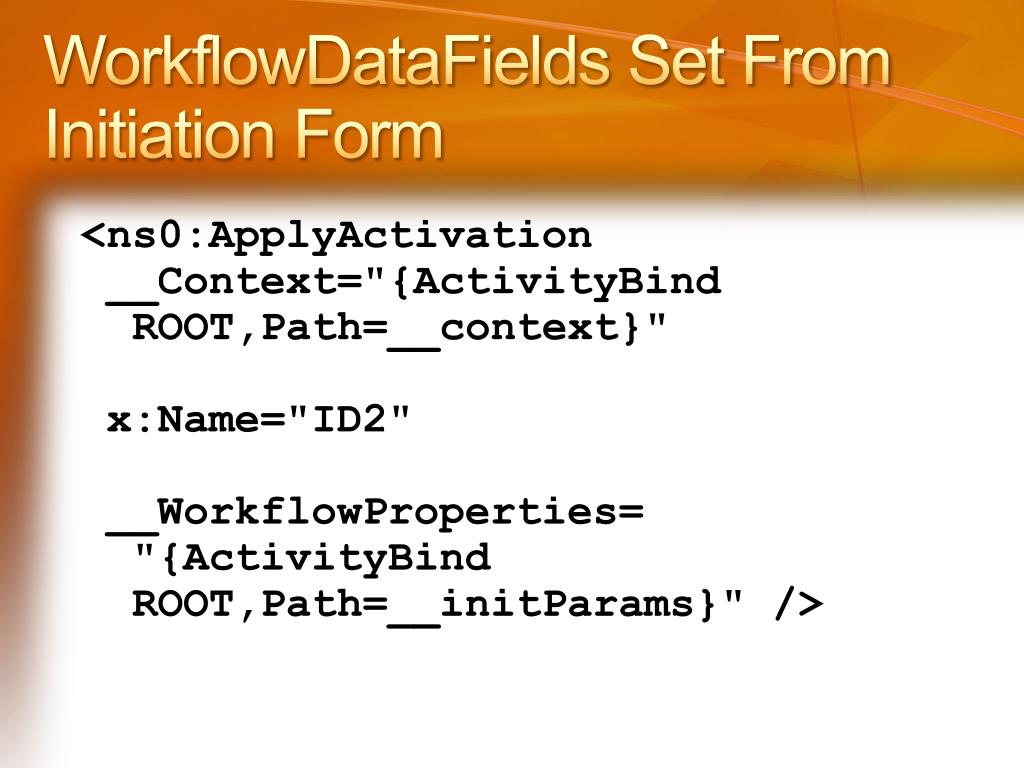

  10. WorkflowDataFields Set From Initiation Form • <ns0:ApplyActivation __Context="{ActivityBindROOT,Path=__context}" x:Name="ID2" __WorkflowProperties= "{ActivityBindROOT,Path=__initParams}" />

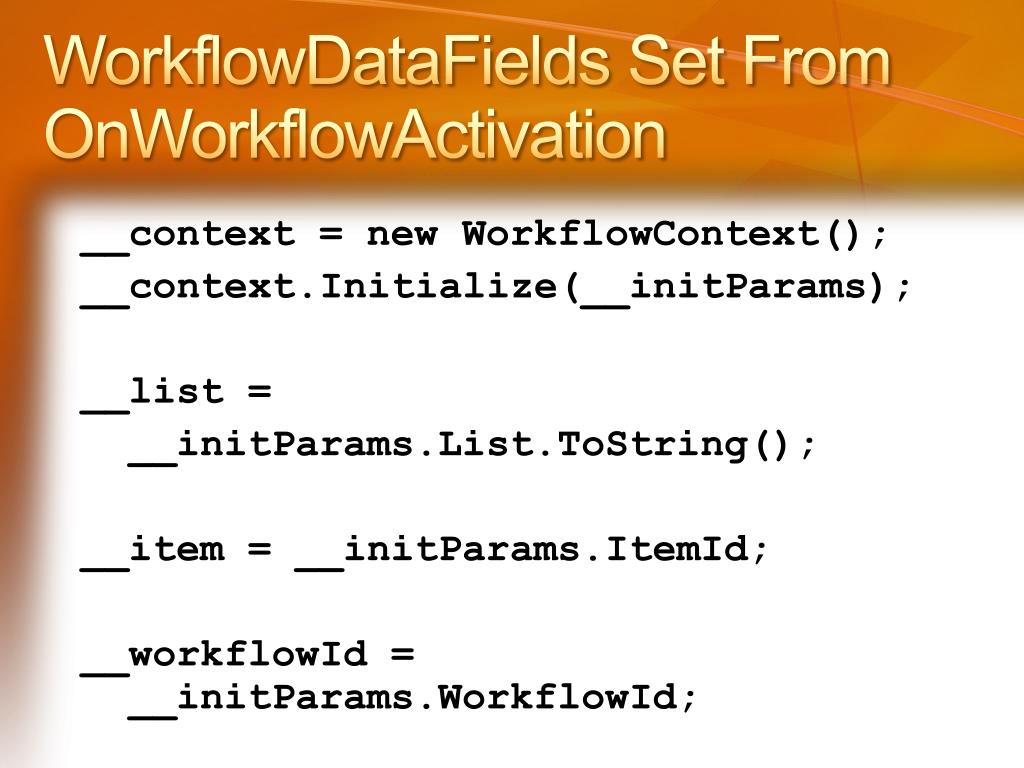

  11. WorkflowDataFields Set From OnWorkflowActivation • __context = new WorkflowContext(); • __context.Initialize(__initParams); • __list = • __initParams.List.ToString(); • __item = __initParams.ItemId; • __workflowId = __initParams.WorkflowId;

  12. Explore the Exported SPD Workflow Files Todd C. Bleeker CSA Mindsharp demo

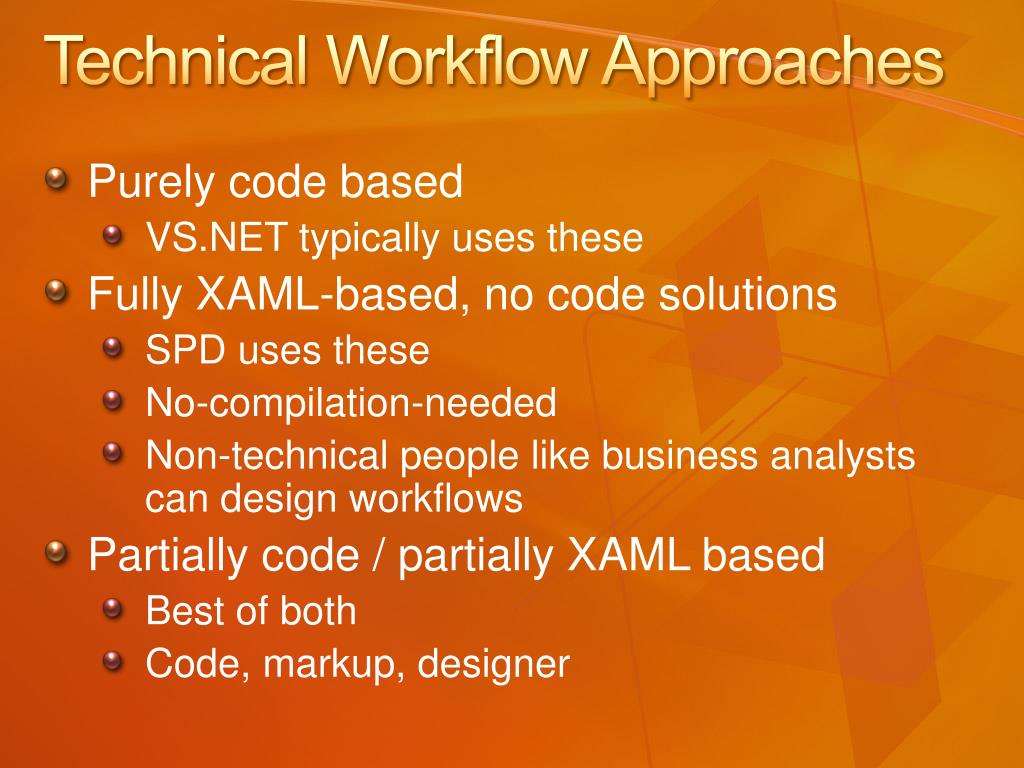

  13. Technical Workflow Approaches • Purely code based • VS.NET typically uses these • Fully XAML-based, no code solutions • SPD uses these • No-compilation-needed • Non-technical people like business analysts can design workflows • Partially code / partially XAML based • Best of both • Code, markup, designer

  14. Move XOML from SPD File to VS.NET Project Todd C. Bleeker CSA Mindsharp demo

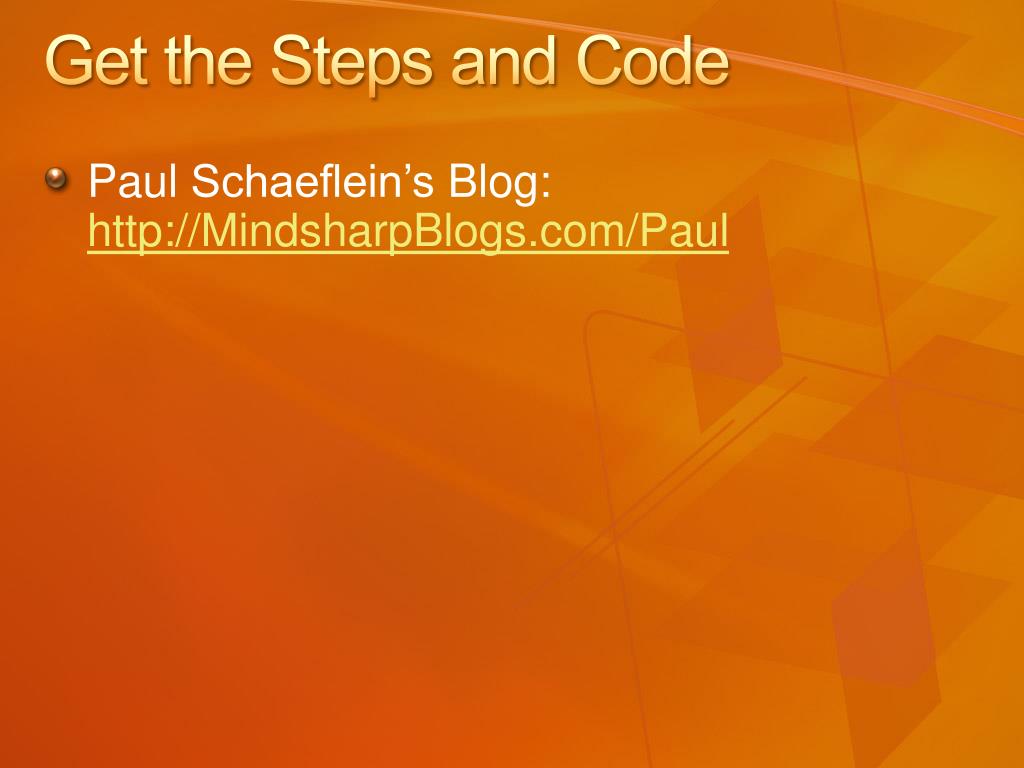

  15. Get the Steps and Code • Paul Schaeflein’s Blog:http://MindsharpBlogs.com/Paul
