  1. Modelling of and Simulation with Grid Code validated Wind Turbine Models Frank Martin, Tobias Gehlhaar, Ilir PurellkuGermanischer Lloyd Competence CentreRenewables Certification 2009-03-18

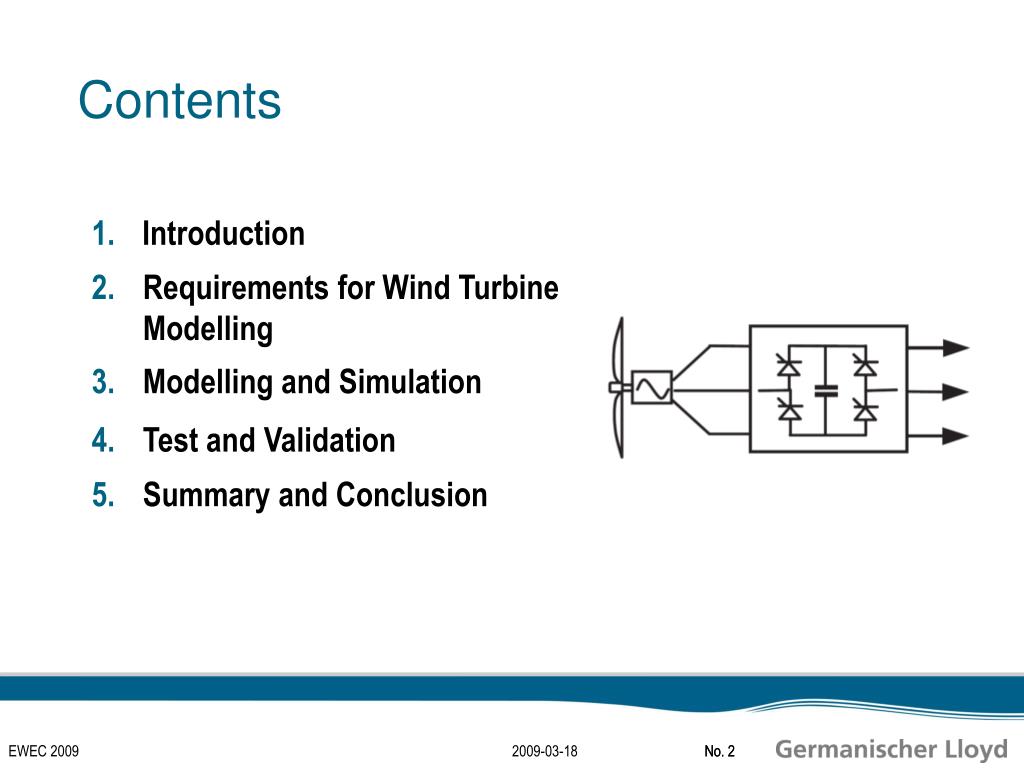

  2. Contents Introduction Requirements for Wind Turbine Modelling Modelling and Simulation Test and Validation Summary and Conclusion EWEC 2009 No. 2

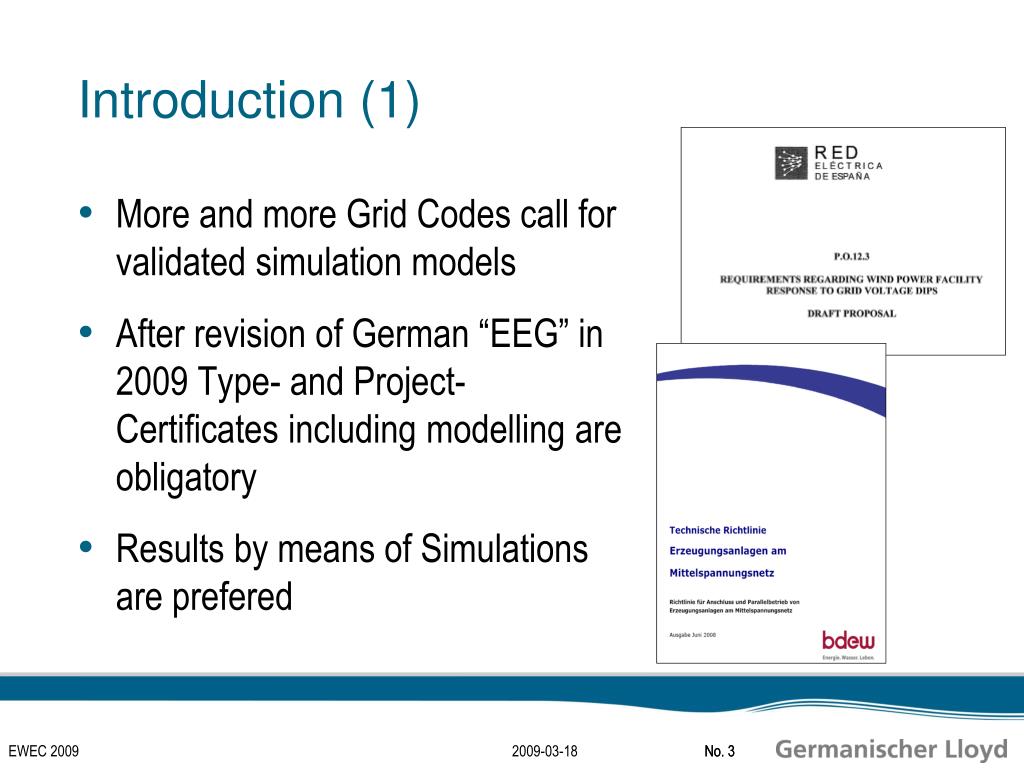

  3. Introduction (1) • More and more Grid Codes call for validated simulation models • After revision of German “EEG” in 2009 Type- and Project- Certificates including modelling are obligatory • Results by means of Simulations are prefered EWEC 2009 No. 3

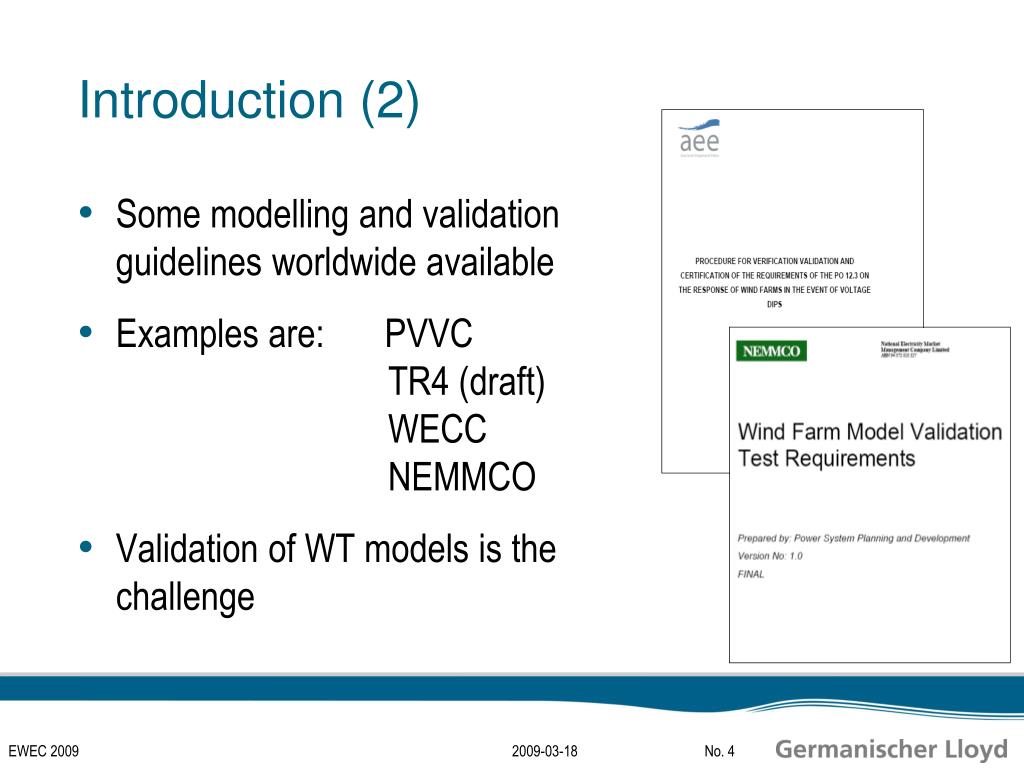

  4. Introduction (2) • Some modelling and validation guidelines worldwide available • Examples are: PVVC TR4 (draft) WECC NEMMCO • Validation of WT models is the challenge EWEC 2009

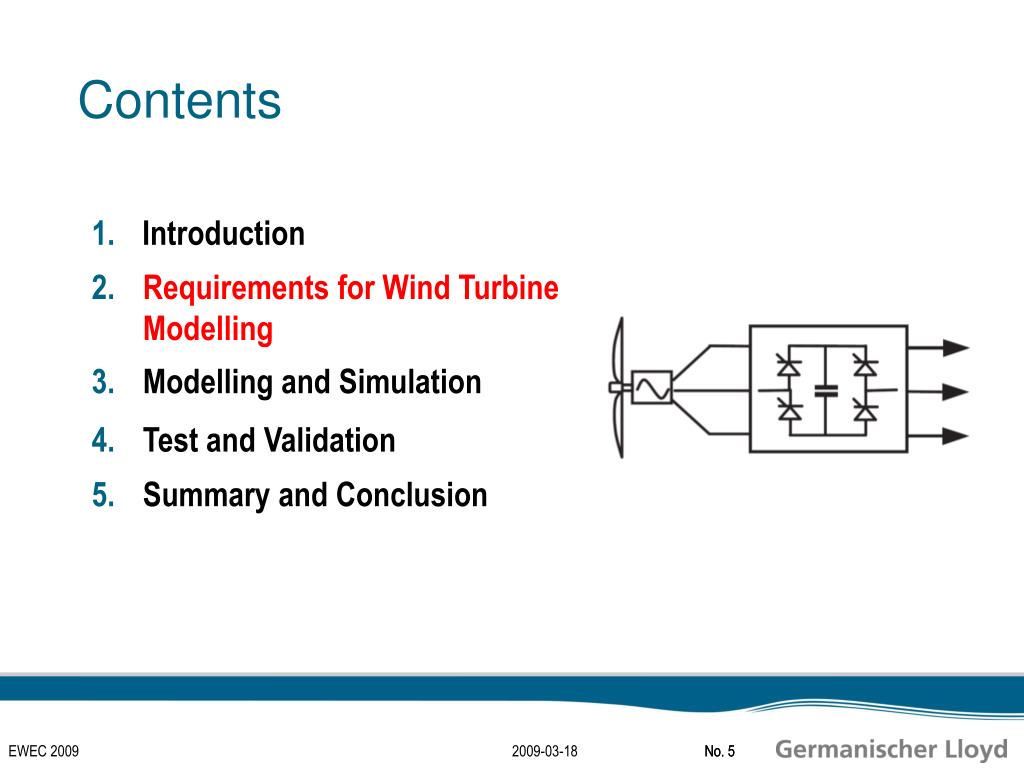

  5. Contents Introduction Requirements for Wind Turbine Modelling Modelling and Simulation Test and Validation Summary and Conclusion EWEC 2009 2009-03-18 No. 5 No. 5

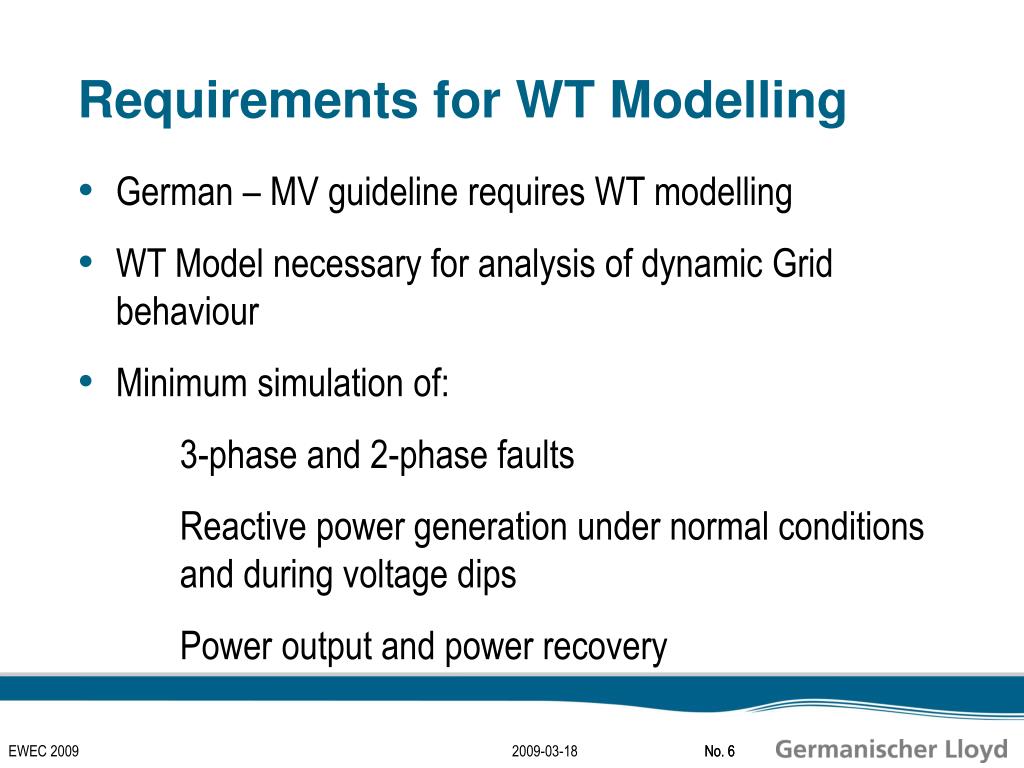

  6. Requirements for WT Modelling • German – MV guideline requires WT modelling • WT Model necessary for analysis of dynamic Grid behaviour • Minimum simulation of: 3-phase and 2-phase faults Reactive power generation under normal conditions and during voltage dips Power output and power recovery EWEC 2009 No. 6

  7. Contents Introduction Requirements for Wind Turbine Modelling Modelling and Simulation Test and Validation Summary and Conclusion EWEC 2009 2009-03-18 No. 7 No. 7

  8. General Turbine Modelling (1) • WT modelling focussed on grid code requirements • WT modelling – important details e.g.: Aerodynamic model in detail (Cp curve) Minimum two-mass mechanical model Response in V, P, Q modelled in detail LVRT relevant functions modelled in detail (crow-bar, chopper) • No internal details like switching of IGBT EWEC 2009 2009-03-18 No. 8

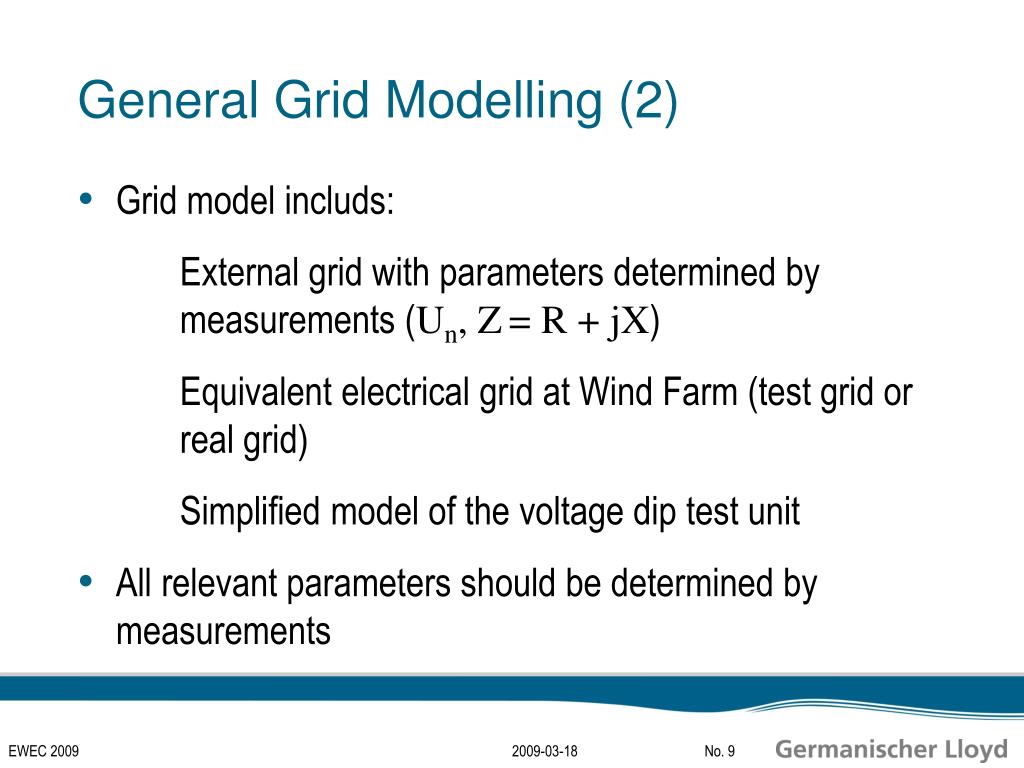

  9. General Grid Modelling (2) • Grid model includs: External grid with parameters determined by measurements (Un, Z= R + jX) Equivalent electrical grid at Wind Farm (test grid or real grid) Simplified model of the voltage dip test unit • All relevant parameters should be determined by measurements EWEC 2009 2009-03-18 No. 9

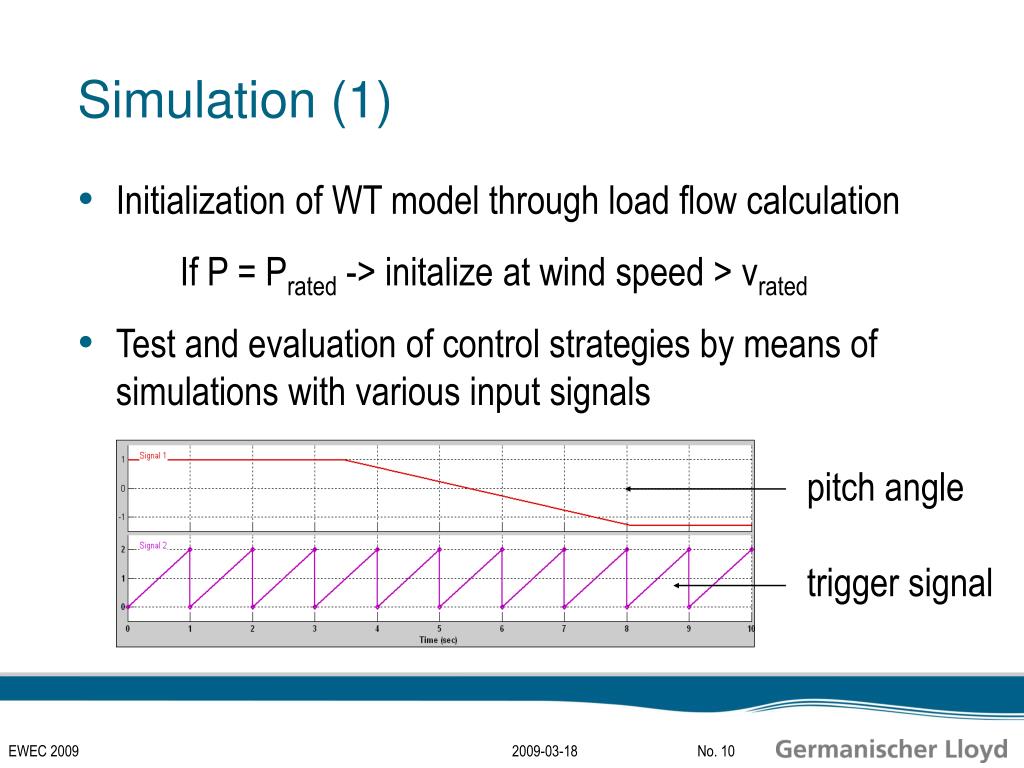

  10. Simulation (1) • Initialization of WT model through load flow calculation If P = Prated -> initalize at wind speed > vrated • Test and evaluation of control strategies by means of simulations with various input signals pitch angle trigger signal EWEC 2009 2009-03-18 No. 10

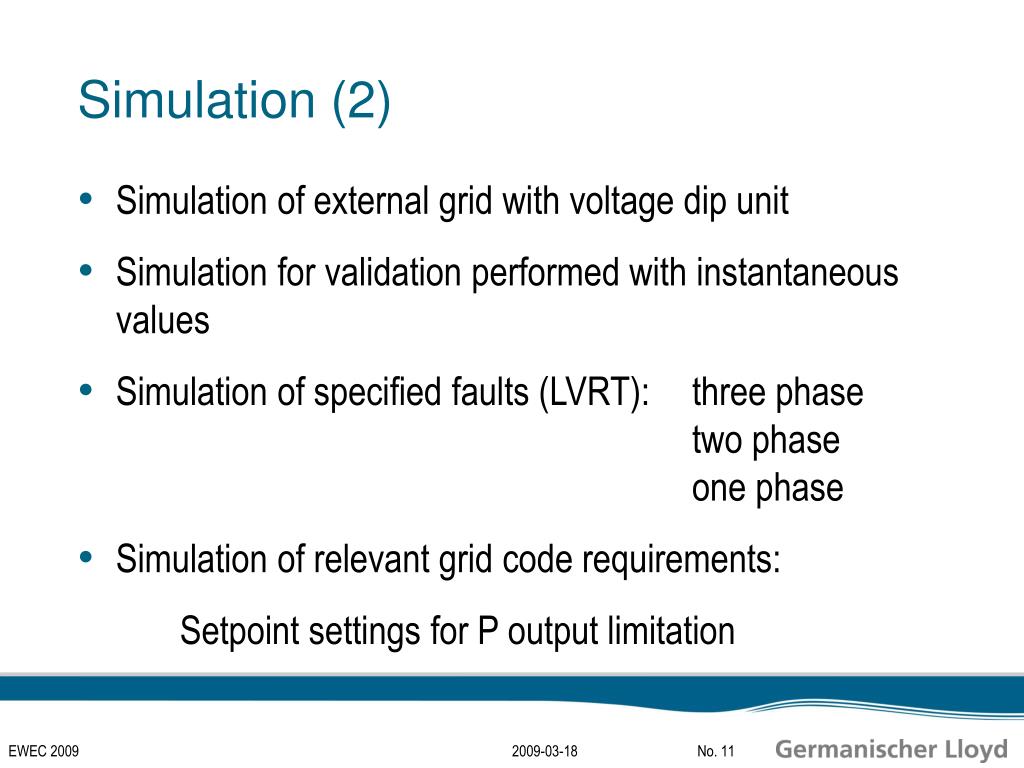

  11. Simulation (2) • Simulation of external grid with voltage dip unit • Simulation for validation performed with instantaneous values • Simulation of specified faults (LVRT): three phase two phase one phase • Simulation of relevant grid code requirements: Setpoint settings for P output limitation EWEC 2009 2009-03-18 No. 11

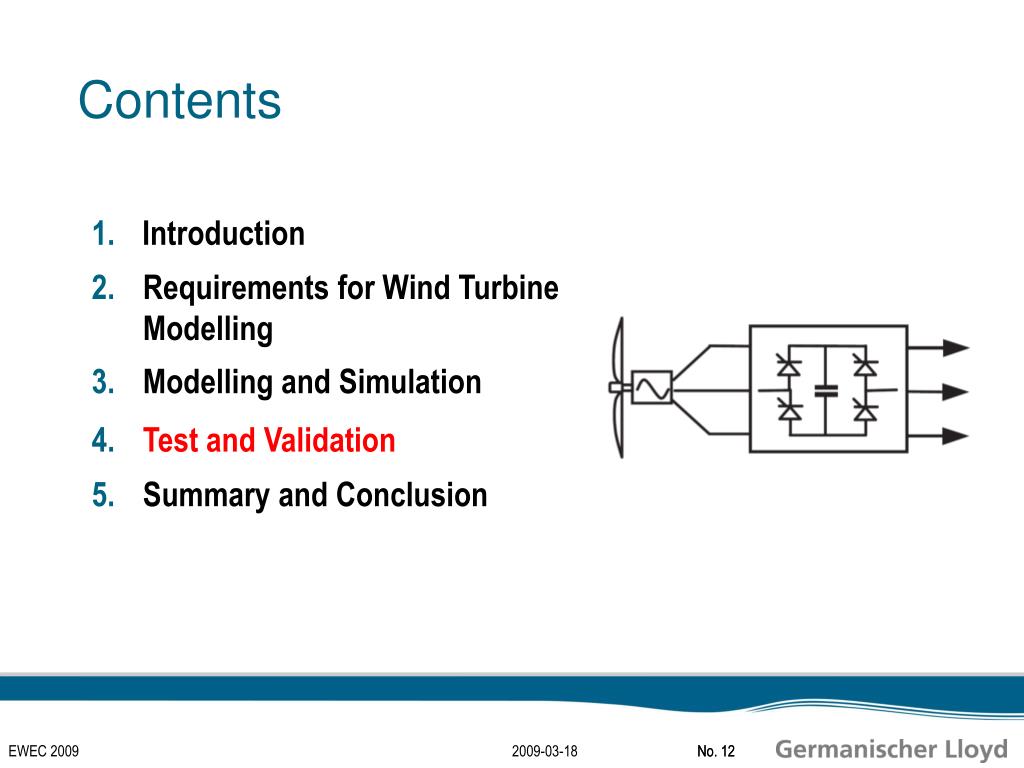

  12. Contents Introduction Requirements for Wind Turbine Modelling Modelling and Simulation Test and Validation Summary and Conclusion EWEC 2009 2009-03-18 No. 12 No. 12

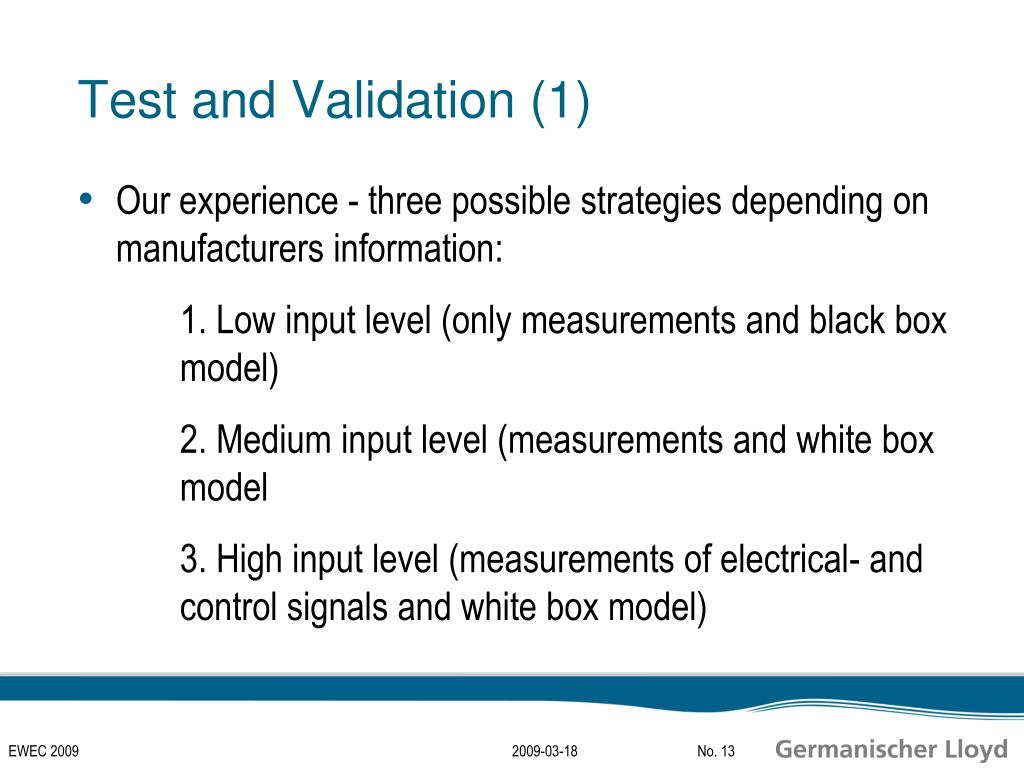

  13. Test and Validation (1) • Our experience - three possible strategies depending on manufacturers information: 1. Low input level (only measurements and black box model) 2. Medium input level (measurements and white box model 3. High input level (measurements of electrical- and control signals and white box model) EWEC 2009 2009-03-18 No. 13

  14. Test and Validation (2) • Development of Validation-Routines independent of Simulation-Tool (more compatibility) • MATLAB/SIMULINK – GUI based Validation-Tool • Comprised: Import of various data formats (ASCII, CSV, TXT, MAT) • Processing and evaluation of signals • Automatic- and manual validation according to Validation-Routines EWEC 2009 No. 14

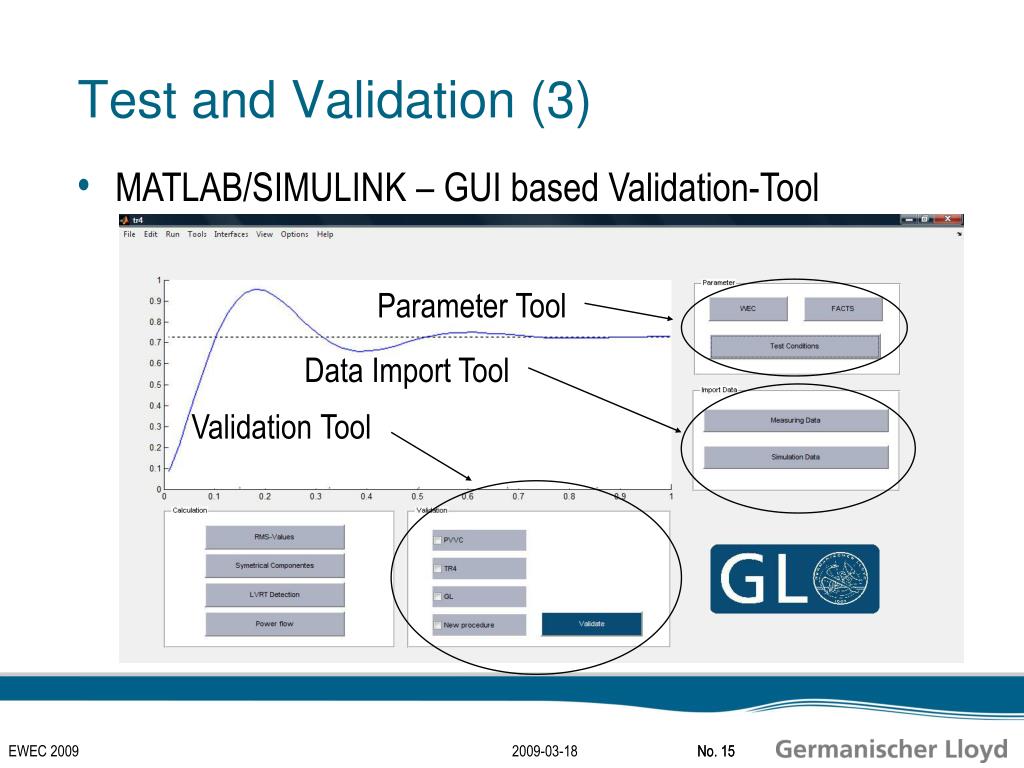

  15. Test and Validation (3) • MATLAB/SIMULINK – GUI based Validation-Tool Parameter Tool Data Import Tool Validation Tool EWEC 2009 2009-03-18 No. 15 No. 15

  16. Test and Validation (4) Idea: Step Response of a Second Order System for analysis • applicable for all • signals types • tr – Rise time • ts – Settling time • Mp – Peak overshoot • e(t) – Steady state error • – Tolerance bandwidth EWEC 2009 No. 16

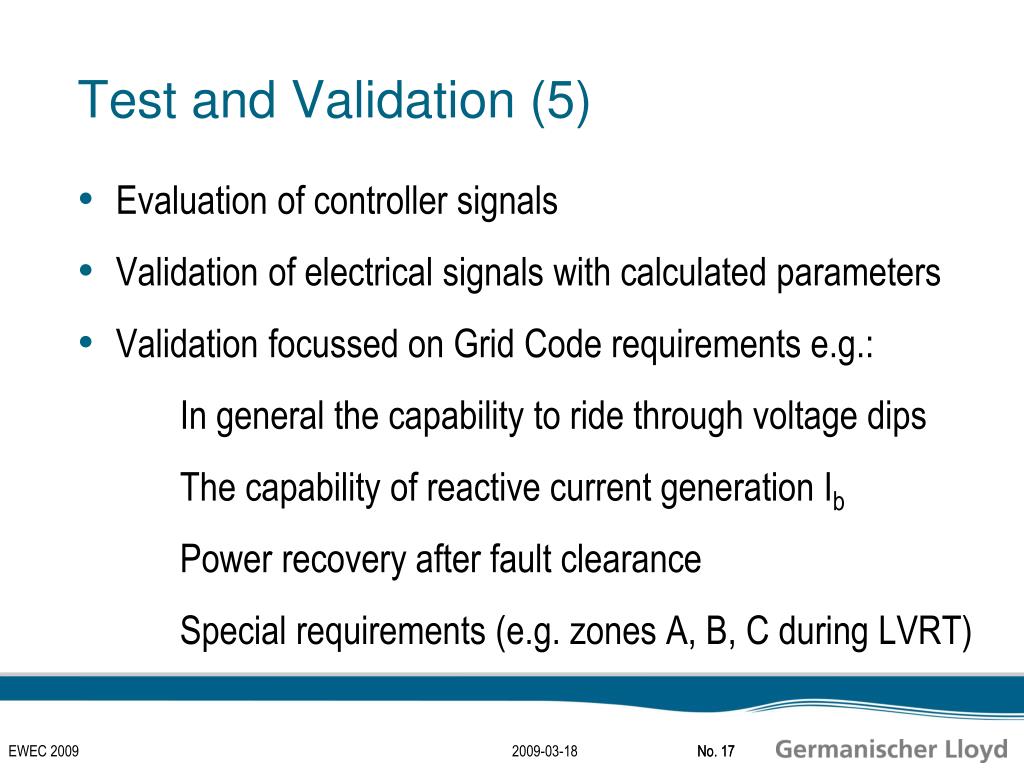

  17. Test and Validation (5) • Evaluation of controller signals • Validation of electrical signals with calculated parameters • Validation focussed on Grid Code requirements e.g.: In general the capability to ride through voltage dips The capability of reactive current generation Ib Power recovery after fault clearance Special requirements (e.g. zones A, B, C during LVRT) EWEC 2009 No. 17

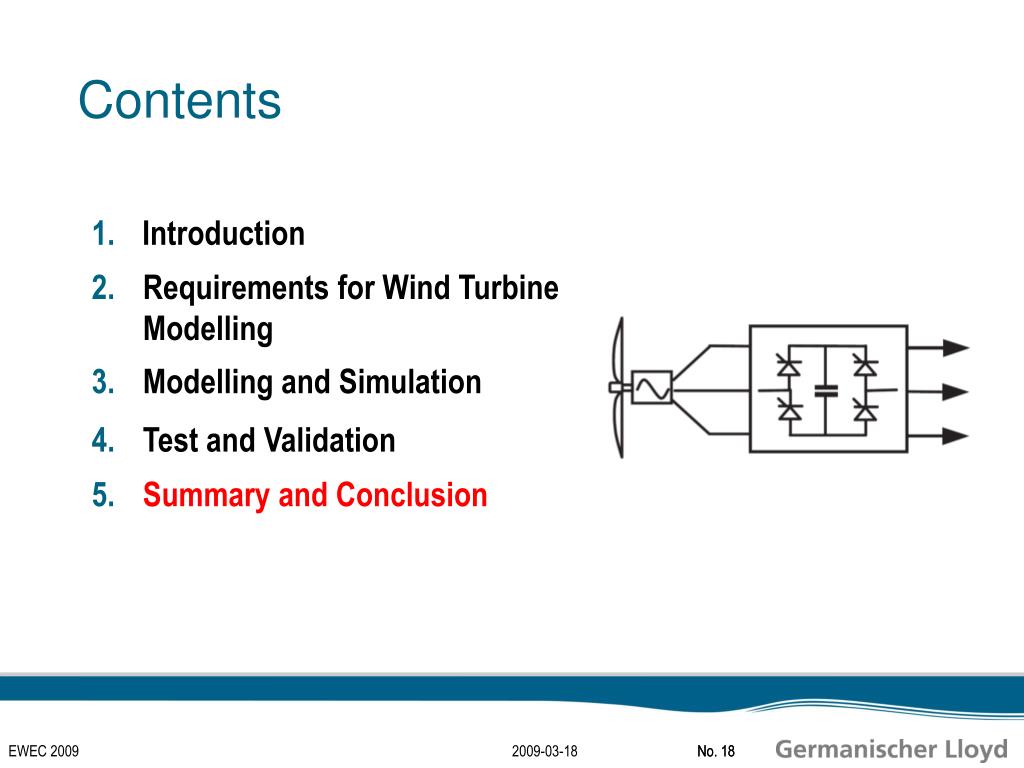

  18. Contents Introduction Requirements for Wind Turbine Modelling Modelling and Simulation Test and Validation Summary and Conclusion EWEC 2009 2009-03-18 No. 18 No. 18

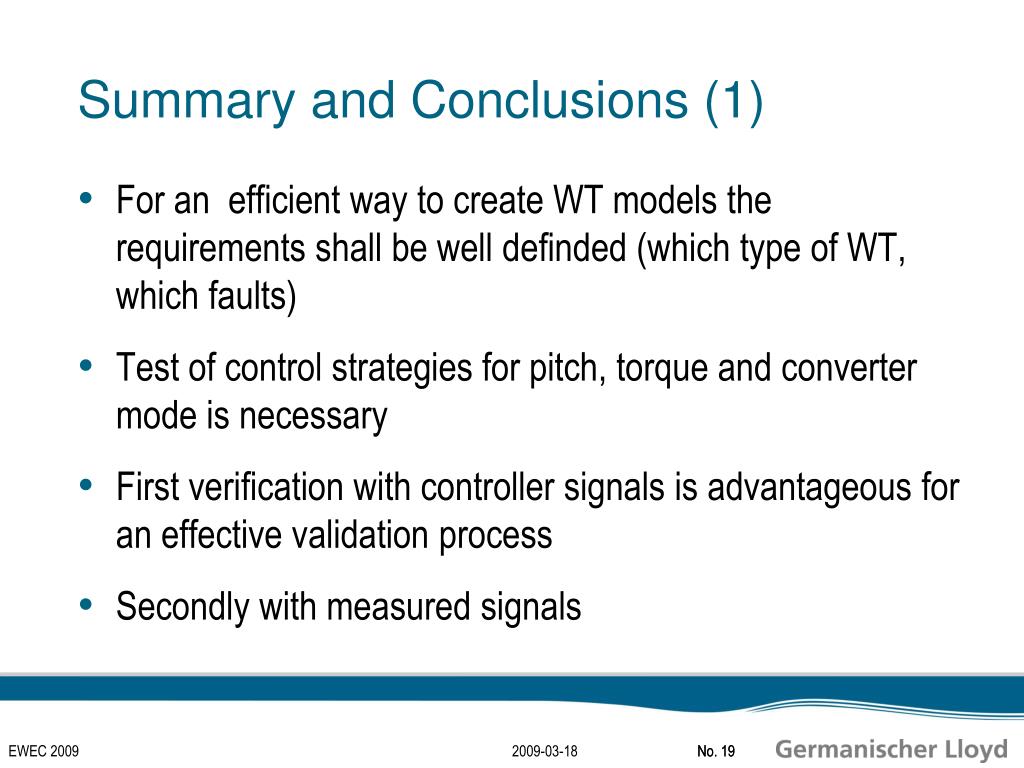

  19. Summary and Conclusions (1) • For an efficient way to create WT models the requirements shall be well definded (which type of WT, which faults) • Test of control strategies for pitch, torque and converter mode is necessary • First verification with controller signals is advantageous for an effective validation process • Secondly with measured signals EWEC 2009 No. 19

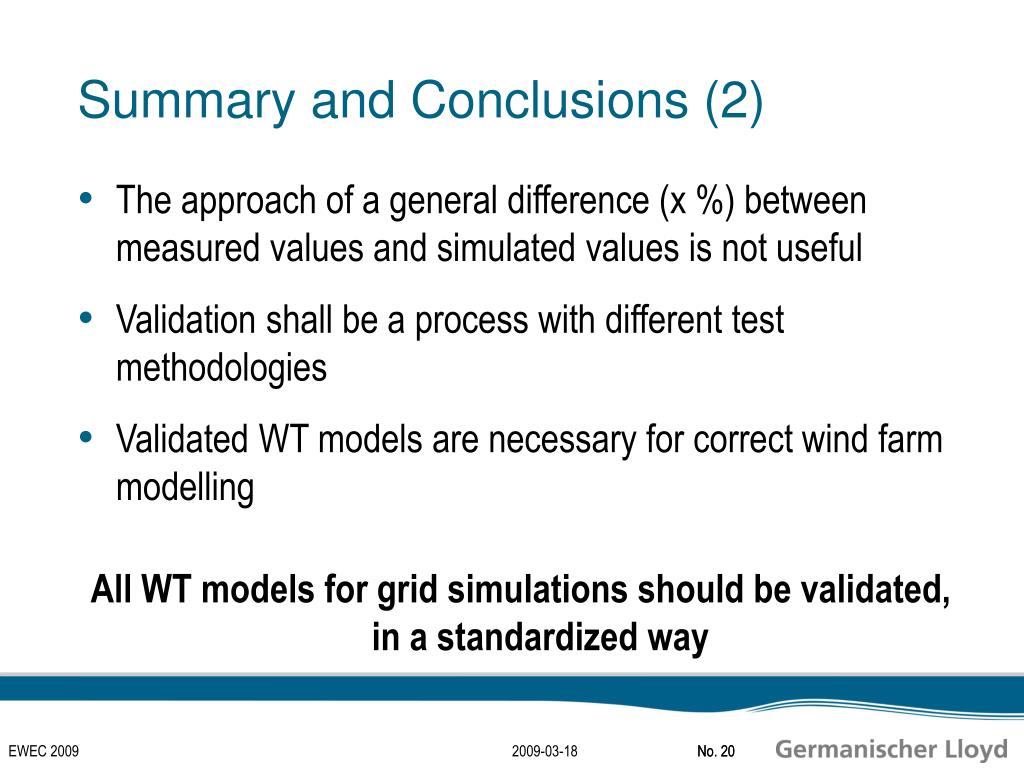

  20. Summary and Conclusions (2) • The approach of a general difference (x %) between measured values and simulated values is not useful • Validation shall be a process with different test methodologies • Validated WT models are necessary for correct wind farm modelling • All WT models for grid simulations should be validated, in a standardized way EWEC 2009 No. 20

  21. Thank you for yourattention! Frank.Martin@gl-group.com Tobias.Gehlhaar@gl-group.com Ilir.Purellku@gl-group.com EWEC 2009 No. 21
