EE3190 Optical Sensing and Imaging

EE3190 Optical Sensing and Imaging. Discrete Systems. Linear Systems. Superposition. x’. x. Linear Systems. Superposition. x’. x. Linear Systems. Superposition. x’. x. Linear Systems. Superposition. x’. x. Linear Systems. Superposition. x’. x. Linear Systems. Superposition.

kennedy-larsen
Download Presentation

EE3190 Optical Sensing and Imaging

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. EE3190 Optical Sensing and Imaging Discrete Systems

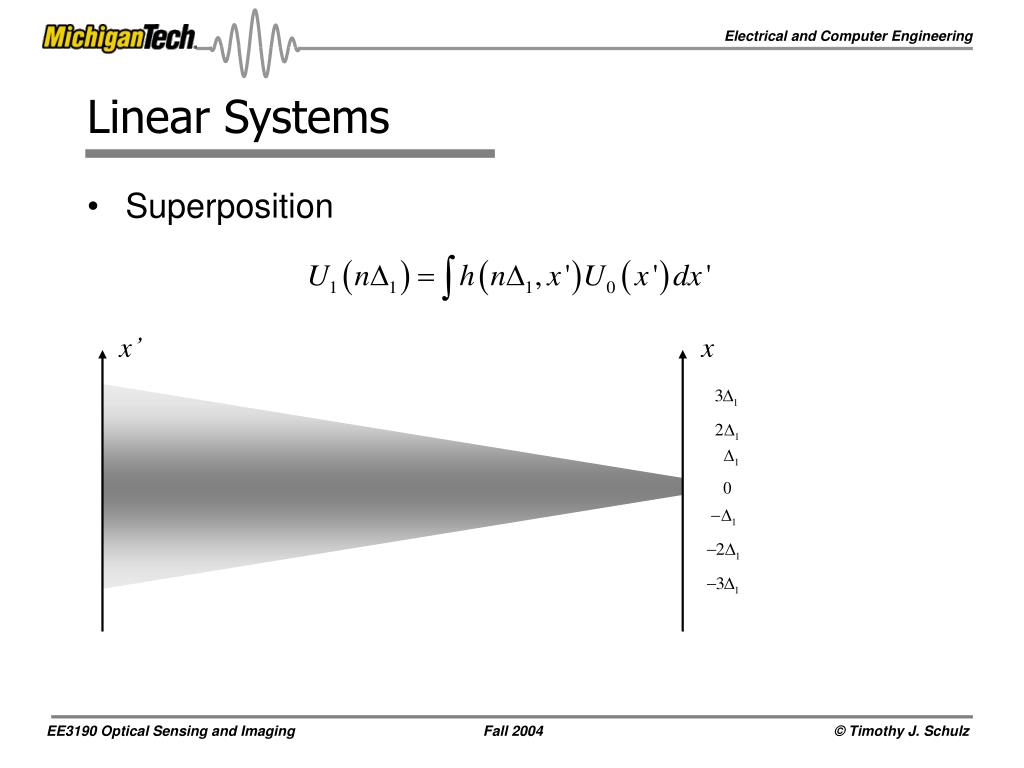

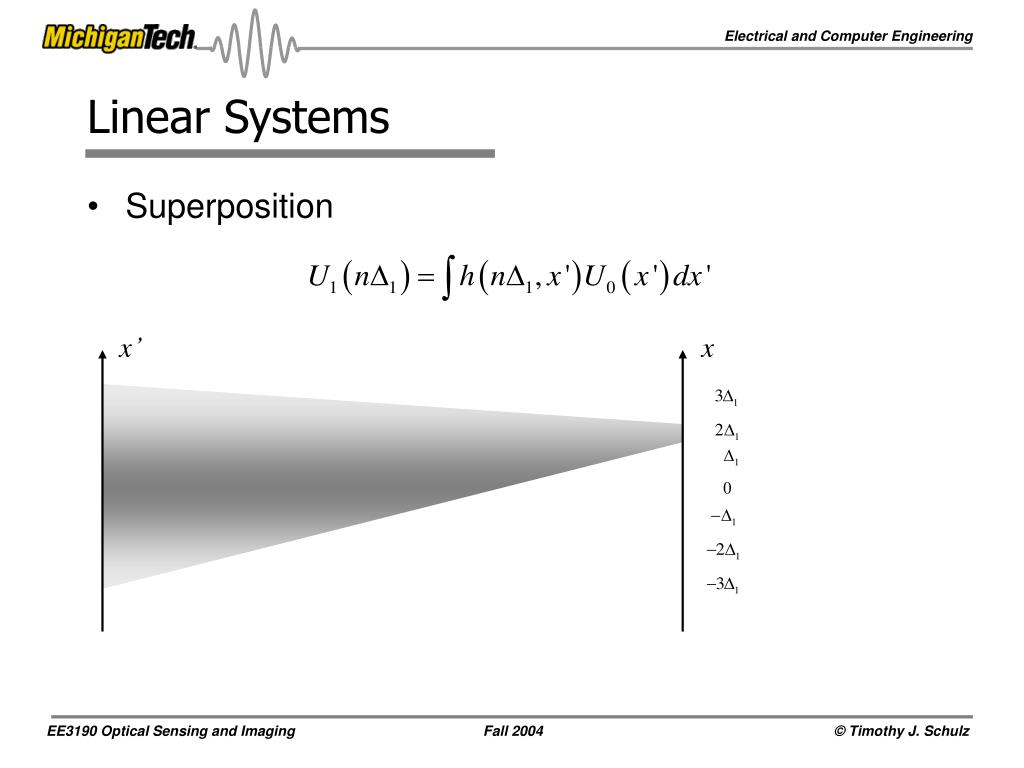

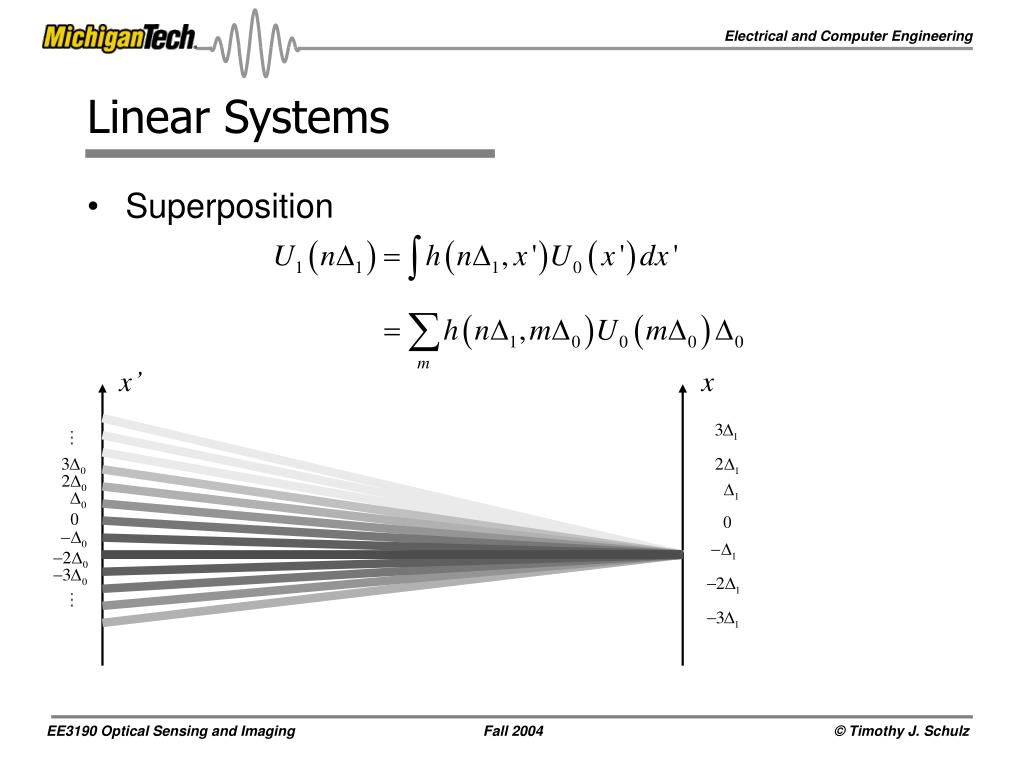

  2. Linear Systems • Superposition x’ x

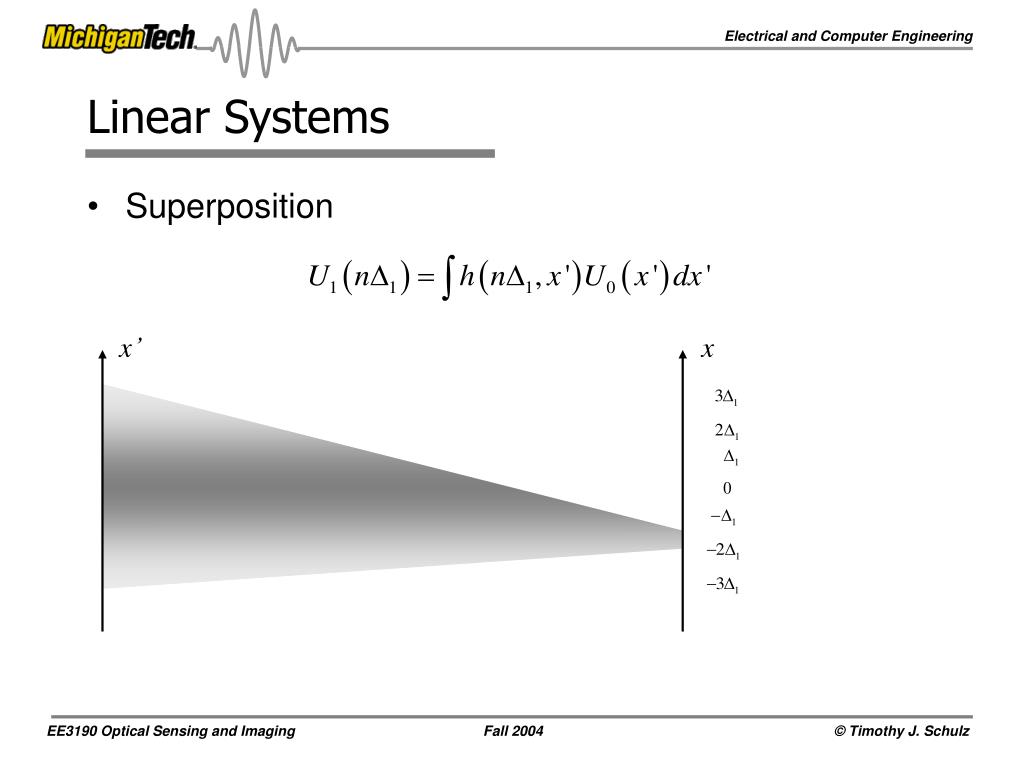

  3. Linear Systems • Superposition x’ x

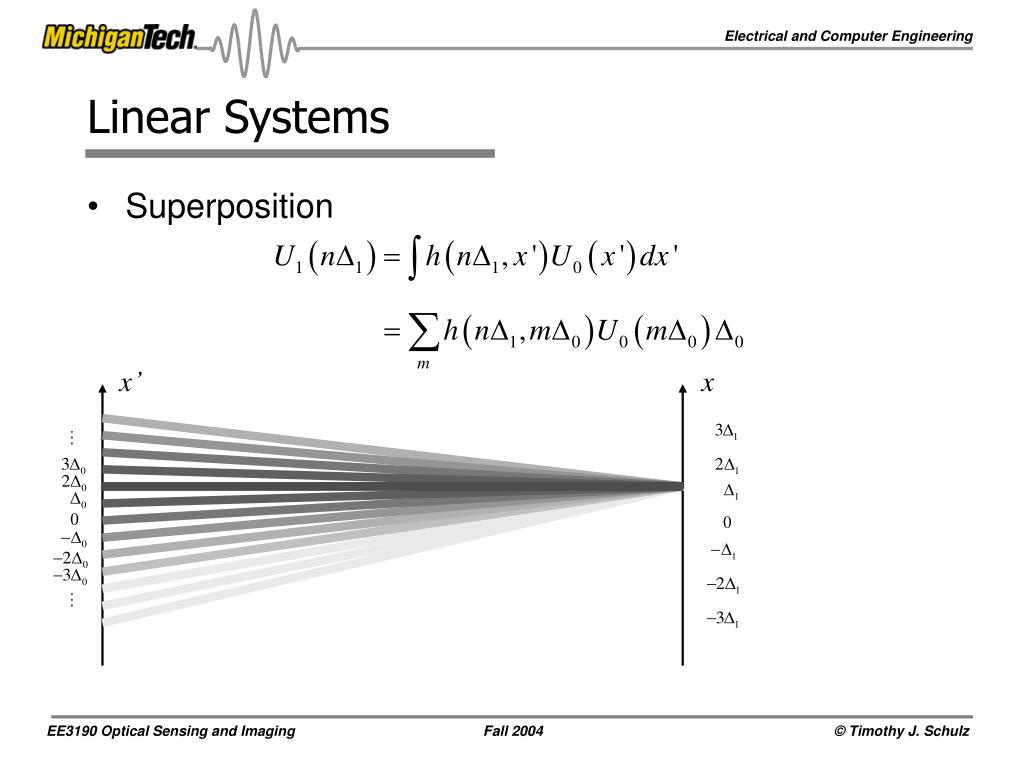

  4. Linear Systems • Superposition x’ x

  5. Linear Systems • Superposition x’ x

  6. Linear Systems • Superposition x’ x

  7. Linear Systems • Superposition x’ x

  8. Linear Systems • Superposition x’ x

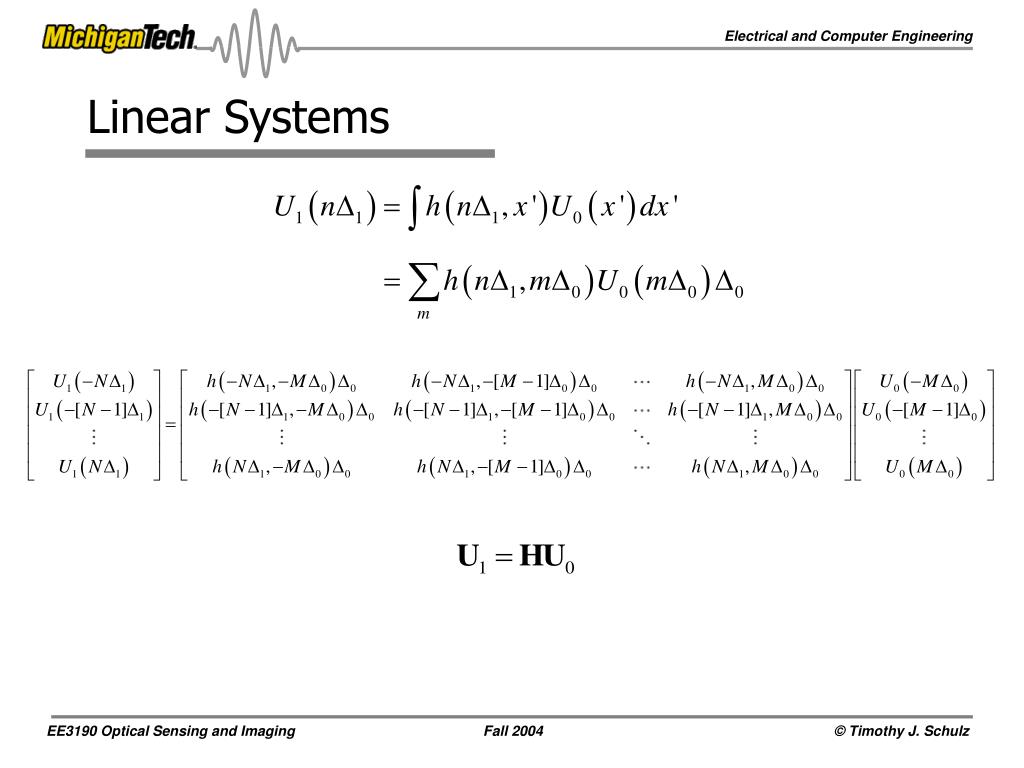

  9. Linear Systems

  10. Fresnel Propagation

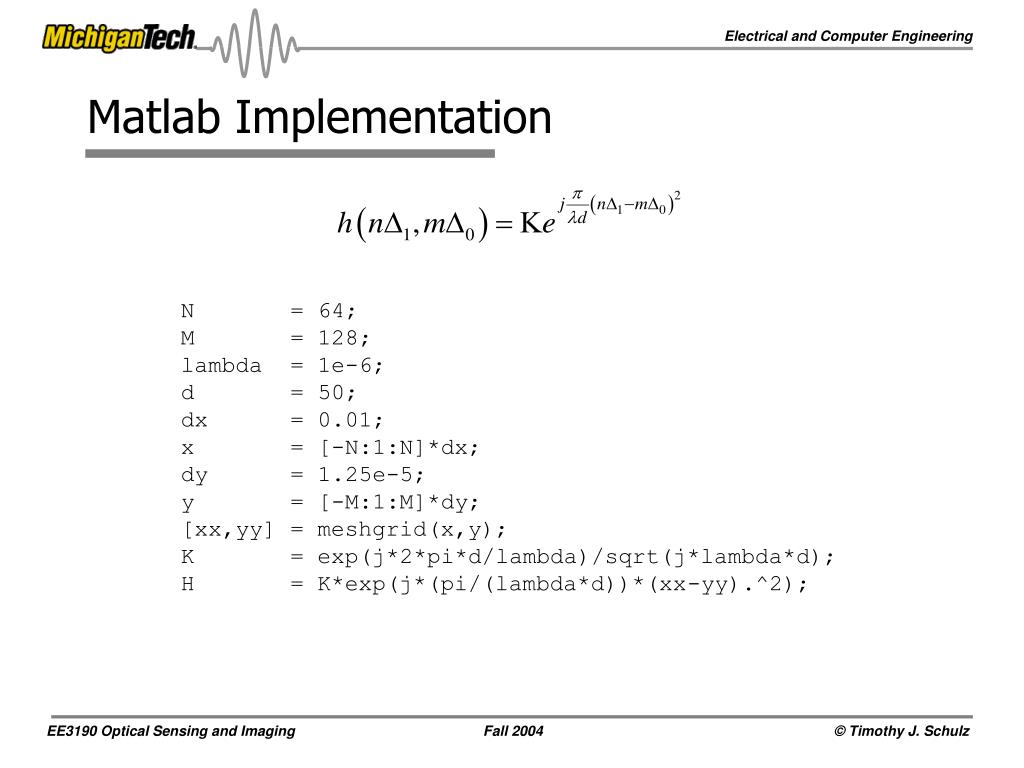

  11. Matlab Implementation N = 64; M = 128; lambda = 1e-6; d = 50; dx = 0.01; x = [-N:1:N]*dx; dy = 1.25e-5; y = [-M:1:M]*dy; [xx,yy] = meshgrid(x,y); K = exp(j*2*pi*d/lambda)/sqrt(j*lambda*d); H = K*exp(j*(pi/(lambda*d))*(xx-yy).^2);

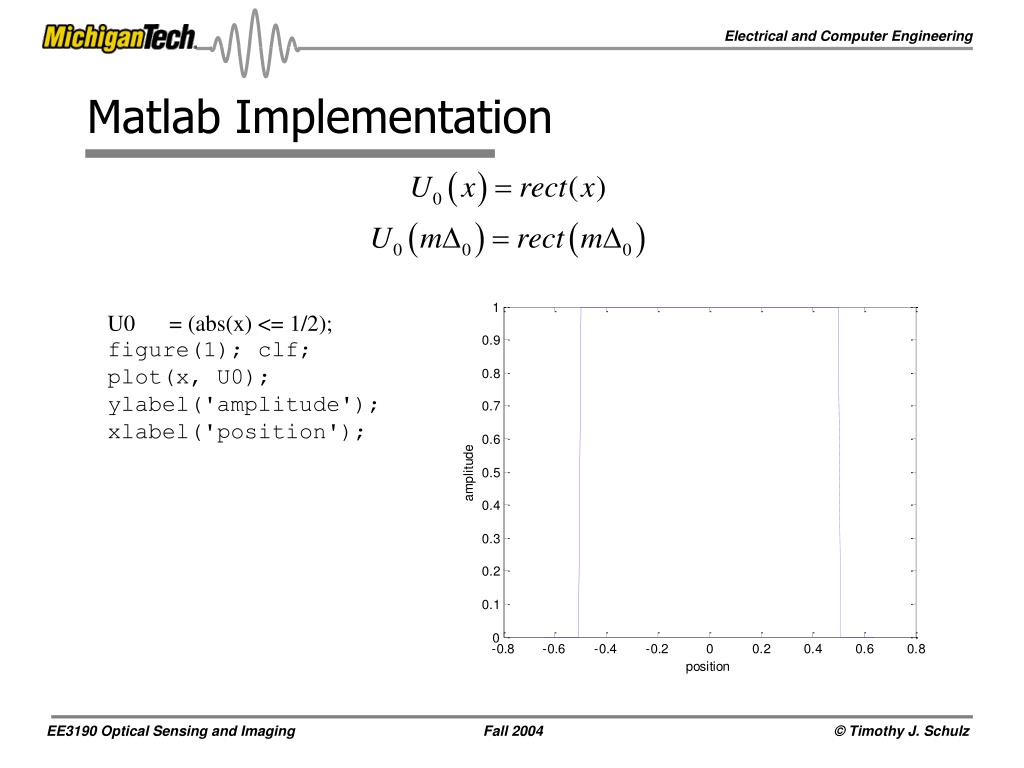

  12. Matlab Implementation U0 = (abs(x) <= 1/2); figure(1); clf; plot(x, U0); ylabel('amplitude'); xlabel('position');

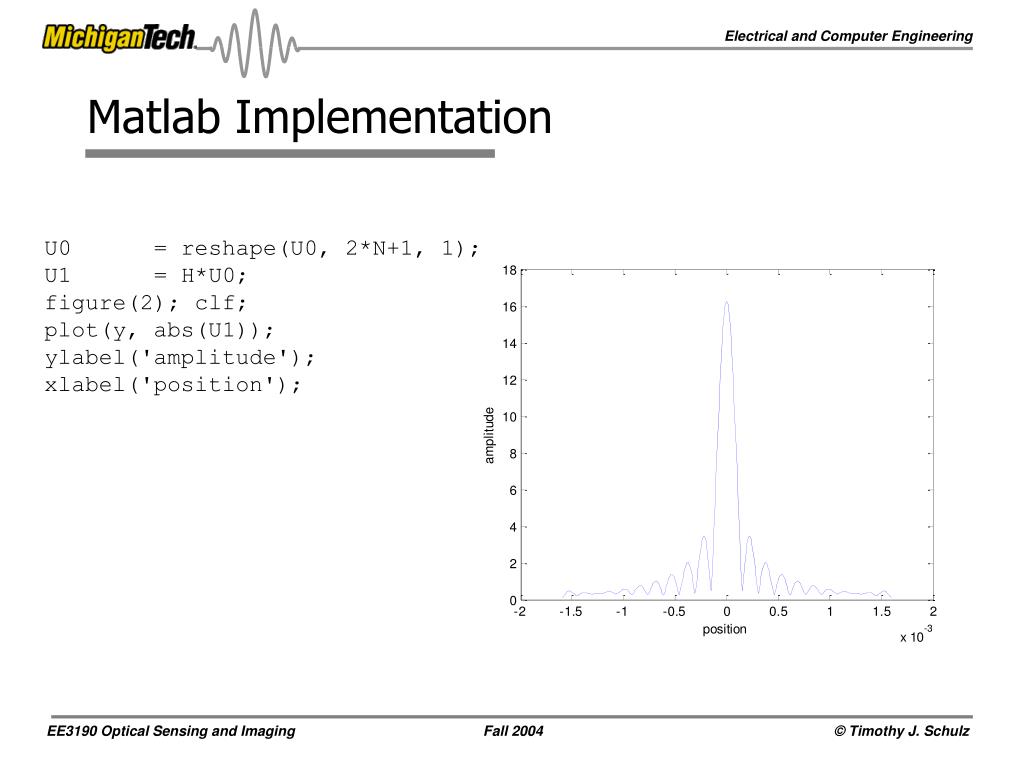

  13. Matlab Implementation U0 = reshape(U0, 2*N+1, 1); U1 = H*U0; figure(2); clf; plot(y, abs(U1)); ylabel('amplitude'); xlabel('position');
