Presentation Transcript


  1. The Alfresco iOS SDK • Gi Lee (Zia Consulting) • Peter Schmidt (Alfresco)

  2. Alfresco iOS SDK – Intro Who we are • Gi Lee Zia Consulting (Technical Architect) gi.lee@ziaconsulting.com Objective-C CMIS library • Peter Schmidt • Alfresco Software • (Senior iOS Engineer) • peter.schmidt@alfresco.com • Alfresco SDK library & samples apps

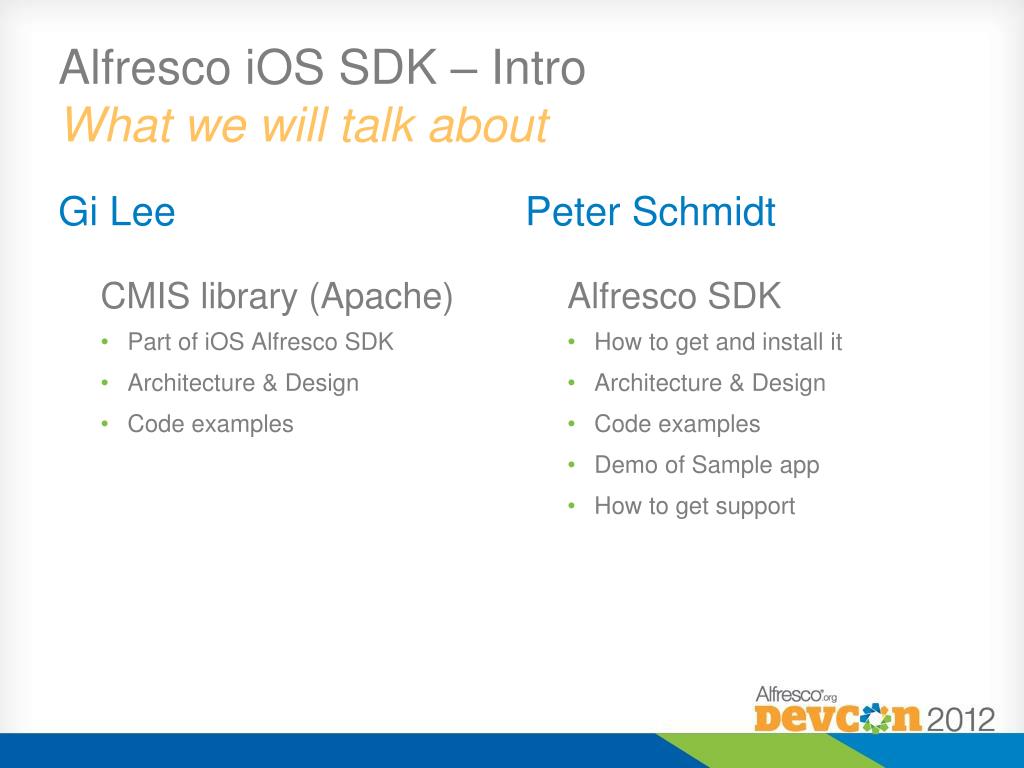

  3. Alfresco iOS SDK – IntroWhat we will talk about • Gi Lee CMIS library (Apache) • Part of iOS Alfresco SDK • Architecture & Design • Code examples • Peter Schmidt • Alfresco SDK • How to get and install it • Architecture & Design • Code examples • Demo of Sample app • How to get support

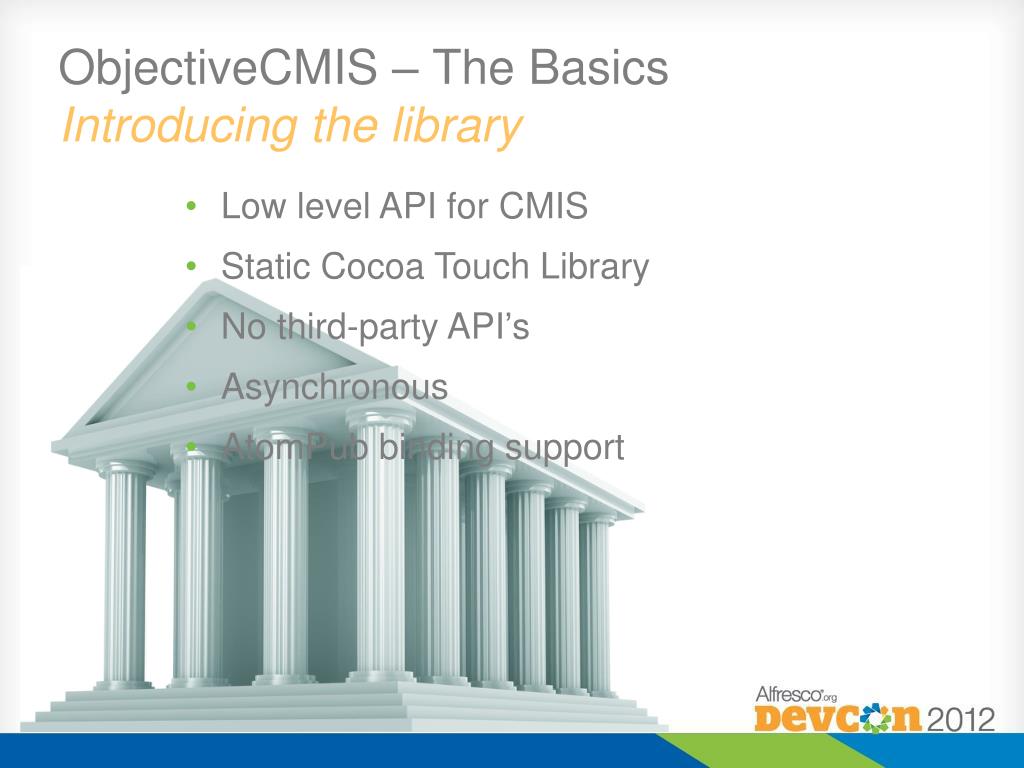

  4. ObjectiveCMIS – The BasicsIntroducing the library • Low level API for CMIS • Static Cocoa Touch Library • No third-party API’s • Asynchronous • AtomPub binding support

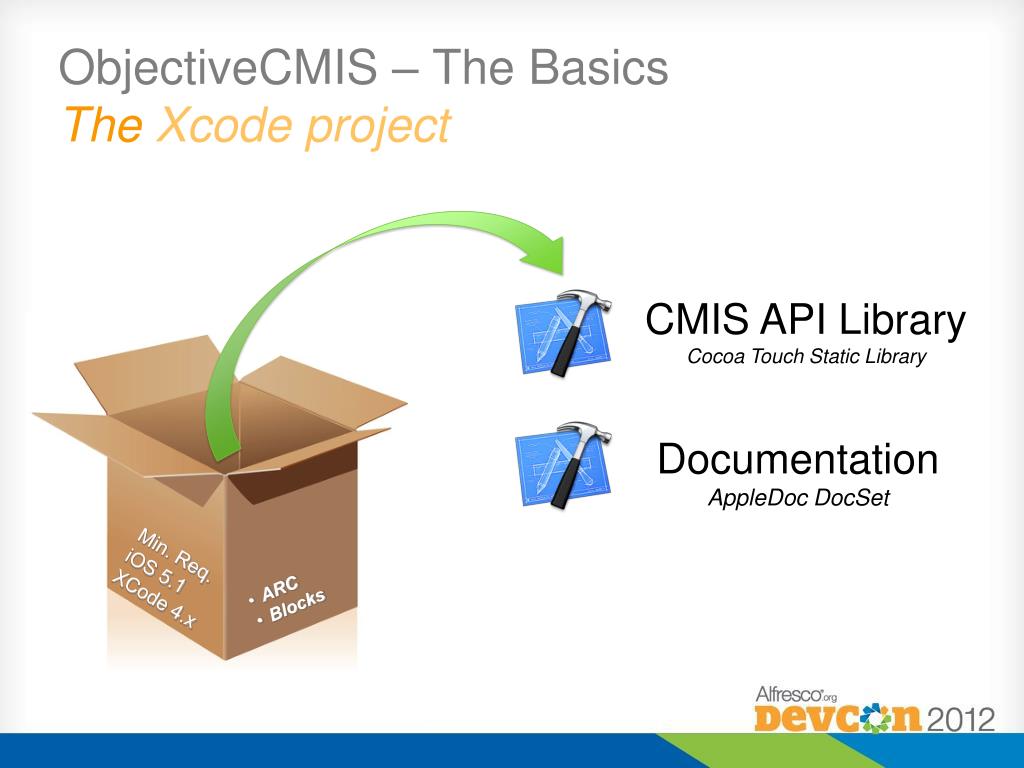

  5. ObjectiveCMIS – The BasicsThe Xcode project CMIS API Library Cocoa Touch Static Library Min. Req. iOS 5.1 XCode 4.x • ARC • Blocks Documentation AppleDoc DocSet

  6. ObjectiveCMIS – The BasicsAn open source project • Open source Objective-C implementation of CMIS • Apache 2.0 license • Collaborative project • Recently accepted by Apache Chemistry

  7. ObjectiveCMIS – The BasicsiOS specifics • Naming Convention • ObjectiveCMIS code prefixed with CMIS • Error Handling • No exceptions in iOS, use NSError • As per Apple standard:“NSError object remains nil if method call is successful.”Always check! • Automated Reference Counting • No more retain, release, autorelease on object • Blocks • Used to handle asynchronous requests & callbacks

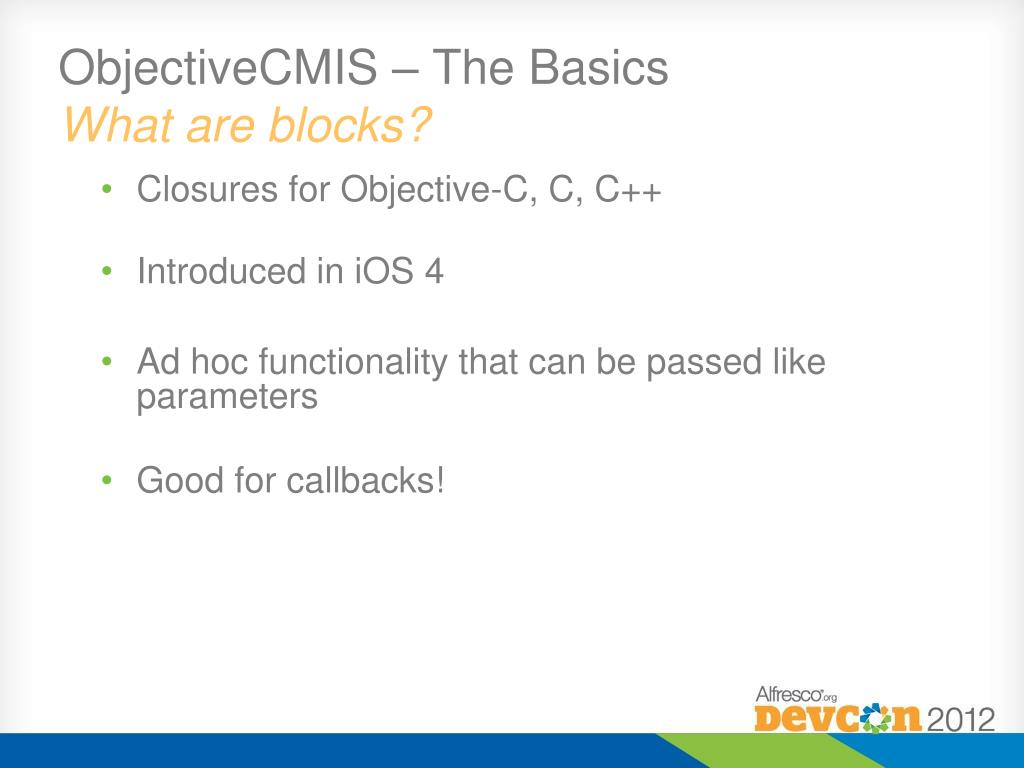

  8. ObjectiveCMIS – The BasicsWhat are blocks? • Closures for Objective-C, C, C++ • Introduced in iOS 4 • Ad hoc functionality that can be passed like parameters • Good for callbacks!

  9. ObjectiveCMIS – The BasicsAsynchronous handling CMIS API // Completion Block If(nil != session) { self.session = session; … } else { /* error handling */ } Repository

  10. ObjectiveCMIS – Design & ArchitectureThe API layers • Client Object API • Object Oriented • Easy to Use • Built-In LinkCache • Client Binding API • Low-Level API • Follows the CMIS Domain Model • More Control • Clunky to Implement

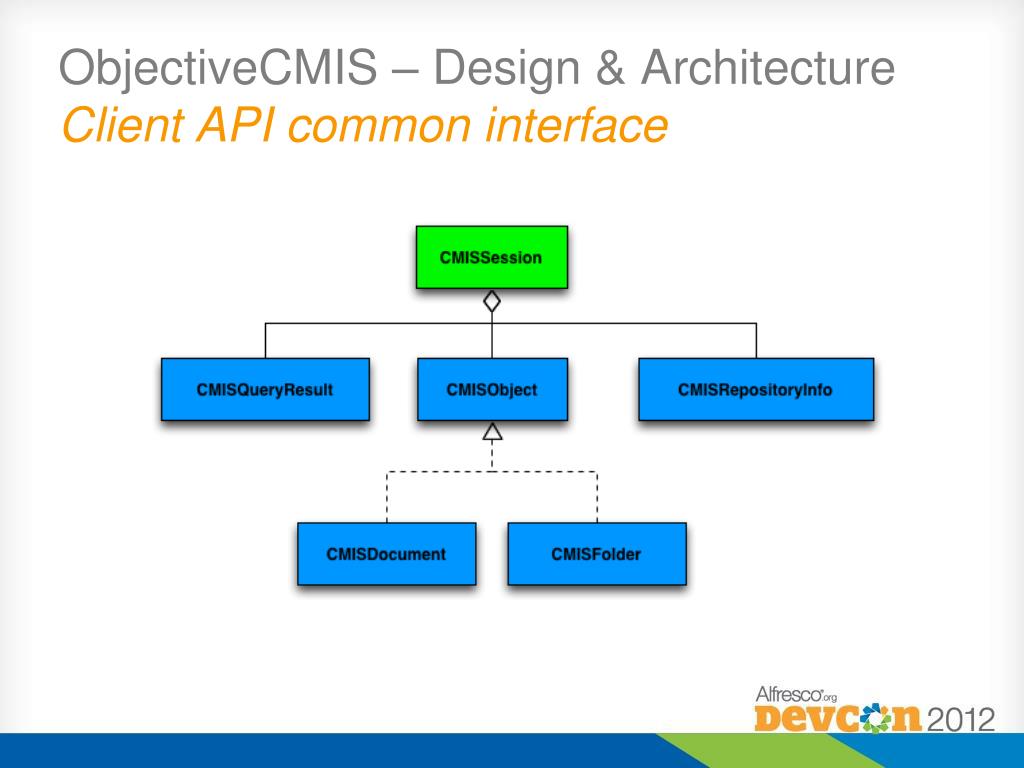

  11. ObjectiveCMIS – Design & ArchitectureClient API common interface

  12. ObjectiveCMIS - Getting StartedHow do I use it? • Added as a binary + Headers • Simple • Need to generate binary • Added to a Xcode Workspace • Extends workflow scope • Provides full access to source code

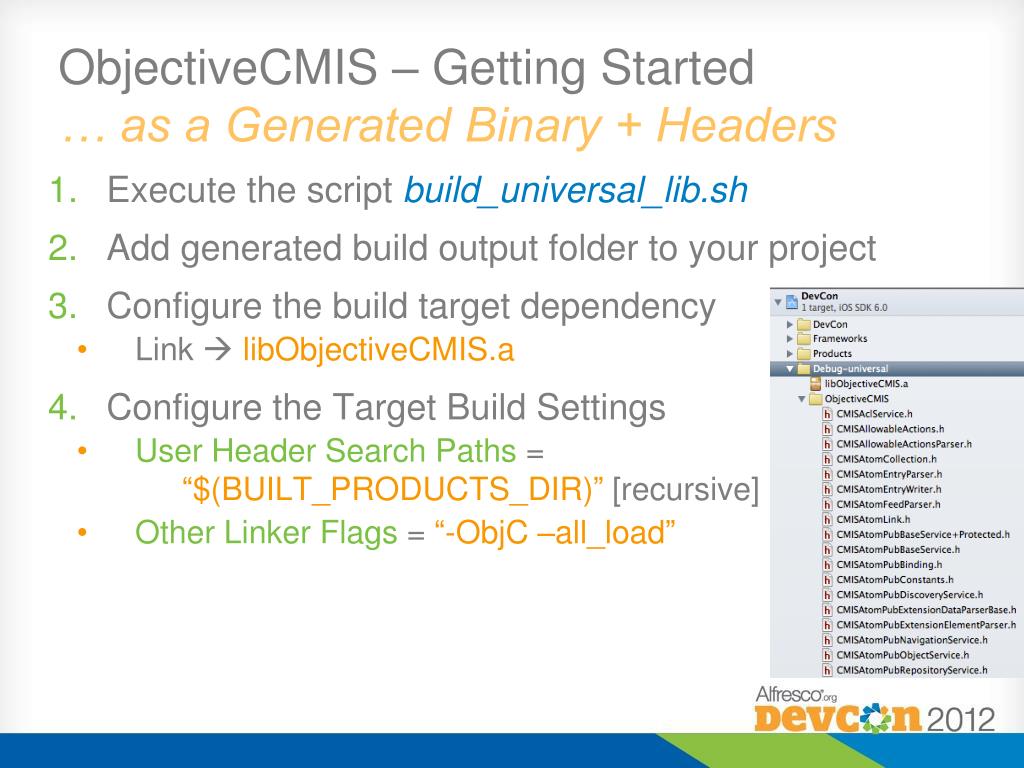

  13. ObjectiveCMIS – Getting Started… as a Generated Binary + Headers • Execute the script build_universal_lib.sh • Add generated build output folder to your project • Configure the build target dependency • Link  libObjectiveCMIS.a • Configure the Target Build Settings • User Header Search Paths = “$(BUILT_PRODUCTS_DIR)”[recursive] • Other Linker Flags = “-ObjC –all_load”

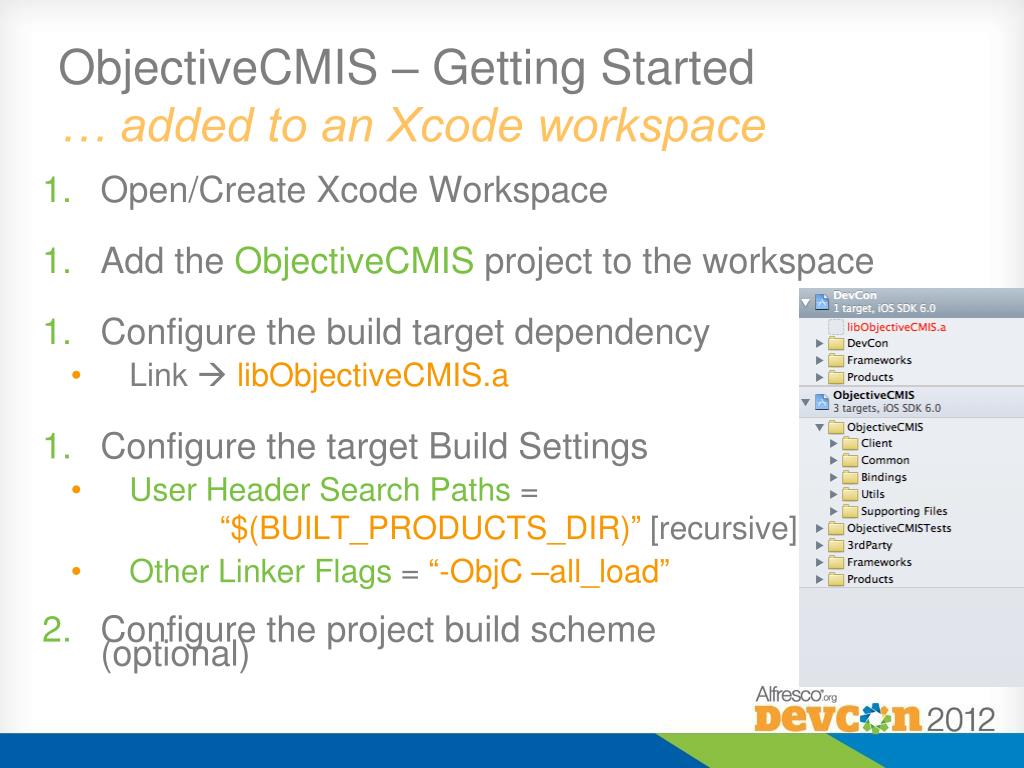

  14. ObjectiveCMIS – Getting Started… added to an Xcode workspace • Open/Create Xcode Workspace • Add the ObjectiveCMIS project to the workspace • Configure the build target dependency • Link  libObjectiveCMIS.a • Configure the target Build Settings • User Header Search Paths = “$(BUILT_PRODUCTS_DIR)”[recursive] • Other Linker Flags = “-ObjC –all_load” • Configure the project build scheme (optional)

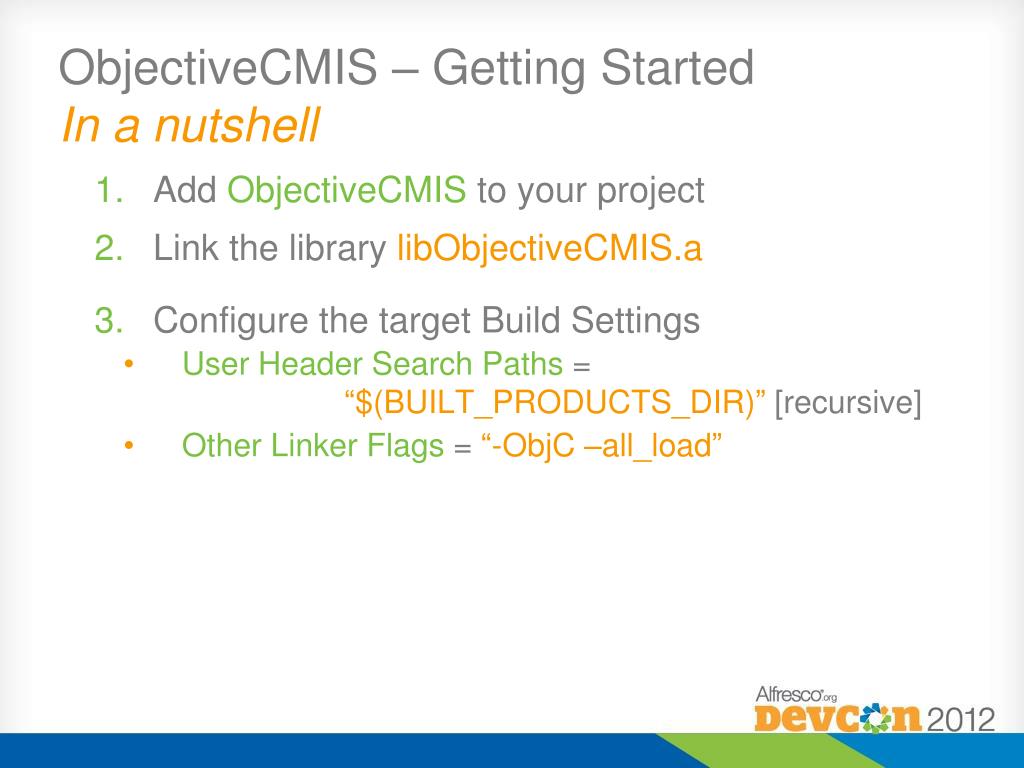

  15. ObjectiveCMIS – Getting StartedIn a nutshell • Add ObjectiveCMIS to your project • Link the library libObjectiveCMIS.a • Configure the target Build Settings • User Header Search Paths = “$(BUILT_PRODUCTS_DIR)”[recursive] • Other Linker Flags = “-ObjC –all_load”

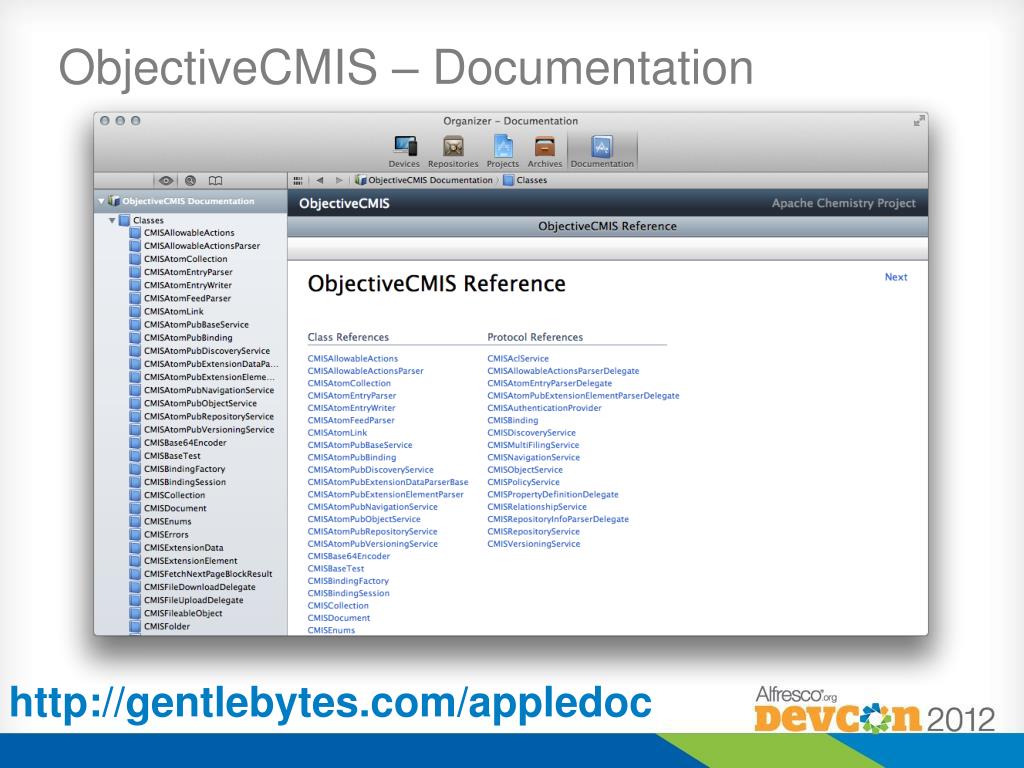

  16. ObjectiveCMIS – Documentation http://gentlebytes.com/appledoc

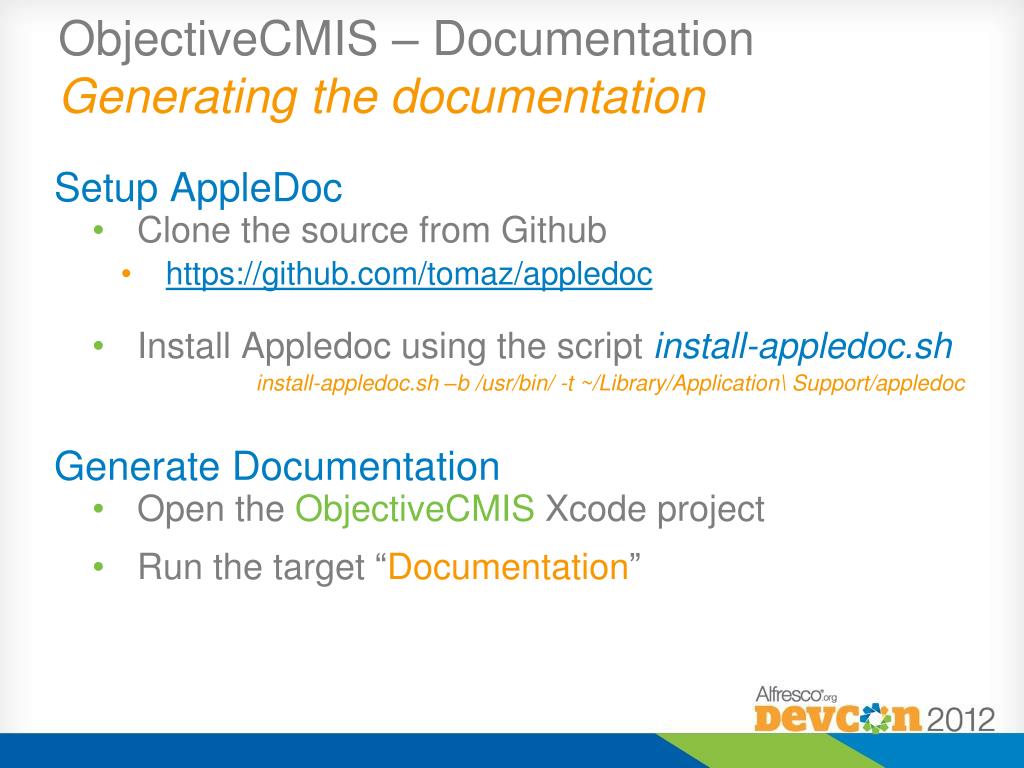

  17. ObjectiveCMIS – DocumentationGenerating the documentation • Setup AppleDoc • Clone the source from Github • https://github.com/tomaz/appledoc • Install Appledoc using the script install-appledoc.sh install-appledoc.sh –b /usr/bin/ -t ~/Library/Application\ Support/appledoc • Generate Documentation • Open the ObjectiveCMIS Xcode project • Run the target “Documentation”

  18. ObjectiveCMIS – Code ExampleSetup a CMIS session // Define session parameters CMISSessionParameters *params = [[CMISSessionParametersalloc] initWithBindingType:CMISBindingTypeAtomPub]; params.atomPubUrl = [NSURLURLWithString:cmisAtompubLocation]; params.username = @”devconUser"; params.password = @”devconPassword"; params.repositoryId = self.repoId; // Connect session [CMISSessionconnectWithSessionParameters:sessionParams completionBlock:^(CMISSession *session, NSError *error) { if (session == nil) { // Error handling code goes here // Dig into error object to determine cause } else { // CMISSession successfully connected self.session = session; } }];

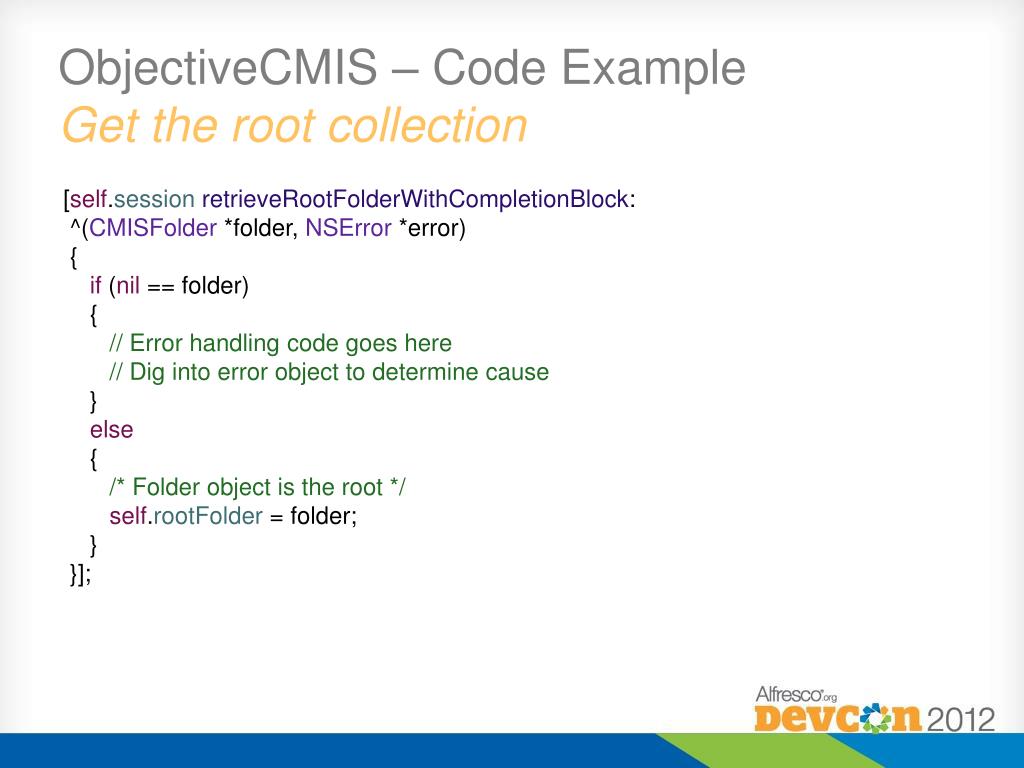

  19. ObjectiveCMIS – Code ExampleGet the root collection [self.sessionretrieveRootFolderWithCompletionBlock: ^(CMISFolder *folder, NSError *error) { if (nil == folder) { // Error handling code goes here // Dig into error object to determine cause } else { /* Folder object is the root */ self.rootFolder = folder; } }];

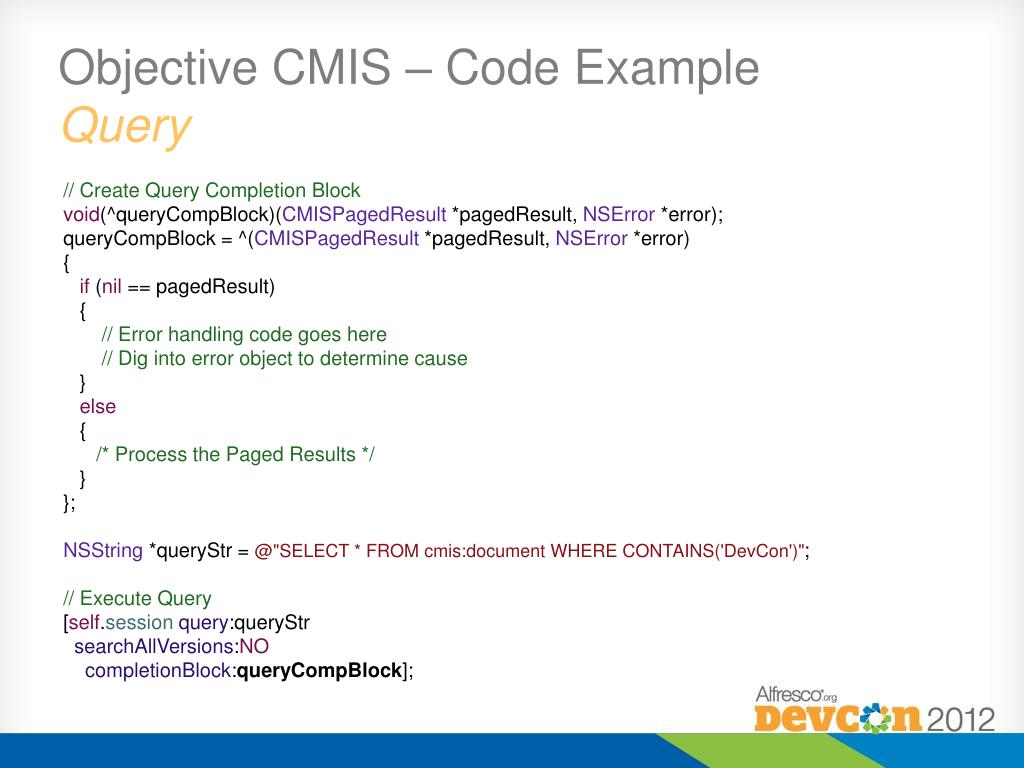

  20. Objective CMIS – Code ExampleQuery // Create Query Completion Block void(^queryCompBlock)(CMISPagedResult *pagedResult, NSError *error); queryCompBlock = ^(CMISPagedResult *pagedResult, NSError *error) { if (nil == pagedResult) { // Error handling code goes here // Dig into error object to determine cause } else { /* Process the Paged Results */ } }; NSString *queryStr = @"SELECT * FROM cmis:document WHERE CONTAINS('DevCon')"; // Execute Query [self.sessionquery:queryStr searchAllVersions:NO completionBlock:queryCompBlock];

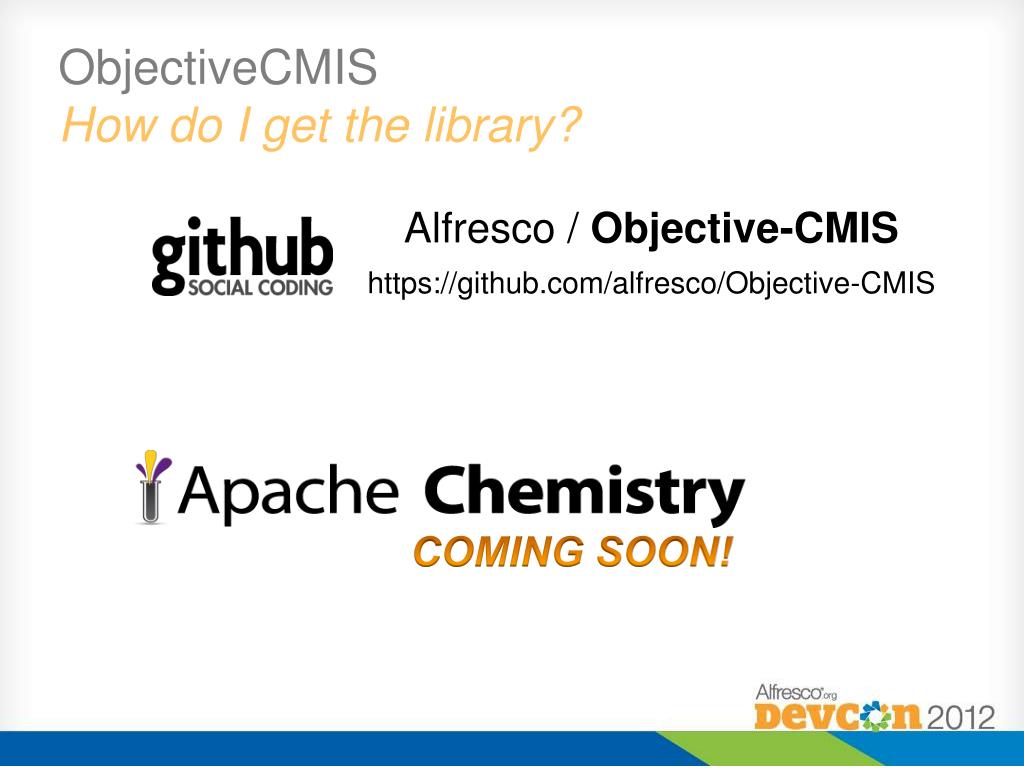

  21. ObjectiveCMISHow do I get the library? Alfresco / Objective-CMIS https://github.com/alfresco/Objective-CMIS COMING SOON!

  22. Alfresco iOS SDK – The BasicsWhat is included? Sample Apps Mobile API Library Including Objective CMIS library Min. Req. iOS 5.1 XCode 4.x Documentation (appledoc docset) • ARC • JSON • Storyboards

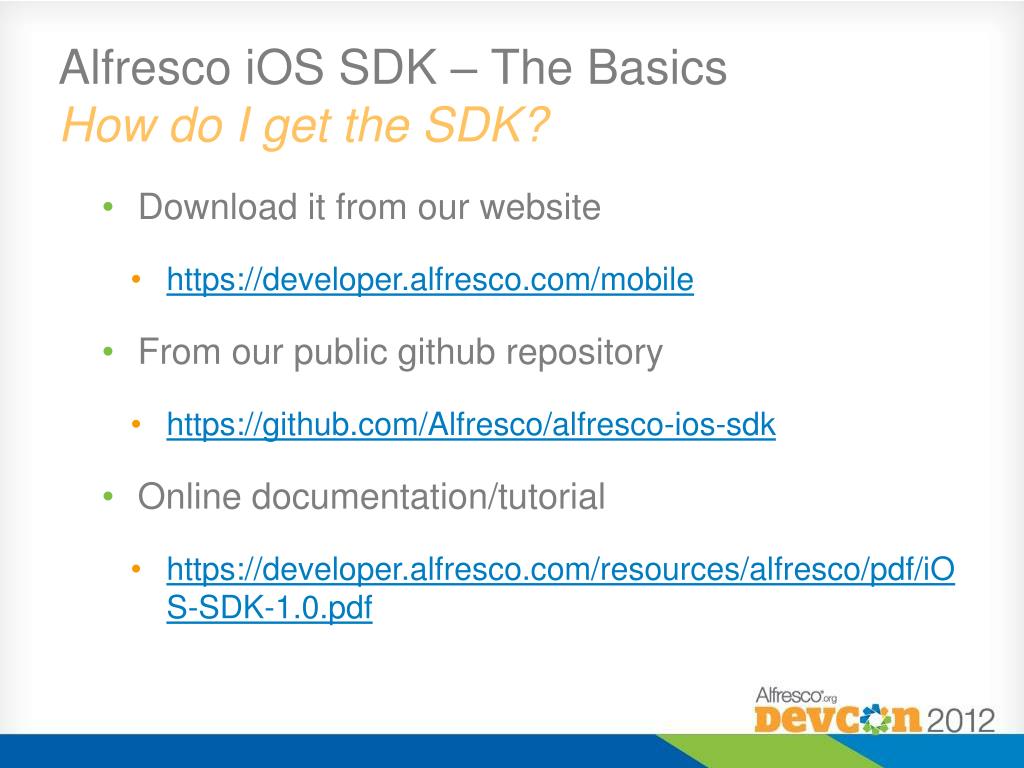

  23. Alfresco iOS SDK – The BasicsHow do I get the SDK? • Download it from our website • https://developer.alfresco.com/mobile • From our public github repository • https://github.com/Alfresco/alfresco-ios-sdk • Online documentation/tutorial • https://developer.alfresco.com/resources/alfresco/pdf/iOS-SDK-1.0.pdf

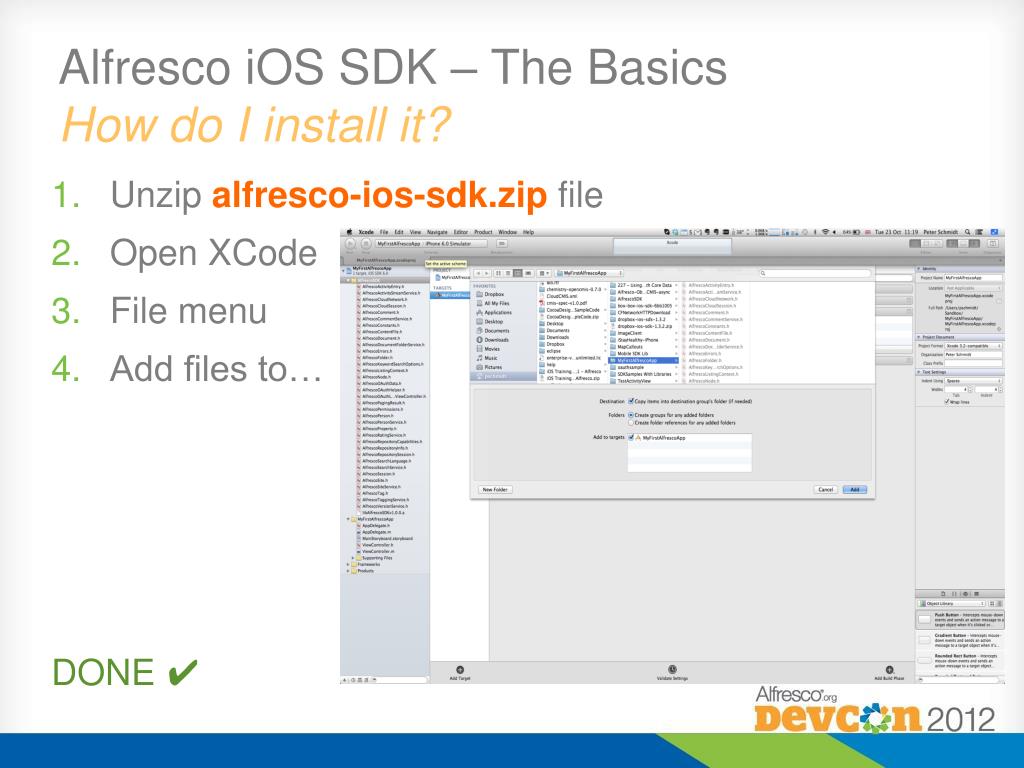

  24. Alfresco iOS SDK – The BasicsHow do I install it? • Unzip alfresco-ios-sdk.zip file • Open XCode • File menu • Add files to… DONE ✔

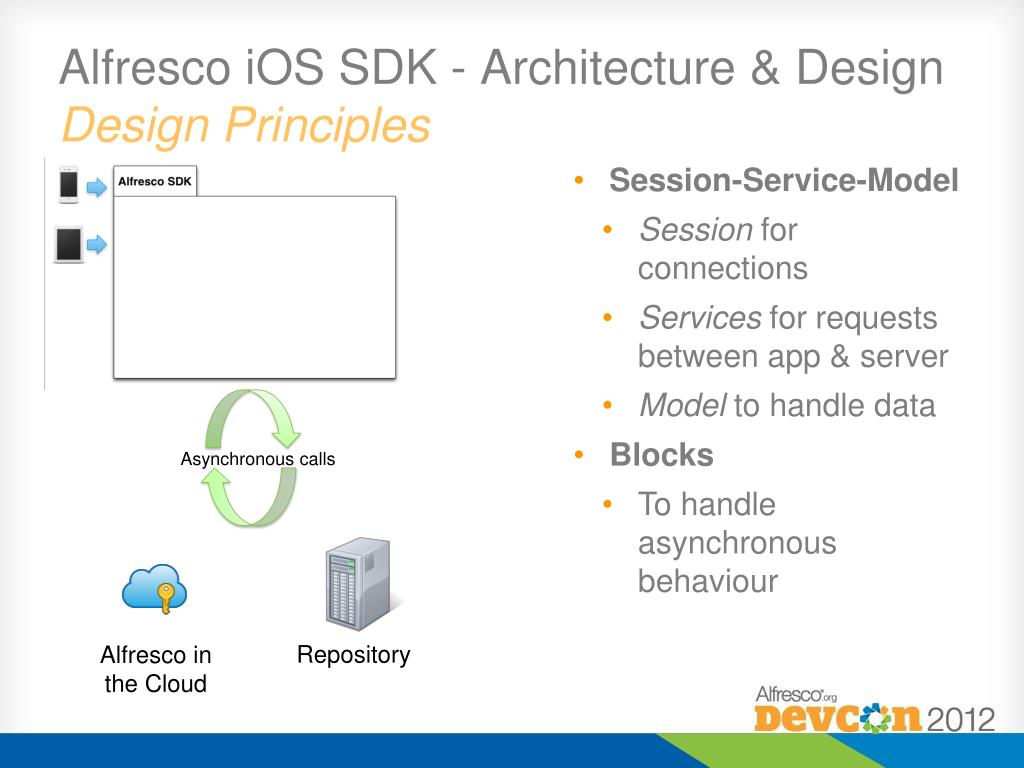

  25. Alfresco iOS SDK - Architecture & Design Design Principles • Session-Service-Model • Session for connections • Services for requests between app & server • Model to handle data • Blocks • To handle asynchronous behaviour Asynchronous calls Repository Alfresco in the Cloud

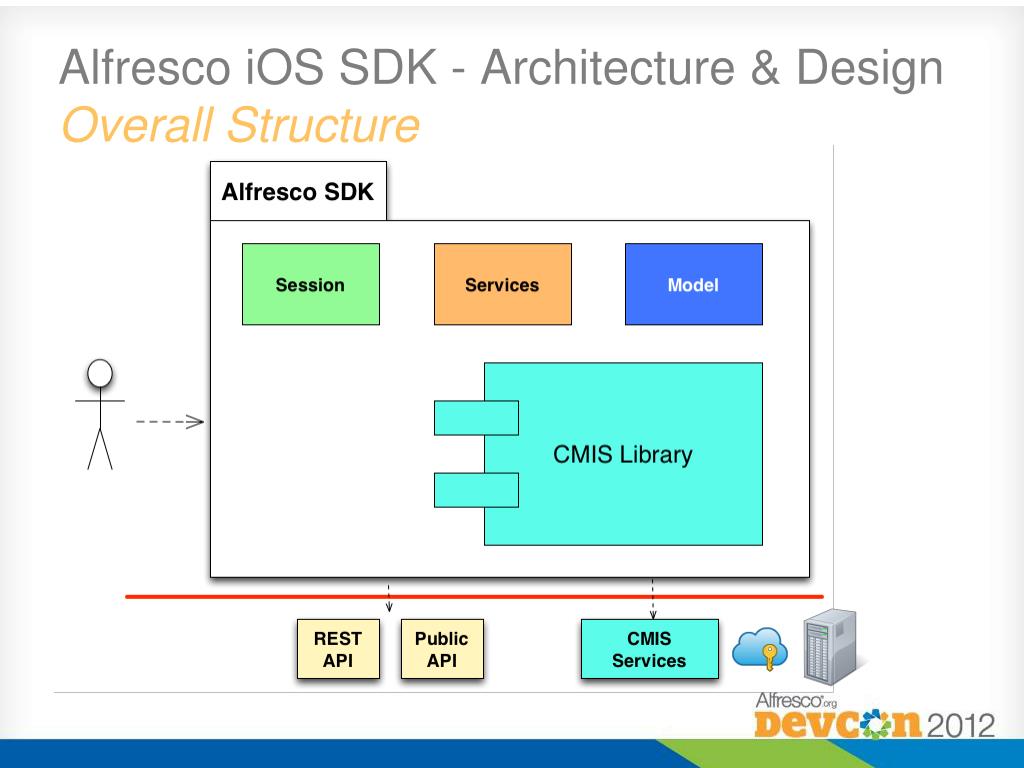

  26. Alfresco iOS SDK - Architecture & DesignOverall Structure

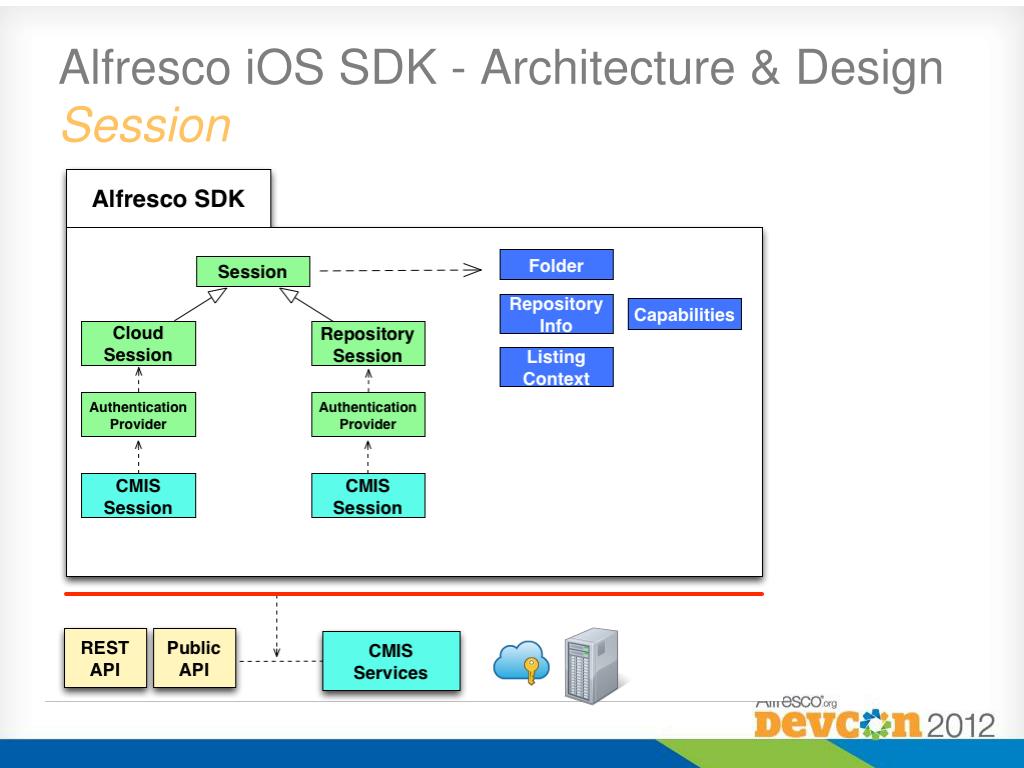

  27. Alfresco iOS SDK - Architecture & Design Session

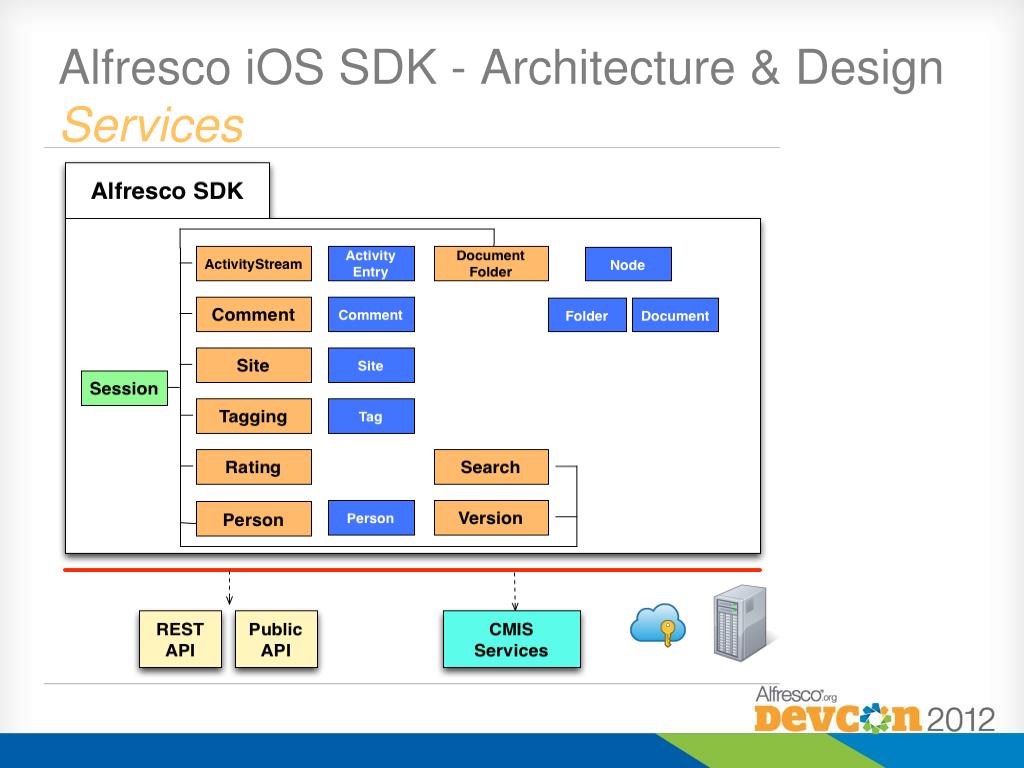

  28. Alfresco iOS SDK - Architecture & Design Services

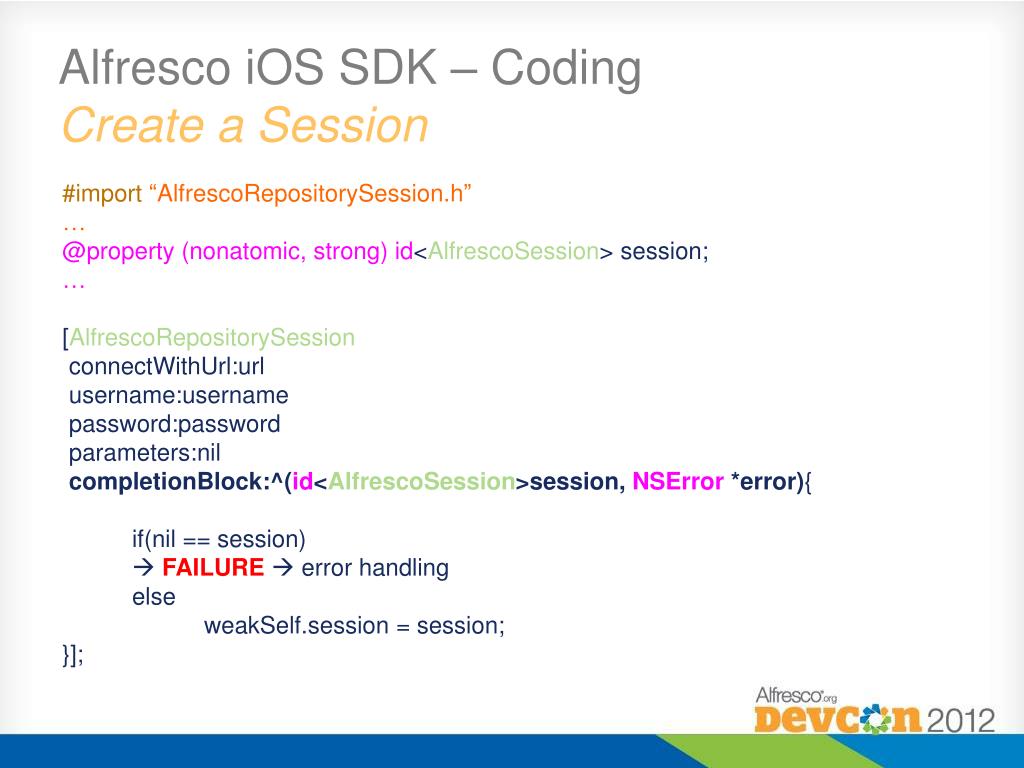

  29. Alfresco iOS SDK – CodingCreate a Session #import“AlfrescoRepositorySession.h” … @property (nonatomic, strong) id<AlfrescoSession> session; … [AlfrescoRepositorySession connectWithUrl:url username:username password:password parameters:nil completionBlock:^(id<AlfrescoSession>session, NSError *error){ if(nil == session)  FAILURE error handling else weakSelf.session = session; }];

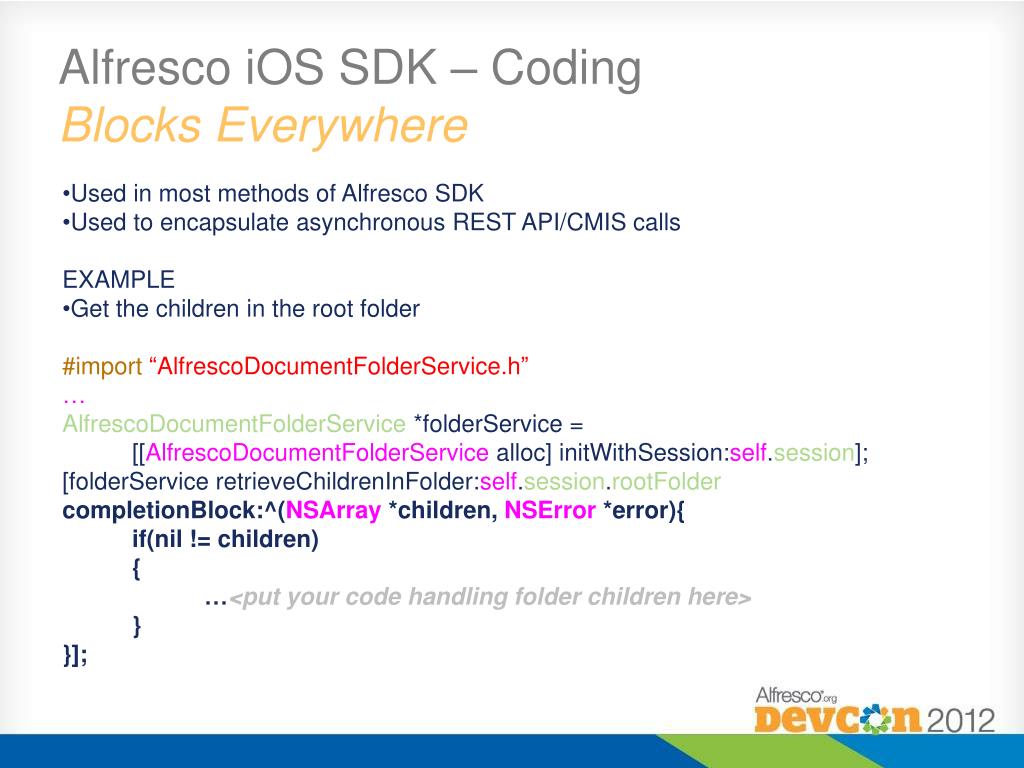

  30. Alfresco iOS SDK – CodingBlocks Everywhere • Used in most methods of Alfresco SDK • Used to encapsulate asynchronous REST API/CMIS calls • EXAMPLE • Get the children in the root folder • #import“AlfrescoDocumentFolderService.h” • … • AlfrescoDocumentFolderService *folderService = • [[AlfrescoDocumentFolderService alloc] initWithSession:self.session]; • [folderService retrieveChildrenInFolder:self.session.rootFolder • completionBlock:^(NSArray *children, NSError *error){ • if(nil != children) • { • …<put your code handling folder children here> • } • }];

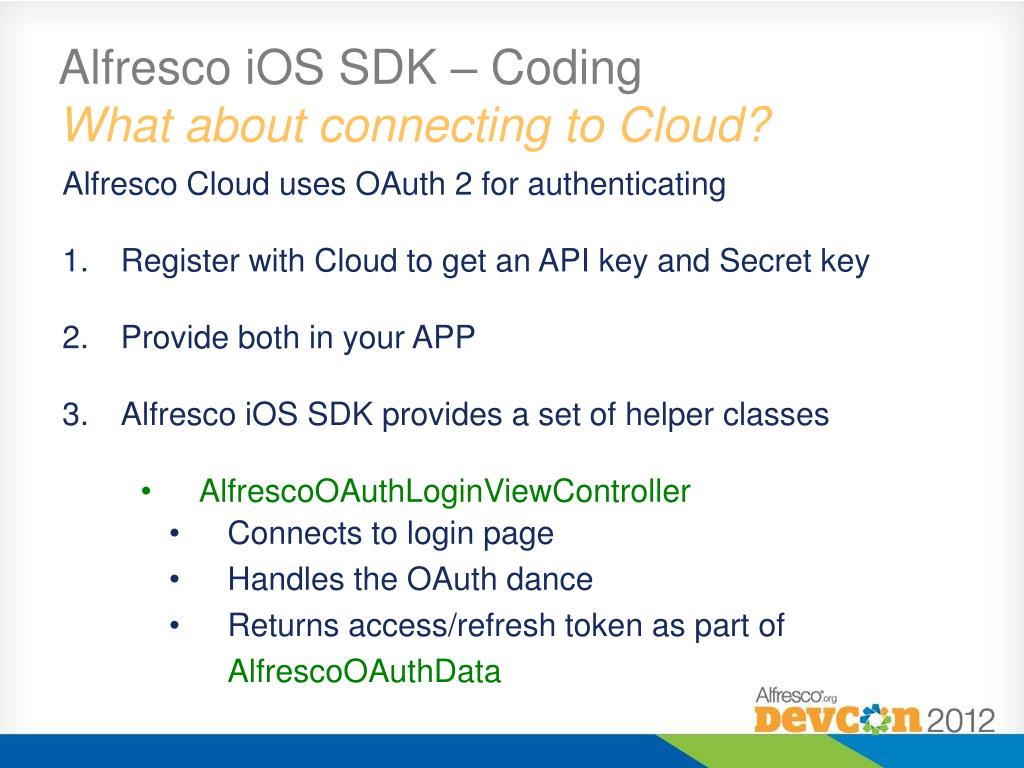

  31. Alfresco iOS SDK – CodingWhat about connecting to Cloud? • Alfresco Cloud uses OAuth 2 for authenticating • Register with Cloud to get an API key and Secret key • Provide both in your APP • Alfresco iOS SDK provides a set of helper classes • AlfrescoOAuthLoginViewController • Connects to login page • Handles the OAuth dance • Returns access/refresh token as part of AlfrescoOAuthData

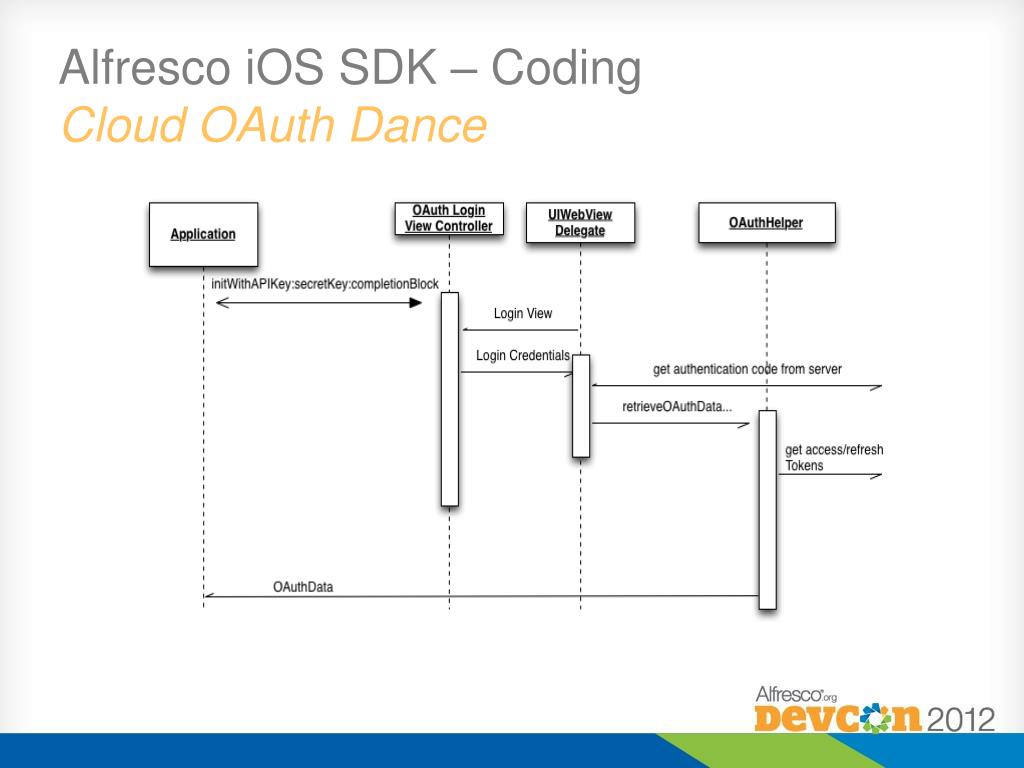

  32. Alfresco iOS SDK – CodingCloud OAuth Dance

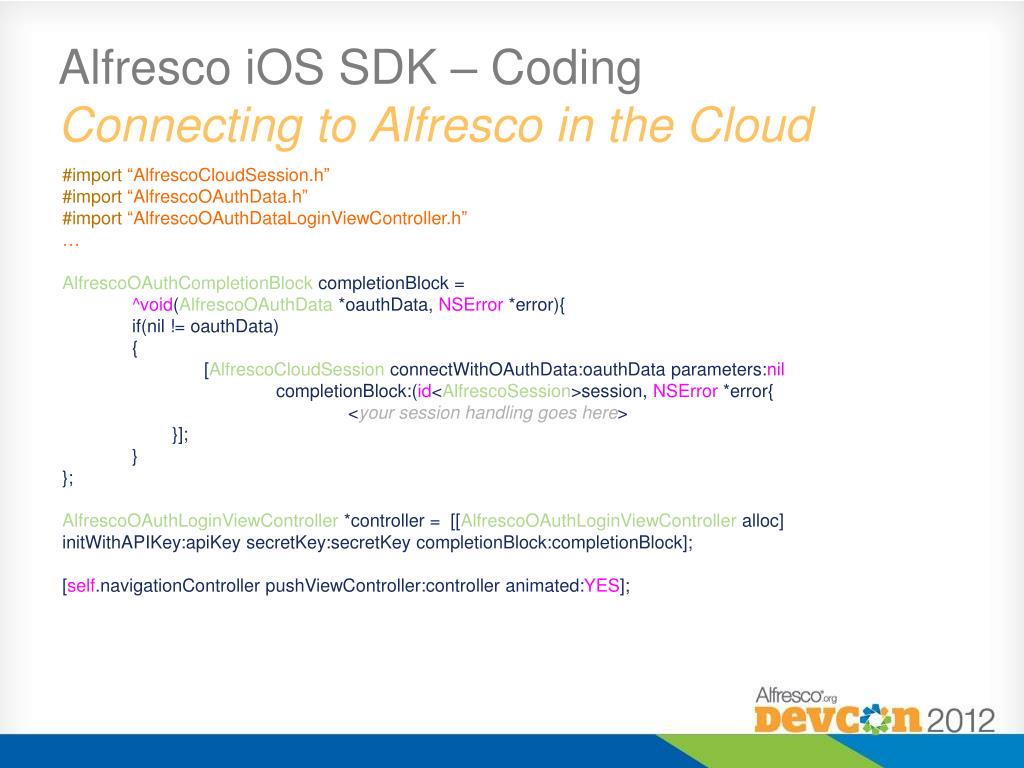

  33. Alfresco iOS SDK – CodingConnecting to Alfresco in the Cloud #import“AlfrescoCloudSession.h” #import“AlfrescoOAuthData.h” #import“AlfrescoOAuthDataLoginViewController.h” … AlfrescoOAuthCompletionBlock completionBlock = ^void(AlfrescoOAuthData*oauthData,NSError*error){ if(nil != oauthData) { [AlfrescoCloudSession connectWithOAuthData:oauthData parameters:nil completionBlock:(id<AlfrescoSession>session, NSError*error{ <your session handling goes here> }]; } }; AlfrescoOAuthLoginViewController *controller = [[AlfrescoOAuthLoginViewController alloc] initWithAPIKey:apiKey secretKey:secretKey completionBlock:completionBlock]; [self.navigationController pushViewController:controller animated:YES];

  34. Alfresco iOS SDK – CodingDemo time

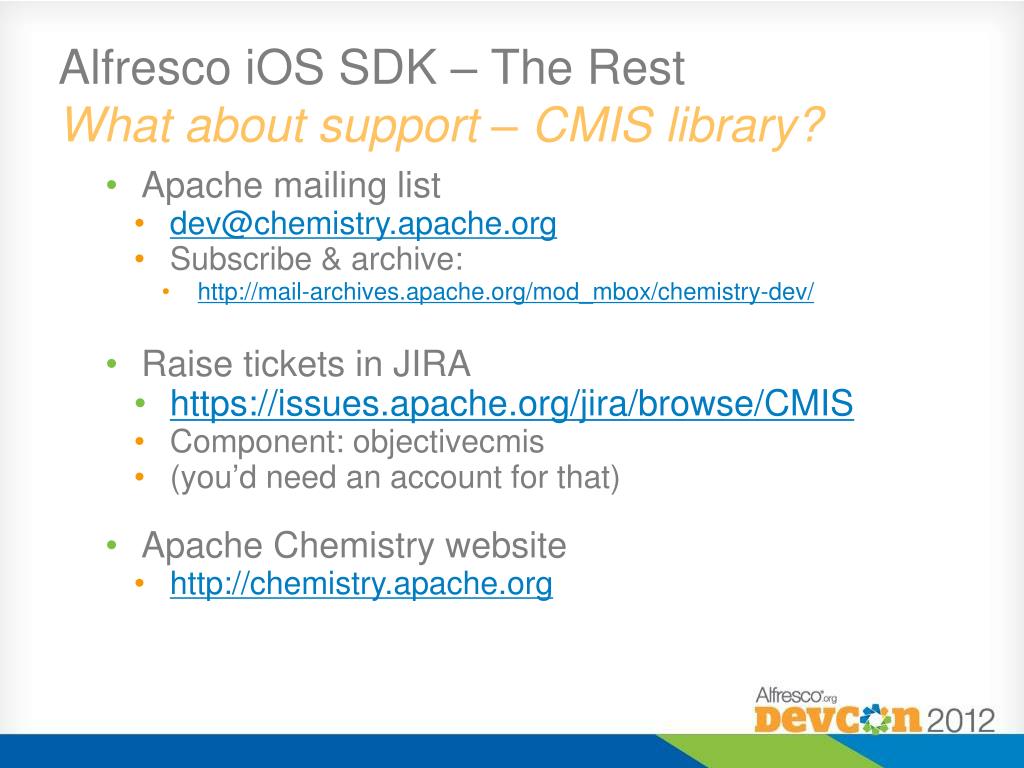

  35. Alfresco iOS SDK – The RestWhat about support – CMIS library? • Apache mailing list • dev@chemistry.apache.org • Subscribe & archive: • http://mail-archives.apache.org/mod_mbox/chemistry-dev/ • Raise tickets in JIRA • https://issues.apache.org/jira/browse/CMIS • Component: objectivecmis • (you’d need an account for that) • Apache Chemistry website • http://chemistry.apache.org

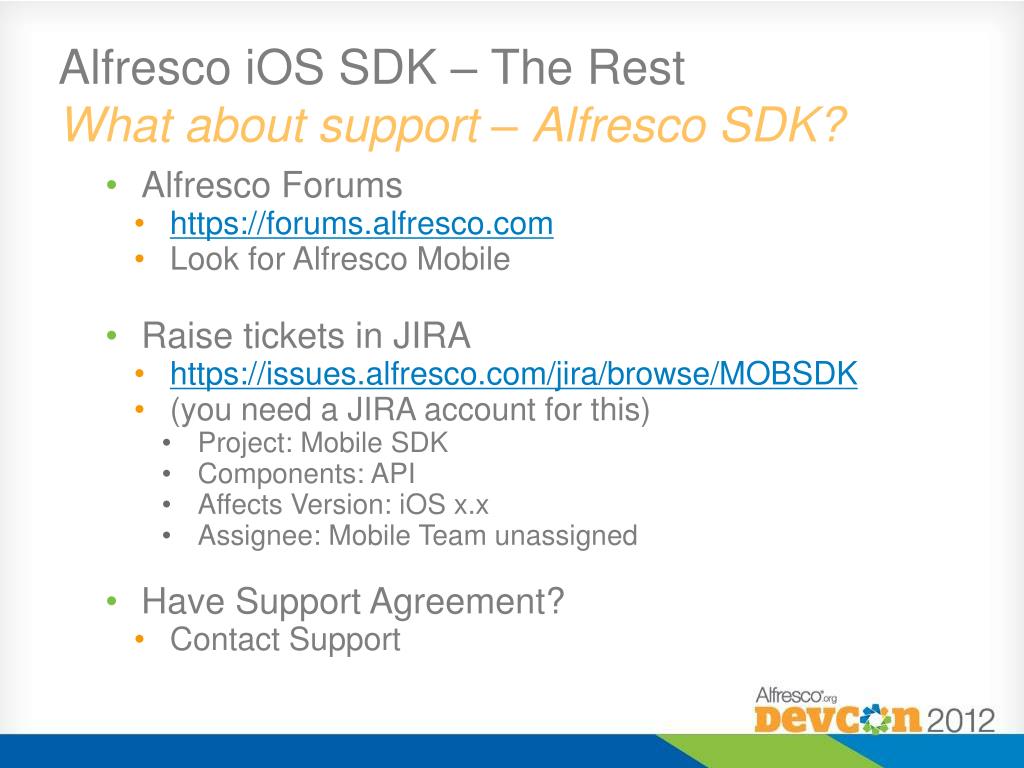

  36. Alfresco iOS SDK – The RestWhat about support – Alfresco SDK? • Alfresco Forums • https://forums.alfresco.com • Look for Alfresco Mobile • Raise tickets in JIRA • https://issues.alfresco.com/jira/browse/MOBSDK • (you need a JIRA account for this) • Project: Mobile SDK • Components: API • Affects Version: iOS x.x • Assignee: Mobile Team unassigned • Have Support Agreement? • Contact Support

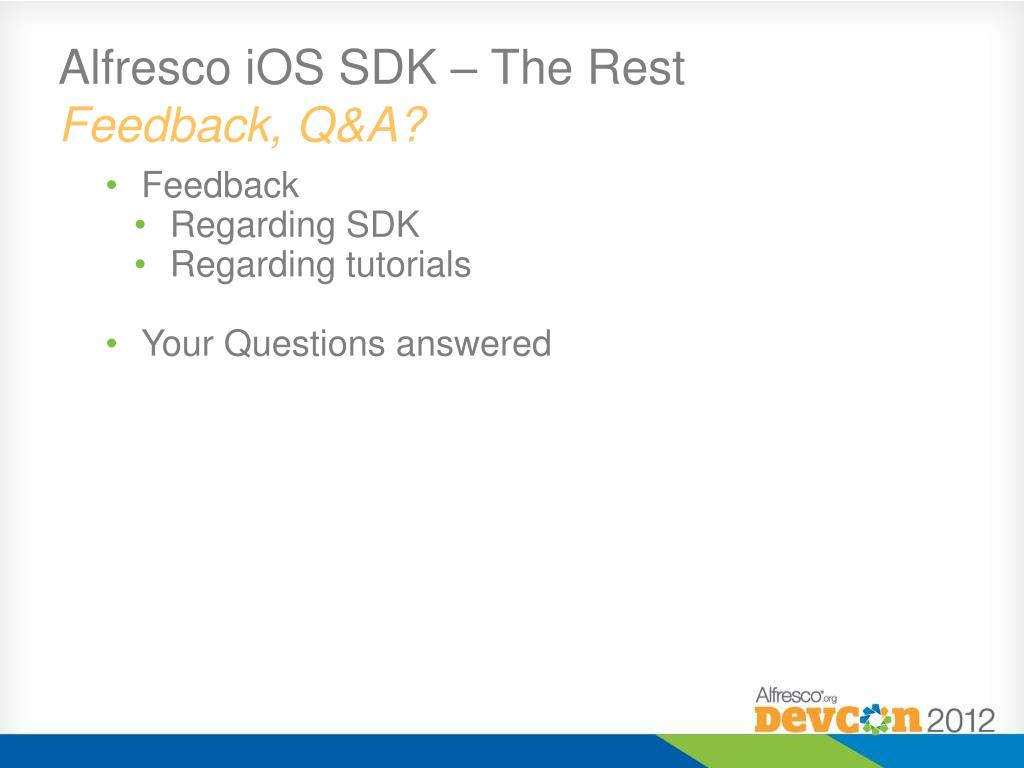

  37. Alfresco iOS SDK – The RestFeedback, Q&A? • Feedback • Regarding SDK • Regarding tutorials • Your Questions answered
