  1. Microsoft Internet Information Services 5.0 (IIS) By: Edik Magardomyan Fozi Abdurhman Bassem Albaiady Vince Serobyan

  2. IIS 5.0 • Brief Description • Components of IIS 5.0 • How to install IIS 5.0 • How to configure IIS 5.0

  3. Brief Description • What is IIS 5.0? • IIS 5.0 is the latest Internet Information Services from Microsoft • Software package integrated with Windows Operating systems such at 2000 • Gives you multiple services in one • Replaces the needs to buy many programs to serve many services

  4. Components of IIS 5.0 • WEB Server • FTP Server • SMTP Server • NNTP Server

  5. How to install IIS 5.0 • Open control Panel • Open Add/Remove Programs • Open Add/Remove Windows Components • Check box labeled “Internet Information Services (IIS)”

  6. Open Control Panel

  7. Open Add/RemovePrograms

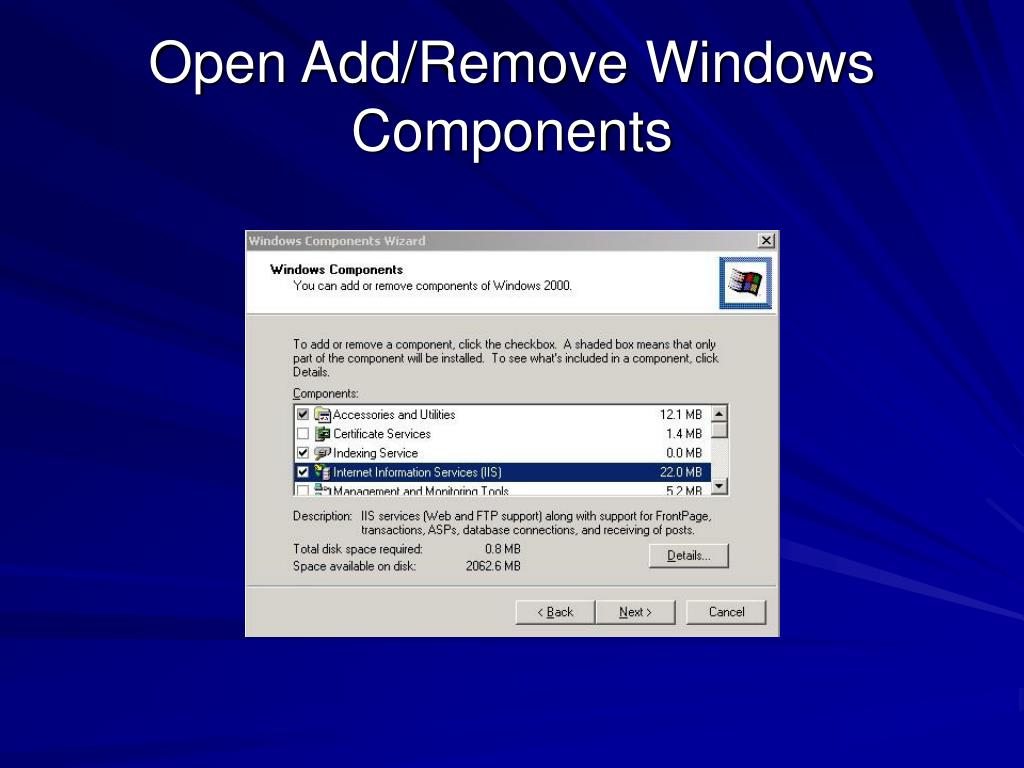

  8. Open Add/Remove Windows Components

  9. Check box Internet Information Services (IIS)

  10. How to configure IIS 5.0 • Now we will install and configure individual components of IIS. • Each team member will describe one component • Please hold your questions to the end of the presentation

  11. WWW (Web) ServerPresented by Fozi Abdurhman • Service necessary to build a web server • Serve web pages to clients

  12. Internet Services Manager (ISM) • Microsoft Management Console (MMC) provides a console for snap-in for IIS • Main Tool for administering and configuring the WWW service on IIS 5.0 • To start ISM, choose Start, Programs, Administrative Tools, ISM (see snap shoot below).

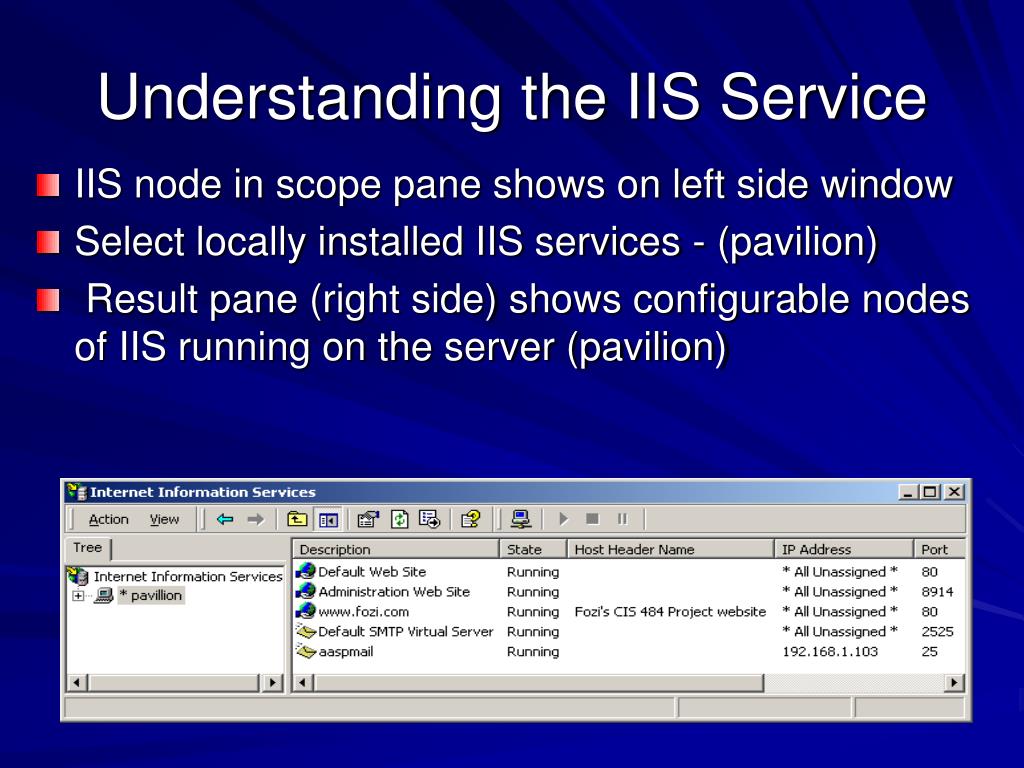

  13. Understanding the IIS Service • IIS node in scope pane shows on left side window • Select locally installed IIS services - (pavilion) • Result pane (right side) shows configurable nodes of IIS running on the server (pavilion)

  14. Understanding WWW Service • WWW service running (Pavilion in this example) is primarily managed by using property sheet. • Each node on the server’s namespace (IIS server itself, default Web site, other virtual servers & virtual directories) is a node in MMC that has its own set of properties.

  15. How to Create and Configure a New Web site

  16. Using Web site Creation Wizard

  17. Web site name • IIS can be configured to have unlimited number of Web sites running on it simultaneously, each responding to its own unique IP address and fully qualified domain name (FQDN).

  18. Choosing Web Site Home Directory

  19. Default Web Site Access Permissions

  20. Successfully created a Web Site

  21. The new www.fozi.com Web Site

  22. Understanding Types of WWW Property Sheets • Property Sheets for WWW service on IIS 5.0 can be configured at four different levels. • Master property sheets • Site property sheets • Directory property sheets • File property sheets

  23. WWW Service Master Properties Sheet • Can be configured for all Web sites running on IIS server • Select WWW Service and click Edit to bring up the WWW Service Master property sheet. • Any setting made to MPS are automatically inherited by the default (root) Web site and by all new virtual Web sites are created afterward. • To access Master properties, right-click IIS server (Pavilion) in the Microsoft Management Console and select Properties

  24. Accessing WWW Site Properties Sheet • Site Properties (or virtual server properties) can be configured individually for each Web site running on the IIS server, including the default Web site that is created when IIS is installed. • To access site properties, right-click the selected Web site node in the MMC and select Properties.

  25. WWW Directory Properties Sheet • Directory Properties (or Virtual server properties) can be configured individually for each virtual directory defined within a Web site on the server. • All files will inherit the property settings of the virtual directory that contained them. • Any settings made to this property sheet affect only the selected virtual directory and override any previously made settings in the WWW Master Properties sheets.

  26. WWW File Properties sheet • Can be configured individually for each Web pages within a virtual directory or Web site. • Any settings made to this property sheet affect only the selected virtual directory and override any previously made settings in WWW Master Properties and WWW Site Properties sheets.

  27. Accessing WWW Service Master Property Sheet

  28. Configuring WWW Properties Sheets • Four different types of WWW property sheets (Master, Site, Directory, or File) have different options (tabs) available to configure options at the Master, Site, Directory, or File level.

  29. Web Site Tab(Master, Site, and Directory levels) • Configures • site identification • IP address • TCP port, • limit connections • enables and configures logging

  30. Operators Tab(Master and Site levels) • Grants operator privileges

  31. Performance Tab(Master and Site levels) • Tune server-caching performance • Throttles bandwidth for site • Enables HTTP Keep-Alives

  32. ISAPI Tab(Master and Site levels) • IIS 5.0 support Sets options a variety of ways of extending funuctionality fo the www service, including • Internet Server Application Programming Interface (ISAPI) filters • Common Gateway Interface (CGI) • Active Server Pages (ASP) • Internet Database Connector (IDC)

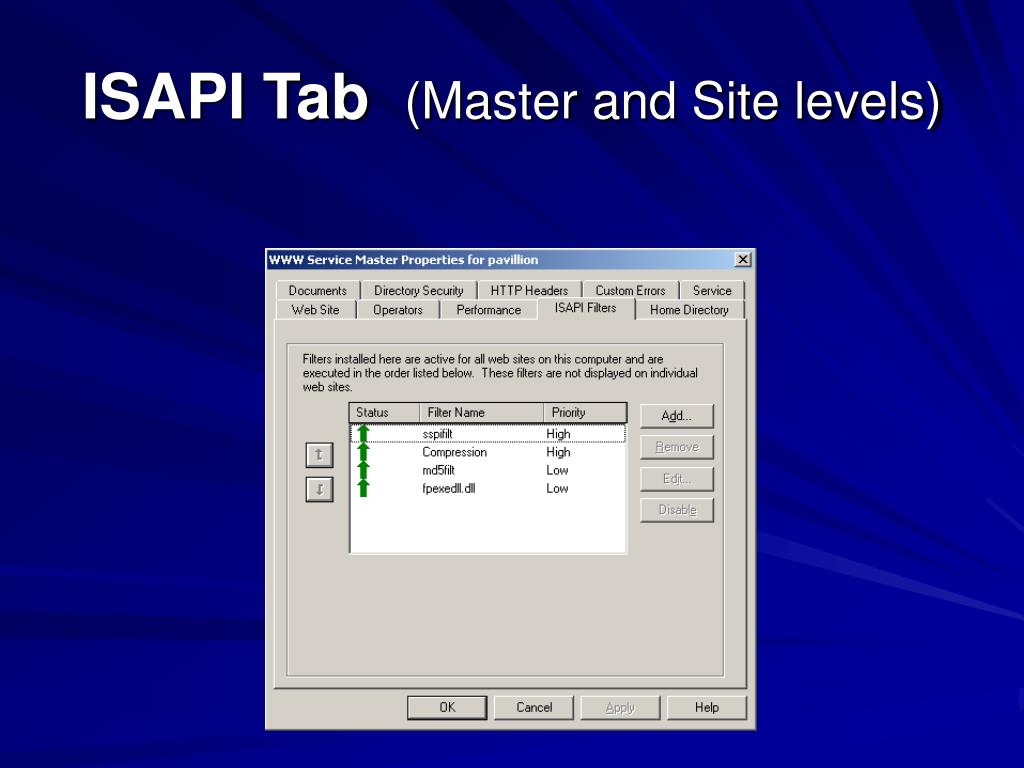

  33. ISAPI Tab(Master and Site levels)

  34. Home Directory Tab(Master, Site, Directory and File levels) • Configures content location & access permissions • Enables indexing • Creates FrontPage Web • Allows directory browsing • Enables logging • Configures application • Sets execution permissions (at the Directory properties level, it is called Virtual Directory tab; at the File properties level, it is called Filetab)

  35. Home Directory Tab(Master, Site, Directory and File levels)

  36. Documents Tab(Master, Site, and Directory levels) • Specifies default documents, enables footers.

  37. Directory Security Tab(Master, Site, Directory and File levels) • Configures authentication methods • Configures SSL, grants or denies access to IP addresses & domain names

  38. HTTP Headers Tab(Master, Site, Directory and File levels) • Configures content expiration • Specifies custom HTTP headers • Configures content ratings • Modifies MIME mappings

  39. Custom Errors Tab(Master, Site, Directory and File levels) • Configures custom HTTP error messages

  40. Service Tab(Master levels only)

  41. WWW Site Properties Sheet

  42. WWW Site Properties Sheet

  43. WWW Site Properties Sheet

  44. WWW Site Properties SheetDirectory Security Tab

  45. Anonymous Access and Authentication Control

  46. WWW Site Properties Sheet

  47. www.fozi.com site from web browser

  48. FTPBy: Bassem Albaiady FTP stands for “ File Transfer Protocol”

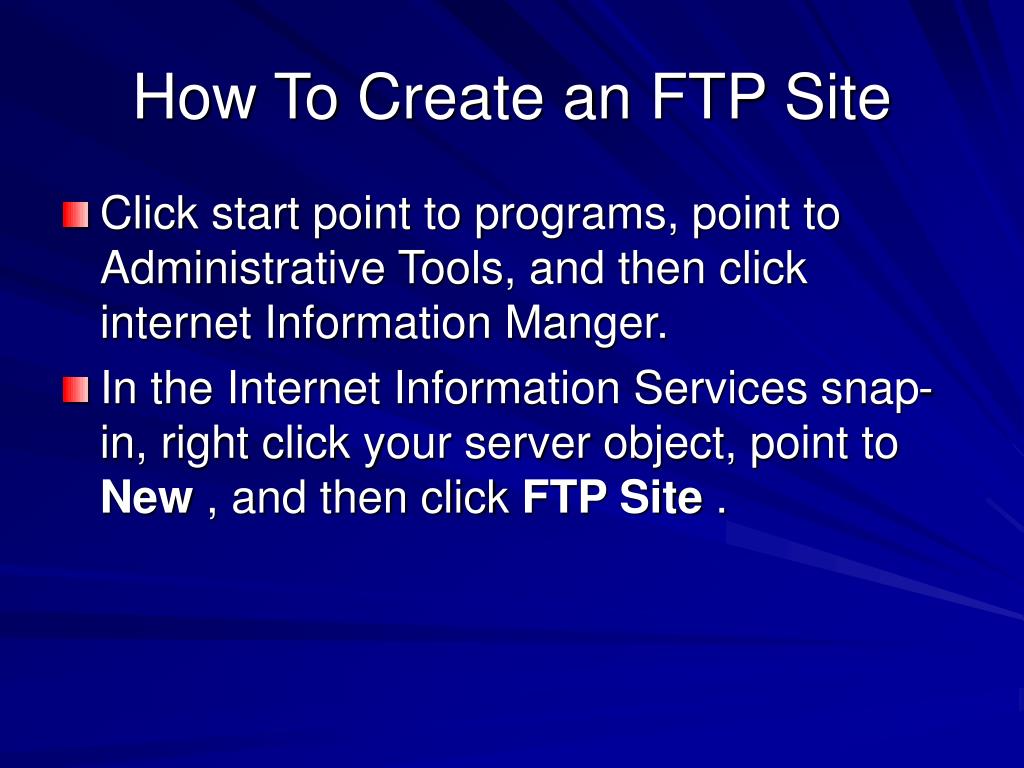

  49. How To Create an FTP Site • Click start point to programs, point to Administrative Tools, and then click internet Information Manger. • In the Internet Information Services snap-in, right click your server object, point to New , and then click FTP Site .
