Robo-Math: How Far?

The Distance a Robot Travels in One Rotation of the Motor = The Circumference of the Wheel Circumference (of the Wheel) = Diameter (of the Wheel) x ∏ Figuring a unit rate : Distance for one rotation (knobby wheels) Do this: 1) Figure the circumference of the wheel (use cm)

kenna
Download Presentation

Robo-Math: How Far?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. The Distance a Robot Travels in One Rotation of the Motor • = The Circumference of the Wheel • Circumference(of the Wheel) = Diameter(of the Wheel) x ∏ • Figuring a unit rate: Distance for one rotation (knobby wheels) • Do this: 1) Figure the circumference of the wheel (use cm) • diameter of wheel x ∏ =circumference • _______cm x 3.14 = ________ • 2) This gives a unit rate(for knobby wheels) • # of cm moved per 1 rotation • 3) Unit rate for knobby wheels is: (notice the format) • ______cm / 1 rotation • (per) Robo-Math: How Far?

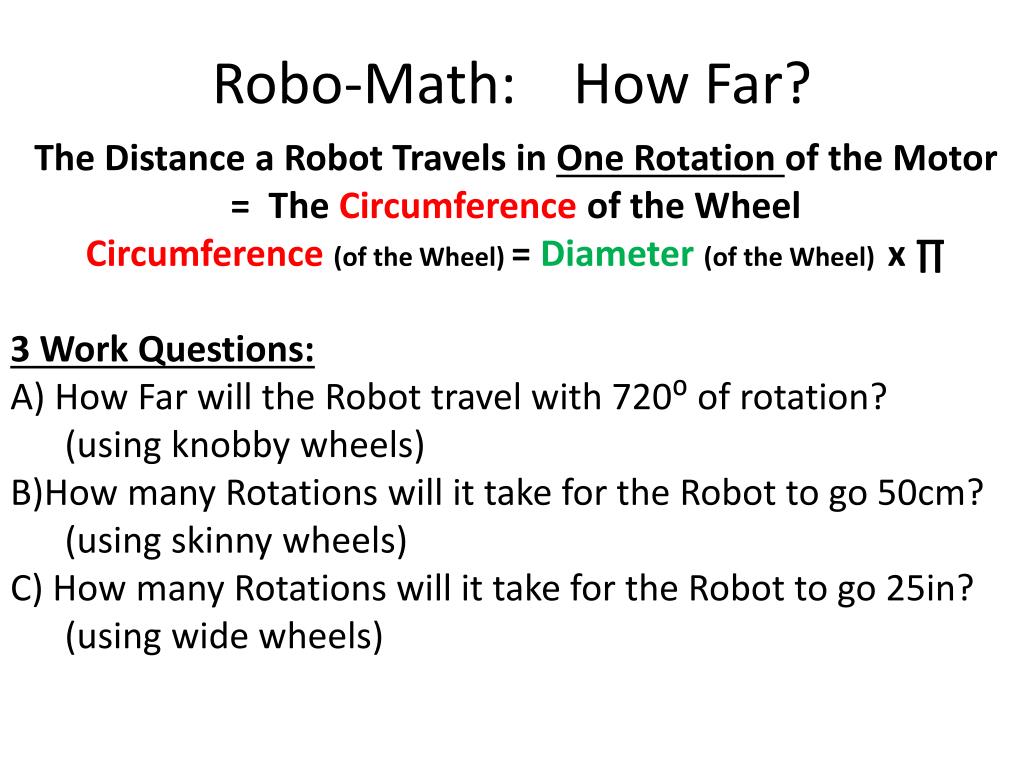

  2. The Distance a Robot Travels in One Rotation of the Motor • = The Circumference of the Wheel • Circumference(of the Wheel) = Diameter(of the Wheel) x ∏ • 3 Work Questions: • How Far will the Robot travel with 720⁰ of rotation? (using knobby wheels) • How many Rotations will it take for the Robot to go 50cm? (using skinny wheels) • How many Rotations will it take for the Robot to go 25in? (using wide wheels) Robo-Math: How Far?

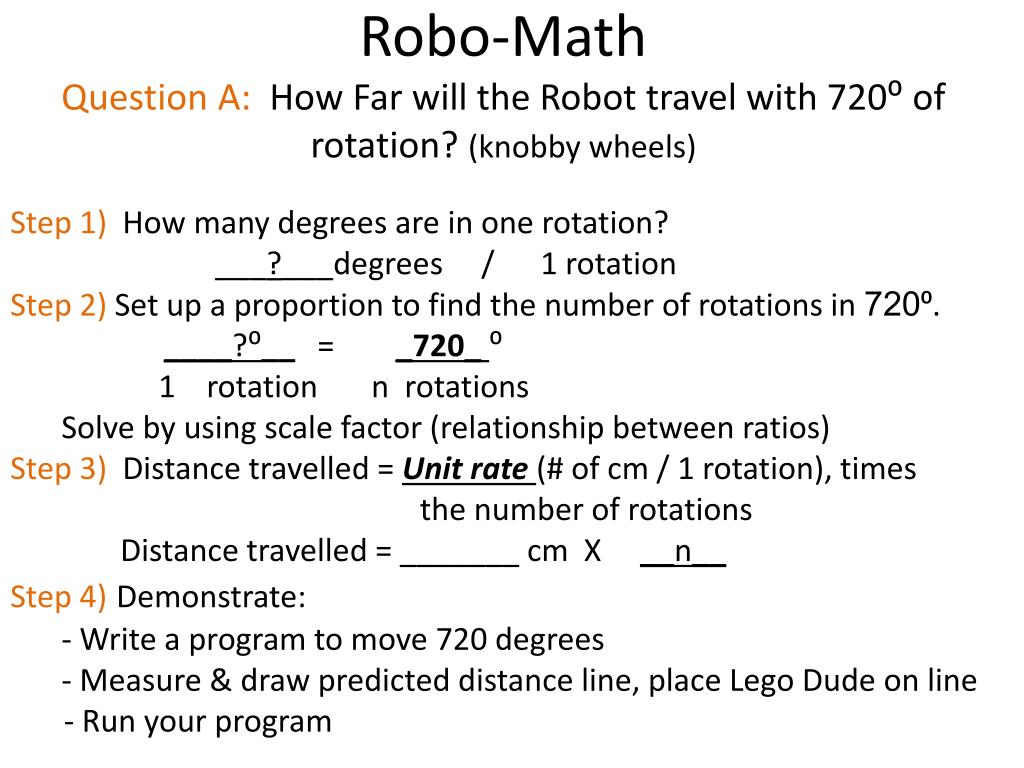

  3. Step 1) How many degrees are in one rotation? • ___?___degrees / 1 rotation • Step 2) Set up a proportion to find the number of rotations in 720⁰. • ____?⁰__ = _720_ ⁰ • 1 rotation n rotations • Solve by using scale factor (relationship between ratios) • Step 3) Distance travelled = Unit rate (# of cm / 1 rotation), times the number of rotations • Distance travelled = _______ cm X __n__ • Step 4)Demonstrate: • Write a program to move 720 degrees • Measure & draw predicted distance line, place Lego Dude on line • - Run your program Robo-MathQuestion A: How Far will the Robot travel with 720⁰ of rotation? (knobby wheels)

  4. Step 1)Now find the unit rate for the wheel using cm. • diameter of wheel x ∏ =circumference • _______cm x 3.14 = ________ • Unit rate for the skinny wheel is: (notice the format) • ______cm / 1 rotation • Step 2) Set up a proportion using this unit rate • __ ?__ cm = __50__ cm • 1 rotation n rotations • Solve by using scale factor (relationship between ratios) • Step 3) Write a program using your robo-math for Move block duration • Step 4) Demonstrate: • - Place Lego Dude on 50 cm line • - Run program Robo-MathQuestion B: How many Rotations will it take for the Robot to go 50cm? (skinny wheels)

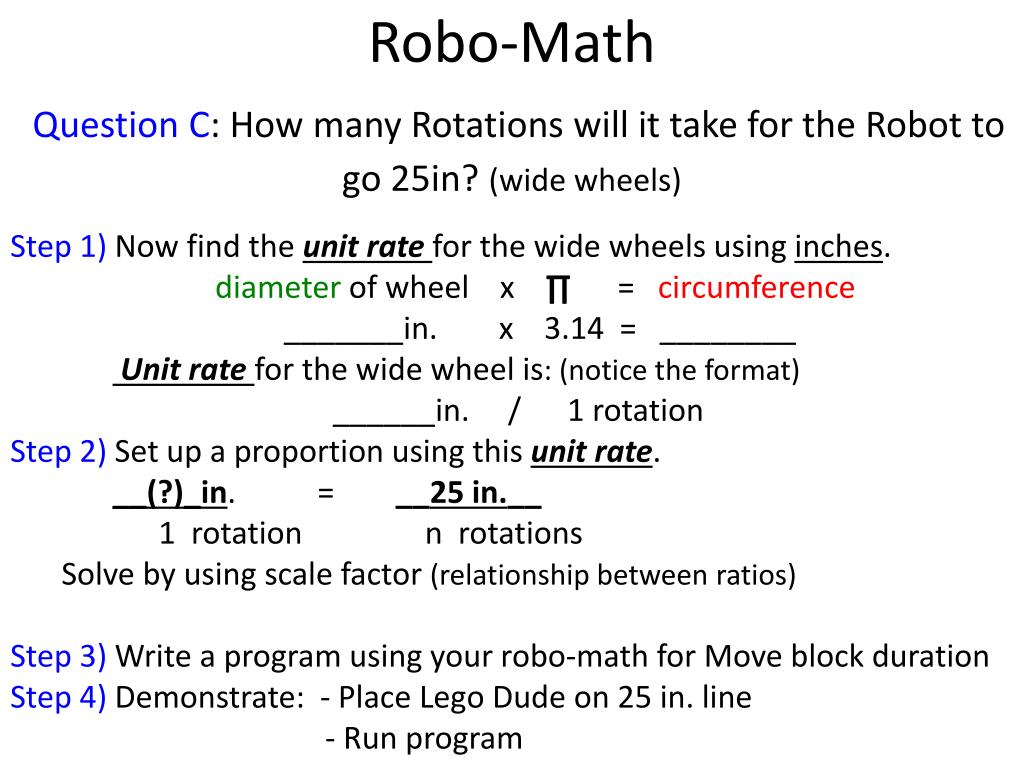

  5. Step 1) Now find the unit rate for the wide wheels using inches. • diameter of wheel x ∏ =circumference • _______in. x 3.14 = ________ • Unit rate for the wide wheel is: (notice the format) • ______in. / 1 rotation • Step 2) Set up a proportion using this unit rate. • __(?)_in. = __25 in.__ • 1 rotation n rotations • Solve by using scale factor (relationship between ratios) • Step 3) Write a program using your robo-math for Move block duration • Step 4) Demonstrate: - Place Lego Dude on 25 in. line • - Run program Robo-MathQuestion C: How many Rotations will it take for the Robot to go 25in? (wide wheels)
