  1. CS 99j Authentication John C. Mitchell Stanford University

  2. Computer security Computer security is concerned with the detection and prevention of unauthorized actions by users of a computer system.

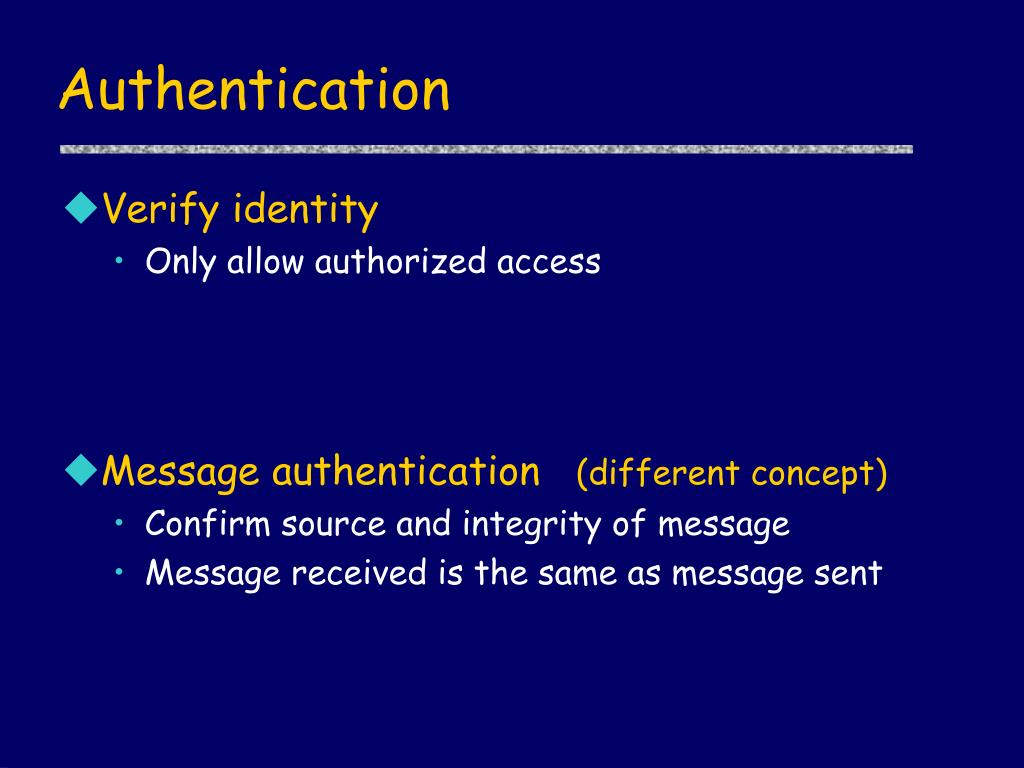

  3. Authentication • Verify identity • Only allow authorized access • Message authentication (different concept) • Confirm source and integrity of message • Message received is the same as message sent

  4. Fundamental limitation I am talking to Joe I am talking to someone who has Joe’s • Password • Private key • Thumbprint

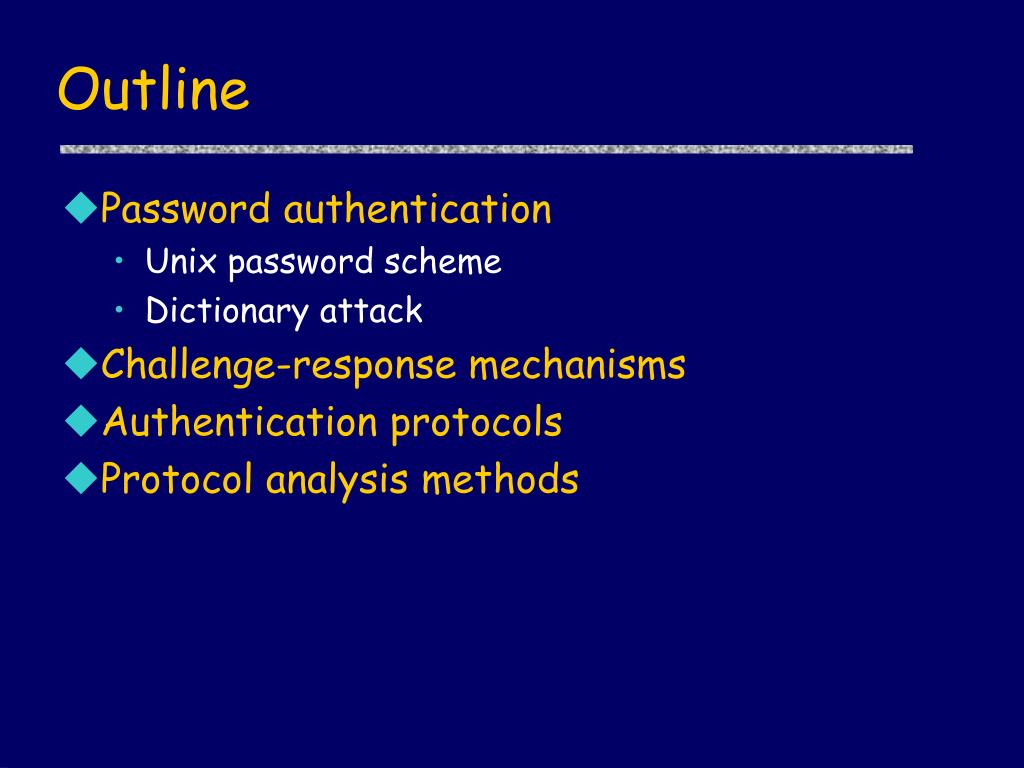

  5. Outline • Password authentication • Unix password scheme • Dictionary attack • Challenge-response mechanisms • Authentication protocols • Protocol analysis methods

  6. Password authentication • Basic idea • User has a secret password • System checks password to authenticate user • Issues • How is password stored? • How does system check password? • How easy is it to guess a password?

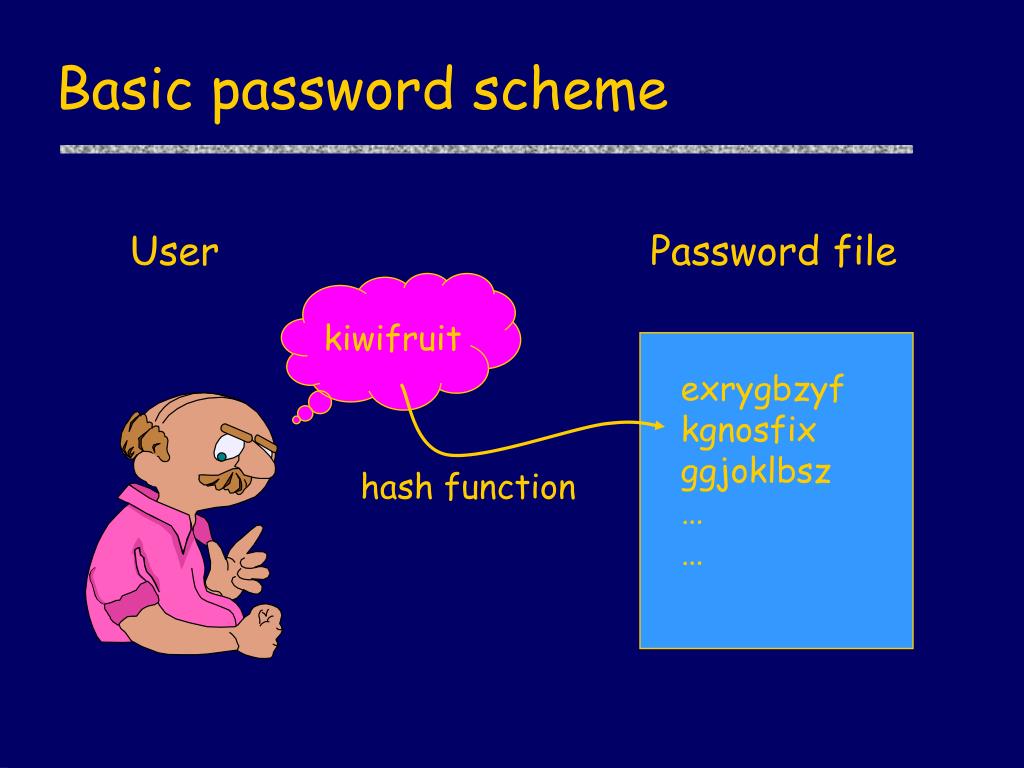

  7. Basic password scheme Password file User kiwifruit exrygbzyf kgnosfix ggjoklbsz … … hash function

  8. Basic password scheme • Hash function h : strings  strings • Given h(password), hard to find password • No known algorithm better than trial and error • User password stored as h(password) • When user enters password • System computes h(password) • Compares with entry in password file • No passwords stored on disk

  9. Unix password system • Hash function is 25xDES • Number 25 was meant to make search slow • Password file is publicly readable • Other information in password file … • Any user can try “dictionary attack” • User looks at password file • Computes hash(word) for every word in dictionary • “Salt” makes dictionary attack harder • Otherwise, compare hash(word) to all passwords

  10. Salt [Belgers] • Password line account:crypted-passwd:uid:gid:user-name:homedir:shell walt:fURfuu4.4hY0U:129:129:Belgers:/home/walt:/bin/csh • Checking with salt

  11. Another password vulnerability void check_passwd(char *name, passwd) { char buffer1[2]; char buffer2[2]; /* place password for name in buffer 1 */ strcpy(buffer2,passwd) if (buffer1[1]==buffer2[1] && buffer1[1]==buffer2[1]) { /* allow login */ }; else { /* disallow login */ }; }

  12. Extra Reading • Find Phrack archives .oO Phrack 49 Oo. Volume Seven, Issue Forty-Nine • Look for this article XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX Smashing The Stack For Fun And Profit XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX by Aleph One aleph1@underground.org

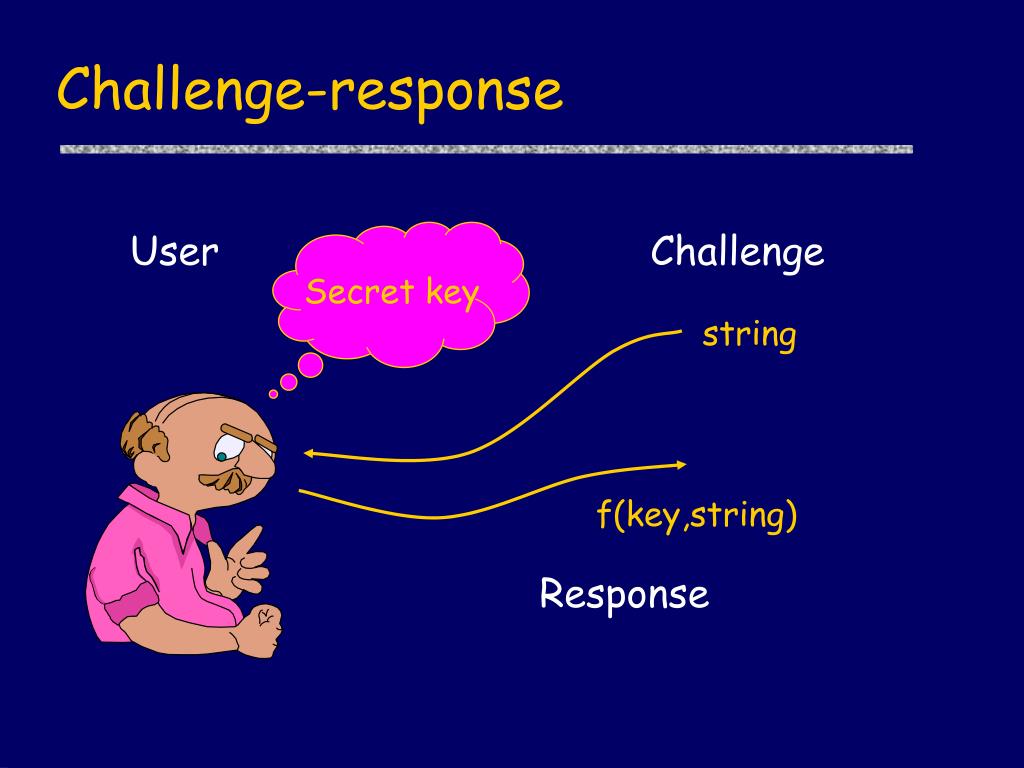

  13. Challenge-response Challenge User Secret key string f(key,string) Response

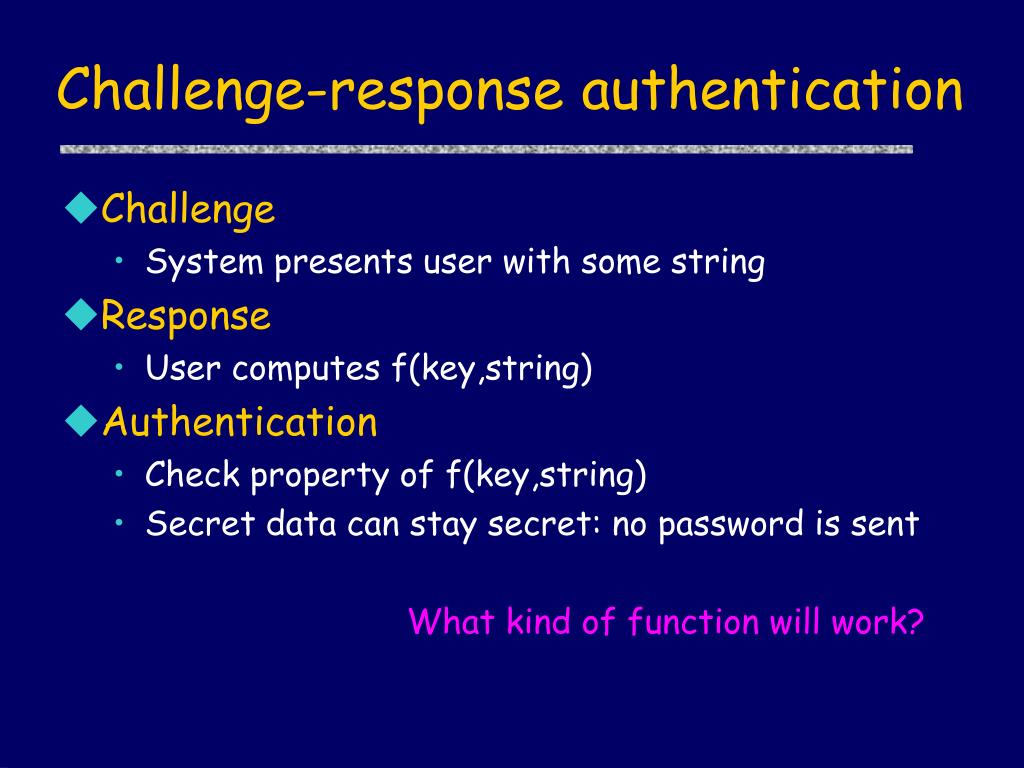

  14. Challenge-response authentication • Challenge • System presents user with some string • Response • User computes f(key,string) • Authentication • Check property of f(key,string) • Secret data can stay secret: no password is sent What kind of function will work?

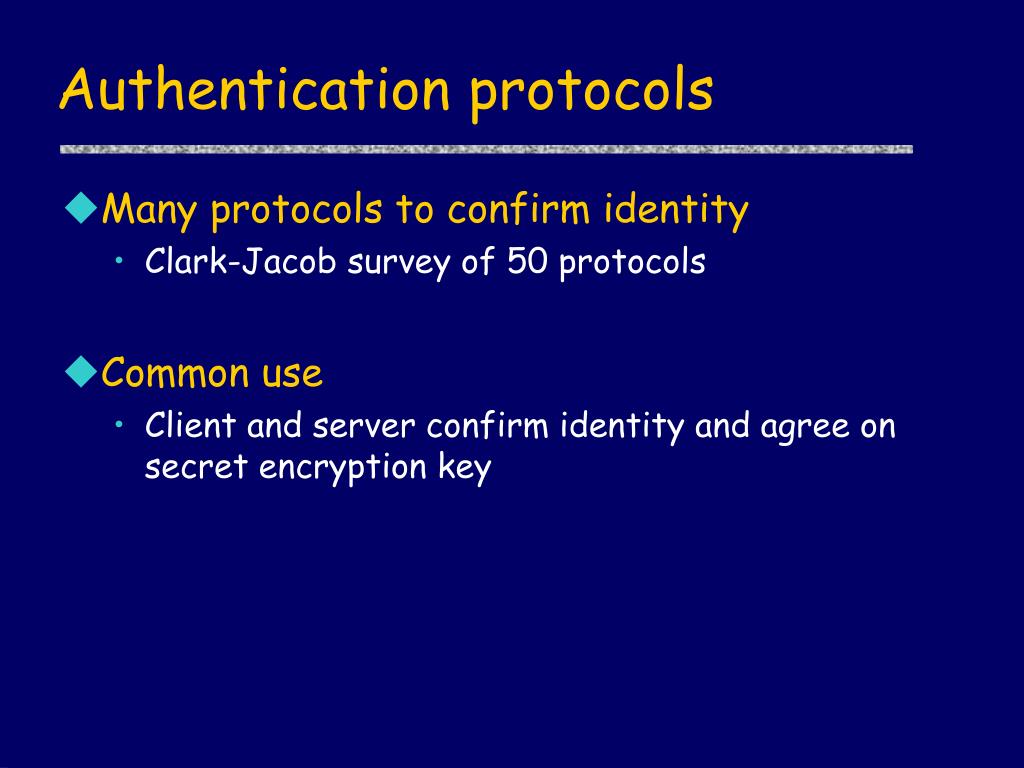

  15. Authentication protocols • Many protocols to confirm identity • Clark-Jacob survey of 50 protocols • Common use • Client and server confirm identity and agree on secret encryption key

  16. Network connection • TCP syncronize/acknowledgement Client SYN Server SYN-ACK ACK sequence numbers omitted ...

  17. Needham-Schroeder Key Exchange { A, Na } Kb { Na, Nb } Ka { Nb} Kb A B Result: A and B share two private numbers not known to any observer without Ka-1, Kb -1

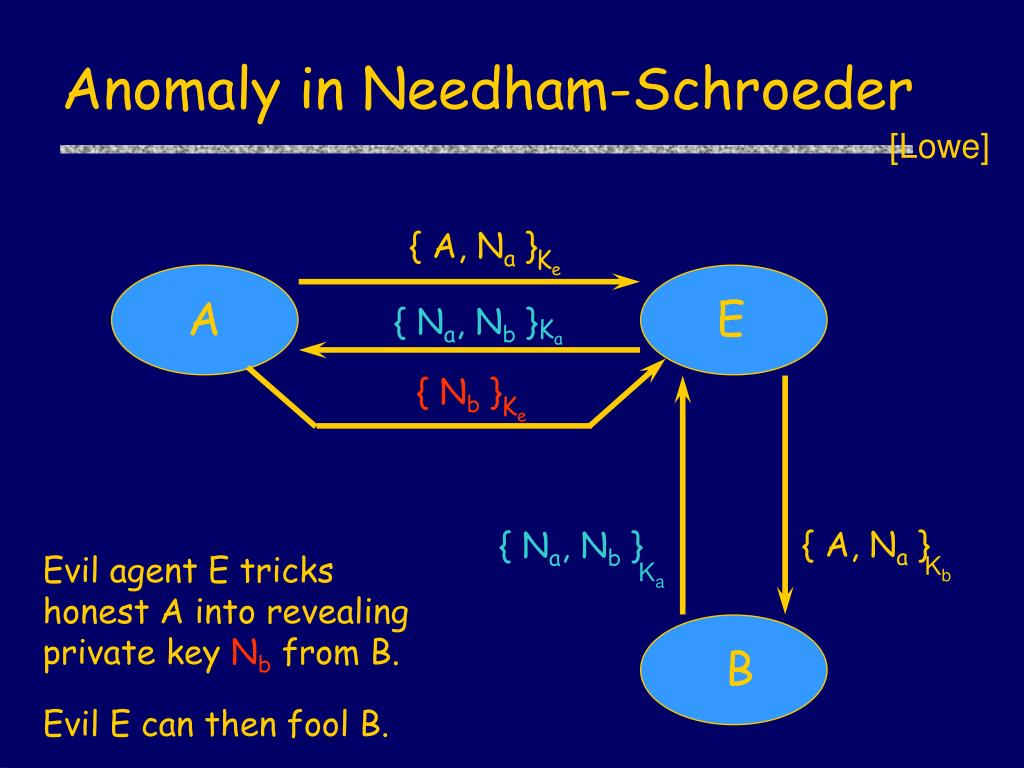

  18. Anomaly in Needham-Schroeder [Lowe] { A, Na } Ke A E { Na, Nb } Ka { Nb } Ke { A, Na } { Na, Nb } Evil agent E tricks honest A into revealing private key Nb from B. Kb Ka B Evil E can then fool B.

  19. Repaired Needham-Schroeder Protocol { A, Na } Kb { Na, B, Nb } Ka { Nb} Kb A B Result: A and B share two private numbers not known to any observer without Ka-1, Kb -1

  20. How do we know this is correct? • Think a lot • Ask smart people • Systematic methods • Protocol logics • BAN, GNY, SvO, … • Model checking • Exhaustive testing of finite systems • Mathematical proof • Prove an abstract form of protocol is correct • Even with simplifications, requires computer assistance

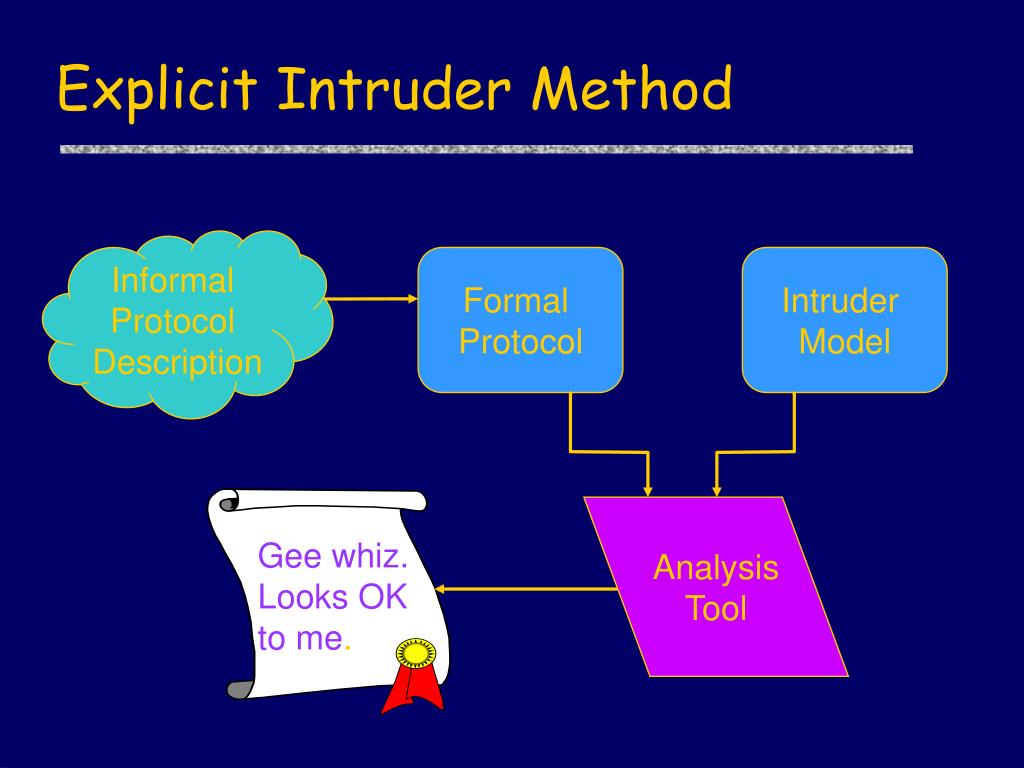

  21. Explicit Intruder Method Informal Protocol Description Formal Protocol Intruder Model Analysis Tool Gee whiz. Looks OK to me.
