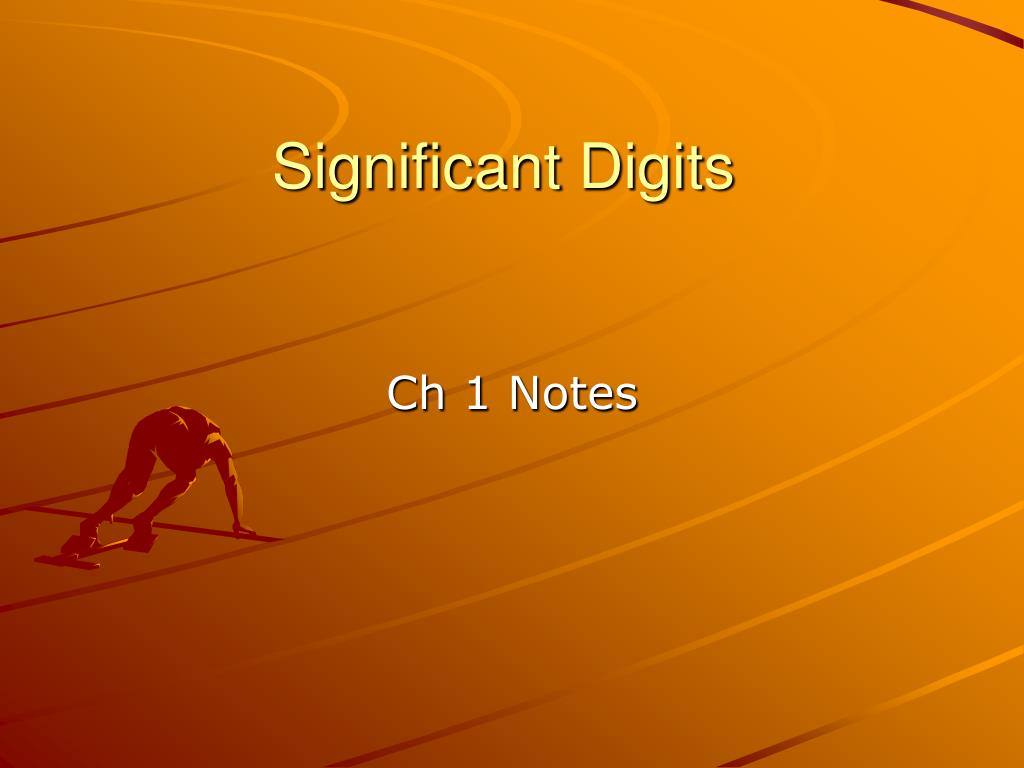

  1. Significant Digits Ch 1 Notes

  2. Significant Digits • Used to round measured values when involved in calculations • When in scientific notation, all numbers on left side of number are significant

  3. Significant Digits • Nonzero #’s are always significant 349 3 sig figs 1639 4 sig figs

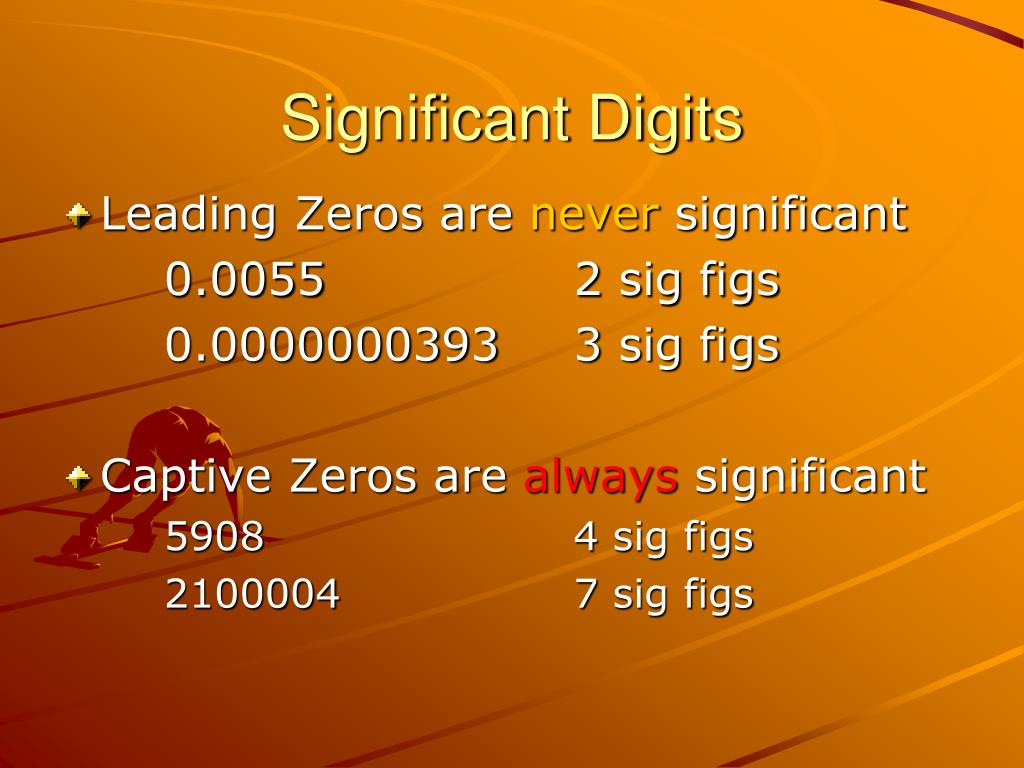

  4. Significant Digits • Leading Zeros are never significant 0.0055 2 sig figs 0.0000000393 3 sig figs • Captive Zeros are always significant 5908 4 sig figs 2100004 7 sig figs

  5. Significant Digits • Trailing Zeros are significant IF there is a decimal point in the # 800 1 sig fig 2900 2 sig figs 800.0 4 sig figs 2900. 4 sig figs

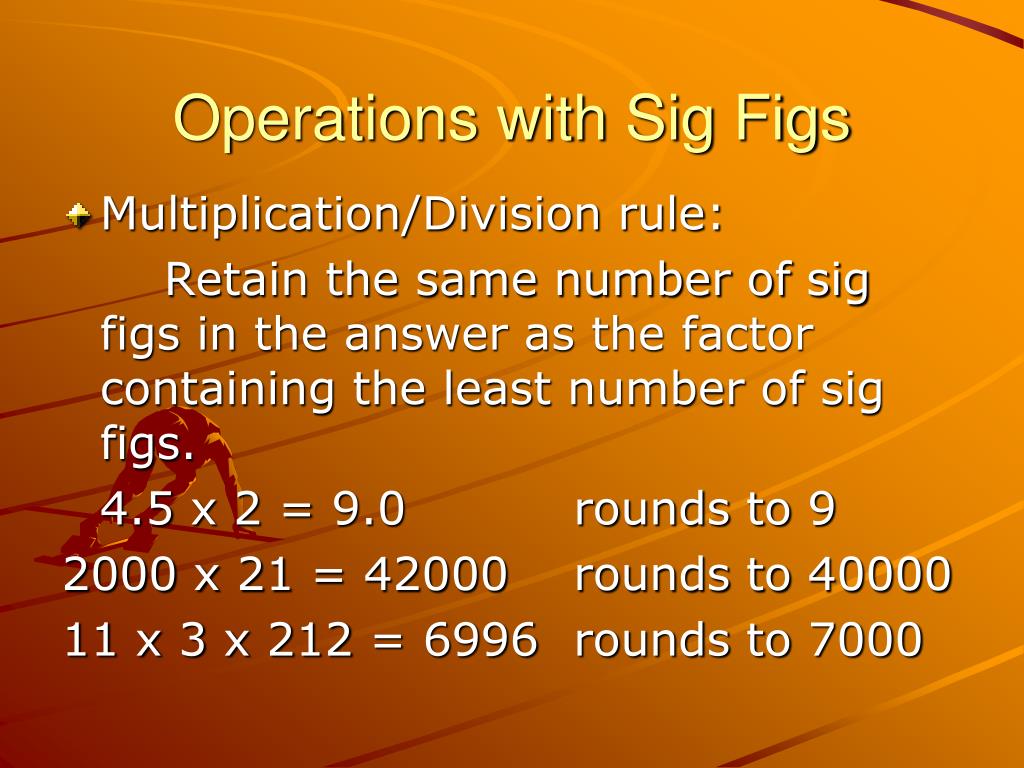

  6. Operations with Sig Figs • Multiplication/Division rule: Retain the same number of sig figs in the answer as the factor containing the least number of sig figs. 4.5 x 2 = 9.0 rounds to 9 2000 x 21 = 42000 rounds to 40000 11 x 3 x 212 = 6996 rounds to 7000

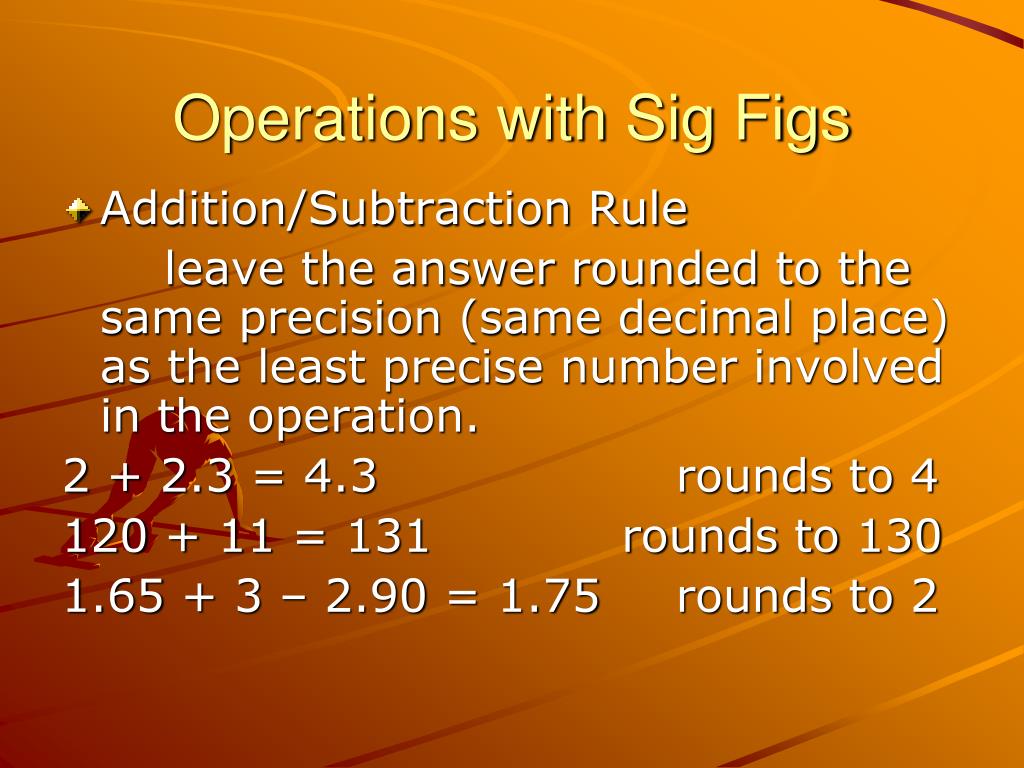

  7. Operations with Sig Figs • Addition/Subtraction Rule leave the answer rounded to the same precision (same decimal place) as the least precise number involved in the operation. 2 + 2.3 = 4.3 rounds to 4 120 + 11 = 131 rounds to 130 1.65 + 3 – 2.90 = 1.75 rounds to 2

  8. Sig Fig Examples #1: 23.0 4.25 + 25,620 #2: 2.3 x 10-4 316

  9. Examples Solutions #1: 23.0 4.75 + 25,620 25,647.75 rounds to25,650 #2: 2.3 x 10-42sf 316 3sf = 7.27 x 10-7 rounds to 7.3 x 10-7

  10. Sig Fig Situation #1: Let’s Not But Say We Did • Don’t worry about rounding combo problems until all the work in the calculator is done, but heed the rules as if you did to find out # of digits needed in the end: • (3.5 + 2.9454) / 357 = (6.4454)/357 = 0.018054341 Rounding: addition to tenths digit, which would leave 2 sig figs. 2 sig figs divided by 3 sig figs leaves 2 in answer: 0.018

  11. Sig Fig Situation #2: Less than Zero • 2000 (1 sig fig) vs. 2001 (4 sig figs) • What if you want 2000 to have 4 sig figs like 2001? 2.000 x 103 for 4 sig figs 2.00 x 103 for 3 sig figs 2.0 x 103 for 2 sig figs 2 x 103 for 1 sig fig

  12. Sig Figs Situation #3: Exact #’s • Whenever a quantity has no uncertainty, it does not affect the # of sig figs in answer if x/÷/+/- • Ex: four sides of a square…if one side has a length of 2.0 m, then • 4 (exact #) x 2.0 m = 8.0 m (retain two sig figs cause exact # doesn’t matter to sig fig rounding

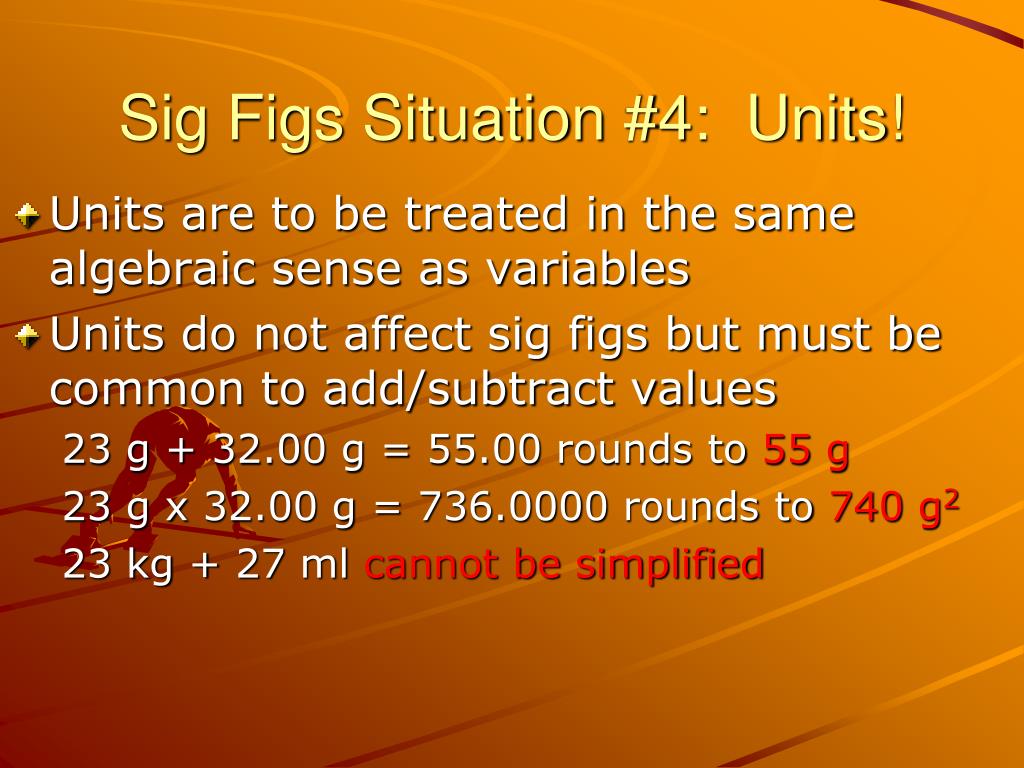

  13. Sig Figs Situation #4: Units! • Units are to be treated in the same algebraic sense as variables • Units do not affect sig figs but must be common to add/subtract values 23 g + 32.00 g = 55.00 rounds to 55g 23 g x 32.00 g = 736.0000 rounds to 740g2 23 kg + 27 ml cannot be simplified
