Presentation Transcript
future broadband wireless communication mobility testing platform

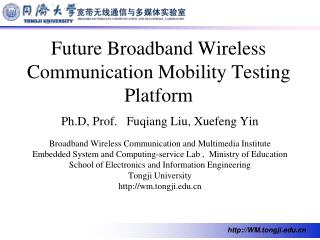

Future Broadband Wireless Communication Mobility Testing Platform

Ph.D, Prof. Fuqiang Liu, Xuefeng Yin

Broadband Wireless Communication and Multimedia Institute

Embedded System and Computing-service Lab , Ministry of Education

School of Electronics and Information Engineering

Tongji University

http://wm.tongji.edu.cn

slide2

Tongji University’s Campuses

Anting auto town;

Auto Electronics

Siping Campus

Anting Campus

Shanghai

outline
Outline
  • Broadband Wireless Testbed(WiMAX/4G)
    • 4G Testbed Shanghai Platform
    • Tongji’s work in 4G
    • Vehicle Broadband Wireless Research and simulation
    • Testing Platform
  • Channel Emulation for Mobility Testing
testbed design shanghai
Testbed design(Shanghai)

临空经济园区建筑物分布图

临空经济园区分布式组网小区规划图

临空测量站址示意图

tongji s work in 4gtest
Base on the characters of the project, the indicators of the networking test should focus on the performance evaluation of the system.Tongji’s work in 4Gtest
features of dsrc
Features of DSRC
  • Dedicate short rang communications (DSRC) ,IEEE802.11p
  • 75 MHz of band available in U.S.
    • Twice the bandwidth of cellular
    • Approved by FCC
    • Primary allocation
    • Allocation incentive was safety
  • Range: Up to 1000 meters
  • Data Rate: Up to 27 Mbps
    • Tolling will probably use default data rate of 6 Mbps
  • Mobile connection: up to 120 mph
  • High Availability & Low Latency (50ms) Prioritization Service
service oriented research
Service-Oriented Research
  • Safety: improving driving safety and/or traffic efficiency
  • Non-safety: providing information and/or entertainment to the driver
hybrid framework
Hybrid Framework

Vehicle Broadband Wireless Network Research (funded by National High-tech Research and Development Program (863 Project))

research topics
Research Topics

Realistic mobility model

Multi-channel Coordination

Mobility prediction

Data dissemination

Cluster-Based Routing Protocol Power

Power Control

Session Maintenance Maneuver

realistic mobility model
Realistic mobility model

Traffic flow characteristics

-Vehicles speed range -Lanes number

-Vehicles density -Lane changing features

-Traffic regulation

multi channel operation
Multi-Channel Operation

North America FCC 1999

DSRC: 172-184, 7 channels

Channel Coordination

Channel Assignment

mobility prediction
Mobility Prediction

Nodes can rebuild new routes by sensing its neighbours' movements

unnecessary prediction (<200):

A->C1、C2、C3

safe transmission (200<R<240):

A->C4

change route (240<R<250):

A->D->Cn

Mobility prediction

cluster based routing protocol
Cluster-Based Routing Protocol
  • Intra cluster : emergency messages, etc.
  • Inter cluster : non-emergency and long-distance messages, etc.
slide18

Simulation Scenario

DSRC Simulation in NS2

outline23
Outline

Broadband Wireless Testbed(WiMAX/4G)

4G Testbed Shanghai Platform

Tongji’s work in 4G

Vehicle Broadband Wireless Research and simulation

Testing Platform

Channel Emulation for Mobility Testing
