2hp solar water pump

A 2 HP solar water pump is a pump that supplies drinking water, water for livestock, irrigation etc. 2HP solar water pumping system works on the power generated by solar panels. Radiation of sun direct collides into solar panel, which is used to run the motor pump set through a solar pump controller.

kenbrooksolar
Download Presentation

2hp solar water pump

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. About 2 HP solar water pump A 2 HP solar water pump is a pump that supplies drinking water, water for livestock, irrigation etc. 2HP solar water pumping system works on the power generated by solar panels. Radiation of sun direct collides into solar panel, which is used to run the motor pump set through a solar pump controller. The solar pumping system draws water from open wells, bore wells, ponds, etc. The 2 HP solar water pumping system requires approximate 120 square feet shadow free area for installation of solar panel. Types of 2HP solar water pump There are different types of solar water pump, but primarily there are five types of solar water pumps- •Submersible 2 HP solar water pump oDC Submersible Pump oAC Submersible Pump •Surface 2HP solar water pump a.DC Surface Pump b.AC Surface Pump •2HP VFD Solar Solution •Hybrid 2 HP Solar Pump •On grid 2 HP solar Pump 2HP Solar Pump price 2 HP solar water pump price starts from Rs. 1, 60,000 - surface pump to 1, 75,000 for on-grid solar pump. Solar water pump DC Submersible solar pump AC Submersible solar pump AC Surface solar pump DC Surface solar pump 1HP VFD solar solution Hybrid 1HP solar pump On grid 2 HP water pump Selling price Rs. 1,60,000 Rs. 1,40,000 Rs. 1,20,000 Rs. 1,50,000 Rs. 90,000 Rs. 1,70,000 Rs.1,75,000

  2. Submersible 2HP solar water pump The solar submersible pump is the best-selling pump\product in India. 2HP submersible pumps are recommended where the water level depth is more than 20 meters. These pumps can lift the water up to 650 feet. There are two types in submersible solar water pump. AC submersible pumps Submersible 2 HP AC solar water pump can be operating on electric power at night and solar energy at day time. Submersible AC pump has inbuilt MPPT tracking facility to get maximum power output from the solar panel. Specification about submersible 2HP AC Solar water pump Particular Solar pump Solar pump type Pump head Solar panel Controller Open circuit voltage Maximum peak voltage Maximum Input Current Output voltage Input power Protections Description 2 HP AC submersible 50-85 meter 1800 watt 1 Set 90-140 V DC 110 V DC 8.2 Amps 30-85 V 1800 W DC Over current, high and low voltage, dry run, overflow etc. Structure, wires, nut bolt etc. 12000 – 40000 Liters\day. 5 years warranty for complete solar system and 25 years for solar panel. 5 to 7 days Rs. 1,60,000 Accessories Discharge Warranty Delivery Price DC submersible pumps The motor used in such a solar pump works with direct current (DC), thus there is no need for solar inverter or solar battery. Specification of submersible 2 HP DC solar water pump.

  3. Particular Solar pump Solar pump type Pump head Solar panel Controller Open circuit voltage Maximum peak voltage Maximum Input Current Output voltage Input power Protections Description 2 HP DC submersible 50-85 meter 1800 watt 1 Set 90-140 V DC 110 V DC 8.2 Amps 30-85 V 1800 W DC Over current, high and low voltage, dry run, overflow etc. Structure, wires, nut bolt etc. 12000 – 40000 Liters per day. 5 years warranty for complete solar system and 25 years for solar panel. 5 to 7 days Rs. 1,40,000 Accessories Discharge Warranty Delivery Price Surface 2 HP solar water pump Surface 2 HP solar water pump is used to lift the water from up to 20 to 30 meter depth. Surface 2HP solar pumping system can also be used to provide pressurized water for irrigation or home water. There are two types in surface solar water pump. AC surface solar pump Surface AC pumps are used to transfer water from sources such as shallow wells, ponds, drains, and tanks. Specification of surface 2HP AC Solar Water Pump. Particular Solar pump Solar pump type Pump head Solar panel Controller Open circuit voltage Description 2 HP ACsurface 20 meter 1800 watt 1 Set 90-140 V DC

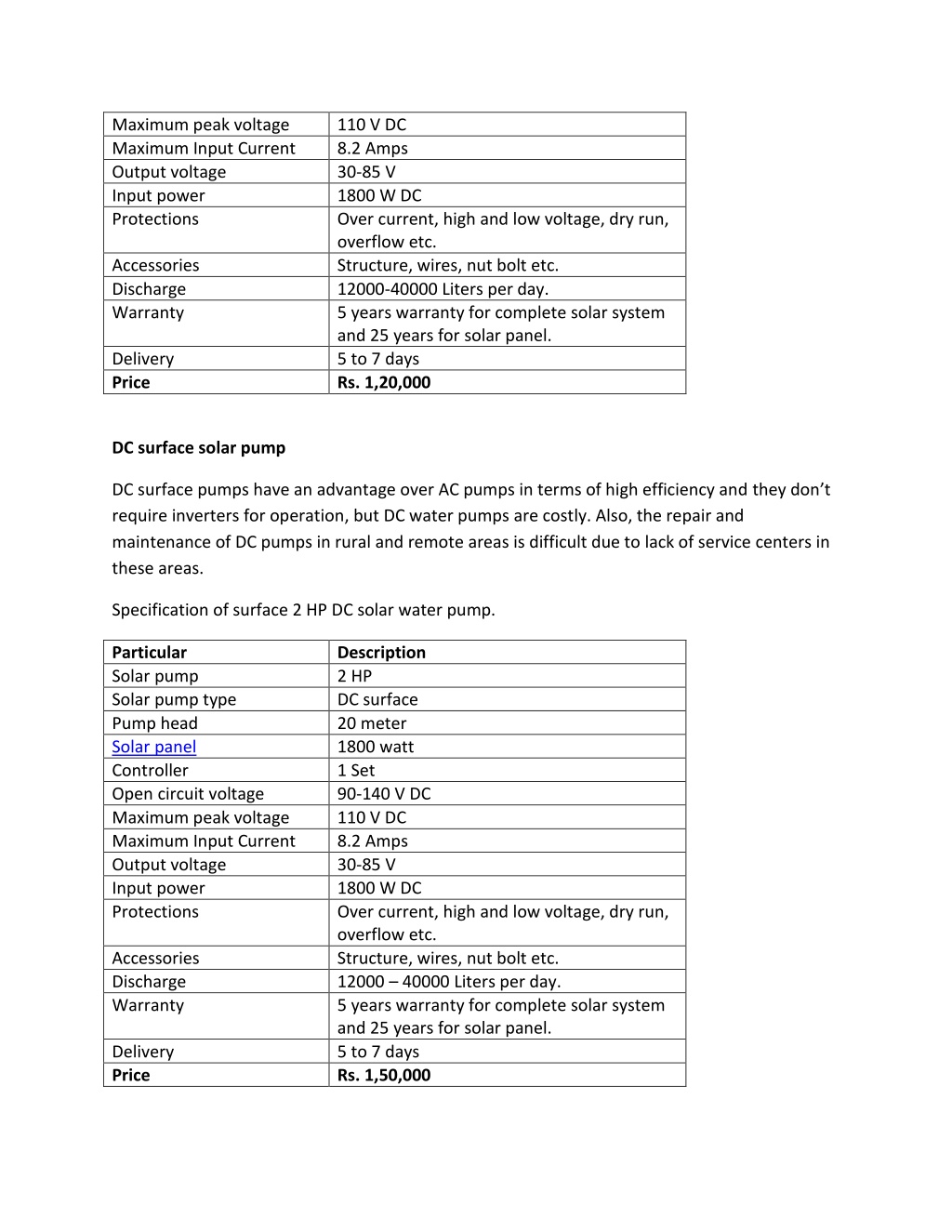

  4. Maximum peak voltage Maximum Input Current Output voltage Input power Protections 110 V DC 8.2 Amps 30-85 V 1800 W DC Over current, high and low voltage, dry run, overflow etc. Structure, wires, nut bolt etc. 12000-40000 Liters per day. 5 years warranty for complete solar system and 25 years for solar panel. 5 to 7 days Rs. 1,20,000 Accessories Discharge Warranty Delivery Price DC surface solar pump DC surface pumps have an advantage over AC pumps in terms of high efficiency and they don’t require inverters for operation, but DC water pumps are costly. Also, the repair and maintenance of DC pumps in rural and remote areas is difficult due to lack of service centers in these areas. Specification of surface 2 HP DC solar water pump. Particular Solar pump Solar pump type Pump head Solar panel Controller Open circuit voltage Maximum peak voltage Maximum Input Current Output voltage Input power Protections Description 2 HP DC surface 20 meter 1800 watt 1 Set 90-140 V DC 110 V DC 8.2 Amps 30-85 V 1800 W DC Over current, high and low voltage, dry run, overflow etc. Structure, wires, nut bolt etc. 12000 – 40000 Liters per day. 5 years warranty for complete solar system and 25 years for solar panel. 5 to 7 days Rs. 1,50,000 Accessories Discharge Warranty Delivery Price

  5. 2HP VFD drive solar pump Where electricity is unexpected, farmers are not dependent on grid electricity for their agricultural needs. They go with an MPPT-VFD based water pumping solution. A Variable Frequency Drive (VFD) is a type of motor controller that drives electric power by the frequency and voltage of its power supply. The VFD has the ability to control the lift and lift of the motor during start or stop respectively. Specification of VFD drive solar pump Particular Solar Pump VFD Solar panel Open circuit voltage Maximum peak voltage Maximum Input Current Output voltage Input power Protections Description 2 HP 1800 watt 90-140 V DC 110 V DC 8.2 Amps 30-85 V 1800 W DC Over current, high and low voltage, dry run, overflow etc. Structure, wires, nut bolt etc. As per existing pump 1 years warranty for VFD drive and 25 years for solar panel. 5 to 7 days Rs. 90,000 Accessories Discharge Warranty Delivery Price Hybrid 2HP solar pump Hybrid 2 HP solar water pump have integrated the features to run the pump on main electricity grid as well as solar panel. Hybrid basically means the combination of solar power with grid (government electricity) or generator power. Specification of Hybrid 2 HP Solar Water Pump. Particular Solar pump Solar pump type Pump head Solar panel Controller Description 2 HP DC submersible Hybrid 50-85 meter 1800 watt 1 Set

  6. Open circuit voltage Maximum peak voltage Maximum Input Current Output voltage Input power Protections 90-140 V DC 110 V DC 8.2 Amps 30-85 V 1800 W DC Over current, high and low voltage, dry run, overflow etc. Structure, wires, nut bolt etc. 12000 – 40000 Liters per day. 5 years warranty for complete solar system and 25 years for solar panel. 5 to 7 days Rs. 1,70,000 Accessories Discharge Warranty Delivery Price On grid 2 HP solar pump with net metering 2 HP on grid solar pump is connected to the load of 2 HP solar water pump, the solar power is fed into the solar water pump load that is connected to the grid through a service connection. Specification of on grid 2 HP Solar Water Pump. Particular Solar pump Solar pump type Pump head Solar panel Controller Open circuit voltage Maximum peak voltage Maximum Input Current Output voltage Input power Protections Description 2 HP AC submersible 50-85 meter 1800 watt 1 Set 90-140 V DC 110 V DC 8.2 Amps 30-85 V 1800 W DC Over current, high and low voltage, dry run, overflow etc. Structure, wires, nut bolt etc. 12000 – 40000 Liters per day. 5 years warranty for complete solar system and 25 years for solar panel. 5 to 7 days Rs. 1,75,000 Accessories Discharge Warranty Delivery Price

  7. Brands in 2HP SWP The following top brands are available primarily for 2 HP solar water pump. Shakti solar pumps Lubi solar pumps Tata pumps FAQ about 2HP SWP Q. How can I know that I use submersible solar pump or surface solar pump? A. The selection of 2 HP solar water pump is based on the water deepness and water source. A submersible pump is used where bore well with a water table deeper than 10m to 15m. Q. Does solar water pump work during cloudy days or bad weather? A. Yes, but the solar panel will not get full sunlight and will not charge fully. Q. Can storm and lighting damage the solar panel? What precautions should be taken during cyclones or storms to save the solar panel? A. Solar panels have adequate safety features and are very unlikely to be damaged by hail storms. In rare cases, a direct lightning strike can cause significant damage to solar panels. But by integrating external lightning protection systems with solar arrays, the risk of lightning strike can be reduced. Q. What maintenance is required for a 2 hp solar water pump? A. There is no maintenance required for 2 HP solar water pump, but you need to clean solar panel’s dust. Q. Which is better in 2 HP DC or 2 HP AC solar pumps?

  8. A. DC pumps have an advantage over AC pumps in terms of high efficiency and don’t require inverters for operation and DC pumps are costly. Also, the repair and maintenance of DC pumps in rural and remote areas is difficult due to lack of service centers in these areas. Q. How they are more useful than electric water pumps? A. 2 HPSolar water pump don’t require any fuel or electricity to operate. Once installed, solar water pump don’t meet the recurring costs of electricity. Solar pumps do not get affected by power cuts, low voltage, single phase problems or the motor burning. Q. Any schemes government provided solar water pumps? A. Government gives subsidy up to 40% on 2 hp solar water pump. Q. What is the cost of a 2 hp solar water pump set? A. The 2 HP solar water pump price starts at Rs. Q. Where do I get solar water pumps in India? A. You can purchase solar product through these links also can contact us for all queries about solar water pump. Q. How can I use solar water pump? A. You can contact us for all queries about solar water pump. Top Solar Brands in India We deals all type of solar products like solar panel, solar battery, solar inverter, all types of solar system, solar water heater, solar air conditioner, solar lights and solar pump. With all reputed solar brands such as Tata solar , Luminous solar, Sukam solar, Havells solar, Microtek solar, Exide solar, Waaree solar panel, Vikram solar panel, Jakson solar, Lubi

  9. Solar solar, Delta solar inverter, ABB Solar solar inverter, Consul neowatt solar hybrid inverter etc. [logoshowcase] Author: Akhil Sharma
