Presentation Transcript
chap 3 key exchange protocols

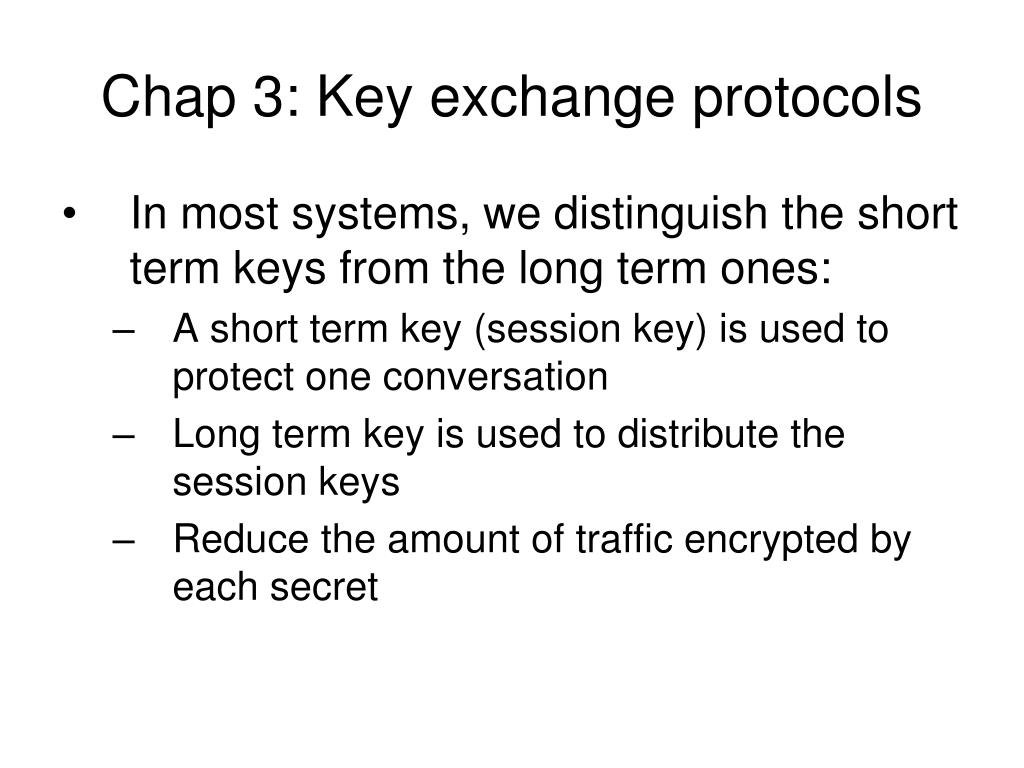

Chap 3: Key exchange protocols
  • In most systems, we distinguish the short term keys from the long term ones:
    • A short term key (session key) is used to protect one conversation
    • Long term key is used to distribute the session keys
    • Reduce the amount of traffic encrypted by each secret
key exchange protocols
Key exchange protocols
  • Protocols 1: using symmetric cryptography
    • We assume that every node shares a key with KDC
    • Steps
      • Alice requests a key from KDC
      • KDC encrypts the key with Alice and Bob’s keys respectively and sends both messages to Alice
      • Alice forward Bob’s copy to Bob
slide3

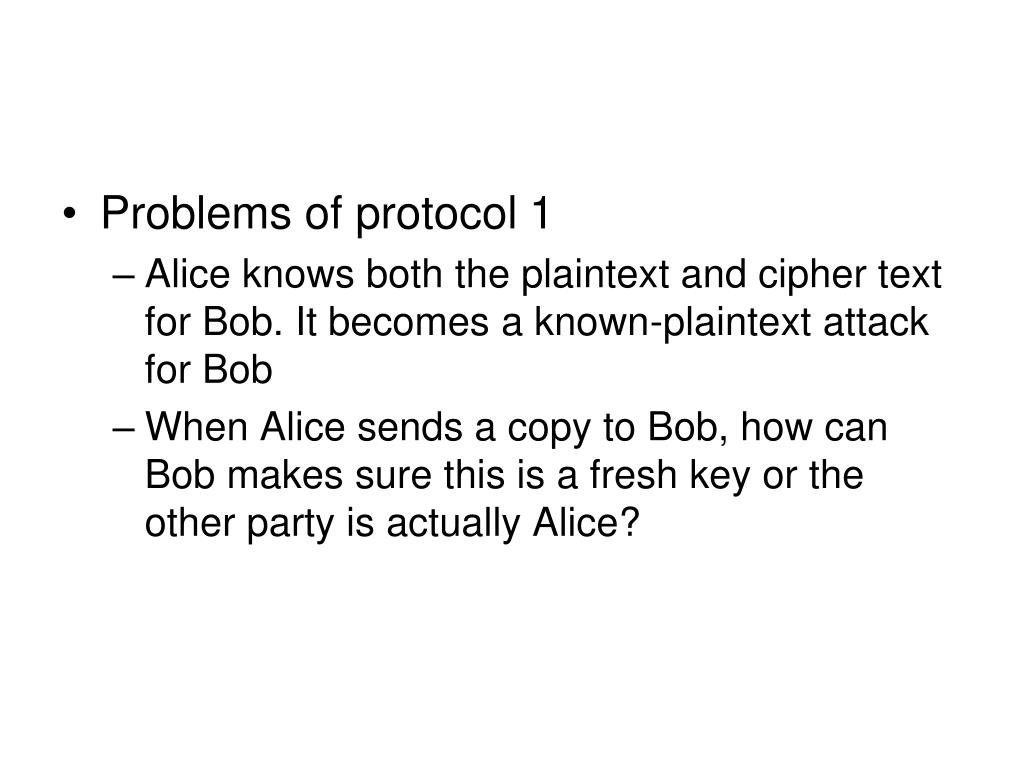

Problems of protocol 1
    • Alice knows both the plaintext and cipher text for Bob. It becomes a known-plaintext attack for Bob
    • When Alice sends a copy to Bob, how can Bob makes sure this is a fresh key or the other party is actually Alice?
slide4

Freshness of the Key (or any packets)

    • Timestamp based approach: attach a timestamp to the encrypted component of the message
      • Problem: need synchronized clock
    • Nonce (random number based)
      • Each party needs to generate its own fresh random numbers. They are attached to the message
      • No synchronization
slide5
Protocol 2: Using public key
    • We assume that everyone has a public private key pair
    • Steps
      • Alice generates a session key and encrypts it with Bob’s public key
      • Bob decrypts the message and gets the session key
      • Now they can talk safely
slide6

Sounds easy. But several vulnerabilities exist

    • Forward search attack
      • If there are only a limited number of messages, the attacker can pre-compute and compare with the eavesdropped results
      • Similar attacks can be generalized to several other scenarios such as hash(), password, etc
man in the middle attack
Man-in-the-Middle Attack
  • If the public keys of the nodes do not have certificate with them, they can be fake keys. And a min-in-the-middle attack can be conducted.
  • How the min-in-the-middle attacks are conducted:
man in the middle attack1
Man-in-the-Middle Attack

I need Bob’s public key

Eve intercepts request

Alice

Cathy

I need Bob’s public key

Cathy

Eve

Bob’s pub key eB

Cathy

Eve

Bob’s pub key eE

Eve

Alice

{ ks } eE

Eve intercepts message

Bob

Alice

{ ks } eB

Bob

Eve

slide9

What if the two parties have pre-determined the first pair of messages? Can this defend against MitM attack?

    • Unfortunately, no
  • Interlock protocol: mitigate the attack
    • What will be a good interlock: hash of the message, hash of the encryption result?
interlock protocol right way
Interlock protocol (right way)

I need Bob’s public key

Eve intercepts request

Alice

Cathy

I need Bob’s public key

Cathy

Eve

Bob’s pub key eB

Cathy

Eve

Bob’s pub key eE

Eve

Alice

Hash({ msg} eE )

Eve intercepts message

Bob

Alice

What should I send?

Bob

Eve

interlock protocol wrong way
Interlock protocol (wrong way)

I need Bob’s public key

Eve intercepts request

Alice

Cathy

I need Bob’s public key

Cathy

Eve

Bob’s pub key eB

Cathy

Eve

Bob’s pub key eE

Eve

Alice

Hash(msg )

Eve intercepts message

Bob

Alice

Hash(msg)

Bob

Eve

slide12
Improvement to protocol 2:
    • Public keys for Alice and Bob should be protected by the certificate from a TTP
    • Look at the settings of your browsers: look for certificates
authentication
Authentication
  • Authentication: prove that you are who you claim to be
  • Method 1:
    • The system stores your password, and compares it with the characters you type in every time you login
    • Problem: if the attacker gets access to the file, you are cooked.
slide14
Method 2:
    • The system stores the hash result of the password, now if the attacker sees the hash value, it cannot recover the plaintext.
    • Problem:
      • It is still not safe under dictionary attacks
      • The system can add a random number after the password, which is called salt
      • Public salt and private salt.
      • Salt protects the overall system, but not specific users
      • The same key combined with different salt will look differently in the system
slide15
Key management in some UNIX systems
    • don't use the shadow password files
    • the passwords are stored encrypted in the file /etc/passwd
    • Format of the stored record
      • Account; coded password data; homedir;
      • Gigawalt; fURfuu4.4hY0U; /home/gigawalt
slide17
Method 3: Using public-private key
    • The system knows the public key and the user keeps the private key
    • During login, the system sends a random number to user and user encrypts it with the private key
    • System decrypts with public key and verifies the user
    • Problems:
      • Blind signature
      • Chosen plaintext attack
authentication1
Authentication
  • Method 4: one key a time protocol
    • Hash chain
    • Unlimited one key a time system
      • Both sides know a secret k
      • A knows R1, and B knows hash(k, R1)
      • During first login, A sends R1 and hash(k, R2)
