ローパス フィルタ

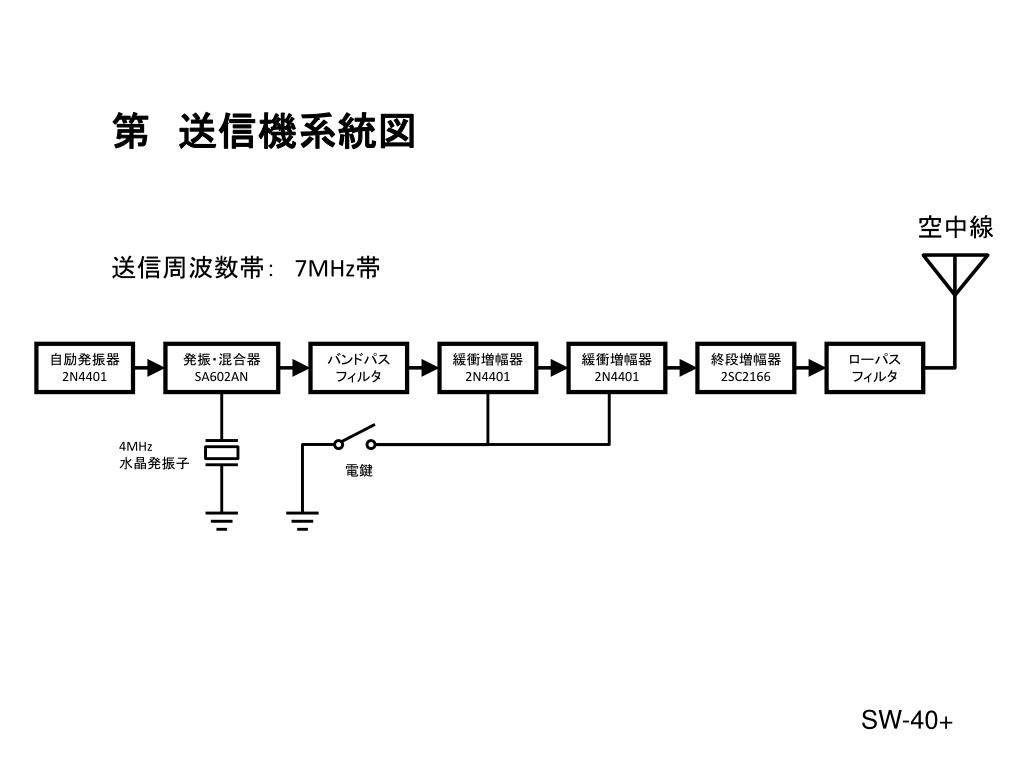

第　送信機系統図. 空中線. 送信周波数帯：　 7MHz 帯. 自励発振器 2N4401. 発振・混合器 SA602AN. バンドパス フィルタ. 緩衝増幅器 2N4401. 緩衝増幅器 2N4401. 終段増幅器 2SC2166. ローパス フィルタ. 4MHz 水晶発振子. 電鍵. SW-40+.
