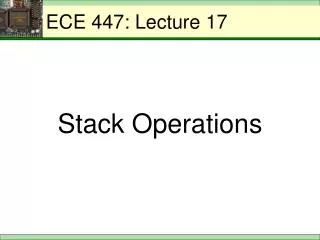

ECE 447: Lecture 17. Stack Operations. ECE 447: Stack Operations. Push and pull. N Z V C. PSH [A, B] PSH [X, Y] PUL [A, B] PUL [X, Y]. INH. – – – –. Initialize and store stack pointer. N Z V C. LDS. 0 –. IMM, DIR, EXT, IND. STS. DIR, EXT, IND. 0 –. ECE 447: Stack Operations.

kelly-kirk
Download Presentation

ECE 447: Lecture 17

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. ECE 447: Lecture 17 Stack Operations

  2. ECE 447: Stack Operations Push and pull N Z V C PSH [A, B] PSH [X, Y] PUL [A, B] PUL [X, Y] INH – – – – Initialize and store stack pointer N Z V C LDS 0 – IMM, DIR, EXT, IND STS DIR, EXT, IND 0 –

  3. ECE 447: Stack Operations Subroutine call and return from subroutine N Z V C – – – – REL BSR JSR DIR, EXT, IND – – – – RTS – – – – INH

  4. ECE 447: Stack Operations Jump JMP DIR, EXT, IND – – – – Stack pointer manipulation INH – – – – DES INS INH – – – – TS [X, Y] INH – – – – T [X, Y] S – – – – INH

  5. ECE 447: Stack after a function call 0 SP after a function call RTNH SP before a function call RTNL MAX_ADDRESS

  6. ECE 447: Stack after an interrupt call SP after an interrupt CC B 0 A IXH IXL IYH IYL RTNH RTNL SP before an interrupt MAX_ADDRESS

  7. arg_2 arg_2 ... ... arg_N arg_N Using the stack - Entering a function with a fixednumber of arguments and local variables caller function called function SP D var_1 IX arg_1 Local variables ... or D IX DES or PSHX var_M arg_1H arg_1L reg_1 reg_1 ... ... Saved registers PSH reg_L reg_L TSX RTNH RTNH RTNH JSR or BSR Return address RTNL RTNL RTNL arg_2 arg_2 ... ... Function arguments PSH arg_N arg_N SP

  8. arg_2 arg_2 ... ... arg_N arg_N ECE447: Exiting a function, “called-cleanup” method caller function called function D SP ret var_1 IX or D IX Local variables ... retH retL var_M reg_1 reg_1 INS or PUL ... ... Saved registers PUL reg_L reg_L PULY INS RTNH RTNH RTNH Return address RTNL RTNL RTNL arg_2 ... Function arguments JMP 0,Y arg_N SP

  9. arg_1 arg_1 ... ... arg_N arg_N Using the stack - Entering a function with a variablenumber of arguments caller function called function SP var_1 IX Local variables ... DES or PSHX var_M reg_1 reg_1 ... ... Saved registers PSH reg_L reg_L TSX RTNH RTNH RTNH JSR or BSR Return address RTNL RTNL RTNL arg_1 arg_1 ... ... Function arguments PSH arg_N arg_N SP

  10. arg_1 arg_1 ... ... arg_N arg_N Using the stack - Exiting a function“caller-cleanup” convention caller function called function SP D var_1 IX ret Local variables ... or TXS D IX var_M retL retH reg_1 reg_1 INS or PULX ... ... Saved registers PUL reg_L reg_L RTNH RTNH RTNH Return address RTNL RTNL RTNL RTS arg_1 arg_1 ... ... Function arguments PULz arg_N arg_N SP

  11. main.c /* C version of main function */ #include <stdio.h> extern long multadd(unsigned int a, unsigned char b, long c, long *pm); long product, sum; void main(void) { sum = multadd(258, 17, 32L, &product); } In this example, long = 32bits

  12. multadd.c /* C version of the multadd function */ long multadd(unsigned int a, unsigned char b, long c, long *pm) /* this function returns a*b + c and writes a*b to the location of memory pointed out by pm */ { long tmul; long tadd; tmul = a*b; *pm = tmul; tadd = tmul + c; return tadd; }

  13. amain.s (1) * assembly language version of the main function .global multadd .global printf .mri 1 section .bss Product rmb 4 sum rmb 4

  14. amain.s (2) section .text main: ; pushing arguments arg4 thru arg2 to the stack ; arg4: pm = &product ldx #product pshx ; arg3: c = 32L = 0x00000020 ldx #$0020 pshx ldx #$0000 pshx ; arg2: b = 17 = 0x11 ldaa #$11 psha ; storing argument arg1 in the register D ; arg1: a = 258 = 0x102 ldd #$102 jsr multadd

  15. amultadd.s (1) ; assembly language version of the multadd function tmul_offset EQU 0 tadd_offset EQU 4 a_offset EQU 8 b_offset EQU 12 c_offset EQU 13 pm_offset EQU 17 SP  0 - tmul 1 - tmul 2 - tmul 10 - RTNH 3 - tmul 11 - RTNL 4 - tadd 12 - b 5 - tadd 13 - c 6 - tadd 14 - c 7 - tadd 15 - c 8 - a 16 - c 9 - a 17 - &product 18 - &product

  16. amultadd.s (2) section .text multadd: ;--------------------------------------------------------- ; Initialization sequence, similar for different functions ;--------------------------------------------------------- ; storing D register pshb psha ; reserving space for two local variables ; long tadd pshx pshx ; long tmul pshx pshx ; IX set to point to the top of the stack tsx

  17. amultadd.s (3a) ;--------------------------------------------------------- ; Part specific for the given function ;--------------------------------------------------------- ; Multiplication ;--------------------------------------------------------- ; tmul = a*b = (a_high * 2^8 + a_low) * b ; ACCB = b ldab b_offset,X ; ACCA = LSB of a = a_low ldaa a_offset+1,X ; ACCD = b*a_low mul ; tmul = b*a_low std tmul_offset+2,X ldd #0 std tmul_offset,X ; ACCB = b ldab b_offset,X ; ACCA = MSB of a = a_high ldaa a_offset,X

  18. amultadd.s (3b) ; ACCD = b*a_high mul ; tmul= b*a_low + (2^8)*b*a_high addd tmul_offset+1,X std tmul_offset+1,X ; *pm = tmul ldy pm_offset,X ldd tmul_offset,X std 0,Y ldd tmul_offset+2,X std 2,Y

  19. amultadd.s (4a) ;--------------------------------------------------------- ; Addition ;--------------------------------------------------------- ; tadd = c ldd c_offset,X std tadd_offset,X ldd c_offset+2,X std tadd_offset+2,X ; tadd = tadd + tmul pshX clc ldab #4 loop ldaa tadd_offset+3,X adca tmul_offset+3,X staa tadd_offset+3,X dex decb bne loop pulx ; End of part specific for the given function

  20. amultadd.s (5) ;--------------------------------------------------------- ; Exit sequence ;--------------------------------------------------------- ; restore value of the stack pointer txs ; return long result in registers IX and D ; IX:D = tadd ldx tadd_offset,X ldd tadd_offset+2,X ; deallocate space for local variables ; repeat this 8 times ins ; remove register D from the stack puly ; store return address in register IY puly

  21. amultadd.s (6) ; repeat 7 times ins jmp 0,Y end

  22. SP multadd main 0 IX xx xx tmul xx xx 4 xx xx tadd D xx LDD $0102 xx 8 $01 $01 D=a $02 $02 RTNH RTNH RTNH PSHX PSHX PSHX PSHX RTNL RTNL RTNL 12 b $11 $11 $11 $11 13 $00 $00 $00 $00 TSX $00 $00 $00 $00 c PSHD $00 $00 $00 $00 LDX PSHX JSR $20 $20 $20 $20 17 pm &product &product &product &product SP
