품 목 : CEILING SPEAKER 모델명 : CONCOURSE CSUB 제조사 : QUAD

품 목 : CEILING SPEAKER 모델명 : CONCOURSE CSUB 제조사 : QUAD. Specifications Type : Subwoofer Woofer: 10“ Impedance: Selectable 4 or 16ohms nominal Transformer Power Tappings : 60-30-15-7.5W@70V and 60- 30-15W@100V AES Rated: 100 watts Music - Program: 200 watts SPL 1 w/1 m: 80 dB

kelly-baird
Download Presentation

품 목 : CEILING SPEAKER 모델명 : CONCOURSE CSUB 제조사 : QUAD

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

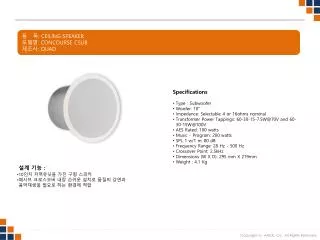

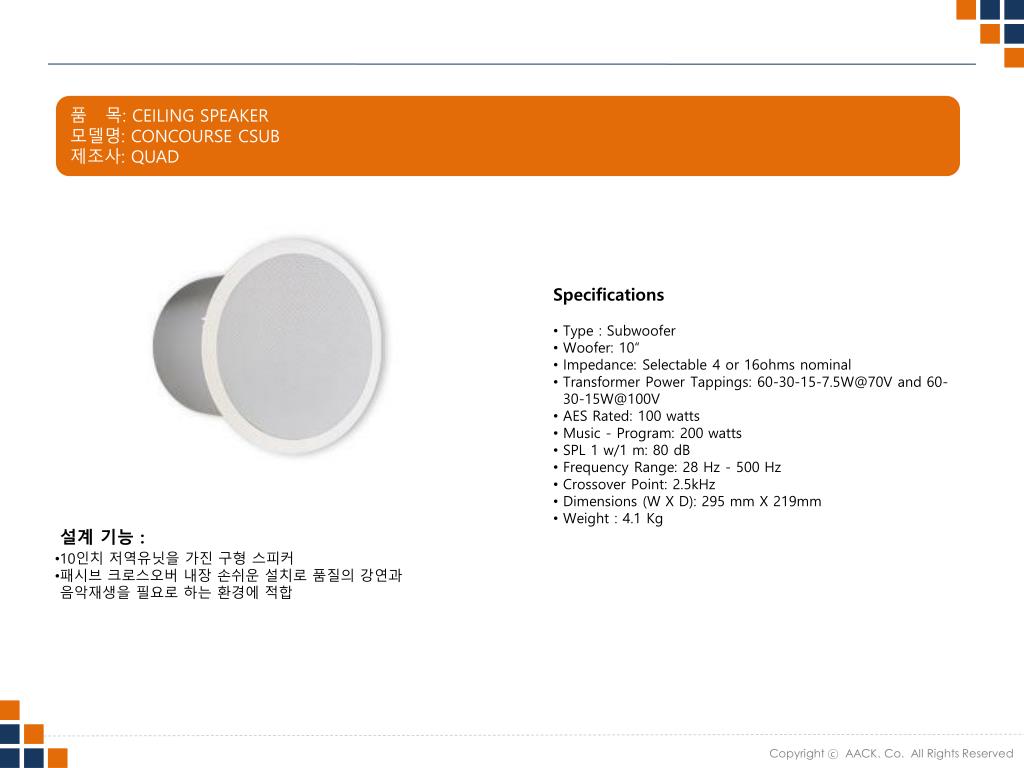

  1. 품 목: CEILING SPEAKER 모델명: CONCOURSE CSUB 제조사: QUAD • Specifications • Type : Subwoofer • Woofer: 10“ • Impedance: Selectable 4 or 16ohms nominal • Transformer Power Tappings: 60-30-15-7.5W@70V and 60- • 30-15W@100V • AES Rated: 100 watts • Music - Program: 200 watts • SPL 1 w/1 m: 80 dB • Frequency Range: 28 Hz - 500 Hz • Crossover Point: 2.5kHz • Dimensions (W X D): 295mm X 219mm • Weight : 4.1Kg • 설계 기능 : • 10인치 저역유닛을 가진 구형 스피커 • 패시브 크로스오버 내장 손쉬운 설치로품질의 강연과 • 음악재생을 필요로 하는 환경에 적합
