Presentation Transcript
slide1

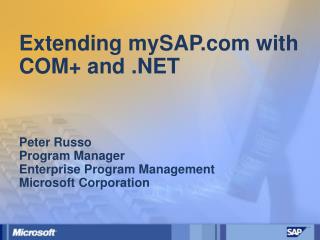

Extending mySAP.com with COM+ and .NETPeter RussoProgram ManagerEnterprise Program ManagementMicrosoft Corporation

agenda
Agenda
  • Conversing with R/3
    • R/3 Protocols
    • Formats
    • Gotchas
    • Technologies
  • SAP DCOM Connector
    • Connector Architecture
    • Mechanics
    • Administration
    • Configuration & Tuning
    • Troubleshooting
    • 4.6d Features
      • tRFC, qRFC, Outbound Calls
    • Futures
protocols
Protocols
  • Native
    • GUI (Diag)
    • RFC
    • HTTP (In 6.2.0)
  • Batch (File Transfer)
    • Batch Input
    • Direct Input
  • ALE (File Transfer or RFC)
protocols cont
Protocols (cont)
  • Each has a proprietary format
  • Each is platform independent
    • RFC client libraries for all platforms
  • Each meets different business programming needs
  • Implementation overlap
    • RFC calls can be wrapped as IDOCs
    • Screen transactions can be wrapped as RFCs
    • IDOCs can be submitted via RFC
formats
Formats
  • RFC has COM, CORBA, Java wrappers
    • SAP COM Connector
    • Actional
    • Visual Age
  • SAP has defined an XML format for IDOCs (4.6B or greater)
  • SAP Business Connector exposes RFC invocations as XML
gotchas
Gotchas
  • Guaranteed delivery into and out of R/3 is not trivial
  • tRFC mechanism provides exactly once guarantees (not a two phase commit)
    • Supports both inbound and outbound
    • Restricted use of RFC
    • Strict programming conventions for both client and server programs
  • If in order inbound (to R/3) message delivery is also required, SAP provides a queued version of tRFC called qRFC
    • 4.6c or greater versions of R/3
technologies
Technologies
  • New features in the 4.6D SAP Com Connector (SAP)
    • tRFC and qRFC Support
    • Supports GUIDs as TIDs
    • Custom IDOC submission dll
    • Generic RFC server
  • BTS Connector Resource Kit (MS)
    • IDOC submission AIC
    • IDOC tRFC server component
connector architecture
Connector Architecture
  • Components and Release Level
  • Technologies
connector architecture components
Connector Architecture - Components
  • Librfc32.dll (version 4.6d)
  • W2K SP1 - or
    • NT 4.0 (SP4 or greater)
    • NT Option Pack
      • MTS 2.0 (including SDK)
      • IIS 4.0
      • Management Console (MMC)
    • MDAC 2.5 or greater
  • CC Administrator
  • Object Builder
  • VS 6.0 (SP4) or greater
connector architecture mdac
Connector Architecture -- MDAC
  • OLEDB
    • Componentized data access
    • Common abstraction for tabular data
    • Specialized extensions for OLAP, etc.
  • ADO (ActiveX Data Objects)
    • Simple high level interface to data objects
  • RDS (Remote Data Servcies)
    • Allows data to be passed across http/dcom to the client
    • Static “client-side” cursoring over result sets
    • Ability to return Recordsets from business objects across machine boundaries
connector architecture sap technologies
Connector Architecture – SAP Technologies
  • R/3 4.x features
    • Much lower latency by
      • streamlined communication technology
      • R/3 automatically switches between different operation modes with respect to workload
      • round-trip times are comparable with database request.
    • Clean up of user context without logoff
    • DCOM Connector automatically detects the version on the target system and uses these features
mechanics a view of the object life cycle
Mechanics A View of the Object Life Cycle
  • Object Instantiation and MTS
  • Connecting to R/3
    • Destination and Logon Handling
    • RFC pooling
  • Method Invocation
  • Data marshalling
  • Object Cleanup
  • Special Considerations for Transactions
mechanics object instantiation

BO

Mechanics - Object Instantiation

R/3Application Server

Clients

MTS

RFC

DCOM

Librfc32.DLL

BAPI ABAP Objects

ISAPConnector

ITab

Type Mapping

RFC-C-API

RFC-COM-API

mechanics object instantiation14
Mechanics - Object Instantiation
  • MTS runtime intercept all method calls prior to executing your code
    • Handle transaction management, layered security model, MTS-specific concurrency model
  • MTS puts its class factory between COM and you
  • MTS creates a context wrapper for each class instance that sits between the stub and you
  • Only visible concept in MTS is the package
  • Packages are a collection of in-process servers that trust one another
  • Security checks are performed for the package
  • No security checks are performed between components in a package
mechanics destination logon handling
MechanicsDestination & Logon Handling
  • Destination configuration
    • Destination property set in component at invocation
    • Default destination can be assigned to object
    • Gateway default destination (4.5a - ‘NONE’) is eliminated
  • User Mapping & Security (options)
    • Hardcode UserID & Password into the component :-(
    • Default UserID & Password with a destination in registry
      • Use roles and NT users to further control component access :-)
    • Collect explicit logon info from user & pass to component
    • Use single sign-on and internal R/3 mapping tables (4.6x)
mechanics rfc pooling
Mechanics - RFC Pooling

R/3 RFC connection automatically provided by DCOM Connector from pool of connections when required by method invocation.

DCOM

RFC ResourceDispenser

Void connection

mechanics table handling via rds ado

ADO-Recordset

SAP-IRowset

RDS-IRowset

Mechanics Table Handling via RDS & ADO

R/3Application Server

Output Tables

DCOM

RFC

BO

BAPI ABAP Objects

itab

Dim myRS as Recordset

Set Foo = New Bar1

Foo.GetCustList(‘*’, myRS)

configuration tuning
Configuration & Tuning
  • Connector Global parameters
    • Set in the Admin Consolevia Monitor -> Parameters
    • Set in System Environment
  • Connector Destination parameters
    • Set in the Admin Console via Destinations -> Edit
  • Connector Component parameters
    • Set in the Admin Console via Components
    • Set in MTS Management Console
  • R/3 RFC parameters
    • Set in R/3 profile
troubleshooting
Troubleshooting
  • RFC trace (set per destination)
    • Trace = 1
      • RFCxxxxxx.trc
      • Dev_rfc.trc
    • TableDump = 1
    • ST05
  • SAPGUI debugging
  • Check MTS Security & Roles
troubleshooting20
Troubleshooting
  • Debugging into R/3
    • AdviseRFCGuiSink()

Client

Sapgui

RfcGuiSink

Librfc32.dll

review of rfc quality of service
Review of RFC Quality of Service
  • RFC:
    • Synchronous call
    • Client waits until the processing is completed
    • Supports input and output parameters
    • Easy in ABAP: Call .... DESTINATION Dest .....
    • Easy in C: RfcCallReceive()
    • Easy in VB and script: SAP DCOM Connector, SAP Automation, C call
review of rfc quality of service22

client

client

client

server

server

server

Review of RFC Quality of Service
  • Problem with RFC when errors occur:
    • Where did the error take place?
    • Should the failed call be repeated?

Check data+ customizing and retry

Can retry

Don't retry

review of rfc quality of service23
Review of RFC Quality of Service:
  • tRFC
    • Guaranteed to execute only once
    • External tRFC is always synchronous
    • ABAP tRFC is asynchronous
    • Only supports input parameters
    • Easy in ABAP: Call ... DESTINATION Dest IN BACKGROUND TASK ......
    • Easy in C: RfcCallIndirectEx ()
    • Easy in VB: SAP DCOM Connector, C call
    • External program must ensure:
      • Transaction ID management,
      • Scheduling for retry after any errors
    • A particular order for execution cannot be guaranteed
review of rfc quality of service trfc
Review of RFC Quality of Service: tRFC

client

server

RfcCreateTransID

Get TID

Store TID

and DATA

Insert TID,

+ Call

Execution

RfcIndirectCallEx

Delete TID

and DATA

RfcConfirmTransID

Delete TID

review of rfc quality of service25
Review of RFC Quality of Service:
  • qRFC
    • Guaranteed to execute only once and in the specified sequence
    • Execution is asynchronous
    • Not integrated in the ABAP runtime. qRFC is controlled by calls to system function module
    • In ABAP, you can choose between
      • queuing on the caller system: outbound queue (APO)
      • queuing on the called system: inbound queue (CRM)
    • The RFCSDK offers support for queues in the SAP system:
      • inbound queues for external clients,
      • outbound queues for external servers.
    • However, external programs can also perform their own external queuing (MSMQ, BizTalk....)
review of rfc quality of service26
Review of RFC Quality of Service:
  • qRFC continued:
    • External program must ensure :
      • Transaction ID management,
      • Scheduling for renewed submission after an error
    • “Someone” must activate the queue
      • SMQR for queue registration
      • Programmatic
    • SAP System may schedule a retry after errors for the execution
trfc and qrfc support in the 4 6d rfcsdk
tRFC and qRFC support in the 4.6d RFCSDK
  • tRFC, qRFC have been integrated into the DCOM Object Builder.
    • Requires tRFC and qRFC support in the R/3 target
    • Simply select level of service required when building the proxy
    • Note: only one level of service per proxy object
  • When you use the relevant options, the generated proxies expose the following new methods:
    • CreateNewTid()
    • QueueName()
    • Confirm()
    • ActivateQueue()
  • GUID’s can be used for TID’s
    • Facilitates connection with services that already associate GUIDS with messages/data
com for abap service
COM for ABAP Service

Outbound COM

Gateway

R/3Application Server

Some COM

Object

(D)COM

RFC

sap dcom connector server middleware details
SAP DCOM Connector Server Middleware : Details

Outbound COM Gateway

R/3Application Server

Some COM

Object

NT-Service

(D)COM

RFC

Generic stub

Metadata

(mapping table + type library of target)

details single threaded mode
Details - (single threaded mode)

Outbound COM Gateway

CIP-C GW

R/3Application Servers

Some COM Object

Com4Abap

(D)COM

Generic stub

Metadata

(mapping table + type library of target)

com for abap service31
COM for ABAP Service
  • Requirements:
    • R/3
      • Pre-4.6d systems require transport of function group
      • Can be transported to 3.x systems
    • Connector server
      • W2K SP1
      • NT4, SP5, MTS, MDAC 2.5
what s next
What’s next?
  • .Net Extensions to the Connector
    • Soap enabled Web Services
    • Managed Classes
    • Transparent upgrade to R3 6.2.0
    • VS 7 Integration
the sap net connector
The SAP .Net Connector
  • Allows to easily build .NET Applications to integrate with mySAP Solutions using Visual Studio.NET
  • Supports all Releases of R/3 and mySAP.comAccess the SAP Web Application Server from any .NET Application via SOAPAccess all SAP components via SAP RFC
  • Availability to be announced soon
sap net connector architecture
SAP .NET Connector Architecture

Visual Studio.NET

mySAP Technology

Microsoft .NET

BOR

DDIC

Interface repository

Component

Generator

Design

time

VB

C++

C#

Common Language

Runtime

Web

Services

.NET

Connector

Runtime

Application

RFC

RFC Layer

Run

time

SOAP

SOAP Layer

.NET Connector

Component (generated)

SAP .NET

Connector

the sap add in for visual studio net
The SAP Add-In for Visual Studio.NET
  • Build .NET Applications for mySAP using Visual Studio.NET
  • .NET Web Services
    • ASP.NET Web Applications
    • WinForms Applications
  • SAP AddIn Visual Studio seamlessly integrates with Visual Studio.NET
  • Interactively add SAP BAPIs into any .NET application from within the IDE
the end
The End

Questions ?
