robo for borewell rescue

ROBO FOR BOREWELL RESCUE

GUIDED BY:

Mr. AJITH KUMAR J.P.

PRESENTED BY:

Mr. JOHN JOSE PATTERY

Mr. VIJESH K.

Mr. JITTU VARGHESE KURIAN

Mr. NOBLE JOHN

why robo for borewell rescue
WHY ROBO FOR BOREWELL RESCUE?
  • CONVENTIONAL SYSTEM INCLUDES-

Digging a parallel hole and connect the two, involves

- Increased risks

-Time

-Money

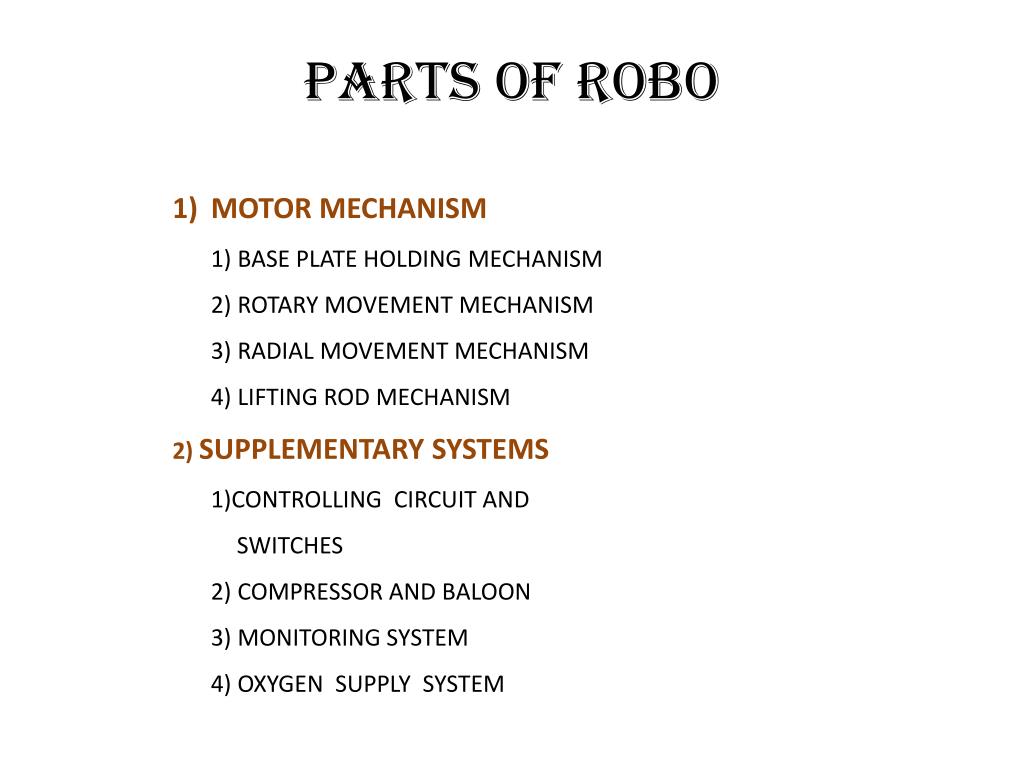

parts of robo
PARTS OF ROBO
  • MOTOR MECHANISM
  • 1) BASE PLATE HOLDING MECHANISM
  • 2) ROTARY MOVEMENT MECHANISM
  • 3) RADIAL MOVEMENT MECHANISM
  • 4) LIFTING ROD MECHANISM
  • 2) SUPPLEMENTARY SYSTEMS
  • 1)CONTROLLING CIRCUIT AND
  • SWITCHES
  • 2) COMPRESSOR AND BALOON
  • 3) MONITORING SYSTEM
  • 4) OXYGEN SUPPLY SYSTEM
features
FEATURES
  • Rapid rescue possible
  • Strong enough to carry a child
  • Small in size
  • Chance of success is more
  • Less expensive
  • Easy to operate
  • Hold the child in a net
  • Can supply oxygen
  • It can monitor the child throughout.
  • It has thermal image sensor
  • Has locking mechanism
  • Wireless camera is there to observe the child
  • Remote controlled
  • applied for Patent
