  1. The Ribbon UI and Custom Actions in SharePoint 2010 Geoff Varosky December 11, 2012

  2. About me • Geoff Varosky • Jornata • Managing Consultant, Senior Architect, Senior Developer, Director of Evangelism • Co-Founder Boston Area SharePoint Users Group • Co-Organizer SharePoint Saturday Boston • Blog – www.SharePointYankee.com • Email – geoff@varosky.com • Twitter – @gvaro • LinkedIn & Facebook gvarosky@jornata.com | @gvaro | www.sharepointyankee.com | www.jornata.com | @JornataLLC

  3. agenda • Introducing the Ribbon UI • Demo • What are Custom Actions? • Demo • Resources • Q&A gvarosky@jornata.com | @gvaro | www.sharepointyankee.com | www.jornata.com | @JornataLLC

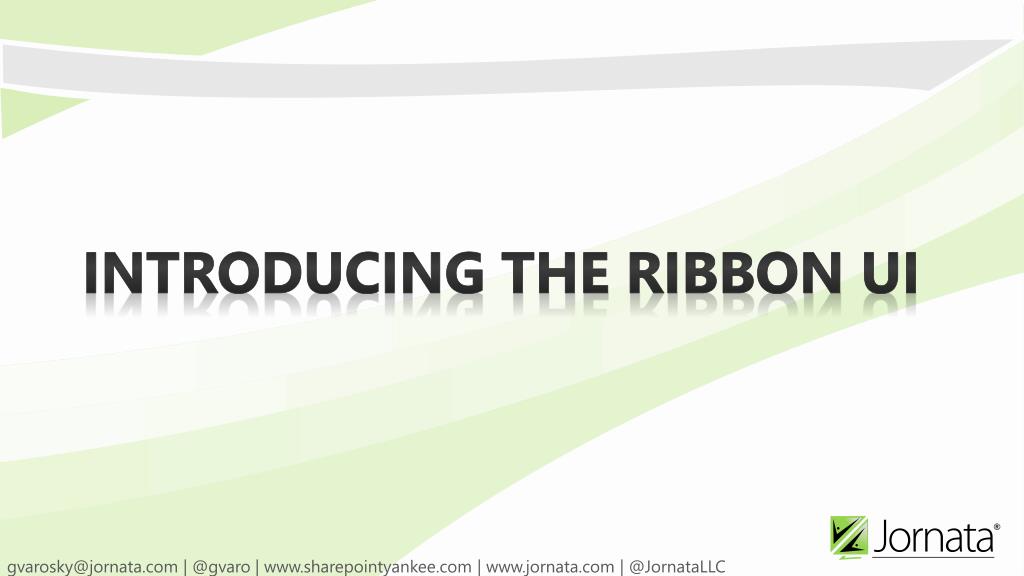

  4. Introducing the ribbon ui gvarosky@jornata.com | @gvaro | www.sharepointyankee.com | www.jornata.com | @JornataLLC

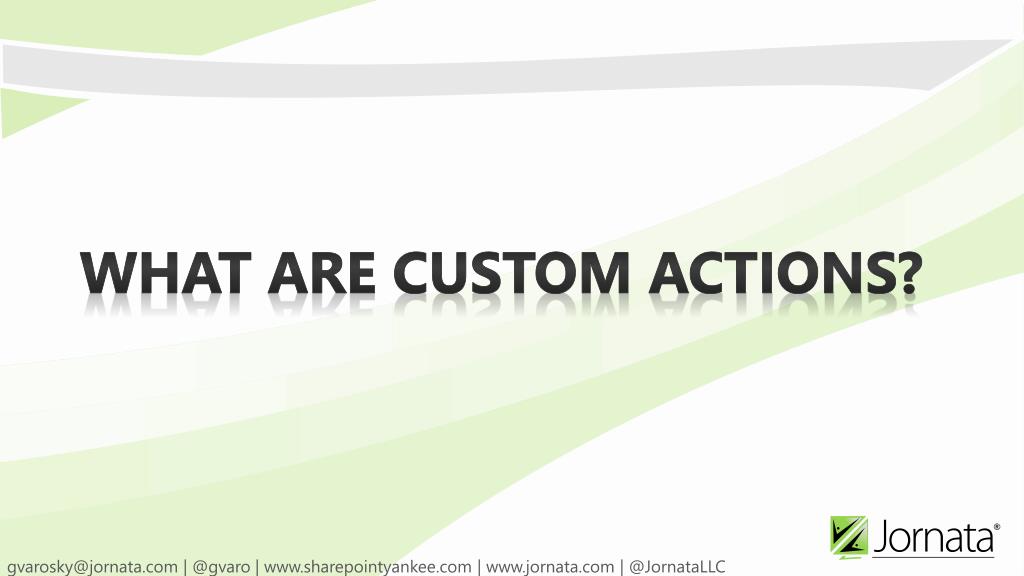

  5. What are custom actions? gvarosky@jornata.com | @gvaro | www.sharepointyankee.com | www.jornata.com | @JornataLLC

  6. What are custom actions? • Anything that can be put into an HREF anchor tag or “link” <a href=“CUSTOMACTION”>linkylinky</a> gvarosky@jornata.com | @gvaro | www.sharepointyankee.com | www.jornata.com | @JornataLLC

  7. What are custom actions? • Bits of XML <CustomAction Id=“MyCustomAction” Location=“Microsoft.SharePoint.SiteSettings … /> • Links <CustomAction …> <UrlActionUrl=“http://www.foo.com” /> </CustomAction> • JavaScript <CustomAction …> <UrlActionUrl=“javascript:DoSomething();” /> </CustomAction> • Code Behind <CustomAction … ControlAssembly=“MyCode, Version=1.0.0.0, Culture=neutral, PublicKeyToken=63316a326e123aec"ControlClass=“MyCode.Class“ /> gvarosky@jornata.com | @gvaro | www.sharepointyankee.com | www.jornata.com | @JornataLLC

  8. What are custom actions? • Can be bound to… • Lists • Tasks, Document Libraries, Custom, etc. gvarosky@jornata.com | @gvaro | www.sharepointyankee.com | www.jornata.com | @JornataLLC

  9. What are custom actions? • Can be bound to… • File Types • By Extension - .docx, .pl, .foo, .bar gvarosky@jornata.com | @gvaro | www.sharepointyankee.com | www.jornata.com | @JornataLLC

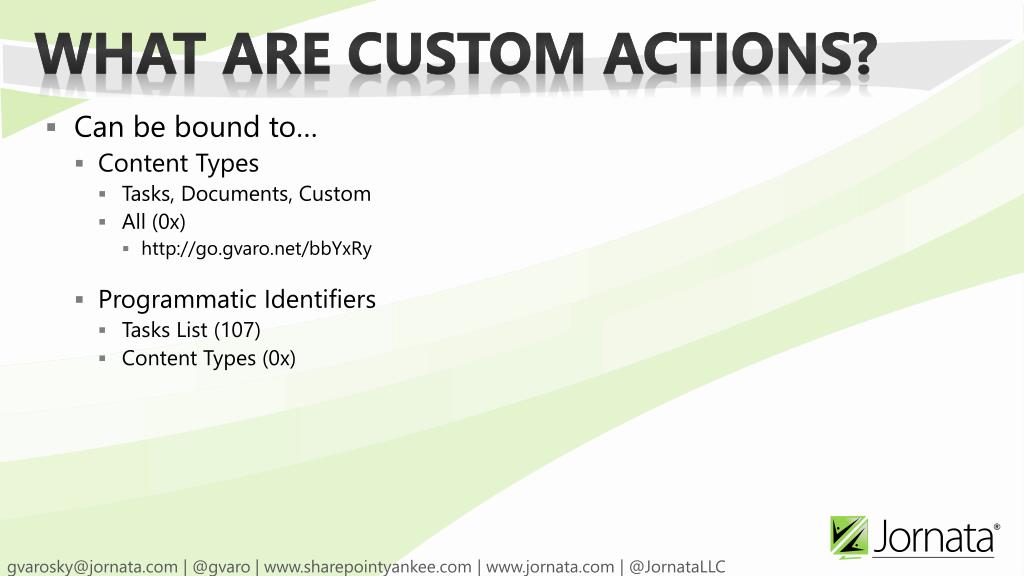

  10. What are custom actions? • Can be bound to… • Content Types • Tasks, Documents, Custom • All (0x) • http://go.gvaro.net/bbYxRy • Programmatic Identifiers • Tasks List (107) • Content Types (0x) gvarosky@jornata.com | @gvaro | www.sharepointyankee.com | www.jornata.com | @JornataLLC

  11. Building custom actions • SharePoint Designer 2010 • Build Custom Actions • List Item Menu (Context Menu) • List View, Edit, Display Forms • Visual Studio 2010 • Import from WSP file • Add functionality • Package • Deploy gvarosky@jornata.com | @gvaro | www.sharepointyankee.com | www.jornata.com | @JornataLLC

  12. Urlaction tokens • ~site • Site (Web) • ~sitecollection • Site Collection • {ItemId} • GUID representation of the current item • {ItemUrl} • URL of the current item • {ListId} • {ListURL} • {RecurrenceId} gvarosky@jornata.com | @gvaro | www.sharepointyankee.com | www.jornata.com | @JornataLLC

  13. (CustomAction) Anatomy 101 <CustomAction ContentTypeId = "Text" ControlAssembly = "Text" ControlClass = "Text" ControlSrc = "Text" Description = "Text" GroupId = "Text" Id = "Text" ImageUrl = "Text" Location = "Text" RegistrationId = "Text" RegistrationType = "Text" RequireSiteAdministrator = "TRUE" | "FALSE" Rights = "Text" Sequence = "Integer" ShowInLists = "TRUE" | "FALSE" ShowInReadOnlyContentTypes = "TRUE" | "FALSE" ShowInSealedContentTypes = "TRUE" | "FALSE" Title = "Text"> <URLAction URL=“” /> <CommandUI></CommandUI> </CustomAction>

  14. (CustomAction) Anatomy 101 • Id (optional) • Specifies a unique identifier for custom action • May be a GUID or a unique term • Example: DeleteWeb • GroupID(optional) • Identifies the unique group that this element is contained in • Example: SiteTasks

  15. (CustomAction) Anatomy 101 • Location (optional) • Specifies the location for this custom action • Example: Microsoft.SharePoint.SiteSettings • RegistrationType(optional) • Specifies the list, item content type, file type, or programmatic identifier that this action is associated with • Example: List

  16. (CustomAction) Anatomy 101 • RegistrationId(optional) • Specifies the registration attachment for a per-item action • Example (List Identifier – Task List): 107 • {$ListId:Lists/Tasks;} • (http://snipurl.com/ntd5g) • Title (required) • Specifies the name of your action • Example: DeleteWeb

  17. (CustomAction) Anatomy 101 • Description (optional) • Longer description for action which is shown as a tooltip or sub-description (where applicable) for the action • Sequence (optional) • The order in which your action will appear. • If not specified, displayed in the order it is read by SharePoint by Feature and by order in element listing (XML).

  18. Urlaction tokens • {ListId} • GUID representation of the list • {SiteUrl} • References the URL of the SPWeb context the action is called from • {RecurrenceId} • Unsupported in context menus • http://go.gvaro.net/bHaqaQ gvarosky@jornata.com | @gvaro | www.sharepointyankee.com | www.jornata.com | @JornataLLC

  19. resources • Custom Actions Articles on my blog • Creating Custom Actions with SharePoint Designer • Default List Type IDs • Deploying Custom Actions Across All List Types • Custom Actions in SharePoint 2007 • SPBasePermissions Enumeration (Rights) • And more! • http://go.gvaro.net/dZS9NJ gvarosky@jornata.com | @gvaro | www.sharepointyankee.com | www.jornata.com | @JornataLLC

  20. resources • MSDN • Custom Action Definition Schema • CommandUIDefintions, Extensions, Handlers • CustomAction, CustomActionGroup, HideCustomAction • Default Locations and IDs • http://go.gvaro.net/9q0QV2 • Eric Kraus • Listing all Custom Actions in the Farm with PowerShell • http://go.gvaro.net/bD7OHm gvarosky@jornata.com | @gvaro | www.sharepointyankee.com | www.jornata.com | @JornataLLC

  21. resources • WictorWilén • Creating Custom Ribbon Extensions • Part 1 - http://go.gvaro.net/aFUwBW • Part 2 - http://go.gvaro.net/aGlydC • Using JavaScript + Custom Actions to navigate Document Libraries • http://go.gvaro.net/h2w8mN gvarosky@jornata.com | @gvaro | www.sharepointyankee.com | www.jornata.com | @JornataLLC

  22. Questions? gvarosky@jornata.com | @gvaro | www.sharepointyankee.com | www.jornata.com | @JornataLLC

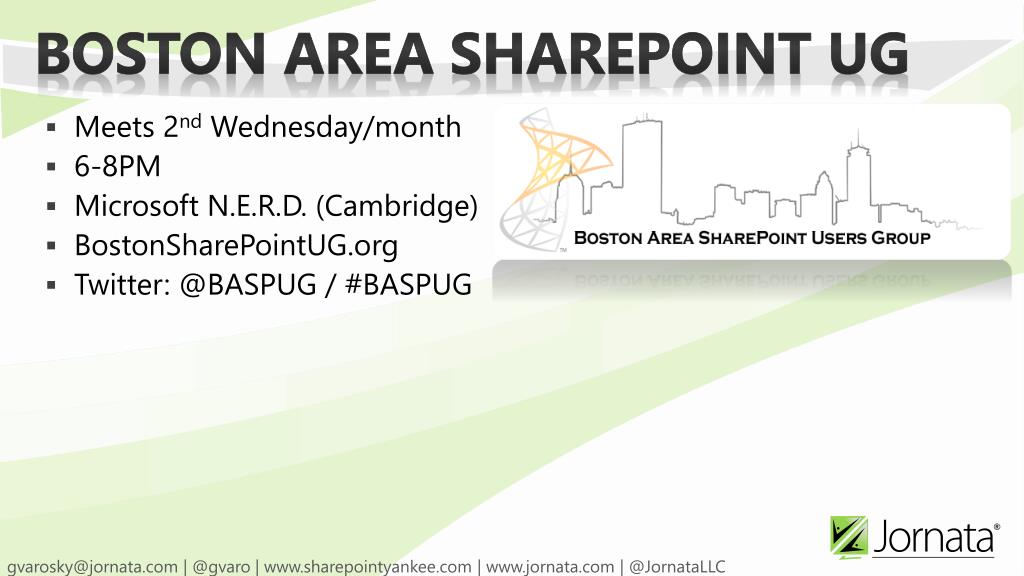

  23. Boston area sharepointug • Meets 2nd Wednesday/month • 6-8PM • Microsoft N.E.R.D. (Cambridge) • BostonSharePointUG.org • Twitter: @BASPUG / #BASPUG gvarosky@jornata.com | @gvaro | www.sharepointyankee.com | www.jornata.com | @JornataLLC

  24. Questions? gvarosky@jornata.com | @gvaro | www.sharepointyankee.com | www.jornata.com | @JornataLLC

  25. About me • Geoff Varosky • Jornata • Managing Consultant, Senior Architect, Senior Developer, Director of Evangelism • Co-Founder Boston Area SharePoint Users Group • Co-Organizer SharePoint Saturday Boston • Blog – www.SharePointYankee.com • Email – geoff@varosky.com • Twitter – @gvaro • LinkedIn & Facebook gvarosky@jornata.com | @gvaro | www.sharepointyankee.com | www.jornata.com | @JornataLLC
