Potential and Kinetic Energy. Energy: is the ability to do work. Kinetic Energy = the energy an object possesses because of its motion. The amount of Kinetic energy is dependent on the mass of the object in motion and it’s velocity. VELOCITY. Velocity = distance ÷ time Distance = meters

Download Presentation
## Potential and Kinetic Energy

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

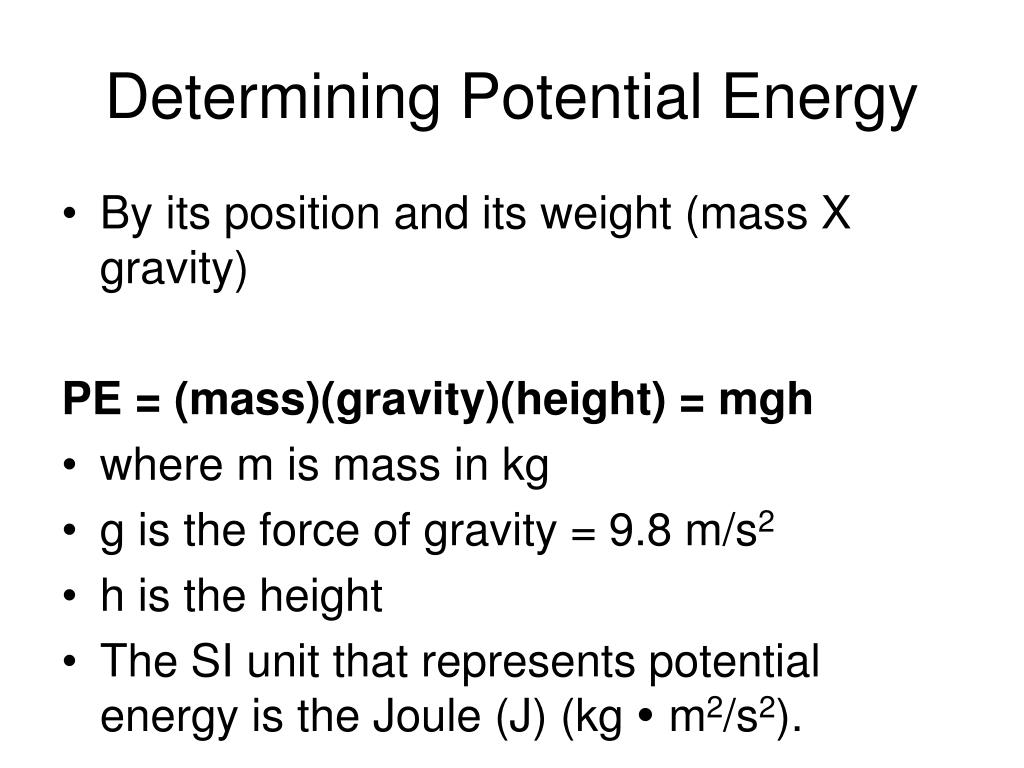

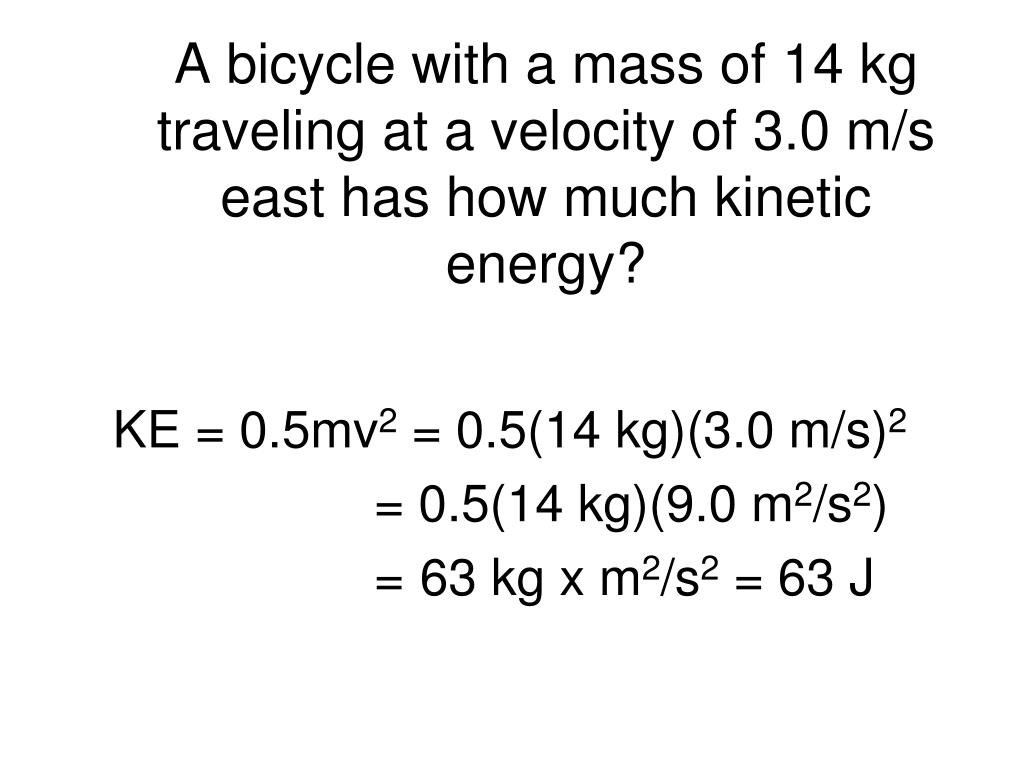

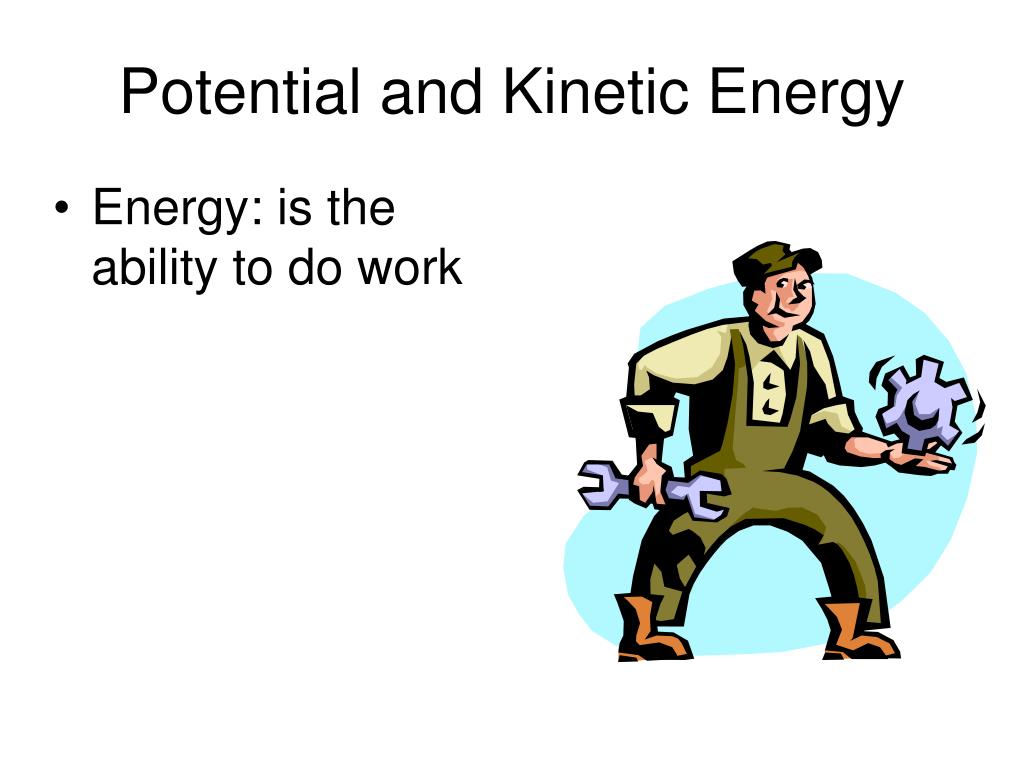

**Potential and Kinetic Energy**• Energy: is the ability to do work**Kinetic Energy= the energy an object possesses because of**its motion • The amount of Kinetic energy is dependent on the mass of the object in motion and it’s velocity.**VELOCITY**Velocity = distance ÷ time Distance = meters Time = seconds**Calculating kinetic energy**If we know the mass of an object and its velocity we can determine the amount of kinetic energy possessed by using the following formula: kinetic energy = 1/2 (mass of object)(velocity of object)2 or KE = 1/2 mv2 or KE = 0.5mv2 The SI unit for kinetic energy is the Joule (J). A Joule is kg m2/s2**A bicycle with a mass of 14 kg traveling at a velocity of**3.0 m/s east has how much kinetic energy? KE = 0.5mv2 = 0.5(14 kg)(3.0 m/s)2 = 0.5(14 kg)(9.0 m2/s2) = 63 kg x m2/s2 = 63 J**A 1200 kg automobile is traveling at a velocity of 100 m/s**northwest. What is the kinetic energy of the automobile? KE = 0.5 mv2 = 0.5(1200kg)(100 m/s)2 = 0.5(1200 kg)(104 m2/s2) = 6 x 106 kg m2/s2 = 6 x 106 J**Potential Energy**• The energy of position • The amount of energy contained in an object at rest**Determining Potential Energy**• By its position and its weight (mass X gravity) PE = (mass)(gravity)(height) = mgh • where m is mass in kg • g is the force of gravity = 9.8 m/s2 • h is the height • The SI unit that represents potential energy is the Joule (J) (kg m2/s2).**Examine an example of potential energy**A flower pot with a mass of 15 kg is sitting on a window sill 15 meters above the ground. How much potential energy does the flower pot contain? • PE = (mass)(gravity)(height) • = (15 kg)(9.8 m/s2)(15 m) • = 2205 kg m2/s2 • = 2205 J • = 2.2 x 103J**Examine an example of potential energy**• If the flower pot is lowered to a window sill that is 10. m from the ground. Does this change the potential energy of the flower pot? PE = (mass)(gravity)(height) = (15 kg)(9.8 m/s2)(10. m) = 1470 kg m2/ = 1470 J = 1.5 x 103J**Potential or Kinetic Energy?**• Moving car • Tree branch • Bent car fender • Balloon filled with air • Balloon squirting around room • Person inside a moving car**What type of energy does the space shuttle have at lift off?****Conversion of Potential to Kinetic Energy**• In this picture both kinds of energy are evident. Can you point them out?**The water at the top has potential energy**• When water falls to a lower level, the potential energy is converted to kinetic energy.
