Presentation Transcript
Ab an binary vs water pressure l.jpg
Ab-An Binary vs. Water Pressure

Johannes, 1978; Morse, 1980


Hypersolvus vs subsolvus granites l.jpg
Hypersolvus vs. Subsolvus Granites

Yoder et al., 1957; Morse, 1970


An ab kfsp ternary flattened l.jpg

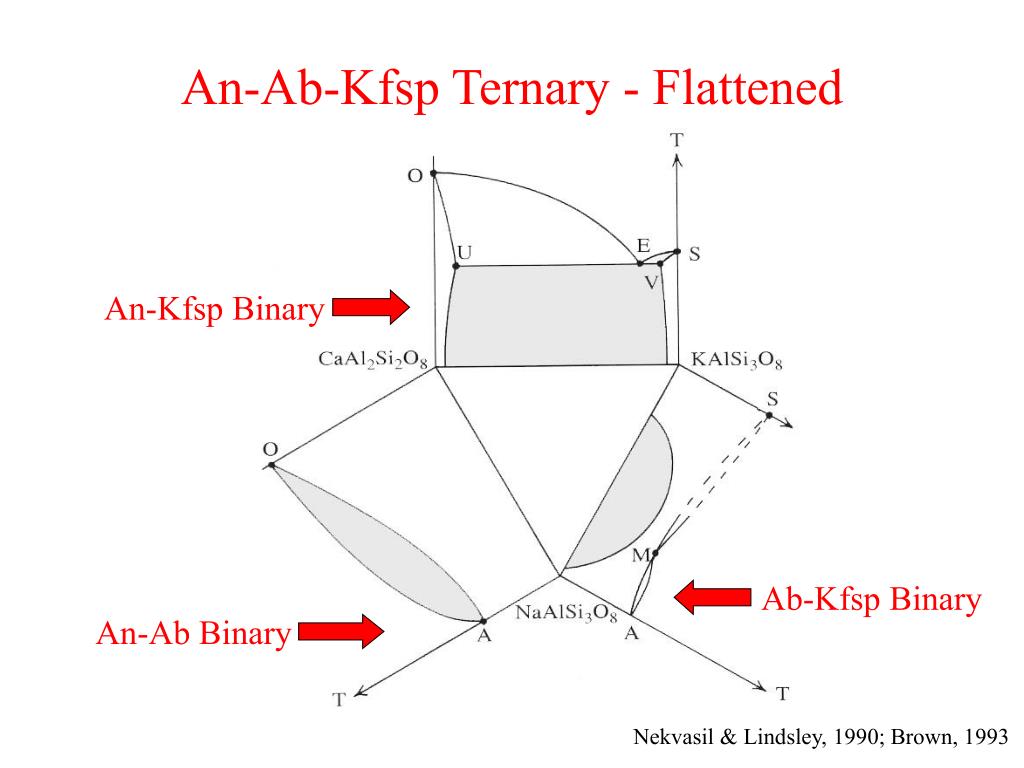

An-Ab-Kfsp Ternary - Flattened

An-Kfsp Binary

Ab-Kfsp Binary

An-Ab Binary

Nekvasil & Lindsley, 1990; Brown, 1993


Intersection of liquidus surfaces l.jpg
Intersection of Liquidus Surfaces

Temperature falls

from E toward M

in Thermal Valley


Slide5 l.jpg

An-Ab-Kfsp Perspective

Solvus or Miscibility Gap


Feldspar tielines l.jpg

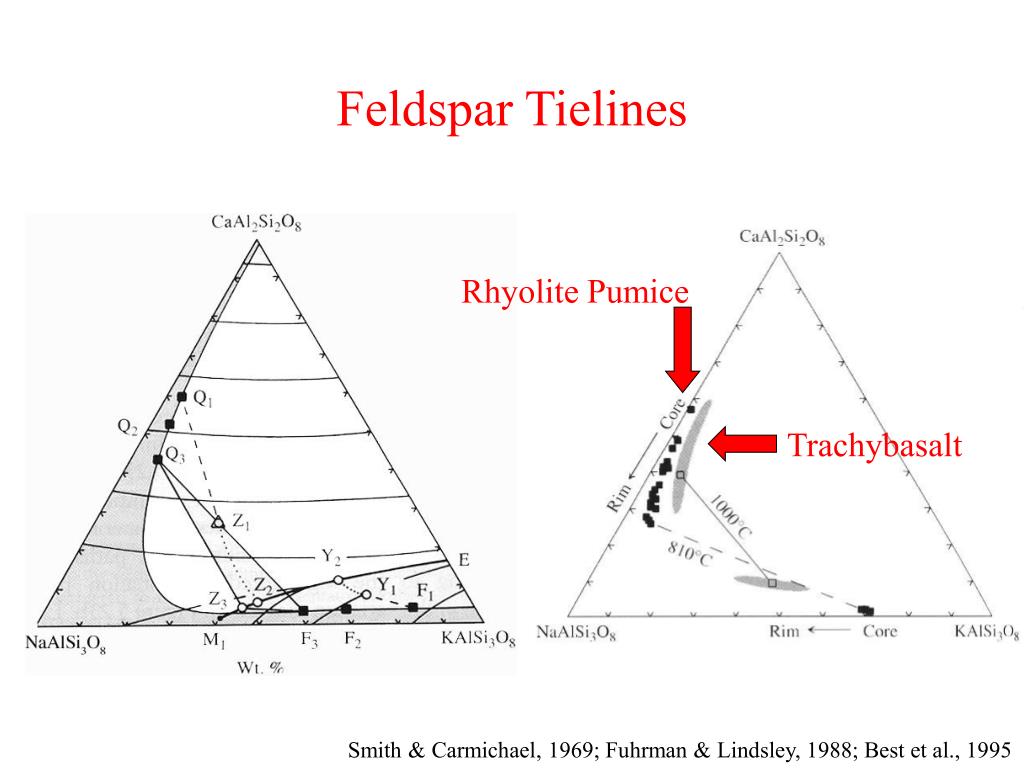

Feldspar Tielines

Rhyolite Pumice

Trachybasalt

Smith & Carmichael, 1969; Fuhrman & Lindsley, 1988; Best et al., 1995





Origin of granitoids l.jpg

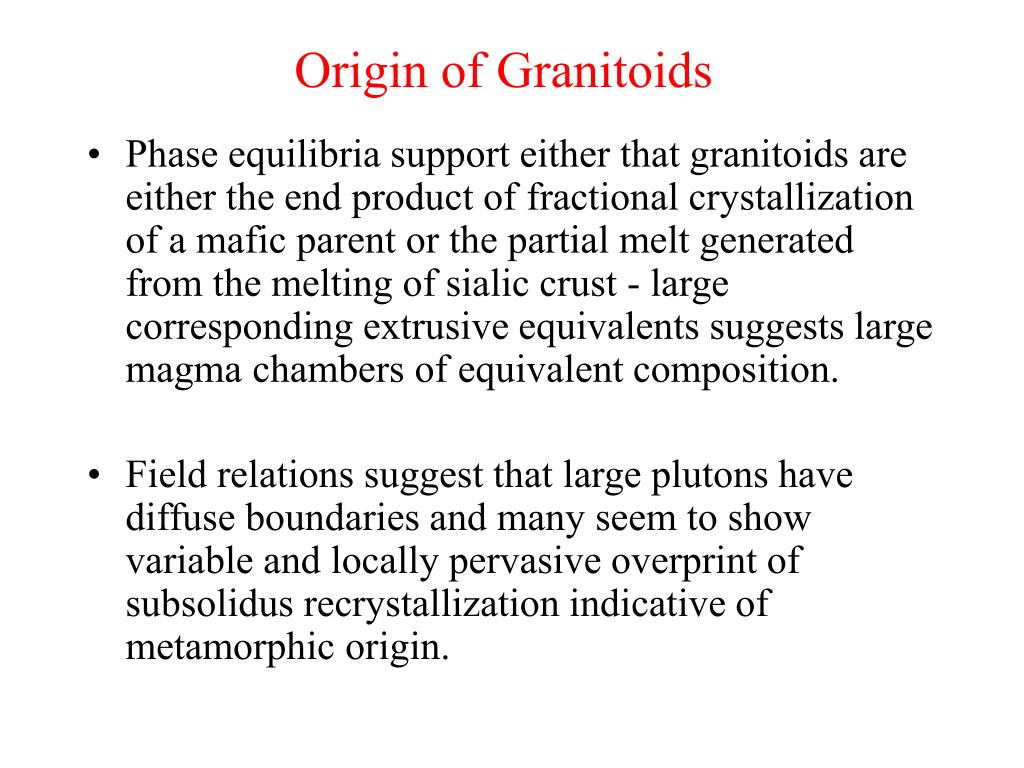

Origin of Granitoids

  • Phase equilibria support either that granitoids are either the end product of fractional crystallization of a mafic parent or the partial melt generated from the melting of sialic crust - large corresponding extrusive equivalents suggests large magma chambers of equivalent composition.

  • Field relations suggest that large plutons have diffuse boundaries and many seem to show variable and locally pervasive overprint of subsolidus recrystallization indicative of metamorphic origin.


Granitic system liquid line of descent l.jpg
Granitic System Liquid Line of Descent

Initial Bulk Composition




Thermal stability of volatile minerals l.jpg
Thermal Stability of Volatile Minerals

thermal energy + volatile-rich

mineral = volatile-free or

volatile-poor mineral(s) +

volatile fluid


Assessing states of equilibrium l.jpg

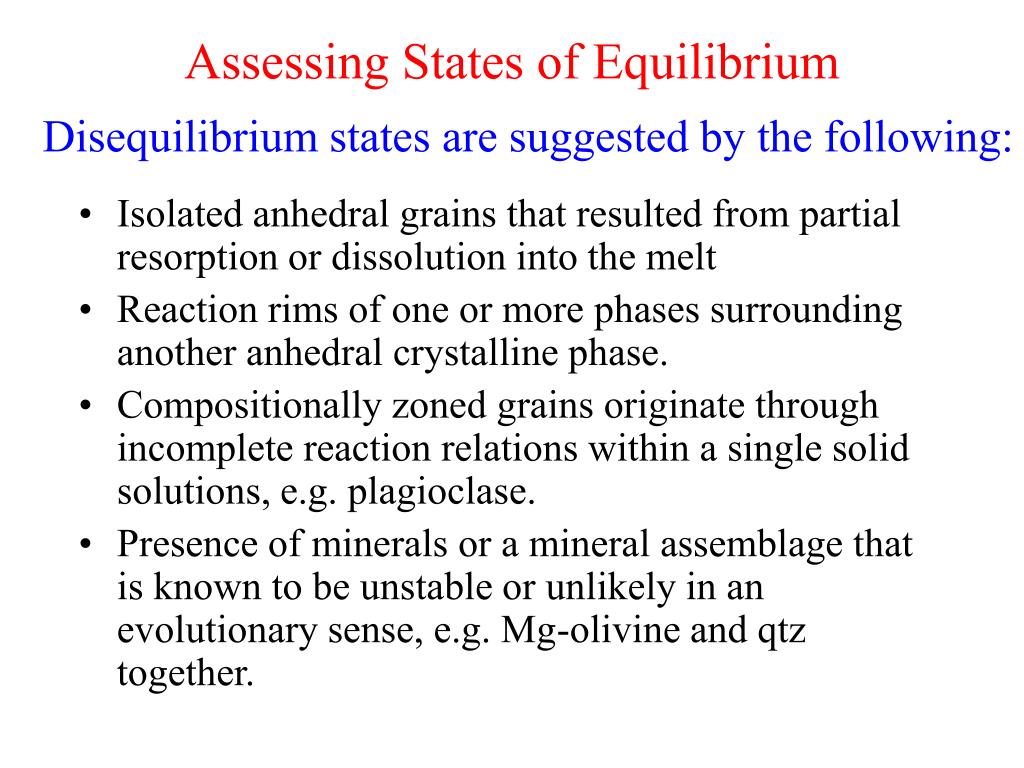

Assessing States of Equilibrium

Disequilibrium states are suggested by the following:

  • Isolated anhedral grains that resulted from partial resorption or dissolution into the melt

  • Reaction rims of one or more phases surrounding another anhedral crystalline phase.

  • Compositionally zoned grains originate through incomplete reaction relations within a single solid solutions, e.g. plagioclase.

  • Presence of minerals or a mineral assemblage that is known to be unstable or unlikely in an evolutionary sense, e.g. Mg-olivine and qtz together.
