the influence of solar variability on the atmosphere and ocean dynamics

The Influence of Solar Variability on the Atmosphere and Ocean Dynamics

Speaker:Pei-Yu Chueh

Adviser:Yu-Heng Tseng

Date:2010/09/16

observation solar variability
Observation-Solar variability

The amplitude of the solar cycle is relatively small, about 0.2 Wm−2 globally averaged (Lean 2005), and the observed global SST response of about 0.1°C would require more than 0.5 Wm−2 (White 1998), there has always been a question regarding how this small solar signal could be amplified to produce a measurable response.

observation solar signals
Observation-Solar signals
  • Atmosphere
  • Ocean

bathythermograph

[van Loon et al., 2000]

[White et al., 1997]

review the influence of solar forcing
Review-The influence of solar forcing
  • Small-amplitude variations in solar radiation that occur during the approximately 11-yr solar cycle [the decadal solar oscillation (DSO)] may produce significant responses in the troposphere and ocean. Specifically for the Indo-Pacific region.
    • [Haigh 1996, 2001, 2003; Lean and Rind 2001; Rind 2002; Lean et al. 2005; van Loon and Labitzke 1998; van Loon and Shea 1999, 2000; Gleisner and Thejll 2003; van Loon et al. 2004; Crooks and Gray 2005; Wang et al. 2005; Bhattacharyya and Narasimha 2005; Lim et al. 2006; White et al. 1997, 1998; Bond et al. 2001; Weng 2005]
review the influence of solar forcing1

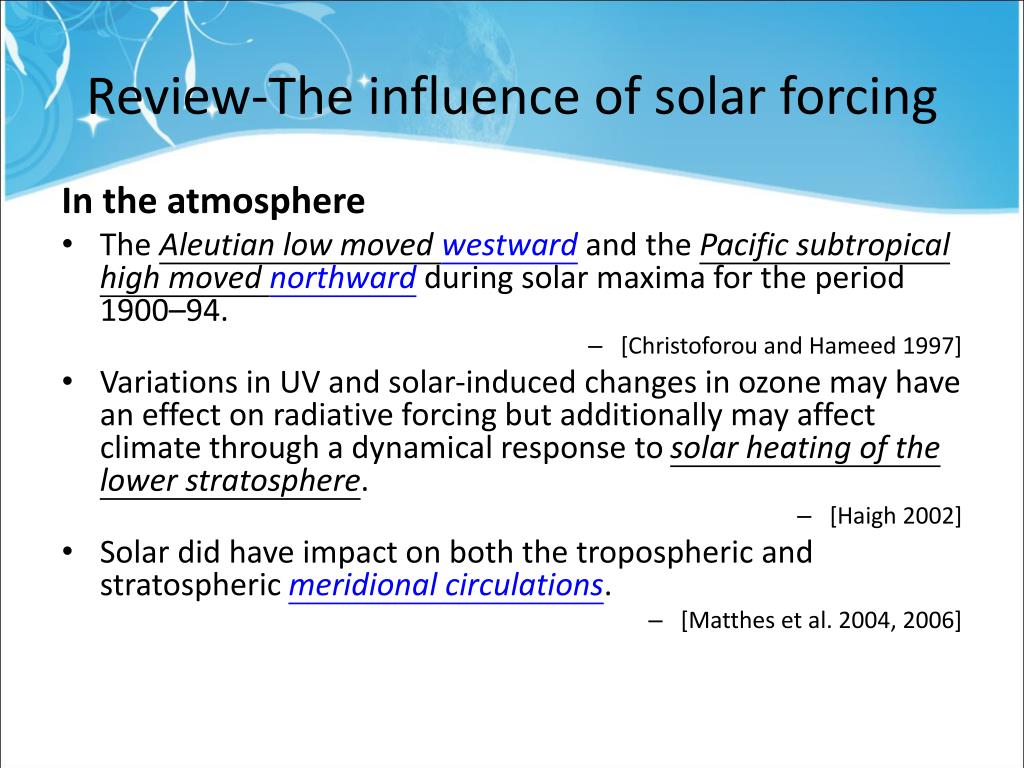

Review-The influence of solar forcing

In the atmosphere

  • The Aleutian low moved westward and the Pacific subtropical high moved northwardduring solar maxima for the period 1900–94.
    • [Christoforou and Hameed 1997]
  • Variations in UV and solar-induced changes in ozone may have an effect on radiative forcing but additionally may affect climate through a dynamical response to solar heating of the lower stratosphere.
    • [Haigh 2002]
  • Solar did have impact on both the tropospheric and stratospheric meridional circulations.
    • [Matthes et al. 2004, 2006]
review the influence of solar forcing2

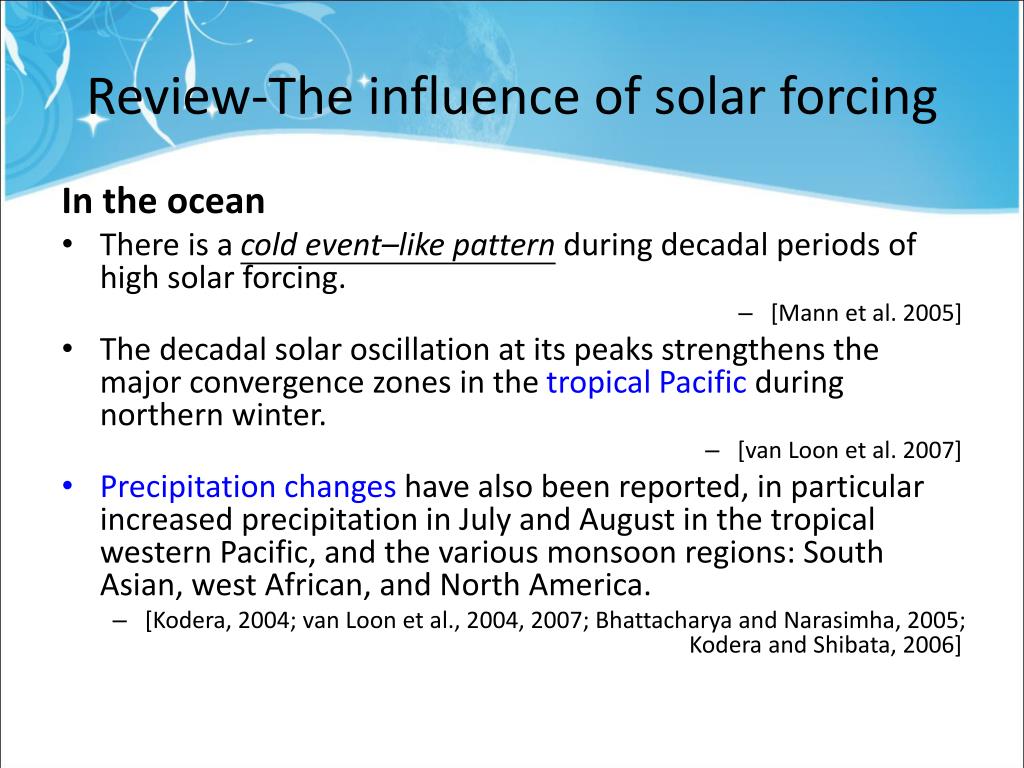

Review-The influence of solar forcing

In the ocean

  • There is a cold event–like pattern during decadal periods of high solar forcing.
    • [Mann et al. 2005]
  • The decadal solar oscillation at its peaks strengthens the major convergence zones in the tropical Pacific during northern winter.
    • [van Loon et al. 2007]
  • Precipitation changes have also been reported, in particular increased precipitation in July and August in the tropical western Pacific, and the various monsoon regions: South Asian, west African, and North America.
    • [Kodera, 2004; van Loon et al., 2004, 2007; Bhattacharya and Narasimha, 2005; Kodera and Shibata, 2006]
review model
Review-Model
  • Cubasch et al . (1997) suggested a possible solar contribution to the mid-20th century warming and a solar contribution of 40% of the observed global warming over the last 30 years.
  • Stott et al .(2002), suggests that the GCM simulations may underestimate solar influence by up to a factor of three. One potential factor is the spectral composition of the solar irradiance variations and the resultant modulation of stratospheric ozone (Haigh 1994).
  • Models in general are unable to simulate the necessary stratospheric ozone response, as they produce maximum ozone change in the mid stratosphere, instead of in the upper and lower stratosphere as observed.
    • [e.g., Shindell et al., 1999; Tourpali et al., 2003; Egorova et al., 2004; Sekiyama et al., 2006]
review model1
Review-Model
  • Haigh (1999) use a general-circulation model (GCM) to investigate the impact of the 11-year solar-activity cycle on the climate of the lower atmosphere.
  • Solar forcing is represented by changes in both incident irradiance and stratospheric ozone concentrations.
  • The GCM results suggest that the precise response of the atmosphere depends on the magnitude and distribution of the ozone changes.
  • As the latitude-height structure of solar-induced ozone changes over the 11-year cycle are not yet well established, the general circulation models are able to produce some of the observed patterns of response to solar activity but generally underestimate the magnitude. [Haigh 2002]
review model2
Review-Model
  • Lee(2009) use the Goddard Institute for Space Studies (GISS) Model to investigate tropical circulation.
    • The model includes fully interactive atmospheric chemistry.
    • The model experiments conditions: a doubly amplified solar forcing and the present-day and preindustrial greenhouse gases and aerosol conditions, with the mixed layer or fully coupled dynamic ocean model.
  • With present-day greenhouse gas and aerosol conditions, theascending branch of the Hadley cell is enhanced near the equator, and the ITCZ is shifted northward in response to solar forcing during the boreal winter.
  • Enhancement of the meridionally averaged vertical velocity over the western Pacific indicates strengthening of the Walker circulation in response to solar forcing in both solstice seasons.
review mechanism

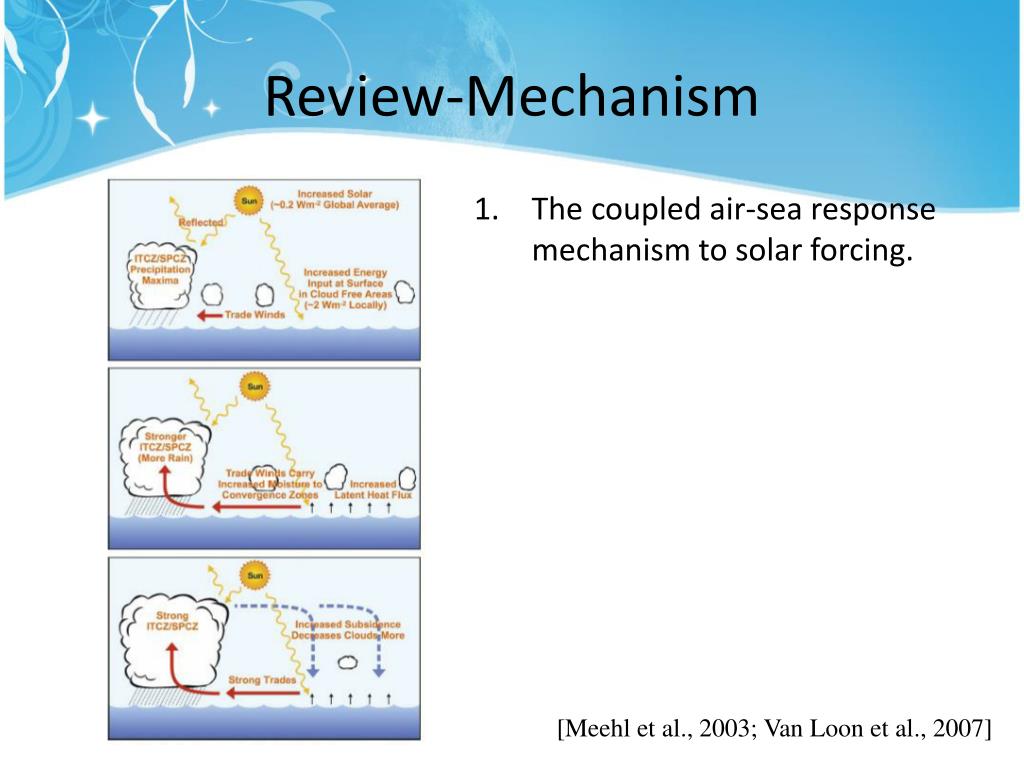

Review-Mechanism
  • The coupled air-sea response mechanism to solar forcing.

[Meehl et al., 2003; Van Loon et al., 2007]

review mechanism1

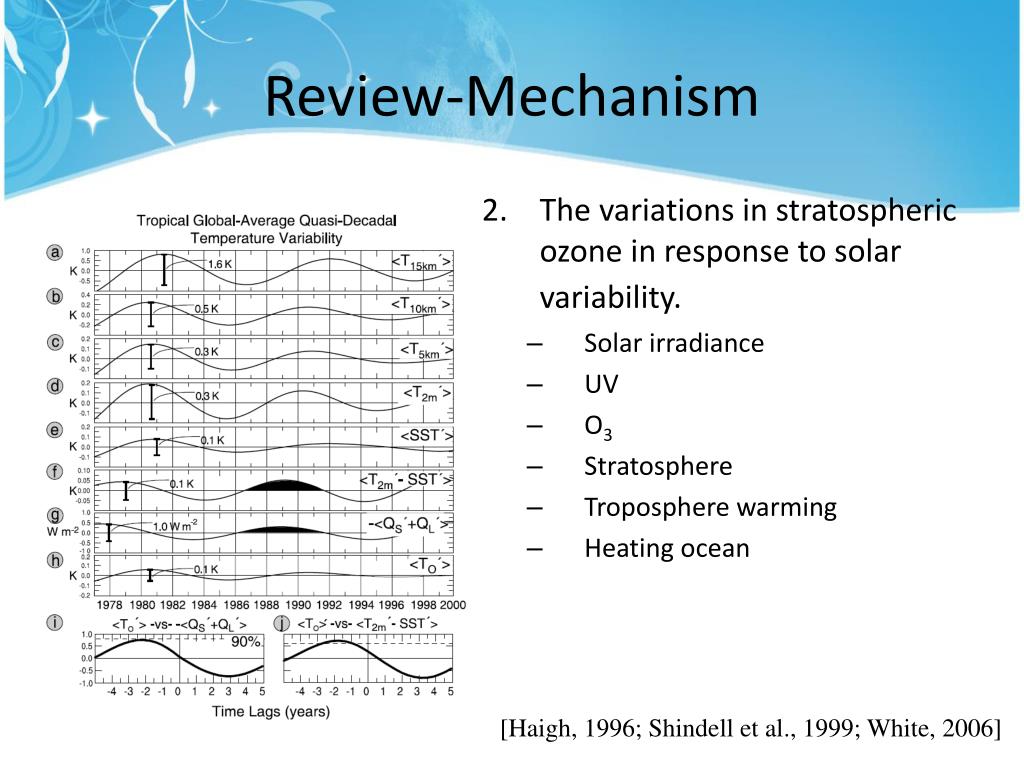

Review-Mechanism
  • The variations in stratospheric ozone in response to solar variability.
    • Solar irradiance
    • UV
    • O3
    • Stratosphere
    • Troposphere warming
    • Heating ocean

[Haigh, 1996; Shindell et al., 1999; White, 2006]
