a probabilistic pointer analysis for speculative optimizations

Electrical and Computer Engineering

University of Toronto

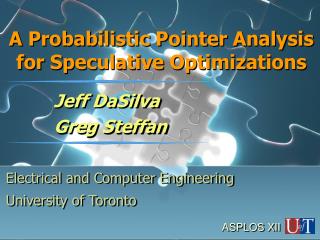

A Probabilistic Pointer Analysis for Speculative Optimizations

Jeff DaSilva

Greg Steffan

ASPLOS XII

pointers impede optimization

foo(int *a) {

while(…)

{

x = *a;

}

}

Pointers Impede Optimization

Loop Invariant

Code Motion

Parallelize

Can pointer analysis help?

ASPLOS XII

slide3

optimize

Definitely

Pointer

Analysis

Definitely Not

Maybe

*a = ~

~ = *b

How can we optimize cases?

Maybe

Pointer Analysis

  • Do pointers a and b point to the same location?
    • Repeat for every pair of pointers at every program point

*a = ~

~ = *b

ASPLOS XII

lets speculate

int *a, x;

while(…)

{

x = *a;

}

int *a, x, tmp;

tmp = *a;

while(…)

{

x = tmp;

}

<verify, recover?>

a is probably

loop invariant

Lets Speculate
  • Implement a potentially unsafe optimization
    • Verify and Recover if necessary

ASPLOS XII

data speculative optimizations
Data Speculative Optimizations
  • EPIC Instruction sets
    • Support for speculative load/store instructions (eg. Itanium)
  • Speculative compiler optimizations
    • Dead store elimination, redundancy elimination, copy propagation, strength reduction, register promotion
  • Thread-level speculation (TLS)
    • Hardware and compiler support for speculative parallel threads
  • Transactional programming
    • Hardware and software support for speculative parallel transactions

Heavy reliance on detailed profile feedback

ASPLOS XII

can we quantify

Maybe

Recovery

penalty

(if unsuccessful)

Overhead

for verify

Probability

of success

Expected

speedup

(if successful)

Speculate?

Ideally would be a probability

Maybe

Can We Quantify ?

Maybe

  • Estimate the potential benefit for speculating:

ASPLOS XII

slide7

optimize

optimize

p = 1.0

Definitely

Pointer

Analysis

PPA

p = 0.0

Definitely Not

0.0 < p < 1.0

Maybe

*a = ~

~ = *b

Probabilistic Pointer Analysis (PPA)

Conventional Pointer Analysis

  • Do pointers a and b point to the same location?
    • Do this for every pair of pointers at every program point

*a = ~

~ = *b

  • With what probability p, do pointers a and b point to the same location?
    • Repeat for every pair of pointers at every program point

Potential bonus: PPA doesn’t have to be safe

ASPLOS XII

ppa research objectives
PPA Research Objectives
  • Accurate points-to probability information
    • at every static pointer dereference
  • Scalable analysis
    • Goal: entire SPEC integer benchmark suite
  • Understand scalability/accuracytradeoff
    • through flexible static memory model

Improve our understanding of programs

ASPLOS XII

related work
Related Work

ASPLOS XII

algorithm design choices
Algorithm Design Choices
  • Fixed
    • Bottom Up / Top Down Approach
    • Linear transfer functions (for scalability)
    • One-level context and flow sensitive
  • Flexible
    • Edge profiling (or static prediction)
    • Safe (or unsafe)
    • Field sensitive (or field insensitive)

ASPLOS XII

traditional points to graph

int x, y, z, *b = &x;

void foo(int *a) {

if(…)

b = &y;

if(…)

a = &z;

else(…)

a = b;

while(…) {

x = *a;

}

}

=

Definitely

= pointer

=

= pointed at

Maybe

Traditional Points-To Graph

b

a

x

y

z

UND

Results are inconclusive

ASPLOS XII

probabilistic points to graph

int x, y, z, *b = &x;

void foo(int *a) {

if(…)

b = &y;

if(…)

a = &z;

else

a = b;

while(…) {

x = *a;

}

}

=

p = 1.0

= pointer

p

=

= pointed at

0.0<p< 1.0

Probabilistic Points-To Graph

0.1 taken(edge profile)

b

a

0.2 taken(edge profile)

0.72

0.9

0.1

0.2

0.08

x

y

z

UND

Results provide more information

ASPLOS XII

slide13

Linear

One -

Level

Interprocedural

Probabilistic

Pointer Analysis

LOLLIPOPOur PPA Algorithm

ASPLOS XII

fundamentals
Fundamentals
  • Location sets (Wilson & Lam)
    • One or more mem locations
    • Classified as pointer, pointer target, or both
  • Matrix-based approach
    • Nice properties, optimized implementations
  • Two key matrices:
    • Points-to matrix
    • Linear transformation matrix

ASPLOS XII

points to matrix
Points-To Matrix

Location Sets

M-1 M

Area

Of

Interest

1

2

Pointer Sets

N-1

N

I

Location Sets

All matrix rows sum to 1.0

ASPLOS XII

points to matrix example

x

y

z

UND

a

b

a

b

0.72

0.9

0.1

0.2

x

0.08

y

x

y

z

UND

z

UND

Points-To Matrix Example

0.72 0.08 0.20

0.90 0.10

1.0

1.0

1.0

1.0

I

ASPLOS XII

computing new points to matrices

I

I

Computing New Points-To Matrices

Points-To

Matrix In

Any Instruction

Points-To

Matrix Out

ASPLOS XII

the fundamental ppa equation
The Fundamental PPA Equation

Transformation

Matrix

Points-To

Matrix In

Points-To

Matrix Out

=

This can be applied to any instruction(incl. function calls)

ASPLOS XII

transformation matrix
Transformation Matrix

Location Sets

Pointer Sets

1 2 3 …

N-1 N

1

2

Area of Interest

Pointer Sets

ø

I

Location Sets

N-1

N

All matrix rows sum to 1.0

ASPLOS XII

transformation matrix example

a

b

x

y

z

UND

Transformation Matrix Example

a

b

x

y

z

UND

S1:a = &z;

1.0

1.0

TS1

1.0

1.0

1.0

1.0

=

ASPLOS XII

example the ppa equation

PTout

TS1

PTin

=

x

y

z

UND

a

1.0

1.0

0.72 0.08 0.20

0.90 0.10

b

a

b

0.72

0.9

0.1

0.2

x

1.0

1.0

1.0

1.0

1.0

1.0

1.0

1.0

0.08

y

x

y

z

UND

z

UND

Example - The PPA Equation

S1:a = &z;

PTout

=

ASPLOS XII

example the ppa equation1

PTout

TS1

PTin

=

x

y

z

UND

a

b

b

a

0.9

0.1

x

y

x

y

z

UND

z

UND

Example - The PPA Equation

S1:a = &z;

1.0

0.90 0.10

PTout

=

1.0

1.0

1.0

1.0

I

ASPLOS XII

combining transformation matrices

Basic Block

S1: Instr

S2: Instr

S3: Instr

I

I

Combining Transformation Matrices

PTout

TS2

TS3

TS1

PTin

PTin

TS1

PTin

=

PTout

TBB

PTin

=

ASPLOS XII

control flow if else
Control flow - if/else

p + q = 1.0

X

Y

p

p

q

q

TX

TY

+

=

ASPLOS XII

control flow loops

N

<L,U>

X

Y

i

1

TY

=

U-L+1

Control flow - loops

N

TX

=

Both operations can be implemented efficiently

<L,U>  <min,max>

ASPLOS XII

safe vs unsafe pointer assignment instructions





Safe vs. Unsafe Pointer Assignment Instructions

Safe?

Shadow/invisible vars: non-linear to handle

ASPLOS XII

safety for shadow variables

Steensgaard

FICI PA for

shadow vars

p

p

Safe

q

p_1

p_1

q

+

=

p_1

q

p_1 and q are considered aliased

Safety for Shadow Variables

Unsafe

q

q

= pointer

= shadow ptr

= pointed at

ASPLOS XII

lol l ip o p implementation
LOLLIPOP Implementation

.spd

SUIF Infrastructure

Static

Memory

Model

TF-Matrix

Collector

Points-To

Matrix

Propagator

ICFG

SMM

BU

TD

Edge

Profile

.spx

  • Implementation details:
  • Sparse matrices
  • Efficient matrix algorithms
  • Result memoization

Results

Stats

MATLAB

C Library

ASPLOS XII

slide29

Measuring

LOLLIPOP’s

Efficiency and Accuracy

ASPLOS XII

spec2000 benchmark data
SPEC2000 Benchmark Data

Experimental Framework: 3GHz P4 with 1GB of RAM

Scales to all of SPECint

ASPLOS XII

spec2000 benchmark data1

Reduced

Input Set

SPEC2000 Benchmark Data

Experimental Framework: 3GHz P4 with 1GB of RAM

More efficient than points-to profiling

ASPLOS XII

easy spec2000 benchmarks

Average Dereference Size

more accurate

Easy SPEC2000 Benchmarks

A one-level Analysis is often adequate (i.e. safe~=unsafe)

ASPLOS XII

challenging spec 95 2000 benchmarks

Average Dereference Size

more accurate

Challenging SPEC 95/2000 Benchmarks

Many improbable points-to relations can be pruned away

ASPLOS XII

metric average max certainty

while(…)

{

x = *a;

}

{ (0.72, ), (0.08, ), (0.2, ) }

x

y

z

Σ

(max probability value)

=

Avg Certainty

(num of loads & stores)

Metric: Average Max Certainty

Max probability value = 0.72

ASPLOS XII

spec2000 average certainty

Probabilistic Certainty

more accurate

SPEC2000 Average Certainty

On average, LOLLIPOP can predict a single likely points-to relation

ASPLOS XII

metric naed

while(…)

{

x = *a;

}

{ (0.72, ), (0.08, ), (0.2, ) }

{ (0.88, ), (0.02, ), (0.1, ) }

x

x

y

y

z

z

Pd

Ps

Σ

║Ps – Pd ║

1

=

NAED

√2

(num of loads & stores)

Metric: NAED
  • Normalized Average Euclidean Distance

LOLIPoP’s Static prediction

Pts-to Profiler’s Dynamic freq vector

ASPLOS XII

summary
Summary
  • A novel matrix-based PPA algorithm
  • Scales to the SPECint 95/2000 benchmarks
    • One level context and flow sensitive
  • Future Work
    • Applying LOLLIPOP to TLS/TM
    • Further optimize LOLLIPOP’s implementation

ASPLOS XII

references
References
  • Manuvir Das, Ben Liblit, Manuel Fahndrich, and Jakob Rehof. Estimating the Impact of Scalable Pointer Analysis on Optimization. SAS 2001, 260-278.
  • Peng-Sheng Chen, Ming-Yu Hung, Yuan-Shin Hwang, Roy Dz-Ching Ju, and Jenq Kuen Lee. Compiler support for speculative multithreading architecture with probabilistic points-to analysis. PPOPP 2003, 25-36.
  • Jin Lin, Tong Chen, Wei-Chung Hsu, Peng-Chung Yew, Roy Dz-Ching Ju, Tin-Fook Ngai and Sun Chan, A Compiler Framework for Speculative Analysis and Optimizations. PLDI 2003, 289-299.
  • R.D. Ju, J. Collard, and K. Oukbir. Probabilistic Memory Disambiguation and its Application to Data Speculation. SIGARCH Comput. Archit. News 27 1999, 27-30.
  • Manel Fernandez and Roger Espasa. Speculative Alias Analysis for Executable Code. PACT 2002, 221-231.

ASPLOS XII
