  1. Water

  2. What is SmartMQn Water? SmartMQn Water is a packaged monitoring solution that uses sophisticated and easy to use preconfigured application software combined with advanced sensor technology. It provides advanced local data logging, an easy to use graphical interface and a variety of communication options.

  3. Why SmartMQn Water? • The need to Monitor Water Quality is a significant need… • To Maintain Product Quality • To Maintain Regulatory Compliance • As Part of Being a Green Manufacturer • SmartMQn Water offers a system which can… • Be implemented at far less cost than a custom engineered solution • Be Installed and Setup Relatively Quickly without extensive field calibration • Provides Local Datalogging for detailed history • Provides a variety of communications options – which are available but not required to get the system working

  4. Where to Use SmartMQn Water? Pulp and Paper Pharmaceutical Irrigation Semiconductor Surface Conditioning Plastics Industry Printing Refining Petrochemical Oil and Gas • Waste Water Processing • Water Treatment • Industrial Wastewater (Plant discharge) • Desalination • Food and Beverage • Facility Management of Pools and Spas • Chemical Processing • Power Generation

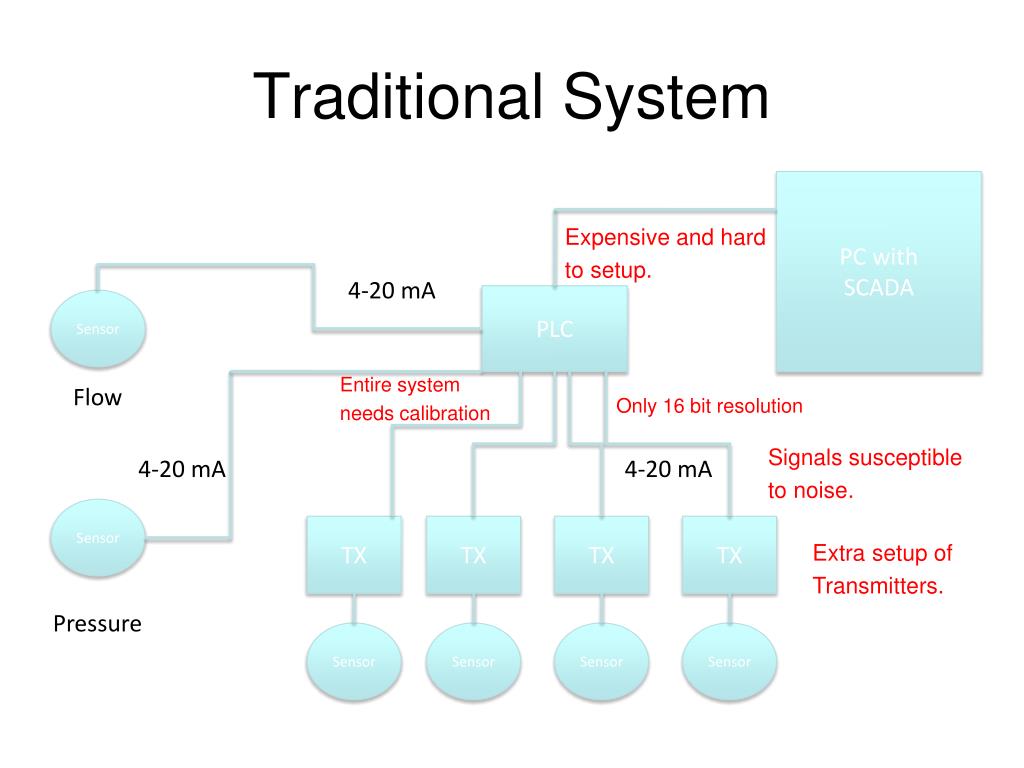

  5. Traditional System PC with SCADA Expensive and hard to setup. 4-20 mA PLC Sensor Entire system needs calibration Flow Only 16 bit resolution Signals susceptible to noise. 4-20 mA 4-20 mA Sensor TX TX TX TX Extra setup of Transmitters. Pressure Sensor Sensor Sensor Sensor

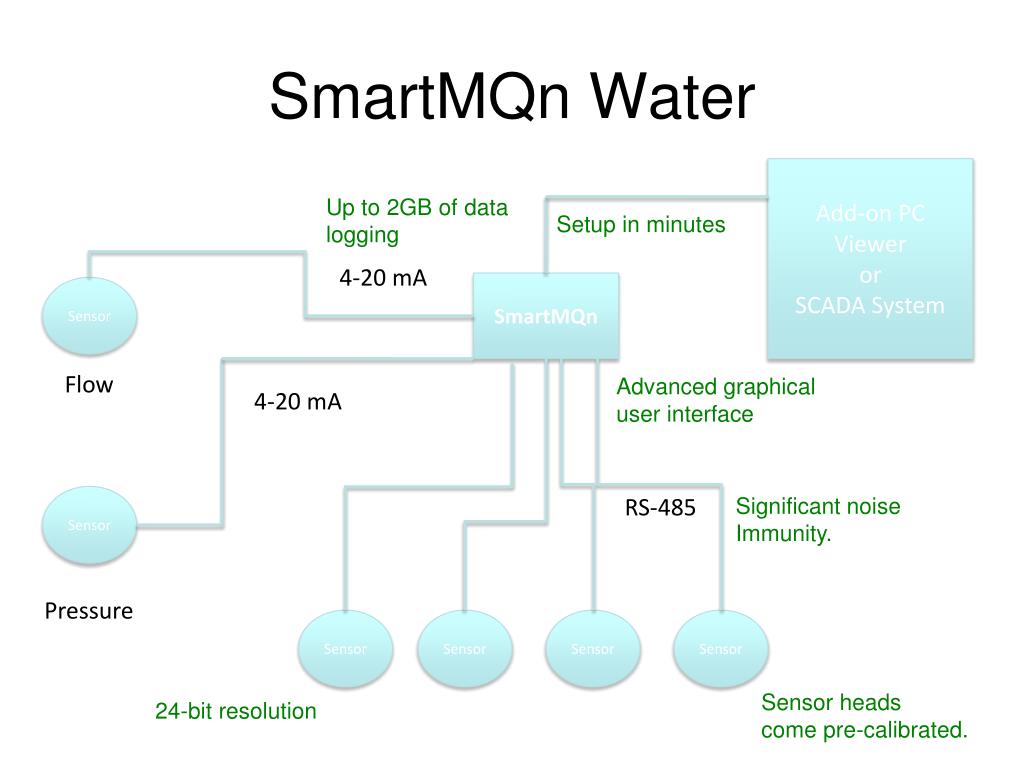

  6. SmartMQn Water Add-on PC Viewer or SCADA System Up to 2GB of data logging Setup in minutes 4-20 mA SmartMQn Sensor Flow Advanced graphical user interface 4-20 mA Sensor RS-485 Significant noise Immunity. Pressure Sensor Sensor Sensor Sensor Sensor heads come pre-calibrated. 24-bit resolution

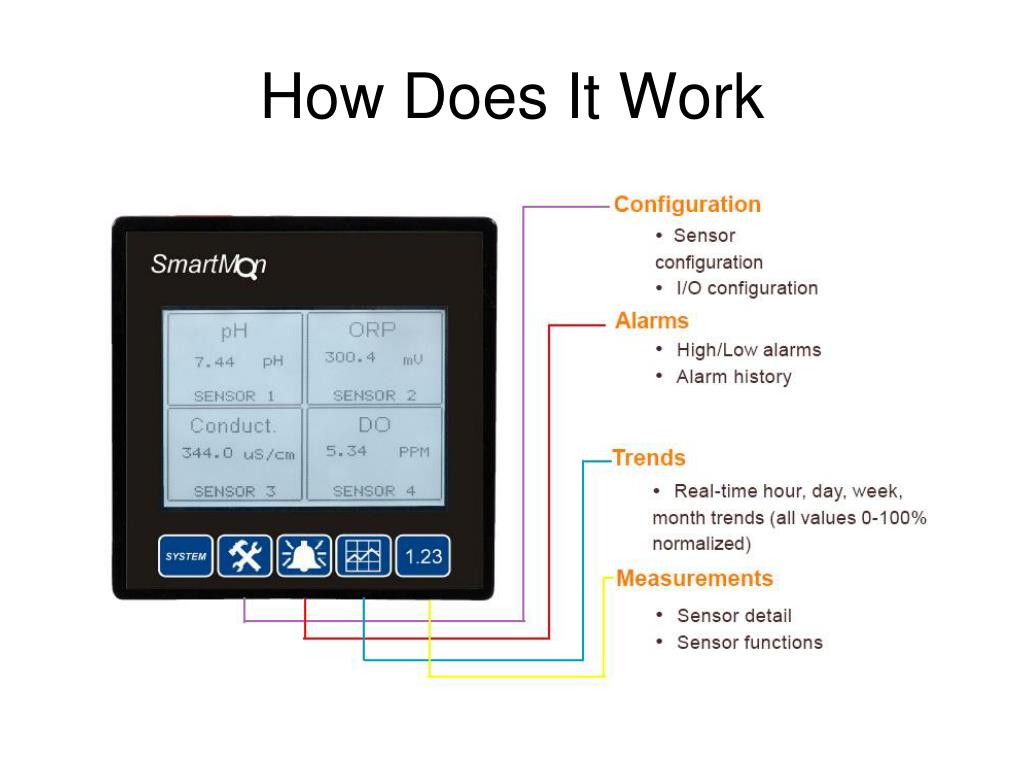

  7. How Does It Work Easy to use touch screen interface with buttons to quickly access commonly used functions The system can accept up to 4 sensors. There are two analog inputs that can be used for flow and/or pressure Six digital outputs for alarms Two analog outputs High / low alarms with timer hysteresis Data logging of alarms, events and values (up to 2GB), stored locally Trends display values with real-time, 1hour, 1 day, 1 week and 1 month resolutions

  8. How Does It Work

  9. How Does It WorkSample Screens

  10. Sensors • Sensors are available for: • pH • ORP • Conductivity • Resistivity • Toroidal Conductivity • Dissolved Oxygen • Chlorine • Ozone • Turbidity.

  11. Sensors AquaSensor From Thermo Fisher Scientific Integrated signal processor samples and processes 24-bit sensor data and transmits it over RS-485. Easily replaceable sensor head come factory calibrated.

  12. How Do I Order? • Select Component or Panel-mounted Version • Panel-mounted includes fiberglass enclosure, DC Power Supply, Circuit Breaker, Pre-wired Terminal Strip • Select Sensors (up to 4) • pH • ORP • Conductivity • Resistivity • Toroidal Conductivity • Dissolved Oxygen • Chlorine • Ozone • Turbidity
