software testing verification and validation
Software Testing: Verification and Validation
  • Verification“Are we building the product right?”
  • Validation “Are we building the right product?”

Barry Boehm, 1979

Ch.19 - Verification & Validation

verification and validation static techniques
Verification and ValidationStatic techniques
  • Software Inspections
    • of requirements documents
    • of design documents (design reviews)
    • of source code (code reviews)
    • automated static analysis

Ch.19 - Verification & Validation

verification and validation dynamic techniques
Verification and ValidationDynamic techniques
  • Software Testing
    • executing implementation against test data
    • verifying non-functional requirements (e.g. performance; reliability)
    • Defect testing
      • implementation vs. specification [Ch.20]
    • Statistical testing
      • performance and reliability [Ch.21]

Ch.19 - Verification & Validation

verification and validation goals
Verification and ValidationGoals
  • Establish that software is fit for purpose,not “bug-free”
  • “Good enough” depends on:
    • Software function (critical nature)
    • User expectations
    • Market
      • competition, price

Ch.19 - Verification & Validation

testing vs debugging
Testing vs. Debugging
  • Verification and Validation
    • looking and categorizing existence of system defects [example] [bug list]
    • “What?”
  • Debugging
    • locating and correcting these defects
    • “Why?”

Ch.19 - Verification & Validation

regression testing
Regression Testing
  • Canned test runs to verify that new defects were not introduced during “debugging” session.
  • Not exhaustive
  • Different levels (lengths) of regression tests
    • Targeted regressions

Ch.19 - Verification & Validation

the test plan

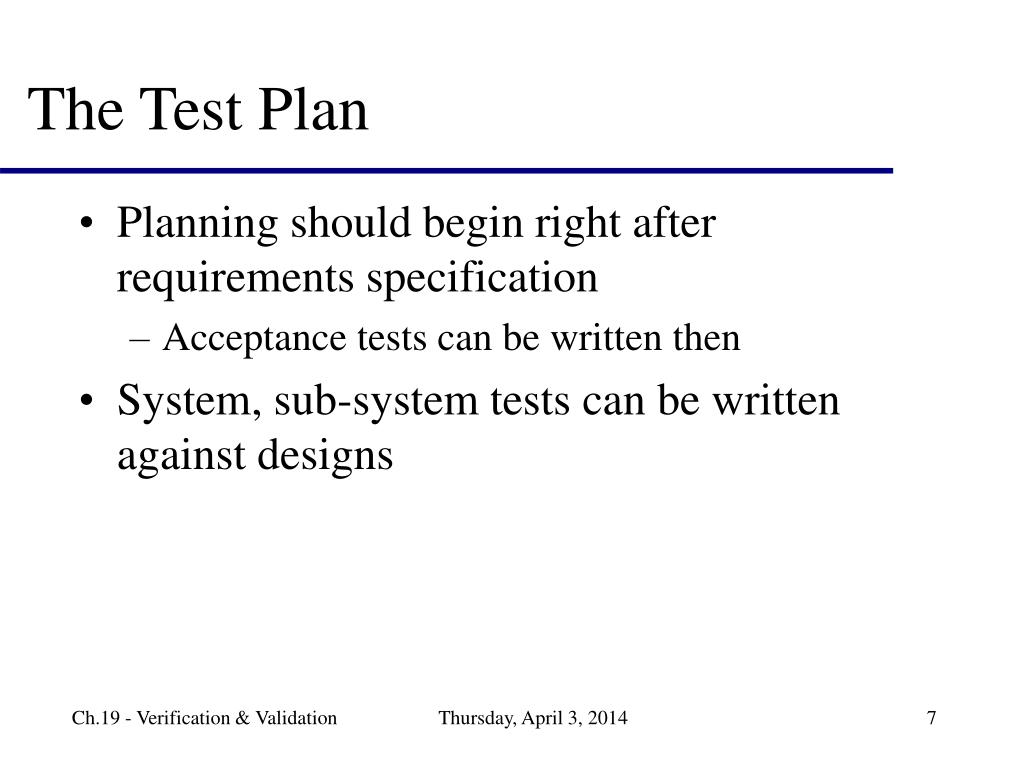

The Test Plan
  • Planning should begin right after requirements specification
    • Acceptance tests can be written then
  • System, sub-system tests can be written against designs

Ch.19 - Verification & Validation

the test plan8
The Test Plan

Ch.19 - Verification & Validation

software inspections code reviews

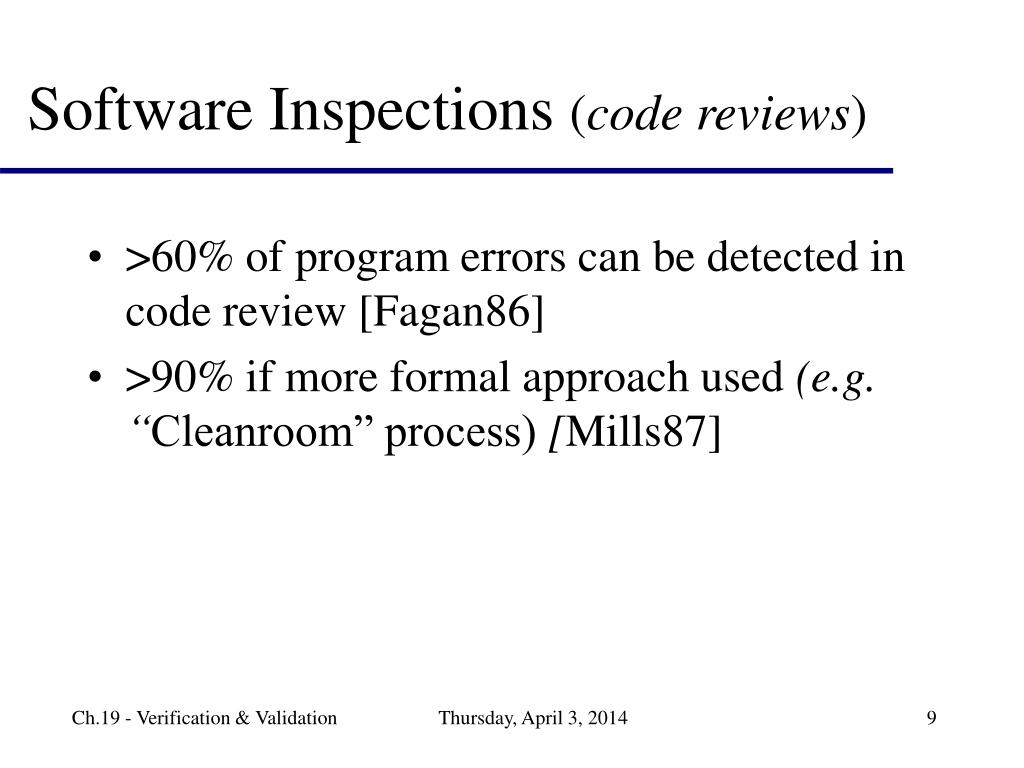

Software Inspections (code reviews)
  • >60% of program errors can be detected in code review [Fagan86]
  • >90% if more formal approach used (e.g. “Cleanroom” process) [Mills87]

Ch.19 - Verification & Validation

software inspections code reviews10
Software Inspections (code reviews)
  • Why are reviews more effective for finding defects in systems/subsystems (i.e., before acceptance testing)?
    • Bugs are often masked by other bugs
    • Leverage domain/programming knowledge
  • Common practice: code reviews and then acceptance testing
    • reviews can also help with development of tests

Ch.19 - Verification & Validation

software inspections code reviews11

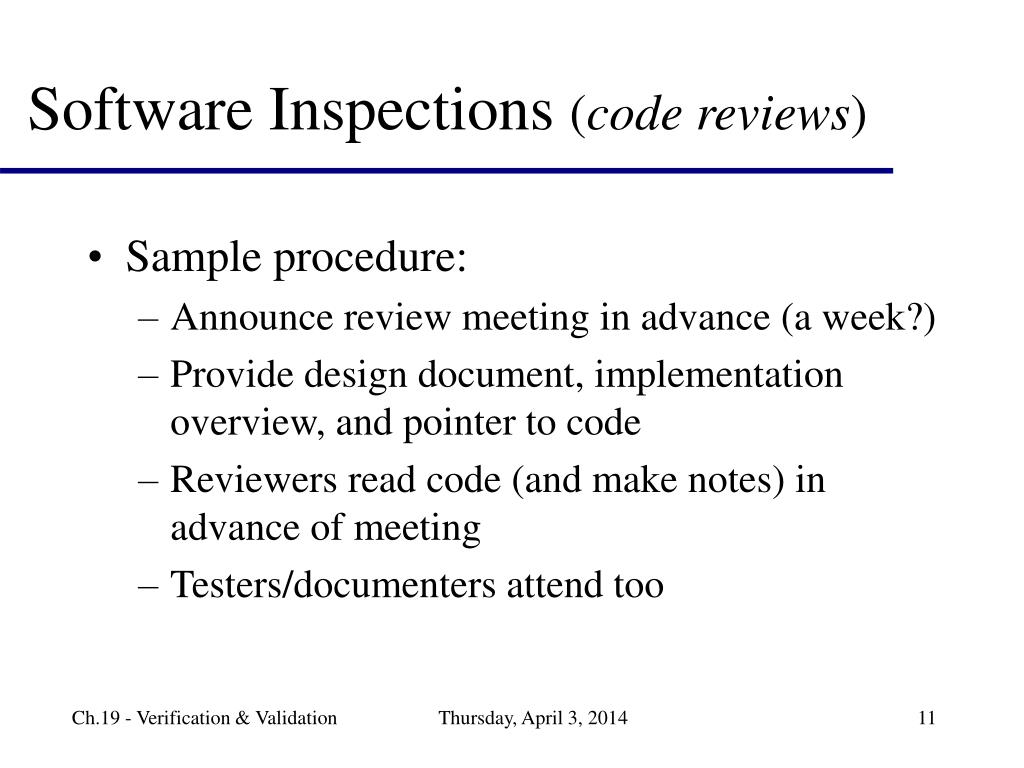

Software Inspections (code reviews)
  • Sample procedure:
    • Announce review meeting in advance (a week?)
    • Provide design document, implementation overview, and pointer to code
    • Reviewers read code (and make notes) in advance of meeting
    • Testers/documenters attend too

Ch.19 - Verification & Validation

automated static analysis
Automated Static Analysis
  • CASE tools that catch program curiosities that are usually indicative of bugs:
    • unreachable code
    • uninitialized variables
    • unreferenced variables
  • Programming language dependent
    • e.g., LINT (for C)

Ch.19 - Verification & Validation

automated dynamic analysis
Automated Dynamic Analysis
  • Tools which do bookkeeping while program is run/tested.
  • Can find some dynamic problems that compiler cannot catch (depends on language…)
  • C/C++ tools: Purify

Ch.19 - Verification & Validation
