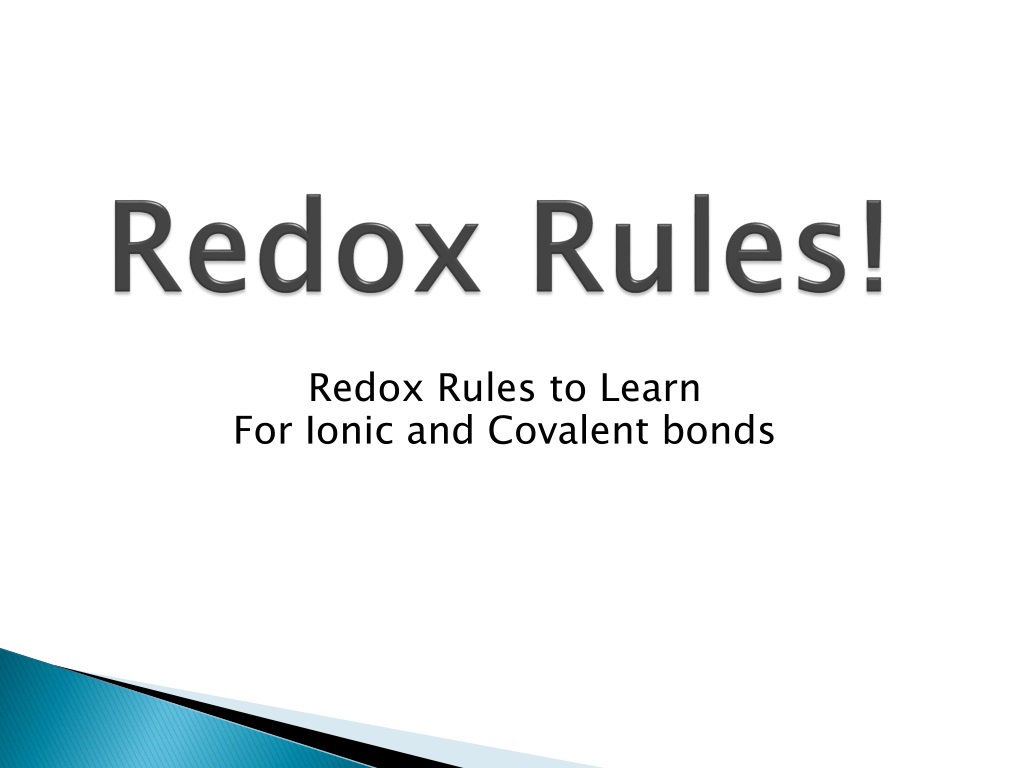

  1. Redox Rules! Redox Rules to Learn For Ionic and Covalent bonds

  2. Electronegativity and Redox Rules • Definition: Electonegativity is the atom’s ability to attract electrons. • Fluorine is the most electronegative element

  3. Electronegativity Trend Increase EN More protons to attract electrons Decrease EN electrons get further away from protons

  4. Rule #1 Oxidation number of an uncombined atom = zero (no compounds or ions) i.e . Mg, H2, Na ie. All H2 O2 N2 Cl2 Br2I2F2 ’s ox. # are zero 0 0 0 0 0 0 0 0 0 0

  5. Rule #2 Oxidation number of a monatomic ion = charge of the ion i.e. Mg2+ , O2- , Al3+ , Br- -2 +3 -1 +2

  6. Rule #3 The sum of the oxidation numbers of a neutral compound = 0 i.e. H2O CO2 CO NaCl +1 -1 -2 -2 +1 +4 +2 -2 2(+1) 2(-2) = 0 =0 =0 - 2 = 0 4 +

  7. Rule #4 The oxidation number for H is +1 Exception: when bonded to a less electronegative element (metal), then it is -1. i.e. LiH, NaH, MgH2 Exception i.e. HF, HCl -1 +1 -1 +1 +2 -1 -1 +1 -1 +1

  8. Rule#5 Oxygen’s oxidation number is -2, in a compound Two exceptions: peroxides and fluorine in H2O2 with OF2 +1 ? = -1 where O is -1 2(+1) + 2( ?) = 0 +2 -1 where O is +2 2(-1) ? + = 0 fluorine (more electronegative)

  9. Rule#6 Oxidation number of polyatomic compound = zero polyatomic ion = the charge of the ion i.e. compounds: NH3 SiCl4 K3PO4 i.e. ions: NH4+ CO32- SO42- NO3- +1 -3 3(+1) -3 + = 0 +1 -3 4(1) -3+ = +1

  10. Rule#7 Oxidation numbers for metals in: Group 1A metal compound +1 2A metal compound +2 3A Aluminum compound +3 i.e. NaCl MgSO4 AlPO4 +3 +6 -2 +2 -1 +1 +2 + ? + 4(-2) = 0 = 0 = 0

  11. Rule #8 • The most electronegative element fluorine ALWAYS has an oxidation number of -1 when it is bonded to another element. • i.e. HF

  12. Question Time • Assign oxidation numbers to each element • Cl2 • Cl- • MgCl2 • NaH • HCl • K3PO4 • CaSO4 • KF

  13. Using the Rules Oxidation Number • If oxidation number goes up it is oxidized. • If oxidation number goes down it is reduced.

  14. Using the Rules-Last Lesson Balance the reactions, write the oxidation numbers for each atom and write the oxidizing and reducing agents. Ex1 HCl + Zn  ZnCl2 + H2 Loss of electron oxidation (LEO) Reducing agent 0 +2 -1 0 -1 +1 2 +2 + =0 2(-1) Gain of electron reduction (GER) Oxidizing agent

  15. Using the Rules Ex2 Mg + N2 Mg3N2 Ex3 H2S + Cl2  HCl + S Ex4 Fe + O2  Fe2O3

  16. Summary of Oxidation/Reduction • There are three definitions of oxidation and reduction: • Oxidation Reduction 1. 1. 2. 2. 3. 3. Gaining of electrons (GER) Losing of electrons (LEO) Decreasing oxidation # Increasing oxidation # Gaining oxygen Losing oxygen

  17. Two ways to remember oxidation/reduction (redox) is: L E O goes G E R O I L R I G XIDATION S EDUCTION L E C T R O N S EDUCTION L E C T R O N S O S E XIDATION AIN OSING S AINING
