Optimizing Microwave Efficiency for Energy Saving

Discover the best placement for food in the microwave to maximize energy transfer and efficiency. Learn how to measure power and temperature to calculate efficiency. Results show efficient placement and energy absorption factors. Explore key findings and practical insights for better microwave utilization.

kcharlie
Download Presentation

Optimizing Microwave Efficiency for Energy Saving

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

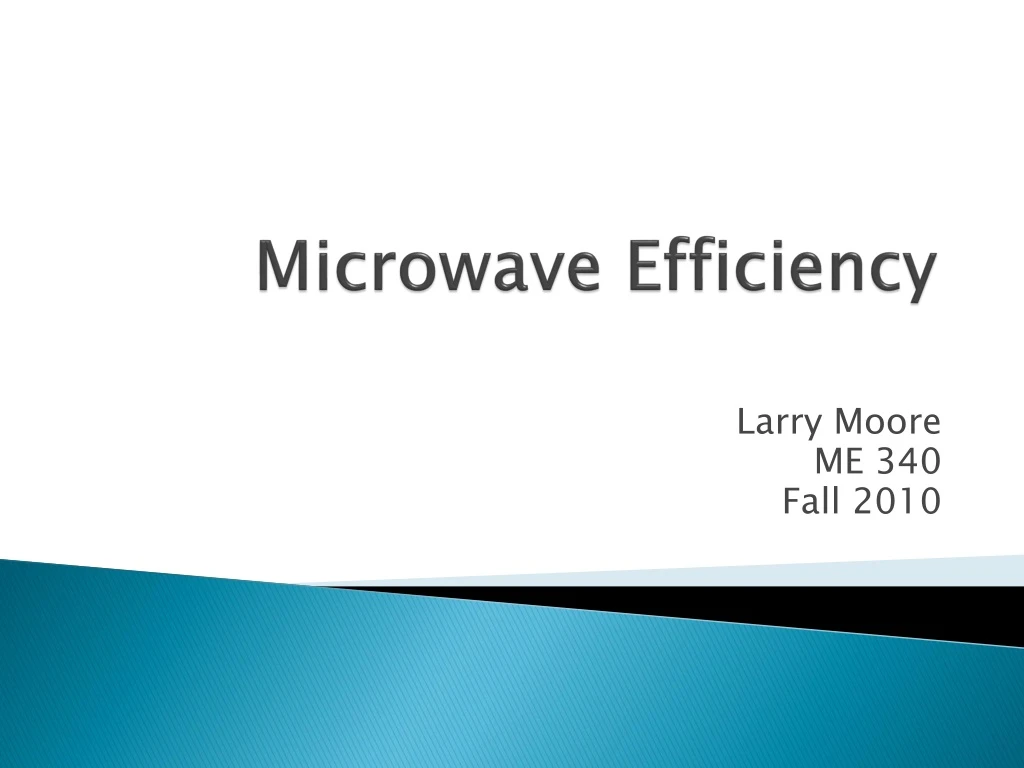

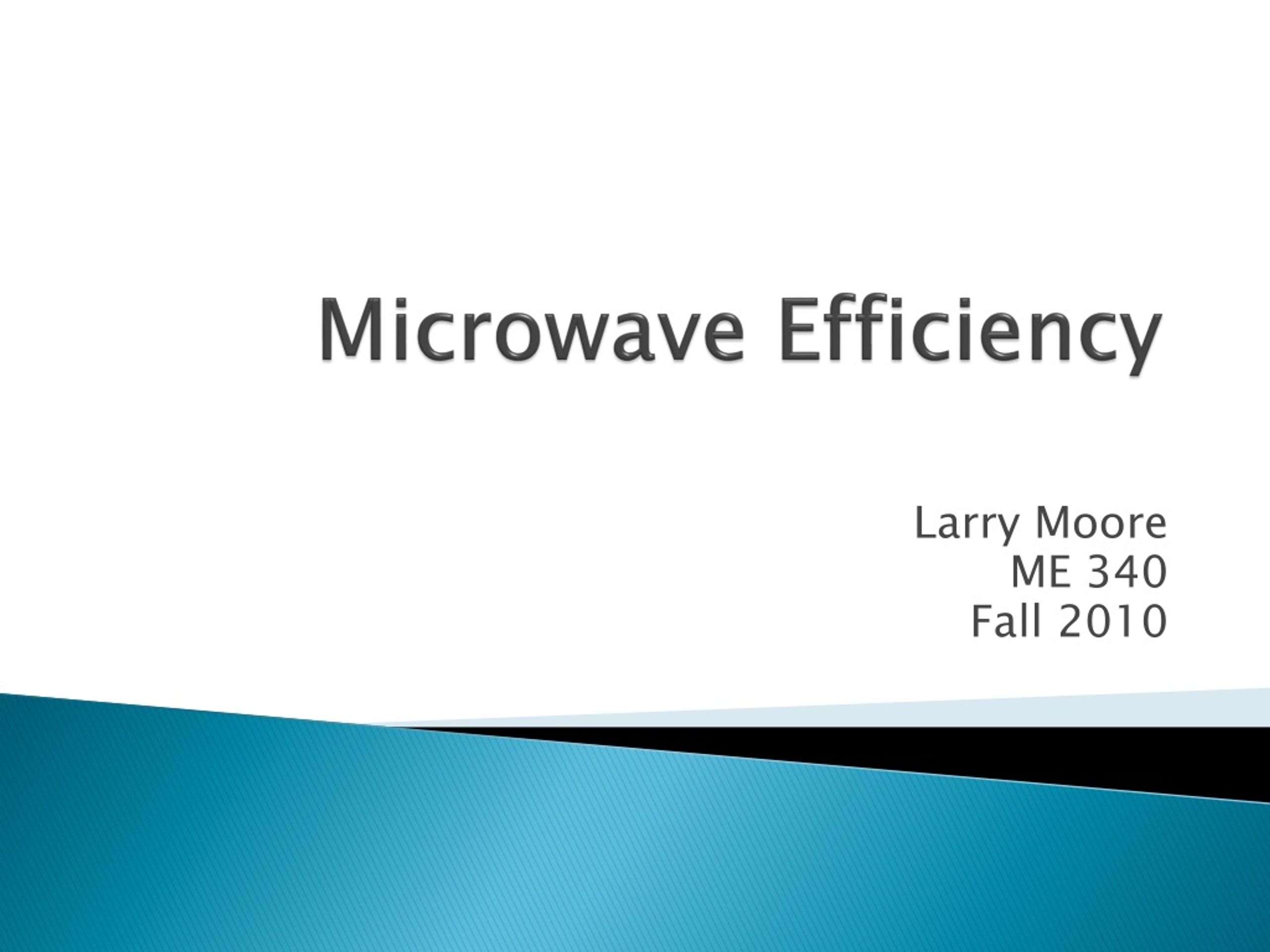

  1. Microwave Efficiency Larry Moore ME 340 Fall 2010

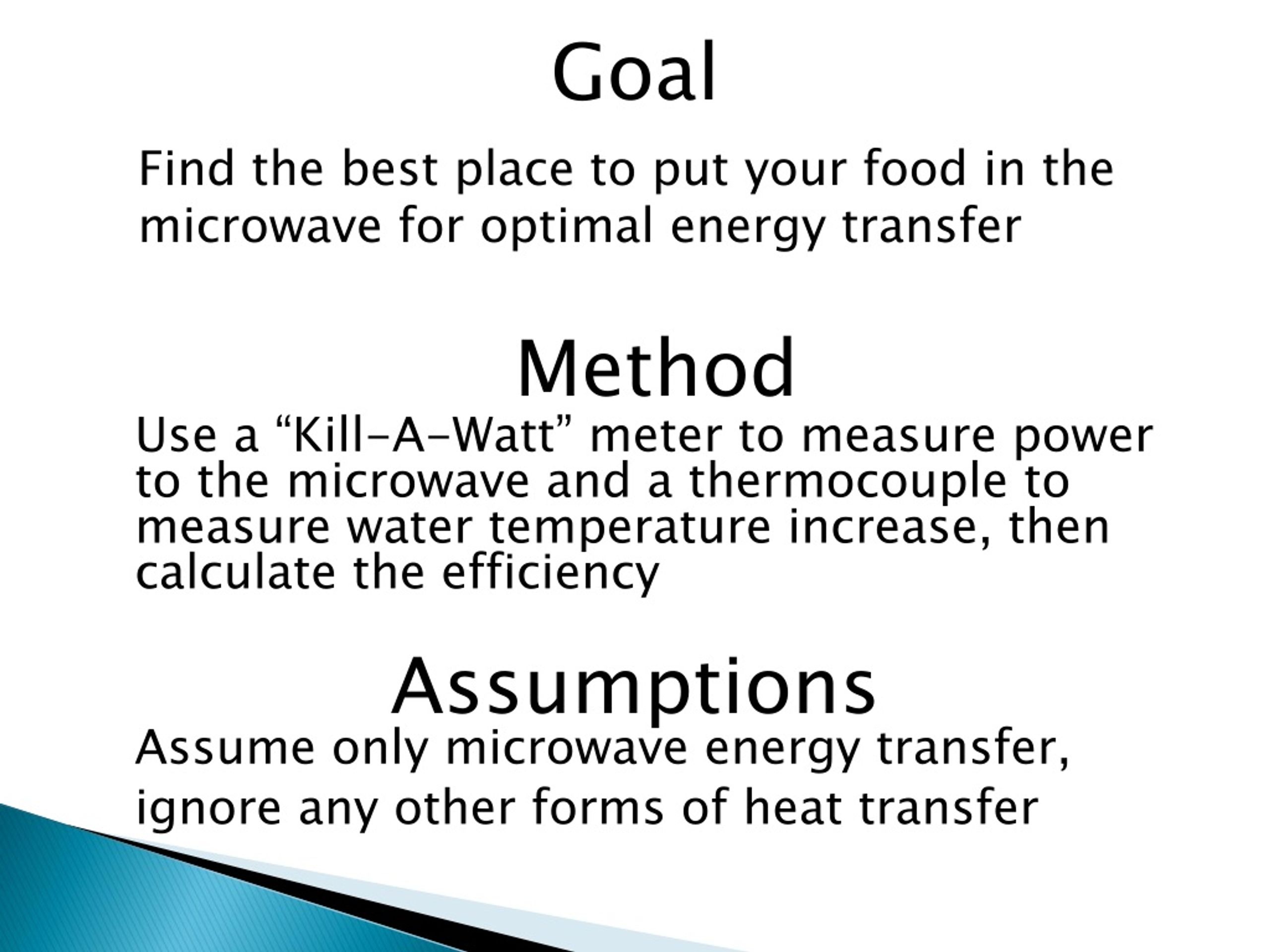

  2. Goal Find the best place to put your food in the microwave for optimal energy transfer Method Use a “Kill-A-Watt” meter to measure power to the microwave and a thermocouple to measure water temperature increase, then calculate the efficiency Assumptions Assume only microwave energy transfer, ignore any other forms of heat transfer

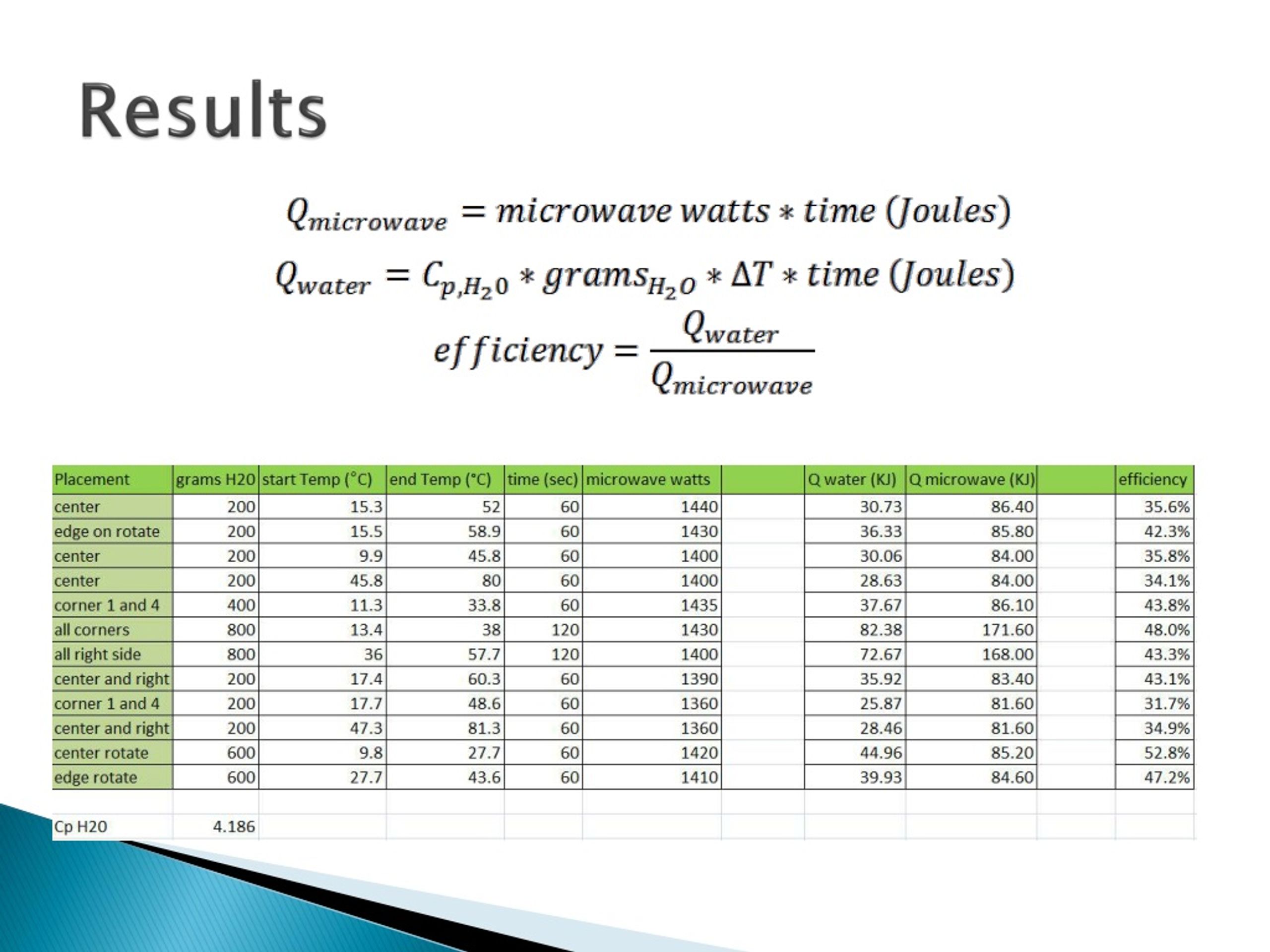

  3. Results

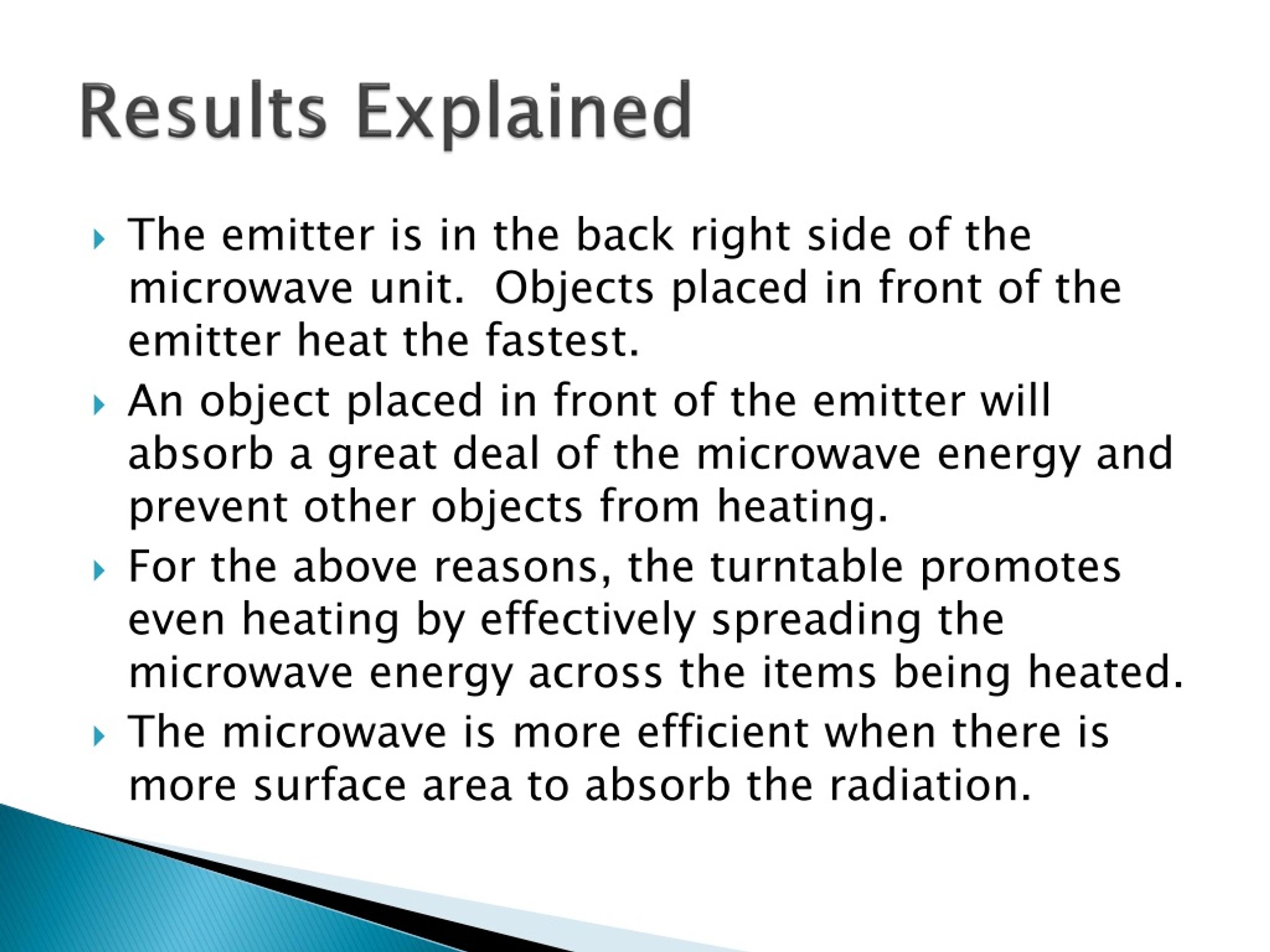

  4. Results Explained • The emitter is in the back right side of the microwave unit. Objects placed in front of the emitter heat the fastest. • An object placed in front of the emitter will absorb a great deal of the microwave energy and prevent other objects from heating. • For the above reasons, the turntable promotes even heating by effectively spreading the microwave energy across the items being heated. • The microwave is more efficient when there is more surface area to absorb the radiation.

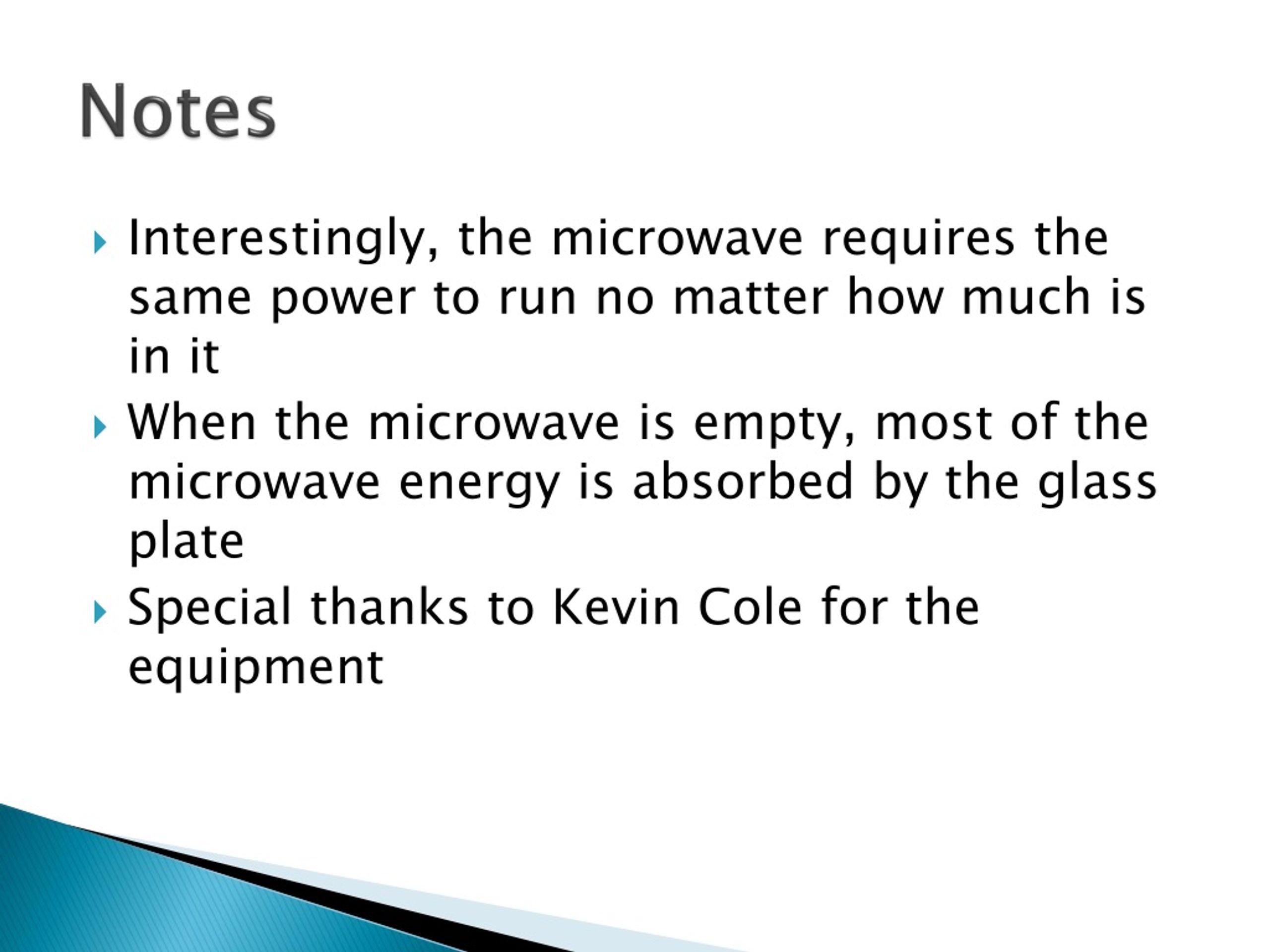

  5. Notes • Interestingly, the microwave requires the same power to run no matter how much is in it • When the microwave is empty, most of the microwave energy is absorbed by the glass plate • Special thanks to Kevin Cole for the equipment
