  1. Feedback Control Systems (FCS) Lecture-30-31 Transfer Matrix and solution of state equations Dr. Imtiaz Hussain email: imtiaz.hussain@faculty.muet.edu.pk URL :http://imtiazhussainkalwar.weebly.com/

  2. Transfer Matrix (State Space to T.F) (1) (3) • Now Let us convert a space model to a transfer function model. • Taking Laplace transform of equation (1) and (2) considering initial conditions to zero. • From equation (3) (2) (4) (5)

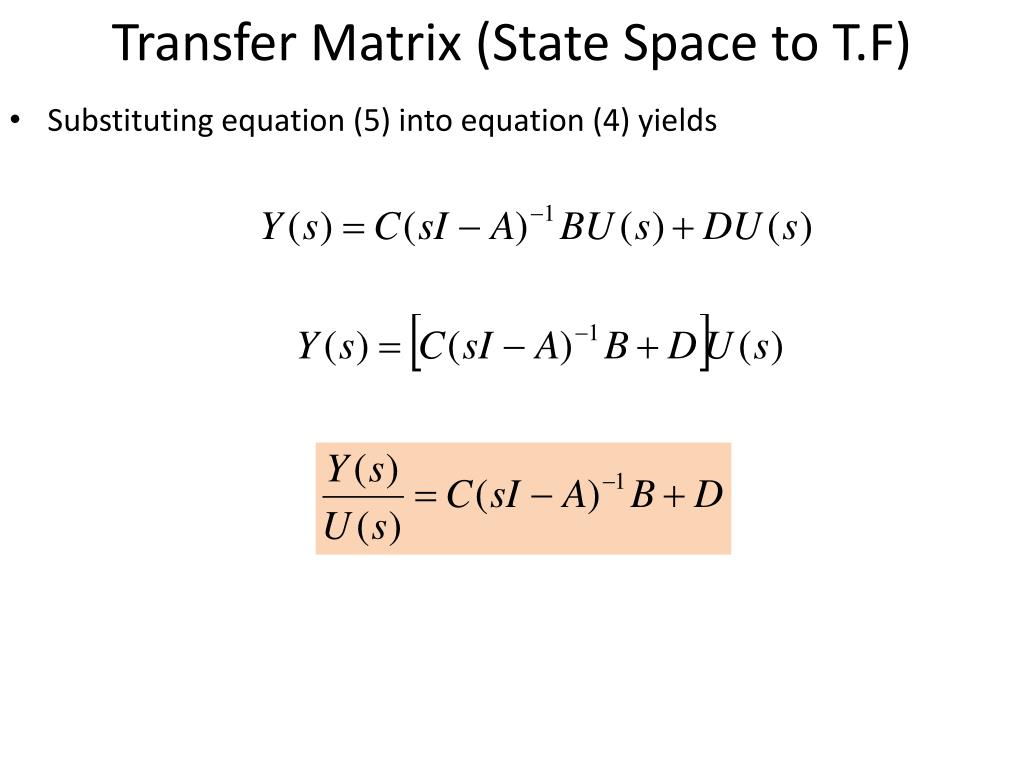

  3. Transfer Matrix (State Space to T.F) • Substituting equation (5) into equation (4) yields

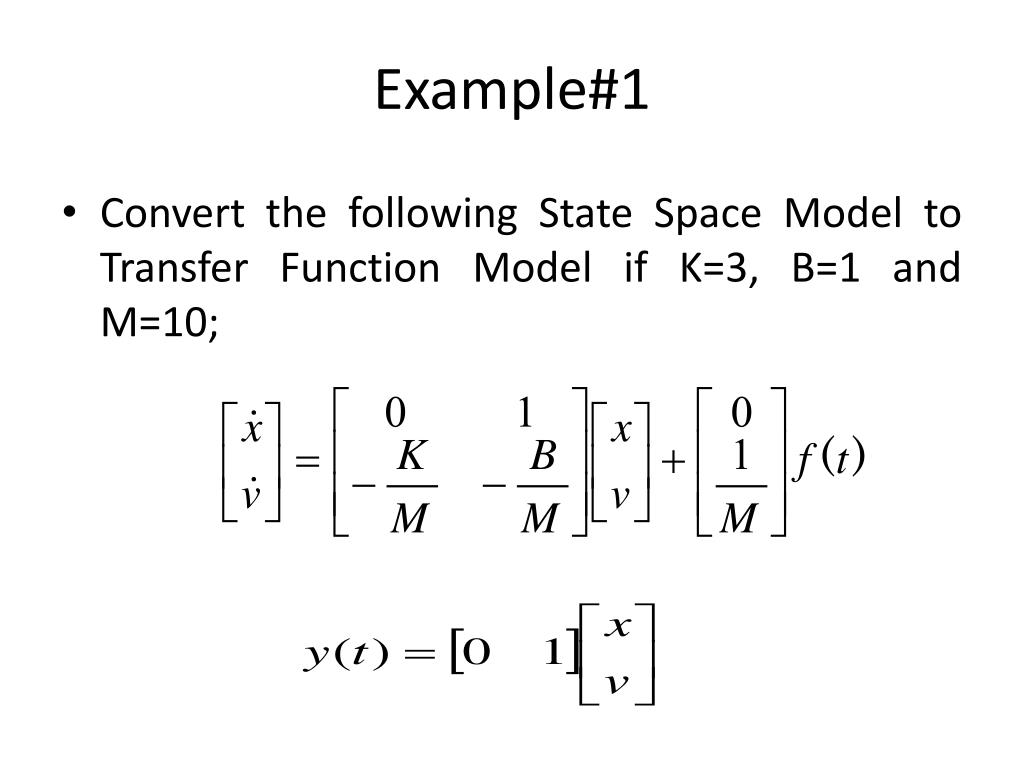

  4. Example#1 • Convert the following State Space Model to Transfer Function Model if K=3, B=1 and M=10;

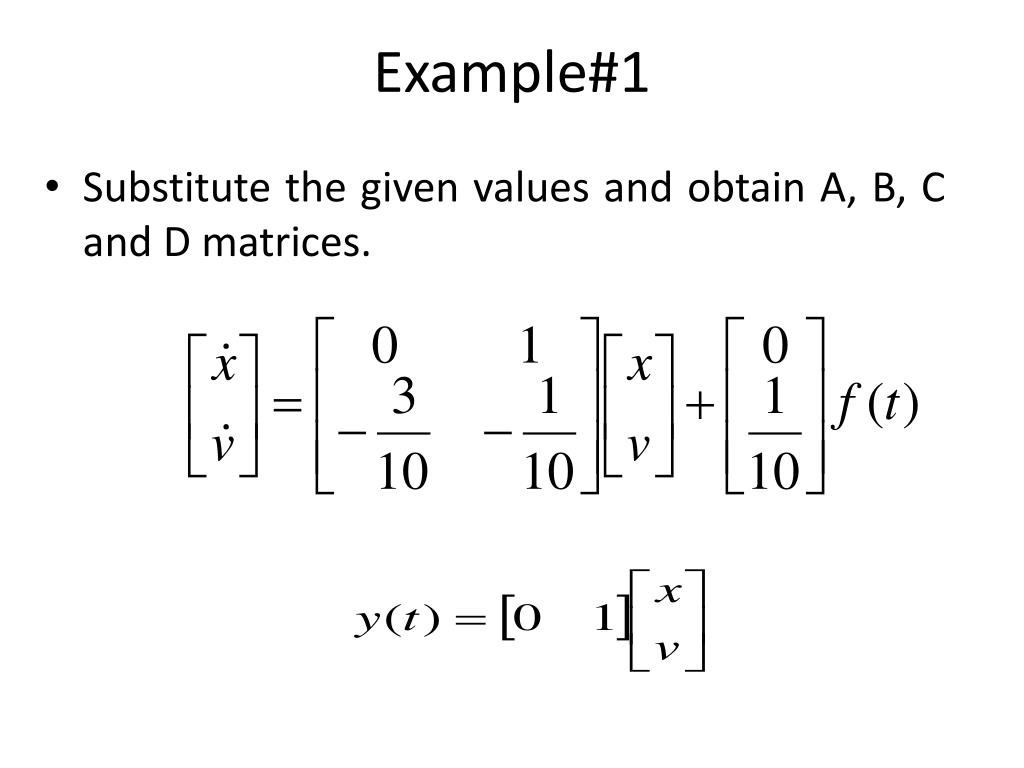

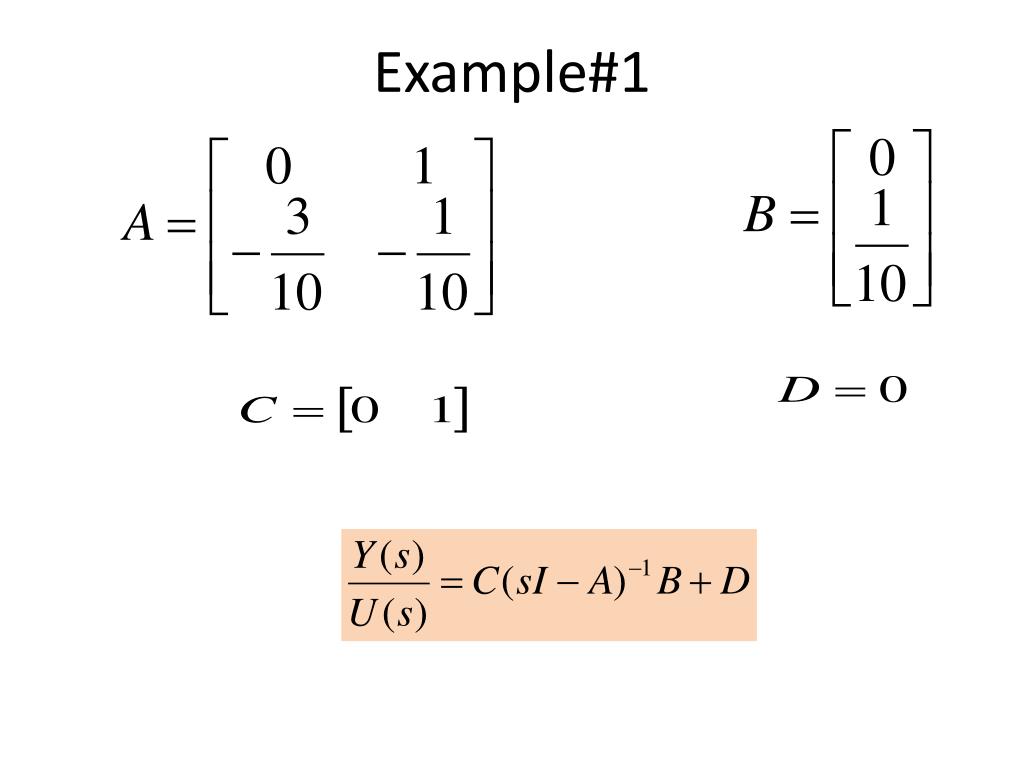

  5. Example#1 • Substitute the given values and obtain A, B, C and D matrices.

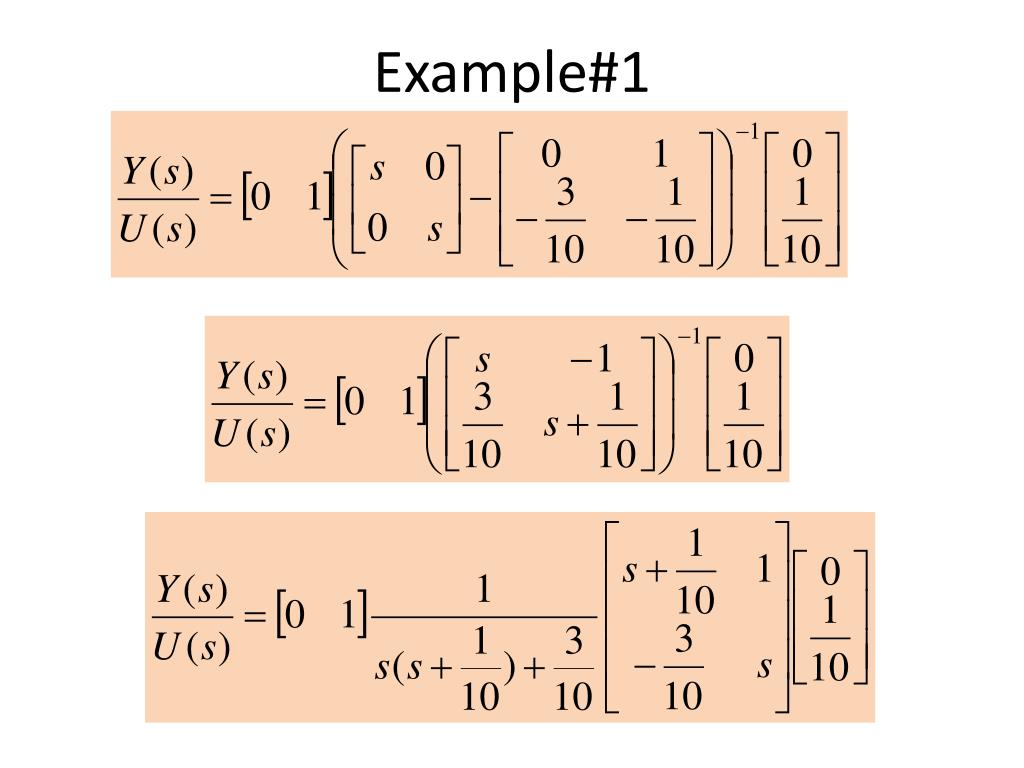

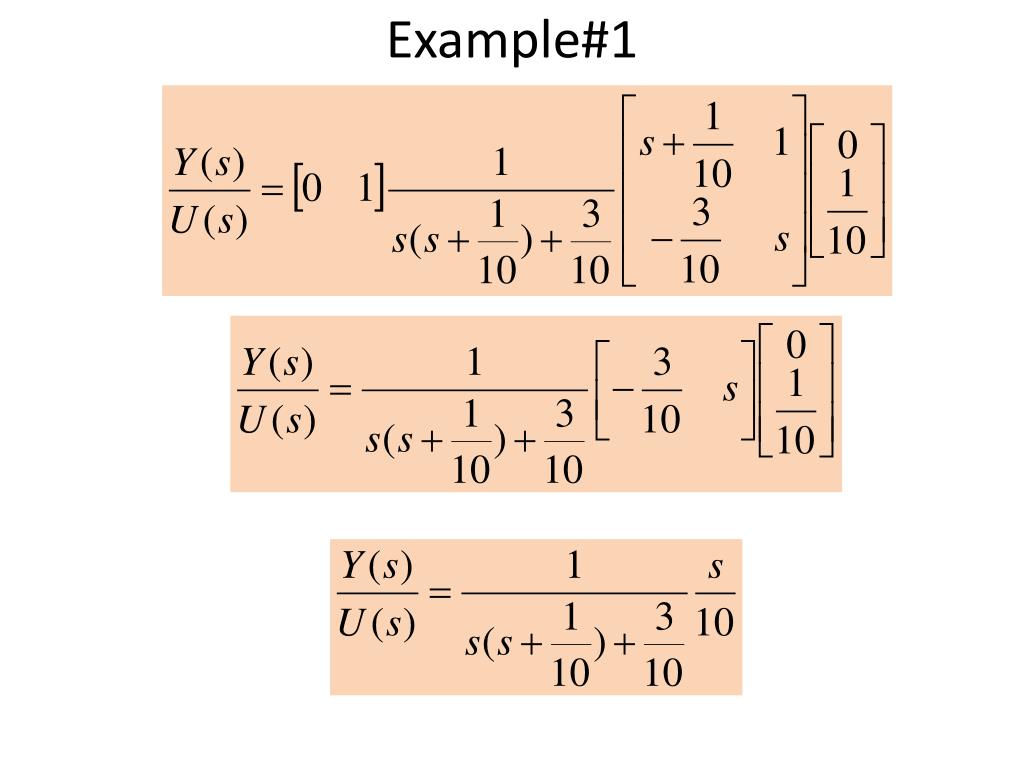

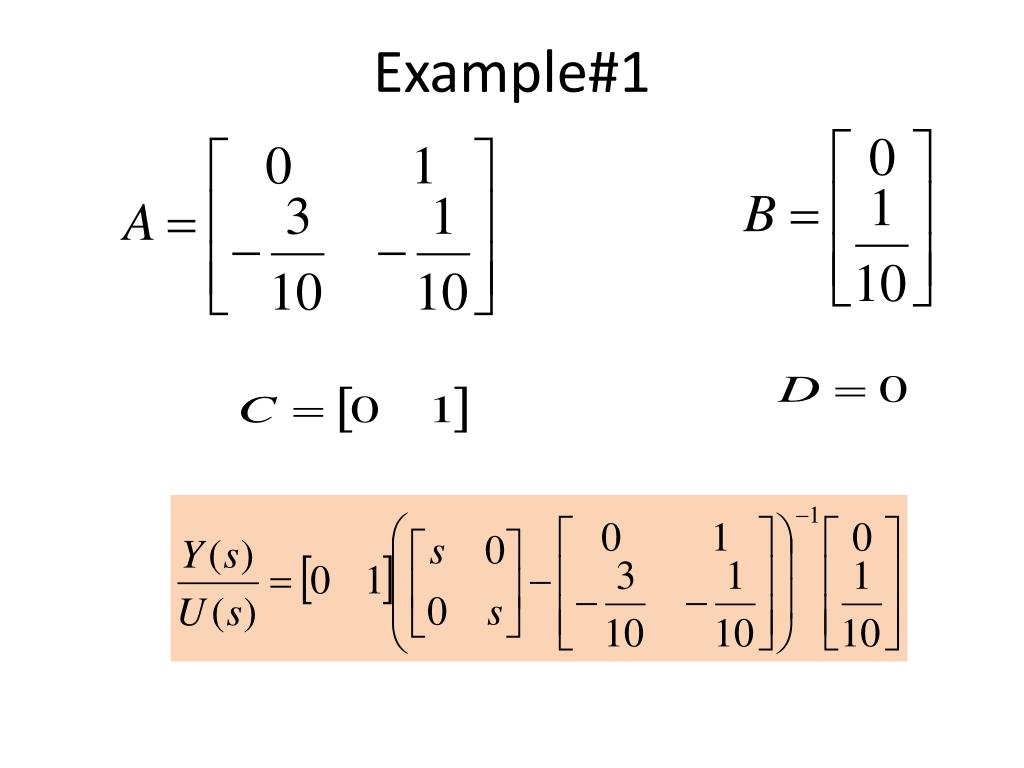

  6. Example#1

  7. Example#1

  8. Example#1

  9. Example#1

  10. Example#1

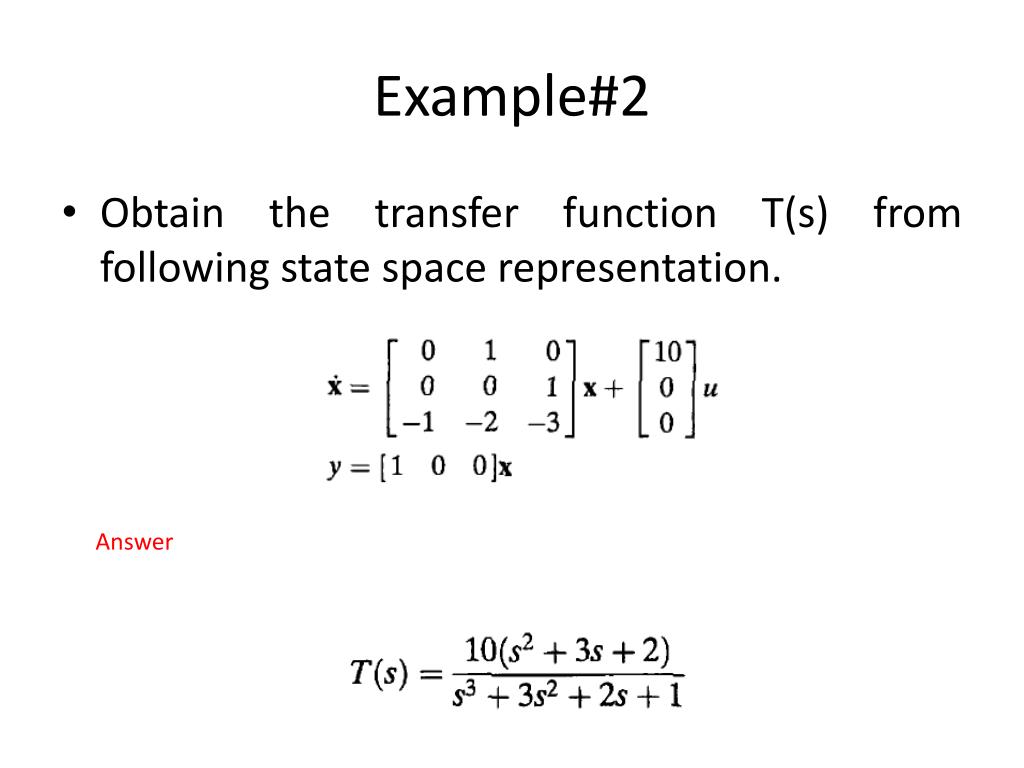

  11. Example#2 • Obtain the transfer function T(s) from following state space representation. Answer

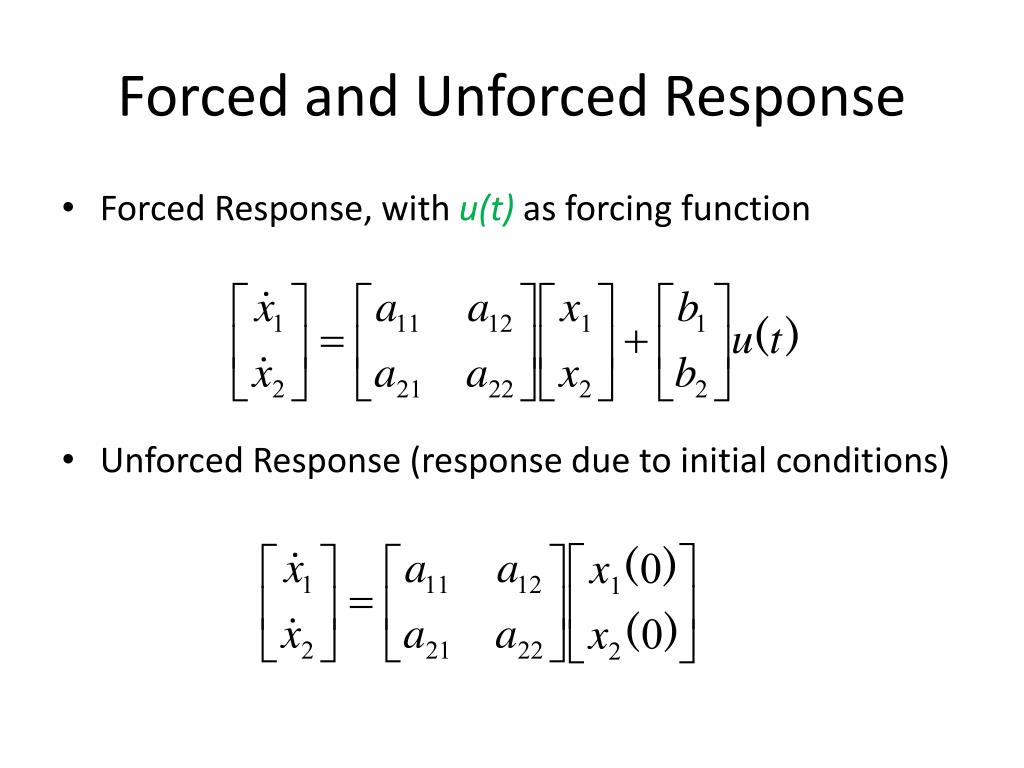

  12. Forced and Unforced Response • Forced Response, with u(t) as forcing function • Unforced Response (response due to initial conditions)

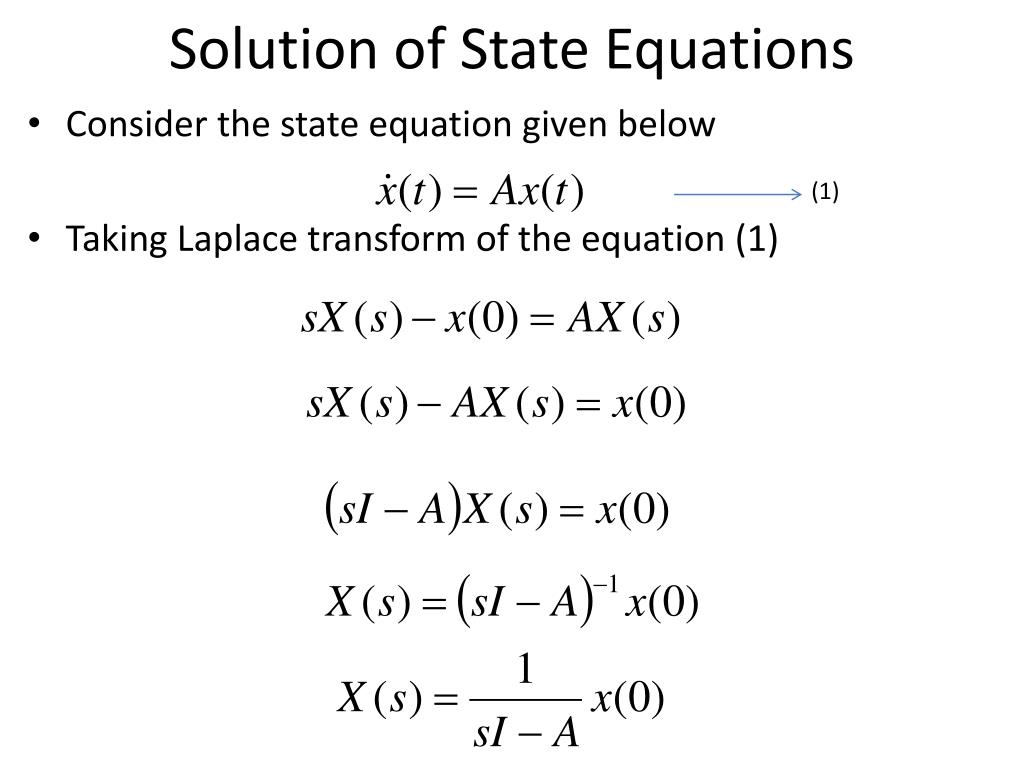

  13. Solution of State Equations (1) • Consider the state equation given below • Taking Laplace transform of the equation (1)

  14. Solution of State Equations • Taking inverse Laplace State Transition Matrix

  15. Example-3 • Consider RLC Circuit obtain the state transition matrix ɸ(t). Vo iL + + Vc - -

  16. Example-3 (cont...) • State transition matrix can be obtained as • Which is further simplified as

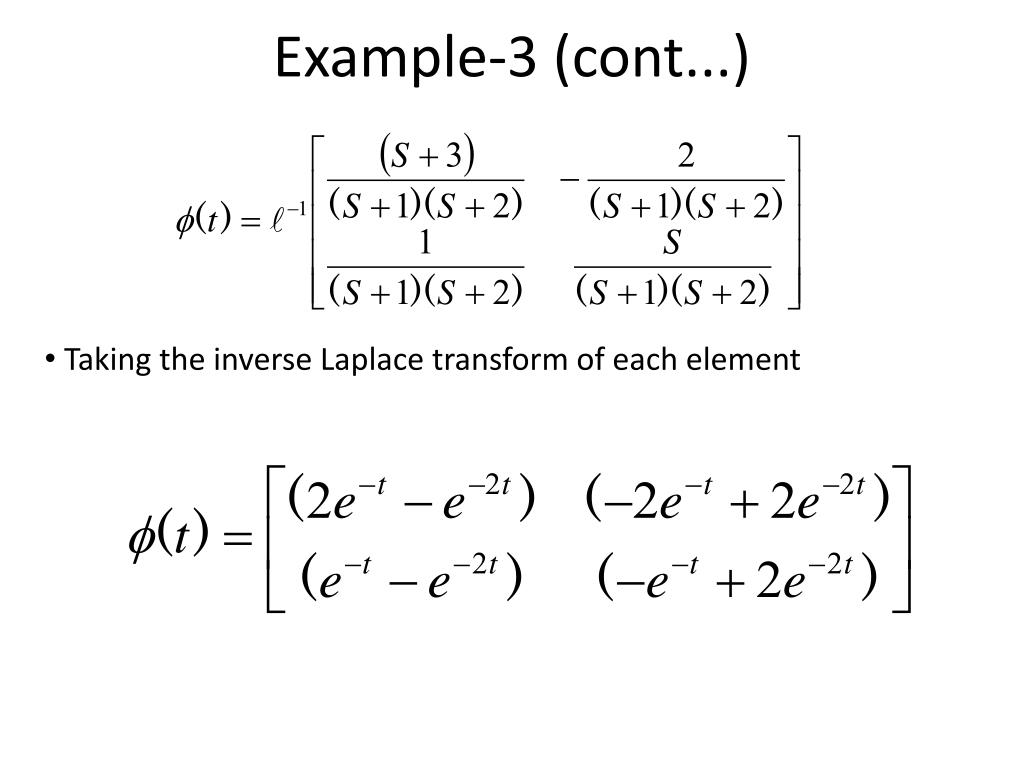

  17. Example-3 (cont...) • Taking the inverse Laplace transform of each element

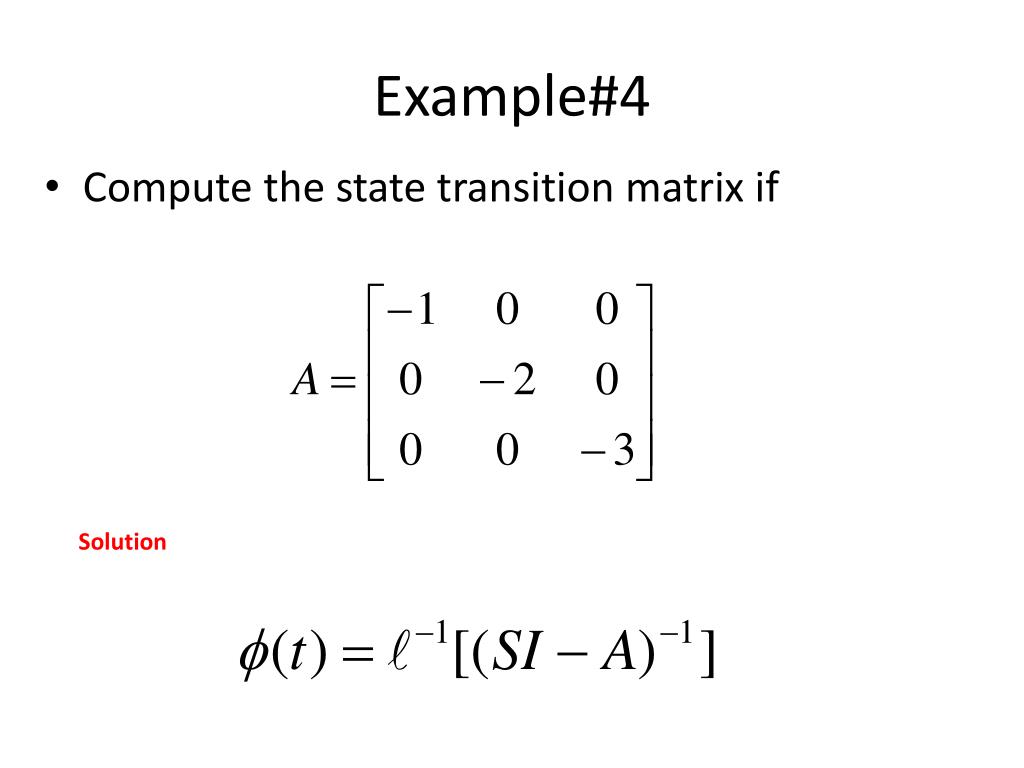

  18. Example#4 • Compute the state transition matrix if Solution

  19. State Space Trajectories • The unforced response of a system released from any initial point x(to)traces a curve or trajectory in state space, with time t as an implicit function along the trajectory. • Unforced system’s response depend upon initial conditions. • Response due to initial conditions can be obtained as

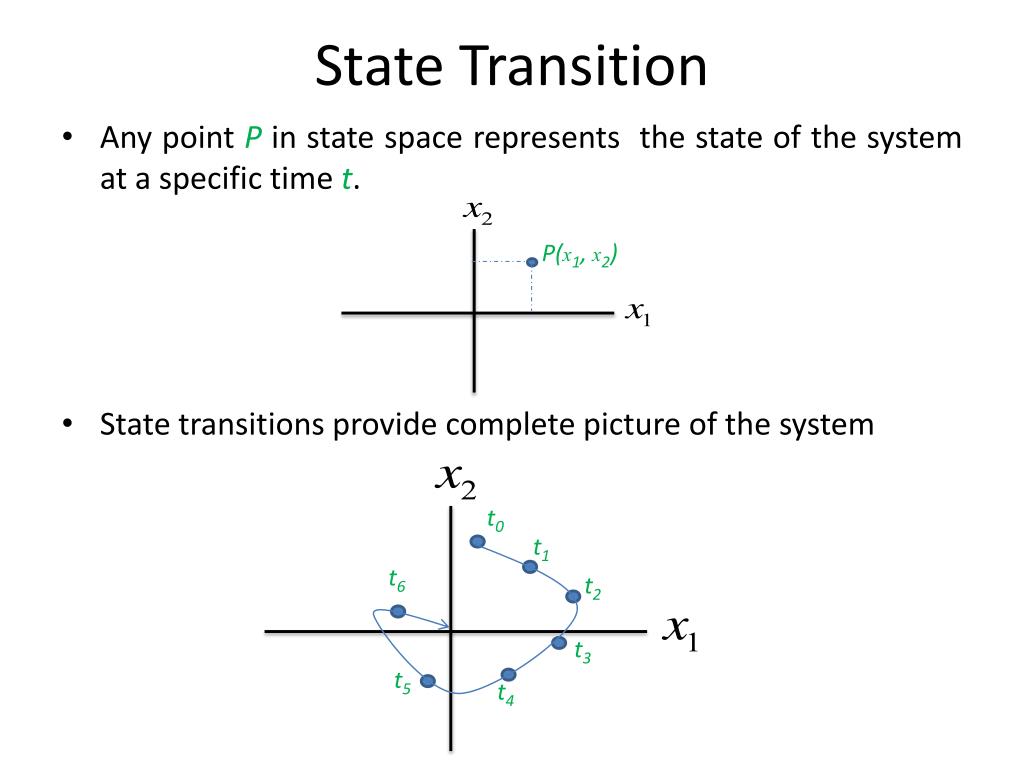

  20. State Transition • Any point P in state space represents the state of the system at a specific time t. • State transitions provide complete picture of the system P(x1,x2) t0 t1 t6 t2 t3 t5 t4

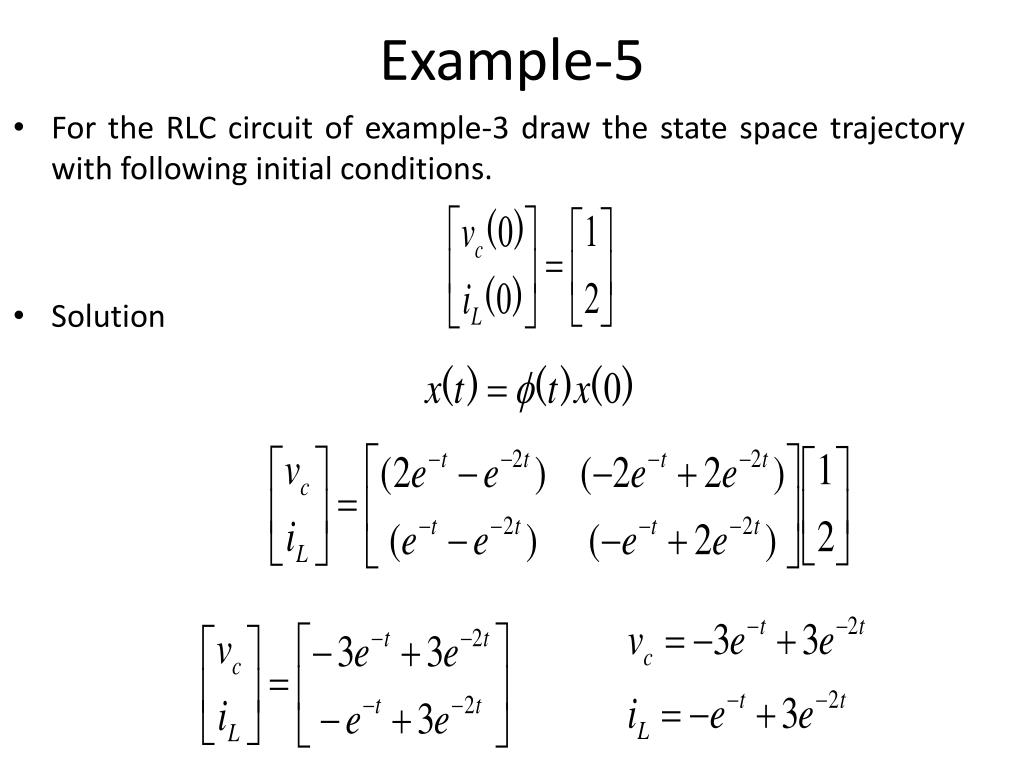

  21. Example-5 • For the RLC circuit of example-3 draw the state space trajectory with following initial conditions. • Solution

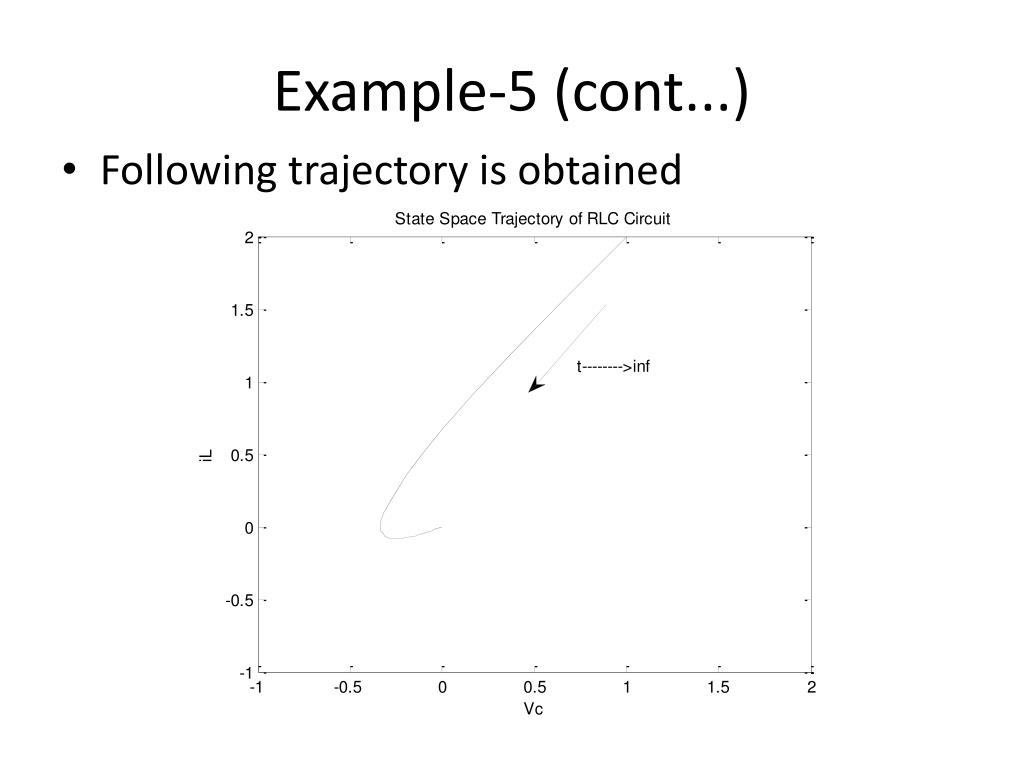

  22. Example-5 (cont...) • Following trajectory is obtained

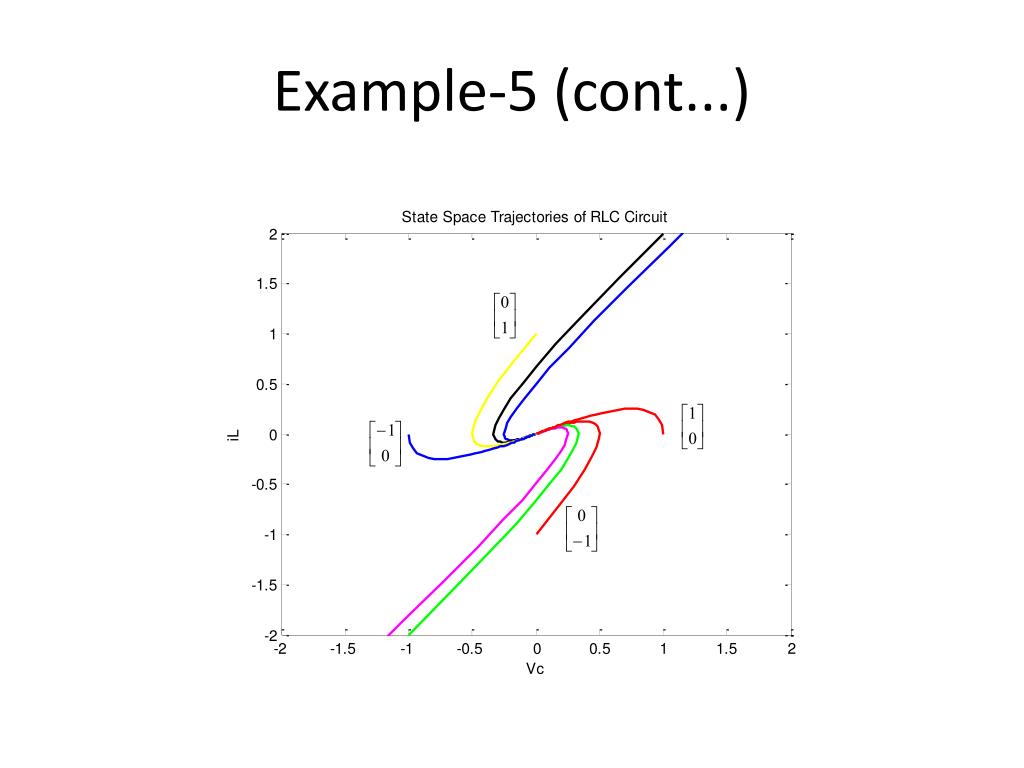

  23. Example-5 (cont...)

  24. Equilibrium Point • The equilibrium or stationary state of the system is when

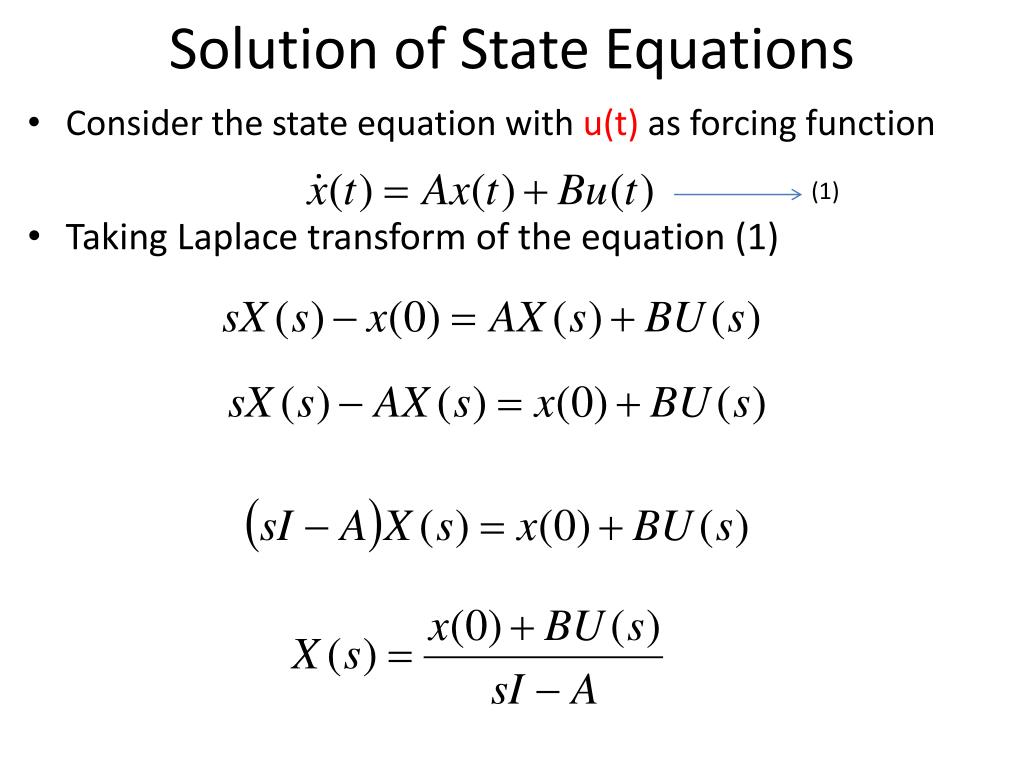

  25. Solution of State Equations (1) • Consider the state equation with u(t) as forcing function • Taking Laplace transform of the equation (1)

  26. Solution of State Equations • Taking the inverse Laplace transform of above equation. Natural Response Forced Response

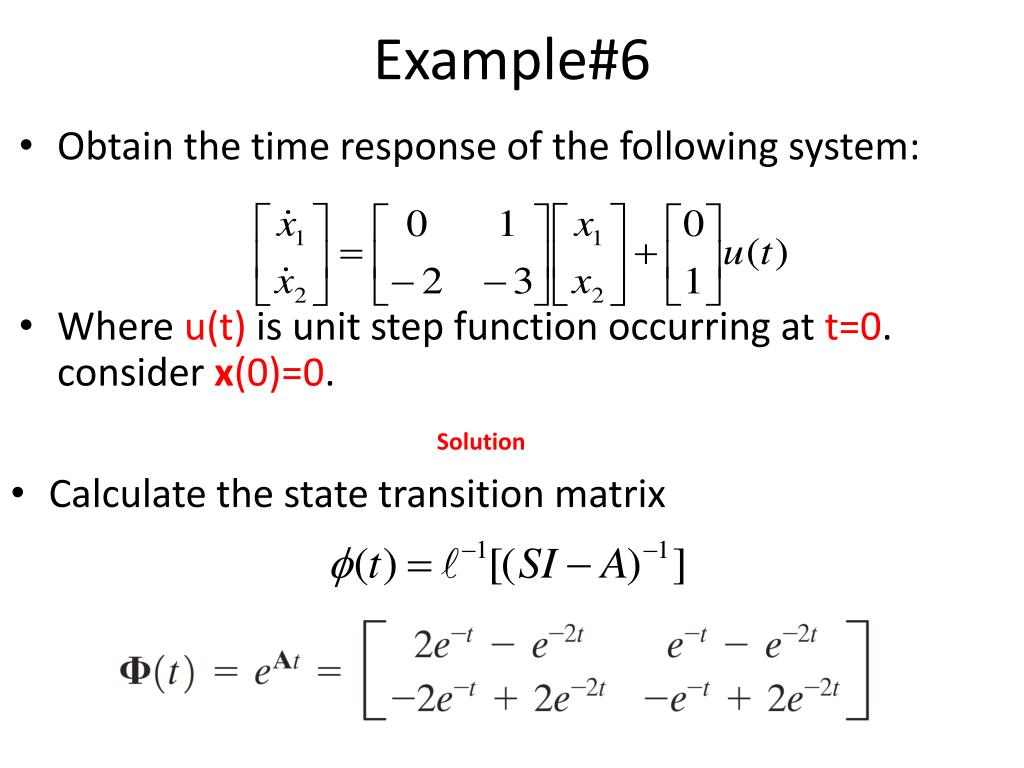

  27. Example#6 • Obtain the time response of the following system: • Where u(t) is unit step function occurring at t=0. consider x(0)=0. Solution • Calculate the state transition matrix

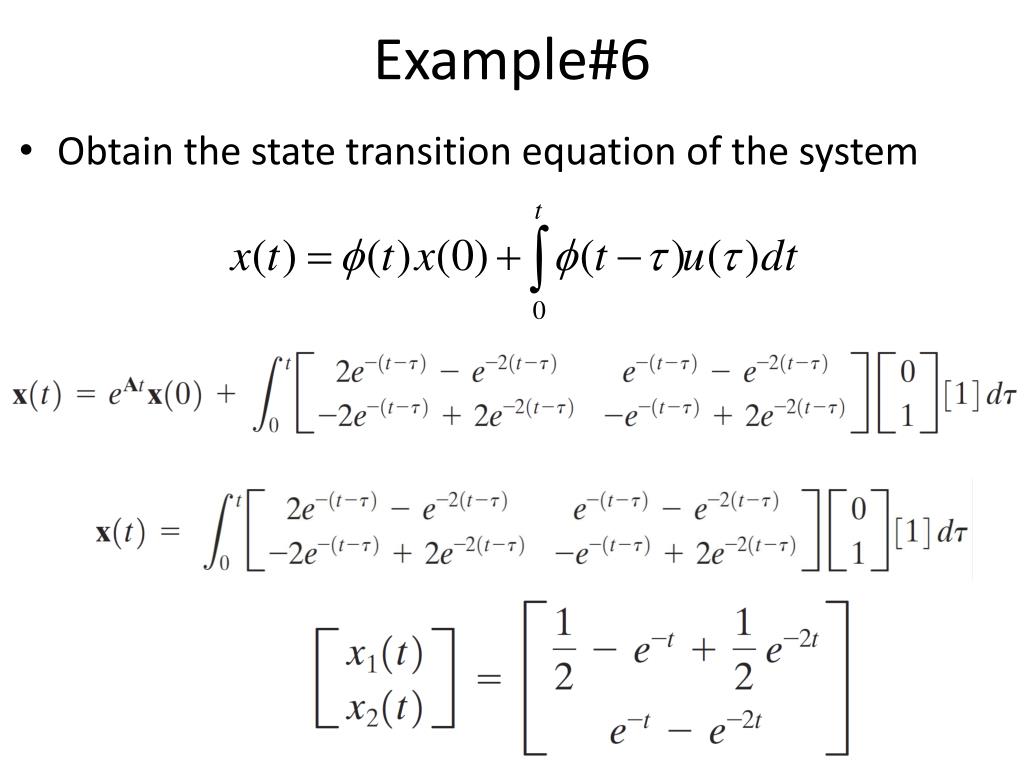

  28. Example#6 • Obtain the state transition equation of the system

  29. To download this lecture visit http://imtiazhussainkalwar.weebly.com/ End of Lectures-30-31
