  1. 卒論最終発表 Library & Bookstore Navigation using RFID grid ACE B4 dra 親　richie

  2. Introduction • The book-searching navigation at the library or bookstore, run on hand-held device, use RFID grid for obtaining location.

  3. Background • In common library & bookstore : • Large quantity of books and bookcases (normally sorted by their specialty) • Simple searching system • Web system • Inner system

  4. Problem • Result from normal searching system • A code of the book • Ex: 694.6@SH3@3 at SFC Media Center • An estimated location of the destination • Ex: Literature or Science or Language space • Guide information is not detail enough ! • User: • Go in a wrong way to reach the target • Get lost inside a ton of books and bookcases

  5. Purpose • Creating the navigation that has a more visual look of bookcases, locations and floor map. • Help user taking more initiative in search process

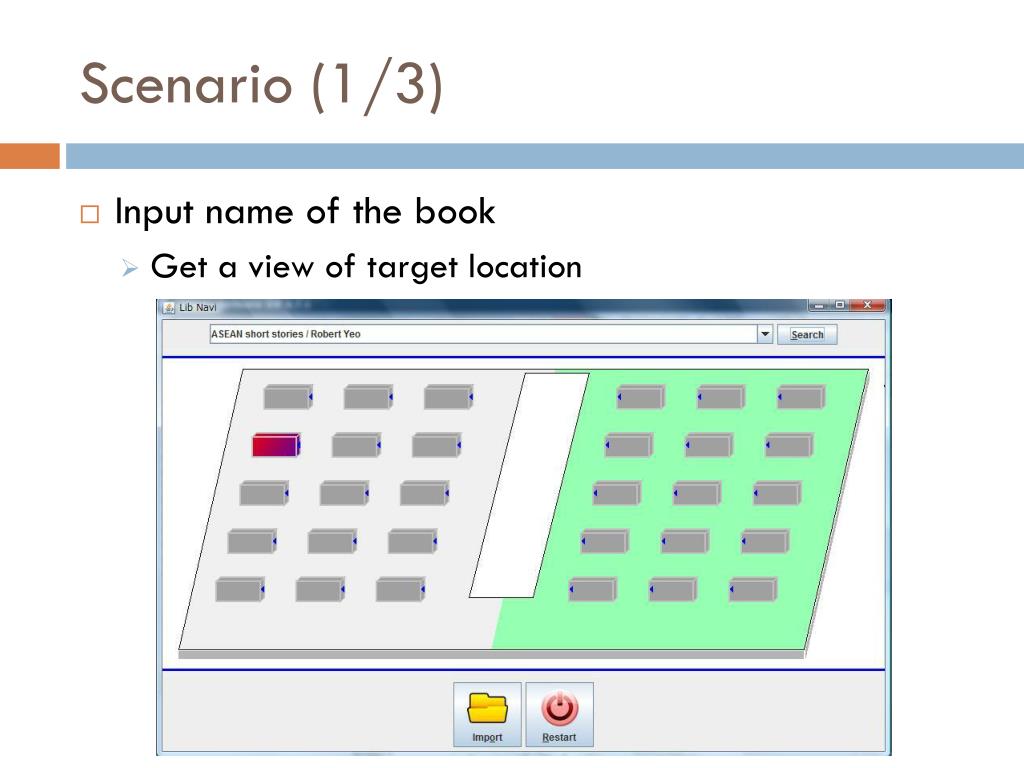

  6. Scenario (1/3) • Input name of the book • Get a view of target location

  7. Scenario (2/3) • Find & read nearby bookcase’s RFID tag • Get current location and a route to target

  8. Scenario (3/3) • Go to target bookcase & read its RFID tag • Get a notification of the booklocation

  9. Local Positioning System (1/2) • Overview • A recent research area that generates a large number of new designs • Classification • Network based positioning system: using sensor networks to locate & track user position • RFID, Bluetooth, WiFi, Ultra Wide Band,... • Independent positioning system: current position is estimated from a previously position using some measurements • Micro-Electro-Mechanical Systems,...

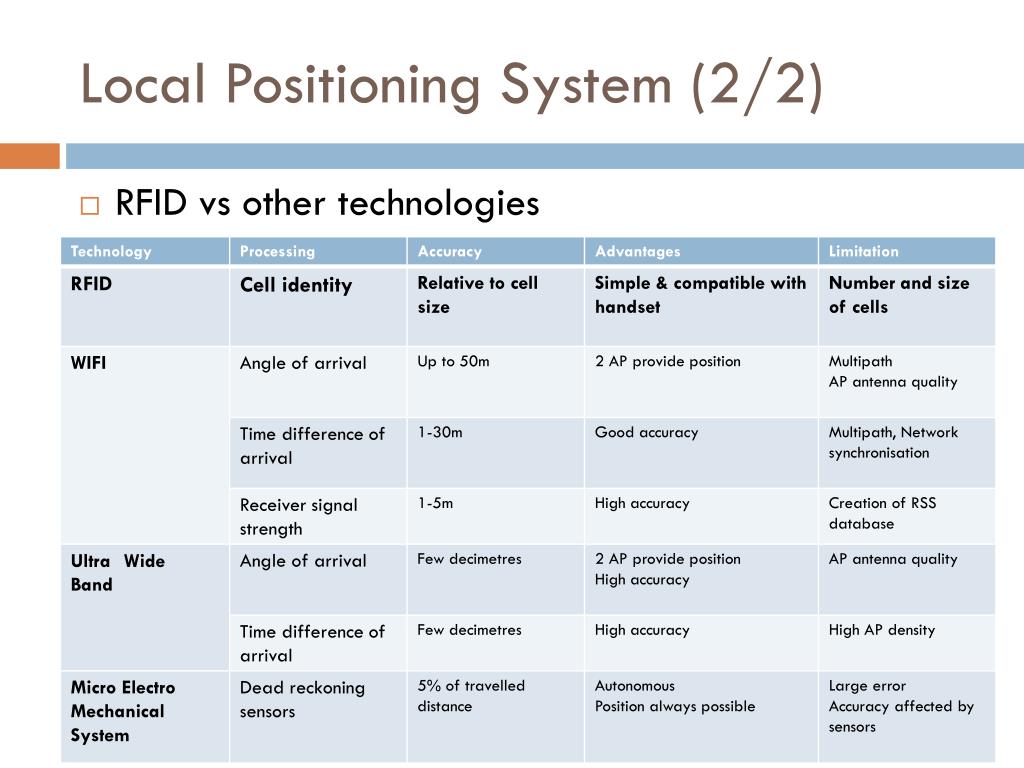

  10. Local Positioning System (2/2) • RFID vs other technologies

  11. Related works (1/2) • Positioning system using RFID • Scooter Willis and Sumi Helal - Computer & Information Science & Engineering Department - University of Florida, Gainesville, FL 32611, USA : RFID Information Grid for Blind Navigation and Way finding • A navigation and location determination system for the blind using an RFID tag grid. • R.Tesoriero, J.A.Gallud, M.Lozano, and V.M.R.Penichet: Using Active and Passive RFID Technology to Support Indoor Location-Aware Systems • A system environment based on both active and passive RFID technology which supports the automatic positioning of mobile devices in closed spaces.

  12. Related Works (2/2) • Document management using RFID • NEC Hong Kong Limited : NEC RFID Document Tracking System • A system of keeping track of the important documents, expensive office equipments and valuable assets

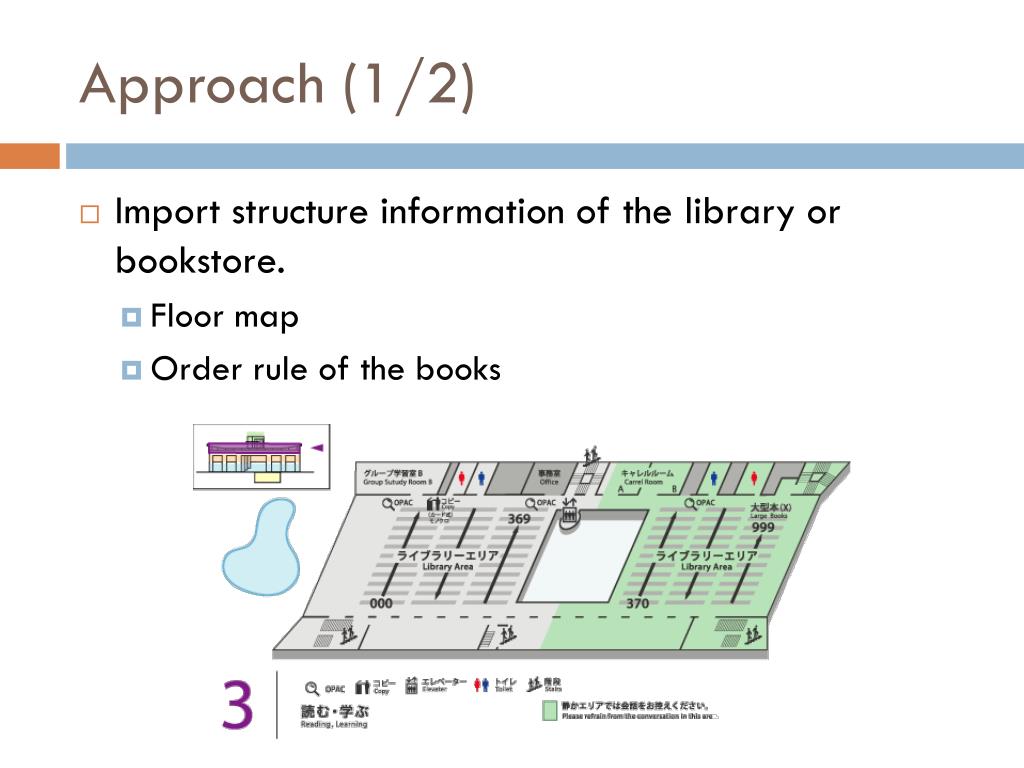

  13. Approach (1/2) • Import structure information of the library or bookstore. • Floor map • Order rule of the books

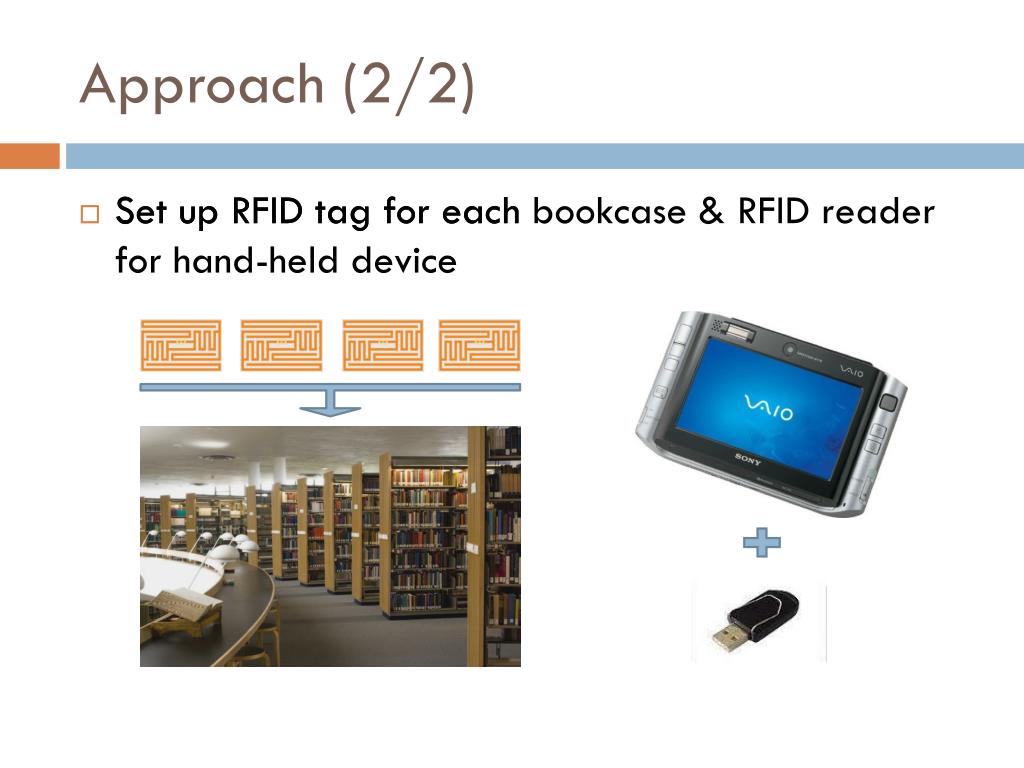

  14. Approach (2/2) • Set up RFID tag for each bookcase & RFID reader for hand-held device • Set up RFID tag for each

  15. Flow method

  16. Making database (1/3) • Database of floormap • Collect bookcases information • Id • Location information • Adjacent bookcases • Match with RFID tag installed on bookcase, create RFID data Table • Used for building a graph which vertices related to bookcases

  17. Making database (2/3) • Database of books and bookcases • Collect each bookcaseinside information • Row number • Column number • Each shelf structure • Creat Bookcase data Table • Used for obtaining book’s location in target bookcase

  18. Making database (3/3) • Structure database design

  19. Obtaining route (1/2) • Gathering target location • Get name of the wanted book • Access books & bookcases database, obtain the target bookcase information (id, location) • Gathering current location • Read nearby RFID tag & analyse data • Access floor map database & match id

  20. Obtaining route (2/2) • Finding the shortest path • Map current and target location with vertices of graph • Use routing algorithm to find the shortest path between two vertices • Dijkstra algorithm

  21. Obtaining book location • Verify that user have reached the target bookcase by information from RFID tag • Obtain book’s location in target bookcase from book id and bookcase structure data

  22. System Architecture Read RFID tag Nearby Bookcase Tag ID User Locating Module Current location Display Module Routing Module Data Base Route Graph Destination Target Locating Module Target Bookcase Name Get book name

  23. Implementation (1/2) • Hardware environment • Vaio PC type U • ASI4000USB RFID reader/writer • Passive RFID tags

  24. Implementation (2/2) • Software enviroment • Communicating with ASI4000 RFID R/W Part • Language : Visual Basic • Tool : Microsoft Visual Studio 2010 • Navigation Part • Language : Java • Tool : NetBean IDE • Data transfered between two part through socket using network programming.

  25. Experiment environment • Place • SFC Media Center 3F • About 30 bookcases • Equipment install • 1 RFID tag to each bookcase • create the grid of RFID tags

  26. Evaluation policy • Evaluation policy • Navigation effect : accuracy of result, speed and time saving, improvement or advantages with other system • Software Usability: interact with environment, operation and interface • User feeling: pleasure or trouble when using • Evaluation method • Use questionnaire and analyse statistics • Take & compare searching time

  27. Result (1/4) – Navigation effect • All tester rate Good for accuracy of result • User usually get lost when using OPAC but not in this navigation • All tester agree that this navigation help user taking more initiative in searching process

  28. Result (2/4) – Time Comparing • Find target bookcase • Save 41.7% time in average • Find wanted book • Save 43.9% time in average

  29. Result (3/4) – Time Comparing • Whole process • Save 48.2% time searching in average

  30. Result (4/4) – Sotfware usability • Allmost of tester think it’s easy to understand guide from navigation, to find and read RFID data. 70% tester feel no trouble with short range interact with passive tag • All of tester agree that easy to use this navigation when walking

  31. Conclusion • Proposed the book-searching navigation run on hand-held devices. • Key clause : • helping user taking more initiative • changing library environment to ubiquitous space • simple using and high usability application • common and low cost device
