  1. How may I help you? User: I need to do some surveillance looking for missile launchers.

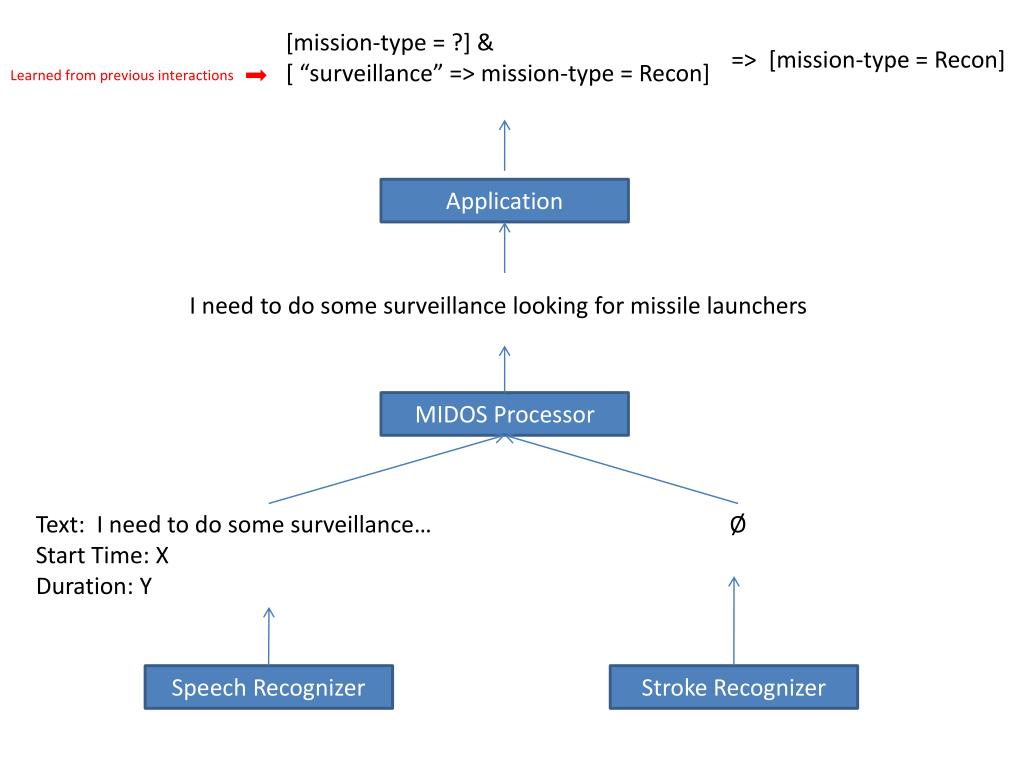

  2. [mission-type = ?] & [ “surveillance” => mission-type = Recon] => [mission-type = Recon] Learned from previous interactions Application I need to do some surveillance looking for missile launchers MIDOS Processor Text: I need to do some surveillance… Start Time: X Duration: Y Ø Speech Recognizer Stroke Recognizer

  3. How may I help you? System: Do you want to start a new mission or use parameters from an old one.

  4. There are two options when synthesizing a new system: 1. Start with parameters from an old mission 2. Start with a clean slate Application Do you want to start a new mission or use parameters from an old one. MIDOS Processor Text: Do you want to start… Start Time: X Duration: Y Ø Speech Synthesizer Stroke Synthesizer

  5. How may I help you? User: I want to use the same parameters as last week’s mission.

  6. Mission DB Look up last week’s mission Application I need to do some surveillance looking for missile launchers MIDOS Processor Text: I need to do some surveillance… Start Time: X Duration: Y Ø Speech Recognizer Stroke Recognizer

  7. System: Which mission?

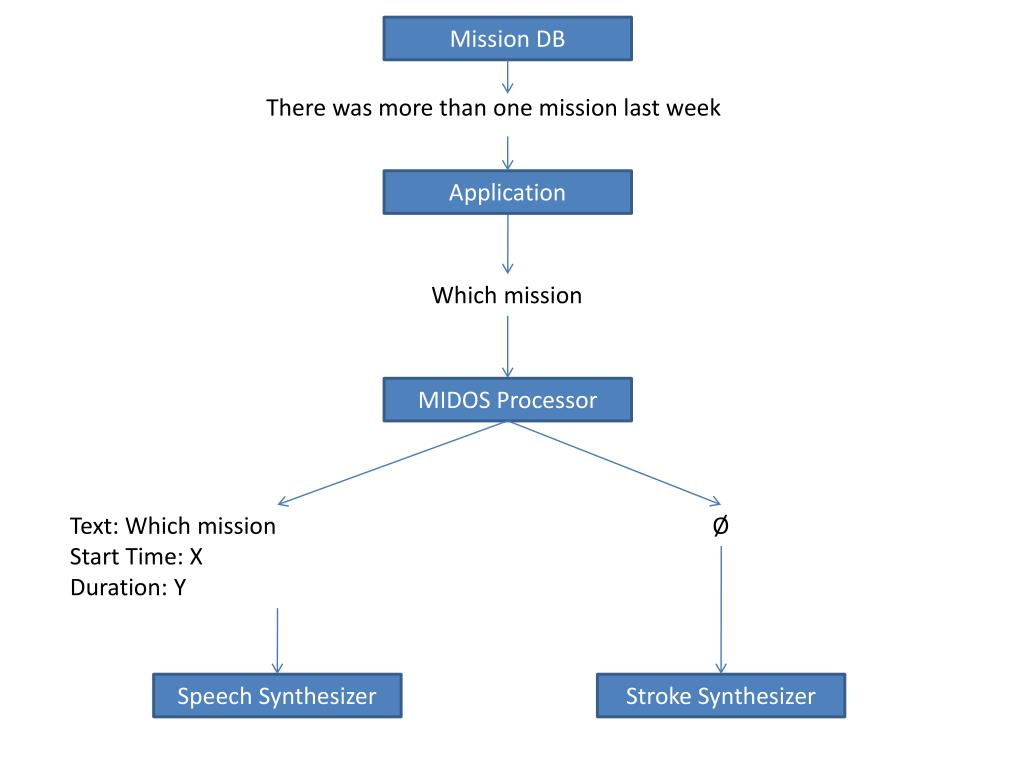

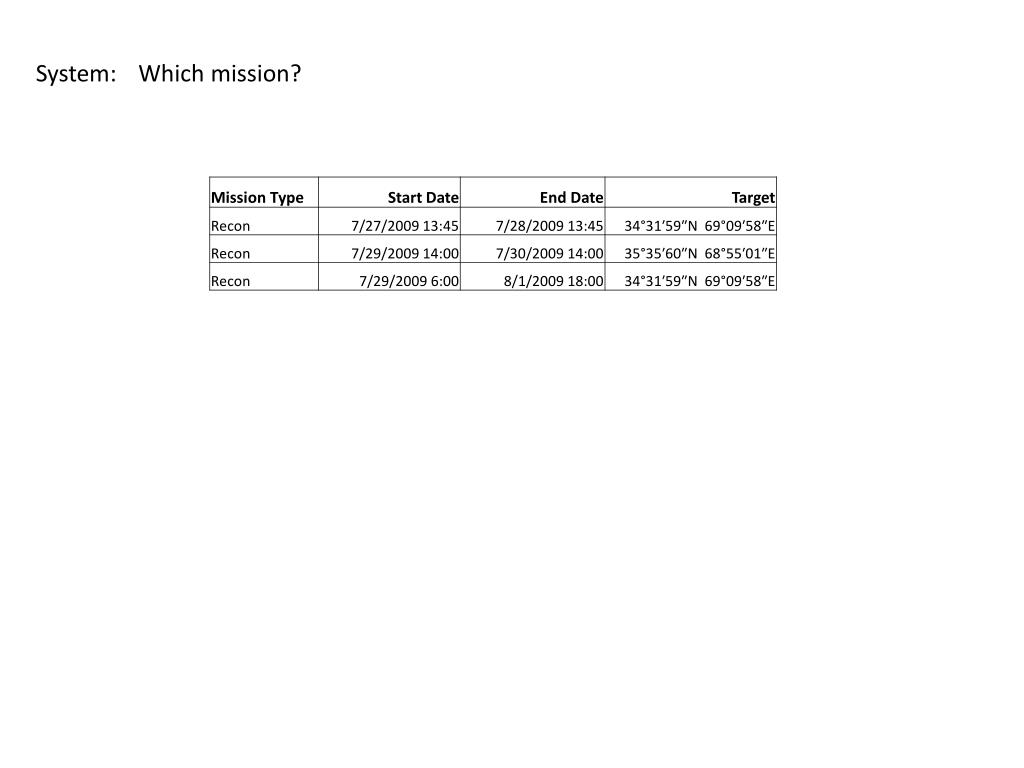

  8. Mission DB There was more than one mission last week Application Which mission MIDOS Processor Text: Which mission Start Time: X Duration: Y Ø Speech Synthesizer Stroke Synthesizer

  9. User: (This one)red

  10. Mission DB Look up the parameters for the selected mission Application This (one)1 Stroke 1 = Red arrow with (X,Y,L) MIDOS Processor Points: {X, Y, Time}, … Color: Red Text: This one Start Time: X Duration: Y Speech Recognizer Stroke Recognizer

  11. System: I have loaded the following parameters, would you like to make any changes? Mission Type: Recon Mission Signal: Video Video Signal Resolution: 1024 x 768 Video Signal Disposition: Streamed Mission Ingress Route Mission Target Mission Egress Route

  12. Mission DB [mission-signal-disposition = streamed] & [LOS = true] => [mission-capability: Retransmission] [mission-signal-disposition = streamed] [video-signal-resolution = 1024 x 768] => [mission-capability: Video Recon] [mission-signal-type = Video] [∆ ingress/egress > twistiness-limit] => [mission-capability: Precision Guidance] [mission-ingress-route = {X,Y}…] [mission-egress-route = {X,Y}…] [mission-target = (X,Y)] => [mission-target-terrain = plains] => [LOS = true] [mission-target = (X,Y)] Application I have loaded the following parameters, would you like to make any changes MIDOS Processor Text: I have loaded… Start Time: X Duration: Y Ø Speech Synthesizer Stroke Synthesizer

  13. User: I’d like to change the target. Mission Type: Recon Mission Signal: Video Video Signal Resolution: 1024 x 768 Video Signal Disposition: Streamed Mission Ingress Route Mission Target Mission Egress Route

  14. [mission-signal-disposition = streamed] [video-signal-resolution = 1024 x 768] => [mission-capability: Video Recon] [mission-signal-type = Video] [LOS = ?] [mission-target-terrain = ?] [mission-ingress-route = ? ] [mission-egress-route = ?] [mission-target = ?] Application I’d like to change the target MIDOS Processor Text: I’d like to change… Start Time: X Duration: Y Ø Speech Recognizer Stroke Recognizer

  15. System: Please indicate on the map the new target area.

  16. [mission-target = ?] Application Please indicate on the map the new target area MIDOS Processor Text: Please indicate… Start Time: X Duration: Y Ø Speech Synthesizer Stroke Synthesizer

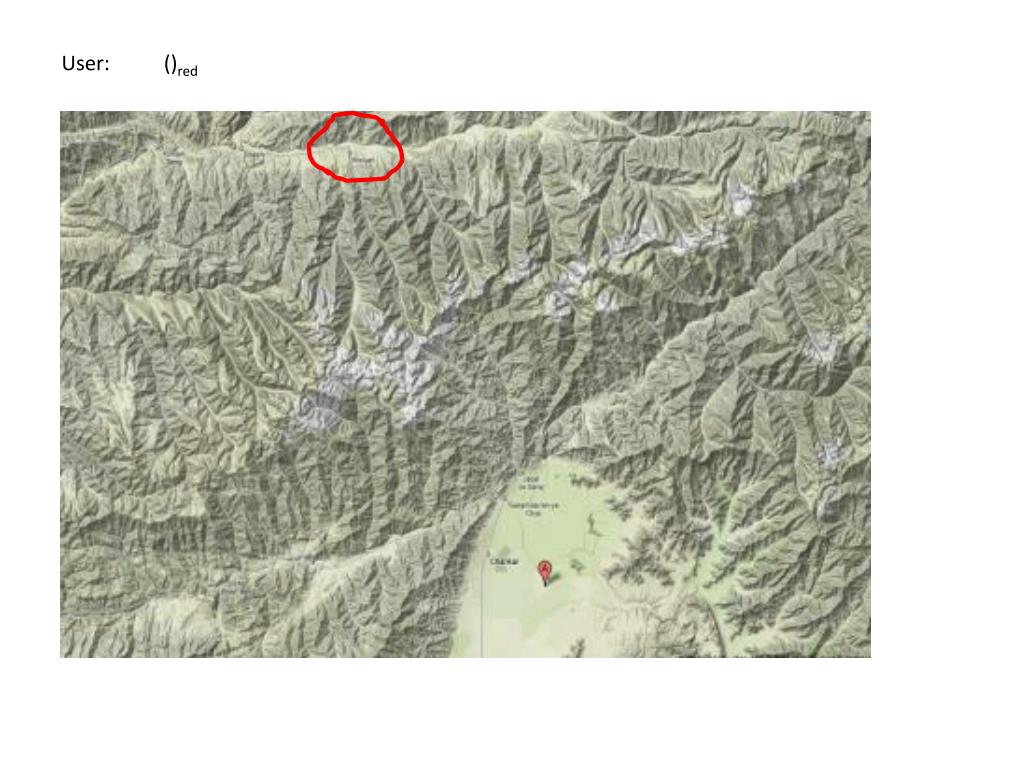

  17. User: ()red

  18. [mission-signal-disposition = streamed] & [LOS = false] => [mission-capability: Non-LOS Retransmission] [mission-target = (X,Y)] => [mission-target-terrain = mountain] => [LOS = false] [mission-target = (X,Y)] Application Stroke 1 = Red circle with (X,Y,R) MIDOS Processor Points: {X, Y, Time}, … Color: Red Ø Speech Recognizer Stroke Recognizer

  19. System: Please indicate the desired routes to and from the target area.

  20. [mission-ingress-route = ? ] [mission-egress-route = ?] Application Click and drag points on the routes to change them MIDOS Processor Text: Click and drag… Start Time: X Duration: Y Ø Speech Synthesizer Stroke Synthesizer

  21. User: (This way to the target)teal and (this way back)blue.

  22. [∆ ingress/egress > twistiness-limit] => [mission-capability: Precision Guidance] [mission-ingress-route = {X,Y}….] [mission-egress-route = {X,Y}….] Application Ø MIDOS Processor Ø Ø Speech Recognizer Stroke Recognizer

  23. System: I have loaded the following parameters, would you like to make any changes? Mission Type: Recon Mission Signal: Video Video Signal Resolution: 1024 x 768 Video Signal Disposition: Streamed Mission Ingress Route Mission Target Mission Egress Route

  24. [mission-signal-disposition = streamed] & [LOS = false] => [mission-capability: Non-LOS Retransmission] [mission-signal-disposition = streamed] [video-signal-resolution = 1024 x 768] => [mission-capability: Video Recon] [mission-signal-type = Video] [∆ ingress/egress > twistiness-limit] => [mission-capability: Precision Guidance] [mission-ingress-route = {X,Y}…] [mission-egress-route = {X,Y}…] [mission-target = (X,Y)] => [mission-target-terrain = mountain] => [LOS = false] [mission-target = (X,Y)] Application I have loaded the following parameters, would you like to make any changes MIDOS Processor Text: I have loaded… Start Time: X Duration: Y Ø Speech Synthesizer Stroke Synthesizer

  25. User: No Mission Type: Recon Mission Signal: Video Video Signal Resolution: 1024 x 768 Video Signal Disposition: Streamed Mission Ingress Route Mission Target Mission Egress Route

  26. System stores the parameters Application No MIDOS Processor Text: No Start Time: X Duration: Y Ø Speech Recognizer Stroke Recognizer

  27. System: Please indicate when you want the platform on target. July 26 July 27 July 28 July 29 July 30 July 31 August 1 Precipitation -each tick is 3 hours- Heavy Precipitation Cloudy Clear

  28. [mission-type = Recon] requires [mission-time-on-target = ?] Application Please indicate when you want the platform on target MIDOS Processor Text: Please indicate when you want… Start Time: X Duration: Y Ø Speech Synthesizer Stroke Synthesizer

  29. User: ()red July 26 July 27 July 28 July 29 July 30 July 31 August 1 Precipitation -each tick is 3 hours- Heavy Precipitation Cloudy Clear

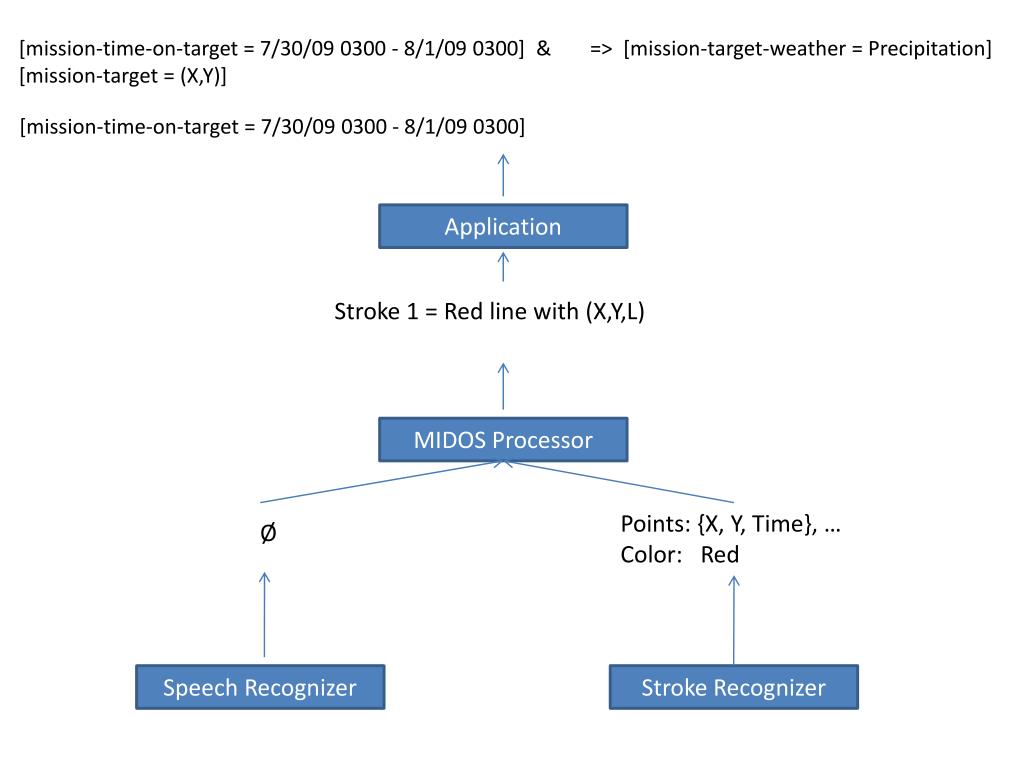

  30. [mission-time-on-target = 7/30/09 0300 - 8/1/09 0300] & [mission-target = (X,Y)] => [mission-target-weather = Precipitation] [mission-time-on-target = 7/30/09 0300 - 8/1/09 0300] Application Stroke 1 = Red line with (X,Y,L) MIDOS Processor Points: {X, Y, Time}, … Color: Red Ø Speech Recognizer Stroke Recognizer

  31. System: Both the Reaper and the Predator are acceptable platforms for the current mission. Which platform would your prefer to use? Recon Mission Predator Reaper Video Signal July 26 July 27 July 28 July 29 July 30 July 31 August 1 Signal Transmission

  32. [mission-capabilities = Video Recon, Precision Guidance, Non-LOS Retransmission => Weight = X, Power = Y, Memory = Z [mission-platform = ?] & [Predator: Weight > X, Power > Y, Memory > Z] & [Reaper: Weight > X, Power > Y, Memory > Z] & [Scan Eagle: Weight < X, Power < Y, Memory < Z] & [Avenger: Weight < X, Power < Y, Memory < Z] Application Both the Reaper and the Predator are acceptable platforms for the current mission. Which platform would your prefer to use? MIDOS Processor Text: Both the Reaper and the …. Start Time: X Duration: Y Ø Speech Synthesizer Stroke Synthesizer

  33. User: Let’s use the Predator Recon Mission Predator Reaper Video Signal July 26 July 27 July 28 July 29 July 30 July 31 August 1 Signal Transmission

  34. [mission-platform = Predator] Application Let’s use the Predator MIDOS Processor Text: Let’s use the Predator Start Time: X Duration: Y Ø Speech Recognizer Stroke Recognizer

  35. System: Why did you choose the Predator? Recon Mission Predator Reaper Video Signal July 26 July 27 July 28 July 29 July 30 July 31 August 1 Signal Transmission

  36. System wants to capture rationale behind platform selection Application Why did you choose the Predator MIDOS Processor Text: Why did you… Start Time: X Duration: Y Ø Speech Synthesizer Stroke Synthesizer

  37. User: The Predator is more reliable in precipitation. Recon Mission Predator Reaper Video Signal July 26 July 27 July 28 July 29 July 30 July 31 August 1 Signal Transmission

  38. If [mission-target-weather = Precipitation] => Predator is the preferred platform Application The Predator is more reliable in precipitation MIDOS Processor Text: The Predator… Start Time: X Duration: Y Ø Speech Recognizer Stroke Recognizer

  39. Precipitation System: In order to fulfill the given mission specifications, your platform will need these capabilities. Recon Mission Video Recon Non-LOS Retransmission Video Signal Precision Guidance Signal Transmission July 26 July 27 July 28 July 29 July 30 July 31 August 1

  40. [mission-capabilities: Precision Guidance, Video Recon, Non-LOS Retransmission] Application In order to fulfill the given mission specifications, your platform will need these capabilities MIDOS Processor Text: In order to fulfill the … Start Time: X Duration: Y Ø Speech Synthesizer Stroke Synthesizer

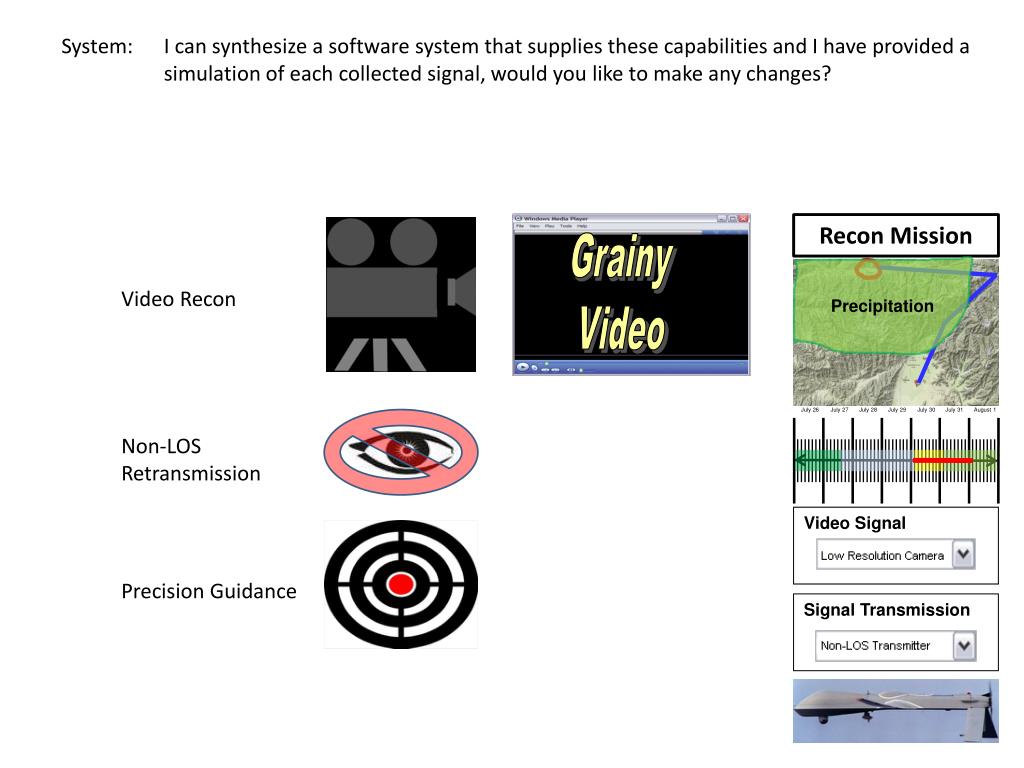

  41. Precipitation System: I can synthesize a software system that supplies these capabilities and I have provided a simulation of each collected signal, would you like to make any changes? Recon Mission Grainy Video Video Recon Non-LOS Retransmission Video Signal July 26 July 27 July 28 July 29 July 30 July 31 August 1 Precision Guidance Signal Transmission

  42. PAMS Precision Guidance, Video Recon, Non-LOS Retransmission Valid configuration for: Precision Guidance, Video Recon, Non-LOS Retransmission Application I can synthesize a software system that supplies these capabilities and I have provided a simulation of each collected signal, would you like to make any changes MIDOS Processor Text: I can synthesize… Start Time: X Duration: Y Ø Speech Synthesizer Stroke Synthesizer

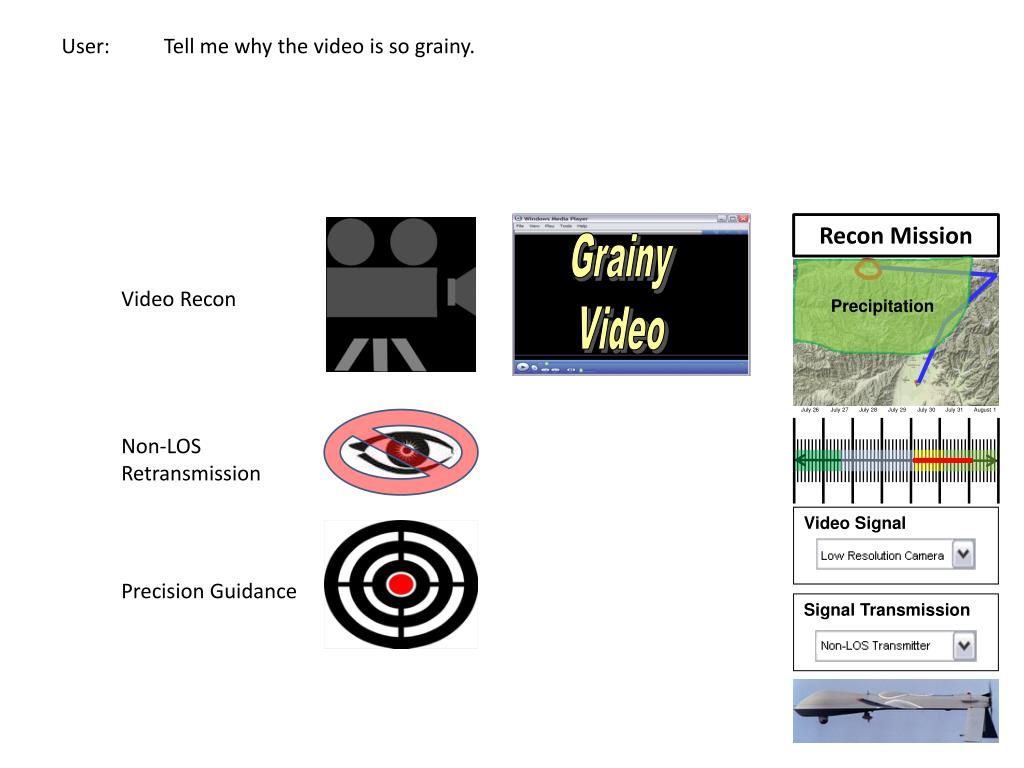

  43. Precipitation User: Tell me why the video is so grainy. Recon Mission Grainy Video Video Recon Non-LOS Retransmission Video Signal July 26 July 27 July 28 July 29 July 30 July 31 August 1 Precision Guidance Signal Transmission

  44. System looks up how it determined the quality of the video signal Application Tell me why the video is so grainy MIDOS Processor Text: Tell me… Start Time: X Duration: Y Ø Speech Recognizer Stroke Recognizer

  45. Precipitation Precipitation System: The weather forecast is for precipitation and the Video Recon capability does not perform well in those conditions. Recon Mission Video Signal Signal Transmission

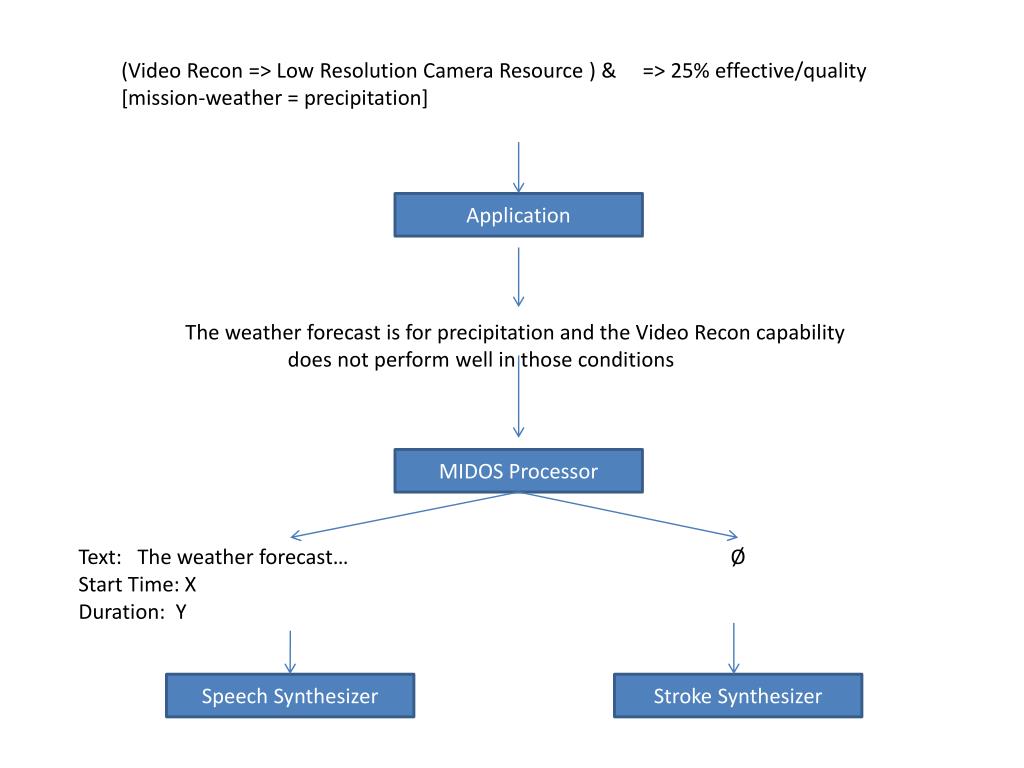

  46. (Video Recon => Low Resolution Camera Resource ) & [mission-weather = precipitation] => 25% effective/quality Application The weather forecast is for precipitation and the Video Recon capability does not perform well in those conditions MIDOS Processor Text: The weather forecast… Start Time: X Duration: Y Ø Speech Synthesizer Stroke Synthesizer

  47. Precipitation Precipitation User: Can I improve the video quality? Recon Mission Video Signal Signal Transmission

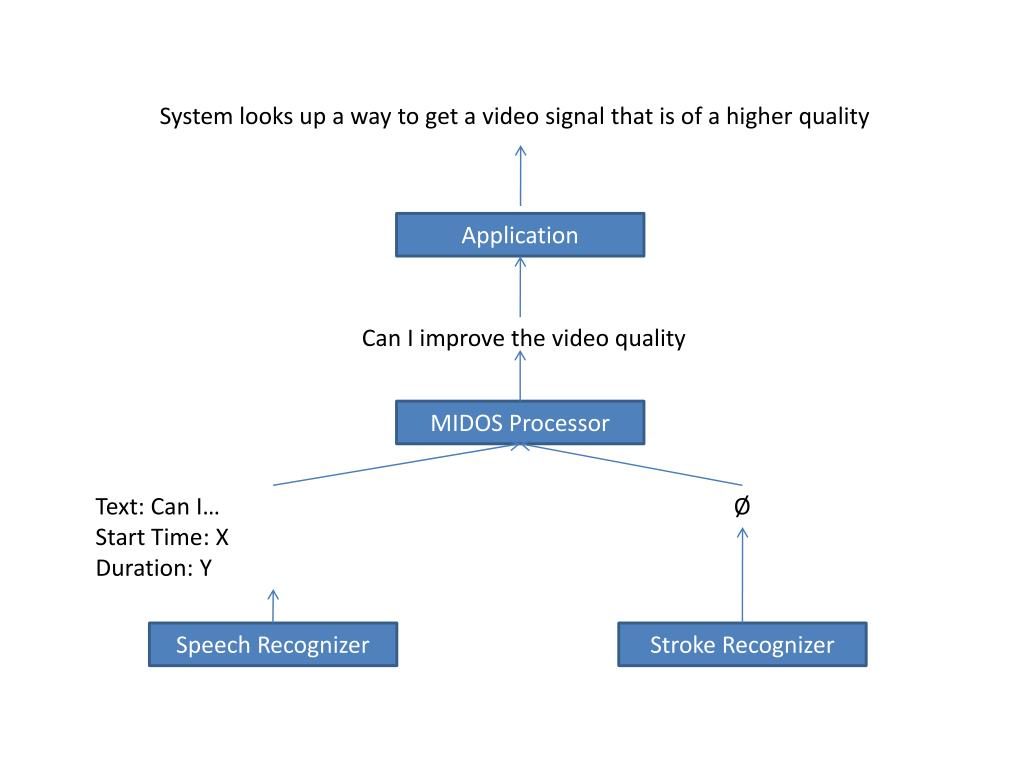

  48. System looks up a way to get a video signal that is of a higher quality Application Can I improve the video quality MIDOS Processor Text: Can I… Start Time: X Duration: Y Ø Speech Recognizer Stroke Recognizer

  49. Grainy Video Clear Video Precipitation System: You can improve the video quality by substituting HD Video Recon for Video Recon. Video Recon HD Video Recon Recon Mission Video Signal July 26 July 27 July 28 July 29 July 30 July 31 August 1 Signal Transmission

  50. (Video Recon => Low Resolution Camera Resource ) & [mission-weather = precipitation] => 25% effective/quality (HD Video Recon => High Resolution Camera Resource ) & [mission-weather = precipitation] => 50% effective/quality Application You can improve the video quality by substituting HD Video Recon for Video Recon in your AV Recon capability MIDOS Processor Text: You can… Start Time: X Duration: Y Ø Speech Synthesizer Stroke Synthesizer
