1. Isolation Furnace Transformer Prepared By : Paras Kumar Designation : Digital Marketing www.mpilindia.com

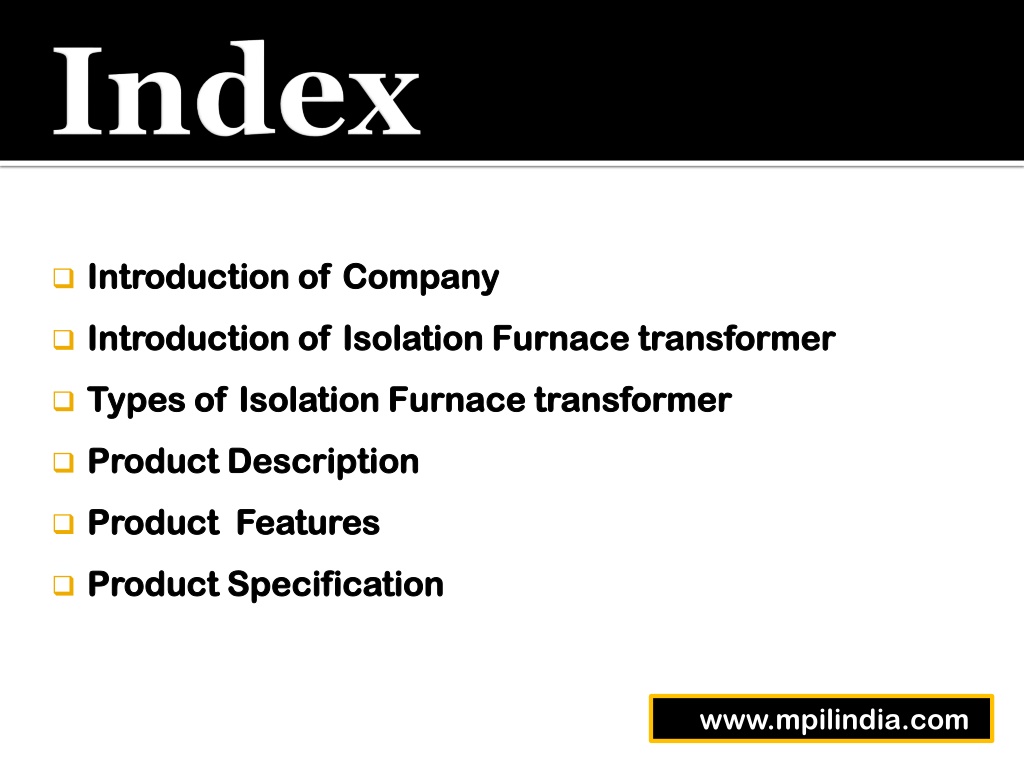

2. Index • Introduction of Company • Introduction of Isolation Furnace transformer • Types of Isolation Furnace transformer • Product Description • Product Features • Product Specification www.mpilindia.com

3. Introduction of Company MPIL INDIA established Since 2003. MPIL INDIA top manufacturers and exporter of electrical industrial Transformer in India. As a reputed name in the industry, we offer outstanding products. Our offer varied products to clients and these products are manufactured by using top grade materials. We never compromise on quality norms and we go out of the way to follow the industry set standards. In our manufacturing unit, we have installed top-class tools. We truly consider the varied demands of the industry and design products, accordingly. Also, all these products are available at industry leading prices. In 2003, Muskaan Power Infrastructure Ltd. was established to cater to the wide industry demands. We have been functioning with utmost sincerity since the company’s formation. We are based in the city of Ludhiana, Punjab (India).  We pack all products with top-class materials and offer outstanding logistical assistance. www.mpilindia.com

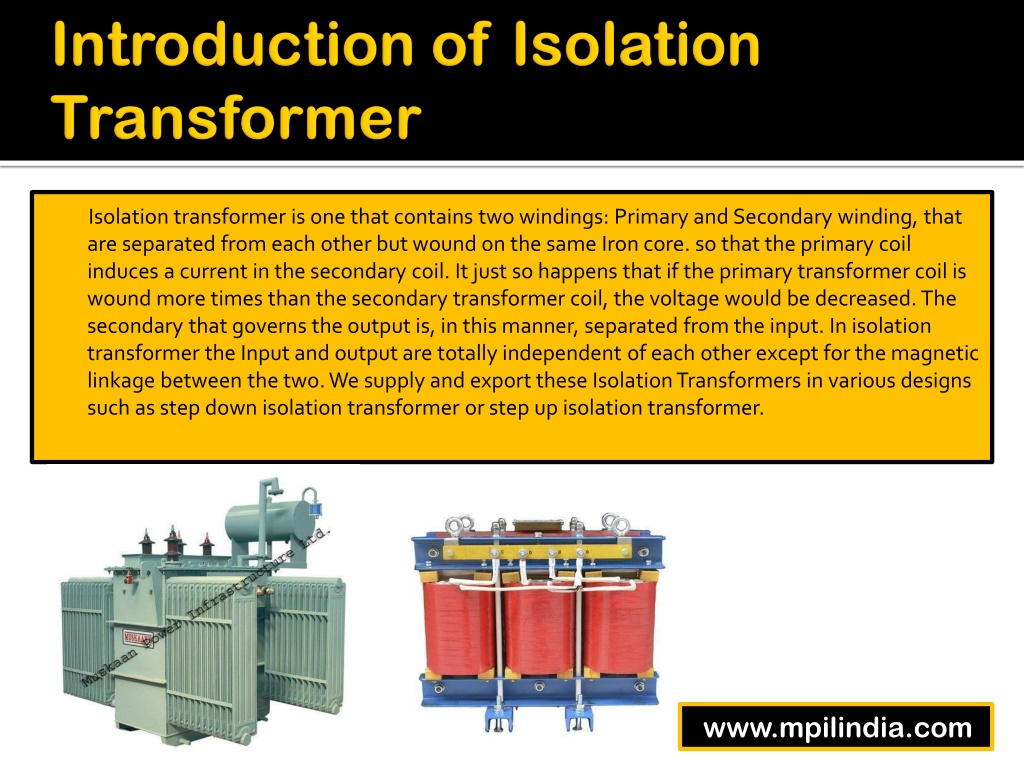

4. Introduction of Isolation Transformer Isolation transformer is one that contains two windings: Primary and Secondary winding, that are separated from each other but wound on the same Iron core. so that the primary coil induces a current in the secondary coil. It just so happens that if the primary transformer coil is wound more times than the secondary transformer coil, the voltage would be decreased. The secondary that governs the output is, in this manner, separated from the input. In isolation transformer the Input and output are totally independent of each other except for the magnetic linkage between the two. We supply and export these Isolation Transformers in various designs such as step down isolation transformer or step up isolation transformer. www.mpilindia.com

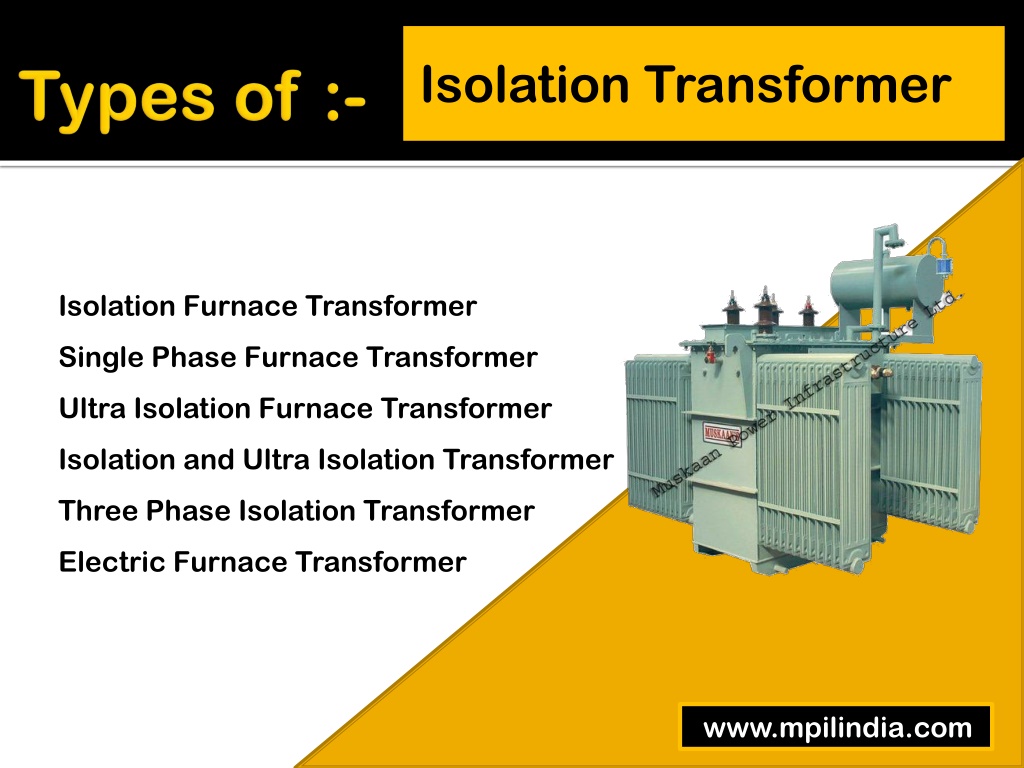

5. Types of :- Isolation Transformer Isolation Furnace Transformer Single Phase Furnace Transformer Ultra Isolation Furnace Transformer Isolation and Ultra Isolation Transformer Three Phase Isolation Transformer Electric Furnace Transformer www.mpilindia.com

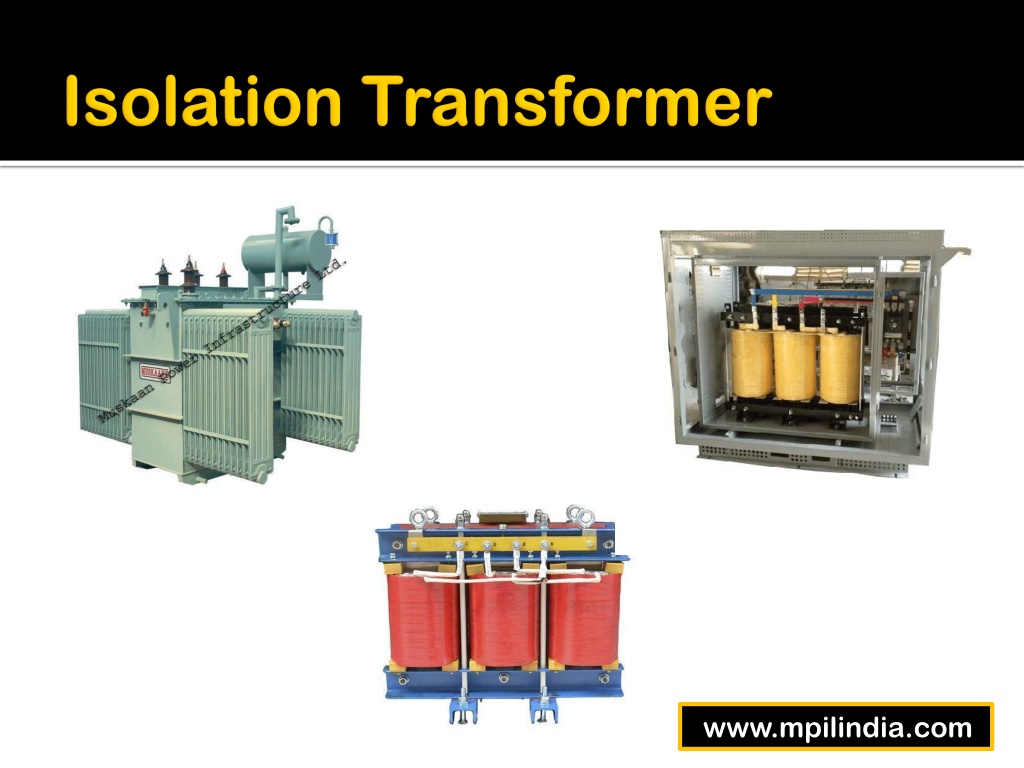

6. Isolation Transformer www.mpilindia.com

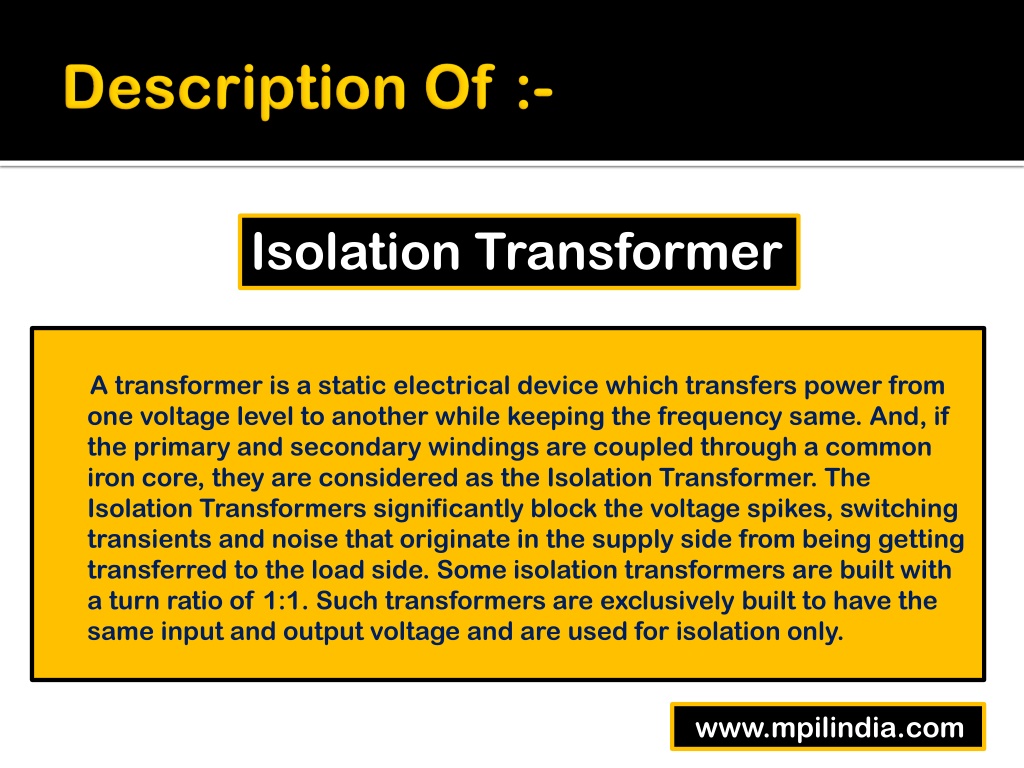

7. Description Of :- A transformer is a static electrical device which transfers power from one voltage level to another while keeping the frequency same. And, if the primary and secondary windings are coupled through a common iron core, they are considered as the Isolation Transformer. The Isolation Transformers significantly block the voltage spikes, switching transients and noise that originate in the supply side from being getting transferred to the load side. Some isolation transformers are built with a turn ratio of 1:1. Such transformers are exclusively built to have the same input and output voltage and are used for isolation only. Isolation Transformer www.mpilindia.com

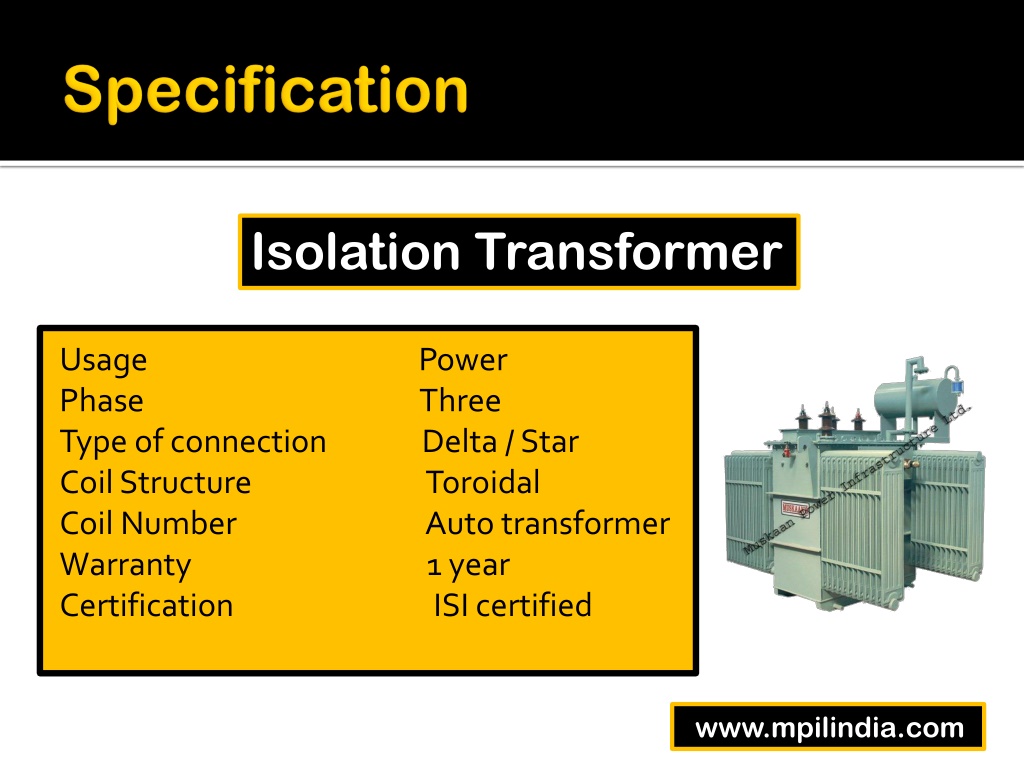

8. Specification Usage Power Phase Three Type of connection Delta / Star Coil Structure Toroidal Coil Number Auto transformer Warranty 1 year Certification ISI certified Isolation Transformer www.mpilindia.com

9. For Watching Contact us:- 9915703061 www.mpilindia.com info@mpilindia.com Follow us:-
