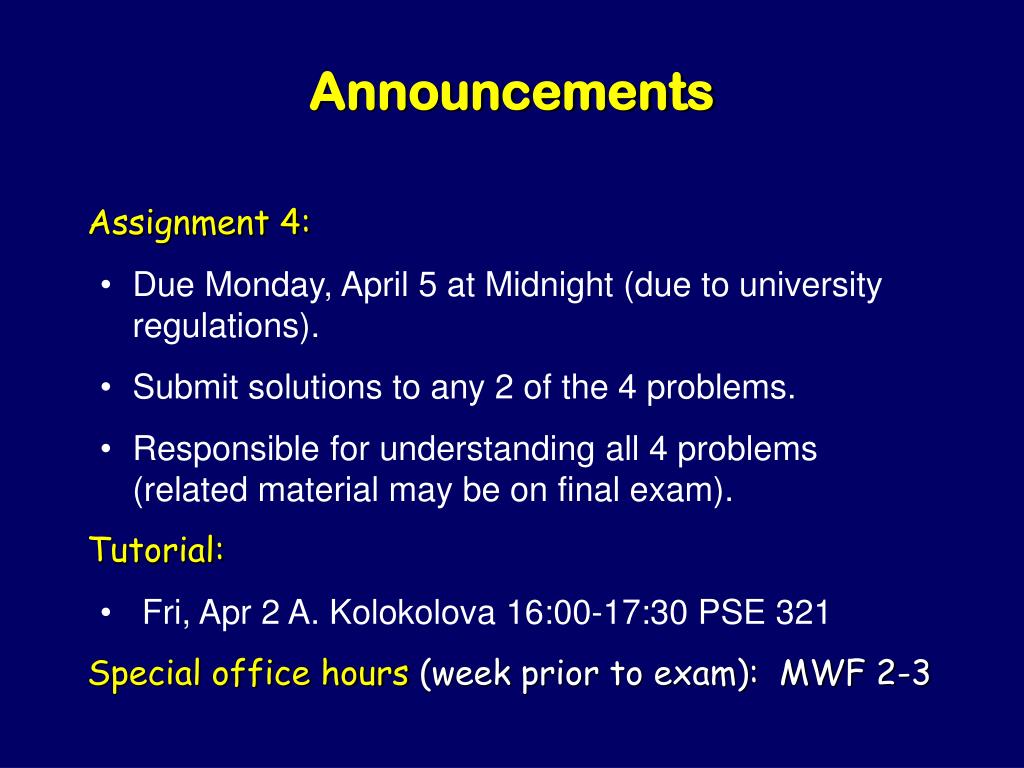

  1. Announcements • Assignment 4: • Due Monday, April 5 at Midnight (due to university regulations). • Submit solutions to any 2 of the 4 problems. • Responsible for understanding all 4 problems (related material may be on final exam). • Tutorial: • Fri, Apr 2 A. Kolokolova 16:00-17:30 PSE 321 • Special office hours (week prior to exam): MWF 2-3

  2. The Maximum Network Flow Problem

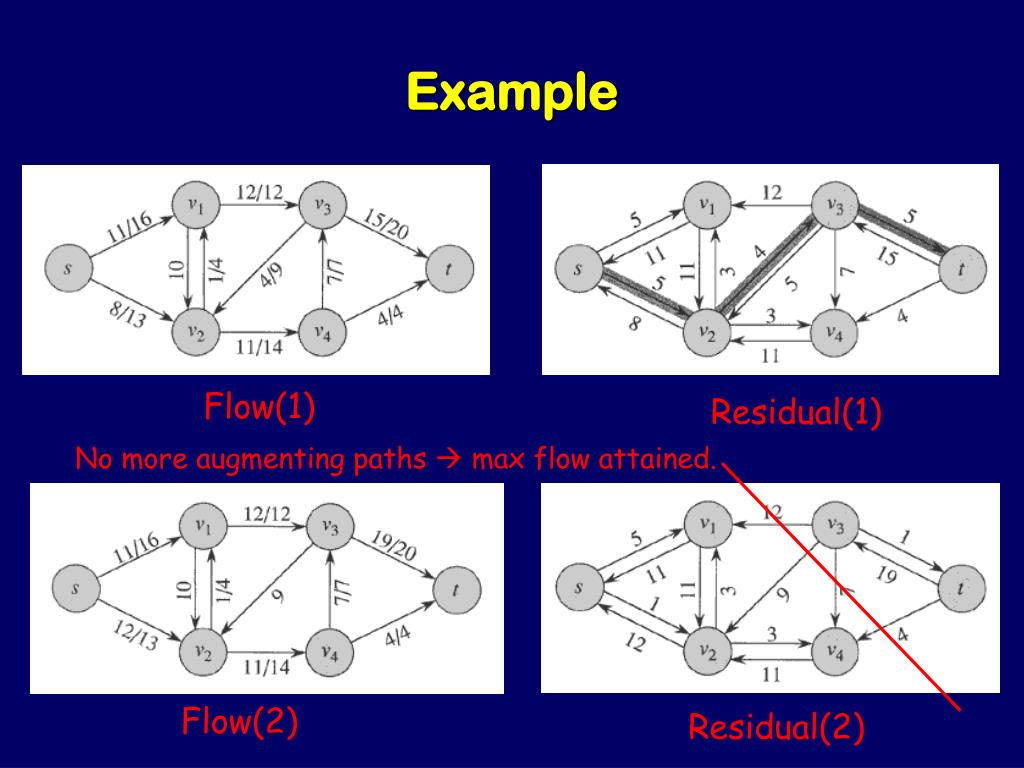

  3. Flow(1) Residual(1) No more augmenting paths  max flow attained. Flow(2) Residual(2) Example

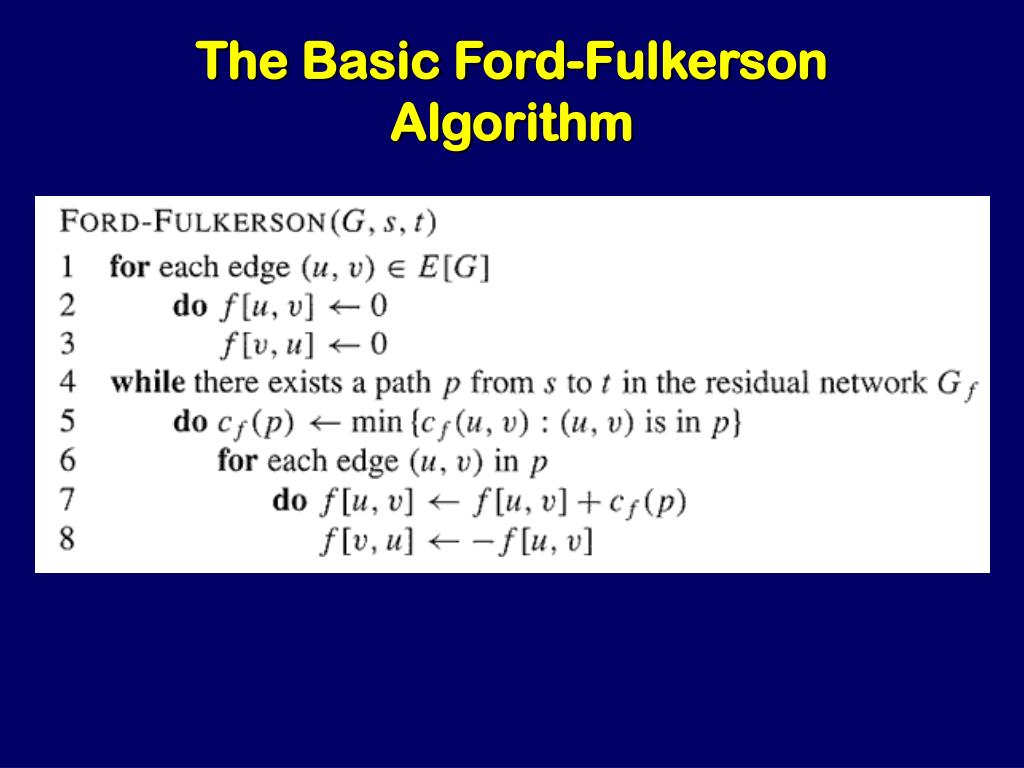

  4. The Basic Ford-Fulkerson Algorithm

  5. Multiple Sources Network • We have several sources and several targets. • Want to maximize the total flow from all sources to all targets. • Reduce to max-flow by creating a supersource and a supersink:

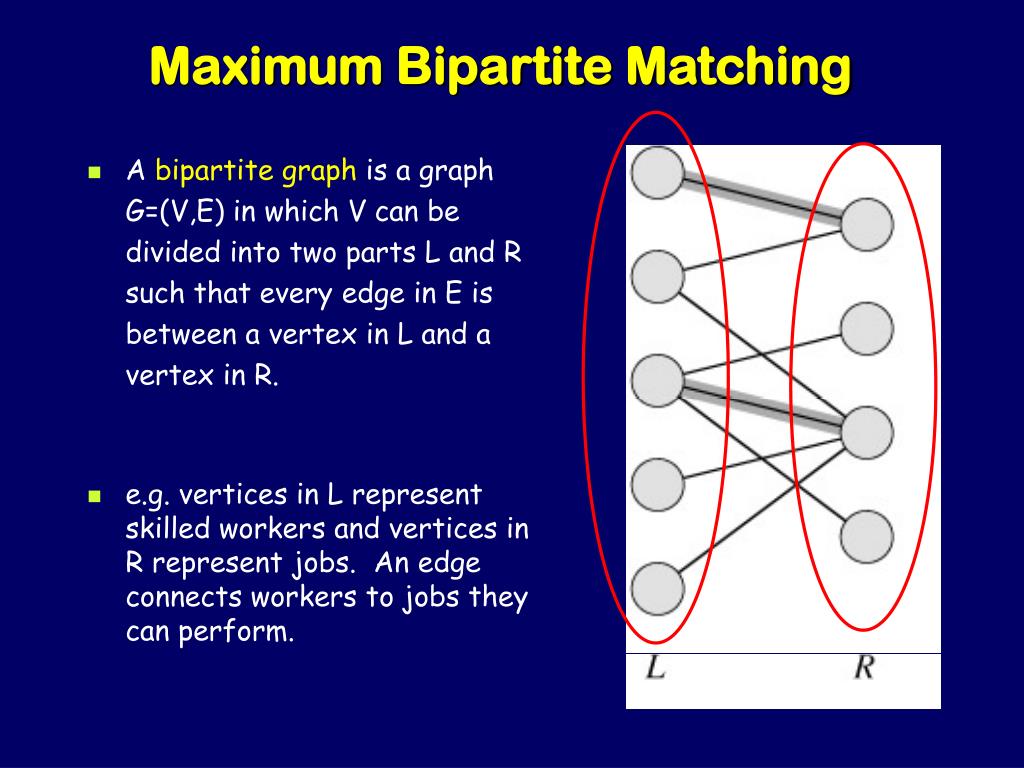

  6. Maximum Bipartite Matching • A bipartite graph is a graph G=(V,E) in which V can be divided into two parts L and R such that every edge in E is between a vertex in L and a vertex in R. • e.g. vertices in L represent skilled workers and vertices in R represent jobs. An edge connects workers to jobs they can perform.

  7. A matching in a graph is a subset M of E, such that for all vertices v in V, at most one edge of M is incident on v.

  8. A maximummatching is a matching of maximum cardinality. maximum not maximum

  9. A Maximum Matching • No matching of cardinality 4, because only one of v and u can be matched. • In the workers-jobs example a max-matching provides work for as many people as possible. v u

  10. Solving the Maximum Bipartite Matching Problem • Reduce an instance of the maximum bipartite matching problem on graph G to an instance of the max-flow problem on a corresponding flow network G’. • Solve using Ford-Fulkerson method.

  11. Corresponding Flow Network • To form the corresponding flow network G' of the bipartite graph G: • Add a source vertex s and edges from s to L. • Direct the edges in E from L to R. • Add a target vertex t and edges from R to t. • Assign a capacity of 1 to all edges. • Claim: max-flow in G’ corresponds to a max-bipartite-matching on G.

  12. min cut Example |M| = 3  max flow = 3

  13. Lemma (CLRS 26.10)

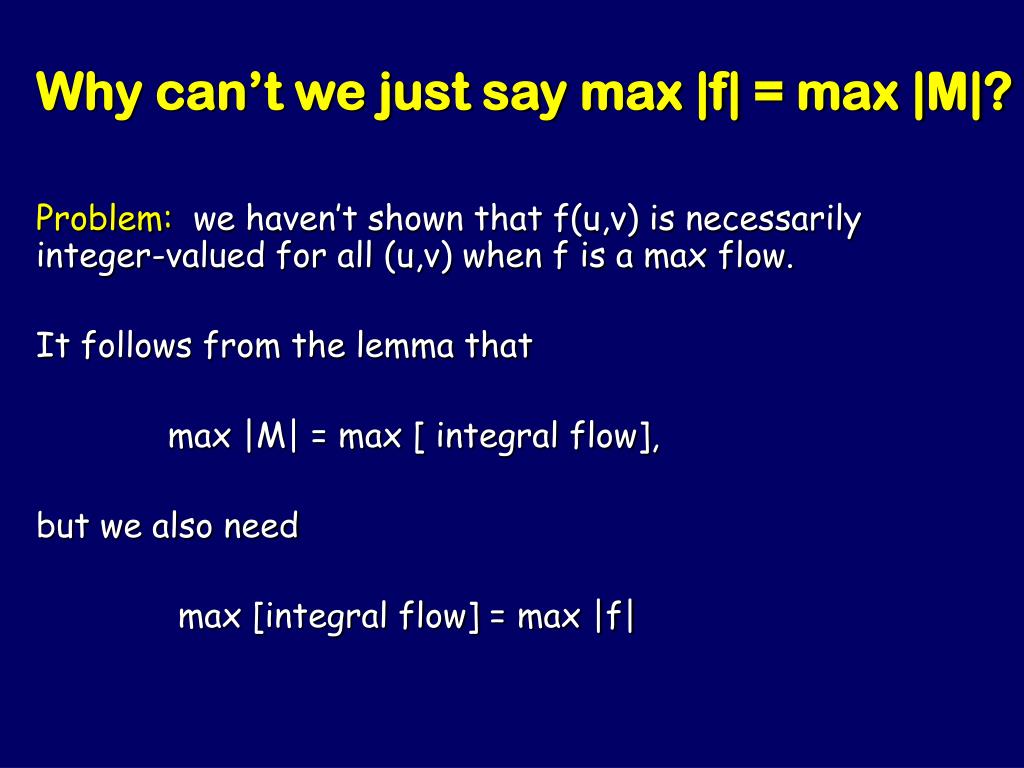

  14. Why can’t we just say max |f| = max |M|? • Problem: we haven’t shown that f(u,v) is necessarily integer-valued for all (u,v) when f is a max flow. • It follows from the lemma that • max |M| = max [ integral flow], • but we also need • max [integral flow] = max |f|

  15. Integrality Theorem (CLRS 26.11) • If the capacity function c takes on only integral values, then: • The maximum flow f produced by the Ford-Fulkerson method has the property that |f| is integer-valued. • For all vertices u and v the value f(u,v) of the flow is an integer. • So |M| = max [integral flow] = max |f|

  16. Conclusion • Network flow algorithms allow us to find the maximum bipartite matching fairly easily. • Similar techniques are applicable in other combinatorial design problems.

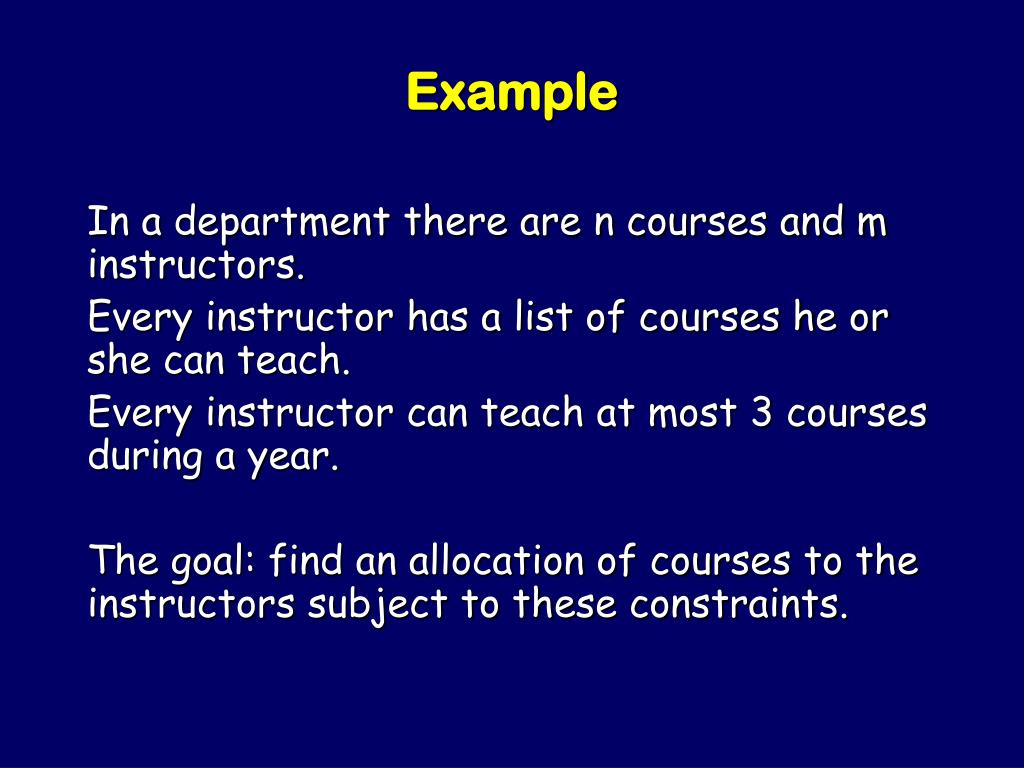

  17. Example • In a department there are n courses and m instructors. • Every instructor has a list of courses he or she can teach. • Every instructor can teach at most 3 courses during a year. • The goal: find an allocation of courses to the instructors subject to these constraints.

  18. Two solutions using network flows • Solution 1: convert the problem into a bipartite matching problem. • Solution 2: convert the problem into a flow problem directly.

  19. A more complicated problem • There are m student groups on campus. • We would like to form a committee with a president, 3 vice-pres, and 10 members at large. • The committee is formed by representatives of the groups. • Can add conditions: • The first group can be represented by at most 2 members, any other group can be represented by at most one. • The representative of the third group cannot be the president. • Reduce to network flows!

  20. Reducibility and NP-Completeness

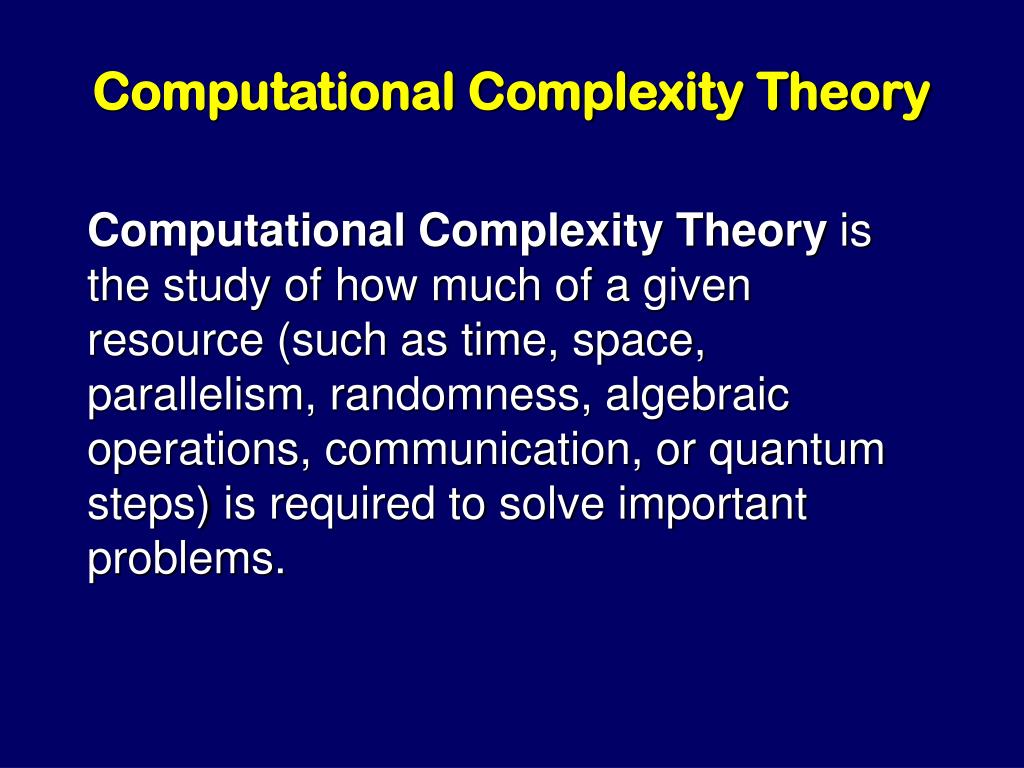

  21. Computational Complexity Theory • Computational Complexity Theory is the study of how much of a given resource (such as time, space, parallelism, randomness, algebraic operations, communication, or quantum steps) is required to solve important problems.

  22. WORST-CASE TIME • We say that a program takes worst-case time T(n), if some input of size n takes T(n) steps, and no input of size n takes longer. • The input size is measured in bits, unless stated otherwise.

  23. Some Examples

  24. A Graph Named “Gadget”

  25. K-COLORING • A k-coloring of a graph is an assignment of one color to each vertex such that: • No more than k colors are used • No two adjacent vertices receive the same color • A graph is called k-colorable iff it has a k-coloring

  26. No: it contains a triangle! A CRAYOLA Question! • Is Gadget 2-colorable?

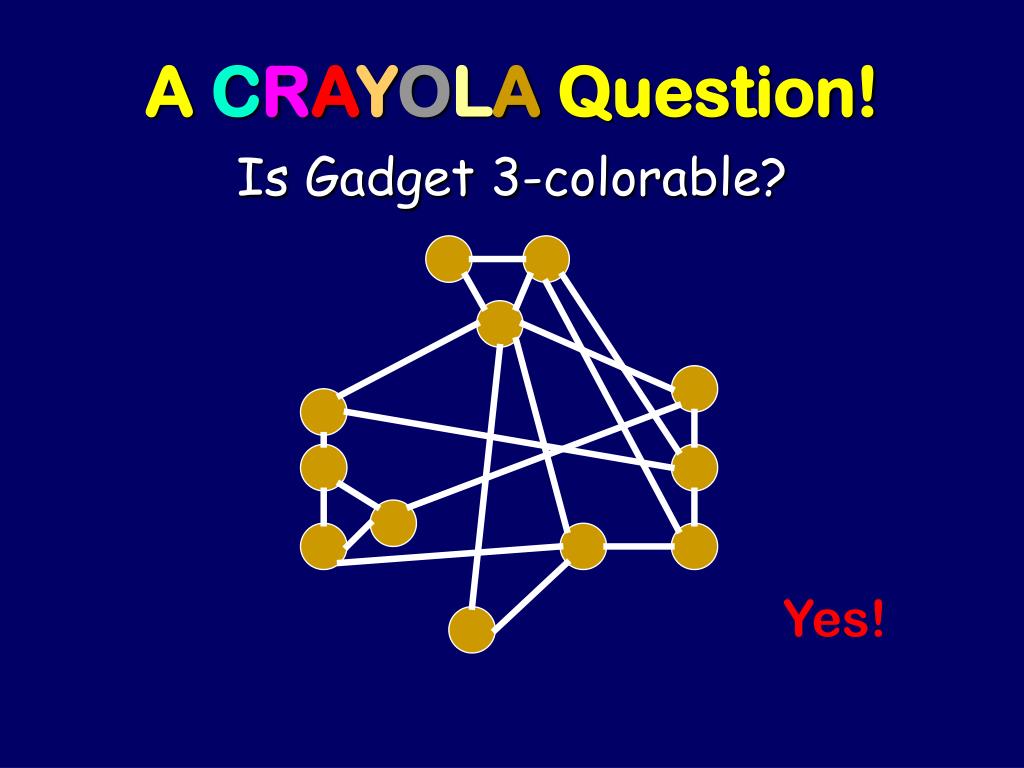

  27. A CRAYOLA Question! • Is Gadget 3-colorable? Yes!

  28. 2 CRAYOLAS • Given a graph G, what is a fast algorithm to decide if it can be 2-colored? PERSPIRATION; BRUTE FORCE: Try out all 2n ways of 2 coloring G.

  29. 3 CRAYOLAS • Given a graph G, what is a fast algorithm to decide if it can be 3-colored? ? ? ? ? ? ? ? ?

  30. Let’s consider a completely different problem.

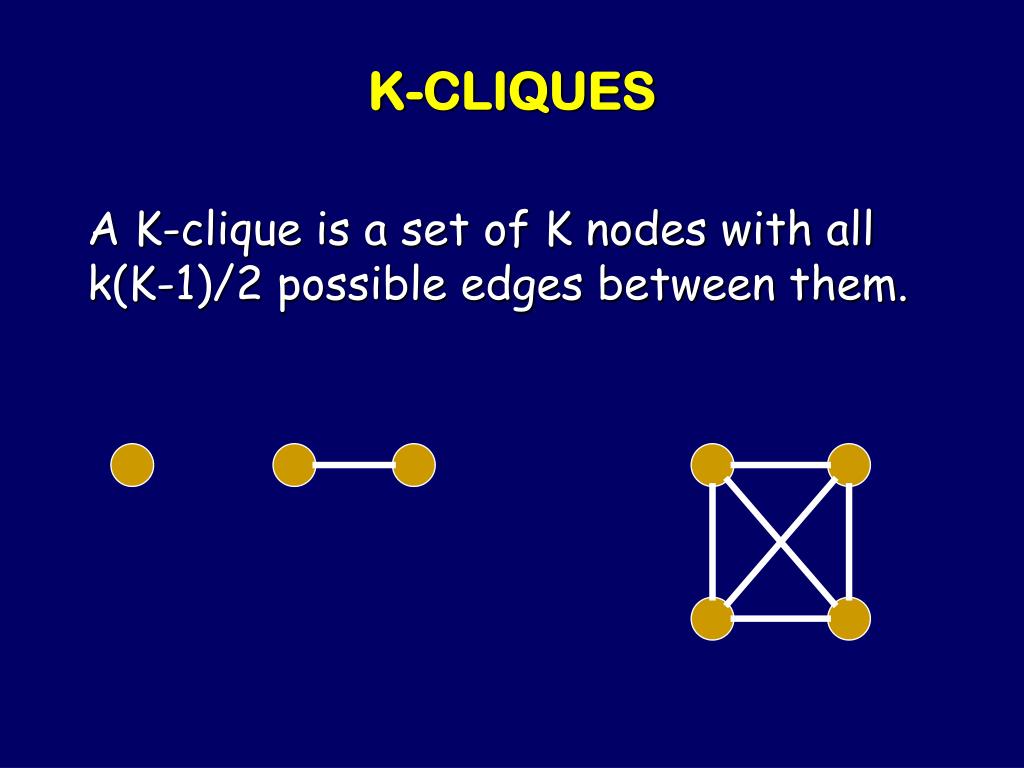

  31. K-CLIQUES • A K-clique is a set of K nodes with all k(K-1)/2 possible edges between them.

  32. This graph contains a 4-clique

  33. Given an n-node graph G and a number k, how can you decide if G contains a k-clique? • PERSPIRATION: Try out all n choose k possible locations for the k clique • INSPIRATION: ? ? ? ? ? ? ? ?

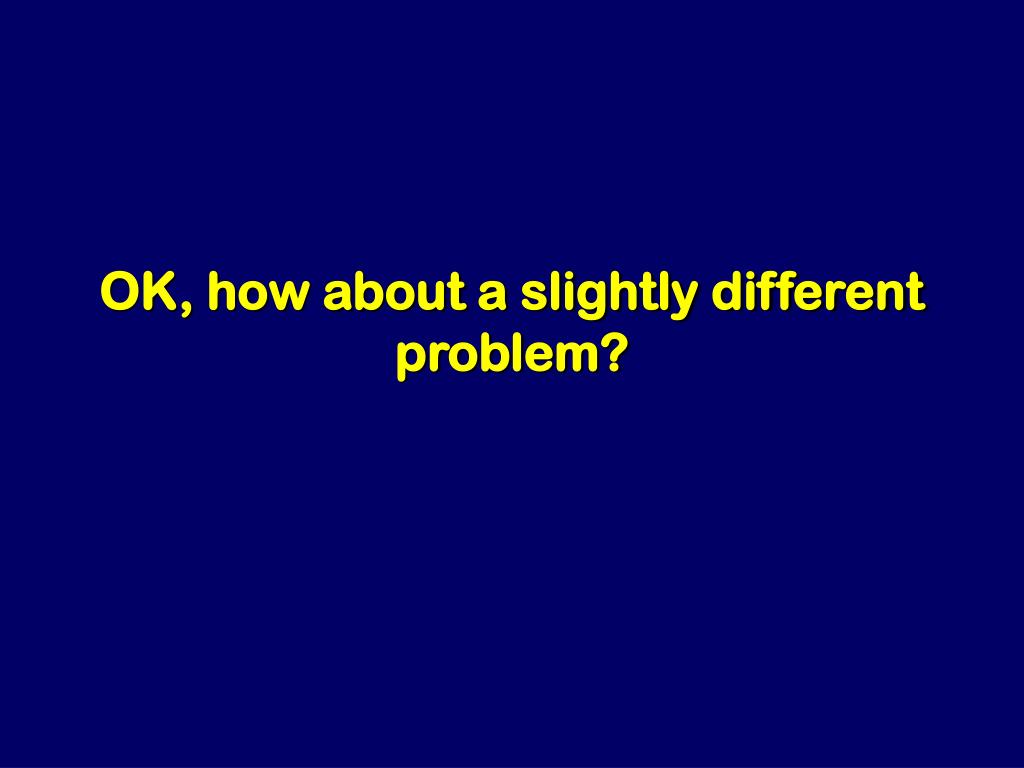

  34. OK, how about a slightly different problem?

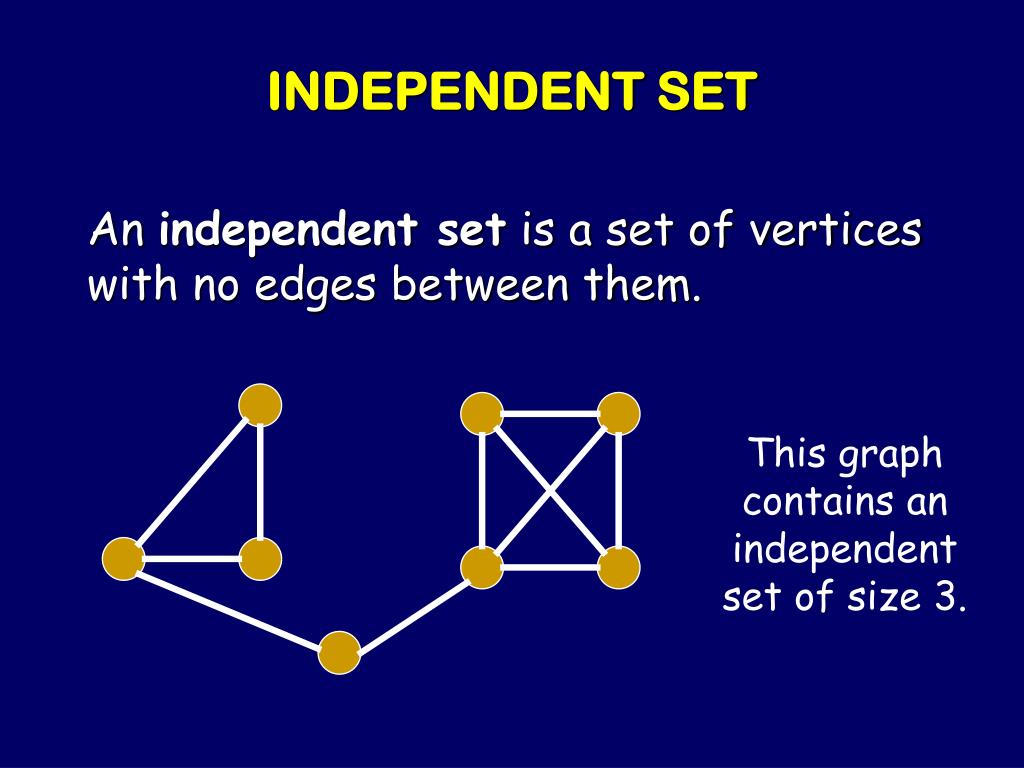

  35. INDEPENDENT SET • An independent set is a set of vertices with no edges between them. This graph contains an independent set of size 3.

  36. Given an n-node graph G and a number k, how can you decide if G contains an independent set of size k? • PERSPIRATION: Try out all n-choose-k possible locations for independent set • INSPIRATION: ? ? ? ? ? ? ? ?

  37. One more completely different problem

  38. Combinational Circuits • AND, OR, NOT, gates wired together with no feedback allowed (acyclic).

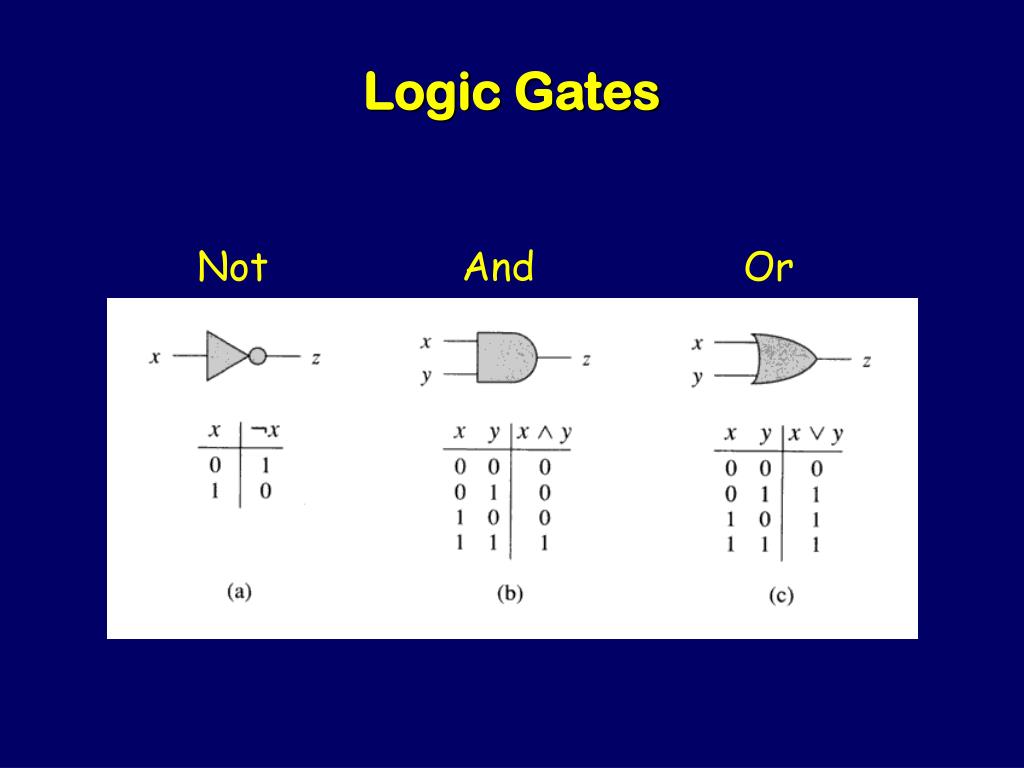

  39. Logic Gates Not And Or

  40. Example Circuit

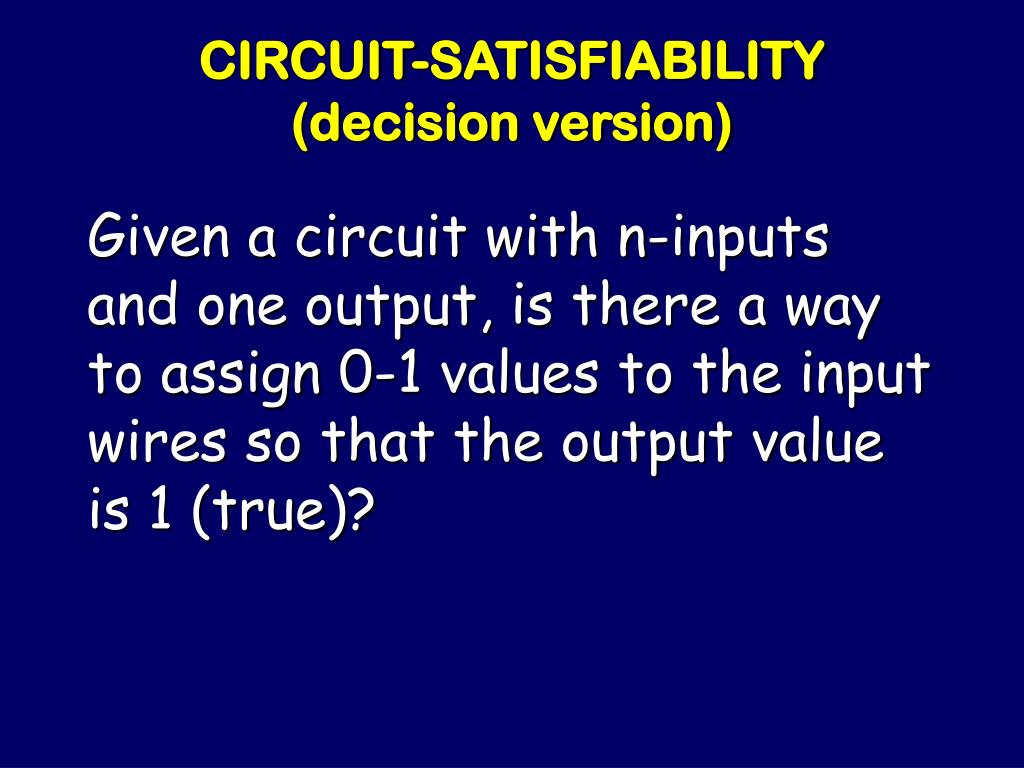

  41. CIRCUIT-SATISFIABILITY(decision version) • Given a circuit with n-inputs and one output, is there a way to assign 0-1 values to the input wires so that the output value is 1 (true)?

  42. CIRCUIT-SATISFIABILITY(search version) • Given a circuit with n-inputs and one output, find an assignment of 0-1 values to the input wires so that the output value is 1 (true), or determine that no such assignment exists.

  43. Satisfiable Circuit Example

  44. Satisfiable? No!

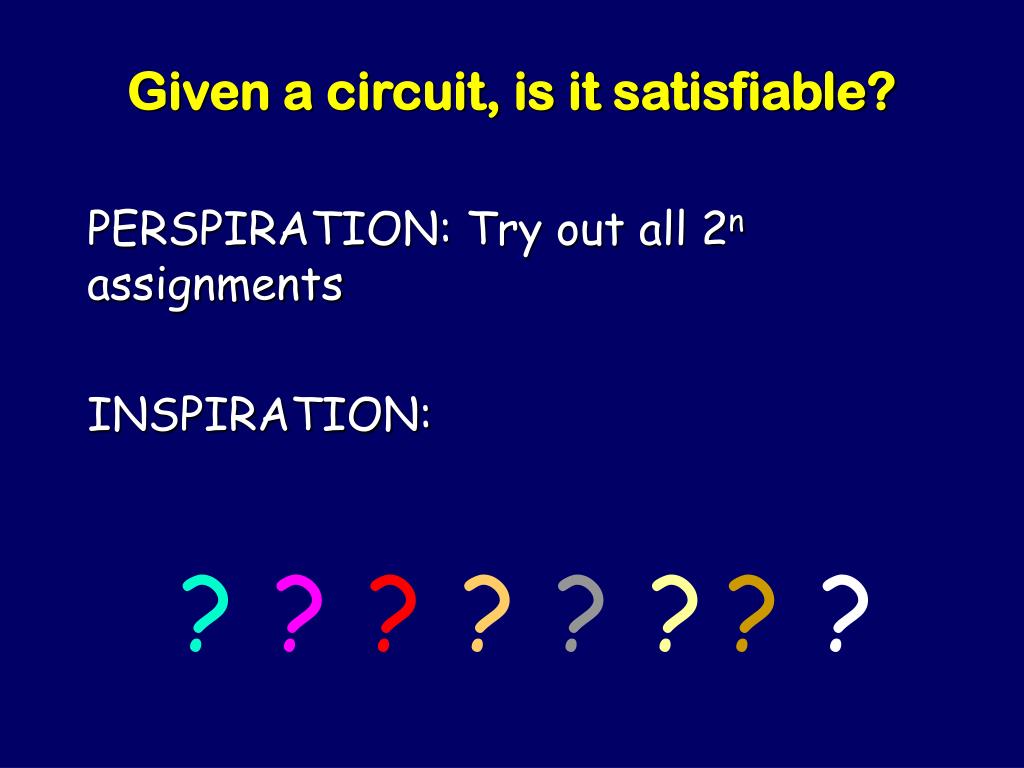

  45. Given a circuit, is it satisfiable? • PERSPIRATION: Try out all 2n assignments • INSPIRATION: ? ? ? ? ? ? ? ?

  46. We have seen 4 problems: coloring, clique, independent set, and circuit SAT. They all have a common story: A large space of possibilities only a tiny fraction of which satisfy the constraints. Brute force takes too long, and no feasible algorithm is known.

  47. CLIQUE / INDEPENDENT SET • Two problems that are cosmetically different, but substantially the same
