Practical Op-Amp Design: Schmitt Trigger and Precision Rectifier Analysis

DESCRIPTION

This document covers hands-on examples of op-amp design, focusing on Schmitt triggers and precision rectifiers. It includes transient analysis waveforms for a Schmitt trigger operating with specified supply voltages and specific saturation levels. The study explores important parameters such as gain, cut-off frequency, and input/output impedances of amplifiers. Additionally, it examines comparators and oscillators in context. The provided Microcap demo circuits (TC-OPAMP1, TC-OPAMP1A, TC-OPAMP2) illustrate real-world applications for better understanding.

1 / 10

Download Presentation

Practical Op-Amp Design: Schmitt Trigger and Precision Rectifier Analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

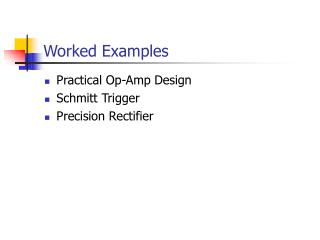

  1. Worked Examples • Practical Op-Amp Design • Schmitt Trigger • Precision Rectifier

  2. Transient analysis waveform (sine wave, 0V offset, 1.38V amplitude, 1kHz) a.c. analysis magnitude Independent voltage source Non-Inverting Amplifier

  3. Microcap Demo TC-OPAMP1.CIR

  4. Schmitt Trigger Design • Design an inverting Schmitt trigger with the following specification: • Supply voltages = +9V and 0V • Saturation levels = 0.5V and 8.5V • Switching thresholds = 6V and 7V

  5. (1) • (2) (2) – (1)

  6. Let

  7. Equivalent if: • Open-circuit voltages are the same • Short-circuit currents are the same

  8. Microcap Demo TC-OPAMP1A.CIR

  9. Precision Rectifier Microcap Demo TC-OPAMP2.CIR

  10. Summary: Examinable Op-Amp Stuff • Analysis • Amplifiers: gain, cut-off frequency, in/out impedances, full-power bandwidth etc. • Comparators: switching level(s), effects of slew rate etc., oscillator circuit, applications. • Precision Rectifier: waveforms, slew rate limiting etc. • Design • Amplifiers, comparators, oscillators.
